PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 5736
Location: Portland OR
PDXWesty is offline

PostPosted: Fri Feb 04, 2011 11:43 am    Post subject: Reply with quote

You can mount them together to avoid conflicts. If you mount them seperately, be careful of the position with the top closed. If you look at the first picture where I taped the strut on the outside, you can see that my ARG needed to be positioned further up and back to miss the strut, or farther forward to combine or miss the mounting location. Mock something like this up and you will see what I mean.
_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Fri Feb 04, 2011 12:06 pm    Post subject: Reply with quote

PDXWesty wrote:
You can mount them together to avoid conflicts. If you mount them seperately, be careful of the position with the top closed. If you look at the first picture where I taped the strut on the outside, you can see that my ARG needed to be positioned further up and back to miss the strut, or farther forward to combine or miss the mounting location. Mock something like this up and you will see what I mean.


Can't thank you enough for illustrating this issue. Measure twice, drill once (if you haven't got the ARGs mounted already, of course). Hopefully others can benefit too.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Fri Feb 04, 2011 12:23 pm    Post subject: Reply with quote

singler3360 wrote:
PDXWesty wrote:


Be very careful when you do this. I mounted my rack first, then the pop top shocks years later. I bent a pair of shocks because my rack mount bolts interferred with the shock travel. If you don't have them figured out ahead of time, you could be in trouble. My rear mount was almost back as far is you could put it too. You can see in the photos below what happened with the bent mount for the shock. When the top closed, the shock would hit one of the mount bolts. My rack was mounted long before pop top shocks were available so I didn't consider this in the placement of the rack. That's why now you can combine function of one of the bolts if you place your rack properly. I had to take out a bolt for the mount and seal the hole. Plan ahead!





Thanks for the caution and photos PDX. Are you saying that the ARG mounted to the rear of the strut mount is NOT a good idea then? I have drilled and mounted the poptop shocks but stopped short of drillling the second (or third) holes for the ARG until I can source longer strut mounts or get this relative positioning figured out.



The other thing to consider if your ARGs are already mounted and you're adding the shocks after the fact, you can also cut off the extra length of bolt on the backside. You can then avoid the problem PDX ran into (I did the same), as the shock will easily clear just the nut on the inside of the pop-top.
_________________
'85 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
semperFC
Samba Member


Joined: January 01, 2011
Posts: 18
Location: Detroit
semperFC is offline

PostPosted: Fri Feb 04, 2011 12:31 pm    Post subject: Reply with quote

Google sex bolts and mating screws. Perhaps my family tree may appear; disregard - carry on.

Back to the point. An elegant approach and stainless steel by all means.
Back to top
View user's profile Send private message Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Fri Feb 04, 2011 12:31 pm    Post subject: Reply with quote

1621 wrote:

The other thing to consider if your ARGs are already mounted and you're adding the shocks after the fact, you can also cut off the extra length of bolt on the backside. You can then avoid the problem PDX ran into (I did the same), as the shock will easily clear just the nut on the inside of the pop-top.


The ball mounts that came with the kit are too short so I would need to source some slightly longer ones. I can thread the nut but only barely. Are these readily available at a decent hardware or rv store?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Fri Feb 04, 2011 4:23 pm    Post subject: Reply with quote

singler3360 wrote:
1621 wrote:

The other thing to consider if your ARGs are already mounted and you're adding the shocks after the fact, you can also cut off the extra length of bolt on the backside. You can then avoid the problem PDX ran into (I did the same), as the shock will easily clear just the nut on the inside of the pop-top.


The ball mounts that came with the kit are too short so I would need to source some slightly longer ones. I can thread the nut but only barely. Are these readily available at a decent hardware or rv store?


I've never seen those in the hardware store.

I know you can get them from http://www.mcmaster.com. Not sure if they have the length you need.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Fri Feb 04, 2011 4:41 pm    Post subject: Reply with quote

Thanks PressLab. McMaster.com looks like it has just about everything.

JackBombay saw my questions and PM'd. He's sending some longer ball mounts. Great service = great business!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Fri Feb 04, 2011 9:22 pm    Post subject: Reply with quote

Kind of funny how this thread is going in circles, see below what I said in page 2 Smile

I used the forward upper bolthole of the rearmost ARG to install the poptop shocks, that way the ARG is placed as close to the rear of the van as possible. Check the mounting range of your cargo box to see how much you will be able to slide the cargo box towards the back

madspaniard wrote:
Another thing to watch for with dual purpose hole install. Make sure the gutter bolts don't stick out too much inside the poptop or they will interfere with the shock as it goes up and down. I had to get shorter bolts (ended up using dremel for custom bolt length) to avoid shock getting scratched by bolt ends. Less of a problem with Thule gutters (two bolts only).

_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stclair411
Samba Member


Joined: July 12, 2009
Posts: 222
Location: working on it
stclair411 is offline

PostPosted: Wed Jun 22, 2011 3:05 pm    Post subject: Reply with quote

I'm getting ready to ad ARGs to my Westy as well as Jack Bombay shoks. I'm going with a 3 bar set up, so I'd like to place the rear bracket as far back as possible. From the looks of it, if I wanted to attach the shock hardware to one of holes for the ARG, it would need to be kinda far forward. Anybody have picks of their van with this set up? I see the picture PDX added, and it seems pretty clear. Also, I have a bit of an odd situation. The PO mounted 1 pair of ARGs to the front. I think he had some sort of a strange bike rack going on with the front fork in the luggage rack. Anyway, I'll be working off of those when determining the placement of the 2 new ARGs, so I'm a bit limited. Here's a picture of my van so you'll know what I mean. Thanks!

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 Syncro Westy "June"
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Wed Jun 22, 2011 3:53 pm    Post subject: Reply with quote

stclair411 wrote:
I'm getting ready to ad ARGs to my Westy as well as Jack Bombay shoks. I'm going with a 3 bar set up, so I'd like to place the rear bracket as far back as possible. From the looks of it, if I wanted to attach the shock hardware to one of holes for the ARG, it would need to be kinda far forward. Anybody have pics of their van with this set up?


I did exactly this same thing just before Memorial Day Weekend. I will post pics. I was able to use the upper forward hole in the ARG to attach JB's shocks which helps locate the ARG as far back as possible, then I spaced the other two pairs of ARGs evenly towards the front.

The placement (height) of the ARGs is determined by the location of JB's shock bolt so there is a good chance that your existing ARG in the front won't be aligned with the other ones.
_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stclair411
Samba Member


Joined: July 12, 2009
Posts: 222
Location: working on it
stclair411 is offline

PostPosted: Wed Jun 22, 2011 4:14 pm    Post subject: Reply with quote

"The placement (height) of the ARGs is determined by the location of JB's shock bolt so there is a good chance that your existing ARG in the front won't be aligned with the other ones."

Yeah, I figure the odds of that front ARG being at the right height are pretty slim. I'll have to either move it, and fill 4 holes, or not share an ARG mounting hole with the shocks and drill 1 extra hole. Something to ponder.
_________________
1987 Syncro Westy "June"
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bjrogers86auto
Samba Member


Joined: March 26, 2009
Posts: 1347
Location: Halifax, N.S.
bjrogers86auto is offline

PostPosted: Wed Jun 22, 2011 4:16 pm    Post subject: racks Reply with quote

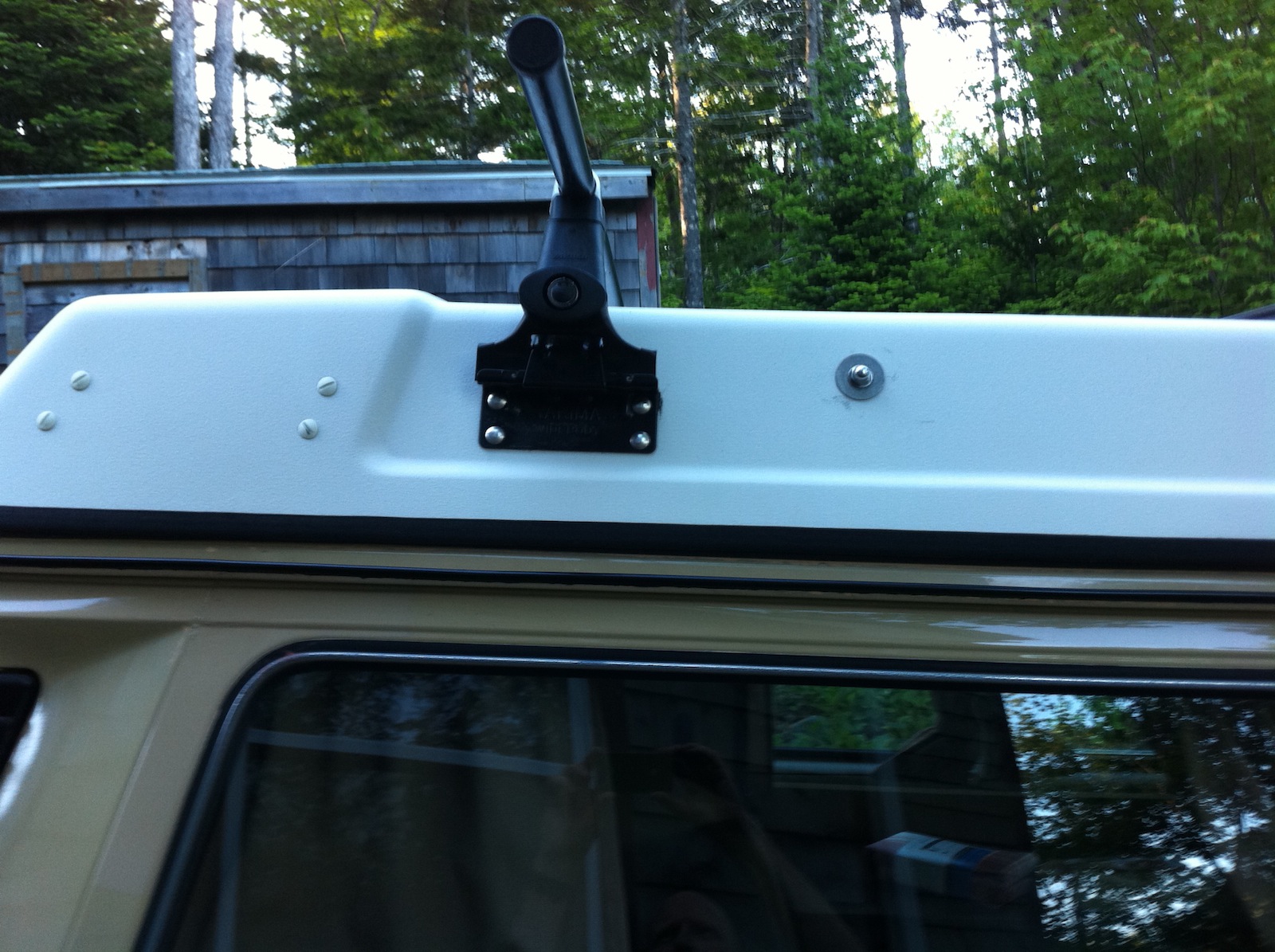

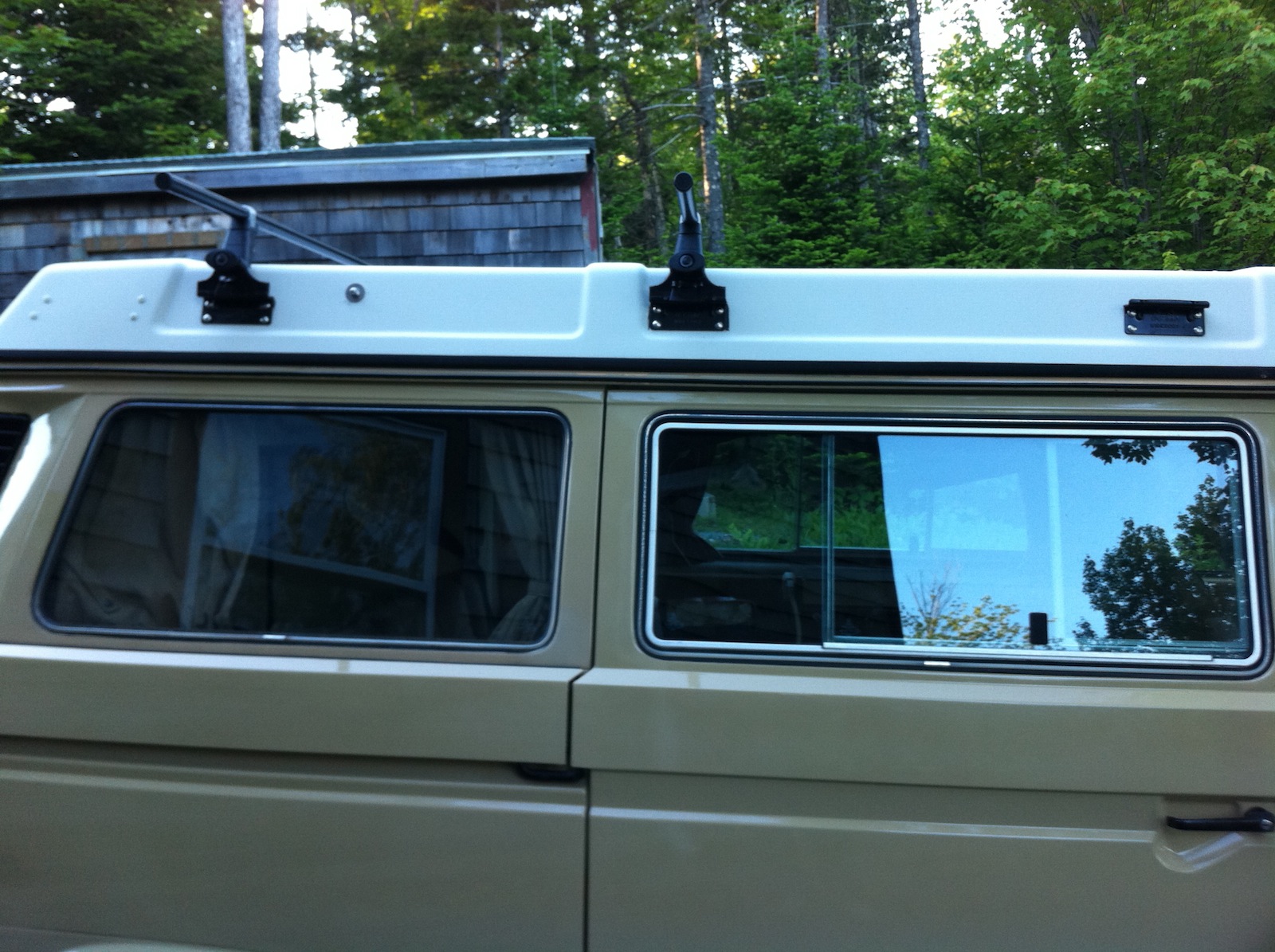

Just thought I'd add my set up for your consideration...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I installed my racks last year before I bought the shocks from JB. I had cut all the bolts for the ARG's when I installed them to be flush with the nuts. When I installed the shocks my only concern was clearance for the bolts. No worries...it works fine.

The funny thing is...now that I'm all set up with racks...I don't see myself using them very much. They are too high for ease of use. Down the road when the kids are not interested, they will be great for two kayaks. I could have held off for a few years. I set up my little trailer with the roof box and yak racks. It's easier to load/unload.

Image may have been reduced in size. Click image to view fullscreen.


(soon to be deleted for lack of VW content)

Brian.
_________________
86 Vanagon GL Westfalia 2.1
18 Nissan Frontier Pro 4X
19 Honda Civic Hatchback

A little rudeness and disrespect can elevate a meaningless interaction to a battle of wills and add drama to an otherwise dull day. Calvin and Hobbes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stclair411
Samba Member


Joined: July 12, 2009
Posts: 222
Location: working on it
stclair411 is offline

PostPosted: Wed Jun 22, 2011 4:25 pm    Post subject: Reply with quote

Thanks man. I think your set up is what I will end up with. Looks fine.
_________________
1987 Syncro Westy "June"
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
PDXWesty
Samba Member


Joined: April 11, 2006
Posts: 5736
Location: Portland OR
PDXWesty is offline

PostPosted: Wed Jun 22, 2011 4:46 pm    Post subject: Reply with quote

The key is trimming your rack mounting bolts. I did not and that's where I had the prolem. If you trim your bolts down, there shouldn't be a conflict with the shocks.
_________________
89 Westy 2.1 Auto
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Wed Jun 22, 2011 5:01 pm    Post subject: Reply with quote

PDXWesty wrote:
The key is trimming your rack mounting bolts. I did not and that's where I had the prolem. If you trim your bolts down, there shouldn't be a conflict with the shocks.


yes, I had to do the same
_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madspaniard
Samba Member


Joined: August 18, 2008
Posts: 3795
Location: Alameda, CA
madspaniard is offline

PostPosted: Wed Jun 22, 2011 11:29 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
1991 Westy auto w/ Peloquin TBD

"The only difference between me and a madman is that I'm not mad” - Salvador Dali
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stclair411
Samba Member


Joined: July 12, 2009
Posts: 222
Location: working on it
stclair411 is offline

PostPosted: Thu Jun 23, 2011 1:01 am    Post subject: Reply with quote

Thanks man. That's what I was looking for. I think I will have to mount my rear ARG further back to get the correct placement. Unless I want to remove/replace the front, or space them too closely. Funny how one thing can effect so many others. Not that the PO's placement of that front ARG was wrong, just makes the decision for me. I'll be sure to trim the bolt ends so that the Bombay strut will have clearance. Thanks for the advice guys.
_________________
1987 Syncro Westy "June"
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
singler3360
Samba Member


Joined: February 25, 2009
Posts: 1191
Location: Corvallis, Oregon
singler3360 is offline

PostPosted: Sun Jun 26, 2011 8:27 am    Post subject: Reply with quote

stclair411 wrote:
"The placement (height) of the ARGs is determined by the location of JB's shock bolt so there is a good chance that your existing ARG in the front won't be aligned with the other ones."

Yeah, I figure the odds of that front ARG being at the right height are pretty slim. I'll have to either move it, and fill 4 holes, or not share an ARG mounting hole with the shocks and drill 1 extra hole. Something to ponder.


I personally don't think the dedicated bolt for the JB strut looks all that bad, especially compared to 4 patched holes if you repositioned your existing ARG.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MacDude
Samba Member


Joined: July 26, 2014
Posts: 93
Location: Bonny Doon
MacDude is offline

PostPosted: Tue Sep 09, 2014 2:59 pm    Post subject: Reply with quote

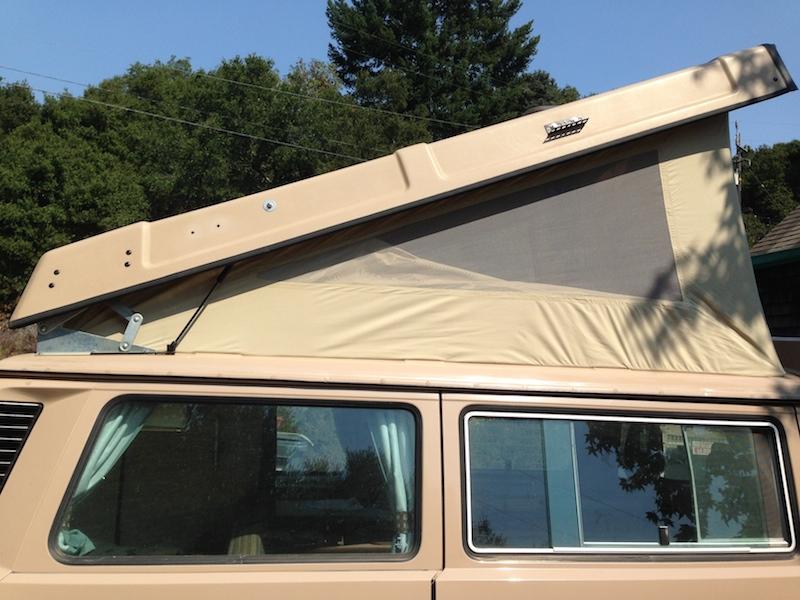

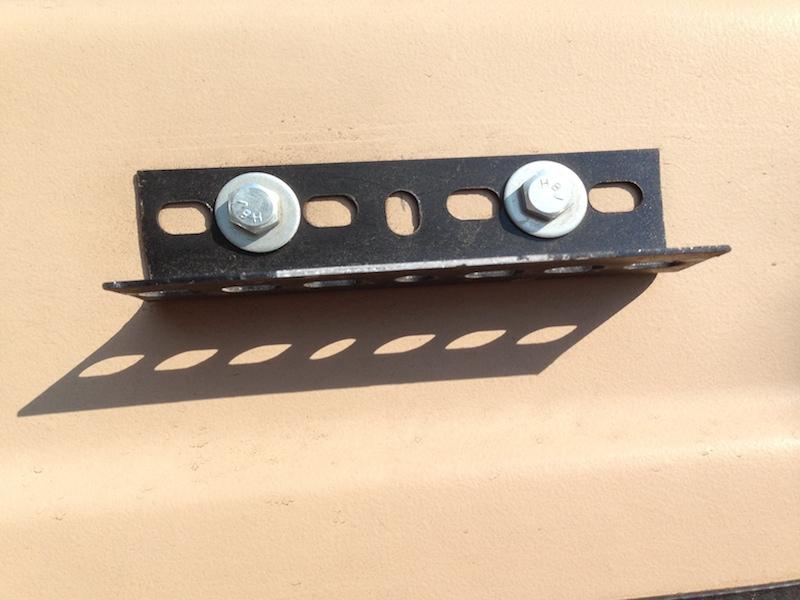

Right, so the PO installed Yakima Racks and installed fake ARGs. Really it's just some angle iron and it looks bad, but worked.

So then I install the pop top shocks and have remove the rear set of them. Also the box I have will only span 36", so I'd have to move at least one pair any way...

I'm tempted to complete replace them with Yakima ARGs. Put one back behind the strut (possibly using the rearmost existing hole) and then move the middle one to be centered 36" foreword of that (after the bump). That way I have an option of adding a third up front later on.

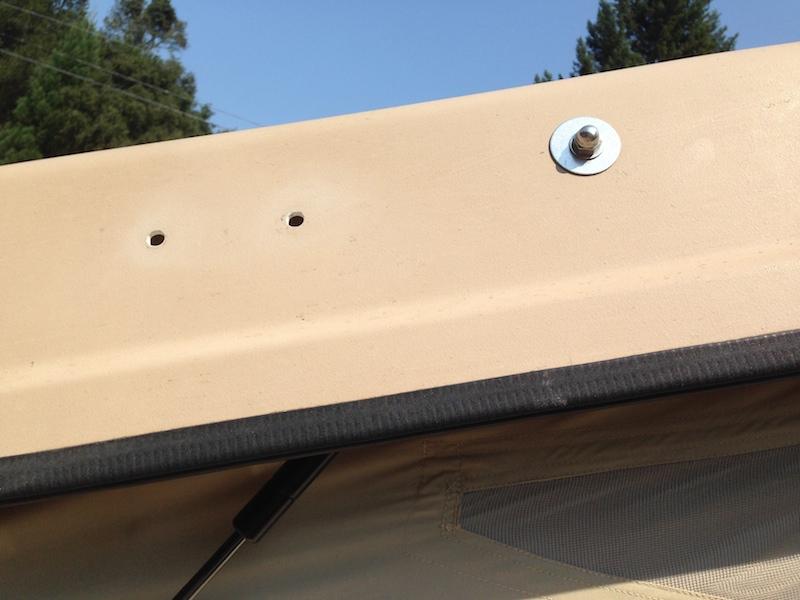

Which leaves the holes. Crying or Very sad

I saw a recommendation for Solarez Ding Repair. Is that enough? Or do I need something stronger.

Pictures:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Anyone see problems with the plan?
_________________
'84 Wolfsburg Westfalia
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
kauaikamper
Samba Member


Joined: August 27, 2012
Posts: 14
Location: Kauai
kauaikamper is offline

PostPosted: Tue Sep 09, 2014 4:08 pm    Post subject: Reply with quote

Quote:
I saw a recommendation for Solarez Ding Repair. Is that enough? Or do I need something stronger.


I've used the solar rez to fix two holes in my pop top.

First I used masking tape to back the hole from the inside.

I cut small circles of fiberglass mat to fill in with some structure (I had a larger hole to fill), and then just added a layer of mat and rez while pushing the van in and out of the sun. Sand flush and you're done. My holes were on the top and I plan on painting the top soon so the look was less important then a smooth finish ready for paint.

On a vertical surface I would use Scotch tape, seal the bottom and sides. "Fill"' the pocket with solarrez a little proud and leave it in the sun for 10 minutes. The stuff is magic.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5  Next
Page 4 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
