PostPosted: Fri Aug 08, 2014 9:03 am    Post subject: Reply with quote

Thanks Christopher! Sorry I moved my post from the Ultimate Wheel part 2 thread because I thought it was more suited the original... I was in the wrong thread initially.

My Vanagon is sitting 70mm AVO's so if the fronts are going to be sticking out that far there will probably too much rubbing on the outer wheel arch lip so probably not a good idea then? My 17's sit just inside the lip so it might be better just to stick with 17's.

Thanks for your help!
_________________
- 1989 Vanagon GL
- 1985 Vanagon GL (R.I.P.)
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
1971BugGuy
Samba Member


Joined: October 16, 2004
Posts: 415
Location: Ontario, CANADA
1971BugGuy is offline

PostPosted: Tue Aug 12, 2014 8:57 pm    Post subject: Mercedes E320 Reply with quote

I bought these wheels and was told they were from a Mercedes CLK but after probing a little deeper it seems that they are from a 2002 Mercedes E320. Anyhow, with a little help and hardware from Christopher Schimke they fit nicely with 215-65-16 tires wrapped around them. No wheel spacers necessary.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
[/img]
_________________
Only a fool or a child would judge a project before it reaches its completion.


1971 Super Beetle
1986 Vanagon Westfalia Weekender
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
dutchcamper73
Samba Member


Joined: July 30, 2014
Posts: 8
Location: redwood city
dutchcamper73 is offline

PostPosted: Fri Aug 22, 2014 8:17 am    Post subject: Reply with quote

hi all, a little overwhelmed with all the info on this subject and not sure what i need but came across this and was hoping it would be a straight fit on my 86 Weekendder:

Selling the rims from my 2007 rabbit
These will fit VW Rabbit, Golf, Jetta 2005 and newer
And VW Passat and Audi 2001 and newer.
Name: Magny Cours
Size: 16" X 6.5"
Bolt Pattern: 5 X 112mm
Offset: 50mm

Thanks for any and all feedback!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 4746
Location: PNW
Christopher Schimke is offline

PostPosted: Tue Aug 26, 2014 8:10 am    Post subject: Reply with quote

dutchcamper73 wrote:
hi all, a little overwhelmed with all the info on this subject and not sure what i need but came across this and was hoping it would be a straight fit on my 86 Weekendder:

Selling the rims from my 2007 rabbit
These will fit VW Rabbit, Golf, Jetta 2005 and newer
And VW Passat and Audi 2001 and newer.
Name: Magny Cours
Size: 16" X 6.5"
Bolt Pattern: 5 X 112mm
Offset: 50mm

Thanks for any and all feedback!


Sorry for the delay here! You can certainly use those wheels, but you would need to have the centerbores machined out to 66.56mm and you would need spacers front and rear, new front lug bolts, new rear wheel studs and new rear lug nuts.

One other issue that may arise is that you may have difficulty mounting the center caps due to interference with the front grease caps. You would just have to try it and see.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
dutchcamper73
Samba Member


Joined: July 30, 2014
Posts: 8
Location: redwood city
dutchcamper73 is offline

PostPosted: Tue Aug 26, 2014 10:58 am    Post subject: Reply with quote

Thanks for your response!

So, what i am gathering is that this wheel set is probably not the best way to go? Seems lots of things needs to happen to ensure a good fit?

Wait and keep looking?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lemm0
Samba Member


Joined: June 17, 2014
Posts: 5
Location: Nordic Sweden
lemm0 is offline

PostPosted: Fri Aug 29, 2014 7:40 am    Post subject: Reply with quote

Hello!
I bought some wheels today that said they were: 5x112, 7x16 ET31 bore:6,65, but when I got them home it said ET37..

Will they fit 2WD and or 4WD?
Thanks.
Back to top
View user's profile Send private message Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 4746
Location: PNW
Christopher Schimke is offline

PostPosted: Fri Aug 29, 2014 4:22 pm    Post subject: Reply with quote

lemm0 wrote:
Hello!
I bought some wheels today that said they were: 5x112, 7x16 ET31 bore:6,65, but when I got them home it said ET37..

Will they fit 2WD and or 4WD?
Thanks.


We will need the part number, or at least a photo of the wheels to be able to help. Those specs sound like OE Mercedes wheels, but could be something else too.

Simply judging by the 16x7 ET37 specs, you could use them on either a 2wd or a Syncro, but depending on which wheels they are, you may need longer studs (rear on a 2wd, front and rear on a Syncro) and you will most likely need new front lug bolts (2wd only), you may need spacers (more likely on a 2wd than a Syncro), etc.

If you can post the part number or photo of the wheel, I can be more specific and I can probably tell you if you will have any center cap clearance issues or not.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
lemm0
Samba Member


Joined: June 17, 2014
Posts: 5
Location: Nordic Sweden
lemm0 is offline

PostPosted: Tue Sep 02, 2014 12:12 pm    Post subject: Reply with quote

Christopher Schimke wrote:
lemm0 wrote:
Hello!
I bought some wheels today that said they were: 5x112, 7x16 ET31 bore:6,65, but when I got them home it said ET37..

Will they fit 2WD and or 4WD?
Thanks.


We will need the part number, or at least a photo of the wheels to be able to help. Those specs sound like OE Mercedes wheels, but could be something else too.

Simply judging by the 16x7 ET37 specs, you could use them on either a 2wd or a Syncro, but depending on which wheels they are, you may need longer studs (rear on a 2wd, front and rear on a Syncro) and you will most likely need new front lug bolts (2wd only), you may need spacers (more likely on a 2wd than a Syncro), etc.

If you can post the part number or photo of the wheel, I can be more specific and I can probably tell you if you will have any center cap clearance issues or not.

Thank you Christopher for your help, I decided to send them back and now they're hopefully sending Mercedes wheels that should be ET33.
Back to top
View user's profile Send private message Classifieds Feedback
brettsvw
Samba Member


Joined: November 22, 2007
Posts: 2013
Location: Florida
brettsvw is offline

PostPosted: Tue Sep 16, 2014 4:11 am    Post subject: Reply with quote

1621 wrote:
[b]

Image may have been reduced in size. Click image to view fullscreen.

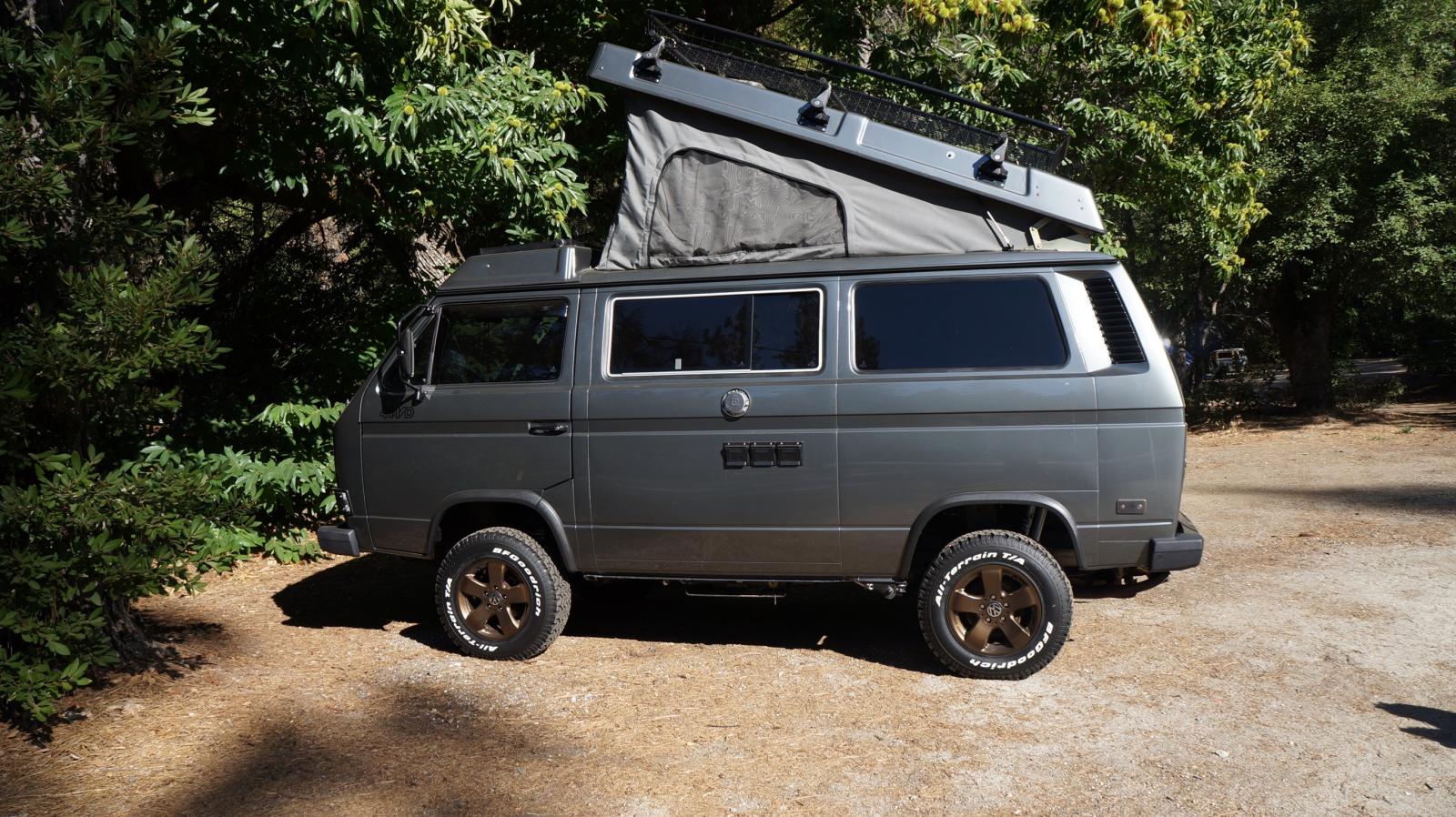

What caps are these? Looks like they are one piece including lug area.
_________________
.







My 59 kombi build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=635003&highlight=

My buggy build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=558601&highlight=

http://www.thesamba.com/vw/forum/viewtopic.php?t=289807
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
HoustonPhotog
Samba Member


Joined: February 20, 2013
Posts: 1187
Location: Houston, TX
HoustonPhotog is offline

PostPosted: Tue Sep 16, 2014 5:24 am    Post subject: Reply with quote

brettsvw wrote:
1621 wrote:
[b]

Image may have been reduced in size. Click image to view fullscreen.



What caps are these? Looks like they are one piece including lug area.

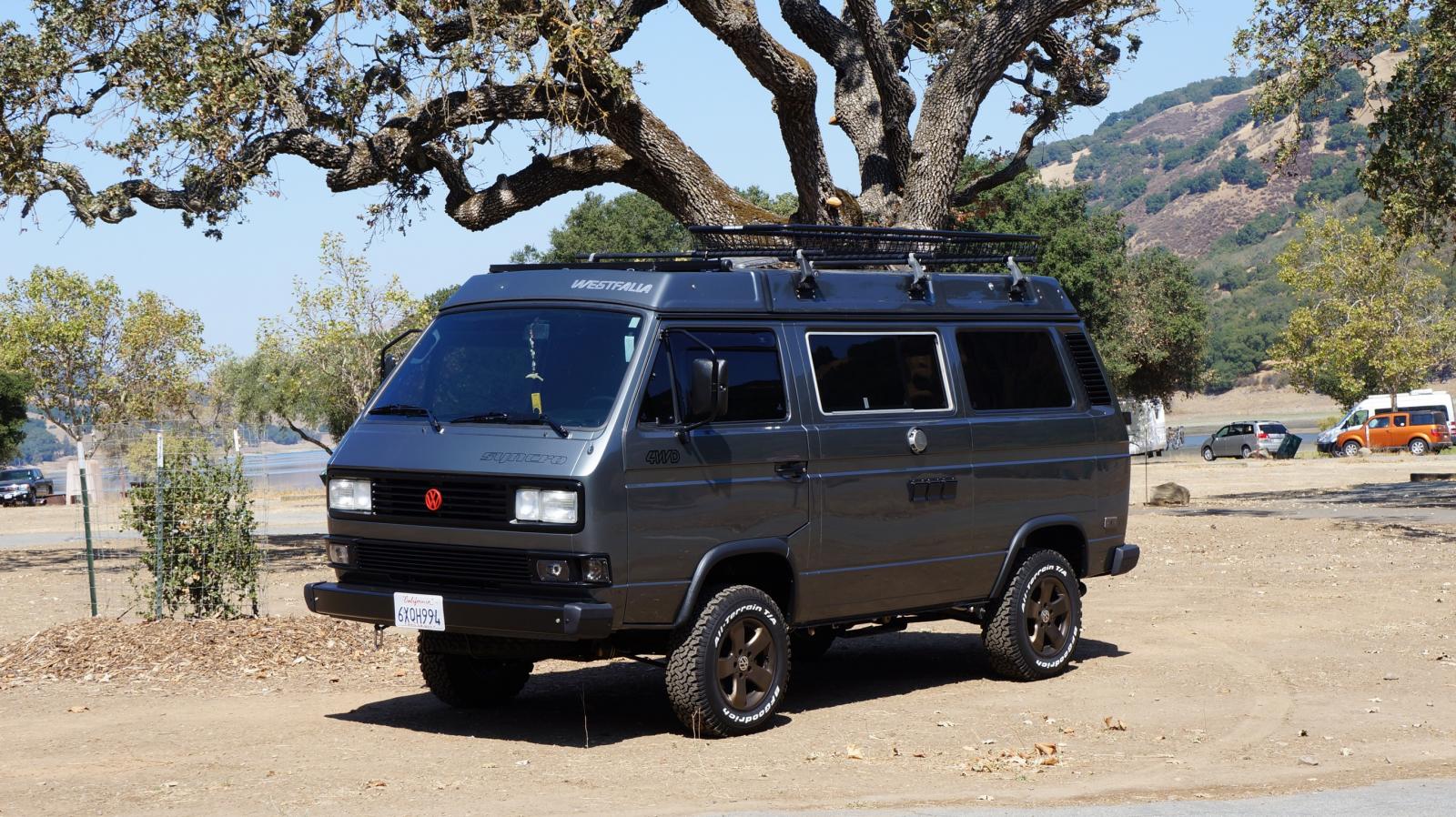

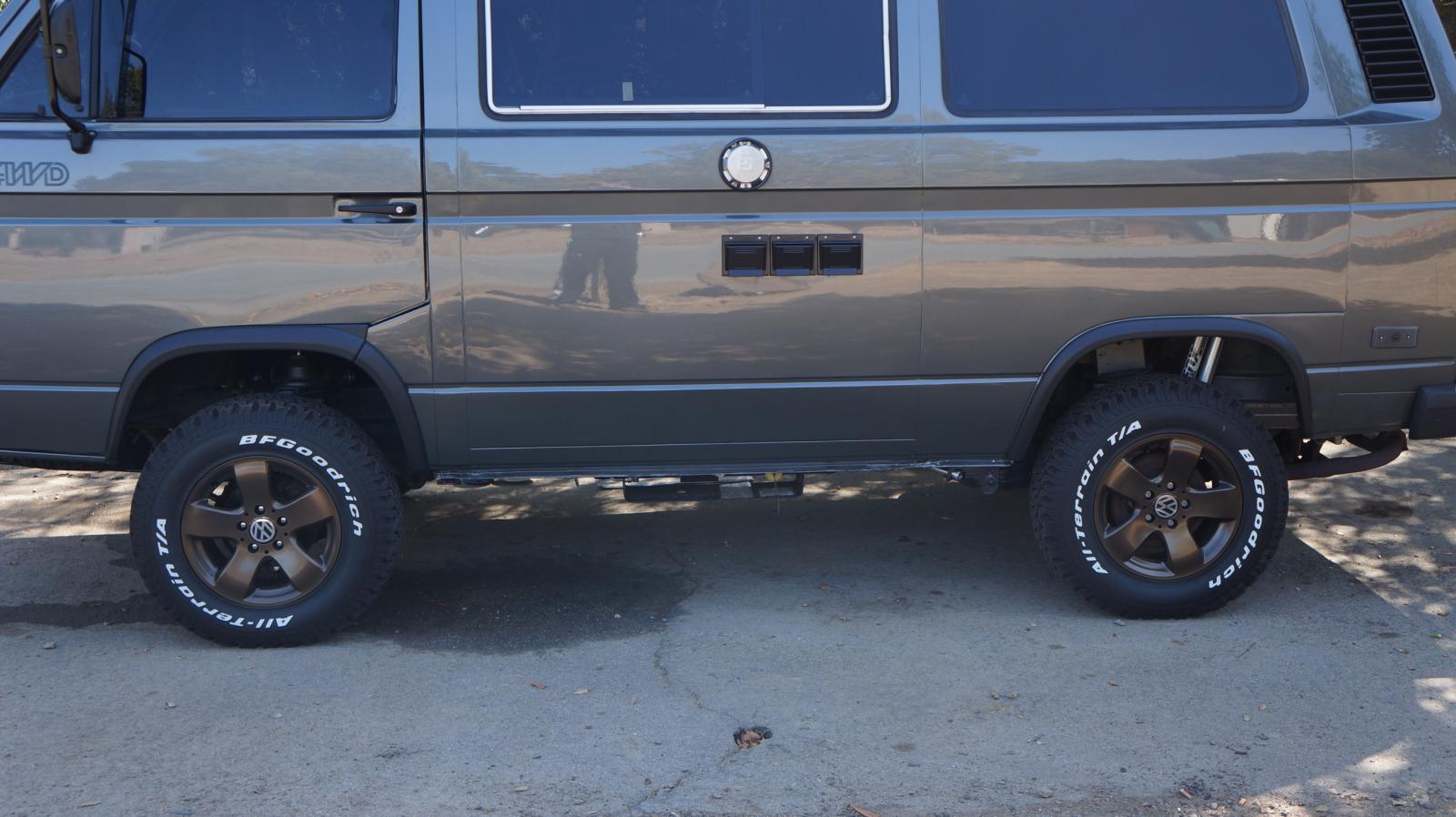

Those are GoWesty center caps... I never thought about using those on my CLKs... GENIUS!

Image may have been reduced in size. Click image to view fullscreen.

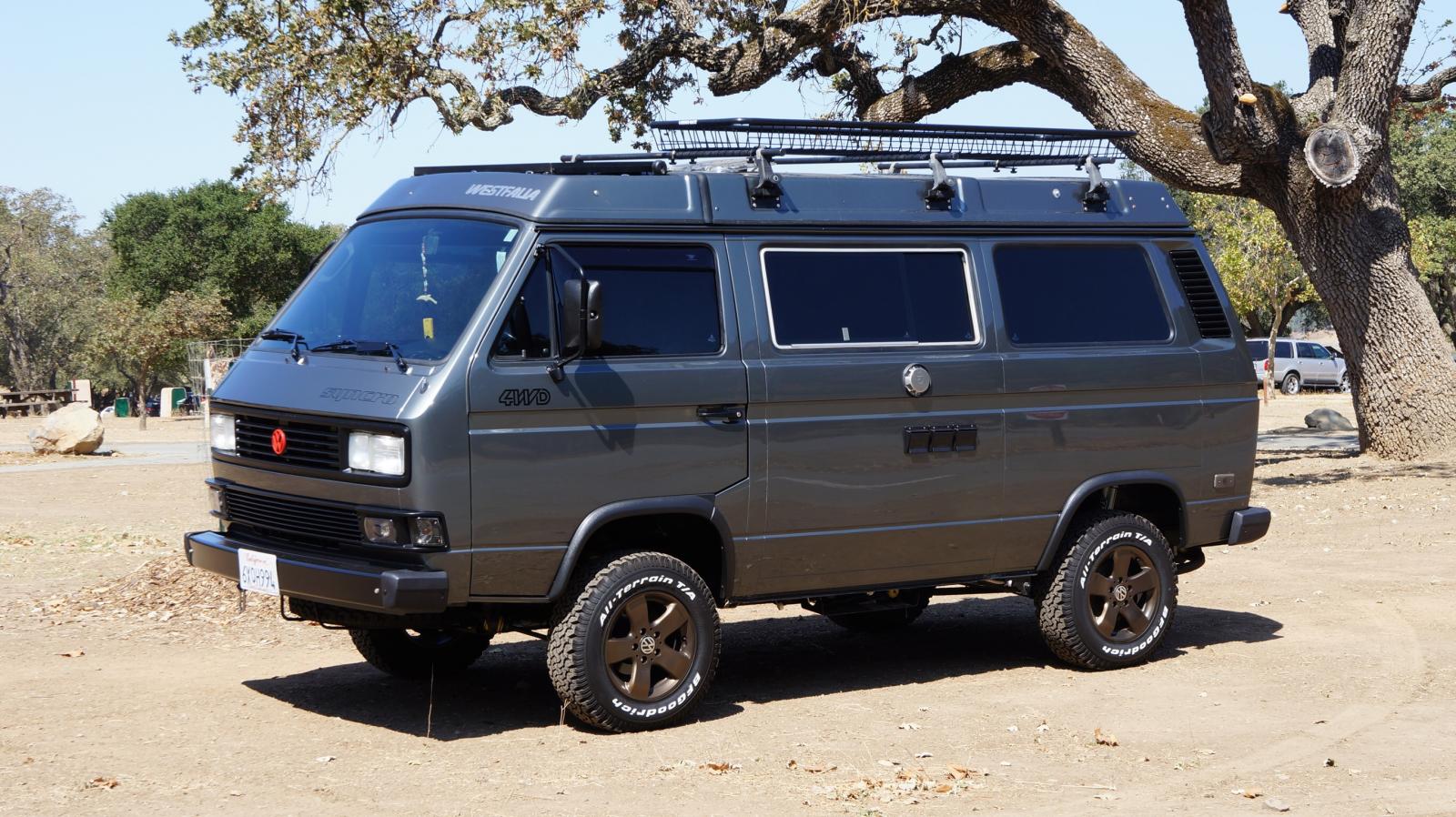

I saw someone using some genuine VW center caps on CLKs at Syncrofest, I think they're from a Toureg but not certain...

Image may have been reduced in size. Click image to view fullscreen.

_________________
Abel Longoria
VanAlert App for Vanagons/Buses | Texas Vanagons | My Vanagon Build Thread | Follow Me On Instagram | Vanagon-centric Stickers Available Now
Back to top
View user's profile Send private message Gallery Classifieds Feedback
raoul mitgong
Samba Member


Joined: July 05, 2009
Posts: 781
Location: Denver, CO
raoul mitgong is offline

PostPosted: Tue Sep 30, 2014 2:03 pm    Post subject: Reply with quote

Can anyone tell me if the stock steel wheels on a Syncro (86 if that matters) are the same ET as the stock steel wheels on a 2wd (84 westy wolfsburg if that matters)?

Just wondering if I was going to run into any troubles moving my 14" BFGs around from van to van if I wanted to in the future. I no longer have the stock steelies from the 2wd to compare.

Thanks,
-d
_________________
84 Westy with a 2.1 (Groover)
86 Tintop Syncro (Crow)
86 Tintop Syncro to Westy project (Tom Servo)

"...They used cunning. They used guile. They used treachery. They used Raoul Mitgong, but he didn't help much. They used applied physics..."

― Harlan Ellison, "Repent, Harlequin!" Said the Ticktockman
Back to top
View user's profile Send private message Gallery Classifieds Feedback
brettsvw
Samba Member


Joined: November 22, 2007
Posts: 2013
Location: Florida
brettsvw is offline

PostPosted: Tue Sep 30, 2014 2:48 pm    Post subject: Reply with quote

I owed both a syncro westy and a two wheel drive westy and the 14in steel wheels were the same.
_________________
.







My 59 kombi build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=635003&highlight=

My buggy build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=558601&highlight=

http://www.thesamba.com/vw/forum/viewtopic.php?t=289807
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Farfrumwork
Samba Member


Joined: October 10, 2008
Posts: 687
Location: Mile High
Farfrumwork is offline

PostPosted: Tue Sep 30, 2014 3:45 pm    Post subject: Reply with quote

So, I've got a line on a set of these passat wheels. Razz

Making sure they will drop onto my syncro? Will I need to bore them to clear the front hub, or is that just a 2wd thing(?) <- I suspect it is (just for 2wd that is)



fuzzymath wrote:

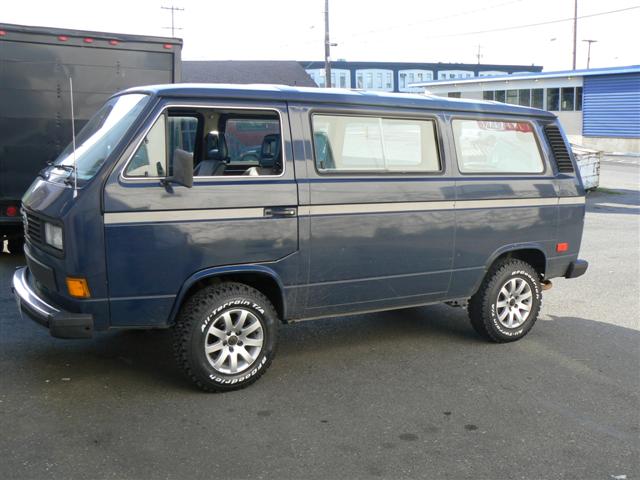

12mm spacers and 39mm bolts up front, stock studs and nuts in back. Fronts bored for grease caps.

Image may have been reduced in size. Click image to view fullscreen.



_________________
'85 Wolfsburg Syncro / 'Built' DOHC EJ25
'07 Legacy spec.B, road tuned stgII

"Blood stains, speed kills - Fast cars, cheap thrills - Rich girls, fine wine - I've lost my sense, I've lost control, I've lost my mind"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 4746
Location: PNW
Christopher Schimke is offline

PostPosted: Tue Sep 30, 2014 4:03 pm    Post subject: Reply with quote

raoul mitgong wrote:
Can anyone tell me if the stock steel wheels on a Syncro (86 if that matters) are the same ET as the stock steel wheels on a 2wd (84 westy wolfsburg if that matters)?

Just wondering if I was going to run into any troubles moving my 14" BFGs around from van to van if I wanted to in the future. I no longer have the stock steelies from the 2wd to compare.

Thanks,
-d


brettsvw wrote:
I owed both a syncro westy and a two wheel drive westy and the 14in steel wheels were the same.


Yep, brettsvw is correct, the wheels are the same. Just make sure that you use the correct lug nuts to match the wheels. Vanagon alloy wheels require conical seat lugs and the Vanagon steel wheels require large ball seat lugs.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 4746
Location: PNW
Christopher Schimke is offline

PostPosted: Tue Sep 30, 2014 4:08 pm    Post subject: Reply with quote

Farfrumwork wrote:
So, I've got a line on a set of these passat wheels. Razz

Making sure they will drop onto my syncro? Will I need to bore them to clear the front hub, or is that just a 2wd thing(?) <- I suspect it is (just for 2wd that is)



fuzzymath wrote:
12mm spacers and 39mm bolts up front, stock studs and nuts in back. Fronts bored for grease caps.

Image may have been reduced in size. Click image to view fullscreen.




Those wheels in the photo above are 15x7 ET37. In order to bolt them onto a Syncro, you will need a set of small ball seat lug nuts and you will need to either open up the centerbores of the wheels or you can grind down the lip on the front hub until the wheel fits. Another alternative is to run a set of thin spacers, but then you would need to install longer wheel studs.

The front grease caps will fit, but the rears will not...at least not without installing spacers.
_________________
Christopher

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
uberaudi
Samba Member


Joined: June 24, 2013
Posts: 48
Location: Hi-top Country
uberaudi is offline

PostPosted: Thu Oct 02, 2014 9:52 pm    Post subject: Reply with quote

15x7, et45 Audi Fuchs. Forged, strong and light. I bored out the center to fit T3's hubcentric spacers and left about .050" of the original bore for the center caps to latch on to. I also shortened the grease caps about .200". 18mm spacers on the front along with conversion studs and 22mm spacers on the rear with longer studs as well; small ball seat lugnuts all around. I had some 205/70-R15 Yokohama Geolander AT/S' mounted up and the difference between this setup and stock is remarkable! It handles so much better, is much more stable and quieter too! Thanks again Chris!

Before:
Image may have been reduced in size. Click image to view fullscreen.


After:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
babywindow
Samba Member


Joined: July 02, 2013
Posts: 27
Location: SF Bay
babywindow is offline

PostPosted: Thu Oct 02, 2014 10:03 pm    Post subject: Reply with quote

Holy Fuch
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OhBetty
Samba Member


Joined: August 23, 2014
Posts: 76
Location: Salt Lake City
OhBetty is offline

PostPosted: Mon Oct 06, 2014 3:58 pm    Post subject: Reply with quote

mrshrimp wrote:
Is there a big break kit that fit 15" Rhein south african rims?
-Keith


Keith - I'm looking into this too. I have heard that the GoWesty kit does not fit the Rhein-15s. But the small car and Audi kits do.

Would love to hear from anyone else that has some perspective on this issue though.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
almo
Samba Member


Joined: January 27, 2011
Posts: 143
Location: In the back sleepin
almo is offline

PostPosted: Mon Oct 06, 2014 9:39 pm    Post subject: Bronze Reply with quote

VC Carrot 15" rims powder coated bronze, 215/17/15 BFG's

I was nervous as hell about getting the brand new rims powder coated!!

I am very happy with how it turned out against the wolf-man grey. The camera doesn't do them justice!
All inspiration came from members on here cheers.

I know they will prob get scraped up, off roading etc....., but I will always know she was pretty once Laughing Laughing Laughing Laughing

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
San Francisco/Mayo Ireland

1986 2.1L Westy 2wd 4-spd Sold!!!!
1987 2.1L Westy syncro
2005 Subaru legacy 2.5Gt Wagon 5sp MT
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pizzavandriver
Samba Member


Joined: May 03, 2011
Posts: 45
Location: NJ
pizzavandriver is offline

PostPosted: Mon Oct 13, 2014 11:49 am    Post subject: Reply with quote

16" audi wheels and hardware from T3technique. centercap solution coming soon.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Pete
85 Vanagon
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 113, 114, 115 ... 137, 138, 139  Next
Jump to:
Page 114 of 139


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2016, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
