New Transaxle Now No Gears

[mranker]

This issue has me completely stumped and frustrated. I'm going to abandon hope and take my bus to a shop this week unless someone can figure out what is going on. I don't even know what to try anymore. So..

Back story: In March I lost the ability to shift into reverse a few days before Meet in the Middle. All other gears worked well. The unanimous consensus among advice received was that a new transaxle was necessary. So I called Rancho Performance and placed an order. 8 weeks later my transaxle was ready. I was getting tired of avoiding tight parking spaces and was ready to install the new transaxle.

3 weeks ago I installed my new transaxle. While the engine and transaxle were out I decide to inspect the shifter linkage and replace any worn bushings. I replaced the front shifter bushing and the rear coupler bushings but the two shift rod bushings looked good. I also replaced the clutch, pressure plate and throw out bearing. It took a little work to get the stop plate adjusted but after a while I could shift into all gears (including reverse!) and took it for a little test drive. Shifting was good but not perfect so I drove home for a little adjusting. As I got home I noticed two things: There was a whining noise that went a way if I tapped the clutch pedal and then the clutch began to slip to the point of almost not functioning.

So engine out for the second time. And the problem seemed pretty obvious.

Like a fool I had used the cheapo throw out bearing clips that came with the Sachs clutch kit and not the springy originals. One of the cheap clips came loose and the throwout bearing was hanging from one clip. You can see the nicks in the bell housing from the clip getting bounced around.

So clip replaced. Engine in. Same thing only worse. Now the clutch doesn't seem to be functioning at all. I double check the cable adjustment per Bently and its right on but everytime I push the clutch pedal and try to select a gear with the engine running I get nothing but resistance and a whiny noise.

So I think maybe the clutch assembly was damaged by the cockeyed throw out bearing. So engine out for a third time and in goes another new clutch, pressure plate and throw out bearing. I'm very careful to install it exactly as specified in the Bently and the Tom Wilson book.

Engine back in fire it up. Same thing! Now I don't know what to do so after a little Samba searching I try replacing the bowden tube and the clutch cable which leads to this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=629232

I have now had this engine out 4 times in 3 weeks and I don't know what else to do. I don't know if my problem is the clutch, the transaxle, the shift linkage or a combination. To sum up:

-Shifting is difficult with engine off but it is possible to find all four gears.
-Shifting with the engine running is impossible and if I try to shift with the clutch pedal engaged I get whining sound. NOT a grinding sound.

I have tried:
-New clutch
-New pressure plate
-New throwout bearing
-adjusting shifter stop plate
-New clutch cable
-New bowden tube
-adjusting clutch cable

Any questions or suggestions would be welcome. If I can't figure it out this week I'm taking it to a shop and I will let you know what their diagnosis is.
_________________
'70 Bus
'02 Eurovan MV Weekender

[Wildthings]

What condition is the pilot bearing located in the middle of your gland nut it? Can't tell much from your photos.

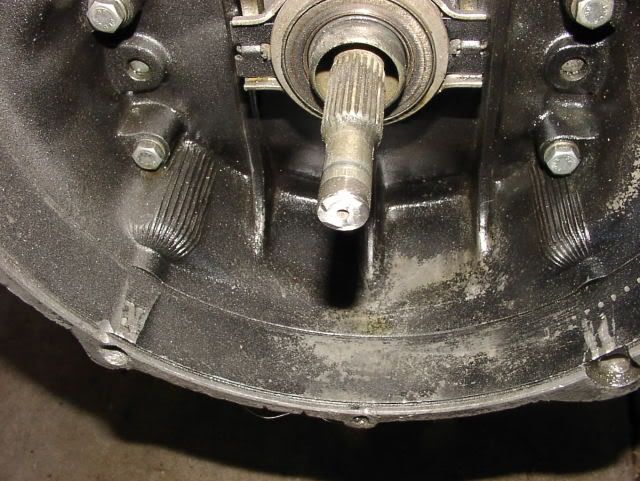

Your tranny input shaft looks like someone has cut the end off or something, so I presume we have some mismatched parts here that someone has tried to get to work together. Not sure that this would be a problem or not, it certainly would be if the shaft is still too long and were rubbing against the end of the bore in the gland nut.
