Name This Part (engines, body, misc.)

Gnarlodious · Posted: Sat Jun 07, 2014 8:38 pm Post subject:

I looked this up for clarification and the next poster is right.

Early watercooled Canadian vans had a protective cover for the optional BA6 gasoline heater.

NOT the same as a “belly pan”, which was found on diesels and having a sound absorber mat.
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD and a '78 diesel Rabbit

syncrodoka · Posted: Sat Jun 07, 2014 8:47 pm Post subject:

Gnarlodious · Posted: Thu Sep 25, 2014 9:25 am Post subject: Unidentified trailer wiring?

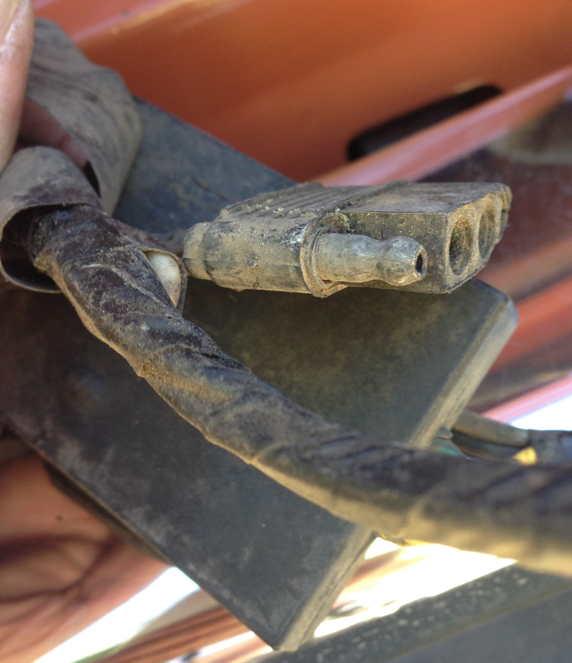

Fixing some wiring in the back, here is some appendage that I have never understood:

Image may have been reduced in size. Click image to view fullscreen.

Trailer hitch wiring? When I got this van it had a hitch on it.

What is the square flat electrical box under this connector used for?

Should I just tear all this junk out?
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD and a '78 diesel Rabbit

vanagonjr · Posted: Thu Sep 25, 2014 9:34 am Post subject: Re: Unidentified trailer wiring?

GreenMachineVW · Samba Member Joined: August 08, 2008 Posts: 648

VeeDubDaySpa · Posted: Sun Nov 02, 2014 5:36 pm Post subject:

Gnarlodious · Posted: Thu Jun 04, 2015 12:21 pm Post subject:

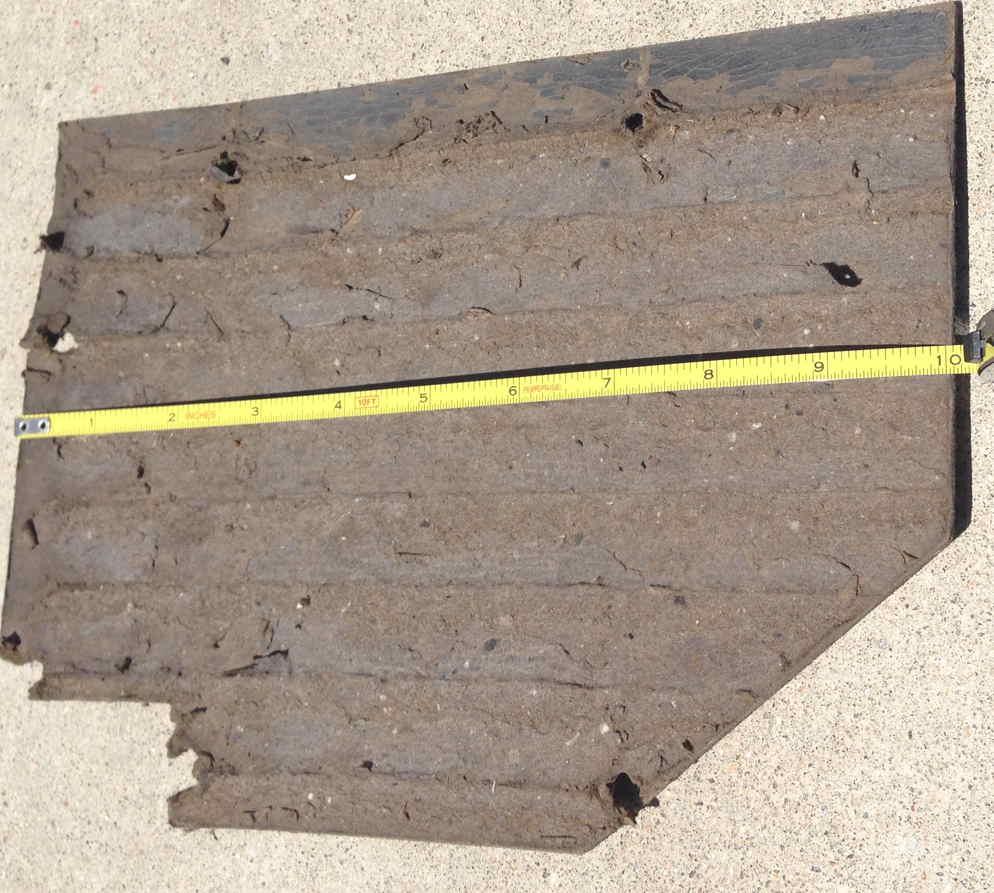

Does anyone know where this paper baffle came from?

Found it floating around in the grill area. Could it have covered the driver’s side behind the grill? I installed an air horn in there a while back and may have left it out for more noise. I looked for any such mounting holes and found none. BTW this is a diesel, but it shouldn’t make any difference.
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD and a '78 diesel Rabbit

levi · Posted: Thu Jun 04, 2015 1:23 pm Post subject:

There's 1 of those on each side of the upper radiator, between the rad and the headlights.
They break down, and folks typically make a new one out of campaign signs or something like that.

_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40

JDEL · Posted: Tue Jun 16, 2015 6:28 pm Post subject: Name this part ac? heater?

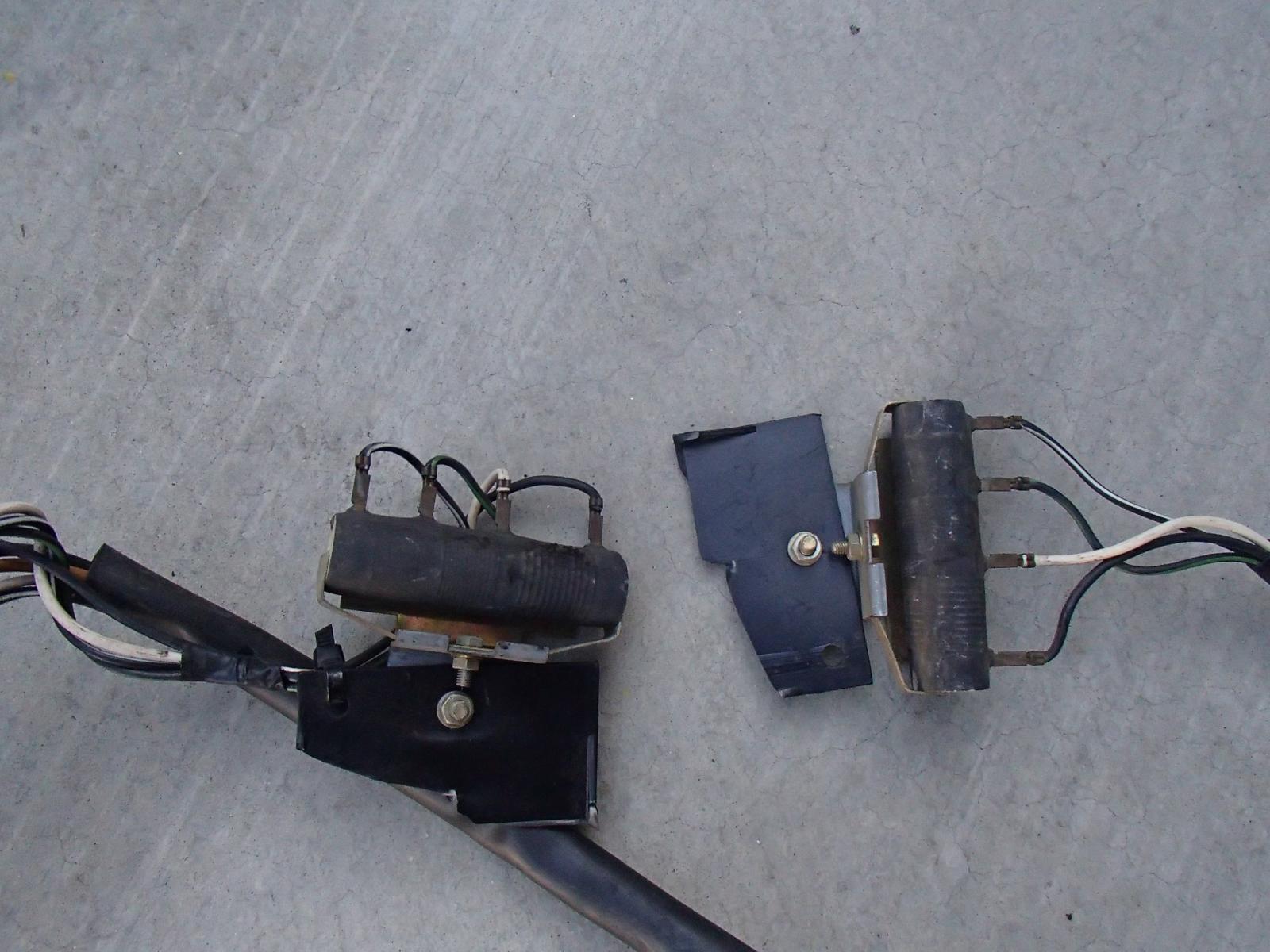

I got this part in a swap. It has VW symbols on the connections. Vanagon?

Gnarlodious · Posted: Tue Jun 16, 2015 9:38 pm Post subject:

Those look suspiciously like heater fan speed resistors, possibly not Vanagon, hacked out of their plastic holders. They tend to melt down in the middle of winter. I can understand why someone would hoard them, at one time they were hard to find and expensive. Nowadays we just use an electronic speed adjuster.
_________________
Vanagon ’83 diesel AAZ w/Giles injection, 5spd 4.57R&P+TBD and a '78 diesel Rabbit

Alan Brase · Posted: Sat Sep 26, 2015 3:51 pm Post subject:

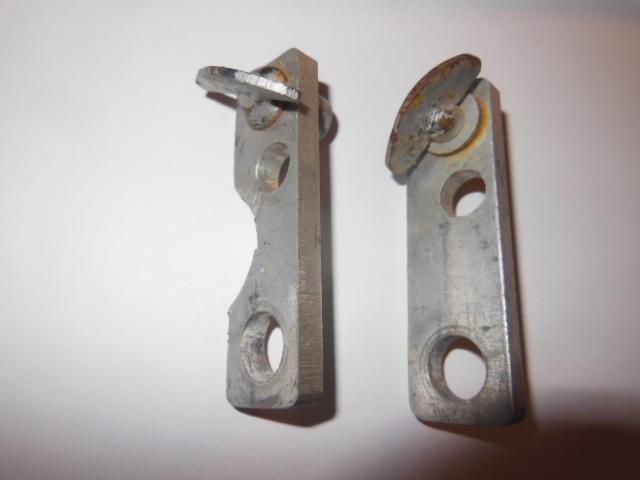

I know this is not original Vanagon Westy stuff, but found these parts in my very early 1980 westy. Any idea what they might have been intended for?
Possibly to stand off the rear hatch cracked open for ventilation?

Made of aluminum drilled and turned stepped threaded pins and home made thumbscrews to hold them.
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home

dhaavers · Posted: Sat Sep 26, 2015 3:56 pm Post subject:

Alan Brase · Posted: Sat Sep 26, 2015 4:08 pm Post subject:

Wildthings · Samba Member Joined: March 13, 2005 Posts: 52305

Bman

Hello Friends,

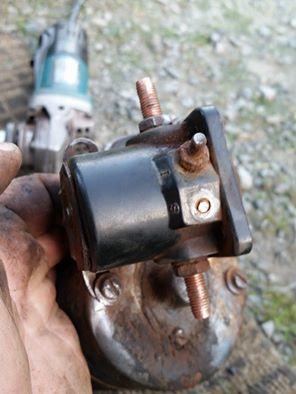

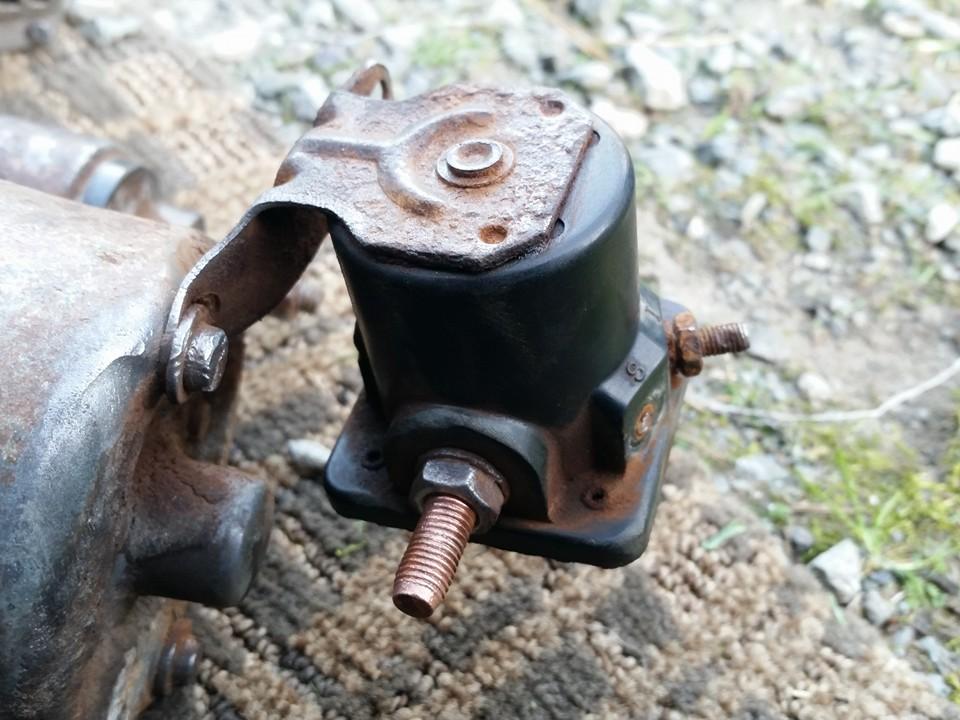

I am diagnosing a no start issue on my friends 85 Automatic, we pulled the starter to bench test and this part shown below was all wired up with rusty connections:

My thought was that it was a voltage regulator, but preliminary guesses is that it may be aan after market solenoid? Can you help me ID it?

I busted a stud off of it, as seen in pic 1, while cleaning the contact points. Is this something VW made? Can I replace? If it is a after market solenoid, was it trying to replace stock, could an old PO not been able to find VW stock?

There appeared to be an old solenoid on the starter that had the BIG FAT wire from the battery attached to it, but then was tied into this piece.

The starter works fine so we are going to place it back in, I just need to figure out this unit.
_________________
~Bryan
1990 Burgandy Tintop (Wife's Daily Driver)
1989 Tiico Westfalia "Taj"

2WD Doka build thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=503578&highlight=
FaceHook:
https://www.facebook.com/pages/VW-T3-DokaSinka/129026087217120?ref=hl

CdnVWJunkie

That's just a generic start solenoid. Any Flaps should be able to source one.

Bman

syncrodoka

Looks like a user built hard start relay.
There are better options available.

Wildthings · Samba Member Joined: March 13, 2005 Posts: 52305

kamzcab86
