i am sure that we've all read the posts about the Evaporator being wrapped with foam which decomposes over time and clogs up the fins reducing airflow (cooling ability) significantly.
The purpose of this foam has been debated, one line of thought is that it acts as a dust filter, purifying the air. The second line of thought that it is a defuser for the moisture removed from the air, that it prevents the system from spitting drops of water on the passengers and also that it soaks up the moisture adding it to the air thus making it colder. (Not my theories, just recapping here)
I am convinced that of all these options I want an air filter to keep the coils clean. I can deal with a spitting system and I'm not sure that I Actually buy the increased cold theory.
I've dropped my system, cleaned the Evaporator both inside and out. Now for a proper air filter.
I want something more elegant than a cut up furnace filter duct taped to the cabinet.
So....... In a period of being immensely busy and a chronic lack of time ...... and being literally exhausted......... this is what I Came up with. (It is currently hot, humid and raining just to keep the humidity high lest one enjoy the day! ... It's BREAK TIME!!!)
First I unscrewed the plastic intake frame, I got a house furnace filter (I had a 24" on the shelf, but I suggest that you go buy a 30") a short length of Livestock fence, and a pile of 1/2" wood screws (size 8 ) with small washers.
The fence helps prevent the filter media from getting sucked into the Evaporator cabinet.
I cut the fence to fit the opening keeping the size inside of the factory plastic intake surround.
I looped the ends to accommodate screws......
I next deconstructed the furnace filter and cut it to fit my intake opening .....
Also drilled two more holes in the intake frame for a total of six. I also used some longer stainless screws to fasten the frame in place.

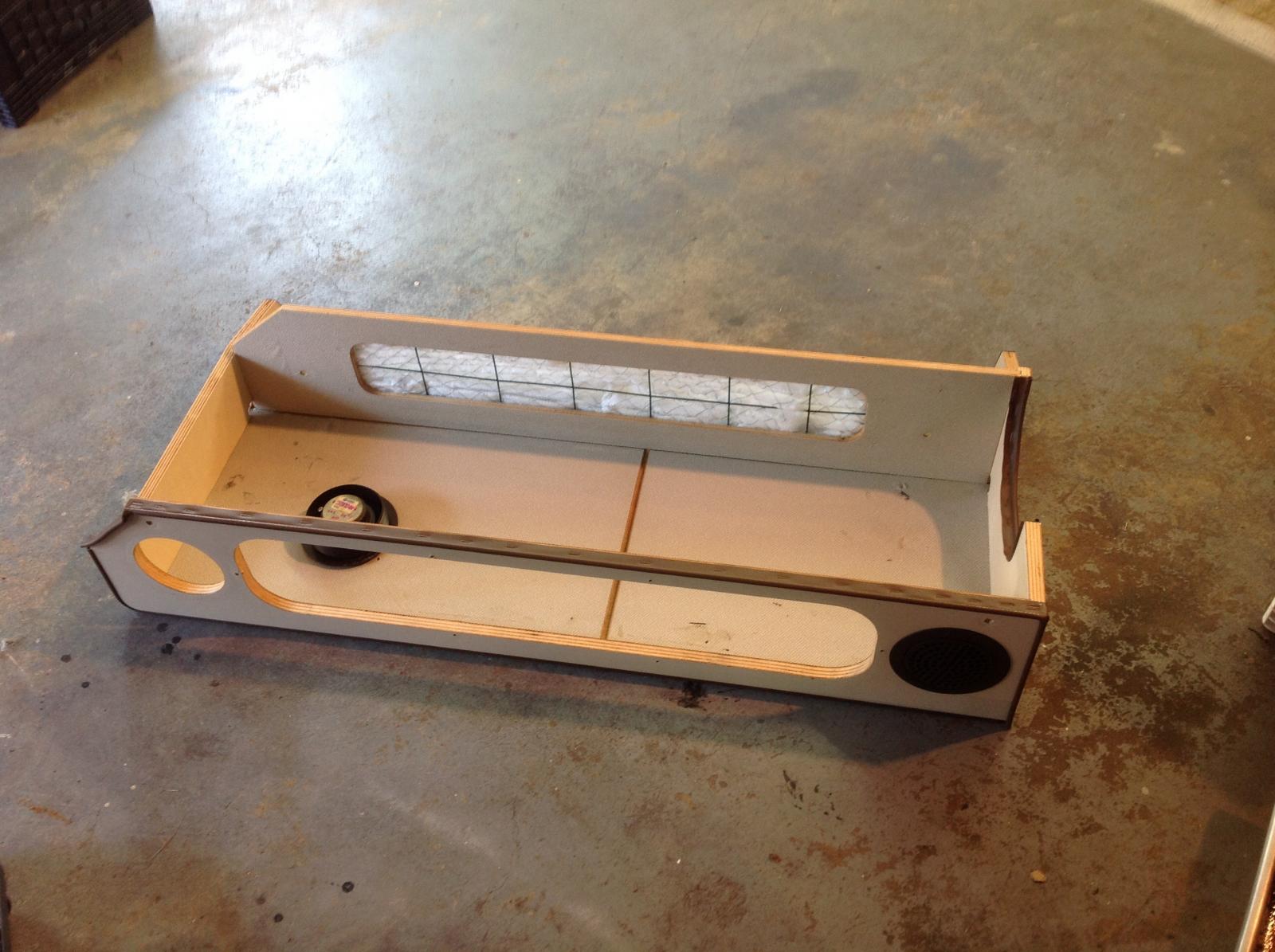

I mounted the frame upside down just drawing it in tight enough to grab the filter medium...
It looks good, is easy to discern when it is dirty and will be easy to replace as needed in just a few minutes.
Dave
