 Posted: Fri Apr 22, 2016 12:57 pm Post subject: Early bus heat exchanger ID |
 |
|

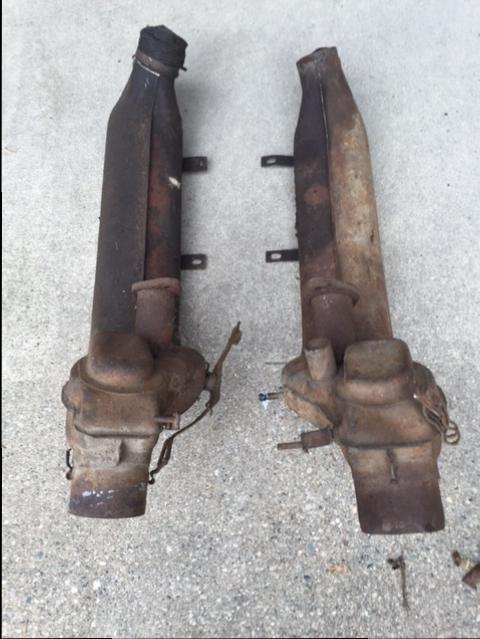

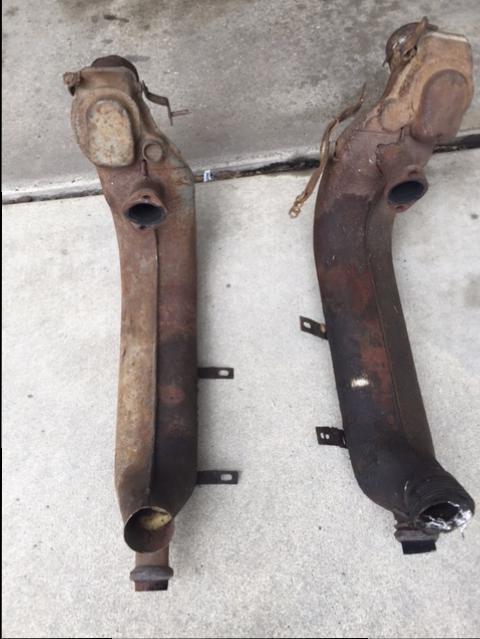

I pulled these off a 1971 DP motor that came with a parts bus. I'd like to clean them up and install them on a 1970 SP motor I am having built. How can I tell if they are bus vs. bug and if they are complete? It seems like the levers are different; are they supposed to be? Let me know if it would help if I take more photos.
_________________
1970 Crew Cab |
|
| Back to top |
|
 |
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13495
Location: West Coast, USA
|
| Posted: Fri Apr 22, 2016 1:06 pm Post subject: Re: Early bus heat exchanger ID |
|
|
Hi there,
The left side exchanger is a universal replacement, sold by several aftermarket companies. Check to see if it has as many or more fins as the other on the inside; most don't. The exchanger on the right looks to be an OG bug heat exchanger; again the number of fins on the inside will tell you the difference.

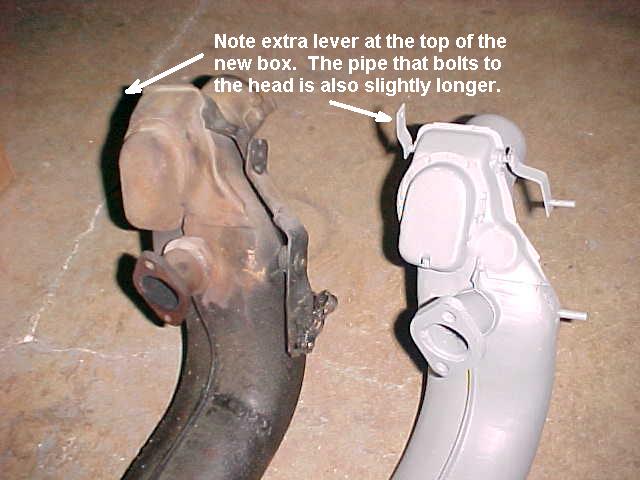

The bay bus levers are located higher up than bug levers, as a general rule. Because the bug cables come out so much lower, they need the intermediate pivoting action of the more complex lever to get proper heater actuation.
So, in fewer words, neither of those are great for your bus, but at least the left side exchanger will bolt in and give you some heat without any modifications.
Robbie
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
70Crew
Samba Member
Joined: June 12, 2006
Posts: 780
Location: Grand Rapids, MI
|
| Posted: Fri Apr 22, 2016 1:11 pm Post subject: Re: Early bus heat exchanger ID |
|
|
Crap - Thanks.
"The left side exchanger is a universal replacement, sold by several aftermarket companies."
Left side in the top photo or the bottom photo?
_________________
1970 Crew Cab |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17857
Location: sticksville, ct.
|
| Posted: Fri Apr 22, 2016 1:23 pm Post subject: Re: Early bus heat exchanger ID |
|
|
neither one is correct for a bus
true bus exchangers don't have the post on the side that the beetle levers attach to.
they just have the top lever where the cable attaches to, an no linkage to use the bug ones
BUT
if they are german and weigh a ton, I would use them. german exchangers make my s/c *barely* tolerable in cold weather. dansk...not so much
I bought a dansk set to skin them and use them on my german guts. worked real well
_________________
| gprudenciop wrote: |
my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese....... |
| Jake Raby wrote: |
| Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public. |
| Brian wrote: |
| Also the fact that people are agreeing with Skills, it's a turn of events for samba history |
|
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13495
Location: West Coast, USA
|
| Posted: Fri Apr 22, 2016 2:00 pm Post subject: Re: Early bus heat exchanger ID |
|
|
| 70Crew wrote: |
Left side in the top photo or the bottom photo? |
I mean left, as in, front is front. So the heat exchanger that mounts on the USA drivers' side is left, regardless of picture.
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Sat Apr 23, 2016 11:01 am Post subject: Exhaust Type I Heat exchanger Heater box T2a Bus ID |
|
|
To link to this post copy and paste
| Code: |
| [url=http://www.thesamba.com/vw/forum/viewtopic.php?p=8055900#8055900]Exhaust Type I Heat exchanger Heater box T2a Bus ID[/url] |
NOS Heat exchangers t2a Bus 1968-71
211 255 105 A Left Heat exchanger
211 255 105 B Right Heat exchanger
Note: Tin mounting tabs are on the inside and the Heater flap levers are on the upper outside of the Heat Exchangers.
Note:
Left = Beetle Heat exchanger. Heater flap lever and relay lever are located on the inside same side as the tin mounting tabs.
Right = Aftermarket universal Heat exchanger. Heater flap lever outside upper left is for t2a Bus installations.
Heater flap lever inside upper right is for Beetle installations. Note that the relay lever is missing.
#3 Heater Cable Clamp Kit 111298101A
Tcash |
|
