Automatic Transmission Reverse Light Question
Page: Previous  1, 2, 3  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Sat Apr 14, 2012 7:04 am    Post subject: Reply with quote

I'm not the best at describing things so please bear with me on that point Sad
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Westfabulous
Samba Member


Joined: January 07, 2007
Posts: 4207
Location: The tropic of Canada, dodging the giant flying moose of Surrey!
Westfabulous is offline

PostPosted: Sat Apr 14, 2012 7:19 am    Post subject: Reply with quote

I'll re-phrase my suggestion. Disconnect and clean every connection, especially where there is rust. Make sure that you are grounded to clean or shiny metal.
_________________
*****************


"I will gladly pay you Tuesday for a hamburger today."
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Sat Apr 14, 2012 8:18 am    Post subject: Reply with quote

Ok will do
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CamperGypsy
Samba Member


Joined: February 05, 2012
Posts: 56
Location: Peyton, CO
CamperGypsy is offline

PostPosted: Sun Aug 26, 2012 2:41 pm    Post subject: Re: back up lights Reply with quote

old DKP driver wrote:
There are 2 phillips screws that hold the Switch and,it is adjustable.
Also, the brass contact on the Shift lever is usually the problem
Losing contact.And it is spring loaded.
Pull the cover back off and Gently push the lever sideways while in
reverse.Key on Engine OFF.

Do you have someone to look at the lights while you move the lever?

If not, Loosen the the screws and move the switch closer to the contact
on the lever.
Be gentle tightening the screws or you will split the plastic.


Just fixed my reverse lights today, thanks for the tip. Here are the steps I followed, whether they are wrong, right or indifferent, it fixed my problems.

Step 1. Checked the obvious fuse in fuse box being its an auto tranny
Step 2. Checked the bulbs
Step 3. Removed Auto Shifter housing and took pictures.
Step 4. Removed all wires to plastic switch and cleaned.
Step 5. Loosened switch just a tad. Moved switch a hair closer to contact
Step 6. Cleaned contacts on switch and pryed out a tad with a knife.
Step 7. Smiled at my working tail lights and the money saved to buy some more beer
Step 8. While drinking my beer order new switch from German Supply
http://www.germansupply.com/home/customer/product.php?productid=17419&cat=&page=1
Step 9. Finish watching Broncos game

Steps 7-9 are not necessary
_________________
1975 Westfalia Campmobile
1971 Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DubDzo
Samba Member


Joined: November 18, 2011
Posts: 26
Location: Miami, Florida
DubDzo is offline

PostPosted: Sat Mar 23, 2013 5:42 pm    Post subject: Reply with quote

I know this is an old post and i own a 91 vanagon, so i searched and searched and came across this thread. My reverse lights aren't working, i checked the fuse and it's fine installed brand new bulbs and it's not working.... So it's time to test the reverse switch, do you guys happen to know where the switch is located for a 91auto vanagon
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 46680
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Sat Mar 23, 2013 5:51 pm    Post subject: Reply with quote

First place I'd look is in the shifter up front, usually it's part of the neutral start switch.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Mon May 16, 2016 12:27 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

kerian159 wrote:
I know i've already been down this road on this forum but i'm still having difficulty with the reverse lights. I've tested the relay to the best of my knowledge with a test light by running it from the 50A connection to the RF connection and no lights on the test light, but it is going into reverse when selected. Is there a fuse of some kind somewhere that I have looked over? I'm using this wiring guide. http://www.thesamba.com/vw/archives/info/wiring/baybus_76_supplement.jpg


ToolBox wrote:
First verify that fuse S12 is good. If good. Pull the cover off the shifter and check for power in (15) and out (RF) of the switch.


kerian159 wrote:
I've connected a test light across those pins and it did not light up the lights. I'm going to check them a bit more this evening. Looking at the fuse my brake lights and horn work fine and I believe they are on the same fuse.


kerian159 wrote:
looking at that wiring diagram does it jump from fuse 12 to fuse 11?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Mon May 16, 2016 12:37 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

I didn't think to reopen the topic on this topic. Sad This has been one of those little gremlin problems that hasn't really been an issue with more important problems coming first, but with most of those problems having been dealt with i'm jumping back into this problem.
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Mon May 16, 2016 3:00 pm    Post subject: Reply with quote

busdaddy wrote:
First place I'd look is in the shifter up front, usually it's part of the neutral start switch.


Can't find a better pic
This is what you are looking for. Under the shifter cover.
http://www.thesamba.com/vw/forum/viewtopic.php?p=4670088#4670088

Tcash
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Tue May 17, 2016 3:19 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

Strange question. I just checked the voltage coming out at the bulb locations and i'm getting anywhere from 9v to 13v depending on if I have the key on or not. Should I be getting voltage with the key off at the bulb connections?
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Wed May 18, 2016 12:11 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

anything?
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Mon Jun 06, 2016 7:19 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

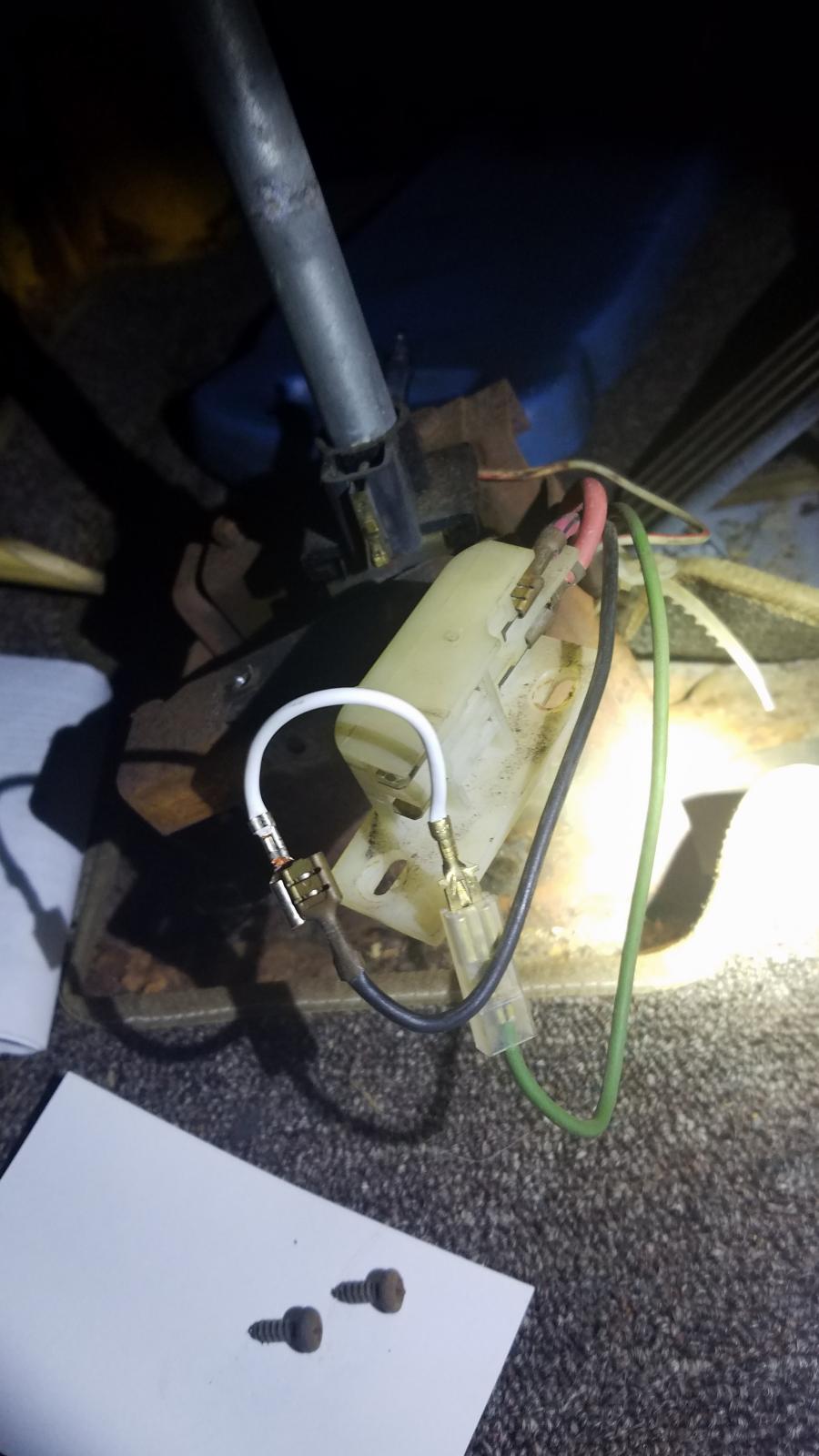

OK I've done some more digging and I think I've figured out my problem. The metal piece that goes between the two points is pretty messed up(pic attached). Does my logic sound good to you guys and where can I get a replacement piece? I took the wires out of the plastic bit and connected them together and they came on like they're supposed to, which to my mind points back to the metal bit.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
[/img]
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Mon Jun 06, 2016 8:34 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

#12 311 927 147 B park neutral position switch.
SGKent wrote:
it is a safety item and it also keeps you from damaging the flex plate accidently. I would replace it.

Look like this?

Image may have been reduced in size. Click image to view fullscreen.


http://www.germansupply.com/home/customer/product.php?productid=17419&cat=295&page=2

http://www.evwparts.com/Merchant2/merchant.mvc?Scr...e=ACSwitch

http://busdepot.com/details.jsp?partnumber=311927147B

maybe this one at napa?
http://www.napaonline.com/Search/Detail.aspx?R=ECHNS6827_0168435407


Image may have been reduced in size. Click image to view fullscreen.



#14 211 919 265 park neutral contact.
https://www.mecatechnic.com/en-GB/211919265-contac...059026.htm
https://www.vwheritage.com/vw.cfm?act=vwclassicPar...mp;lang=EN

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
old DKP driver
Samba Member


Joined: March 30, 2005
Posts: 4145
Location: Los Gatos,Ca.
old DKP driver is offline

PostPosted: Mon Jun 06, 2016 10:26 pm    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

Bull Shit .
The contacts on the shifter lever have 0 to due with damaging the flex plate.

The parts are worn and that's the problem period!

I replaced quite a few of these when the vehicles were only 4-5 years old.

Neutral safety switch problems are common on ALL old cars.
_________________
V.W.owner since 1967
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Tue Jun 07, 2016 5:04 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

Ok the switch contact I believe is the problem not the actual switch itself (note second picture). I've got a friend looking into a 411/412 automatic colomn to see if it has the same parts. Part #211919265 is what i'm looking for I think.
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Tue Jun 07, 2016 7:38 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

http://www.thesamba.com/vw/forum/viewtopic.php?p=8105675#8105675
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Tue Jun 07, 2016 8:28 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

yes I understand that is the part #. my question is do you think that is my problem? I don't really want to order the part and it not fix the problem.
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Tue Jun 07, 2016 9:50 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

kerian159 wrote:
yes I understand that is the part #. my question is do you think that is my problem? I don't really want to order the part and it not fix the problem.

May not be the problem, but that thing is worn out.

To test the switch.
Hook the wires back up to the switch and run a screwdriver across the two contacts and see if the lights come on. Lights come on the switch is good.

To test the contact.
Use an ohm meter and measure the resistance between #14 211 919 265 park neutral contact, the one that is all worn out and the shifter. There should be no continuity (contact) between the brass rubbing block and the shifter.


Good luck
Tcash
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kerian159
Samba Member


Joined: February 24, 2008
Posts: 325
Location: Pensacola, FL
kerian159 is offline

PostPosted: Tue Jun 07, 2016 10:21 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

I will do some more testing hopefully soon. Any ideas on how to get the neutral contact off the gear selector so I can attempt to rebuild it? Does it just slide up and off the shifter?
_________________
1976 Type II Westy P22 (Mine)
1969 Type I Autostick (Wife's)

"Growing older, but not up!"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 36038
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Tue Jun 07, 2016 10:38 am    Post subject: Re: Automatic Transmission Reverse Light Question Reply with quote

why not try to find a new one and that may be a clue how it comes off. It shows up available in a Google search. You may have to call on it in case it is actually NLA.

http://www.busdepot.com/211919265

https://www.vwheritage.com/vw.cfm?act=vwclassicPar...mp;lang=EN

http://www.volkswagen-classic-parts.de/kontaktgeber-t2-automatik.html
_________________
American Standard Snorkeling Terrier

Bring the American Hostages home alive.

Thanks to all who served:
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3  Next
Page 2 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
