VIN Plate for true identification of bus type?
Page: 1, 2  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 12:29 pm    Post subject: VIN Plate for true identification of bus type? Reply with quote

Can you determine the true identity of a bus purely from the VIN plate?

I have seen a bus for sale (Photos only) that looks to be a true 21 window bus.

However the M-code plate is missing. And no birth certificate. It has its VIN Plate type 24 with number etc. (Can I tell anything from this alone?)

It has all the key 21 metal, belly pans etc. and the roof looks like it has been on the bus since the factory looking at the overall paint fade/wear outside and in.

Any other key areas to look at to tell if it is real or clone? (I cannot get to see it in person)

Thanks
Mike.
_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
srfndoc
Samba Member


Joined: August 21, 2010
Posts: 3013
Location: SoCal
srfndoc is offline

PostPosted: Thu Dec 29, 2016 12:37 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

VIN plates can be swapped. The only for sure place is the stamped in VIN number (Chassis number). Although you could also weld in a new section here, that would be less likely to happen and more noticeable.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Evan's Spreadsheet for Bus RPM, based on gearing & tire size (ODS Format)
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches
_________________
"The world is in no hurry for another painted bus."
-Maurice
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Erik G
Samba Member


Joined: October 16, 2002
Posts: 11812
Location: Tejas!
Erik G is offline

PostPosted: Thu Dec 29, 2016 12:40 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

24 means it was a deluxe, 13 or 21 for that year. Doesn't specify
_________________
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 44874
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Thu Dec 29, 2016 12:42 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

All that stuff is easy to swap for someone with enough skills to weld in windows, etc.., I'd want to spend an hour in person with the bus on a hoist before buying anything like a deluxe, pics alone just won't do.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 12:45 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

Thanks!

The VIN number on the plate and the number stamped in the engine bay area match.
However like mentioned they could have been swapped, inserted, welded etc.

I knew the type 24 means deluxe, but again 13 or 21.

Anyone know of an area inside or outside the bus that would be only true for 21's and less likely to be modified by someone trying to create a clone?
_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
slow36hp
scott wimberley


Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
slow36hp is offline

PostPosted: Thu Dec 29, 2016 1:12 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

wiring tube on the frame
_________________
1958 custom camper
http://www.thesamba.com/vw/forum/viewtopic.php?t=483656
1957 oval
http://www.thesamba.com/vw/forum/viewtopic.php?t=426468&postdays=0&postorder=asc&start=0
1957 dd kombi
http://www.thesamba.com/vw/forum/viewtopic.php?t=186478&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 1:15 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

Is that not covered by the belly pans?
_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
slow36hp
scott wimberley


Joined: August 09, 2004
Posts: 3113
Location: mukilteo washington
slow36hp is offline

PostPosted: Thu Dec 29, 2016 1:42 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

InDaWeeds wrote:
Is that not covered by the belly pans?

dont recall if it is visible from the front. but i believe it is hands down the most skipped detail in a clone
_________________
1958 custom camper
http://www.thesamba.com/vw/forum/viewtopic.php?t=483656
1957 oval
http://www.thesamba.com/vw/forum/viewtopic.php?t=426468&postdays=0&postorder=asc&start=0
1957 dd kombi
http://www.thesamba.com/vw/forum/viewtopic.php?t=186478&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 1:49 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

Thanks.
Anyone have good photos of this wire tube to look for?
_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
olliehank47
Samba Member


Joined: May 04, 2011
Posts: 1198

olliehank47 is offline

PostPosted: Thu Dec 29, 2016 2:13 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

InDaWeeds wrote:
Thanks.
Anyone have good photos of this wire tube to look for?


Here's a photo of the wiring tube, with the center pan removed. It's on the bottom rail in this picture. With the center pan installed, you could not see this tube, but the openings will be in the cross member, passenger side front, next to the frame member. The rear opening, I believe, is not visible as it is covered by the frame tube for a short distance, rearward.

Image may have been reduced in size. Click image to view fullscreen.


Here's another picture, from the top, near the rear torsion tube. You can see the tube inside the frame member. I'm not sure if you can see a hole on the outside where the tube exits or even the end of the tube because the frame member is covered a short distance from the front cross member and the wiring loom exits at that point. Some one with a true 21 can verify if the front end of the tube is visible.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 5:41 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

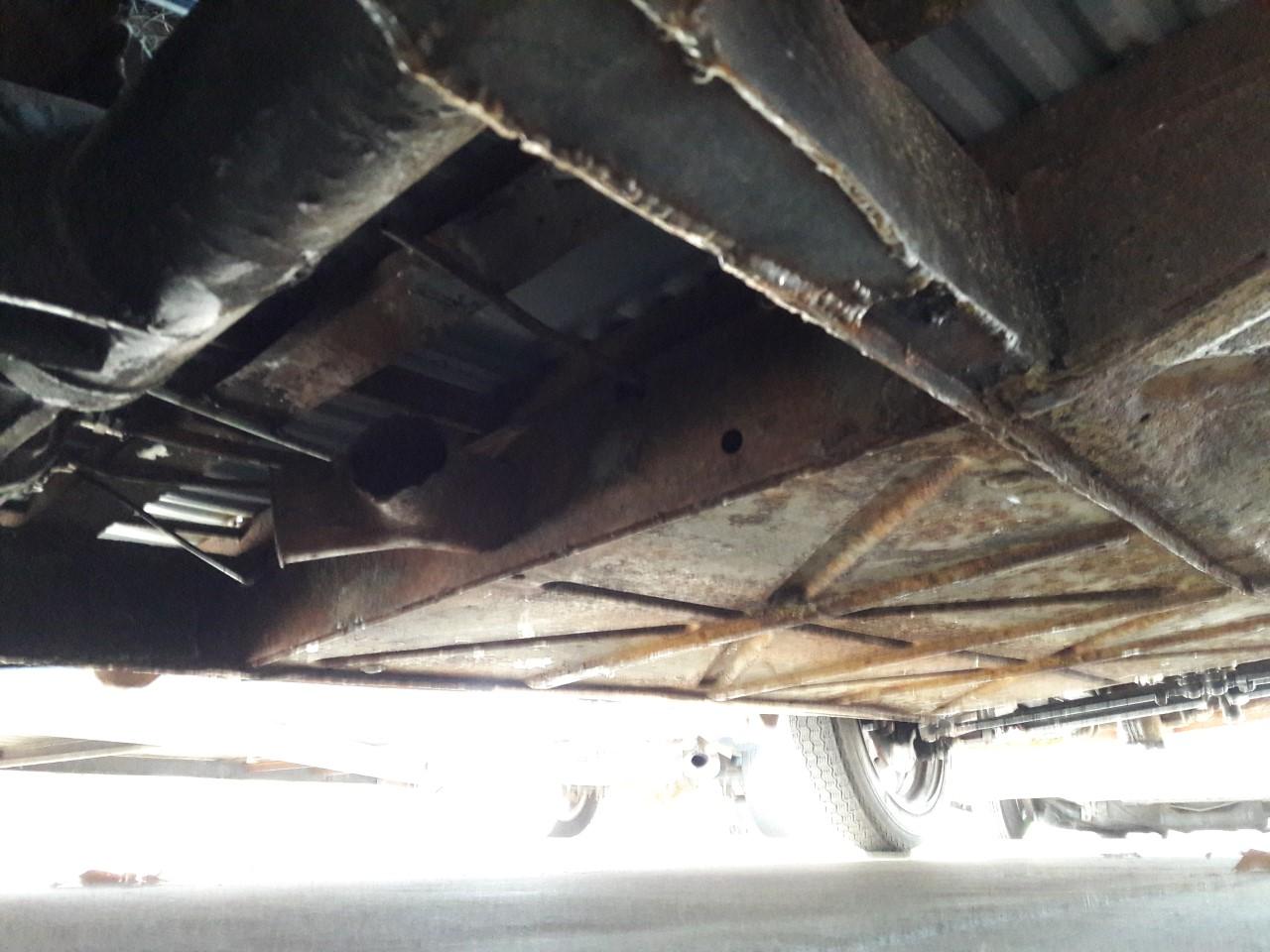

Does anyone see anything here that says this is a true 21 window bus?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 6:04 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

This is the VIN Plate from the 21 Window Bus. Looks like its missing some stamped numbers? ... Is this typical?
Image may have been reduced in size. Click image to view fullscreen.

_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 10614

hazetguy is offline

PostPosted: Thu Dec 29, 2016 6:47 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

looks like an id tag for a late '64 deluxe. type 24, vin number is the long number to the right.
i don't think any numbers are "missing". i think that's how they were stamped at that time.
i had an early '64 deluxe, almost exactly 100000 before that one.
_________________
Parts and mechanical restoration services available. I restore and rebuild fuel pumps, distributors, spindles, etc.
Check my ads or send a PM.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 44874
Location: Surrey B.C. Canada, Land of the giant flying moose!
busdaddy is offline

PostPosted: Thu Dec 29, 2016 7:21 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

InDaWeeds wrote:
Does anyone see anything here that says this is a true 21 window bus?

Hard to say aside from the belly pans appear to be OG. But the rest of the rust repairs are BRUTAL!, I'd be very afraid to peek under those belly pans, if the frame needed that much work ahead of them odds are good the same demons are hiding behind as well. If that many corners were cut underneath look at the rest with a very suspicious eye.
_________________
Rust NEVER sleeps and stock never goes out of style.

Wanted, OG paint 1971 Niagara blue decklid.

Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Thu Dec 29, 2016 8:17 pm    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

I hear what you are saying. Looks to be some poor patches here and there. However If the rest of the frame was in poor shape, wouldn't the belly pans be heavily corroded before the frame would suffer?
The rest of the bus per the current owner and supplied photos looks fairly solid.
Thoughts?
_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3620
Location: Five Cities, CA
easy e is offline

PostPosted: Fri Dec 30, 2016 1:57 am    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

I think deluxes had rear speaker mounts...
Reference thread
Image may have been reduced in size. Click image to view fullscreen.

_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
buseric
Samba Member


Joined: May 03, 2004
Posts: 1890
Location: In the woods, Ontario
buseric is offline

PostPosted: Fri Dec 30, 2016 5:49 am    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

InDaWeeds wrote:
Does anyone see anything here that says this is a true 21 window bus?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


ugly repair work. Do your homework on this one, real or not....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 64350
Location: Phoenix, AZ
EverettB is offline

PostPosted: Fri Dec 30, 2016 8:49 am    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

easy e wrote:
I think deluxes had rear speaker mounts...
Reference thread
Image may have been reduced in size. Click image to view fullscreen.


Not always...
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
InDaWeeds
Samba Member


Joined: November 15, 2005
Posts: 126
Location: Michigan or United Kingdom
InDaWeeds is offline

PostPosted: Fri Dec 30, 2016 9:00 am    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

The pic posted with speaker holes looks like a 23 window bus. This 21 window has an extra roof brace/support circled in red. I have seen this on most 21 window buses.

I have no doubt this bus is a true 21 window after requesting extra photos of detailed areas. I will just have to order the Birth Certificate to prove for sure.

Anyone know of a way to expedite VW Birth Certificates? ... Anyone recently received one sooner than 6 months?
Image may have been reduced in size. Click image to view fullscreen.

_________________
Why pamper life's complexities
When the leather runs smooth
On the passenger seat ?

Rollerz Convention!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 12549
Location: Casa de Oro, California
BarryL is offline

PostPosted: Fri Dec 30, 2016 10:21 am    Post subject: Re: VIN Plate for true identification of bus type? Reply with quote

buseric wrote:
InDaWeeds wrote:
Does anyone see anything here that says this is a true 21 window bus?


ugly repair work. Do your homework on this one, real or not....

Almost looks like a whole front clip.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
