2332cc build
Page: 1, 2, 3, 4, 5  Next
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Tue Sep 19, 2017 7:55 pm    Post subject: 2332cc build Reply with quote

I have been collecting parts to build a 2332 for awhile now. I have reacently dropped off the rotating assembly to be dynamically balanced. What I have done so far is modified the the crank for better oiling, installed total seal rings, got some light weight wrist pins cut to lenght. The wrist pins are now 16 grams lighter then the ones that came with the aa pistions. Balanced the pistions and balanced the rods. Once I get the rotating assembly back I will start assembling the bottom end.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dauz
Samba Member


Joined: January 05, 2010
Posts: 1370
Location: San Marcos
Dauz is offline

PostPosted: Tue Sep 19, 2017 8:20 pm    Post subject: Re: 2332cc build Reply with quote

Best of luck..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Onceler
Samba Member


Joined: May 28, 2010
Posts: 1499
Location: Indiana
Onceler is offline

PostPosted: Tue Sep 19, 2017 8:46 pm    Post subject: Re: 2332cc build Reply with quote

What did u modify on the crank for better oiling?
_________________
1972 Karmann Ghia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Tue Sep 19, 2017 9:22 pm    Post subject: Re: 2332cc build Reply with quote

I chamfered all the oil feed holes for the rods and mains.
_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bugguy1967
Samba Member


Joined: January 16, 2008
Posts: 4085
Location: Los Angeles, CA 90016
bugguy1967 is offline

PostPosted: Tue Sep 19, 2017 9:41 pm    Post subject: Re: 2332cc build Reply with quote

It's best to balance after mock-up, just in-case you need to grind on the throws to avoid the camshaft. The oiling mods do change things, but it's probably too small of a difference.

Make sure also to prep those cylinders before installing those new rings in there.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
pondervwmike
Samba Member


Joined: June 16, 2017
Posts: 373
Location: Ponder(Dallas) Texas USA
pondervwmike is offline

PostPosted: Thu Sep 21, 2017 3:25 pm    Post subject: Re: 2332cc build Reply with quote

Awesome build keep up the good work and keep us posted. I am building a stroker as well.
_________________
1967 Cal Look Beetle Street Car in re-restoration,customization. Mom and Dad bought it in 1983 when I was 4.
2010 VW Tiguan
2000 BMW 528i
1997 Jeep Cherokee
2127cc build thread https://www.thesamba.com/vw/forum/viewtopic.php?t=681556&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 8476
Location: Northern Virginia
nsracing is offline

PostPosted: Thu Sep 21, 2017 6:18 pm    Post subject: Re: 2332cc build Reply with quote

It does not make sense to get the crank balanced and then grind it/modify it again after it gets home. That defeats the purpose of the balance work.

Get it all mocked up to final stage and then when you are satisfied, get the parts balanced.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
porkchop-rob
Samba Member


Joined: April 28, 2015
Posts: 381

porkchop-rob is offline

PostPosted: Fri Sep 22, 2017 9:14 am    Post subject: Re: 2332cc build Reply with quote

If I am reading correctly, the OP did the crank modifications BEFORE he sent it to be balanced.
_________________
1965 Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fivelugshortaxle
Samba Member


Joined: May 13, 2011
Posts: 4254
Location: Aumsville, Oregon
fivelugshortaxle is offline

PostPosted: Fri Sep 22, 2017 8:25 pm    Post subject: Re: 2332cc build Reply with quote

To everybody building a stroker. Make it as strong as your pocket will allow and research cam and heads. You won't regret it. Love my 2276...you'll love your buiilds.
_________________
Good things come to those who wait.
2332 with lots of goodies....
Rotating assembly balanced by Brothers VW
4340 84mm crank
AA 94mm p&c' s
Total seal 2nd ring, rest are Grants
5.5 h beams
Magnum straight cuts
Steve Long XR310 on a 106
CB 1.4 rockers
CB Magnaspark 2 distributor
NGK D7ea plugs
A1 lowdown 1 3/4 with single muffler
Dellorto 48's with 40 venturies
Kennedy Stage 2 with Daiken disc
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Sat Oct 07, 2017 9:31 pm    Post subject: Re: 2332cc build Reply with quote

Mocked up the case with a crankshaft so I could cut it for a sand seal with my gene ber cutter.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hobbybob517
Samba Member


Joined: June 02, 2011
Posts: 1190
Location: Netherlands
hobbybob517 is offline

PostPosted: Sun Oct 08, 2017 1:01 am    Post subject: Re: 2332cc build Reply with quote

Very nice tool, looks like a good clean cut.
_________________
THE BUILD http://www.thesamba.com/vw/forum/viewtopic.php
SBD wrote:

3 million rpm? Well there's your problem! No wonder it blew up!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Thu Oct 12, 2017 8:27 pm    Post subject: Re: 2332cc build Reply with quote

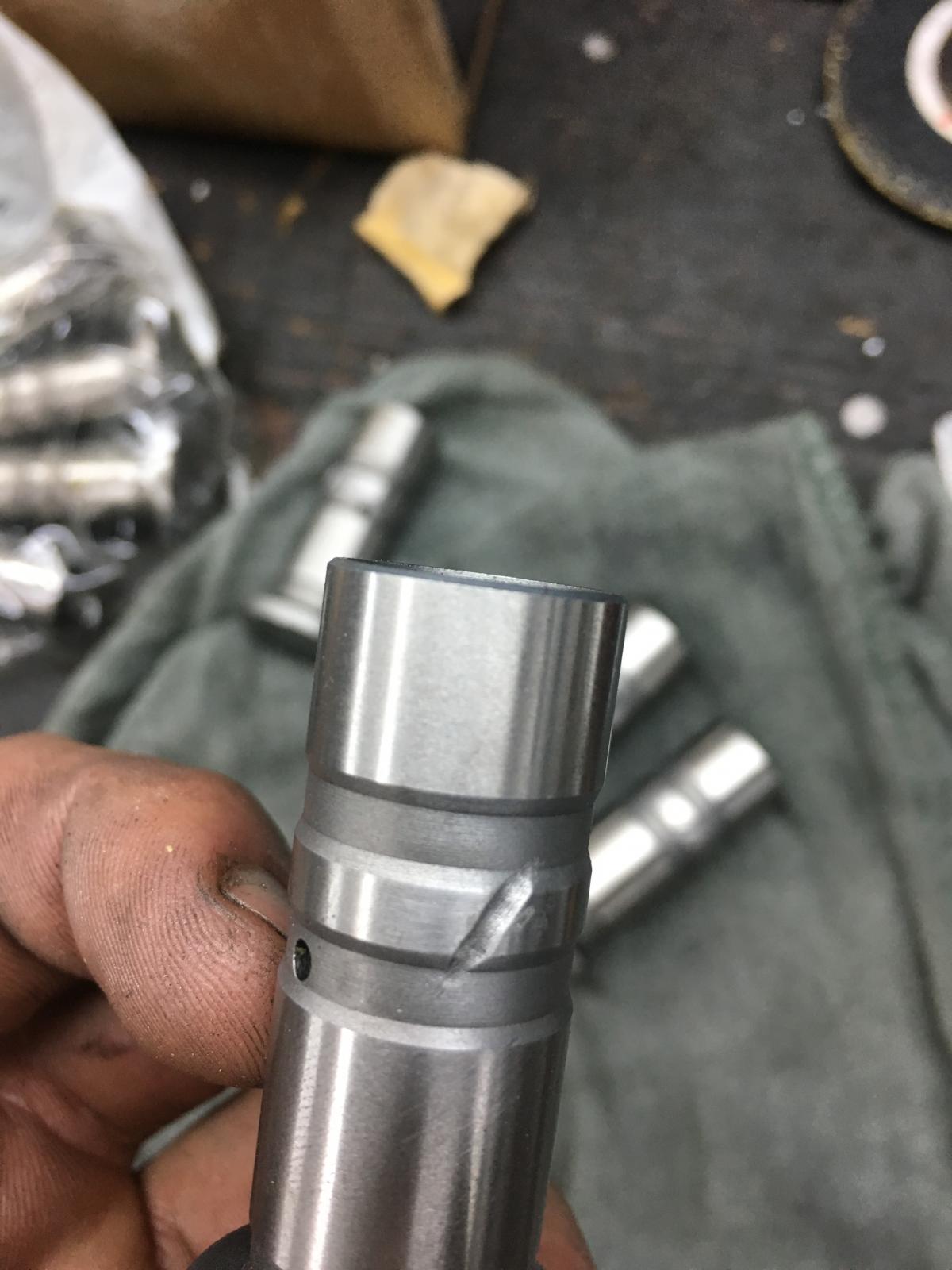

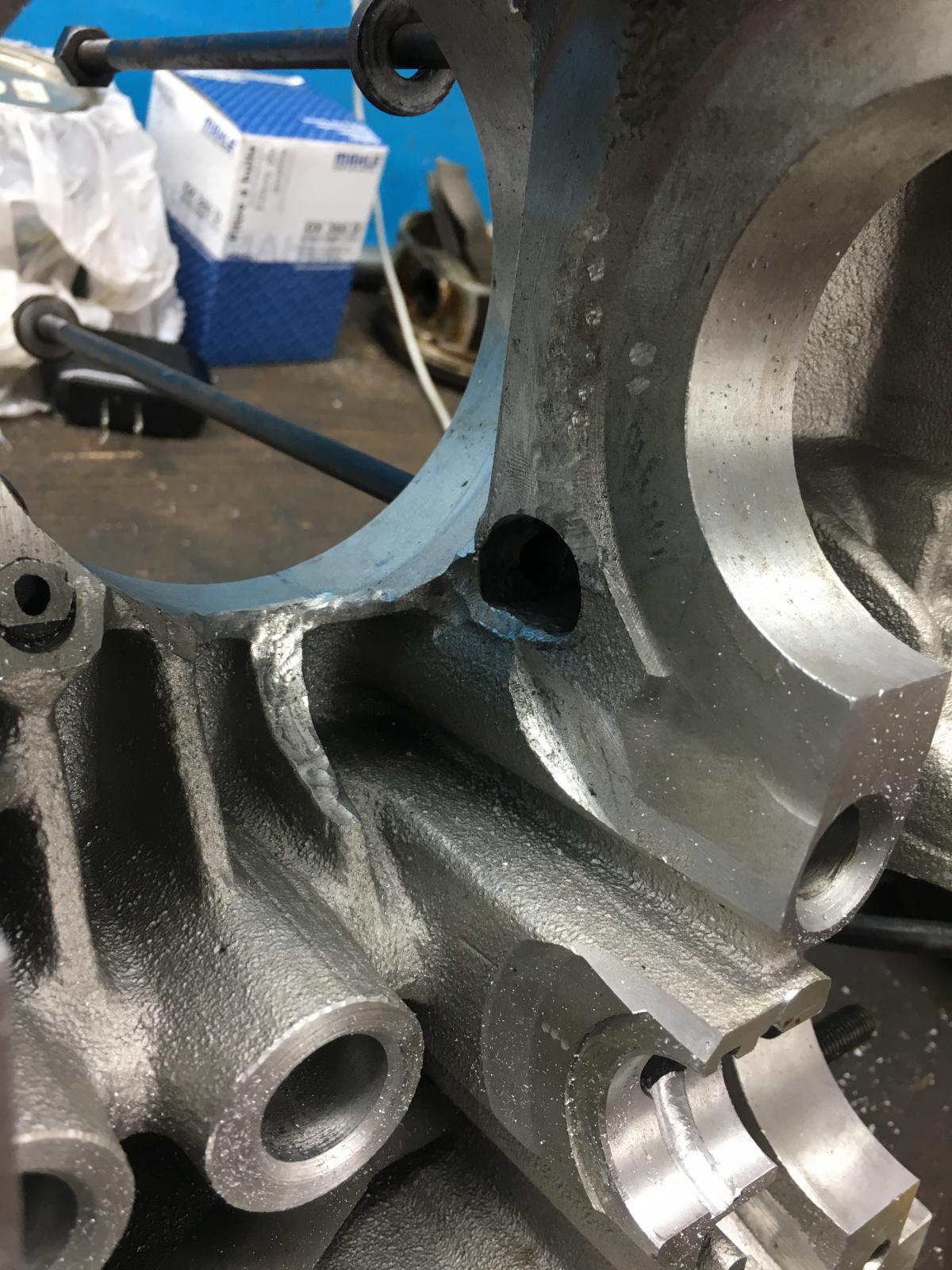

I have been doing the bob Hoover oiling modifications to the case. Got the extra oil gallary drilled and cam saddle oil groves widened. Also opened up the D shaped passage for the cam scraper and the passages under the center main saddle.


One question I have is about the lifter modification connecting the two oil groves. Should I do it to all the lifters or only the four that go on the 1/2 side?

I believe i have the original engine number from the car that this engine will be going in to. So I got some steel stamps and stamped it in to the case.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwracerdave
Samba Member


Joined: November 11, 2004
Posts: 14183
Location: Deep in the 405
vwracerdave is offline

PostPosted: Thu Oct 12, 2017 8:32 pm    Post subject: Re: 2332cc build Reply with quote

Modify all 8 lifters.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK
Featured in Dec. 2001 HOT VW's Magazine page 63

Watch my racing video's http://www.youtube.com/user/okvwracer/videos
Back to top
View user's profile Send private message Gallery Classifieds Feedback
croSSeduP
Samba Member


Joined: June 13, 2004
Posts: 1037
Location: Western Washington State
croSSeduP is offline

PostPosted: Thu Oct 12, 2017 8:59 pm    Post subject: Re: 2332cc build Reply with quote

Nicely done, Scott. Great pics.
Gig Harbor, eh? I live across the Narrows. We should connect. I know VERY FEW aircooled VW gear heads in the area. It's like a wasteland. Those of us around here who are into it should connect.
BTW, the engine sitting on my stand REALLY close to getting fired for cam break in is a 48 IDA'd 2276 monster. Check out my '67 progress.
Peace.
_________________
Please check my '67 sedan project progress!
http://www.thesamba.com/vw/forum/viewtopic.php?t=502253&highlight=
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Fri Oct 13, 2017 9:31 am    Post subject: Re: 2332cc build Reply with quote

I go to most the shows around here usually in my ghia (build thread in my discription). I might be at the octobugfest meet up in Tacoma on the 28th in my orange and white bus.
_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Tue Oct 31, 2017 9:05 pm    Post subject: Re: 2332cc build Reply with quote

Got the rotating assembly back. Also had the main bearings grooved so there is 360 degrees of oiling to the rods.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Sat Nov 04, 2017 8:51 pm    Post subject: Re: 2332cc build Reply with quote

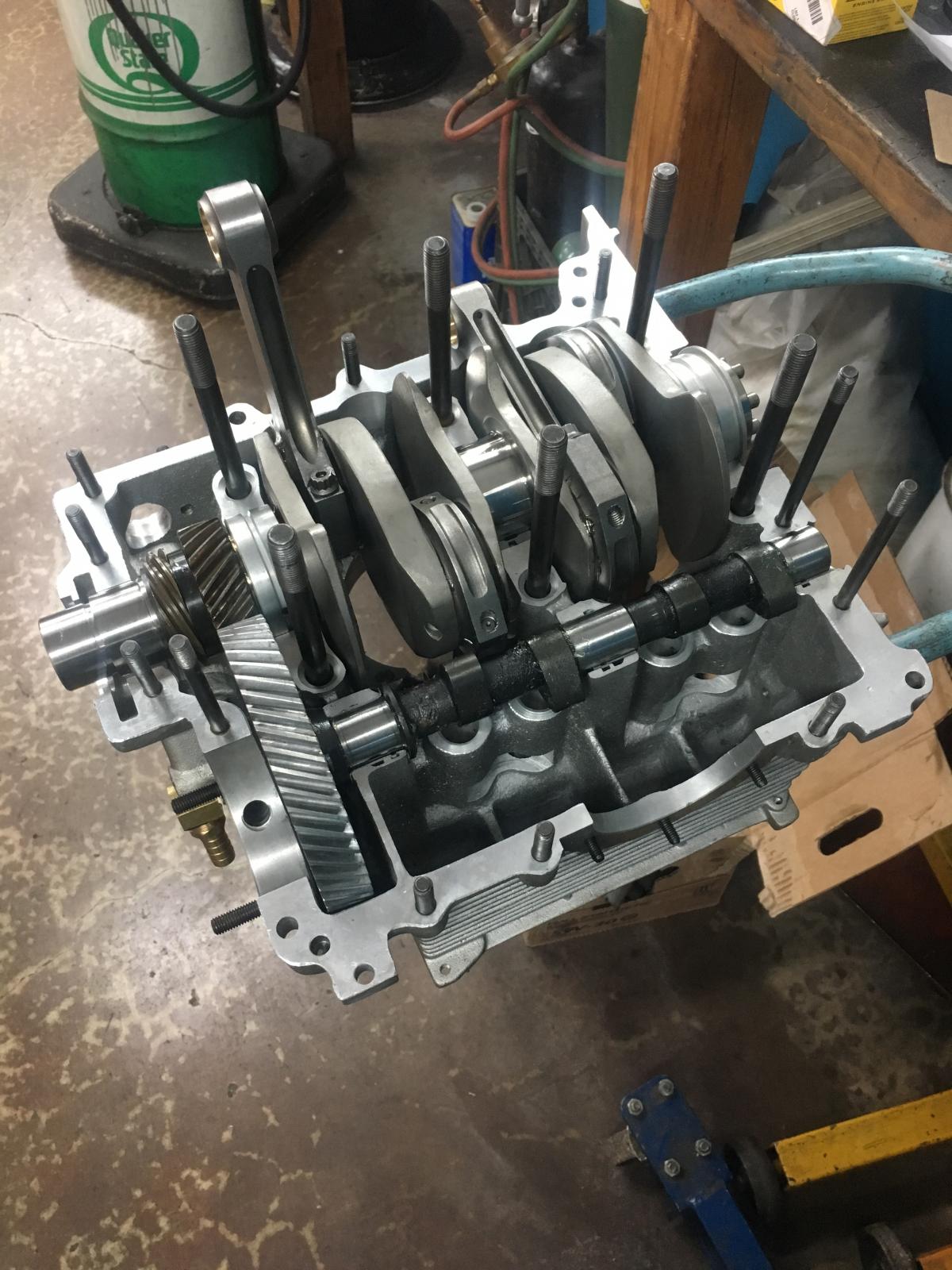

Got the crank assembled and set in the case. Rods are 5.5 Chevy journal. Did a little bit of clearance go on the cam for the rods. Didn't need much. The cam is a w130. No clearance issues between the lobes and crank.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fivelugshortaxle
Samba Member


Joined: May 13, 2011
Posts: 4254
Location: Aumsville, Oregon
fivelugshortaxle is offline

PostPosted: Sat Nov 04, 2017 10:58 pm    Post subject: Re: 2332cc build Reply with quote

Looking good. I'll be posting pics of my own 2332 build within the next couple of weeks. Interesting you're using a w130. I went with a SLR XR310 on 110 lobe.
_________________
Good things come to those who wait.
2332 with lots of goodies....
Rotating assembly balanced by Brothers VW
4340 84mm crank
AA 94mm p&c' s
Total seal 2nd ring, rest are Grants
5.5 h beams
Magnum straight cuts
Steve Long XR310 on a 106
CB 1.4 rockers
CB Magnaspark 2 distributor
NGK D7ea plugs
A1 lowdown 1 3/4 with single muffler
Dellorto 48's with 40 venturies
Kennedy Stage 2 with Daiken disc
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
scotty timmerman
Samba Member


Joined: January 10, 2010
Posts: 870
Location: gigharbor W.A
scotty timmerman is offline

PostPosted: Fri Nov 10, 2017 12:00 am    Post subject: Re: 2332cc build Reply with quote

Final assembly on the bottom end.

Image may have been reduced in size. Click image to view fullscreen.

_________________
71 ghia coupe: Build thread http://www.thesamba.com/vw/forum/viewtopic.php?t=511738&highlight=
71 type 3 fastback auto
71 type 3 fastback manual
73 super beetle
57 oval: build thread: https://www.thesamba.com/vw/forum/viewtopic.php?p=8616563#8616563
63 beetle reassembly: http://www.thesamba.com/vw/forum/viewtopic.php?p=7458619#7458619
2332cc engine build: https://www.thesamba.com/vw/forum/viewtopic.php?p=8608429&highlight=#8608429
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nsracing
Samba Member


Joined: November 16, 2003
Posts: 8476
Location: Northern Virginia
nsracing is offline

PostPosted: Fri Nov 10, 2017 12:31 am    Post subject: Re: 2332cc build Reply with quote

When I build a stroker, I will do the trial assembly all the way to the rocker geometry. I will install everything except for the rings. I mount light springs for the topend so I can observe the rocker system in movement.

Once I am happy w/ the rocker system, then I will cut the pushrods to final size.

When everything checks out, then I will take it apart and clean the parts for the last time to get ready for the sealing.

I do not seal that lower end until the whole engine has been mocked up to its finality. Everybody has their way, but I find it is more efficient to do the mockup all the way to the end see it work together before deciding to seal it.

I know people that have sealed the lower end and something hangs up and then had to clean everything. But ..your engine so you do your way.

It is all good.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
