PostPosted: Fri Jun 15, 2018 5:14 pm    Post subject: Exhaust System Bay Window ID Reply with quote

To link to this post copy and paste
Code:
[url=https://www.thesamba.com/vw/forum/viewtopic.php?t=701548&start=0&postdays=0&postorder=asc&highlight=]Exhaust System Bay Window ID[/url]


Thanks to Old Volks Home, jerseylooker and all who posted!

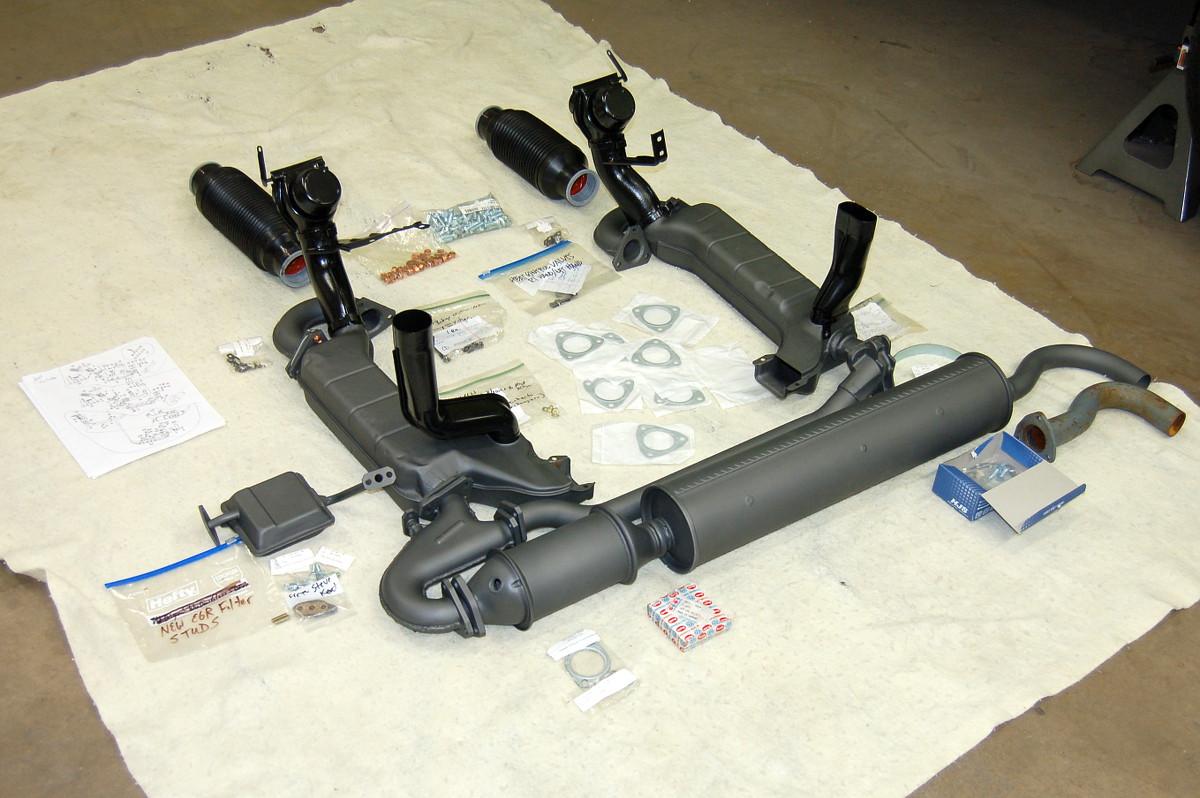

Exhaust - Muffler & Heater 1968-1972
Exhaust - Muffler & Heater 1972-1974
Muffler, Exhaust and Heater 1975-1978
Muffler, Exhaust and Heater California 1979 Only
Muffler, Exhaust and Heater Federal 1979 Only
Re: Exhaust Sytem Bay Window ID
Tourist Delivery 1979


Last edited by Tcash on Sat Jun 16, 2018 8:14 pm; edited 7 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 10:22 pm    Post subject: Exhaust - Muffler & Heater 1968-1972 Reply with quote

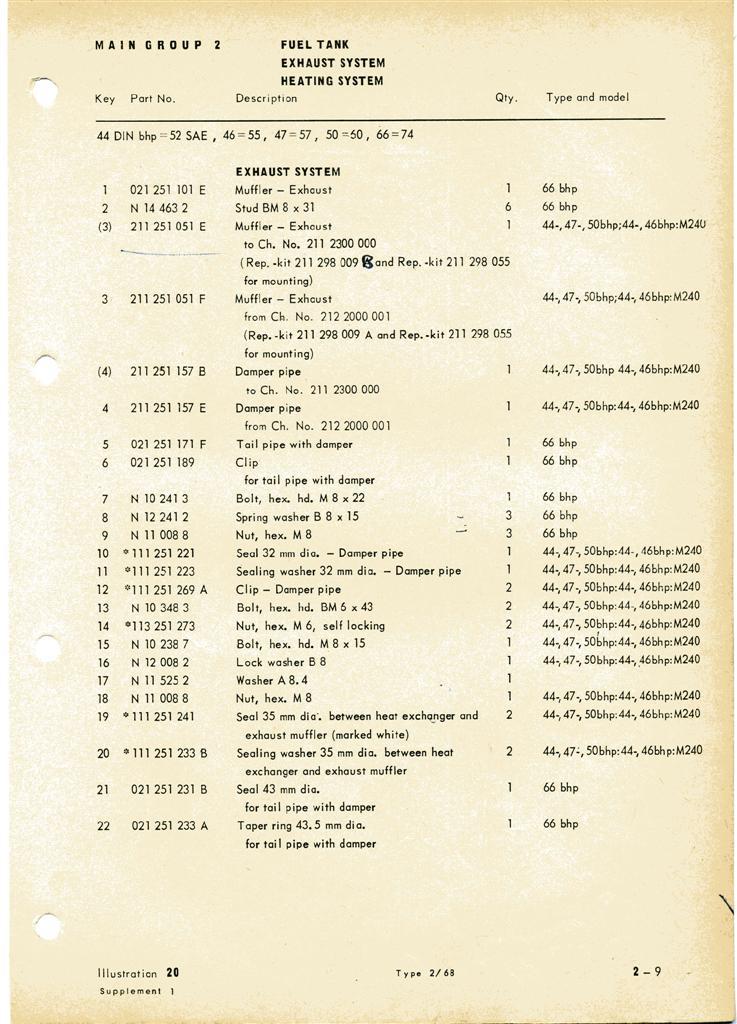

Exhaust - Muffler & Heater 1968-1972
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

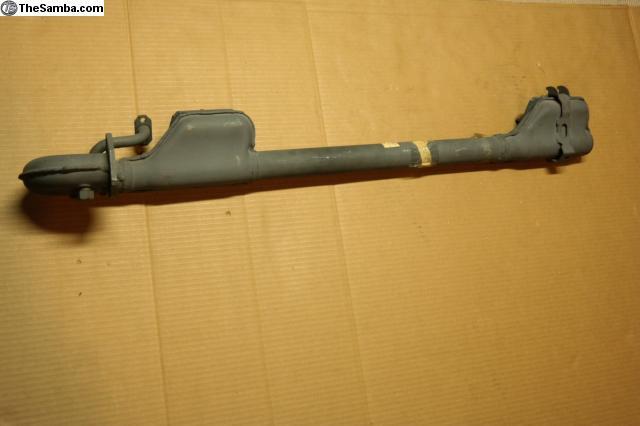

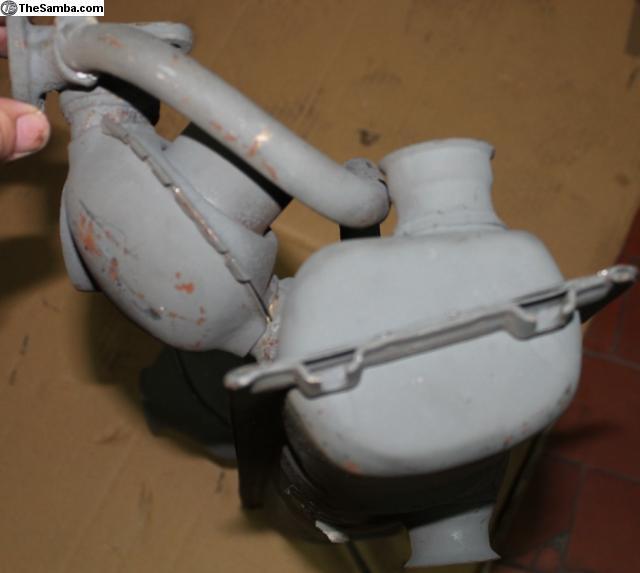

NOS 211 251 051 F T2 exhaust/muffler
https://www.thesamba.com/vw/forum/album_search.php...t_dir=DESC

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Fri Jun 15, 2018 10:40 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 10:23 pm    Post subject: Exhaust - Muffler & Heater 1972-1974 Reply with quote

Exhaust - Muffler & Heater 1972-1974

Image may have been reduced in size. Click image to view fullscreen.

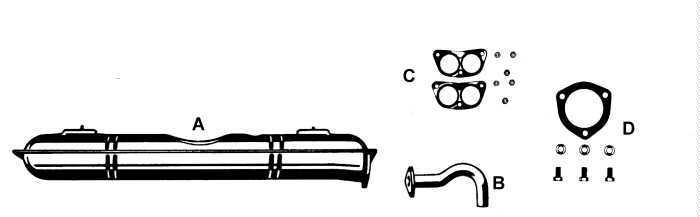

Muffler & Tailpipe
Ref. Part Number Description
A. 071-251-053E Muffler, Without EGR Port 1972
Note: 74 Models with EGR Port on Left Heater Box uses this Muffler as well
A. 071-251-053F Muffler, With EGR Port 73-74
B. 021-251-185F Tailpipe
C. 025-251-261 Gasket, Muffler to Heater Box Flange
D. 025-251-235 Gasket, Tailpipe

Image may have been reduced in size. Click image to view fullscreen.

Manifold & Heater System
Ref. Part Number Description
A. 021-256-091M Manifold/Heater Box, Left
Without EGR Port on Manifold/Heater Box
A. 021-256-091J Manifold/Heater Box, Left
1974 Models with EGR Port on Manifold/Heater Box
B. 021-256-092AC Manifold/Heater Box, Right 72-74
C. 021-256-251A Copper Gasket, Manifold to Head,1700 72-74
C. 039-256-251 Copper Gasket, Manifold to Head, 1800 1974
D. N 014 427 7 Stud, Exhaust Port, 1700 72-74
(D.) N 014 684 1 Stud, Exhaust Port 1800 1974 (Special 8x9x56)
E. 021-256-205K or L Heater Control/Flap Box, Left
E. 021-256-206K or L Heater Control/Flap Box, Right
F. 311-129-777 Swivel Pin/Clamp, Heater Cable
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 10:52 pm    Post subject: Muffler, Exhaust and Heater 1975-1978 Reply with quote

Muffler, Exhaust and Heater 1975-1978

Some items shown in the next two pictures are becoming VERY difficult to obtain in good used, much less new. The manifolds and pipes are long ago discontinued items. Did you know that many Bus owners are now retro-fitting the 72-74 Bus exhaust system to their 75-78's? A very workable retro-fit. Just be sure to use the 039-256-251 Copper Exhaust Gaskets from the Head to the Heater Box Manifold Pipes for proper sealing. For more info, go to the Exhaust - Muffler & Heater 1972-1974 Section for all of the necessary parts listings. In addition, the Heater Control Flap/Boxes on the 72-74 are the same as your 75-78, so you don't have to replace these.
Note: This retro-fit is NOT legal for street use, especially in areas of the US that still have periodic emission-control (smog) checks, especially those requiring the installation of the Catalytic Converter. Check with Local Laws first before performing this retro-fit.
Image may have been reduced in size. Click image to view fullscreen.


Muffler & Tailpipe
Ref. Part Number Description
A. 071-251-053C Muffler
B. 021-251-521 Muffler Strap
C. 021-251-541 Connecting Pipe From Elbow To Muffler
Note: This pipe is only used on 75-78 models NOT originally
equipped with a Catalytic Converter.
Not Legal For Street Use On Models Originally Equipped
With Catalytic Converter.
Not Legal For Street Use On California Models 75-78.
D. 021-251-185F Tailpipe
E. 023-298-051 Exhaust Donut/Clamp Kit - Connects Pipe or Converter to Muffler
F. 025-251-235 Gasket Only, Tailpipe

Image may have been reduced in size. Click image to view fullscreen.


Manifolds & Heater System
Ref. Part Number Description
A. 021-251-551 Exhaust Manifold, Left
B. 021-251-552 Exhaust Manifold, Right
C. 039-256-251 Copper Gasket, Manifold to Head, 1800 1975, 2000 76-78
D. 043-251-509 Exhaust Triangle Gasket
E. 021-251-201 Exhaust "Afterburner" Pipe, Left or Right Side
F. 021-256-091T Heater Box, Left
G. 021-256-092T Heater Box, Right
H. 021-251-501 Exhaust Crossover Pipe With PreHeat Tube 75-Mid 76
To VIN 2x6 2070 000
J. 021-251-501A Exhaust Crossover Pipe Mid 76-78
From VIN 2x6 2070 001

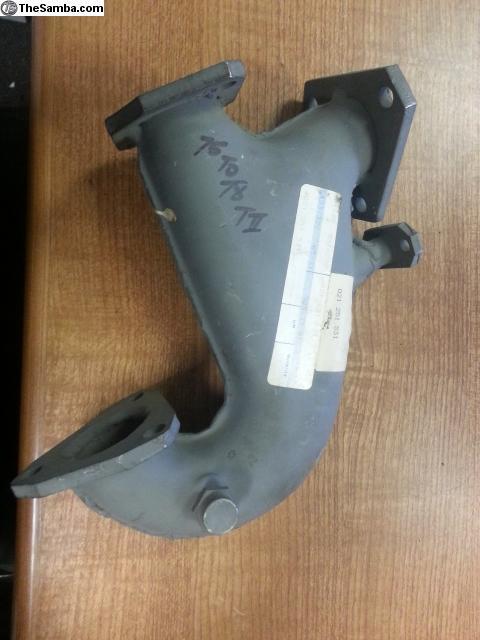

K. 021-251-531 Exhaust Elbow
L. 070-251-235 Gasket, Elbow to Crossover Pipe
M. 021-256-205K or L Heater Control/Flap Box, Left
M. 021-256-206K or L Heater Control/Flap Box, Right
N. 311-129-777 Swivel Pin/Clamp, Heater Cable
P. N 014 684 1 Stud, Exhaust Port (Special 8x9x56)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 10:58 pm    Post subject: Muffler, Exhaust and Heater California 1979 Only Reply with quote

Muffler, Exhaust and Heater California 1979 Only

Image may have been reduced in size. Click image to view fullscreen.

Muffler & Tailpipe
Ref. Part Number Description
A. 071-251-053C Muffler
B. 021-251-521 Muffler Strap
C. See Note Not Applicable to California System
D. 021-251-185F Tailpipe
E. 023-298-051 Exhaust Donut/Clamp Kit - Connects Pipe to Muffler
F. 025-251-235 Gasket Only, Tailpipe

Image may have been reduced in size. Click image to view fullscreen.

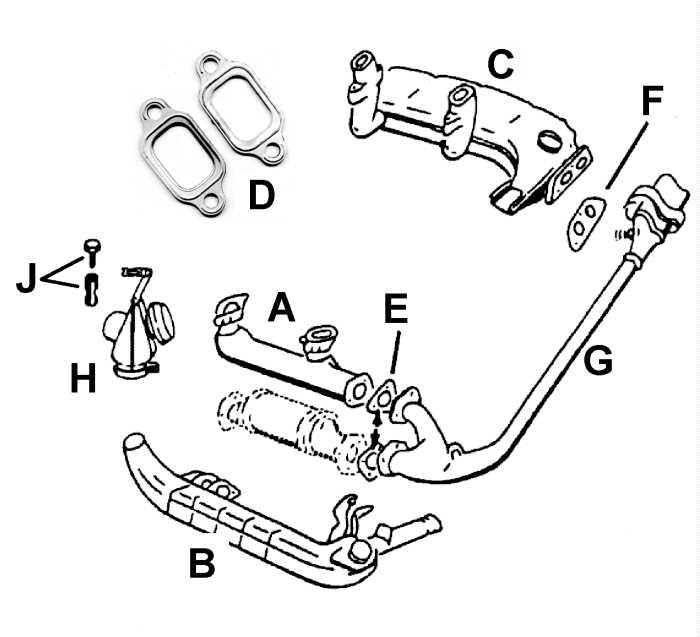

Manifold & Heater System
Ref. Part Number Description Price
A. 039-251-551 Exhaust Manifold, Left
Becoming Very Rare! - Stainless Steel
B. 039-256-091D Heater Box, Left
C. 029-256-092C Heater Box, Right
D. 029-256-251A Exhaust Gasket, Manifold or Heater Box to Head
Cylinder 1 and 4
D. 029-256-252A Exhaust Gasket, Manifold or Heater Box to Head
Cylinder 2 and 3
E. 043-251-509 Exhaust Triangle Gasket
Connects Crossover Pipe to Left Manifold and both sides of Catalytic Converter
F. 025-251-261 Exhaust Gasket, Right Heater Box to Crossover Pipe
G. 039-251-497A Exhaust Crossover Pipe
H. 021-256-205K or L Heater Control/Flap Box, Left
H. 021-256-206K or L Heater Control/Flap Box, Right
J. 311-129-777 Swivel Pin/Clamp, Heater Cable
** N 014 684 1 Stud, Exhaust Port - Head to Manifold or Heater Box
(Special 8x9x56)(Not Shown)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 11:02 pm    Post subject: Muffler, Exhaust and Heater Federal 1979 Only Reply with quote

Muffler, Exhaust and Heater Federal 1979 Only

Image may have been reduced in size. Click image to view fullscreen.


Muffler & Tailpipe
Ref. Part Number Description
A. 071-251-053C Muffler
B. 021-251-521 Muffler Strap
C. 021-251-541 Connecting Pipe From Elbow To Muffler
Note: This pipe is only used on 1979 models NOT originally
equipped with a Catalytic Converter.
Not Legal For Street Use On Models Originally Equipped
With Catalytic Converter.
Not Legal For Street Use On California 1979 Models
D. 021-251-185F Tailpipe
E. 023-298-051 Exhaust Donut/Clamp Kit - Connects Pipe or Converter to Muffler
F. 025-251-235 Gasket Only, Tailpipe

Image may have been reduced in size. Click image to view fullscreen.


Manifold & Heater System
Ref. Part Number Description Price
A. 039-256-091C Heater Box, Left
B. 029-256-092C Heater Box, Right
C. 039-251-497 Exhaust Crossover Pipe
D. 029-256-251A Exhaust Gasket, Manifold or Heater Box to Head
Cylinder 1 and 4
D. 029-256-252A Exhaust Gasket, Manifold or Heater Box to Head
Cylinder 2 and 3
E. 025-251-261 Gasket Only, Heater Box Flange to Crossover Pipe $3.75ea
F. 411-298-009 Gasket Set With Hardware, Heater Box Flange to Crossover Pipe (does both sides)
G. 043-251-509 Exhaust Triangle Gasket, Crossover Pipe to Catalytic Converter or Connecting Pipe
H. N 014 684 1 Stud, Exhaust Port - Head to Manifold or Heater Box
(Special 8x9x56)
J. 021-256-205K or L Heater Control/Flap Box, Left
J. 021-256-206K or L Heater Control/Flap Box, Right
K. 311-129-777 Swivel Pin/Clamp, Heater Cable
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Fri Jun 15, 2018 11:05 pm    Post subject: Re: Exhaust Sytem Bay Window ID Reply with quote

Heater Blower, Hoses & Air Channel Parts

Image may have been reduced in size. Click image to view fullscreen.


Parts List
Ref. Part Number Description Price
A. 411-963-007B Blower Motor Only
B. 261-261-195A Fan Housing
C. 211-261-269D Mounting Bracket Assembly
D. 021-256-331A Hot Air Tube, Left 72-78 & 1979 Federal Models
D. 039-256-331A Hot Air Tube, Left 1979 California Models
D. 021-256-332A Hot Air Tube, Right 72-74 & 1979 All Models
D. 021-256-332B Hot Air Tube, Right 75-78
E. 211-261-235 Fresh Air Hose, Left
F. 211-261-236A Fresh Air Hose, Right
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 10:30 am    Post subject: NOS 211 251 051E T2a exhaust muffler Type I engine 1968-71 Reply with quote

NOS 211 251 051E T2a exhaust muffler Type I engine 1968-71

asiab3
"new Ernst and old factory Earnst from 1969. complete muffler kit from bus depot. muffler, damper, and tail pipe. for forums."
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sat Jun 16, 2018 1:01 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 10:47 am    Post subject: NOS 211 251 051F T2 exhaust muffler 1600cc Type I engine 1972-79 Reply with quote

NOS 211 251 051F T2a Exhaust muffler Type I engine 1972-79

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


211-298-055 - DAMPER PIPE & TAIL PIPE MOUNTING KIT - BUS 61-71.
Image may have been reduced in size. Click image to view fullscreen.

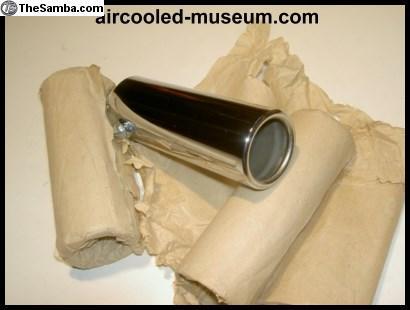

000 071 331 Exhaust tip
Image may have been reduced in size. Click image to view fullscreen.

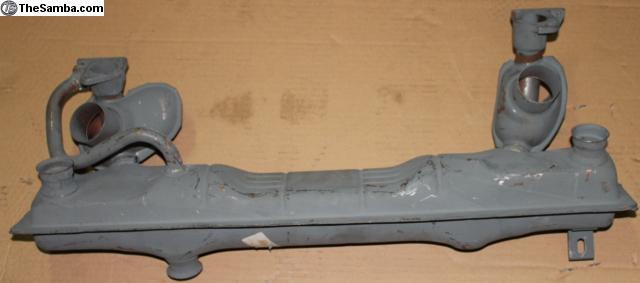

NOS 211 251 051 L Leistritz exhaust 1600cc
Image may have been reduced in size. Click image to view fullscreen.


1972-73 Type I 1600cc Exhaust pipe
Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sat Jun 16, 2018 11:31 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 11:00 am    Post subject: Exhaust - Muffler & Heater 1972-1974 Type IV engine Reply with quote

Exhaust - Muffler & Heater 1972-1974

Note: the Stainless steel Muffler is not stock, but who cares, it is a thing of beauty.
Notchboy
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sat Jun 16, 2018 1:11 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 11:02 am    Post subject: Muffler, Exhaust and Heater 1975-1978 Type IV engine Reply with quote

Muffler, Exhaust and Heater 1975-1978 Type IV engine

Our 76 Deluxe Westfalia ech_bus
https://www.thesamba.com/vw/forum/album_search.php...t_dir=DESC
Image may have been reduced in size. Click image to view fullscreen.


J. 021-251-501A Exhaust Crossover Pipe Mid 76-78
Image may have been reduced in size. Click image to view fullscreen.

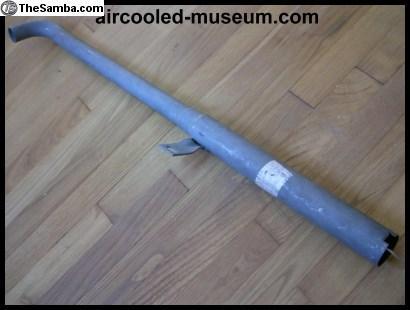

021-251-185F Tailpipe
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

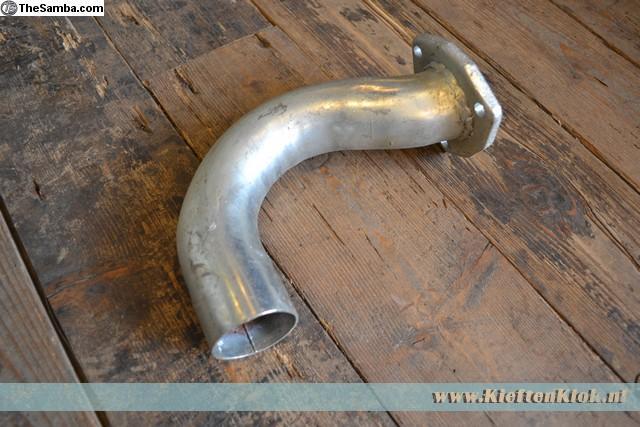

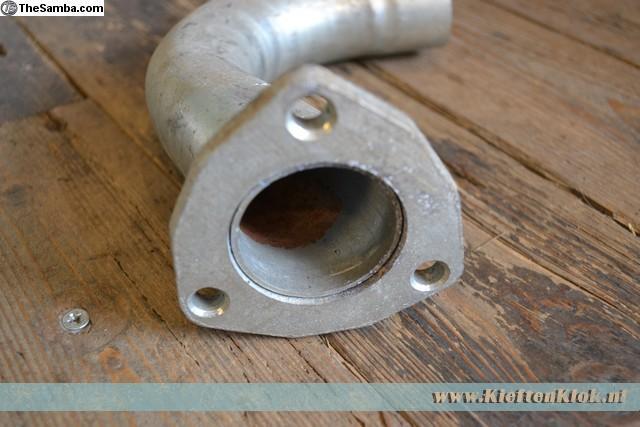

1975-78 NOS Exhaust Elbow 021 251 531
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
[url][/url]


Last edited by Tcash on Sat Jun 16, 2018 7:31 pm; edited 5 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 11:03 am    Post subject: Muffler, Exhaust and Heater California 1979 Only Type IV engine Reply with quote

Muffler, Exhaust and Heater California 1979 Only Type IV engine

Image may have been reduced in size. Click image to view fullscreen.

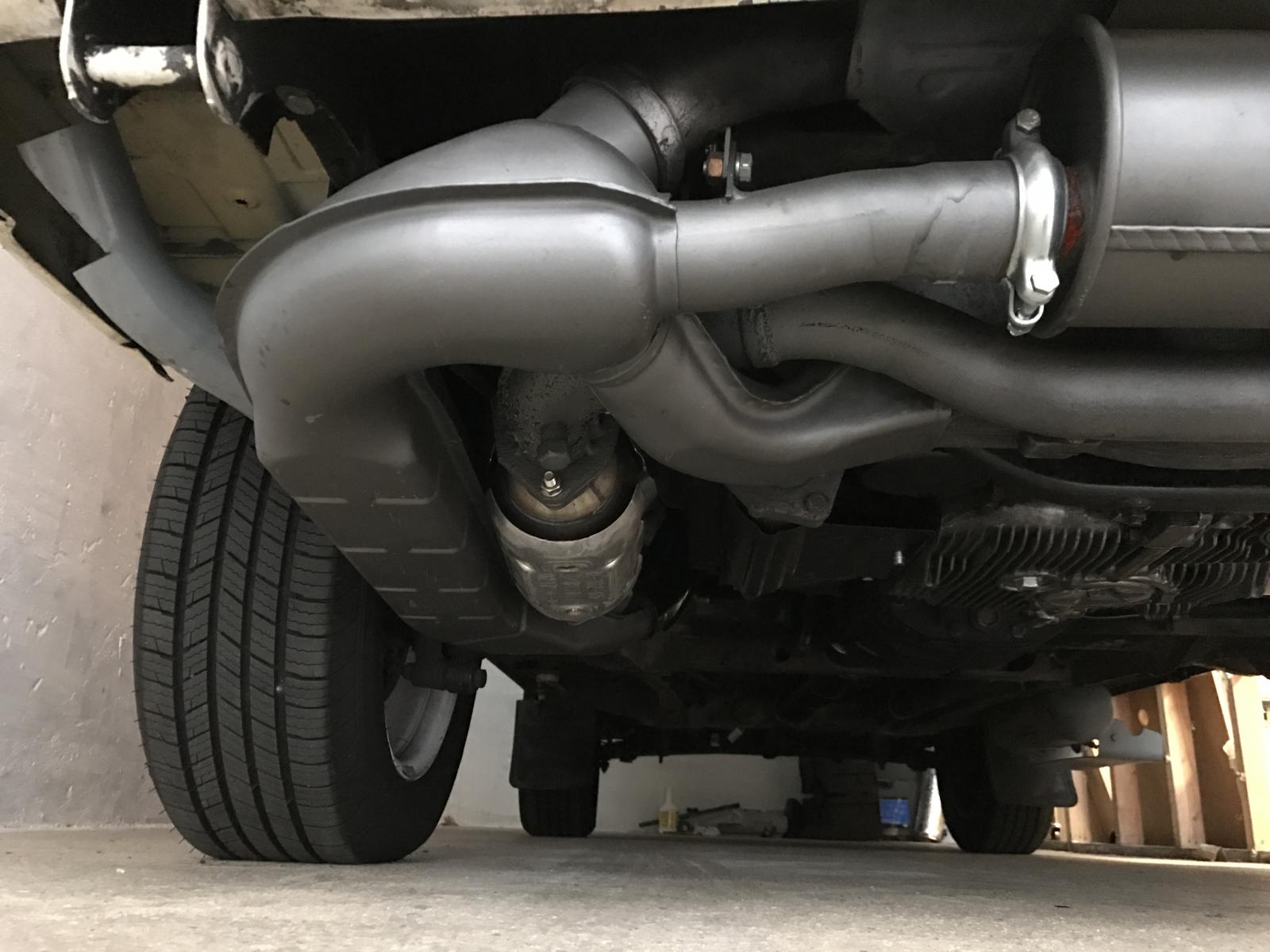

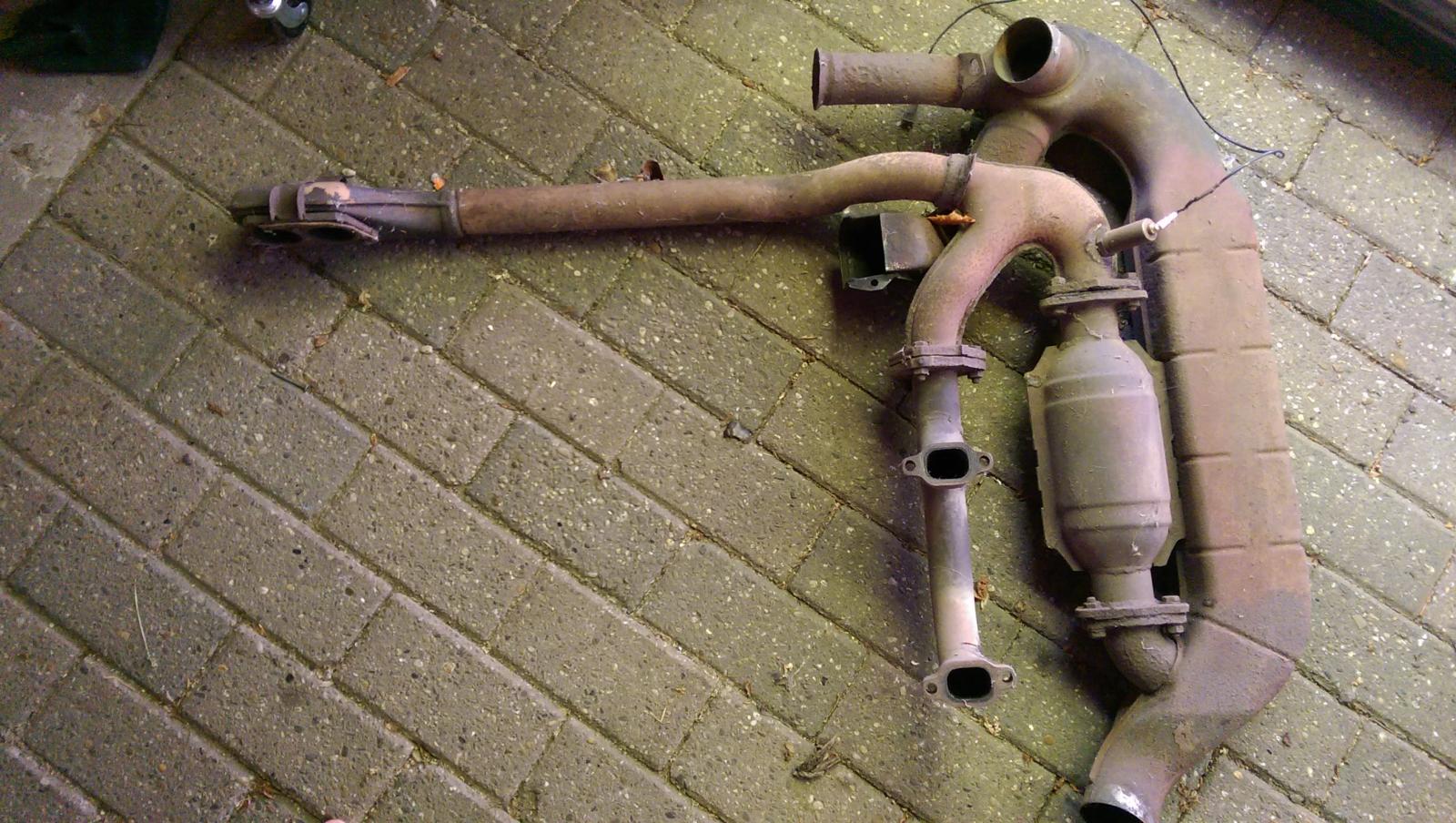

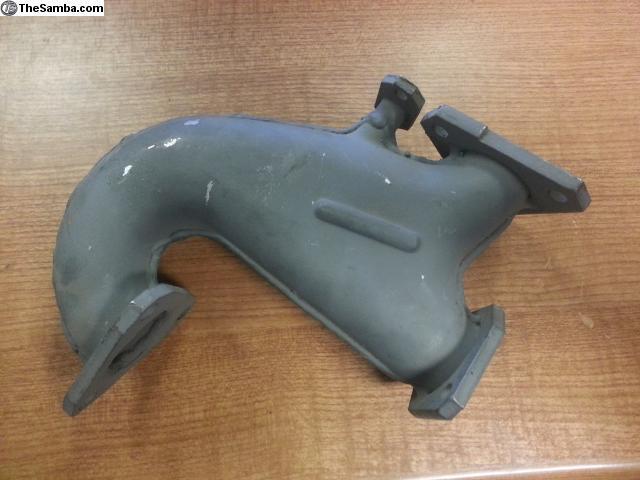

1979 California Exhaust Left side parts
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


1979 Federal is the top little (inset) picture.
1979 California is the bottom little (inset) picture.
Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sat Jun 16, 2018 9:21 pm; edited 5 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 11:05 am    Post subject: Muffler, Exhaust and Heater Federal 1979 Only Type IV engine Reply with quote

Muffler, Exhaust and Heater Federal 1979 Only Type IV engine

1979 Federal is the top little (inset) picture.
1979 California is the bottom little (inset) picture.
Image may have been reduced in size. Click image to view fullscreen.

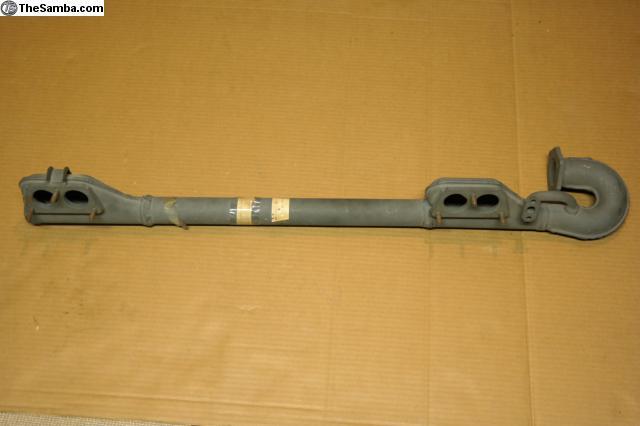

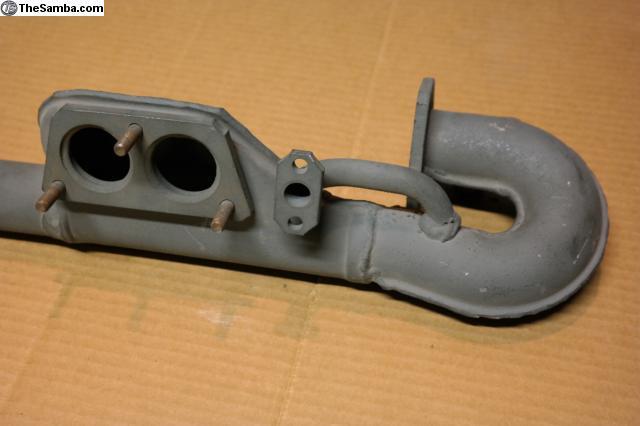

NOS 071 251 497 B Exhaust Crossover Pipe
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sat Jun 16, 2018 8:35 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tcash
Samba Member


Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
Tcash is offline

PostPosted: Sat Jun 16, 2018 8:02 pm    Post subject: 1979 Tourist Delivery Reply with quote

1979 Tourist Delivery

Note the missing catalytic converter. I believe tourist buses such as mine were not equipped with it. This is a quote from VW documentation for '79 tourist buses, translated from German:

Quote:
furgo
Changes to model year 1979

Due to the changes in emissions regulations, US vehicles will be equipped with a catalytic converter and California vehicles with an additional Lambda sensor. The catalytic converter and the Lambda sensor will not be built into tourist vehicles, so that these can be powered by leaded fuel.


furgo wrote:

Excellent, thanks all. The DK 81-334-378 code might actually indicate a Dansk part number. I've found no information about it, other than another guy here at The Samba looking for info on it too.

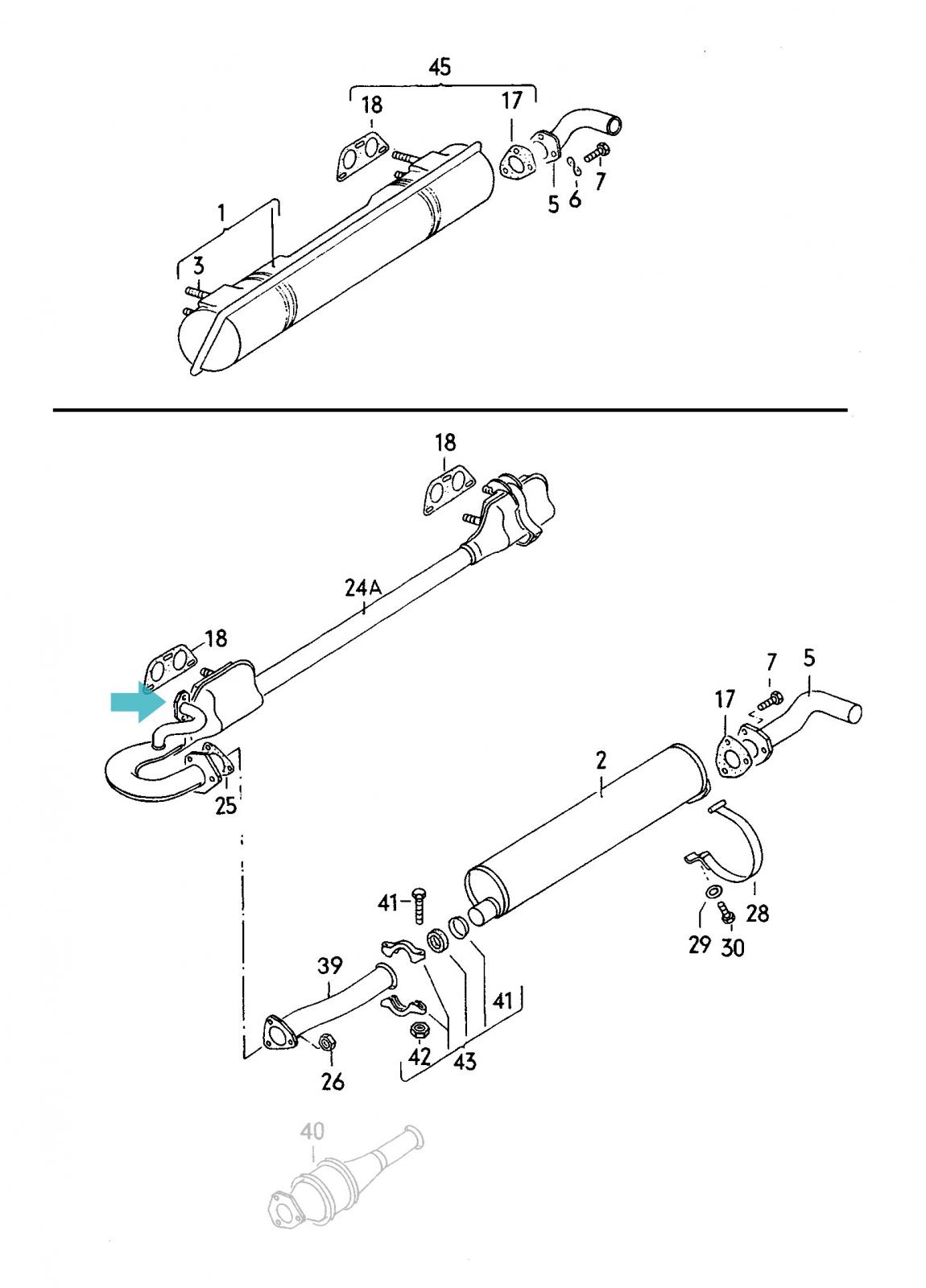

I've looked more into this on the microfiches too. Good tip about the EGR, I can see where it was originally plugged now (marked with an arrow on the drawing below). The drawing shows the 72-74 muffler I've got (top) vs. the original '79 Federal setup (w/o catalytic converter in my case, bottom)

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
