05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Fri May 08, 2020 4:02 am Post subject: cilinderhead oil spill? |
|
|

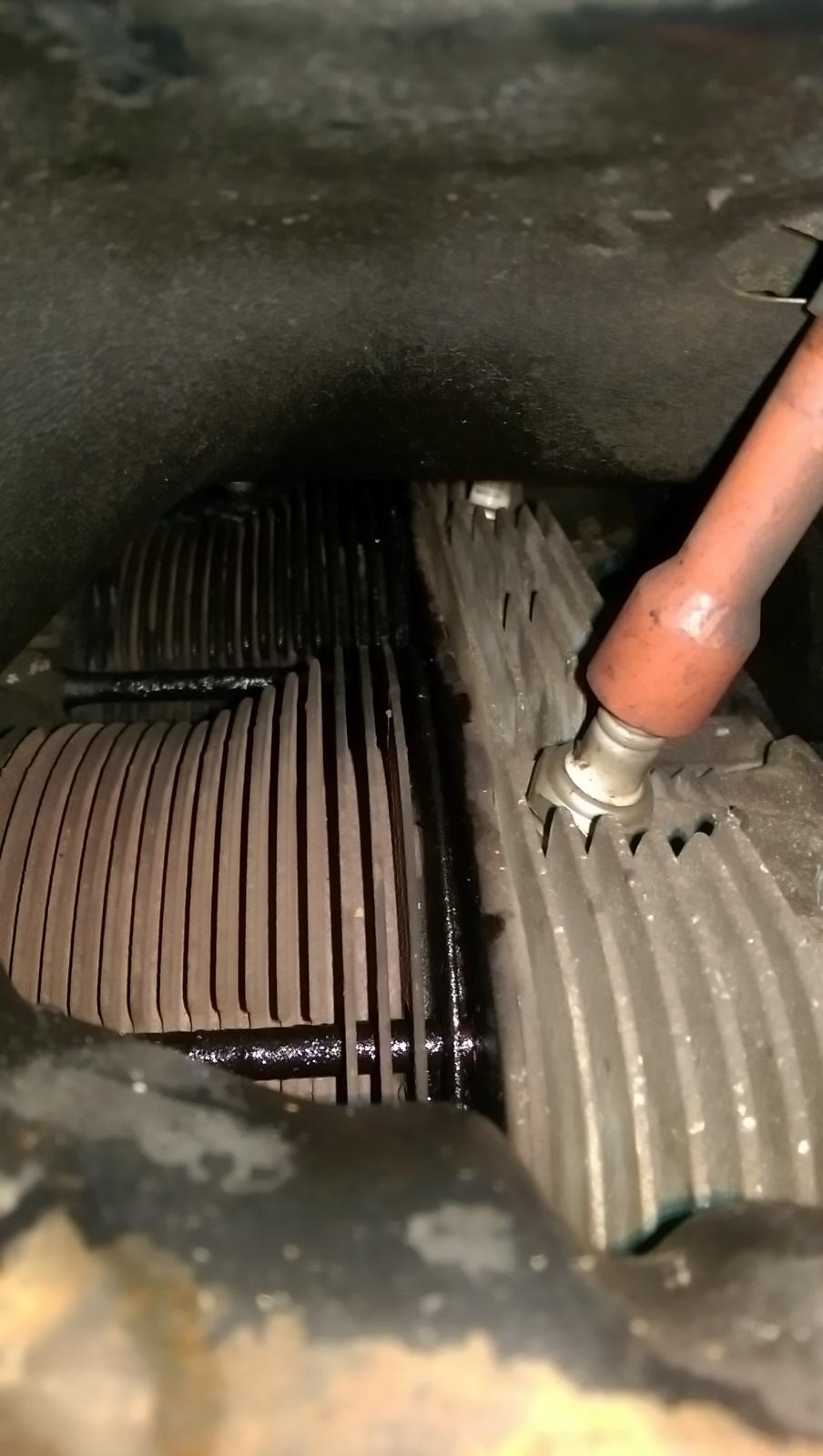

cilderhead 3 and 4 are clean but on 1 and 2 there is oil spill between de cilinder and the head. Even de tin is covered with oil right above the cilder and head. There is no oil spil between the cilinder and the crankcase (type 4 engine)
Question? is there a quick fix by just torx the cilinderbolt or do I have to replace the cilnderhead?

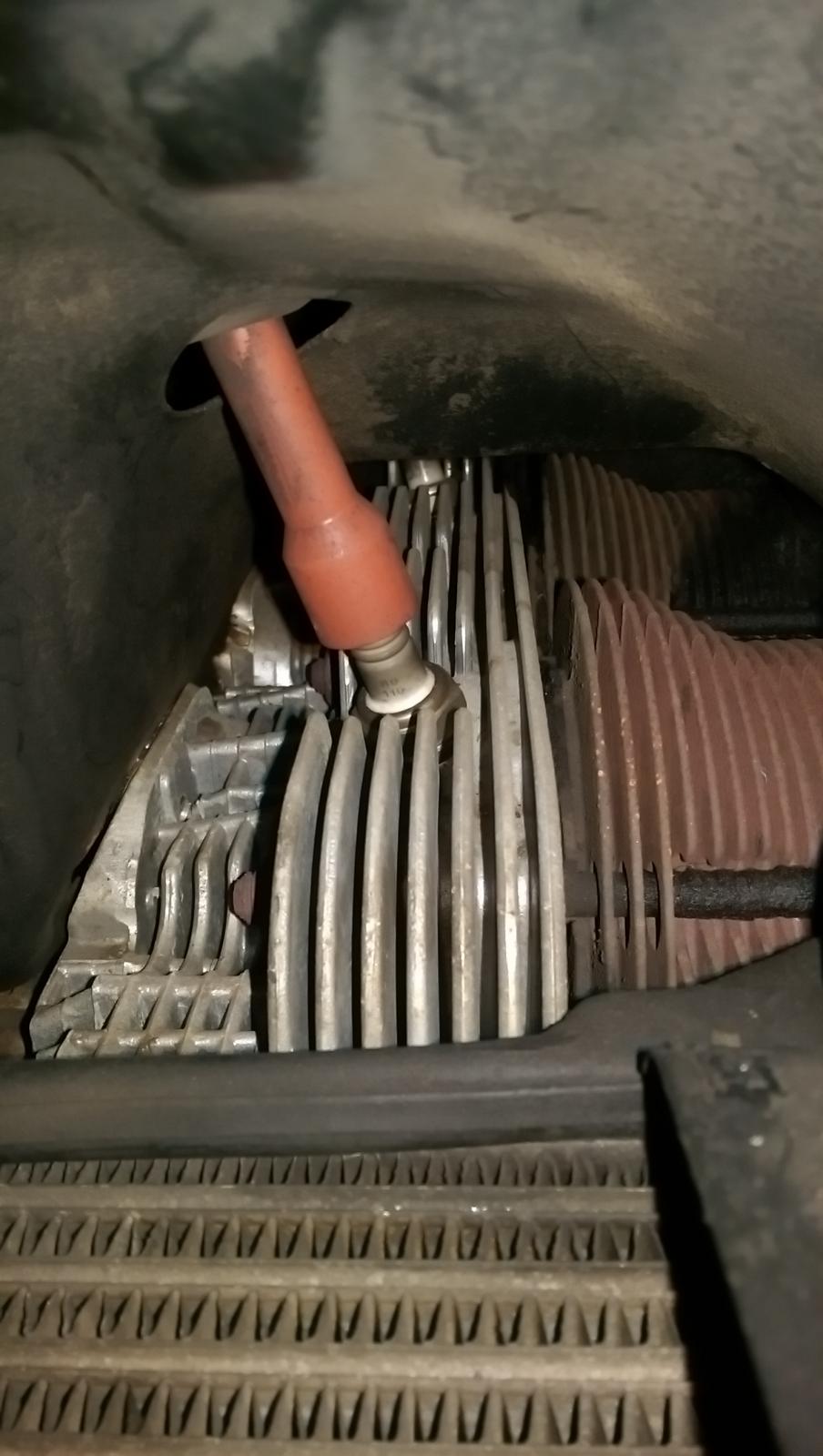

this is how cilnder 3 and 4 looks _________________ 63 doubble door panel van
79 de luxe micro bus
Be the change that you wish to see in the world. |
|
Back to top |
|
|
SGKent Samba Member
Joined: October 30, 2007 Posts: 41031 Location: Citrus Heights CA (Near Sacramento)
|
Posted: Fri May 08, 2020 9:31 am Post subject: Re: cilinderhead oil spill? |
|
|
you can try torquing ALL the cylinder head nuts in the correct sequence and see if that helps, but it would be a pain to get that far and have to do it again. I'd be thinking doing a quality valve job and flycut on both heads. Also you could try doing a cylinder leakdown test to see if you can hear any air escaping in that area, then do it again after retorquing all the nuts to see if it stops. Often it can eat into the aluminum so the fix may only be temp. They could have built it with head gaskets too and they could be blown.
MAKE SURE that the pushrod tubes are dry and that they aren't the source of oil. _________________ “Most people don’t know what they’re doing, and a lot of them are really good at it.” - George Carlin |
|
Back to top |
|
|
airschooled Air-Schooled
Joined: April 04, 2012 Posts: 12688 Location: on a bike ride somewhere
|
Posted: Fri May 08, 2020 10:50 am Post subject: Re: cilinderhead oil spill? |
|
|
If you have a helper crank the engine over with the coil wire disconnected, you can listen carefully to the compression of the engine. If you hear a PSSST during cranking, the combustion leaks are probably beyond a retorque. If the engine is out of the car, no excuse not to remove the head bolts, clean the threads, and retorque them with a drop of oil on the clean threads.
Good luck,
Robbie _________________ Learn how your vintage VW works. And why it doesn't!
One-on-one tech help for your Volkswagen:
www.airschooled.com |
|
Back to top |
|
|
05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Fri May 08, 2020 1:56 pm Post subject: Re: cilinderhead oil spill? |
|
|
As suggested by turning over the moter is makes a PSST sound on cilinder side 1 and 2. So I guess the next step will be take off the head and see what wrong. (I will post the results) _________________ 63 doubble door panel van
79 de luxe micro bus
Be the change that you wish to see in the world. |
|
Back to top |
|
|
Zed999 Samba Member
Joined: March 04, 2018 Posts: 1241 Location: UK
|
Posted: Sat May 09, 2020 1:34 am Post subject: Re: cilinderhead oil spill? |
|
|
It looks to me like that oil is tracking down the studs from the head nuts inside the rocker box. For that much oil to be via the cylinders wouldn't you be followed by a cloud of smoke? |
|
Back to top |
|
|
05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Sat May 09, 2020 2:17 am Post subject: Re: cilinderhead oil spill? |
|
|
The engine runs great and there is no smoke. The reason why the engine is out of the car it need new sealing and clutch. Then I discovered that the engine mount are worn out. By replacing I found out the oil spill on the Cilinder head. _________________ 63 doubble door panel van
79 de luxe micro bus
Be the change that you wish to see in the world. |
|
Back to top |
|
|
05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Sat May 09, 2020 2:24 pm Post subject: Re: cilinderhead oil spill? |
|
|
Zed999 wrote: |
It looks to me like that oil is tracking down the studs from the head nuts inside the rocker box. For that much oil to be via the cylinders wouldn't you be followed by a cloud of smoke? |
Thanks for the suggestion I will check if they used the correct washers en check the torq (3.2mkg or 23ft.lb.) _________________ 63 doubble door panel van
79 de luxe micro bus
Be the change that you wish to see in the world. |
|
Back to top |
|
|
Wildthings Samba Member
Joined: March 13, 2005 Posts: 50260
|
Posted: Sat May 09, 2020 2:52 pm Post subject: Re: cilinderhead oil spill? |
|
|
You have a bad seal between the head and the cylinder for some reason. VW recommended the removal of the sealing ring that was originally used here and instead just use metal to metal contact. VW made this recommendation specifically for the 2.0 but I believe it best to apply it to all engine sizes. Depending on whether your heads have steps built into them you may or may not need to add the thickness of the removed gasket back in between the cylinder and the case. You want a piston to head clearance of 0.030-.060". |
|
Back to top |
|
|
05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Tue May 12, 2020 1:46 pm Post subject: Re: cilinderhead oil spill? |
|
|

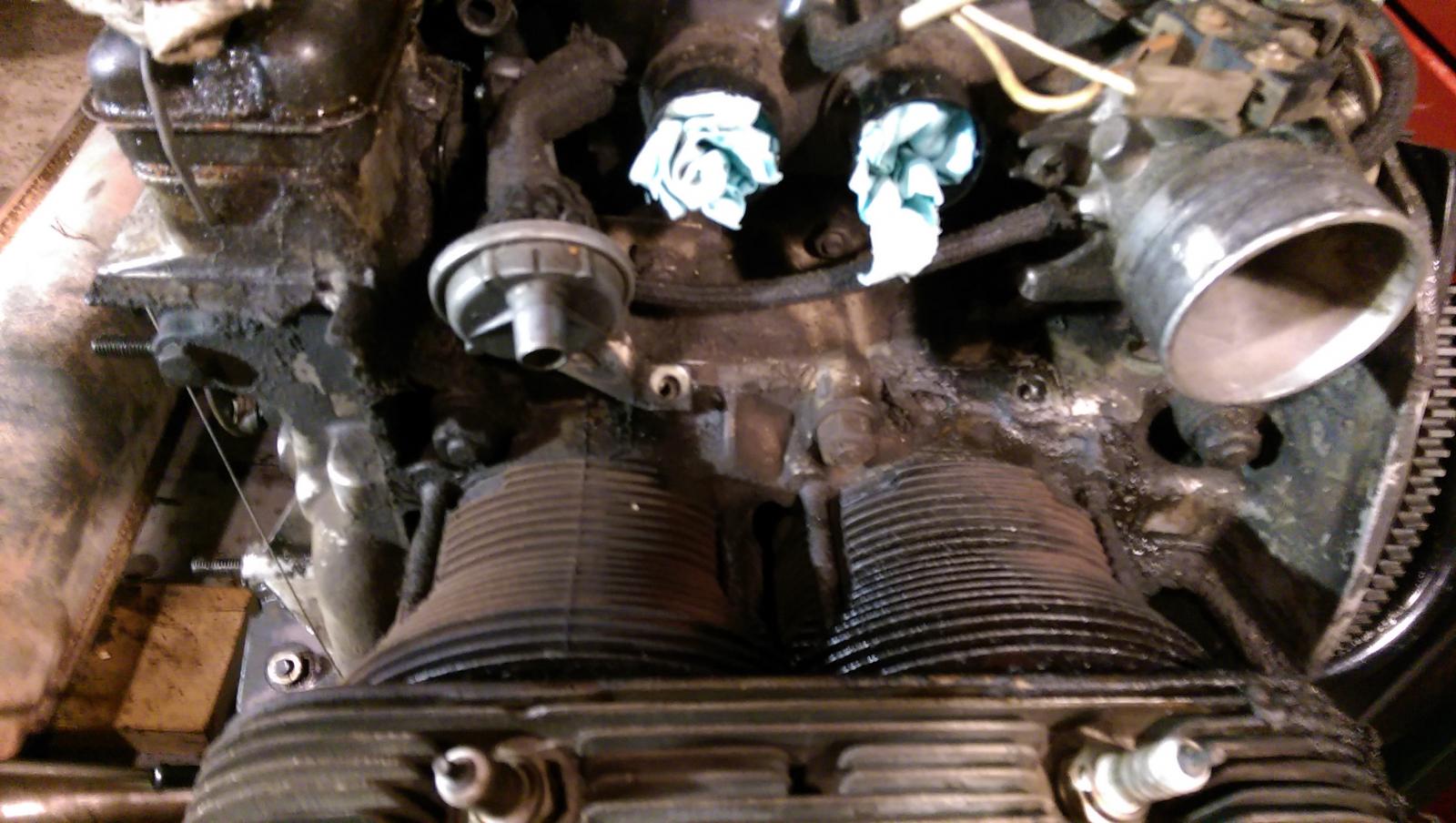

update: closer look after removing the tin. The breather box is wet from oil could that cause of the oil on the cilinder?
_________________ 63 doubble door panel van
79 de luxe micro bus
Be the change that you wish to see in the world. |
|
Back to top |
|
|
05gh Samba Member
Joined: September 01, 2011 Posts: 157 Location: The Netherlands
|
Posted: Thu May 14, 2020 2:46 pm Post subject: Re: cilinderhead oil spill? |
|
|
Zed999 wrote: |
It looks to me like that oil is tracking down the studs from the head nuts inside the rocker box. For that much oil to be via the cylinders wouldn't you be followed by a cloud of smoke? |
It is not running out of the rocker box but from top of the engine via the studs to the cilinder head. The breather box is leaking oil and the sealing of the flywheel. There is an opening on top of the engine to the flywheel.
_________________ 63 doubble door panel van
79 de luxe micro bus
