| Author |
Message |
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
 Posted: Thu Jul 02, 2020 9:49 am Post subject: Re: 1959 Mango walkthru metal rehab. |
 |
|
| Thompson2 wrote: |
Only here would this statement
| Burlyhammer wrote: |
| Overall, the bus is in good shape. |
be immediately followed by these pics! You guys are nuts! I'm praying there's only a little of this (relatively speaking) hiding on mine.
|
It’s funny now that I look at it, but it is in way better shape than the last two that I have worked on. It doesn’t even need a roof or a chassis!  |
|
| Back to top |
|
 |
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sat Jul 04, 2020 7:34 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
4th of July frame repair:
Happy Independence Day! |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sun Jul 05, 2020 4:14 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|

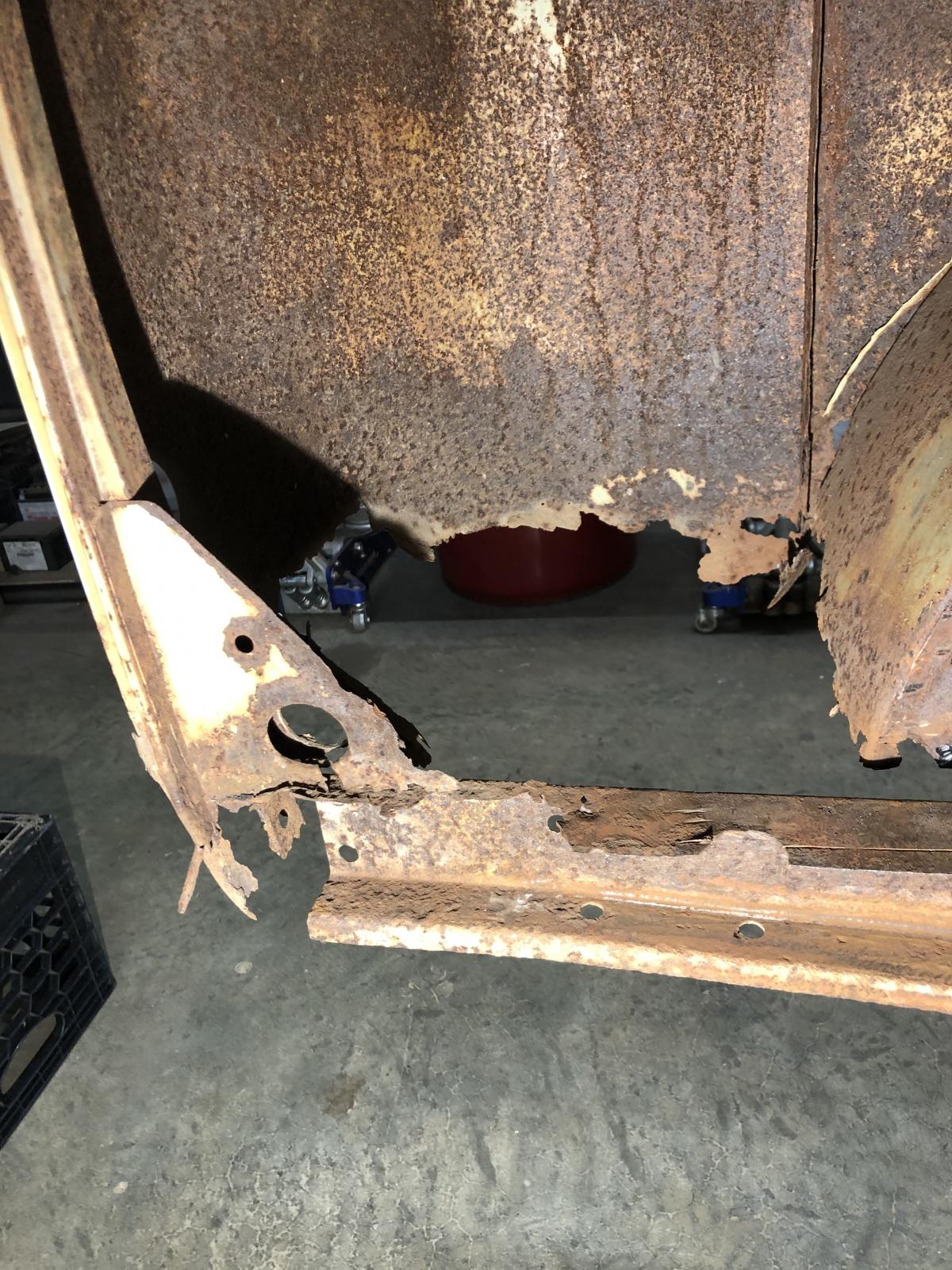

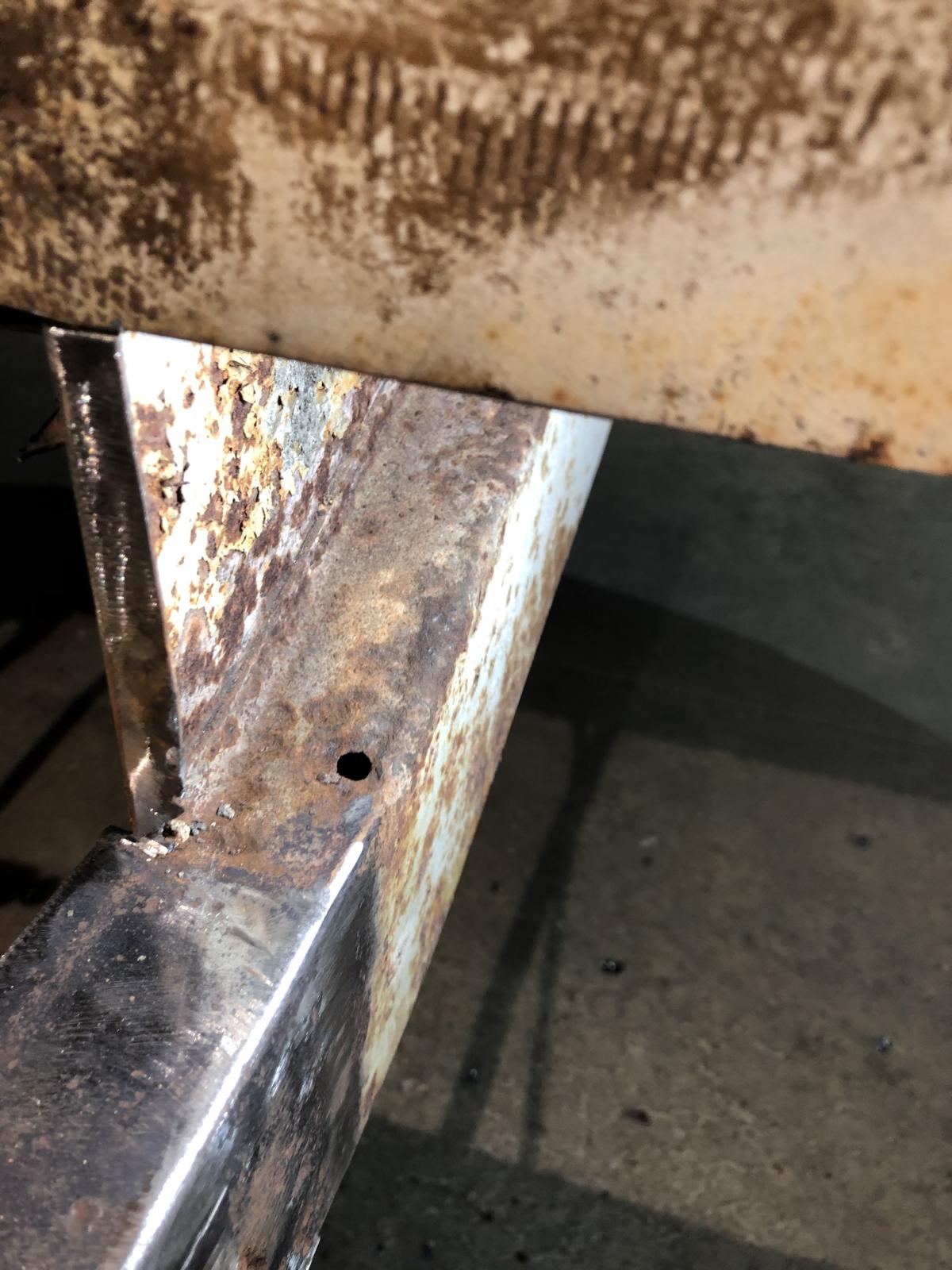

I made a little more progress today. I found a few holes in the frame by the right side forward outrigger, so I cleaned them up and welded them shut. I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the rotisserie.
|
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Tue Jul 07, 2020 9:47 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|

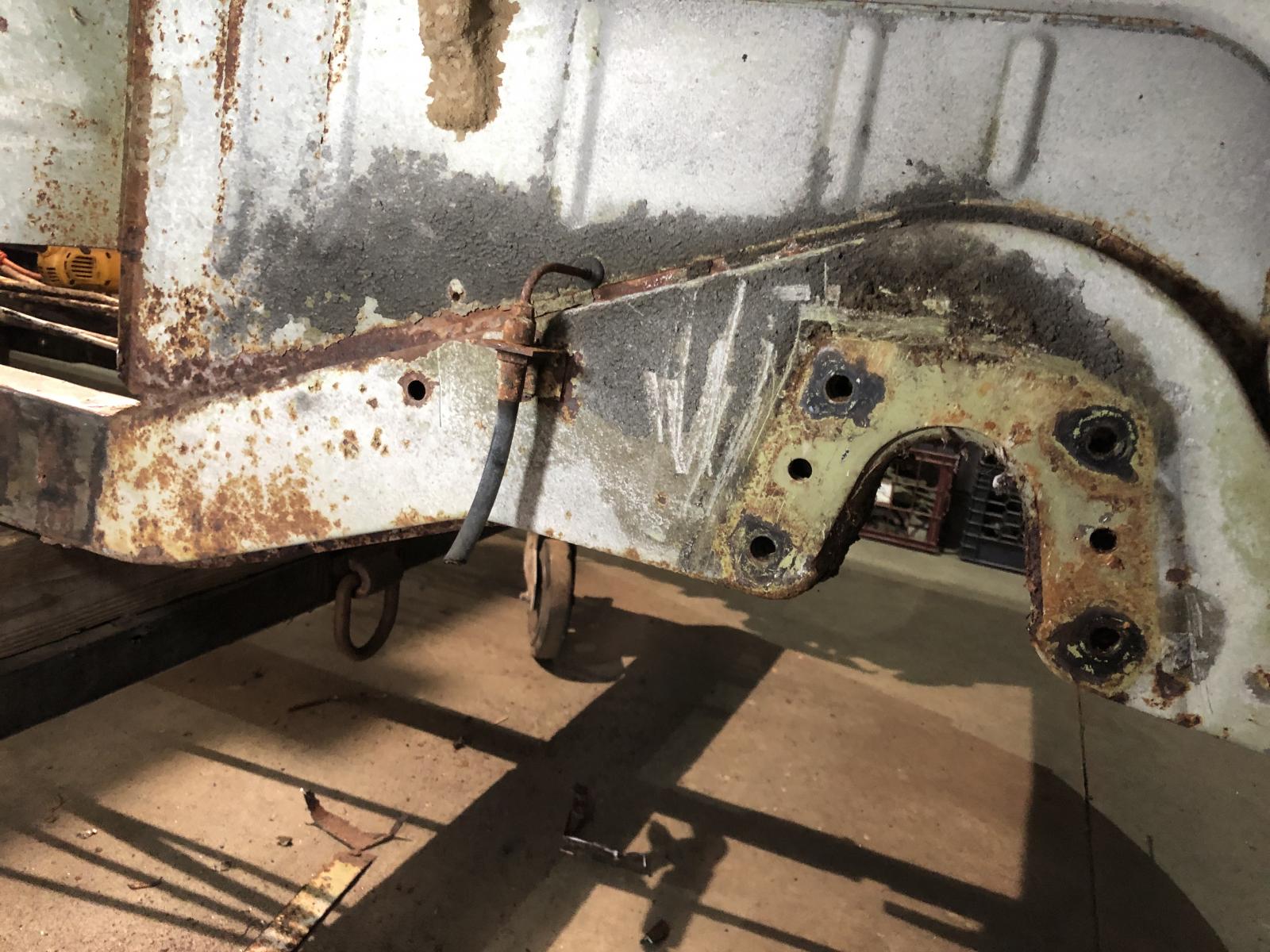

I decided to move to the back end for now. The rotisserie I am using bolts partially to where the rear apron bolts to, and this bus needs them repaired. I started by cleaning and degreasing. I staightened out the back edge of the tranny cradle, and started cutting back the rust:
|
|
| Back to top |
|
|
Okie Adam
Samba Member
Joined: November 07, 2003
Posts: 1348
Location: OOOOOOOOOOOOOOOOOklahoma
|
| Posted: Tue Jul 07, 2020 1:10 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the rotisserie.
|
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds!
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Thu Jul 09, 2020 8:20 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Okie Adam wrote: |
| Burlyhammer wrote: |
I also cut back the walkthru bases where they connect to the top hat to prep for repair. I also cut back the bottom edge of the floor and replaced it. I welded the easy part. I’ll weld the underside once we put the bus on the rotisserie.
|
BOOKMARK! This has been one of the mystery sections on my 60 walk through. Thanks for always including great detail shots in your builds! |
Thanks Okie Adam! |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Thu Jul 09, 2020 8:25 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|

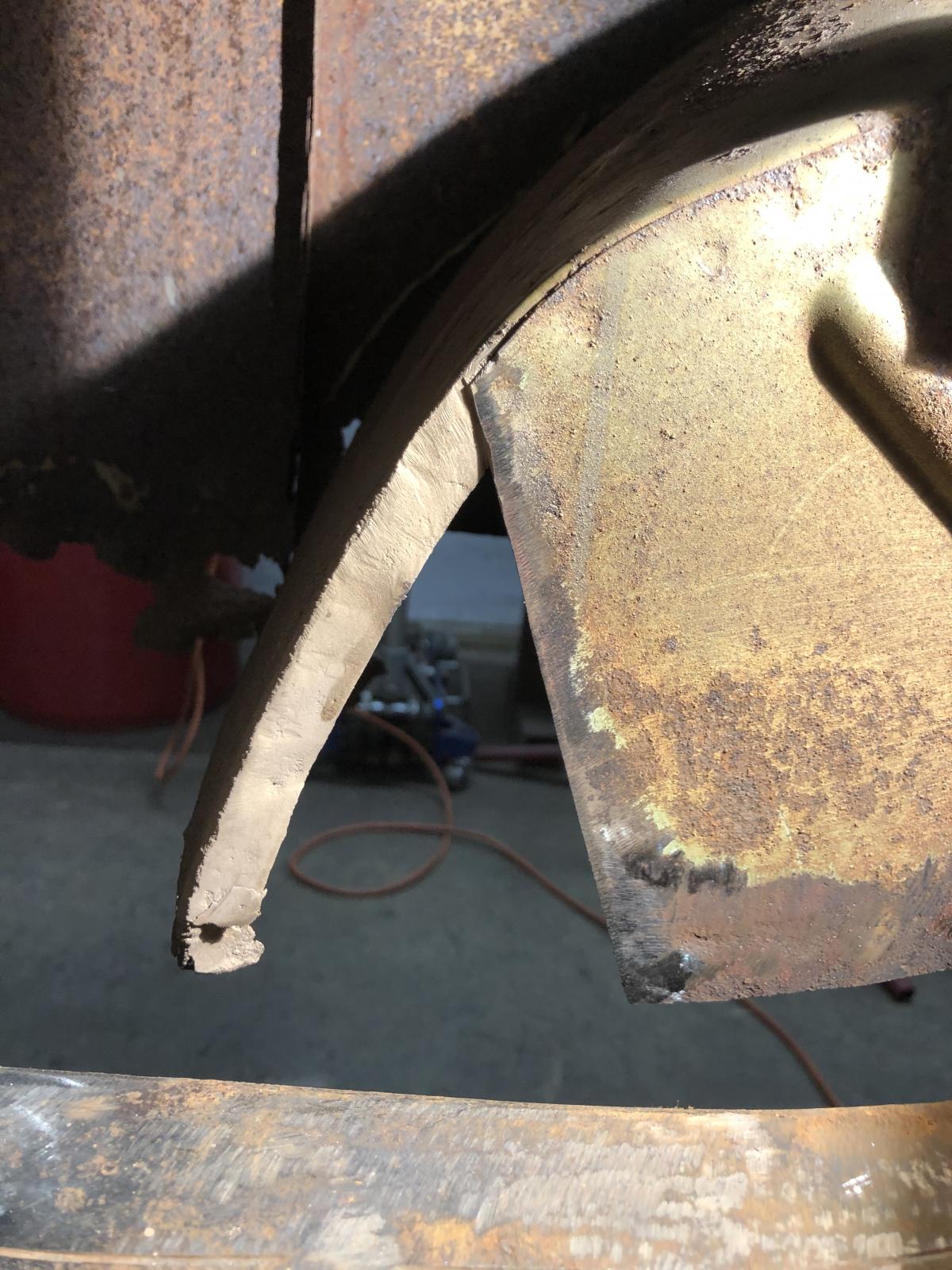

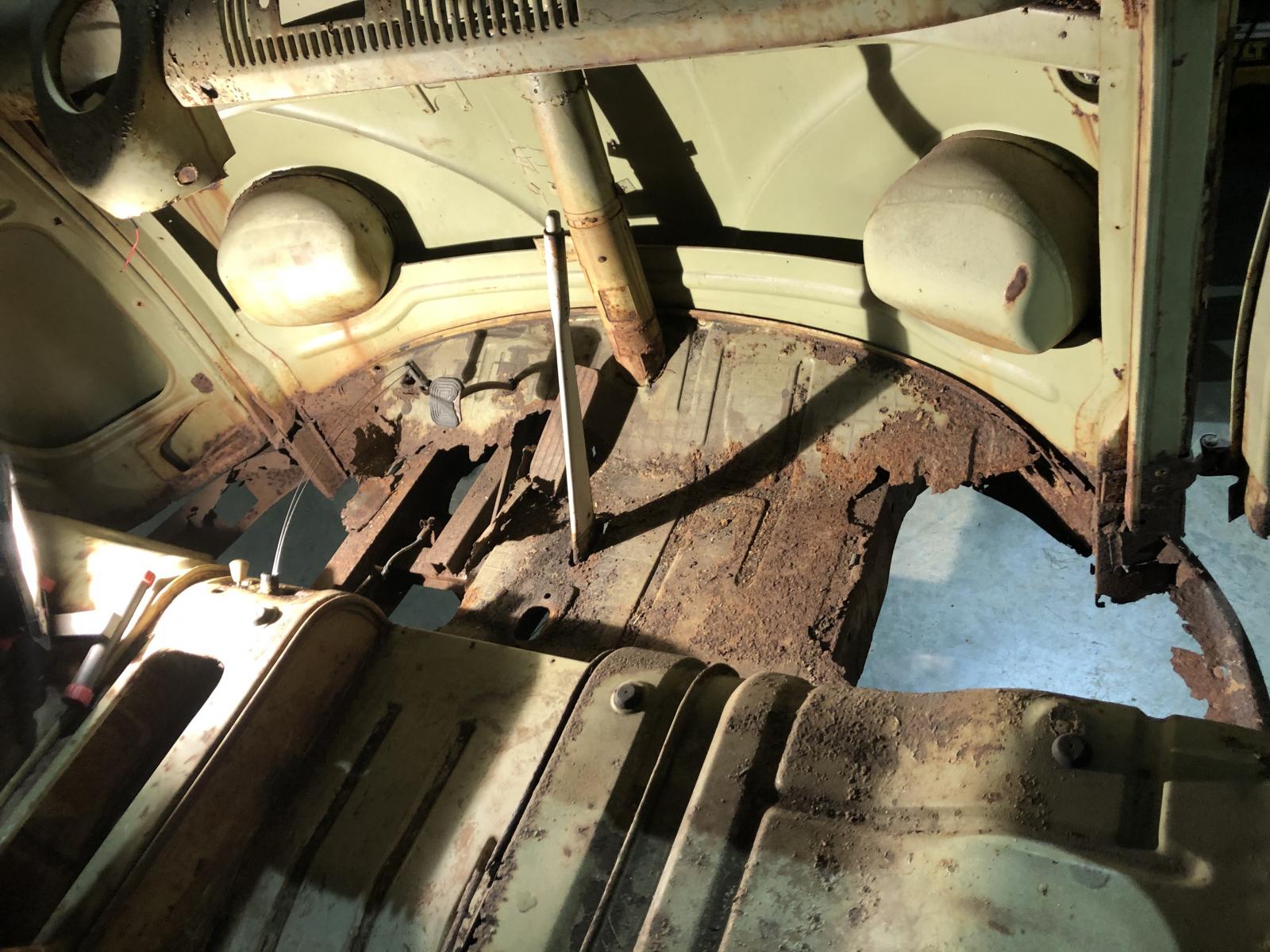

More engine bay prepping yesterday:
We are likely going to cut the frame ends back, and replace the D Pillar triangles. I did not want to cut them out until I had the replacement pieces ready to go back in.
Today's carnage:
I am working on removing the E brake lever pin and E brake lever. Hopefully that will be out tomorrow. |
|
| Back to top |
|
|
iamdonquixote
Samba Member
Joined: January 28, 2003
Posts: 2087
Location: M*ssholia
|
| Posted: Fri Jul 10, 2020 12:41 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| wish I had still had the parts I bought off it when it was in the junkyard to give back. |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Mon Jul 13, 2020 11:04 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| iamdonquixote wrote: |
| wish I had still had the parts I bought off it when it was in the junkyard to give back. |
No worries. That's what happens. There is plenty left to build on. I parked it in the healing pile for a few days while we do some maintenance on the 15 Window. I'm hoping that when I get back t it, the front valance will tell me it will be OK and doesn't need to be chopped out. We'll see! |
|
| Back to top |
|
|
GERMANAIRE
Samba Member
Joined: August 25, 2007
Posts: 797
Location: BUFORD,GA.
|
| Posted: Thu Jul 16, 2020 7:43 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
You are killing it with these preservations!! Another great build coming up! Will keep an eye out for this one as well  |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Thu Jul 23, 2020 6:12 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| GERMANAIRE wrote: |
| You are killing it with these preservations!! Another great build coming up! Will keep an eye out for this one as well |
Haha. Just trying to keep myself out of trouble.
Your 63 Kombi came out awesome by the way!
Thanks |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Thu Jul 23, 2020 6:15 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
We made some more progress:
These frame ends are from Schofields, and they are nice! |
|
| Back to top |
|
|
boulderz
Samba Member
Joined: February 05, 2009
Posts: 74
Location: VT
|
| Posted: Thu Jul 23, 2020 6:26 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Cool, good job. I enjoy seeing your updates. |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Thu Jul 23, 2020 8:37 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| boulderz wrote: |
| Cool, good job. I enjoy seeing your updates. |
I probably could have summed this up with one photo but I do like taking pictures.
Thanks boulderz! |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sun Jul 26, 2020 4:44 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|

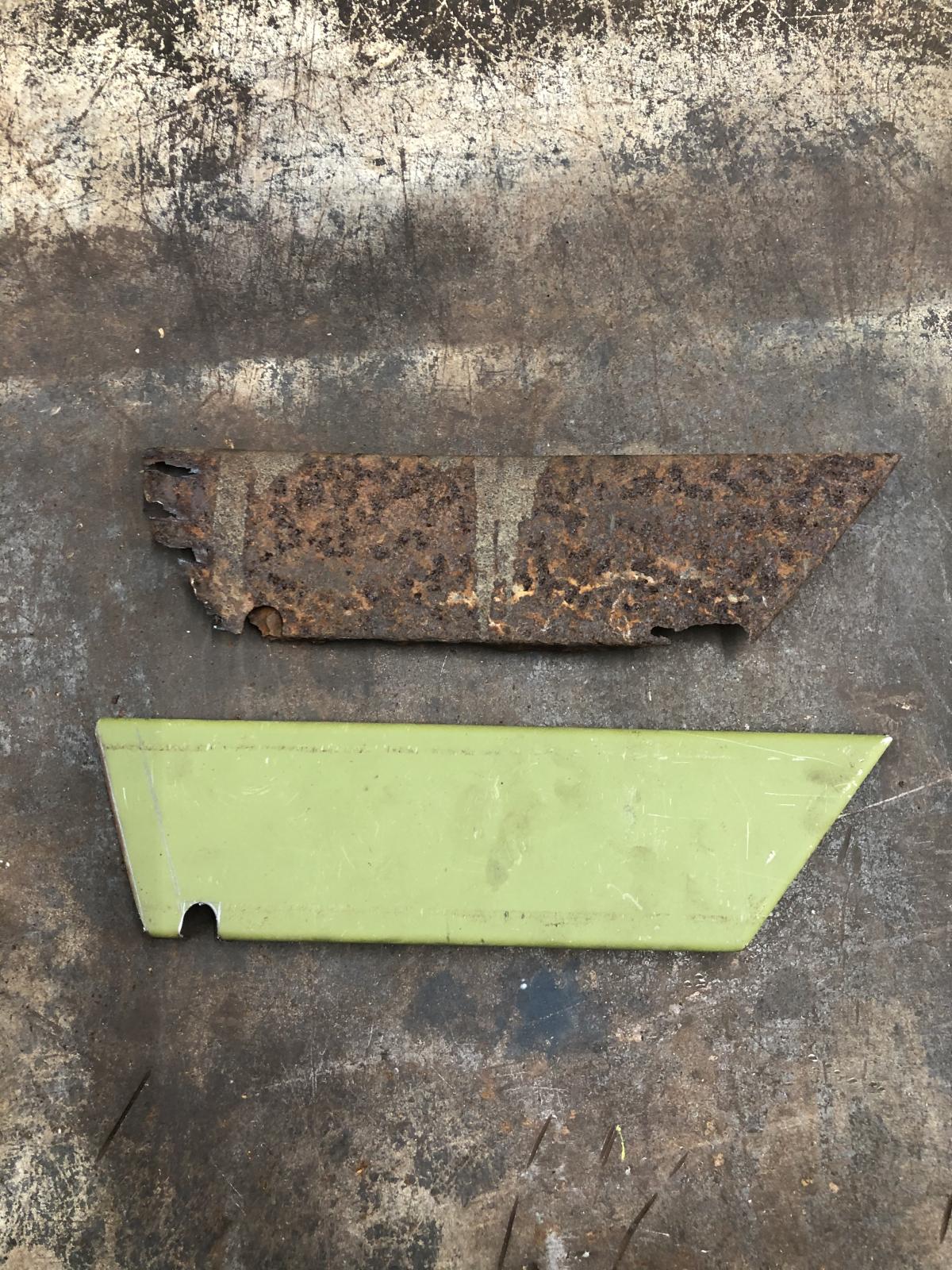

We made some more progress! The owner brought up a bunch of metal that he prepped:
It’s fun to have a big pile of metal to play with, but nothing beats having it arrive ready to install. Thanks Matt!
The left rear frame end is done. We also fixed a few other spots:
The D pillar will be going in shortly, as will the rear apron brackets.
Back to the shop |
|
| Back to top |
|
|
challomoner
Samba Member
Joined: October 13, 2010
Posts: 1290
Location: IRELAND
|
| Posted: Sun Jul 26, 2020 9:01 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| Tidy work as always |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sun Jul 26, 2020 12:12 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
| baz76 wrote: |
| Tidy work as always |
Thanks baz76 |
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sun Jul 26, 2020 12:16 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
I got a little side tracked:
|
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Sun Jul 26, 2020 2:25 pm Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
Last one today:
|
|
| Back to top |
|
|
Burlyhammer
Samba Member
Joined: March 07, 2002
Posts: 1738
Location: Great north woods Maine
|
| Posted: Mon Aug 17, 2020 2:48 am Post subject: Re: 1959 Mango walkthru metal rehab. |
|
|
More progress. We had a small frame end repair on the passenger side. Then we were able to get the D pillars done:
The chassis needed to be sand blasted, and last time I did this, I did it in the shop. That was awful, so since we have the rotisserie here, and I have a trailer:
Getting there! Still a bunch of blasting left, but we are on it!
One small note: After I welded a nut on to the passenger side D pillar triangle, blasted, metal prepped, master coated, punched holes, welded in, and grinded the welds, I noticed that the indented hole in the center is pressed the wrong way. I am not sure how I missed this, or how this happened at all.  |
|
| Back to top |
|
|
|
