PostPosted: Mon Dec 21, 2020 5:14 pm    Post subject: Trunk hinge problem with EMPI Dual HPMX Reply with quote

Hi Members,

I am trying to put my trunk lid back on the car but the trunk hinges are hitting the top of my air filters. I have a 3 1/2 inches filters. Currently the hinge springs are sitting at the second hole from the bottom. Someone told me that I can move the spring where when you close, the spring will stop at certain point.

So, here are some options I am thinking of:

1) Move the spring like up to the top hole. This may give the clearance. But when I move one side, it looks like the hinge is up higher than before. Will this raise the trunk lid up when it fully close? Is this a the right way to get clearance?

2) Or buy the rectangle air filters with 2 1/2 filters and don't install the chrome velocity stacks?

3) Or buy another round filters like from JBugs which has 5.5" diameter and 2" high but I measured my current filters and they have 5" ID and 6" OD. Will this work?

I am sure some members out there with Ghia and have installed dual air filters before. Thank you in advance.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
c21darrel
Samba Member


Joined: January 22, 2009
Posts: 7693
Location: San Dimas
c21darrel is offline

PostPosted: Mon Dec 21, 2020 6:08 pm    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

Struts are a fairly common solution.
Image may have been reduced in size. Click image to view fullscreen.

_________________
GhiaBuild
http://www.thesamba.com/vw/forum/viewtopic.php?t=481184
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Duncan67KG
Samba Member


Joined: August 09, 2015
Posts: 24
Location: Southern California
Duncan67KG is offline

PostPosted: Mon Dec 21, 2020 7:39 pm    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

I went for the struts as well...
Image may have been reduced in size. Click image to view fullscreen.


I ordered the parts from Mcmaster-Carr

Image may have been reduced in size. Click image to view fullscreen.

_________________
Duncan
1967 Ghia Coupe
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bt
Samba Member


Joined: January 29, 2004
Posts: 442
Location: chicago
bt is offline

PostPosted: Tue Dec 22, 2020 5:25 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

https://www.thesamba.com/vw/forum/viewtopic.php?t=250851&start=80

Check out page 5.

I cut my springs (It's been about 9 years without them being a problem) after having the struts.

C21darrel links to a very simple option
_________________
Most people think that they are thinking....... but all they are really doing is rearranging their prejudices
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
PeteSC
Samba Member


Joined: January 26, 2011
Posts: 669

PeteSC is offline

PostPosted: Tue Dec 22, 2020 7:18 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

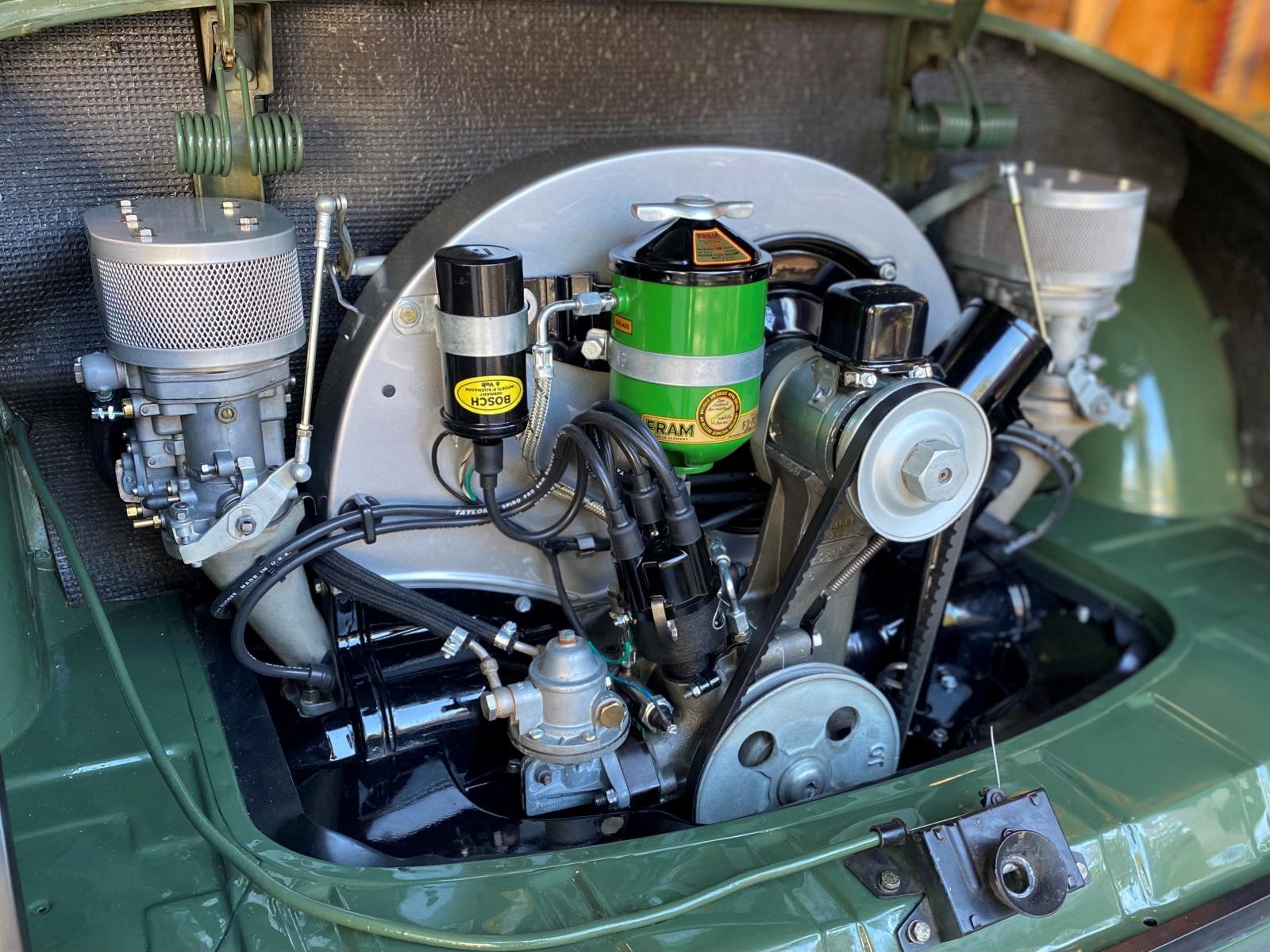

Try moving them up a hole and see what you get. I have a friend with 2 Ghias that he ran without springs for 20 years, only recently find that installing the stock springs in a higher hole gave him the clearance needed. It might not work for your application, but costs nothing but time to try.

I did the same as bt on mine - removed 7/8" from the springs (and have them in a higher hole). Also had to removed 5/8' from the air cleaner. Not the simplest approach, but I was going for a vintage speed look and didn't want to use struts.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
John Moxon Premium Member
Samba Moderator


Joined: March 07, 2004
Posts: 13079
Location: Southampton U.K.
John Moxon is offline

PostPosted: Tue Dec 22, 2020 7:38 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

If you want to go with the gas struts this is a topic from the "How To" stickies: https://www.thesamba.com/vw/forum/viewtopic.php?t=250851
_________________
John.
Judson Supercharger Information on The Samba
My 1958 Shorrock Supercharged Karmann Ghia
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
kingkarmann
Samba Member


Joined: November 05, 2003
Posts: 2694

kingkarmann is offline

PostPosted: Tue Dec 22, 2020 8:52 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

I too installed struts but kind of wished I did this...
https://www.thesamba.com/vw/classifieds/detail.php?id=1808184
_________________
"Who died and made you king of anything?"
Sara Bareilles

"Ego is the anesthesia that deadens the pain of Stupidity.
"Rick Rigsby"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VeloMikey
Samba Member


Joined: March 19, 2012
Posts: 455
Location: Granada Hills, CA
VeloMikey is offline

PostPosted: Tue Dec 22, 2020 10:37 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

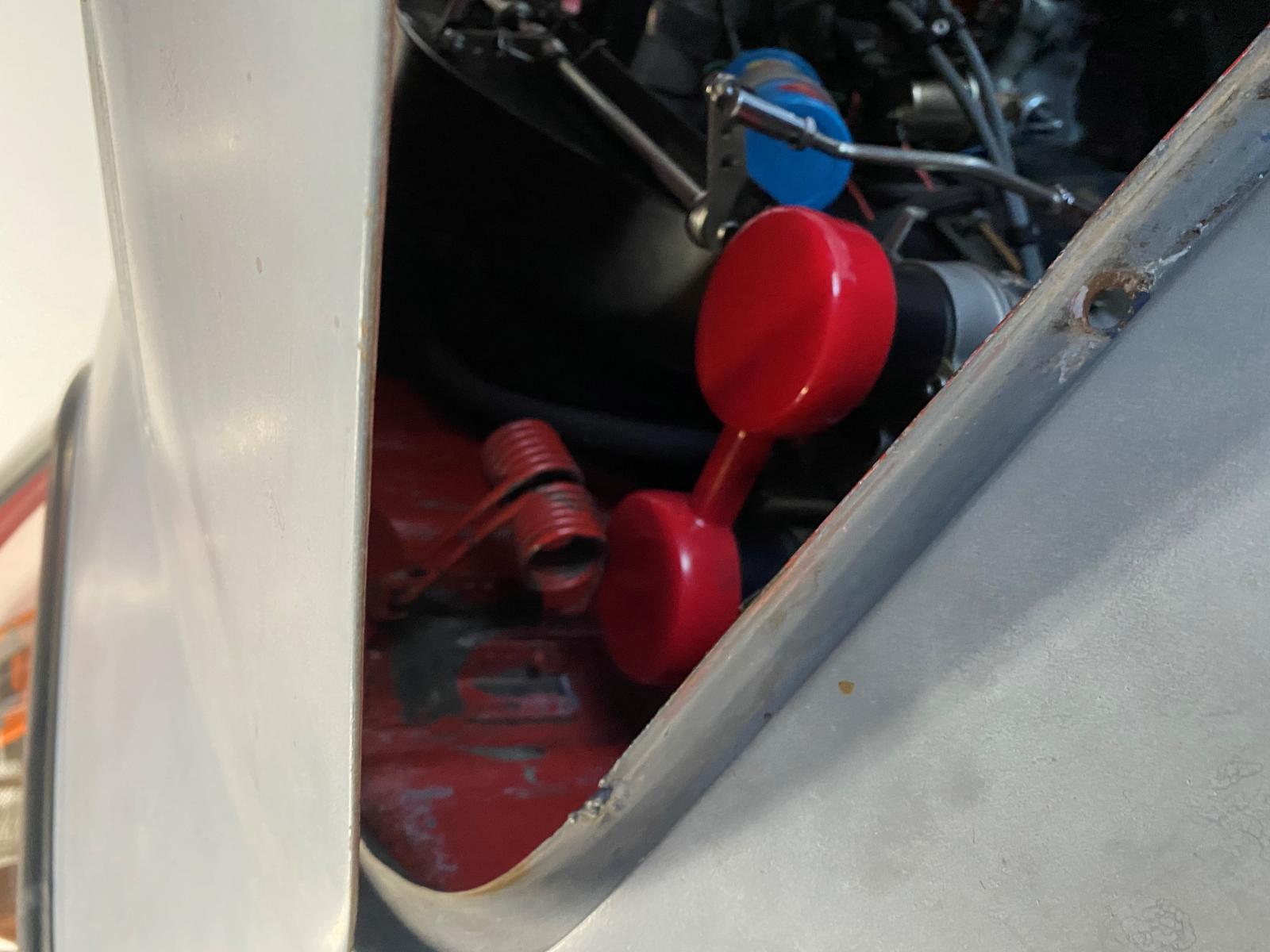

I just let it rest on the the velocity stack. So far, no harm, no foul. I was going to suggest Gary Bergs solution that Kingkarmann posted.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'58 Ghia 2275 Berg / Folts 5 Speed
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
jeffrey8164
Samba Member


Joined: January 06, 2018
Posts: 2651
Location: Georgia
jeffrey8164 is offline

PostPosted: Tue Dec 22, 2020 10:44 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

Not the greatest pictures and the carbs are 45 Dells on a 2276 so I donít know if what I did will work for your HMPX carbs.
The original air cleaners that came with the carbs interfered with the passenger side hinge only. For a while I just took that one spring off and used a painting pole to prop the lid open when I needed to. On my refresh I wanted a more elegant solution so I ordered short stacks and air cleaner elements.
I may have given up a couple of horsepower but the lid opens and closes as it should with no interference.
I thought about struts but I didnít want to punch holes in my body.
I never even knew about those weird little aftermarket clips spring things. Iím not even sure how those would work do they just kind of turned backwards and that holds the lid open and then weíve got to do some finagling to get it closed?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
ďLet he that is without oil throw the first rodĒ
(Compression 8.7:1)

https://www.thesamba.com/vw/forum/viewtopic.php?t=696460&highlight=rose
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
myghiarocks
Samba Member


Joined: June 02, 2009
Posts: 133
Location: DFW area Texas
myghiarocks is offline

PostPosted: Tue Dec 22, 2020 11:23 am    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

jeffrey8164 wrote:
Not the greatest pictures and the carbs are 45 Dells on a 2276 so I donít know if what I did will work for your HMPX carbs.
The original air cleaners that came with the carbs interfered with the passenger side hinge only. For a while I just took that one spring off and used a painting pole to prop the lid open when I needed to. On my refresh I wanted a more elegant solution so I ordered short stacks and air cleaner elements.
I may have given up a couple of horsepower but the lid opens and closes as it should with no interference.
I thought about struts but I didnít want to punch holes in my body.
I never even knew about those weird little aftermarket clips spring things. Iím not even sure how those would work do they just kind of turned backwards and that holds the lid open and then weíve got to do some finagling to get it closed?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I also did the same as jeffery8164. probably 25 years ago. never had a probplem since.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kdnguyen61
Samba Member


Joined: June 14, 2019
Posts: 29
Location: Houston, Texas
kdnguyen61 is offline

PostPosted: Wed Dec 23, 2020 5:28 pm    Post subject: Re: Trunk hinge problem with EMPI Dual HPMX Reply with quote

All Members,

Thank you all for the information. I moved the spring to the top hole of the hinges and I barely have enough clearance without hitting the top of air filter especially the passenger side. Just for anyone future reading, I have a 3 1/2 inches tall air filters with 5"ID and 6"OD for 44 HPMX.
