PostPosted: Sun Jan 10, 2021 2:51 pm    Post subject: Kennedy Stage 1 Pressure Plate Reply with quote

I have a Type 1 2021cc DP engine with a Kennedy Stage 1 Pressure Plate. I want to attach it to an early style transaxle w/older throw-out-bearing. I've read a lot of conflicting information.

Can I just get an early style T/O bearing pressure ring for the Kennedy PP and slide it on?
Do I need to remove the old cross shaft and replace it with a heavy duty one, with a new style throw-out bearing?

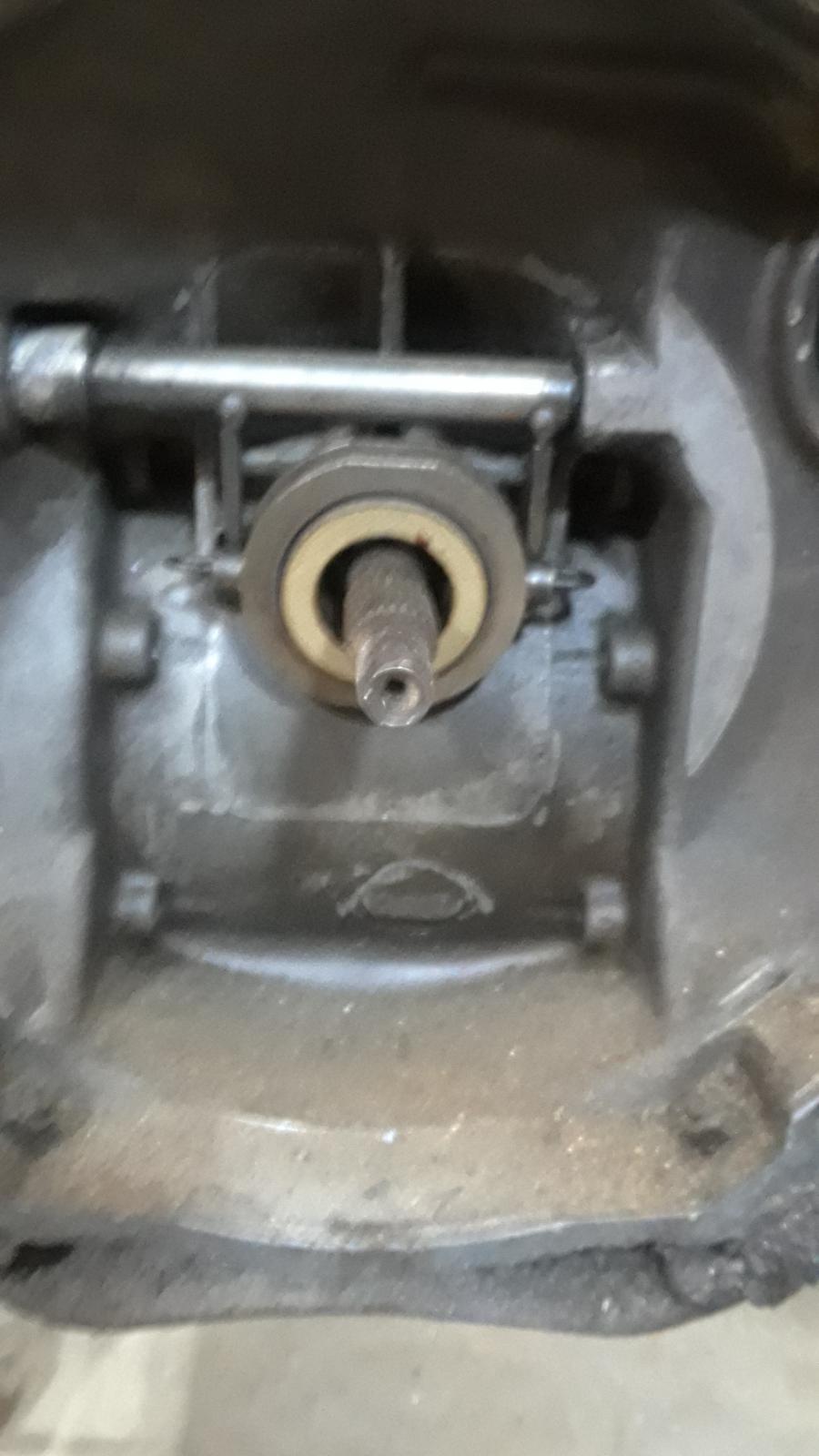

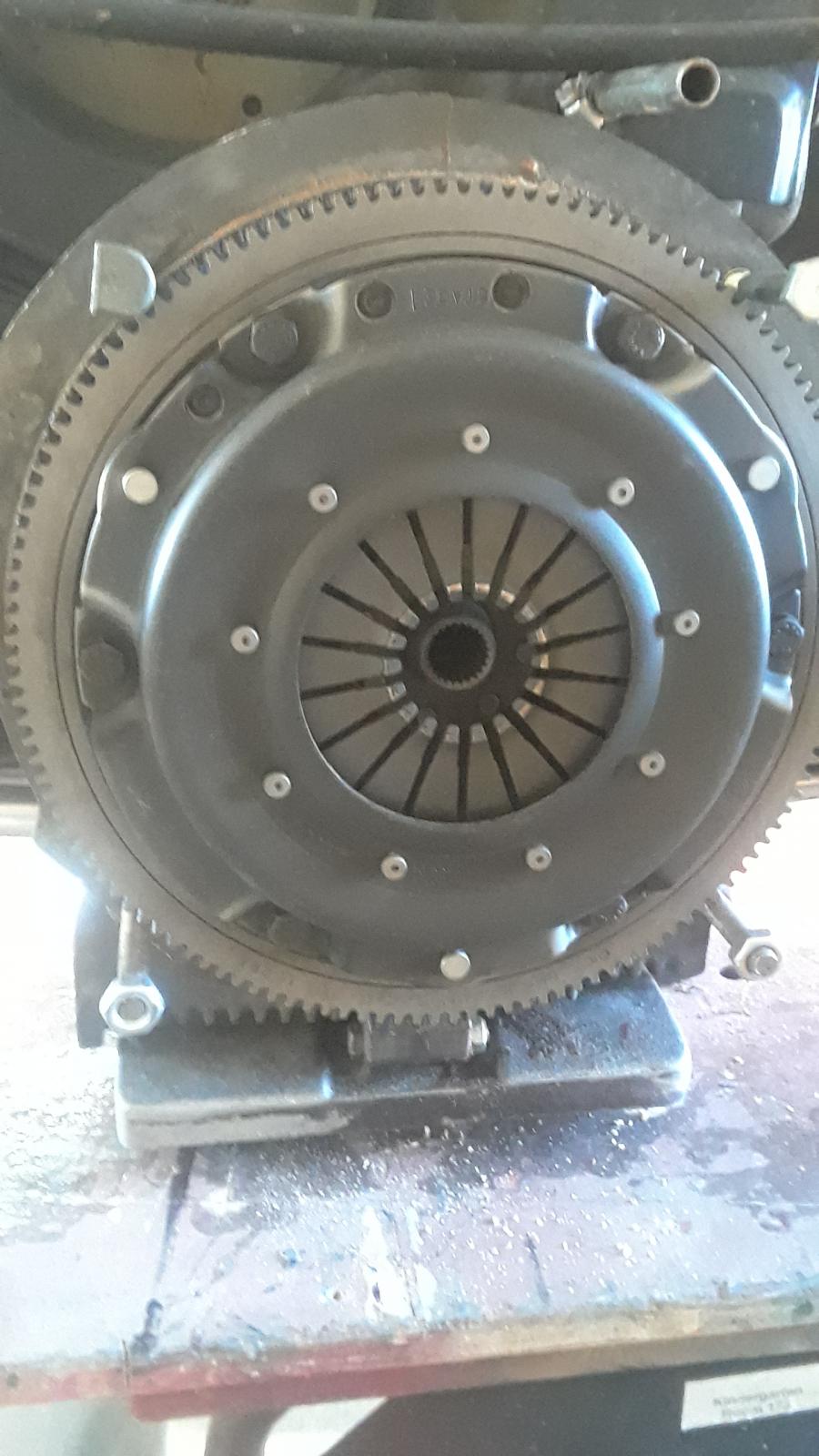

See pressure plate and throw-out-bearing

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clonebug
Samba Member


Joined: January 29, 2005
Posts: 3381
Location: NW Washington
clonebug is offline

PostPosted: Sun Jan 10, 2021 3:10 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

You just need the ring that goes on the PP fingers. I'm not sure if you can buy them separately or not but you could email Kennedy and check with them.
Maybe someone on here has one they can part with.
_________________
vwracerdave wrote:

Take a good long look in the mirror and report back on what you see.


Paul.H wrote:
That one line on that chart is probably better info than you can get from this place in a month



My Megasquirt Fuel Injection Turbo Buggy Build
(Now with Water/Alcohol Injection)
Upgraded to MS-2 Extra direct fire wasted spark

http://www.shoptalkforums.com/viewtopic.php?f=3&t=127936
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mickey12
Samba Member


Joined: August 22, 2015
Posts: 45
Location: Kansas City
mickey12 is offline

PostPosted: Sun Jan 10, 2021 3:25 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

I think this will work from Dune Buggy Supply?

Throwout Bearing Guide Sleeve
For 1971-1979 Type 1 &
Type 2 - 113-141-181B
$3.99
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 23364
Location: Colorado Springs
modok is offline

PostPosted: Sun Jan 10, 2021 3:27 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

no, this
http://vwparts.aircooled.net/Pressure-Plate-Collar-Early-Style-X-Shaft-p/pressure-plate-collar.htm

it is "possible" to install a late throwout bearing into the trans, but it's a PITA would not recommend.


Last edited by modok on Sun Jan 10, 2021 3:29 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mickey12
Samba Member


Joined: August 22, 2015
Posts: 45
Location: Kansas City
mickey12 is offline

PostPosted: Sun Jan 10, 2021 3:28 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

Forgot to say that the transaxle is on a 1968 Type 1, if that matters.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clonebug
Samba Member


Joined: January 29, 2005
Posts: 3381
Location: NW Washington
clonebug is offline

PostPosted: Sun Jan 10, 2021 4:56 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

What Modok posted a link to is what you will need for your transmission.
If that is an original German throwout bearing.....it might be a little dry inside.

Gently remove the cover in back and you can repack that bearing for another long life.
_________________
vwracerdave wrote:

Take a good long look in the mirror and report back on what you see.


Paul.H wrote:
That one line on that chart is probably better info than you can get from this place in a month



My Megasquirt Fuel Injection Turbo Buggy Build
(Now with Water/Alcohol Injection)
Upgraded to MS-2 Extra direct fire wasted spark

http://www.shoptalkforums.com/viewtopic.php?f=3&t=127936
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70447
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun Jan 10, 2021 5:10 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

modok wrote:
it is "possible" to install a late throwout bearing into the trans, but it's a PITA would not recommend.

If the casting has the 3 bosses for the mounting studs, it's just a matter of marking the location and drill/tap the holes.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 23364
Location: Colorado Springs
modok is offline

PostPosted: Sun Jan 10, 2021 5:13 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

Agreed.
Tho if his trans is actually 1968 model, that's before it had the bosses.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 70447
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun Jan 10, 2021 5:19 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

modok wrote:
Agreed.
Tho if his trans is actually 1968 model, that's before it had the bosses.

Checked his gallery, there's a picture of a swingaxle, so correct as usual King Friday.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Cast Iron and Aluminum distributors rebuilt since 2000.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
mickey12
Samba Member


Joined: August 22, 2015
Posts: 45
Location: Kansas City
mickey12 is offline

PostPosted: Sun Jan 10, 2021 6:07 pm    Post subject: Re: Kennedy Stage 1 Pressure Plate Reply with quote

thank you, thank you, thank you!!!!!!!!!
