PostPosted: Fri Jan 08, 2021 9:02 pm    Post subject: alternator voltage regulator Reply with quote

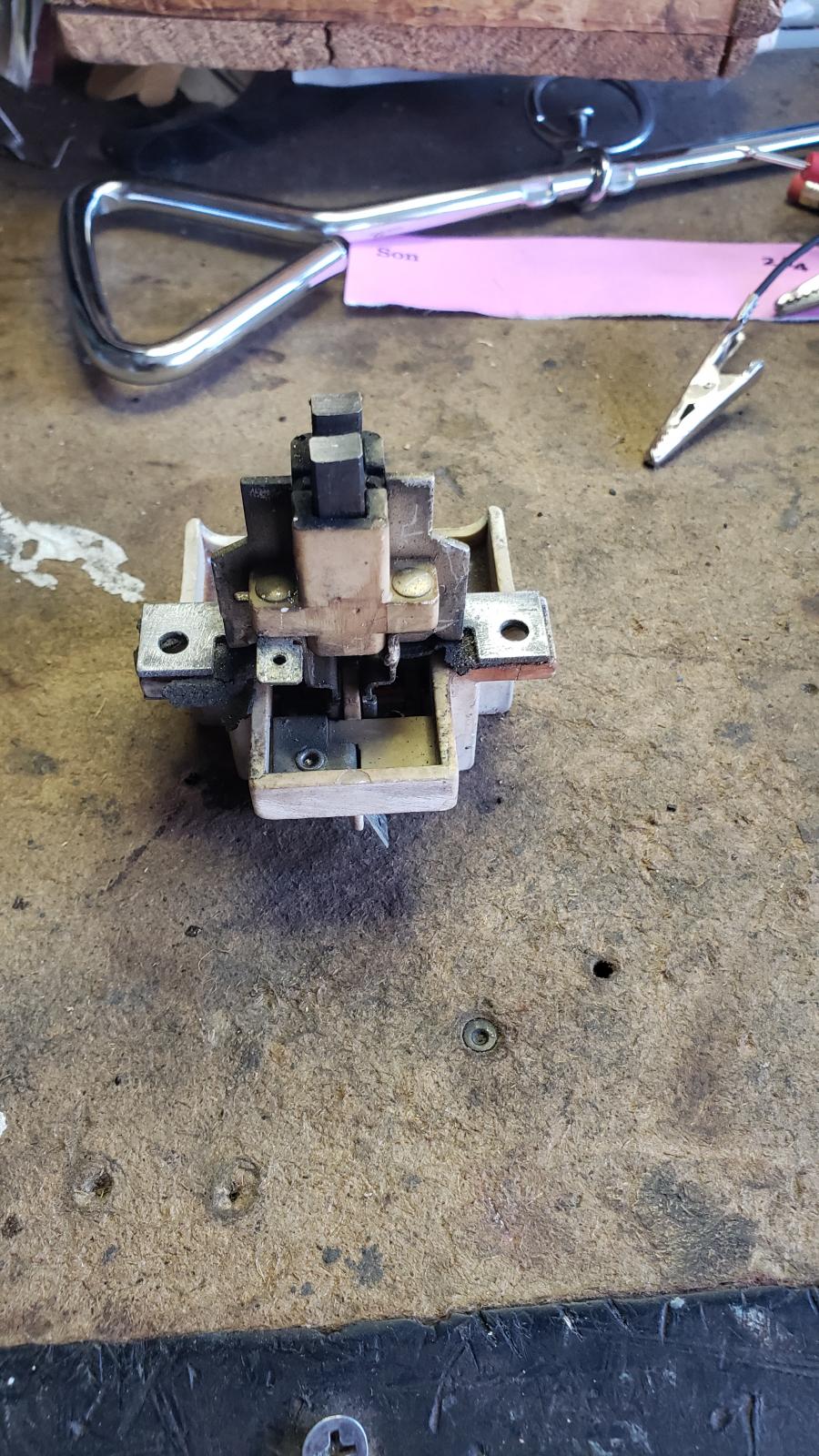

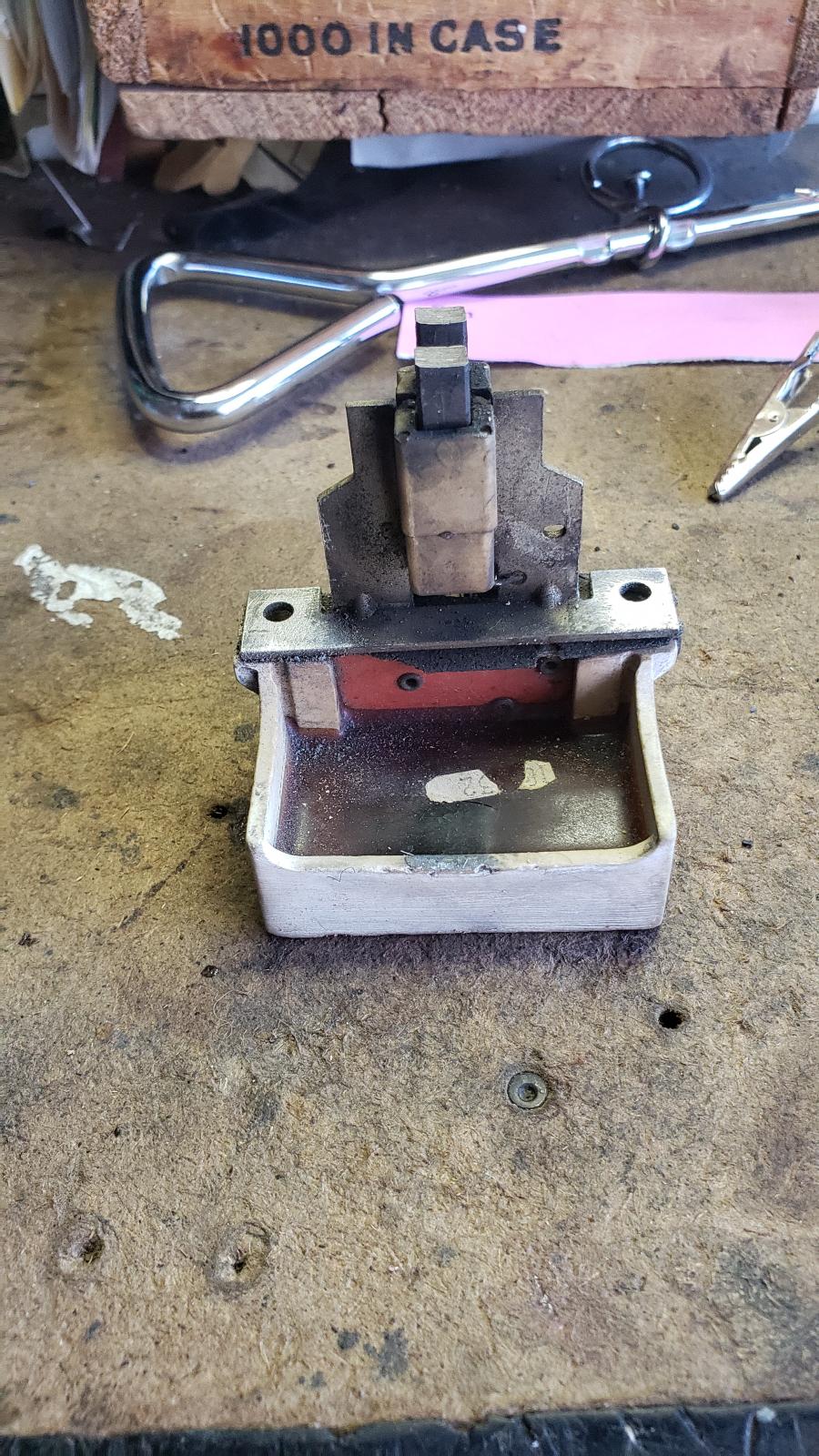

Where can I find one of these or even a part number. It was on my 1970 transporter 1600 alternator. This style is removable and I think it has gone bad. It would be an easier fix than replacing the alternator which will be a pain to remove. It looks like the regulator and brush holder are all in one.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35391
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Fri Jan 08, 2021 10:50 pm    Post subject: Re: alternator voltage regulator Reply with quote

no real way to know unless you post the model of your alternator
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 44955

Wildthings is offline

PostPosted: Sat Jan 09, 2021 12:39 am    Post subject: Re: alternator voltage regulator Reply with quote

No expert on Type 1 alternators, but this should probably cover you, though they seem quite expensive, more than I paid for a new generator and regulator combined.


https://www.bugcity.com/shop/shop.lasso?cid=&s...ort=item_d
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Manfred58sc
Samba Member


Joined: October 05, 2009
Posts: 2765

Manfred58sc is offline

PostPosted: Sat Jan 09, 2021 8:45 am    Post subject: Re: alternator voltage regulator Reply with quote

I think that is a replacement unit for an externally regulated Motorola alternator (73-74 style Beetle/Ghia). Dealer upgrade kit to internal regulator. Put a WTB ad up, I'm sure there are plenty gathering dust. Those are good alternators BTW
_________________
Drivin' a split and a fat chick!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sloans265
Samba Member


Joined: October 24, 2004
Posts: 1307
Location: 32207
sloans265 is offline

PostPosted: Sat Jan 09, 2021 9:45 am    Post subject: Re: alternator voltage regulator Reply with quote

If you have a locally electrical rebuild shop, sometimes they still have one on the shelf or may have a source. Doesnt hurt to try and through "non VW" source could be cheaper
_________________
1970 Lotus White Panel
If your VW has a name, I don't want to know it
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
raygreenwood
Samba Member


Joined: November 24, 2008
Posts: 18546
Location: Oklahoma City
raygreenwood is offline

PostPosted: Sat Jan 09, 2021 10:33 am    Post subject: Re: alternator voltage regulator Reply with quote

I may be mis-remembering.....but I think those are expensive because they are no longer made.

I cannot remember if the discontinued regulator/brush assembly is the Bosch model or the Motorola model...or both. Ray
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Manfred58sc
Samba Member


Joined: October 05, 2009
Posts: 2765

Manfred58sc is offline

PostPosted: Sat Jan 09, 2021 3:54 pm    Post subject: Re: alternator voltage regulator Reply with quote

Worth the effort when compared to the total garbage Chinese units that last 2-5K miles. Soon our ACVW's will look like the Brazilian versions with GM alternators hanging off the side.
_________________
Drivin' a split and a fat chick!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35391
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Sat Jan 09, 2021 4:04 pm    Post subject: Re: alternator voltage regulator Reply with quote

That Motorola part lacks the brushes. Maybe there are two parts there IF, and it is a big if, it is a Motorola alternator and not a repop copy.

https://www.thesamba.com/vw/classifieds/detail.php?id=1879778
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mile High Puma
Samba Member


Joined: November 11, 2009
Posts: 128
Location: Colorado's Banana Belt
Mile High Puma is offline

PostPosted: Sat Jan 09, 2021 9:00 pm    Post subject: Re: alternator voltage regulator Reply with quote

That looks like the the Motorola regulator/brush assembly I had on my 71 Westy. Some scumbag stole mine off the bus while parked at the Westminster Mall where my wife worked at the time. Couldn’t find another one and ended up swapping it out for a Bosch alternator.
_________________
1965 Velvet Green DC
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Manfred58sc
Samba Member


Joined: October 05, 2009
Posts: 2765

Manfred58sc is offline

PostPosted: Sat Jan 09, 2021 9:20 pm    Post subject: Re: alternator voltage regulator Reply with quote

That looks like the right part, the brushes clip into the regulator unit. The externally regulated Bosch units don't have an easy access and are square plastic, the Motorola have a "T" shaped area.

Price seems fair for a NOS "Autobahn" unit ( damn it, now I'll have to watch the Big Lebowski). The brushes still looked good.
_________________
Drivin' a split and a fat chick!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mserino
Samba Member


Joined: December 24, 2016
Posts: 10
Location: Valencia Ca.
mserino is offline

PostPosted: Sun Jan 10, 2021 1:11 pm    Post subject: Re: alternator voltage regulator Reply with quote

Thanks for the reply's I found out it is a pn 043903803e motorola 5-762. There is a replacement # m5762 for $50 at quick start it might by Chinese . Autohaus has one for $150
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
SGKent Premium Member
Samba Member


Joined: October 30, 2007
Posts: 35391
Location: Retired so can be anywhere now - NorCal
SGKent is offline

PostPosted: Sun Jan 10, 2021 3:03 pm    Post subject: Re: alternator voltage regulator Reply with quote

and a genuine VW one here for $100.
_________________
American Standard Snorkeling Terrier
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mserino
Samba Member


Joined: December 24, 2016
Posts: 10
Location: Valencia Ca.
mserino is offline

PostPosted: Sun Jan 17, 2021 2:57 pm    Post subject: Re: alternator voltage regulator Reply with quote

Replaced regulator but still not charging. Can I pull the alternator on a bus without lifting the doghouse ? I had a hard time getting it to fit while it was on an engine stand. I don't think I could get to go back if I lift it and there is no way to reach around the back to remove fan nut.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Manfred58sc
Samba Member


Joined: October 05, 2009
Posts: 2765

Manfred58sc is offline

PostPosted: Sun Jan 17, 2021 6:05 pm    Post subject: Re: alternator voltage regulator Reply with quote

That is why you do this

Image may have been reduced in size. Click image to view fullscreen.
