TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Wed Feb 24, 2021 7:35 pm    Post subject: Re: Colonel Church Reply with quote

mondshine wrote:
Have you driven the car since you installed the Type 3 rear brakes?
I am curious because I did that installation a couple of months ago, but won't be driving my car for quite a while yet, and I see that you are from the south where it might be warm enough to drive a Thing.
What are you using for front brakes?


Umm, no, I have not driven this beast yet. BUT, I have put 50,000 miles on this combination of brakes & tires (And suspension) in two years while they were on the Ghiapet.
https://www.thesamba.com/vw/forum/viewtopic.php?t=691306


Link




The front brakes are a disc conversion for drum brake spindles that I installed on the heavily modified ball joint beam using Thing trailing arms & spindles.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Sat Feb 27, 2021 8:05 am    Post subject: Re: Colonel Church Reply with quote

With only a few minutes to rub together, I decided to prep the other spring plate. I began by measuring out the original & then transferring it to the new spring plate.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

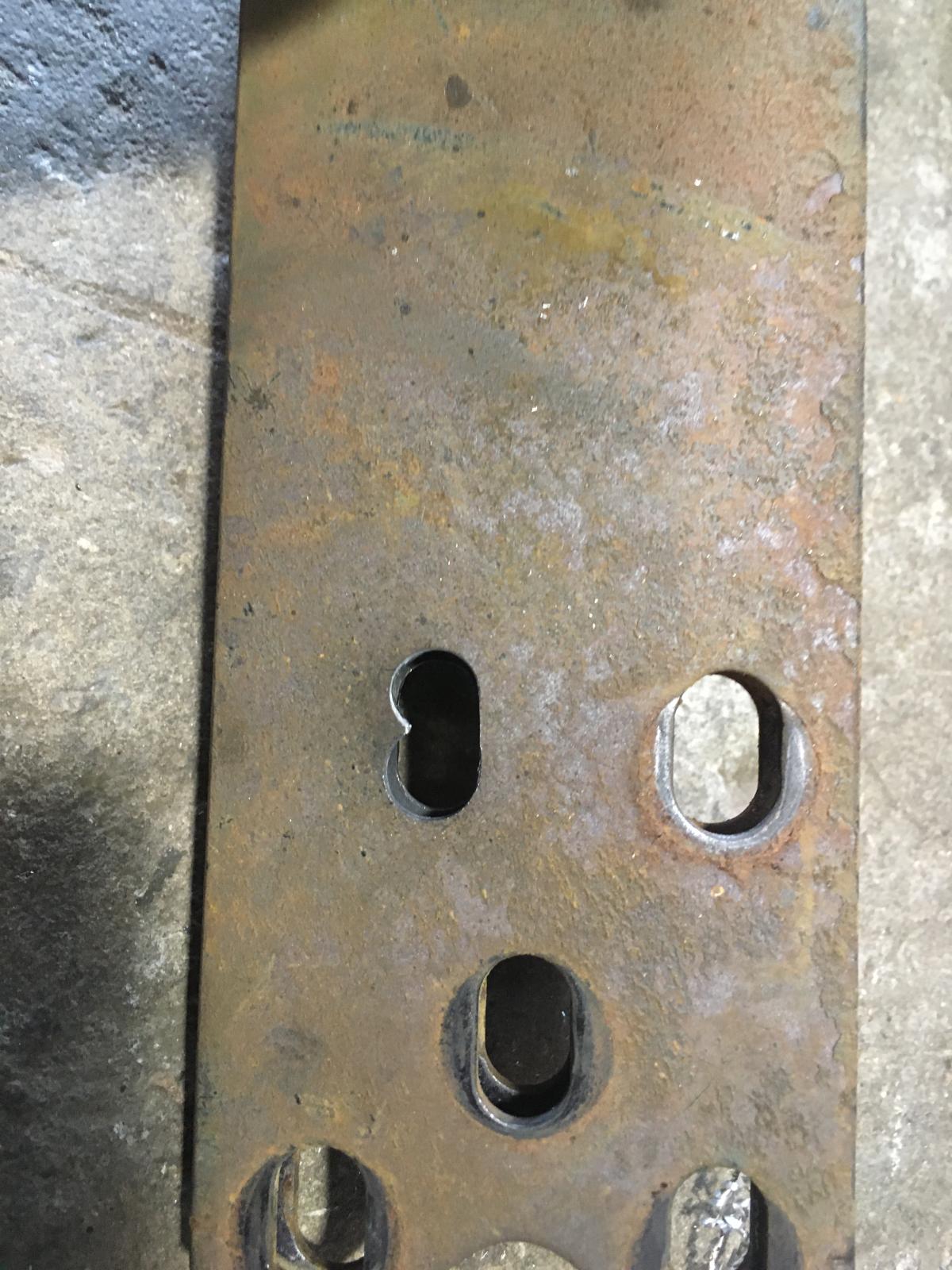

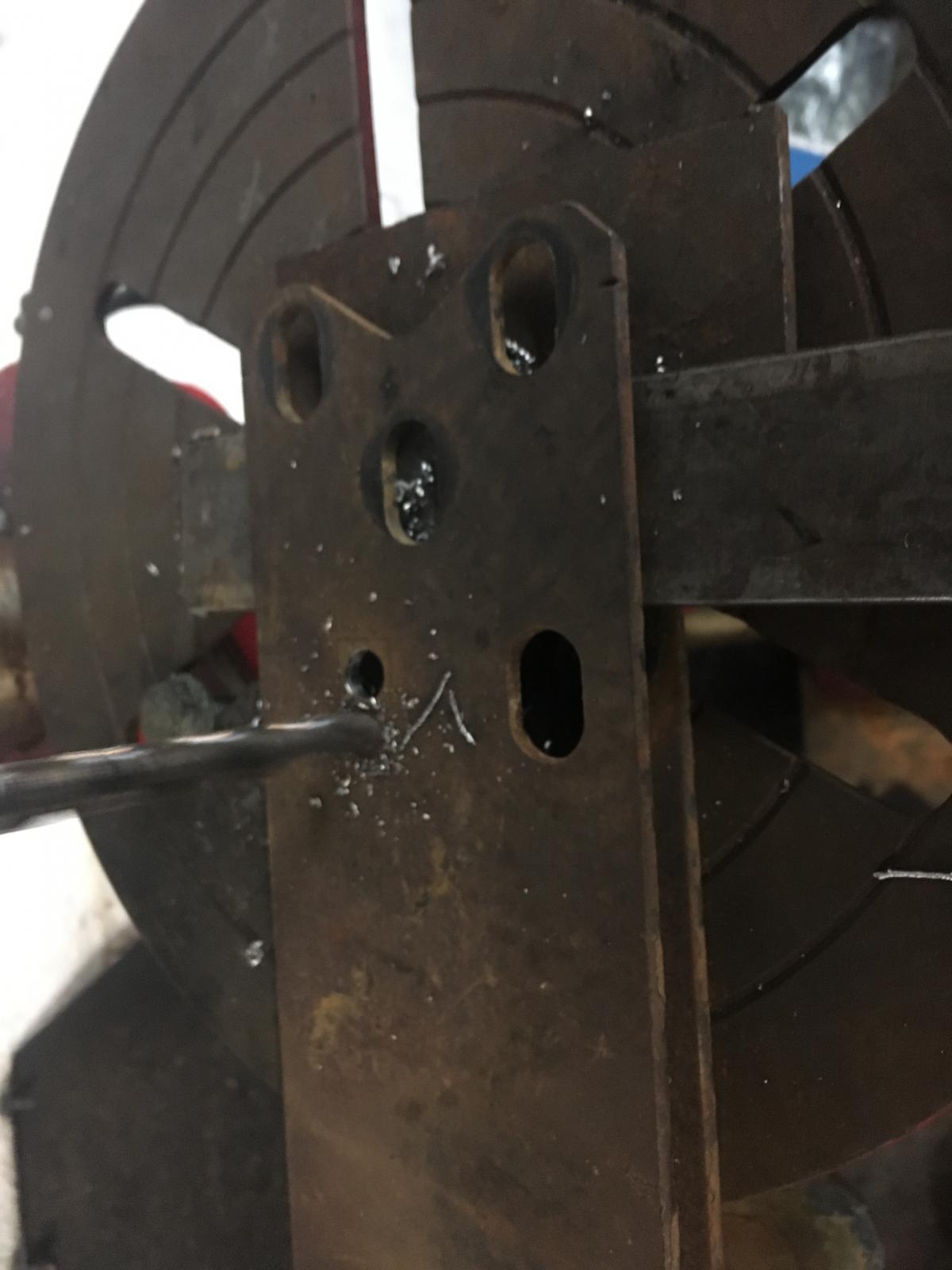

I then wedged a couple pieces of scrap between the plates to reduce deflection & drilled a couple holes through both sides of the plate.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Once the holes were drilled, I used this hateful little bastard to remove the excess between the holes & clean up the slot.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



And I now have a double spring plate for the Thing.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4850
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Sun Feb 28, 2021 9:55 am    Post subject: Re: Colonel Church Reply with quote

Nice work!

I'm 2 days in on fighting removal of stuck rear drums...

Adjusters are frozen.

... why me?

B
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Mon Mar 01, 2021 2:24 pm    Post subject: Re: Colonel Church Reply with quote

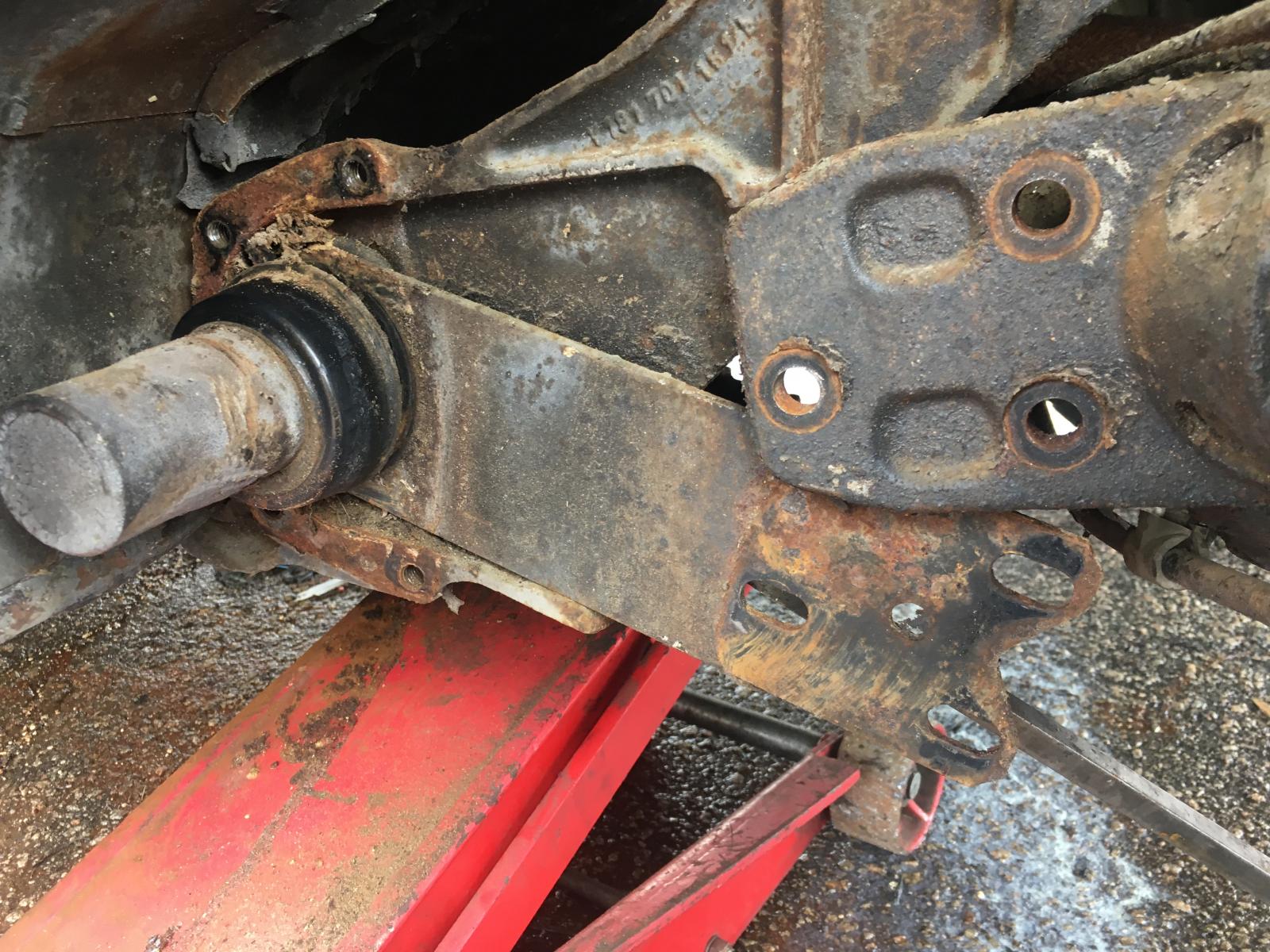

Today I tackled the driver side torsion bar & spring plate. I began disassembling & removing the old parts...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

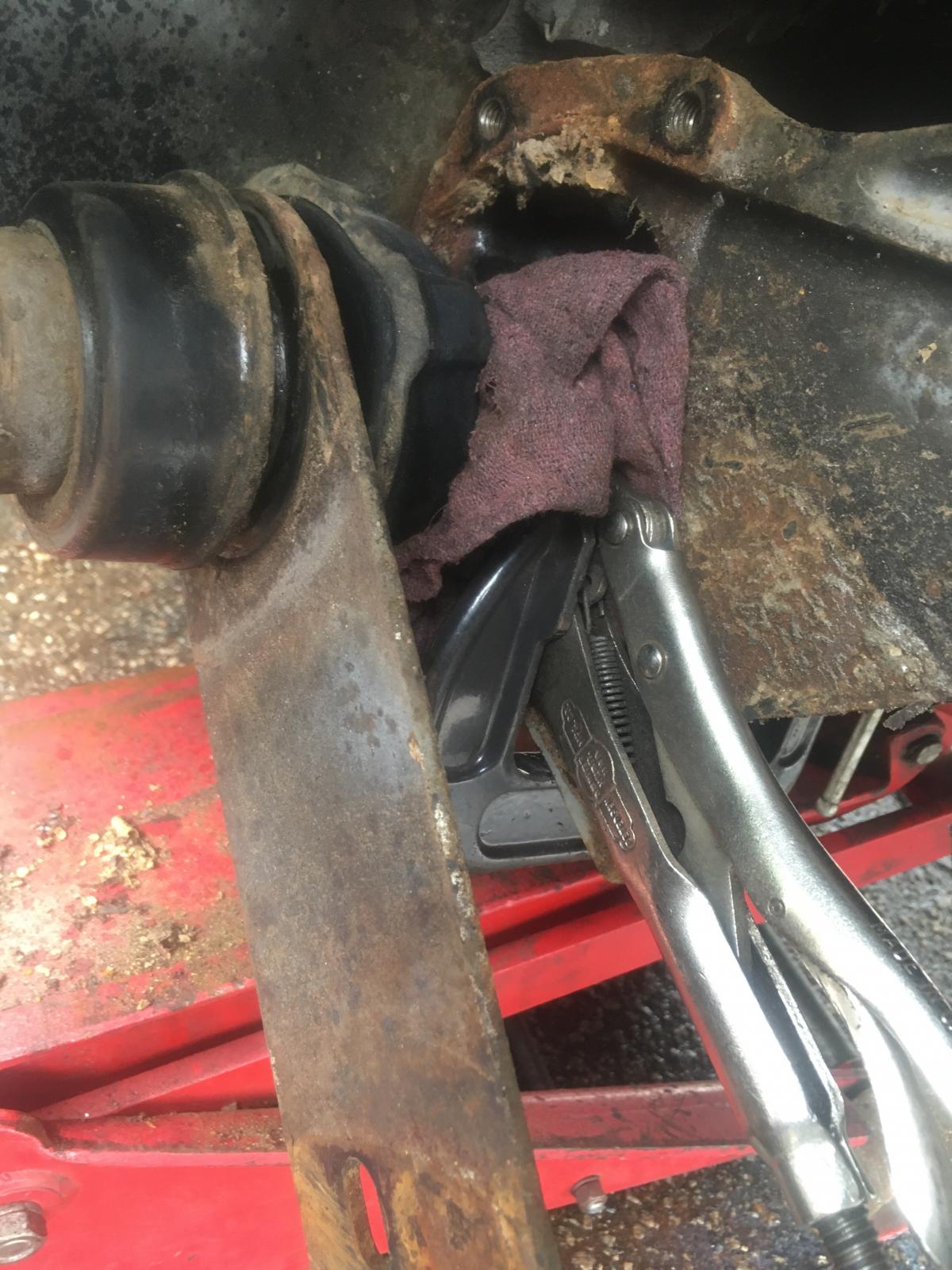

The spring plate on this side was seized to the torsion bar also so I wrapped the torsion bar with a shop rag, locked a set of vice grips onto that & then, using a c-clamp, secured the bar to the torsion housing.
Image may have been reduced in size. Click image to view fullscreen.

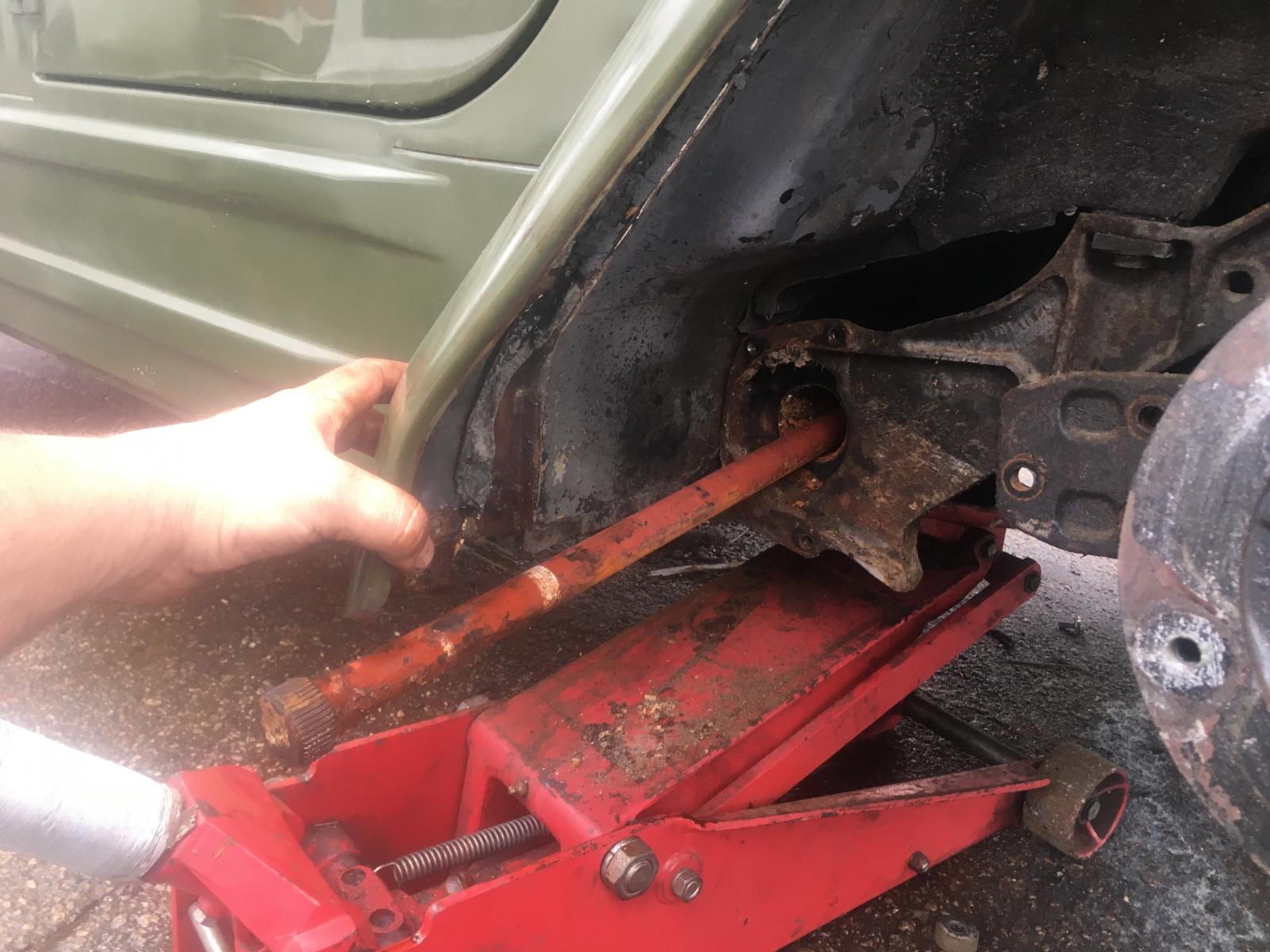

I was then able to wiggle the plate back & forth to free it from the torsion bar an after unbolting the leading edge of the fender, I removed them both.
Image may have been reduced in size. Click image to view fullscreen.

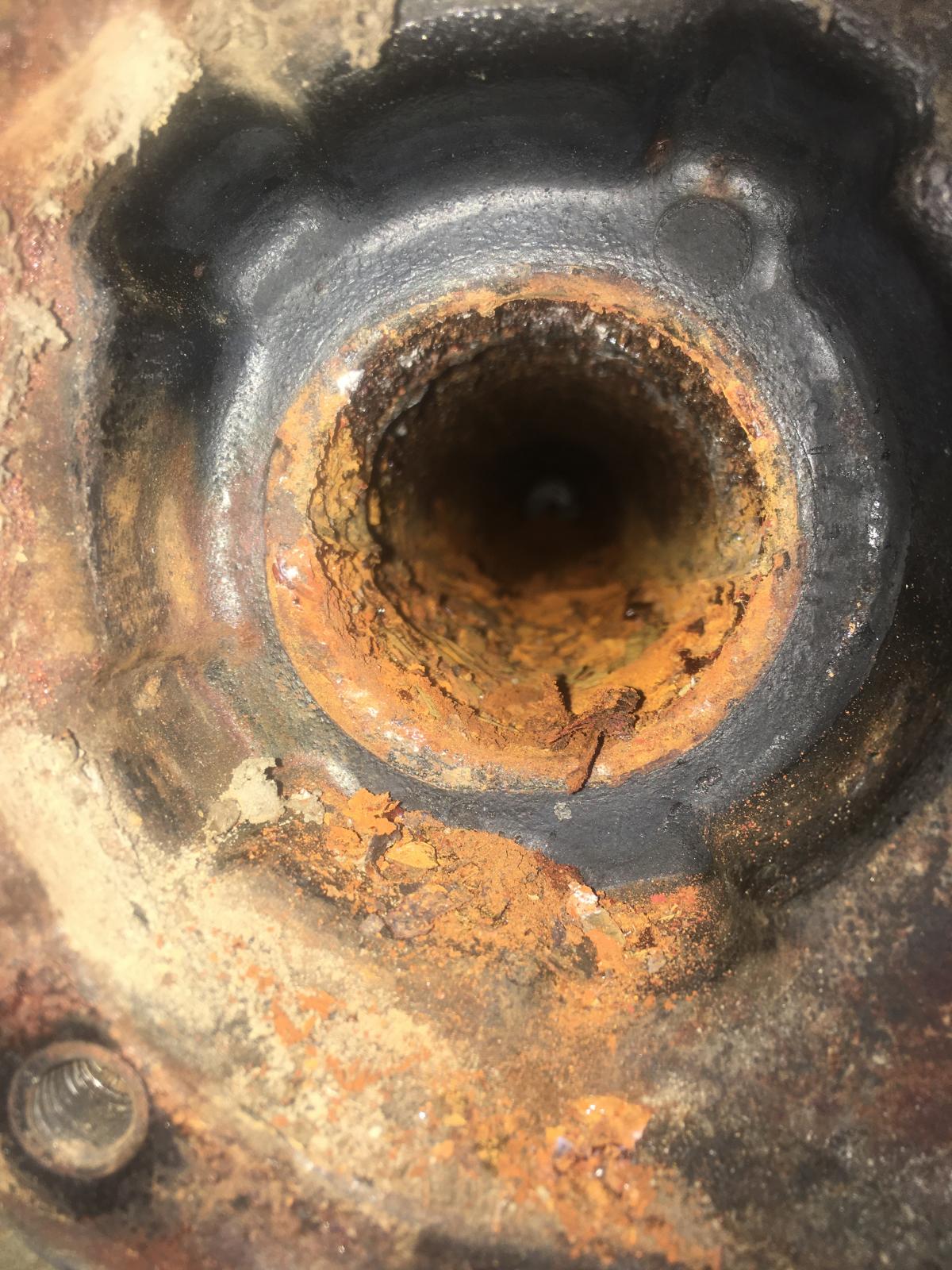

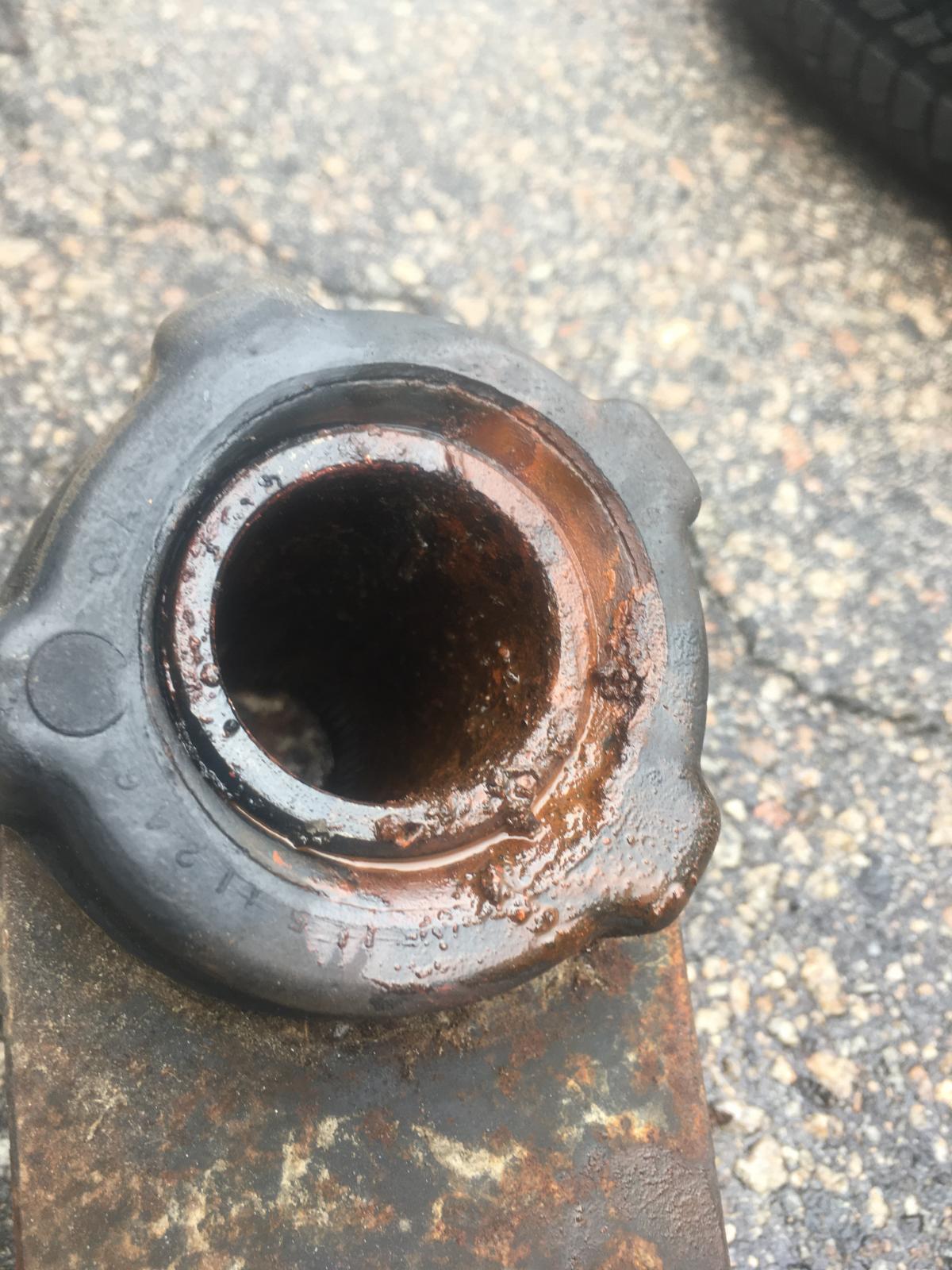

This one appears to have been submerged also, unfortunately, due to it’s being within sight of the coast, this was likely salt water. Evil or Very Mad (It was dry before I pumped it full of penetrating oil to help free up the seized splines.)
Image may have been reduced in size. Click image to view fullscreen.

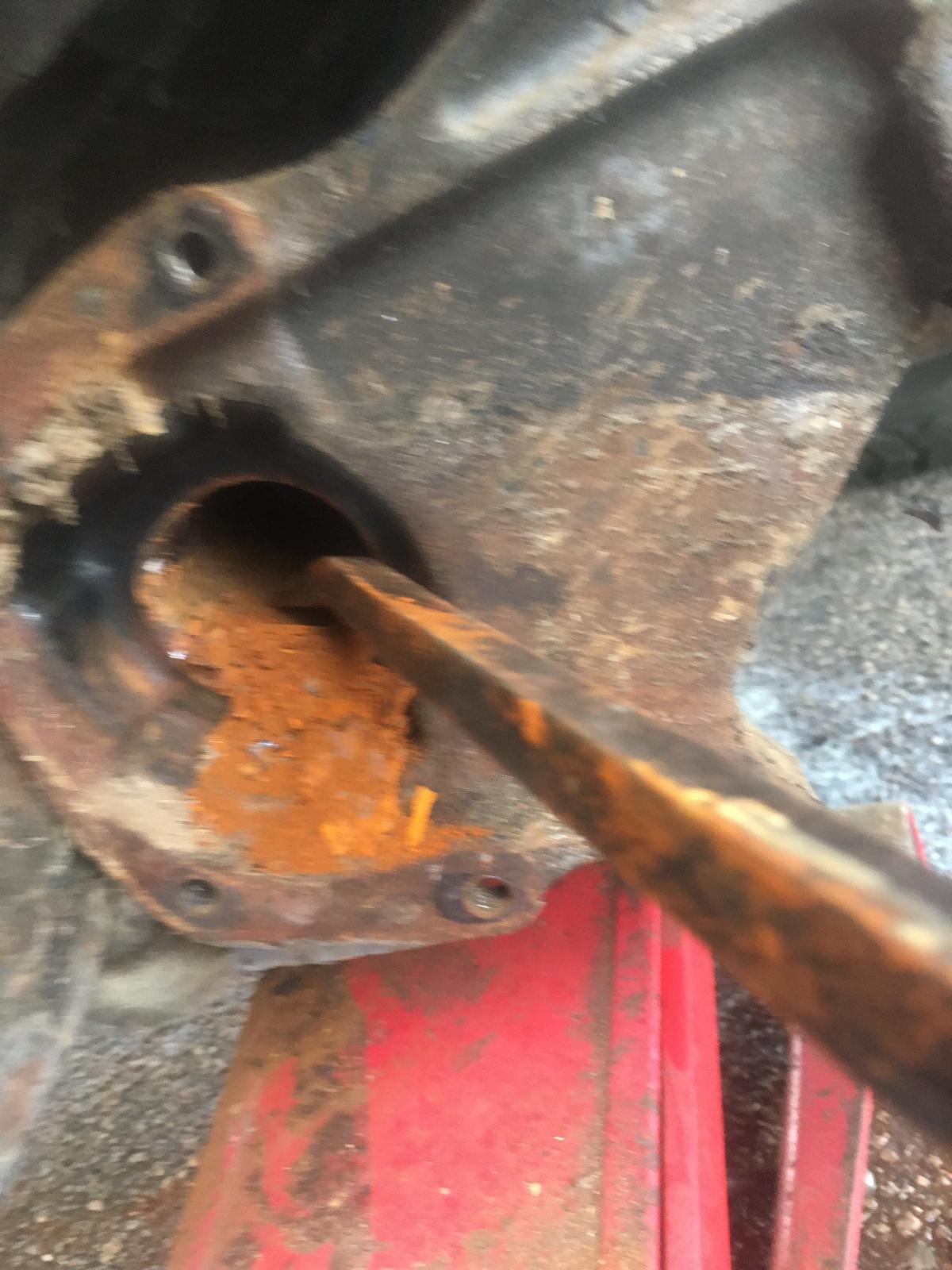

So I scraped & vacuumed out the torsion housing on this side too.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



After Hoovering the crust out with the PVC pipe again, I zip tied a shop rag to the end.
Image may have been reduced in size. Click image to view fullscreen.



And then, after inserting it all the way into the housing, I poured some Ospho into the pipe & douched out the housing.
Image may have been reduced in size. Click image to view fullscreen.



With that done, & after letting it cure a bit with a fan aimed at the housing, I notched the spring plate on this side too & reassembled everything.
Image may have been reduced in size. Click image to view fullscreen.



This is quite possibly the first Thing in the history of the world to be raised by parts scavenged from a Karmann Ghia. Laughing
Image may have been reduced in size. Click image to view fullscreen.



Dammit, that tire not centered in the fender well is gonna force me to buy some extended trailing arms. Evil or Very Mad
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Tue Mar 02, 2021 10:28 am    Post subject: Re: Colonel Church Reply with quote

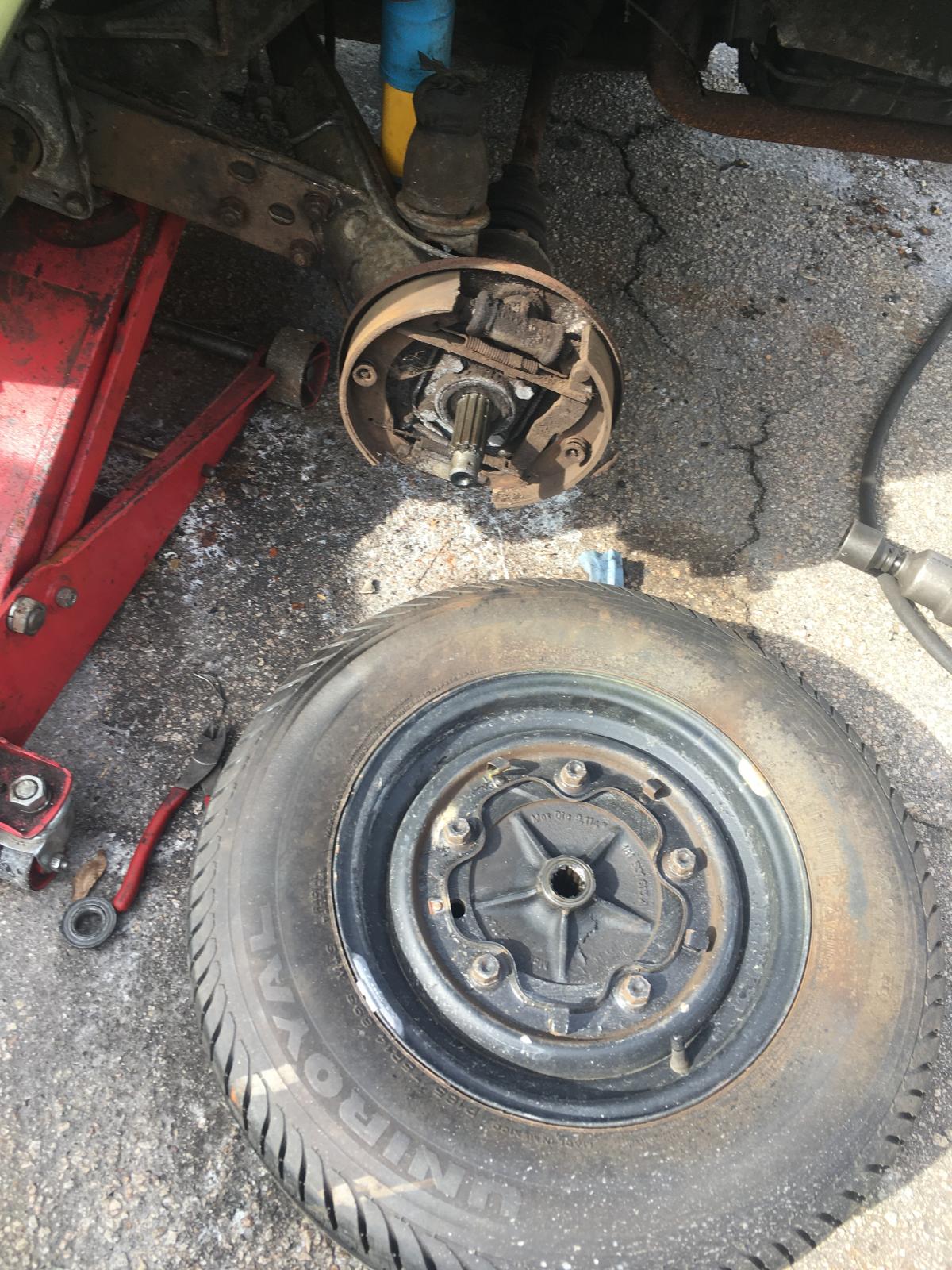

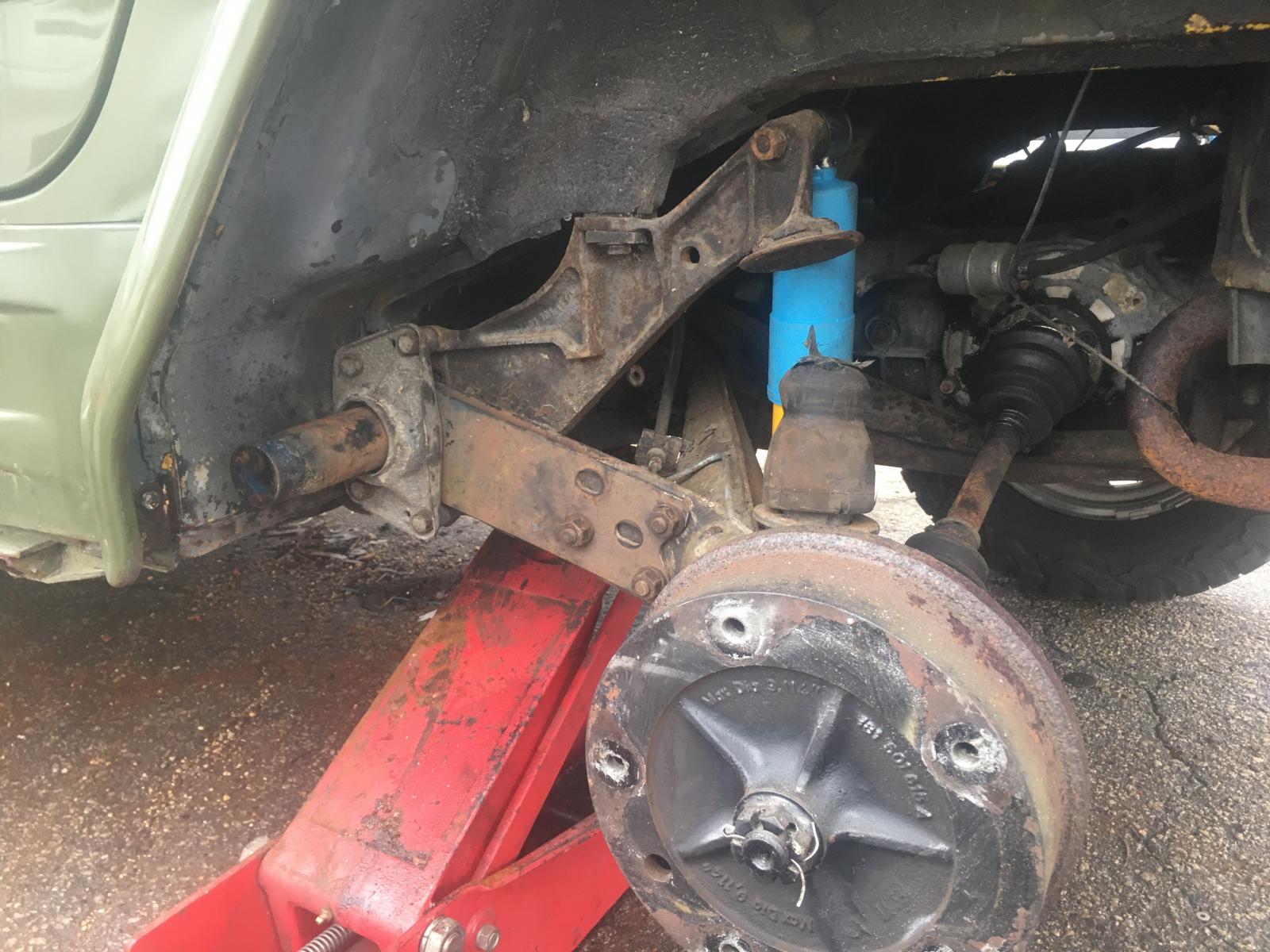

Today’s task was to make the last corner match the rest so I zipped the castle nut off & removed the drum.
Image may have been reduced in size. Click image to view fullscreen.

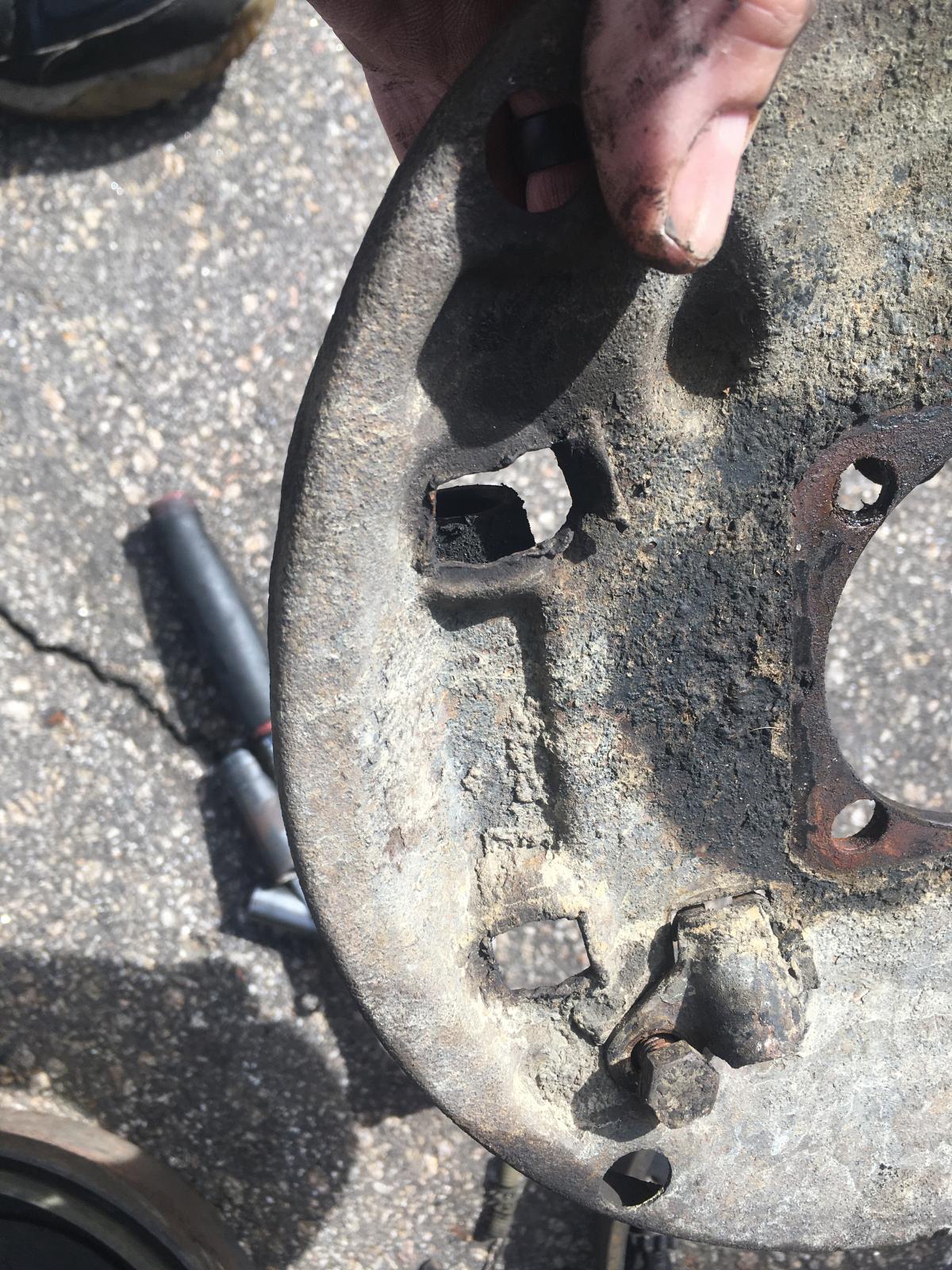

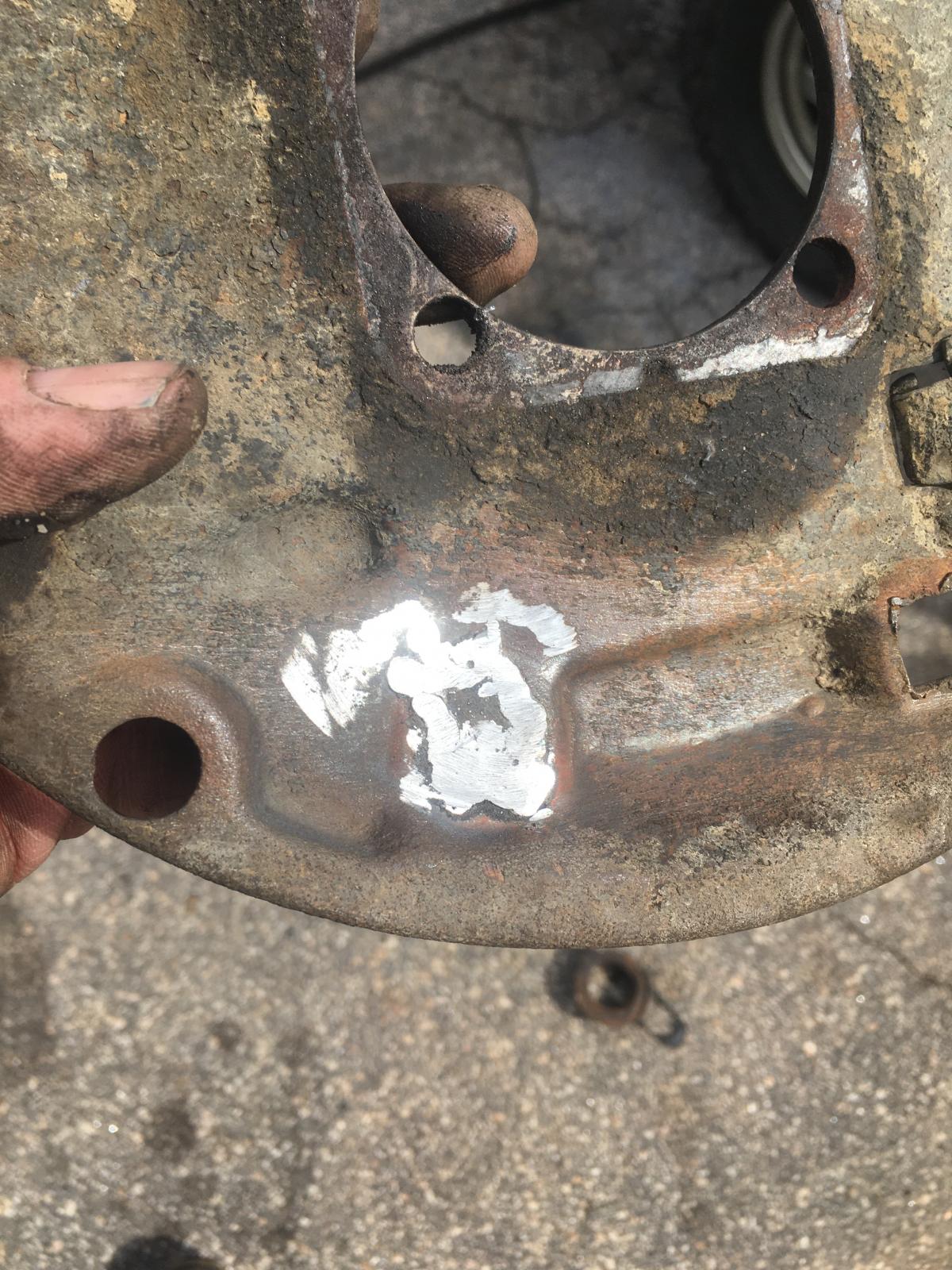

After removing the old backing plate, I started to install the TypeIII plate, I decided to address the mangled adjustment holes. These had been irritating me the whole time they were on the Ghiapet, & knowing that I wasn’t likely to do something about it once the car was a driver, I grabbed a piece of scrap & started to make it fit & then fused it in place.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



The second hole was just wallowed out so I closed up the diameter wit a bead, ground off the excess, & bored some new holes.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Once done, I bolted it up, reassembled the brakes, & slipped the drum on.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



And here’s the beast on all four Marathons.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 2838
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Tue Mar 02, 2021 4:44 pm    Post subject: Re: Colonel Church Reply with quote

I love completing a phase
_________________
Rebuilt Salvage
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4850
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Tue Mar 02, 2021 7:11 pm    Post subject: Re: Colonel Church Reply with quote

Interesting to see Chris work on the car as time allows, touching his Thing daily... Laughing

bnc
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Trylon Premium Member
Samba Member


Joined: August 16, 2019
Posts: 2955
Location: Connecticut
Trylon is offline

PostPosted: Tue Mar 02, 2021 7:21 pm    Post subject: Re: Colonel Church Reply with quote

Jeez, I turned my attention elsewhere for a moment and WHAM!

This is gonna be fun to watch.
_________________
1959 Volkswagen Karmann Ghia
1979 Volkswagen Rabbit
1973 Volkswagen Bus

~WTB: New Milford Motors memorabilia~
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kent70ghia
Samba Member


Joined: June 15, 2020
Posts: 83
Location: WA
kent70ghia is offline

PostPosted: Tue Mar 02, 2021 8:55 pm    Post subject: Re: Colonel Church Reply with quote

Nice to see the Ghiapet live on as parts are moved to The Colonel! Will be fun to watch the progress and now have to keep an eye on the Thing tthreads!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vladiiiii
Samba Member


Joined: February 24, 2019
Posts: 411
Location: Munich, Germany
Vladiiiii is offline

PostPosted: Tue Mar 02, 2021 11:57 pm    Post subject: Re: Colonel Church Reply with quote

Although I don't really care for Things that much, this topic I will follow because of the whole Ghiapet thing, your personality, and because..... you make it interesting. *subscribed* Very Happy

Vlad
_________________
Vlad's 72 Ghia (Once in a Lifetime Restoration topic)
https://www.thesamba.com/vw/forum/viewtopic.php?p=9237746#9237746
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Thu Mar 04, 2021 1:59 pm    Post subject: Re: Colonel Church Reply with quote

Thanks y’all! I gotta get this Thing back together, I find it weird to be confined to the paved right-of-ways.


Yes, I too am not really enamored with a Thing, but I do like the additional interior room over that of a Beetle.

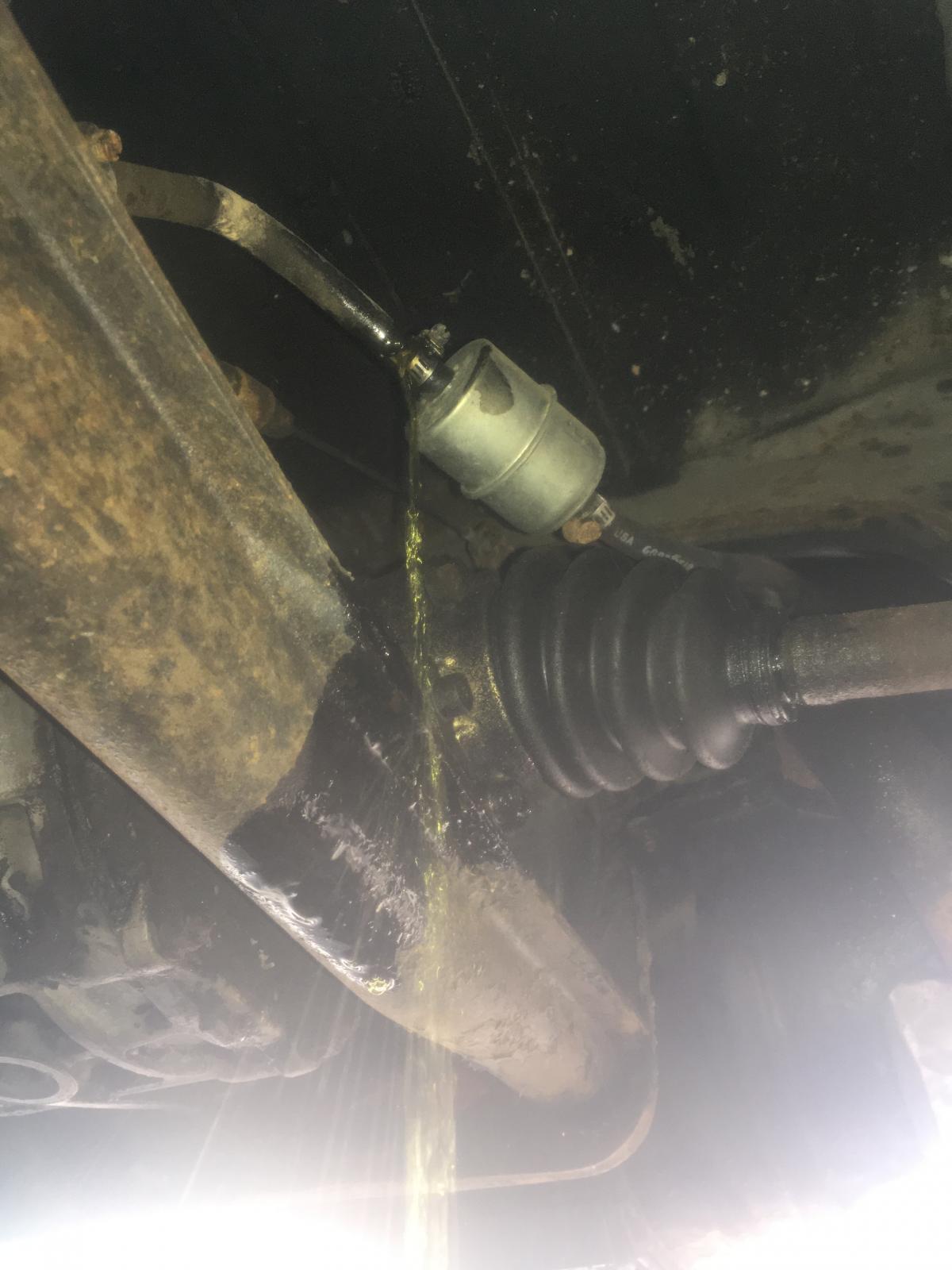

Today I opted to try to awaken the beast... Since it had been left dormant for a (considerable) amount of time, I removed the plugs, squirted to penetrating oil into the holes, walked the engine through by hand a dozen or so times & then cranked it to build up oil pressure, then I reinstalled the plugs & tried to light it off with some carb cleaner shot down the throats of the carbs.


After a few cranks, it stopped turning over. Evil or Very Mad Apparently the float on the driver side Kadron stuck wide open & flooded the left bank. So I yanked the plugs on that side, disconnected the electric pump, disabled the electronic ignition & spin the engine over to pump out the fuel. Once done, I pulled the dipstick & confirmed my suspicions.
Image may have been reduced in size. Click image to view fullscreen.



Screw it, I stuffed the plugs back in, gave the carbs another shot of carb cleaner & fired it up. Well, it runs... but it made a shitload of noise. Confused Fortunately, this was “only” caused by a generator pulley that was incorrectly installed/tightened
& now useless.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

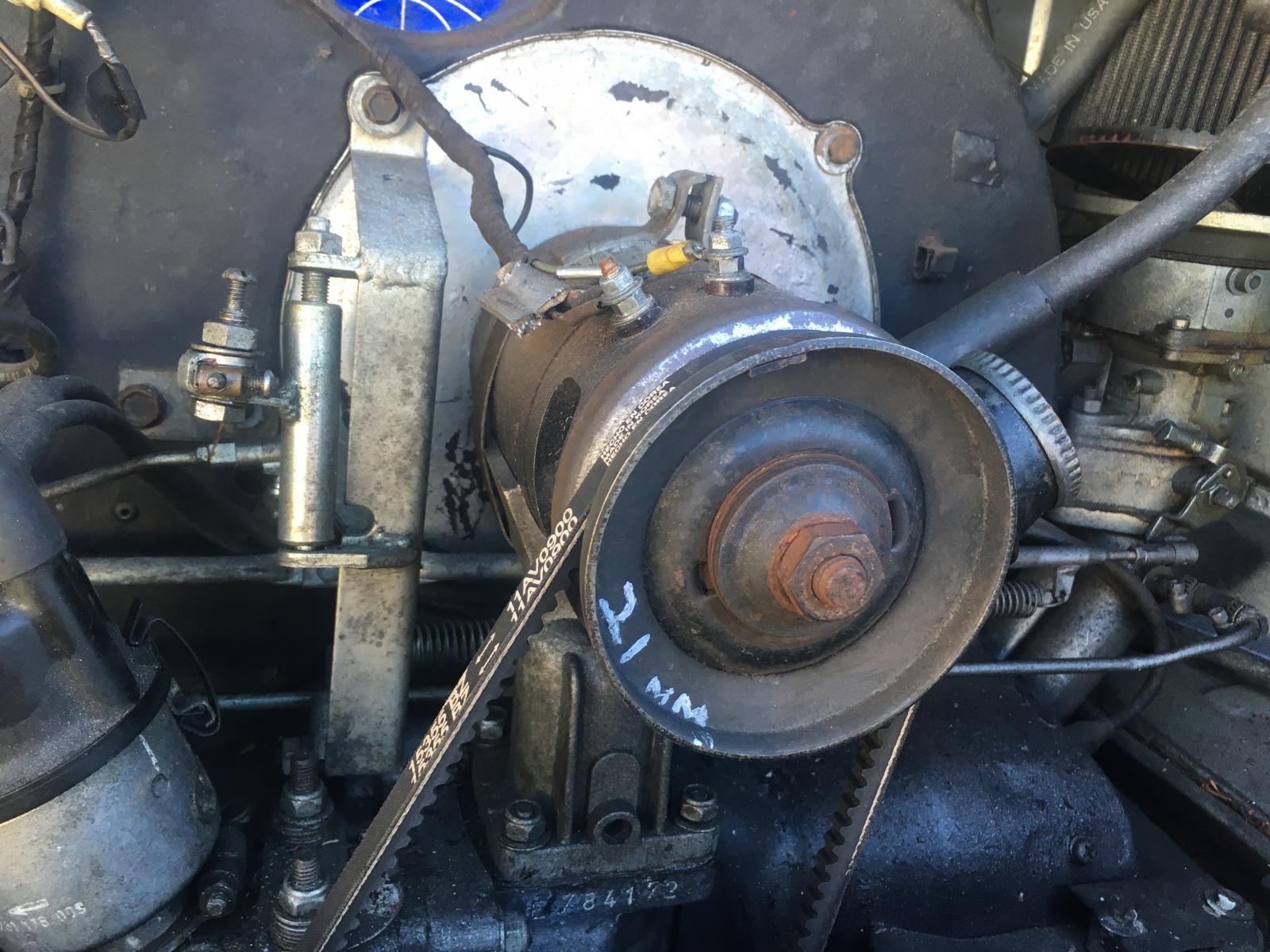

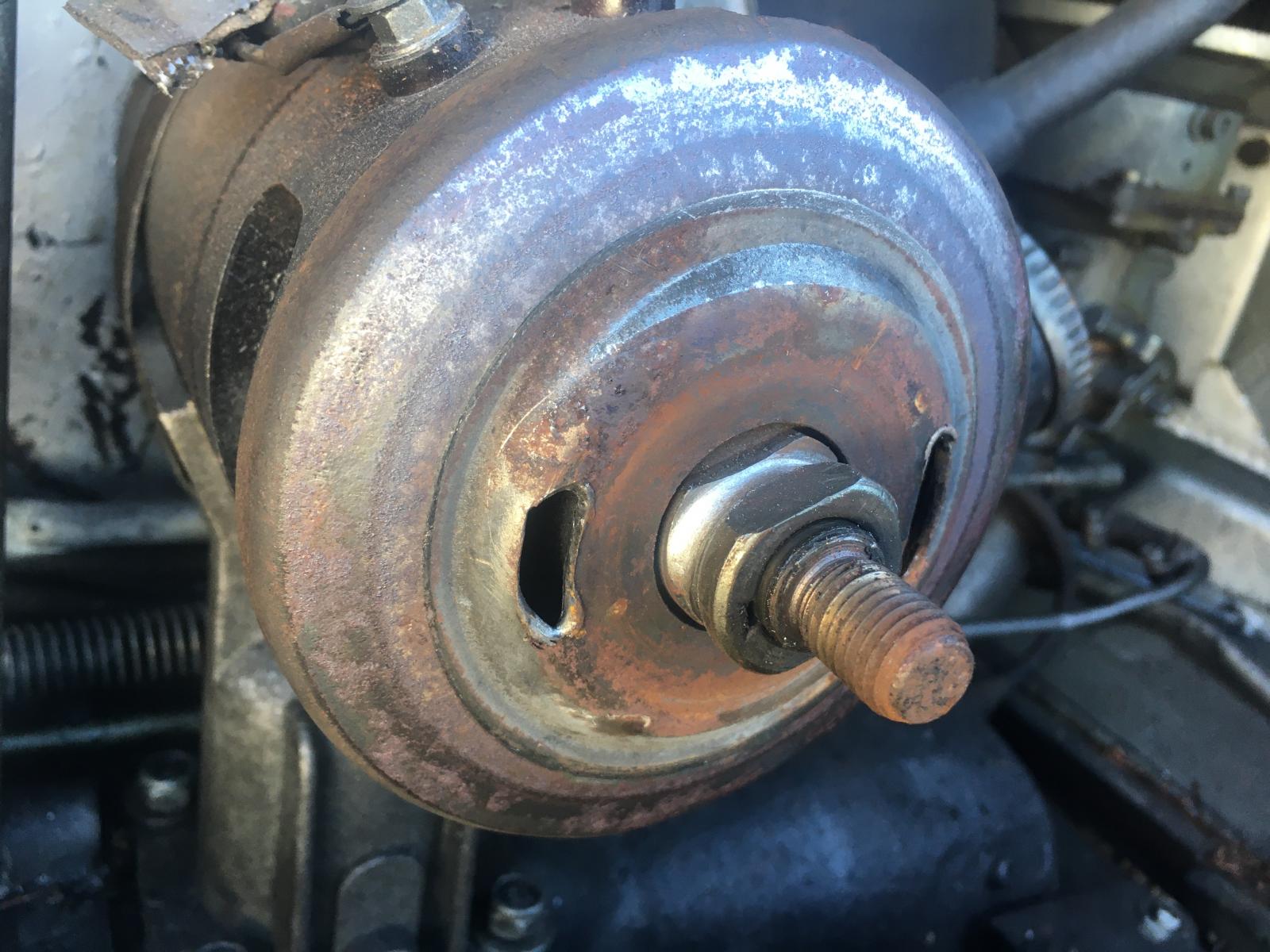

In addition to this, we have an incorrectly clocked generator on what appears to be an alternator stand. Knowing the shop that put this together, I’m sure to find all sorts of fuckery & shitty parts.
Image may have been reduced in size. Click image to view fullscreen.



No matter, I planned on shit canning most of it anyway.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
didget69
Samba Member


Joined: July 22, 2004
Posts: 4850
Location: Raleigh, North Carolina
didget69 is offline

PostPosted: Thu Mar 04, 2021 5:34 pm    Post subject: Re: Colonel Church Reply with quote

Sounds like the engine may have been assembled by bunch of ham-fisted monkeys...

But then, I'm insulting monkeys.

B
_________________
I never found the need to impress people with any mechanic certifications, trophies or track wins... unless it was for Mom to post on the refrigerator door.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Marcdeb
Samba Member


Joined: May 22, 2019
Posts: 1129
Location: Vermont
Marcdeb is offline

PostPosted: Thu Mar 04, 2021 5:46 pm    Post subject: Re: Colonel Church Reply with quote

That Thing (pun intended) looks so good on the outside. Hard to believe the mechanical side is so disappointing. Well it's in good hands now. I can't wait to see more photography made possible by it's road (and off-road) trips.
_________________
Marc

1971 Karmann Ghia Cabriolet

Restoration thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 2838
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Thu Mar 04, 2021 7:46 pm    Post subject: Re: Colonel Church Reply with quote

TDCTDI wrote:

After a few cranks, it stopped turning over. Evil or Very Mad Apparently the float on the driver side Kadron stuck wide open & flooded the left bank. So I yanked the plugs on that side, disconnected the electric pump, disabled the electronic ignition & spin the engine over to pump out the fuel. Once done, I pulled the dipstick & confirmed my suspicions.

***

No matter, I planned on shit canning most of it anyway.


I did this to my hydrolocked air-cooled vanagon engine without disconnecting the battery and the whole rear end of the van went up in a plume of fire balled blaze of glory! Thank heavens for a handy fire extinguisher. One set of curtains and a wiring harness refresh and we were back in business. Yours seems like a more reasonable approach.

Just tear that engine out of there and put the pet engine in it. What a mess of mysteries. That abandoned dog motor will strand you in the woods for sure.
_________________
Rebuilt Salvage
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Thu Mar 04, 2021 8:04 pm    Post subject: Re: Colonel Church Reply with quote

Buggeee wrote:

I did this to my hydrolocked air-cooled vanagon engine without disconnecting the battery and the whole rear end of the van went up in a plume of fire balled blaze of glory! Thank heavens for a handy fire extinguisher. One set of curtains and a wiring harness refresh and we were back in business. Yours seems like a more reasonable approach.




Laughing Laughing Laughing I only knew to disconnect the coil for the same reason.


Late ‘80s/early ‘90s Moronic & Digifuked VWs would go full dump on the injectors when the ECMs failed & fill the block with fuel. I got one in at the shop so I pulled the plugs & spun the engine over & watched as the fuel shot about 30’ up & in front of the car. About the third rotation, the fuel lit off & set the upper half of a 130’ Oak on fire. Fortunately, the flame front followed the fuel & only scorched the ignition wire set. Embarassed Boy was I glad that it wasn’t in the shop when it happened.


VW did have a service bulletin about this very issue after several dealer service departments met the same fate.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Fri Mar 05, 2021 7:15 am    Post subject: Re: The Warthog Reply with quote

As I dig deeper, I have decided to rename this project The Warthog, ugly as hell but brutally robust as I transform it into a beast that will be exploring both urban & rural settings, it seems so much more fitting.
_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 2838
Location: Stuck in Ohio
Buggeee is offline

PostPosted: Fri Mar 05, 2021 4:31 pm    Post subject: Re: The Warthog Reply with quote

...long live the Warthog.
_________________
Rebuilt Salvage
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kent70ghia
Samba Member


Joined: June 15, 2020
Posts: 83
Location: WA
kent70ghia is offline

PostPosted: Fri Mar 05, 2021 9:30 pm    Post subject: Re: The Warthog Reply with quote

Awesome name change, fits well.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TDCTDI
Samba Advocatus Diaboli


Joined: August 31, 2013
Posts: 10830
Location: North Carolina
TDCTDI is offline

PostPosted: Sat Mar 06, 2021 7:45 am    Post subject: Re: The Warthog Reply with quote

Today I began the process of removing the engine & began the Kadron exorcism.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Definitely a good place to start as all of the fuel hose was crunchy at best.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And since I couldn’t really plug it, I took the easy way out to drain the tank.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Everybody born before 1975 has a story, good, bad, or indifferent, about a VW.


GOFUNDYOURSELF, quit asking everyone to do it for you!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vladiiiii
Samba Member


Joined: February 24, 2019
Posts: 411
Location: Munich, Germany
Vladiiiii is offline

PostPosted: Sat Mar 06, 2021 8:59 am    Post subject: Re: The Warthog Reply with quote

You could have at least press the hose tight (before the cut), so you don't have to take....a golden shower Twisted Evil Very Happy
_________________
Vlad's 72 Ghia (Once in a Lifetime Restoration topic)
https://www.thesamba.com/vw/forum/viewtopic.php?p=9237746#9237746
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Thing/Type 181 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7  Next
Page 2 of 7


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
