Bob's 1959 Single Cab Pickup — "Otto"
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
easy e Premium Member
Samba Member


Joined: May 28, 2008
Posts: 3724
Location: 1 hr north of Santa Barbara
easy e is offline

PostPosted: Sun Mar 14, 2021 10:21 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

I bet it was the location for a spotlight.
Image may have been reduced in size. Click image to view fullscreen.

bobrk wrote:

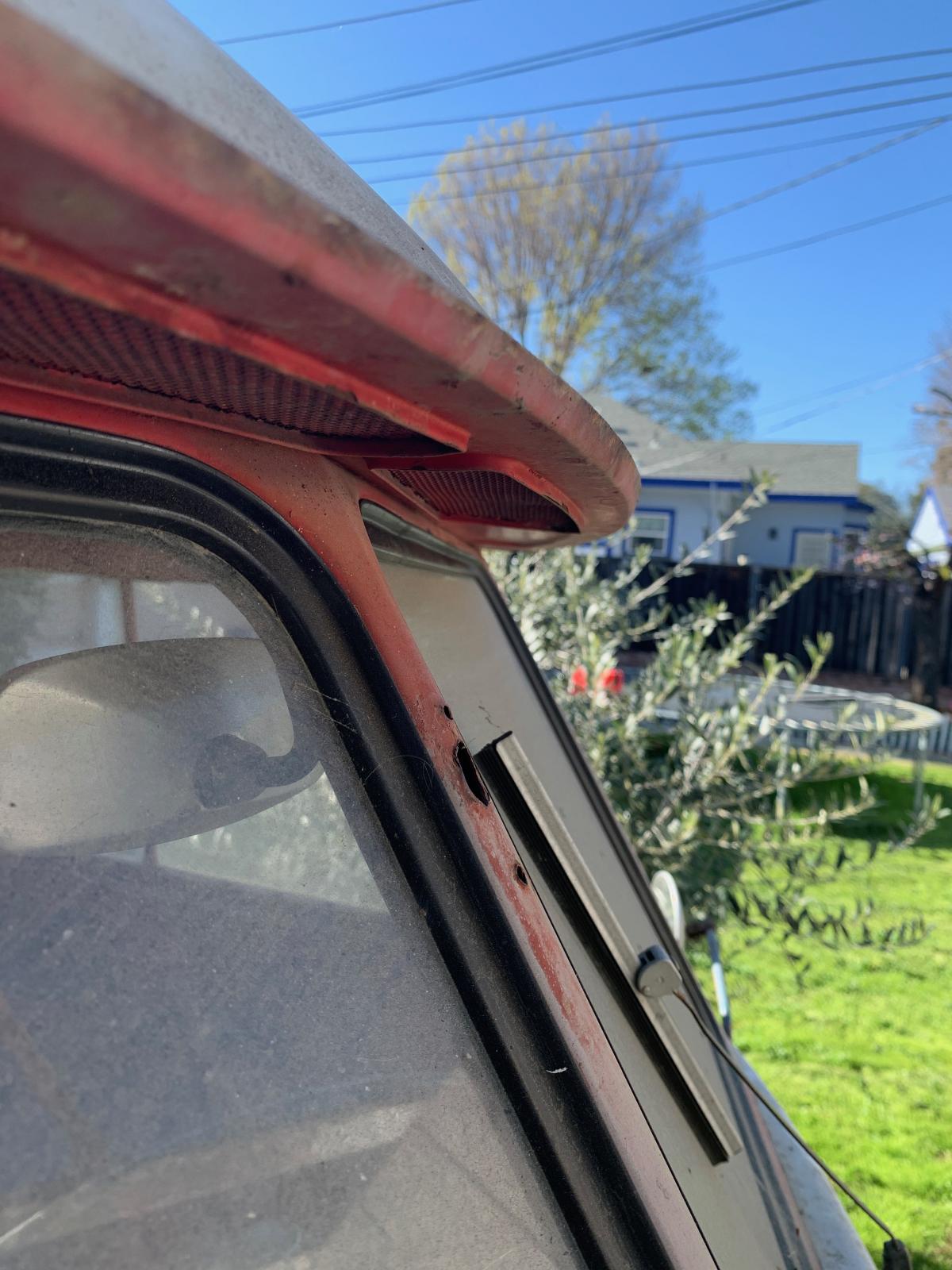

Another mystery on my truck is this antenna mount. It looks like they had it mounted between the windshields. Seems like it had a very weird angle to clear the top. Maybe it was a CB radio with one of those swiveling mounts?
Image may have been reduced in size. Click image to view fullscreen.

_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List


Last edited by easy e on Sun Mar 14, 2021 10:35 am; edited 2 times in total
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Sun Mar 14, 2021 10:30 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

easy e wrote:
I bet it was the location for a Unity spotlight.
https://www.unityusa.com/thumbnail.asp?file=assets...amp;maxy=0
bobrk wrote:
Another mystery on my truck is this antenna mount. It looks like they had it mounted between the windshields. Seems like it had a very weird angle to clear the top. Maybe it was a CB radio with one of those swiveling mounts?
Image may have been reduced in size. Click image to view fullscreen.

Actually, that was always an option in my mind as well! Thanks for the pic, it looks exact.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Sun Mar 14, 2021 12:06 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

easy e wrote:
I bet it was the location for a spotlight.
Image may have been reduced in size. Click image to view fullscreen.


I'm going to keep an eye out for one, that would look badass.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
ach60 Premium Member
Samba Member


Joined: May 14, 2001
Posts: 4017
Location: Santa Maria
ach60 is offline

PostPosted: Mon Mar 15, 2021 11:31 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

bobrk wrote:
easy e wrote:
I bet it was the location for a spotlight.
Image may have been reduced in size. Click image to view fullscreen.


I'm going to keep an eye out for one, that would look badass.


https://www.ebay.com/sch/i.html?_from=R40&_nkw...ondition=4
_________________
Good Luck
Al
Back to top
View user's profile Send private message Yahoo Messenger MSN Messenger Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Wed Mar 24, 2021 6:51 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Some days, you want to work on your truck but you're not sure what you want to do, so you just poke around and do stupid things like uncover it so you can look at it and just wash the windows.

Here are some pics from my spelunking...

I think all the glass is OG, a combination of Delog windshields and Sekurit side and back windows. And I just looked up "ver bund" and it means composite, which makes sense for a laminated windshield.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Thought I'd go look at the engine and was gratified to see that not only did it still have oil in it, it even turned, so I'm optimistic that it will start after 20 years with some careful preparation.

Image may have been reduced in size. Click image to view fullscreen.


Brazilian carb?

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Voltage regulator? And some solenoid...

Image may have been reduced in size. Click image to view fullscreen.

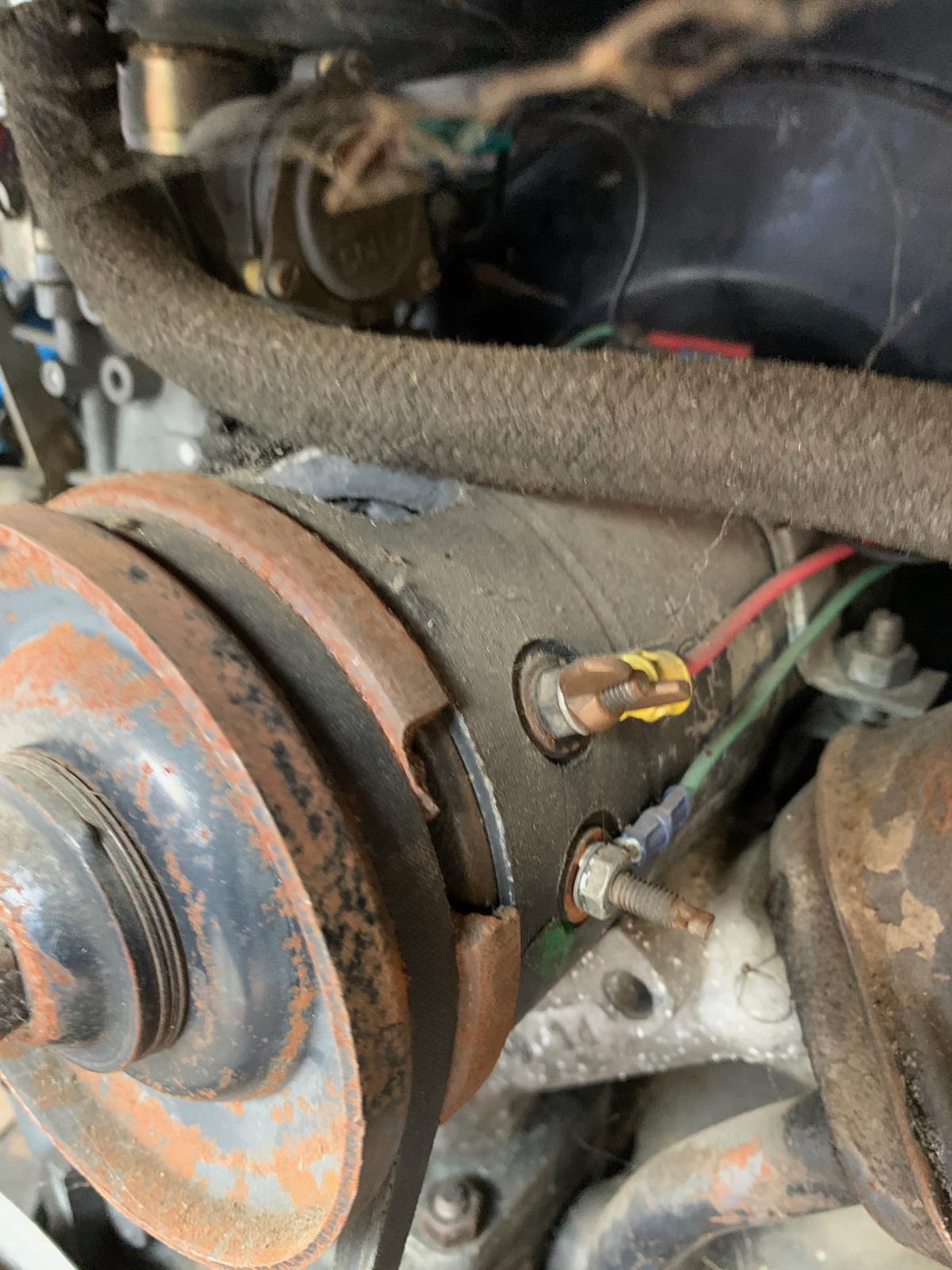

12 Volt generator...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Also, it's an "H" engine, will have to look that up.

Image may have been reduced in size. Click image to view fullscreen.


Thanks to this site, I know it's a Sep 65 1500 block.

https://www.thesamba.com/vw/archives/info/chassisdating.php
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 12827
Location: Casa de Oro, California
BarryL is offline

PostPosted: Thu Mar 25, 2021 6:12 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

There's a black widow in your brushes. Can't say I've ever seen a pulley broken like that before. It looks like it's cast iron.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Thu Mar 25, 2021 7:29 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

BarryL wrote:
There's a black widow in your brushes. Can't say I've ever seen a pulley broken like that before. It looks like it's cast iron.
Good eye. I didn’t even notice.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
apexxn
Samba Member


Joined: September 09, 2002
Posts: 38
Location: Southern California
apexxn is offline

PostPosted: Thu Mar 25, 2021 8:03 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

BarryL wrote:
There's a black widow in your brushes.


And we all know how painful that can be. Laughing
Back to top
View user's profile Send private message Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Fri Mar 26, 2021 8:41 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Long-roofs wrote:
Looks like you are dealing with '63 one ton rear drums, they take the longer stub axle, you may have the 3/4 ton shorter axle on the one side.


I’ve been mulling this statement for weeks now. Is there any documentation of this anywhere? I can’t find anything online or in my Bentleys. I’d just like to verify before cutting my drum up.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
ach60 Premium Member
Samba Member


Joined: May 14, 2001
Posts: 4017
Location: Santa Maria
ach60 is offline

PostPosted: Mon Mar 29, 2021 6:17 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

bobrk wrote:
Some days, you want to work on your truck but you're not sure what you want to do

12 Volt generator...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




That is a 38 amp gen from your Kazbus.
The 38 amp is more powerful than the 30 amp found on Bugs.
Also the backing plates are different because the 38 amp Gen is longer.
There is some damage to that pulley, but completely useable.
It's OG german cast, and BETTER than anything you can get now.
_________________
Good Luck
Al
Back to top
View user's profile Send private message Yahoo Messenger MSN Messenger Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 22868
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Mon Mar 29, 2021 6:30 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Always make sure when working on the gen or alt pulley, that the screwdriver used to lock the pulley from turning is kept pointed at the pulley nut you are loosening or tightening. Allowing the screwdriver to tilt at all will result in cracking out chunks from those cast pulleys or bending up the pressed pulleys.

It might be a 38 AMP gen, but have seen those from the FLAPS rewound into a 30 AMP gen instead.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Mon Mar 29, 2021 6:49 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Eric&Barb wrote:
Always make sure when working on the gen or alt pulley, that the screwdriver used to lock the pulley from turning is kept pointed at the pulley nut you are loosening or tightening. Allowing the screwdriver to tilt at all will result in cracking out chunks from those cast pulleys or bending up the pressed pulleys.

It might be a 38 AMP gen, but have seen those from the FLAPS rewound into a 30 AMP gen instead.


Naw, that gen was out of an untouched one owner 1969 camper that I had for a while. I’m assuming the pulley was from the truck. I’m gonna change that belt, though and will inspect that pulley at the time.

So nobody’s got an answer on my stub axles? Was there a difference in length between the 3/4 and 1 ton rgbs stub axles to make up for bigger (wider) brakes and they interchange?
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 22868
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Mon Mar 29, 2021 8:08 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

bobrk wrote:

So nobody’s got an answer on my stub axles? Was there a difference in length between the 3/4 and 1 ton rgbs stub axles to make up for bigger (wider) brakes and they interchange?


The one year only 1 ton stub axles are longer. Ran a pair of the stub axles with the 3/4 ton drums and had to add a shim between drums and axle nut. Think it was about 1/4" (6mm) thick.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Mon Mar 29, 2021 8:39 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Eric&Barb wrote:
bobrk wrote:

So nobody’s got an answer on my stub axles? Was there a difference in length between the 3/4 and 1 ton rgbs stub axles to make up for bigger (wider) brakes and they interchange?


The one year only 1 ton stub axles are longer. Ran a pair of the stub axles with the 3/4 ton drums and had to add a shim between drums and axle nut. Think it was about 1/4" (6mm) thick.

Ok, mine must be the opposite. I have the thicker brake drums that fit fine on one side, but need to be cut down on the other. 6mmm might be right. I'll have to check that.

Thanks!
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Tue Mar 30, 2021 10:57 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Another thing I realized: I guess when people say "big brake" they mean WIDER brake drums, not larger diameter ones.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
ToolBox
Samba Member


Joined: January 27, 2004
Posts: 2949
Location: Detroit, where they don't jack parts off my ride in the parking lot of the 7-11
ToolBox is offline

PostPosted: Tue Mar 30, 2021 11:17 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

bobrk wrote:
Another thing I realized: I guess when people say "big brake" they mean WIDER brake drums, not larger diameter ones.


Yes the surface area of the friction material is larger resulting in a widere shoe and drum.
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
peecee69 Premium Member
Samba Member


Joined: January 27, 2005
Posts: 1481
Location: Annapolis, MD/Bloomfield Hills, MI
peecee69 is offline

PostPosted: Tue Mar 30, 2021 11:33 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

bobrk wrote:
Another thing I realized: I guess when people say "big brake" they mean WIDER brake drums, not larger diameter ones.


When speaking of drums, yes. When referring to discs, it's a larger "contact surface" of the brake, which typically means a larger diameter rotor (along with bigger pistons).
_________________
1973 Standard Beetle - running maintenance thread - https://www.thesamba.com/vw/forum/viewtopic.php?t=675712&highlight=
1966 Doublecab - Starting resto - https://www.thesamba.com/vw/forum/viewtopic.php?t=668518&highlight=
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Facebook Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Tue Mar 30, 2021 11:39 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

peecee69 wrote:
bobrk wrote:
Another thing I realized: I guess when people say "big brake" they mean WIDER brake drums, not larger diameter ones.


When speaking of drums, yes. When referring to discs, it's a larger "contact surface" of the brake, which typically means a larger diameter rotor (along with bigger pistons).


Specifically, I was referring to the designations for the various RGB/Transmission setups on buses. I've always referred to the "upgraded" setup on my bus as a "small nut/big brake" system, but I never saw any larger diameter brake drums, just wider ones. So this makes sense as far as my axle stub discrepancy although it is a bit weird that I would have a 1 ton axle on one side and a 3/4 ton axle on the other side. It's amazing that they interchange... I do need to do some homework on the gears, hopefully this bus has not been driving around with different ratios on each side!
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Wed Mar 31, 2021 11:17 am    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

Another interesting mystery is this blue paint under my VW emblem...

Image may have been reduced in size. Click image to view fullscreen.


It does look like that white paint is flaking off, and you can see the SWR on the outside of the emblem, under the same flaking white paint.

I will have to pull the emblem off to see, and since it's missing a couple of clips anyway, it's probably a good idea.
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
bobrk
Samba Member


Joined: March 07, 2002
Posts: 199
Location: Beautiful Downtown San Jose
bobrk is offline

PostPosted: Wed Mar 31, 2021 3:33 pm    Post subject: Re: Bob's 1959 Single Cab Pickup — "Otto" Reply with quote

In my never-ending quest to find the keys to this stupid bus, I pulled out my long lost paper file from my truck. Besides a million receipts and a bunch of '92 Miata brochures and receipts, I found these interesting documents.

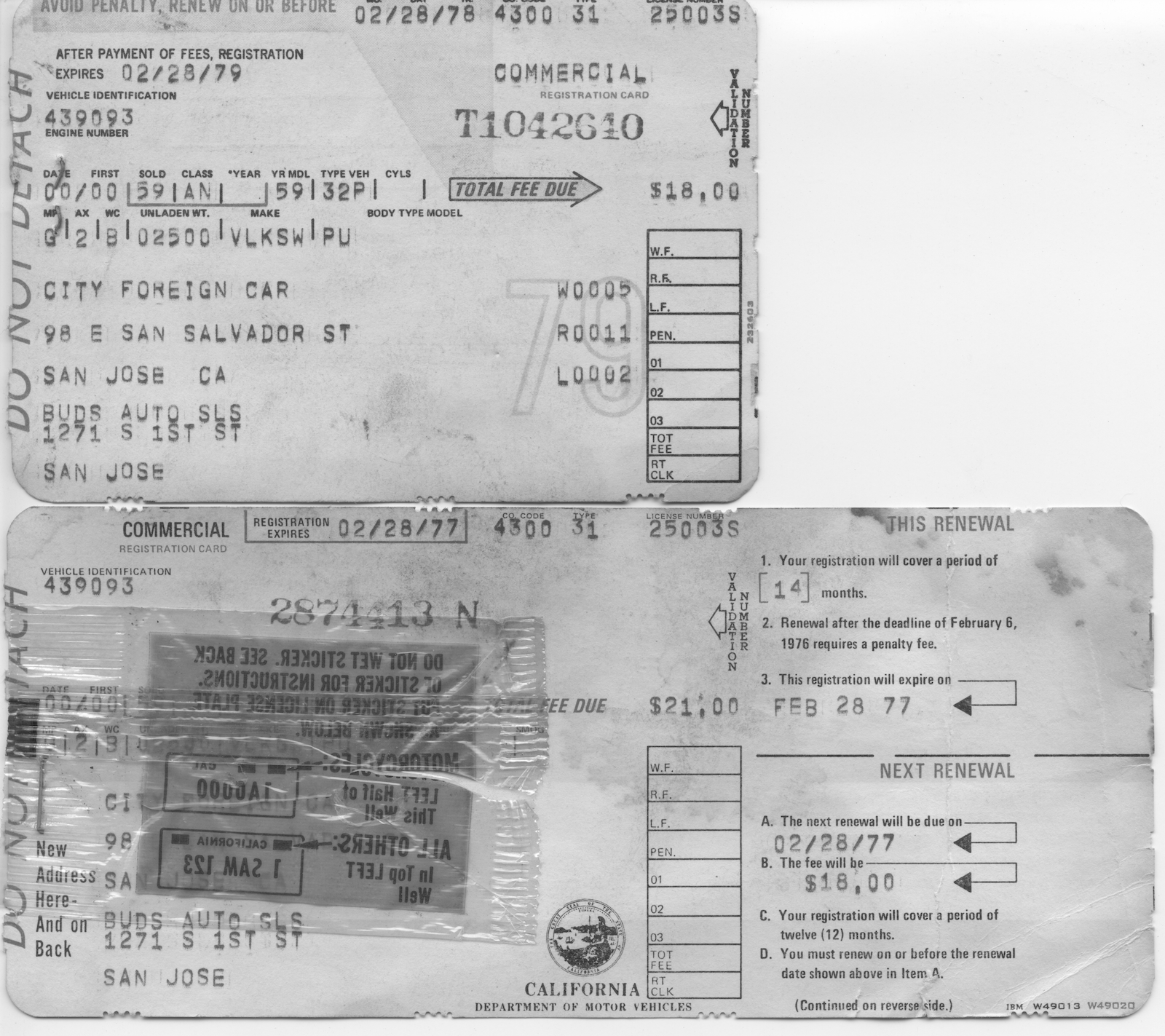

Original CA DMV registration cards from the late 70s...

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

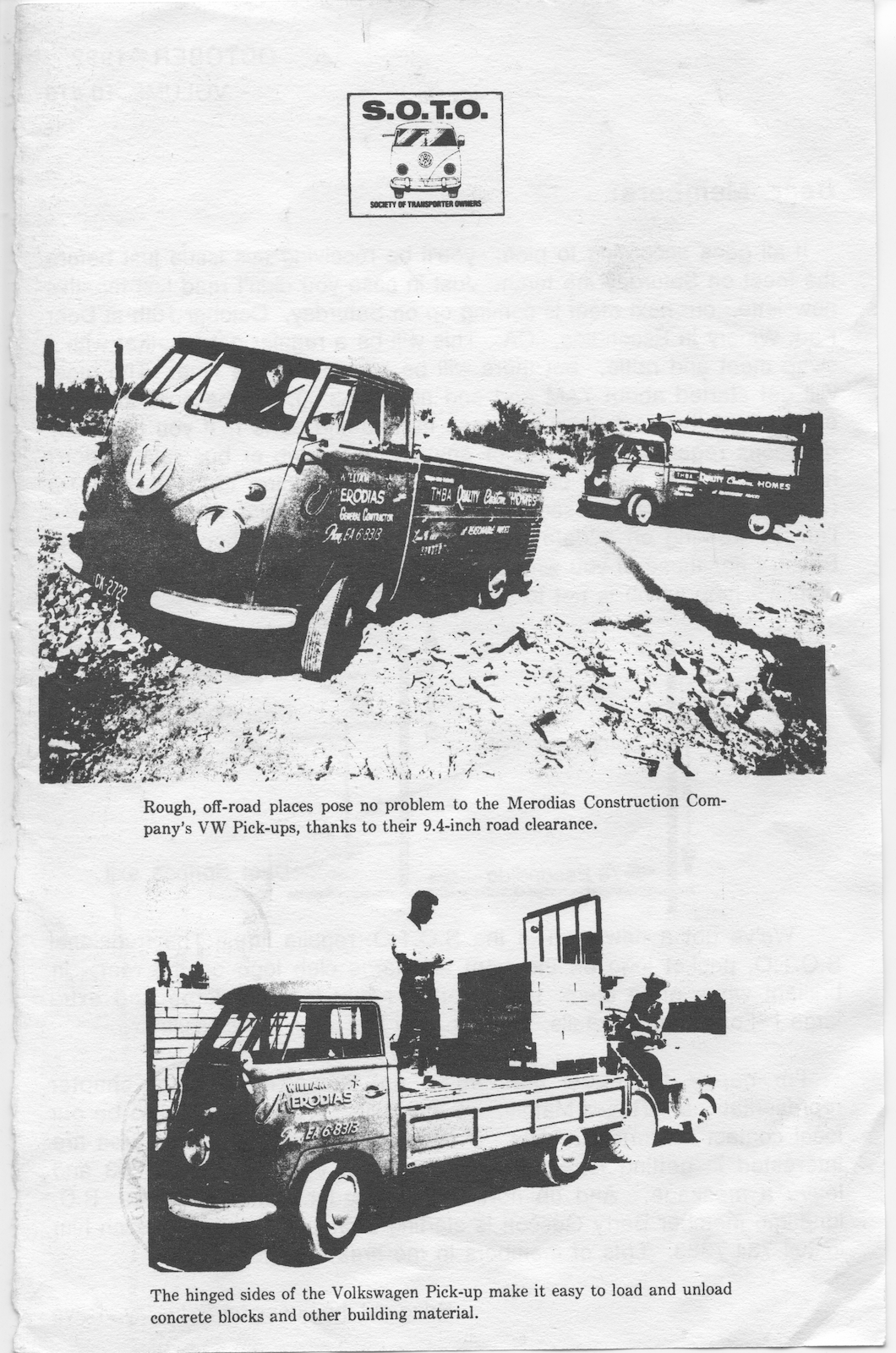

Single Cab illustrations from an old S.O.T.O. 'zine...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The Miata reference is interesting. My original web page for this bus insinuated I bought it because I was working on an old house and couldn't really carry anything in the Miata.

http://www.bobrk.com/otto/
_________________
1959 VW Pickup
1500 single port | 1963 small nut/big brake transaxle | CSP Disc Brakes | dual circuit brake master cylinder | 12V conversion
Back to top
View user's profile Send private message Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 7 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
