PostPosted: Wed Jun 09, 2021 8:46 am    Post subject: 1958 Kombi and 1961 Samba Build Reply with quote

Hey there samba,

Exciting news got a few new projects going on at the house.

1. 1958 Kombi

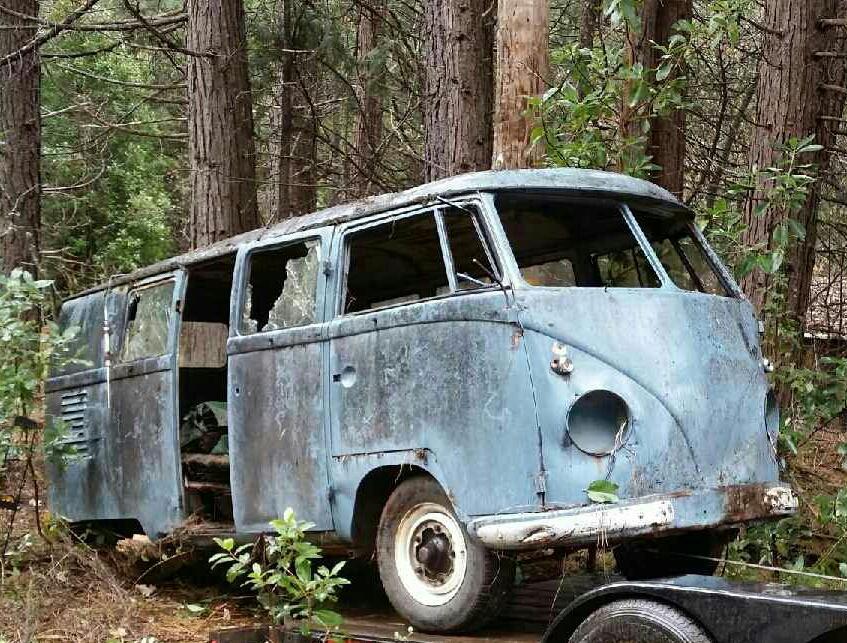

Picked this up from a guy in Canada who got it out of the woods of California. She is a bit crusty but will come back to life nicely. Plan to keep it patina. Mechanical restore, fix needed rust, build custom camper interior and drive daily and camp.

Mechanical restore is first on the docket and have a couple of questions. So i have never had this early of a bus. Its got a 1956 transmission. I believe stock gearing. The transmission appears to be freshly overhauled. Previous owner swapped out the original trans. I would love to keep this transmission but curious about motor combo. I initially was thinking 1600 sp as most my busses have that. But now maybe thinking 36hp or 40hp. I have never had either of those. Are they suitable for daily driving? Looking to cruise 55. Another engine option is a 1776 dual port. Ny neighbor just hooked me up with a clean one needing to be built. Would a 1776 be to much for the 56 tranny?

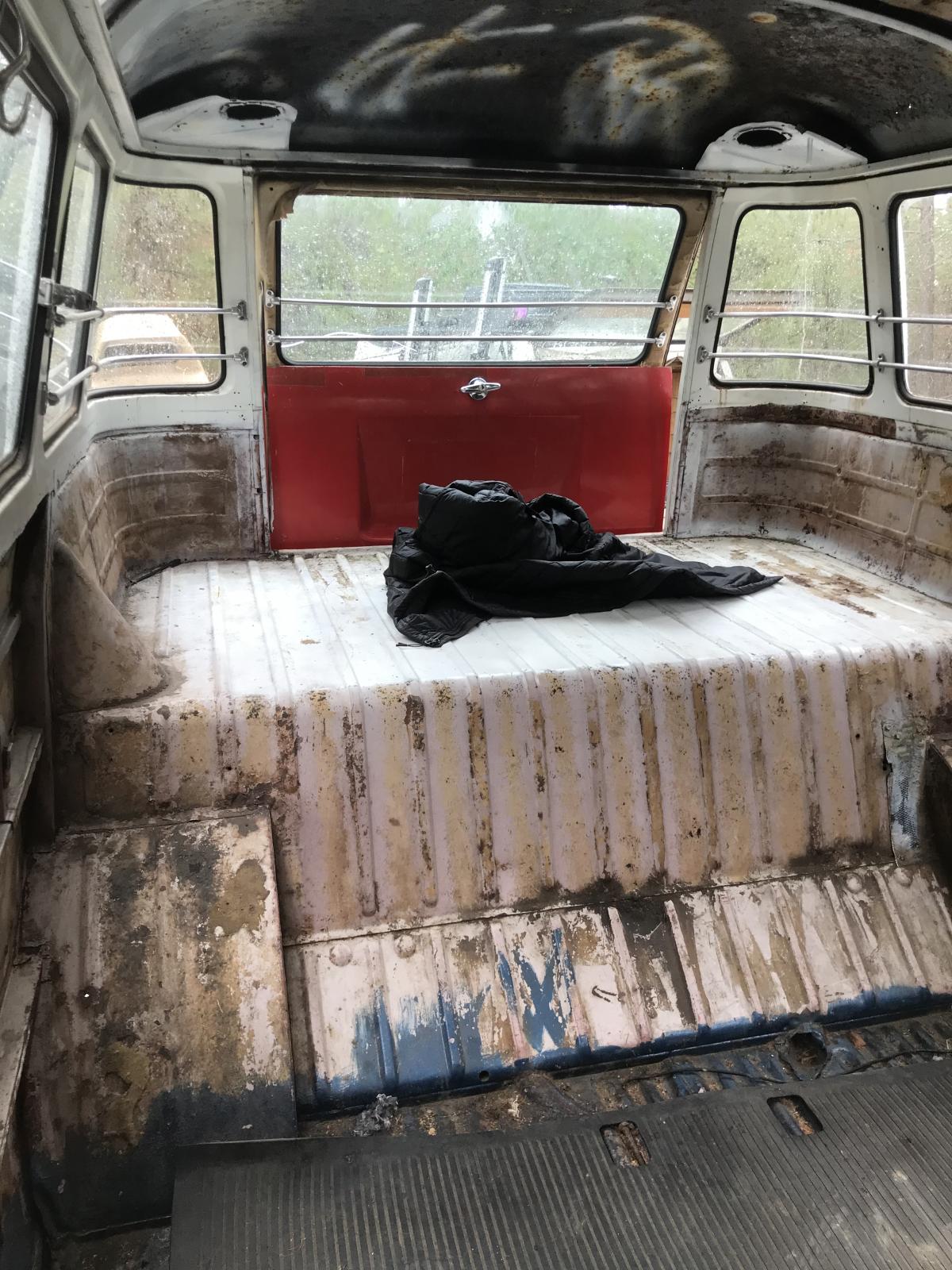

Second question is regarding roof. There is some good rust in the roof. Being that it is going to be camper it got me thinking roof swap. Was thinking of doing a dormobile conversion. Has anyone here done it? How is the process? Another option was ragtop grafting. But scared of leaking. I drive my bus all winter long.

2. 1961 Samba

This bus is not so rough compared to the 58. It sadly has been lowered and had a bit other custom options. I plan to bring it mostly back to stock as far as mechanics and outside look go.

Going to put a new transmission to bring it back stock height in rear. Put new stock spindles on the front.

After she is back to stock height, running and stopping, its time to bring her back to og paint. It has one respray over the og. Should come out nicely.

Last but not least (maybe not a popular option) is to build out a cozy camper interior. I have always thought a 23 window would make a great camper. And seeing that this one has no interior mine as well make it come true.



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Okie Adam
Samba Member


Joined: November 07, 2003
Posts: 1273
Location: OOOOOOOOOOOOOOOOOklahoma
Okie Adam is offline

PostPosted: Wed Jun 09, 2021 8:47 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Man I love a 58!
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 65860
Location: Phoenix, AZ
EverettB is offline

PostPosted: Wed Jun 09, 2021 10:10 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

jacobcallaghan wrote:

1. 1958 Kombi

Nice Bus!

61 Samba looks good, interested in more photos of that one too

jacobcallaghan wrote:
Mechanical restore is first on the docket and have a couple of questions. So i have never had this early of a bus. Its got a 1956 transmission. I believe stock gearing. The transmission appears to be freshly overhauled. Previous owner swapped out the original trans. I would love to keep this transmission but curious about motor combo. I initially was thinking 1600 sp as most my busses have that. But now maybe thinking 36hp or 40hp. I have never had either of those. Are they suitable for daily driving? Looking to cruise 55. Another engine option is a 1776 dual port. Ny neighbor just hooked me up with a clean one needing to be built. Would a 1776 be to much for the 56 tranny?


You can cruise 55mph with the stock transmission and a 36hp or 40hp but that is close to the comfortable limit. It gets loud inside and you are close to really high RPMs. Acceleration is pretty slow so it really depends on your driving style and how you feel about it. A fresh 36/40 will feel pretty strong versus a tired one, I've had both in Buses and the difference is very noticeable. A 1776cc will feel super peppy because of the low split-case gearing but you are still limited on top speed or you risk over-revving it. Obviously with a well-built 1776 you can cruise a little faster at a higher RPM. 60 easily, probably 65. Not sure on any torque issues there hurting the early transmission, someone else will have to answer that. You can definitely run a 1600SP no problem.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Lind
Samba Member


Joined: November 06, 2000
Posts: 8703
Location: idaho
Lind is offline

PostPosted: Wed Jun 09, 2021 10:24 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

EverettB wrote:
jacobcallaghan wrote:

1. 1958 Kombi

Nice Bus!

61 Samba looks good, interested in more photos of that one too

jacobcallaghan wrote:
Mechanical restore is first on the docket and have a couple of questions. So i have never had this early of a bus. Its got a 1956 transmission. I believe stock gearing. The transmission appears to be freshly overhauled. Previous owner swapped out the original trans. I would love to keep this transmission but curious about motor combo. I initially was thinking 1600 sp as most my busses have that. But now maybe thinking 36hp or 40hp. I have never had either of those. Are they suitable for daily driving? Looking to cruise 55. Another engine option is a 1776 dual port. Ny neighbor just hooked me up with a clean one needing to be built. Would a 1776 be to much for the 56 tranny?


You can cruise 55mph with the stock transmission and a 36hp or 40hp but that is close to the comfortable limit. It gets loud inside and you are close to really high RPMs. Acceleration is pretty slow so it really depends on your driving style and how you feel about it. A fresh 36/40 will feel pretty strong versus a tired one, I've had both in Buses and the difference is very noticeable. A 1776cc will feel super peppy because of the low split-case gearing but you are still limited on top speed or you risk over-revving it. Obviously with a well-built 1776 you can cruise a little faster at a higher RPM. 60 easily, probably 65. Not sure on any torque issues there hurting the early transmission, someone else will have to answer that. You can definitely run a 1600SP no problem.

The 36hp engine does not like to rev high, so 36hp buses are limited on their top speed. 40hp and bigger engines like to rev higher, so you can go faster.

A split case transmission or a small nut tunnel tranny will easily do 55 with a 40hp or bigger engine. I have driven a couple barndoor buses with stock transmissions and 1600 engines, and they do 60-65mph all day long. As long as you don't abuse it, the transmissions can take the power just fine. That said, split case transmissions are generally weaker, and the 2nd gear synchro is NLA, so it is difficult to get them rebuilt.
_________________
A repair manual and a part list can be very helpful when working on bus.

If you can't afford a nice bus, you really can't afford a crappy bus.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
German Krew
Samba Member


Joined: March 03, 2005
Posts: 572
Location: Texas
German Krew is offline

PostPosted: Wed Jun 09, 2021 12:28 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

jacobcallaghan good finds that dove blue will buff out sick! Popcorn Popcorn
_________________
1951 Split Standard Hoffman Build

1960 Dove Blue Double Cab Patina Build

german krew
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Wed Jun 09, 2021 3:24 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Thanks for the replies. I think i may just assemble the 1776 and try it out. Dont have much to loose. I drive my busses easy so i think the trany will hold up!

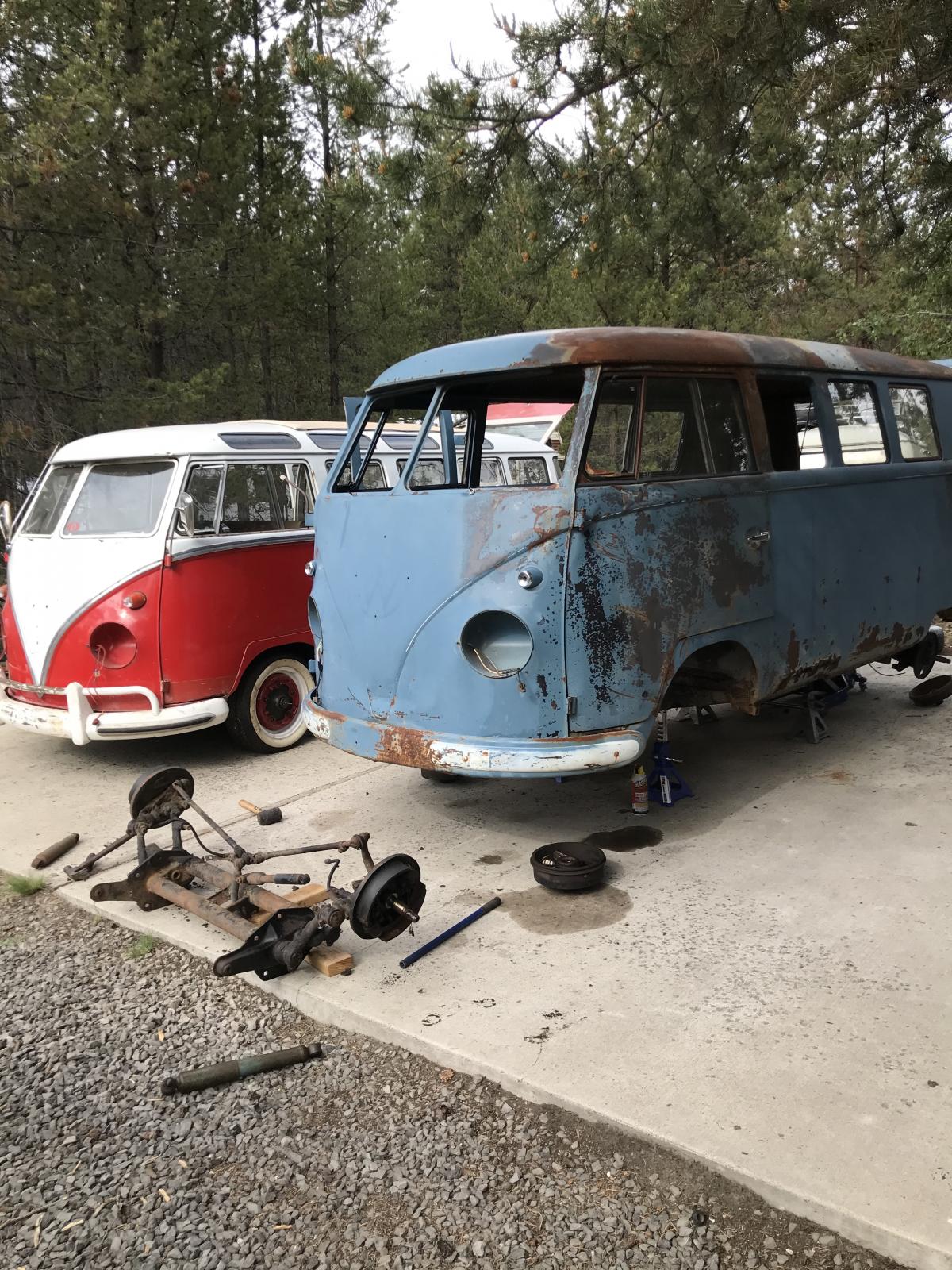

Got the beam disassembled and painted today. Brakes are on order. Going to rebuild the steering box this week. It came in pieces so we will se how this goes. Any tips or recources?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thirtyseven
Samba Member


Joined: June 22, 2011
Posts: 32
Location: Messines, Qc
thirtyseven is offline

PostPosted: Wed Jun 09, 2021 3:38 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

That blue kombi is a beauty!
Running taller tires (like 6.70-15) should help balancing with the gearing of the trans. However, I don't know how much they would help in reducing the RPM compared to, say, a later trans... maybe anecdotal in the end. But what I know is that they sure would look awesome Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Wed Jun 09, 2021 4:37 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

thirtyseven wrote:
That blue kombi is a beauty!
Running taller tires (like 6.70-15) should help balancing with the gearing of the trans. However, I don't know how much they would help in reducing the RPM compared to, say, a later trans... maybe anecdotal in the end. But what I know is that they sure would look awesome Smile


Going to run tall tires for sure. It cam with way tall ones and am so stoked on the highstance. Shasta trip here I come! Find me in the ditch wondering why my bus is not a snowmobile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Wed Jun 09, 2021 4:37 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

thirtyseven wrote:
That blue kombi is a beauty!
Running taller tires (like 6.70-15) should help balancing with the gearing of the trans. However, I don't know how much they would help in reducing the RPM compared to, say, a later trans... maybe anecdotal in the end. But what I know is that they sure would look awesome Smile


Going to run tall tires for sure. It came with way tall ones and am so stoked on the highstance. Shasta trip here I come! Find me in the ditch wondering why my bus is not a snowmobile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Thu Jun 10, 2021 9:23 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

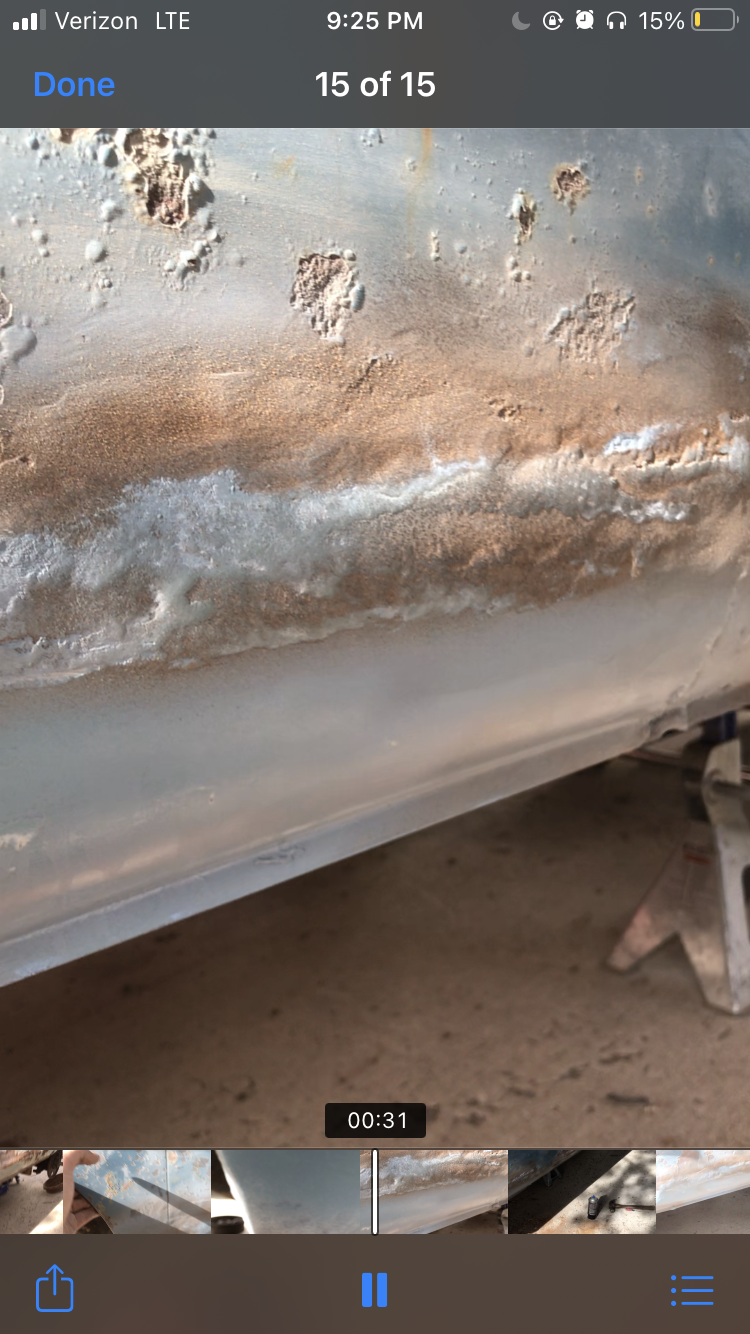

Update today. Installed my first rocker: driver side.

In my years of owning Volkswagens I have never quite learned to weld. Never had to. Each bus I owned was in good enough shape.

Today I got schooled. Welding is insanely challenging. Way harder than the videos and threads make it out to be. So hard not to burn through. But none the less had a blast.

The result is not amazing. But luckily itís a rocker and the bus is patina. Frame is solid so no fucking around with safety thank goodness. I think if I welded the frame I would die going down the road.

Needles to say happy to be learning and picking up a new tool. Will post some photos some photos tomorrow. Honestly a little embarrassed to post my work. Yíall are masters here.

Cheers,

Jacob

Ps rest assured no welding needs done on the 23 window. So you can sleep easy knowing no idiot is fucking up a good bus!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Thu Jun 10, 2021 9:28 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Ps also found a good krylon match for dove blue and then added some textured paint to make fake rust to blend the pannel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
LAGrunthaner
Samba Member


Joined: March 18, 2007
Posts: 4887
Location: 1st Coast
LAGrunthaner is offline

PostPosted: Fri Jun 11, 2021 3:13 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Applause
Image may have been reduced in size. Click image to view fullscreen.

_________________
American Red Cross Safe And Well link:
https://safeandwell.communityos.org/cms/index.php?...OSmeUzh8l4
Maui Roadsters VW Logo
www.mauiroadsters.com
Lind wrote:
Have you considered simply starting with a nicer bus? I don't know what your skills are, but the race is easier if you can see the finish line. If you are not a runner, don't start off doing a marathon.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Okie Adam
Samba Member


Joined: November 07, 2003
Posts: 1273
Location: OOOOOOOOOOOOOOOOOklahoma
Okie Adam is offline

PostPosted: Fri Jun 11, 2021 4:24 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

jacobcallaghan wrote:
Ps also found a good krylon match for dove blue and then added some textured paint to make fake rust to blend the pannel


There are a lot of folks, myself included, that would love to hear what Krylon color you found that is close to dove blue!
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
iubhounds
Samba Member


Joined: July 22, 2003
Posts: 331
Location: Evansville, IN
iubhounds is offline

PostPosted: Fri Jun 11, 2021 4:27 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

jacobcallaghan wrote:
Ps also found a good krylon match for dove blue and then added some textured paint to make fake rust to blend the pannel


What was the paint code or color of the krylon paint for dove blue? I am interested in the textured paint to make the fake rust look. Only if you have time, the information would be appreciated. Thanks.
_________________
1957 VW Beetle Tribute to WWII 82E
1960 VW Single Cab
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Fri Jun 11, 2021 8:50 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Here is the paint info. I sprayed primer then the slate blue rattle. Then some textured spray paint. Then sand to taste. Sometimes I sand thru just a bit to the primer to match the fade of the dove blue.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Patiently Impatient
Samba Member


Joined: September 28, 2020
Posts: 100
Location: Tri-State
Patiently Impatient is offline

PostPosted: Fri Jun 11, 2021 8:53 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

iubhounds wrote:
jacobcallaghan wrote:
Ps also found a good krylon match for dove blue and then added some textured paint to make fake rust to blend the pannel


What was the paint code or color of the krylon paint for dove blue? I am interested in the textured paint to make the fake rust look. Only if you have time, the information would be appreciated. Thanks.


Also curious as to the Krylon Dove Blue can. Wondering how well that would work for small misc parts.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Fri Jun 11, 2021 9:10 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Patiently Impatient wrote:
iubhounds wrote:
jacobcallaghan wrote:
Ps also found a good krylon match for dove blue and then added some textured paint to make fake rust to blend the pannel


What was the paint code or color of the krylon paint for dove blue? I am interested in the textured paint to make the fake rust look. Only if you have time, the information would be appreciated. Thanks.


Also curious as to the Krylon Dove Blue can. Wondering how well that would work for small misc parts.


I was wrong on being krylon. Itís rust oleum. Slate blue!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
velvetgreen
Samba Member


Joined: August 17, 2004
Posts: 2404
Location: Canada
velvetgreen is offline

PostPosted: Fri Jun 11, 2021 9:10 am    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

x10- if that is a good match to dove blue i am interested as well^^^^
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jacobcallaghan
Samba Member


Joined: August 07, 2018
Posts: 148
Location: Utah
jacobcallaghan is offline

PostPosted: Fri Jun 11, 2021 12:25 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

Updates:

58:

Pulled, cleaned, inspected and painted the front beam. Everything looked great minus tie rods drag link and a few seals.

Made an order for the remaining metal. Should show up next week. Stoked to get more metal on this bad girl!

Also started grinding the interior for metal repair and paint. Going to spray a grey primer than a sound insulation like lizard skin. Maybe? Anyone ever use this product? My buddy On the coast put it in his bay but thatís all I know who have used it.

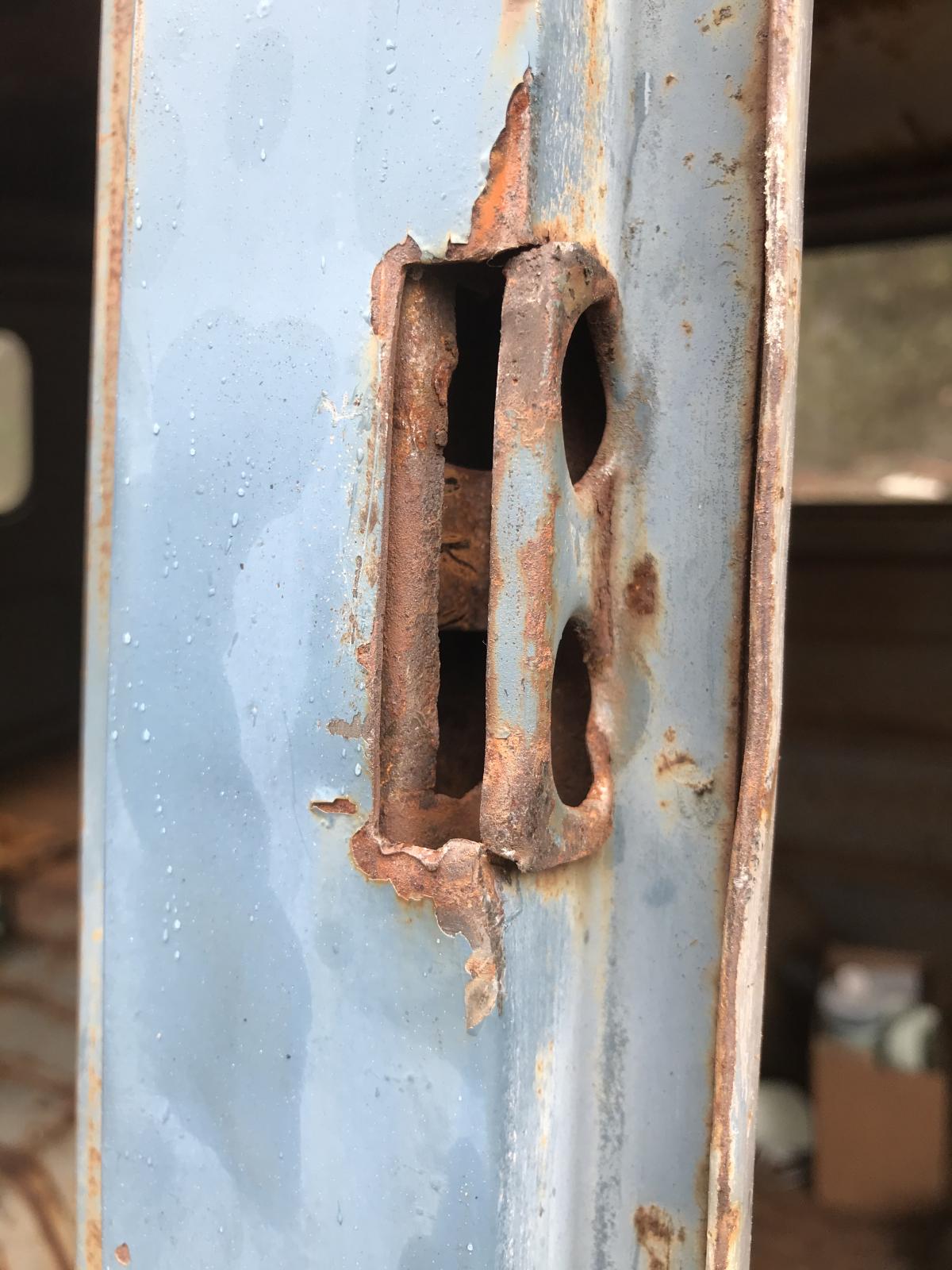

Trying to figure out what to do with these broken hinges
61:

Pulled the engine. Itís a new motor but kinda performance parts esc. Thinking about removing the Weber and going with a stock carb but seeing as it is a dual port we will see.

Found a local buddie to trade transmissions. So I should soon have a stock big nut tranny.

Sadly upon further inspection it looks like they might have sanded down to bare metal when they painted. Sad. Might respect with the stock color. Unsure.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
iubhounds
Samba Member


Joined: July 22, 2003
Posts: 331
Location: Evansville, IN
iubhounds is offline

PostPosted: Fri Jun 11, 2021 2:05 pm    Post subject: Re: 1958 Kombi and 1961 Samba Build Reply with quote

jacobcallaghan wrote:
Here is the paint info. I sprayed primer then the slate blue rattle. Then some textured spray paint. Then sand to taste. Sometimes I sand thru just a bit to the primer to match the fade of the dove blue.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Thanks jacobcallaghan
_________________
1957 VW Beetle Tribute to WWII 82E
1960 VW Single Cab
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
