PostPosted: Fri Oct 15, 2021 12:25 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Porsche Boxster seats are re-upholstered. They are not perfect, the backs are not yet fully stretched, but this is done by us (well, mostly my wife).
Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Sun Oct 17, 2021 10:17 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

I went on Friday to the shop to install the doors and check with the team the fitment. Problem is that the doors are too "to the front". Meaning that there is almost no gap by the A pillar, and too large gap by the B pillar. It seems like it would need some kind of shims between hinges and body.
And no, this topic is not covered by the Look, Listen body leaks manual.
Any ideas how to solve it? Sorry I do not have any pics.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jeremy.g
Samba Member


Joined: May 29, 2019
Posts: 400
Location: VA
jeremy.g is offline

PostPosted: Sun Oct 17, 2021 1:36 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

I placed a block of hardwood on the hinge where it stuck out of the car and hit it with a heavy hammer. This will bring the hinge pin forward or backward, depending on where you need it to go. This worked surprisingly well for me.

-Jeremy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Sun Oct 17, 2021 10:56 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Thank you, Jeremy! I also got the same feedback from several other sources. It seems that the doors might have been opened too far. Bentley has some suggestions, one is to place some piece of metal on the inside of the hinge and force the door.
This topic (even though it refers to uneven B pillar gap) details a similar issue and solution:
https://www.thesamba.com/vw/forum/viewtopic.php?t=589349
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Tue Nov 02, 2021 4:29 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

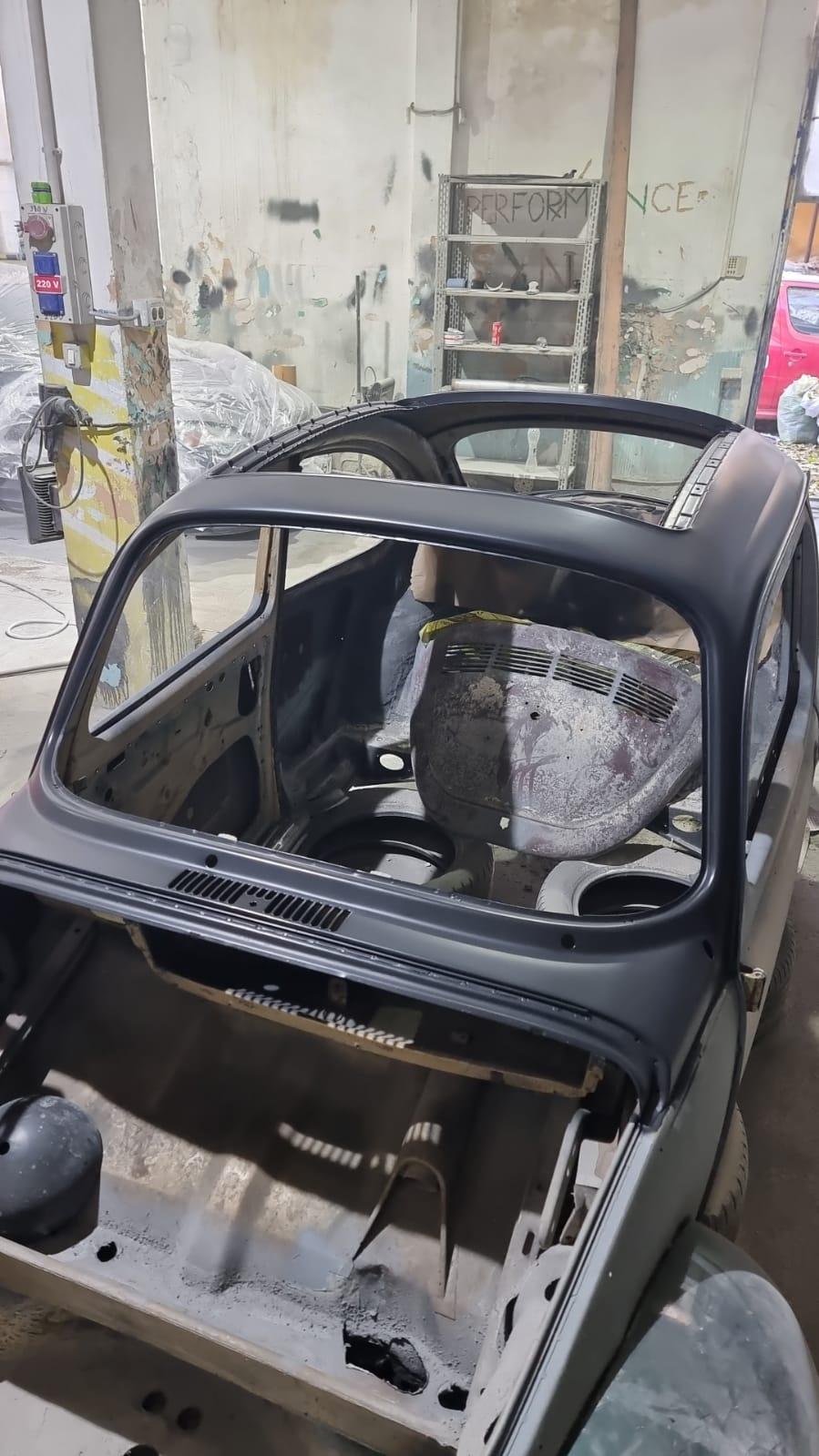

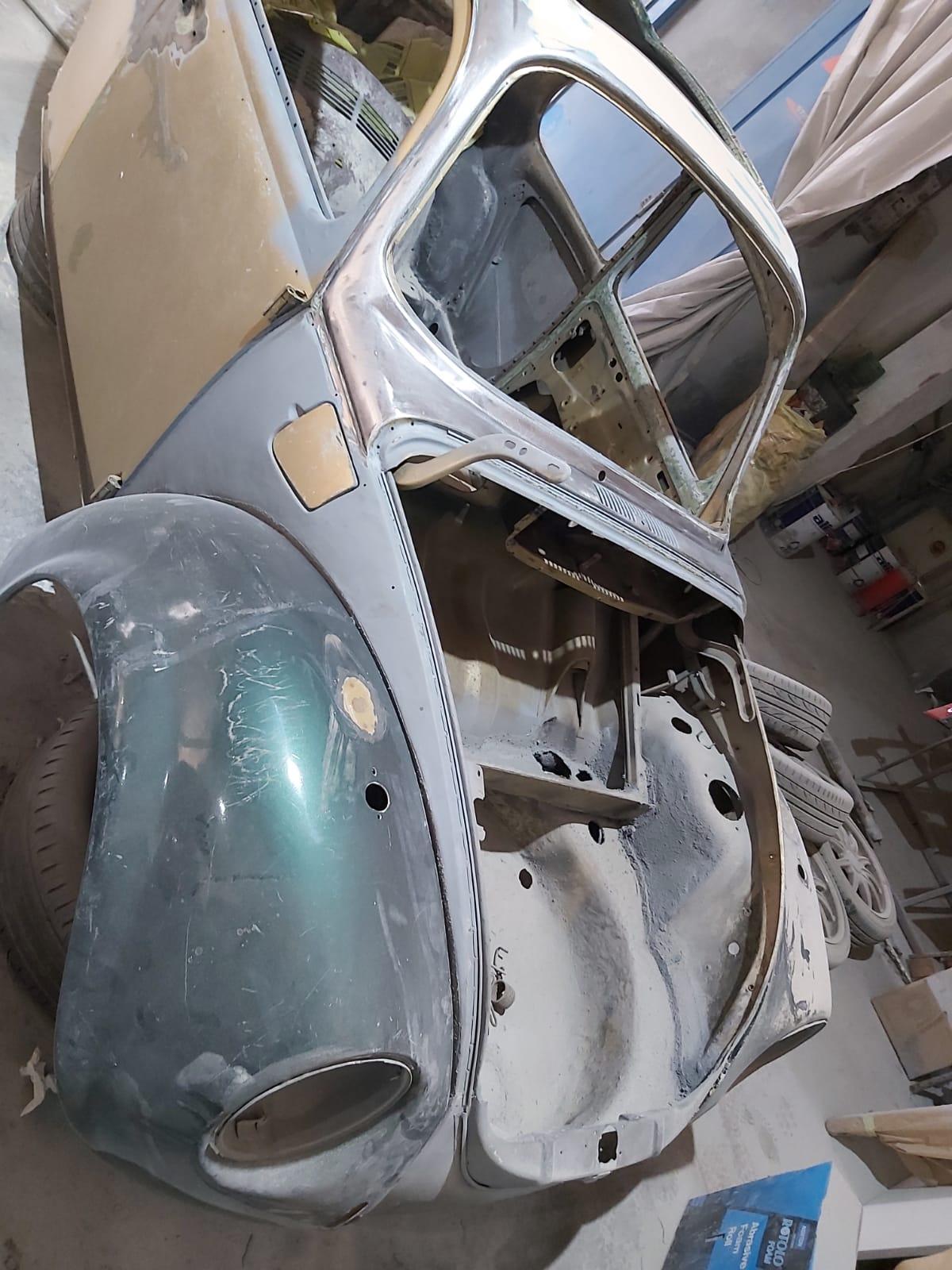

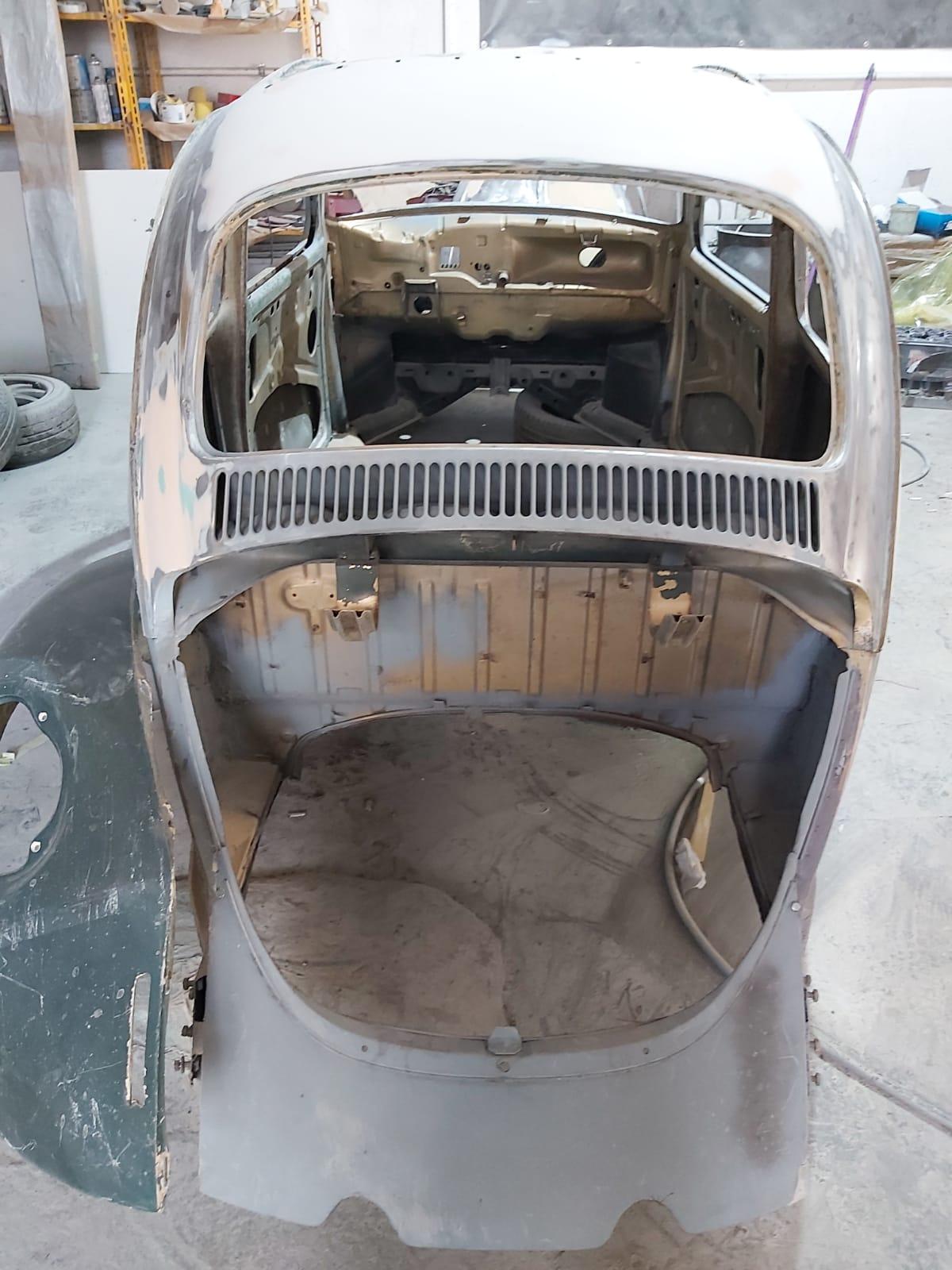

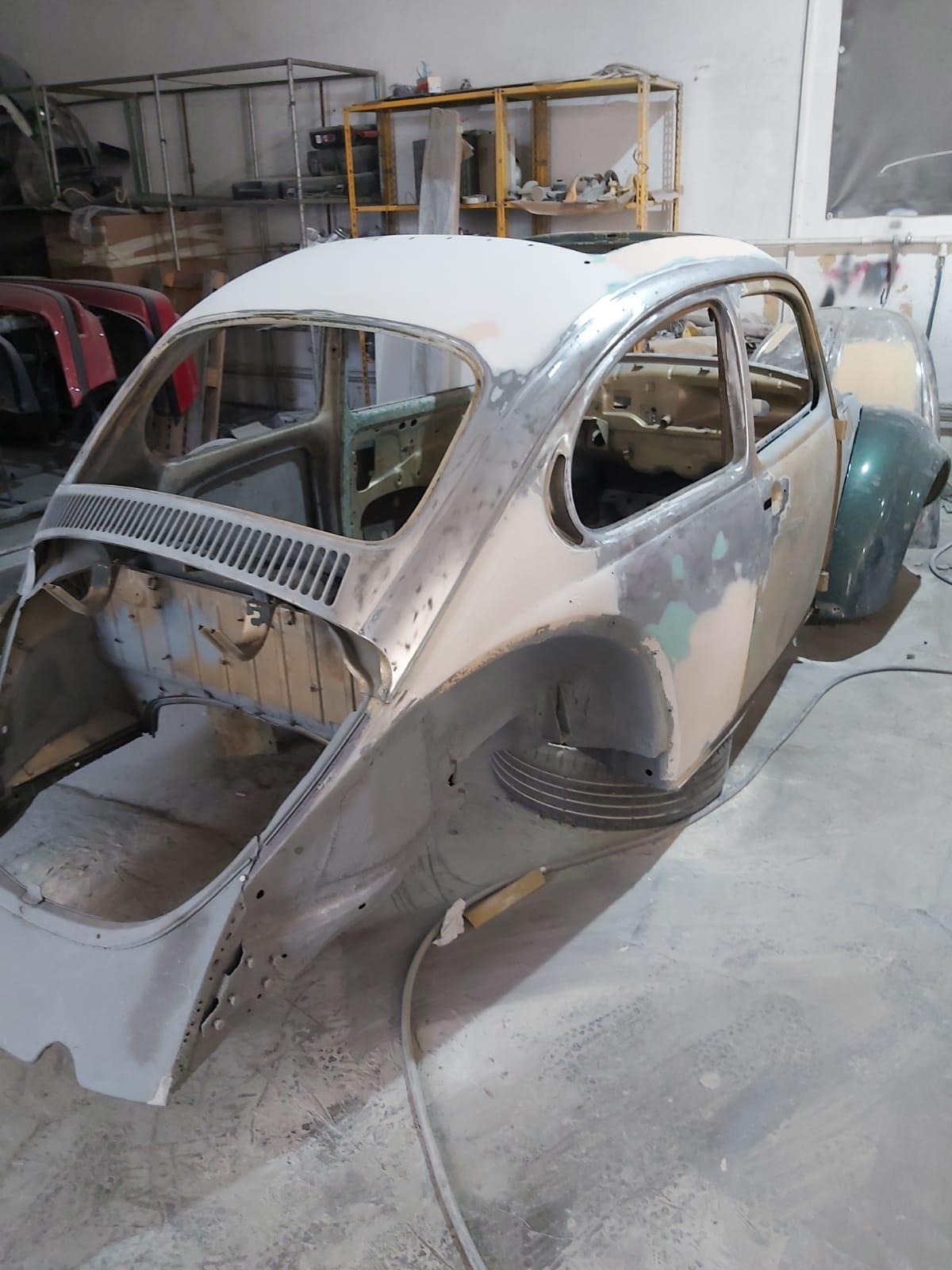

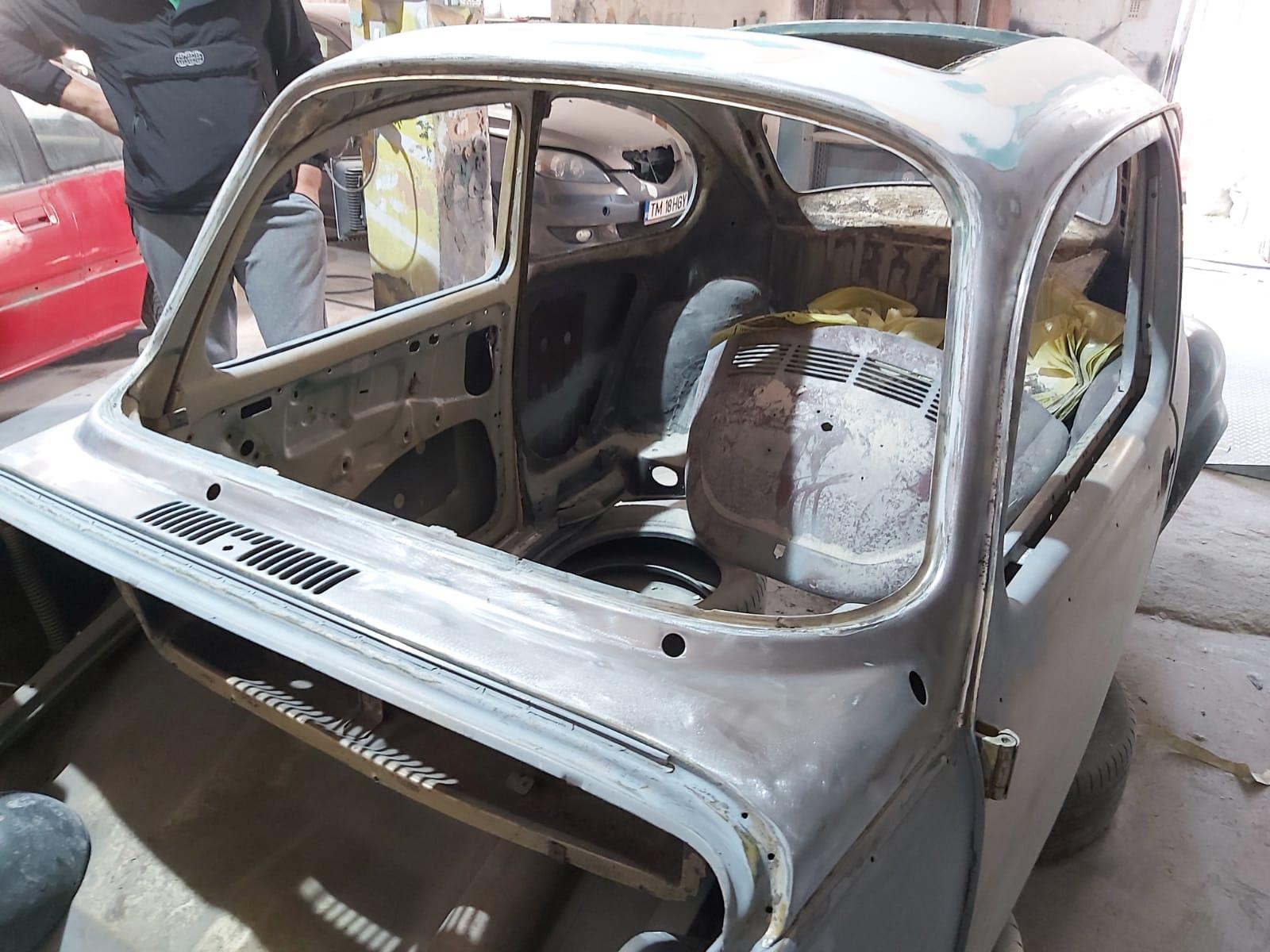

Progress! The team from the body shop re-aligned the doors and are working on preparation for paint. Unfortunately the original paint reacted to the filler and primer, so it had to be cleaned off...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3832
Location: Stuck in Ohio
Buggeee is online now

PostPosted: Tue Nov 02, 2021 2:47 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

I absolutely love the seat covers. What kind of sewing machine can go through multiple layers of vinyl fabric?! This opens endless possibilities of chosing your own fabric.
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Wed Nov 03, 2021 4:23 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Thank you! It is not perfect, as an experienced upholsterer would do it, but it's fine for our wishes. The point was that we can not use "off the market" headliner, and I do not have any upholstery shop where I can take the car and let them do the work. You know, 1303 with ragtop? Also we needed to make dashboard cover. So we needed to get our own sewing machine, and if we have it, why not give a go for the seats, too (I could have taken just the seats to an upholstery shop...).
The sewing machine is an industrial Juki DLN 5410N-7, and it was not so expensive, ~300 bucks. For the "decorative" sewing we would have needed another variant, with 2 needles, but it would have been too much investment for just one car interior... So it was done free hand by my wife on the same sewing machine.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Thu Nov 18, 2021 7:52 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

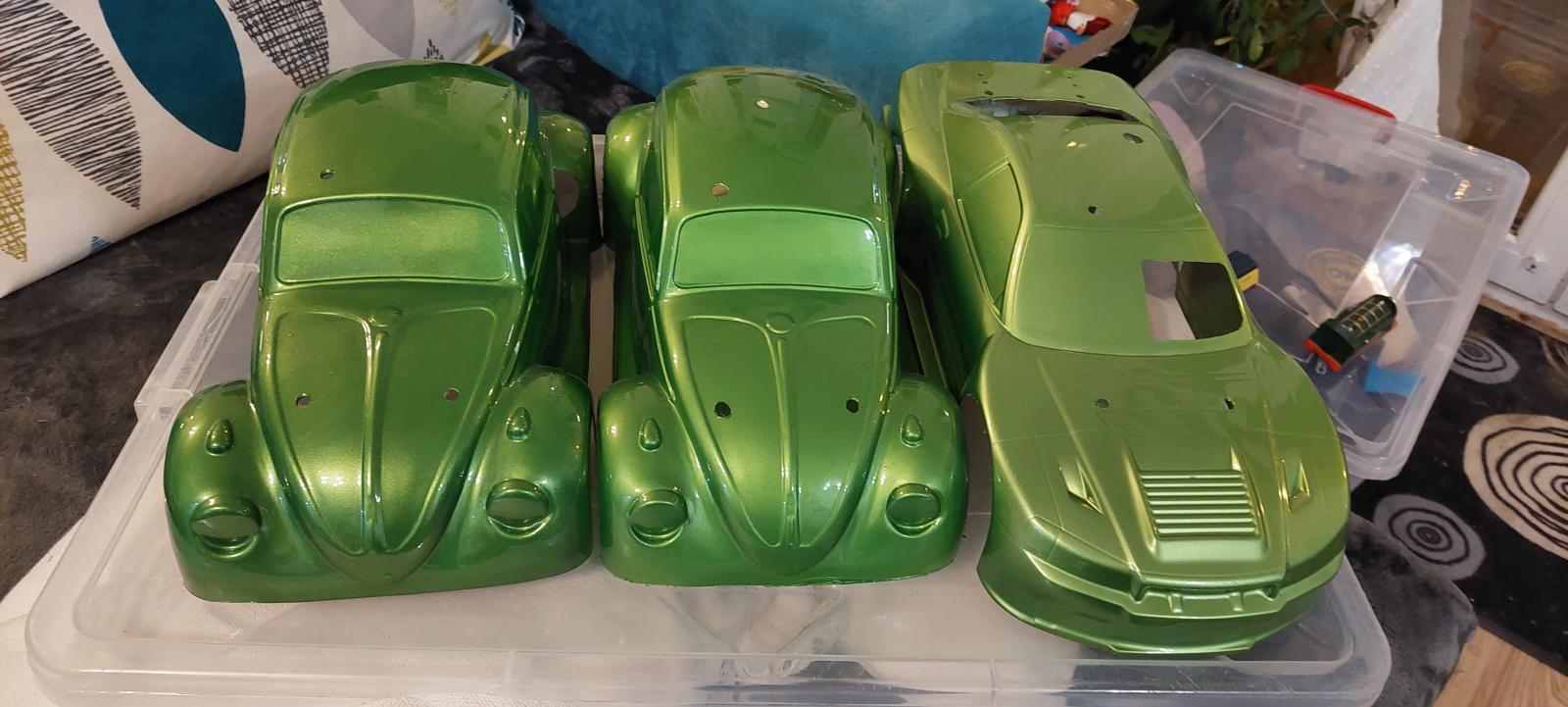

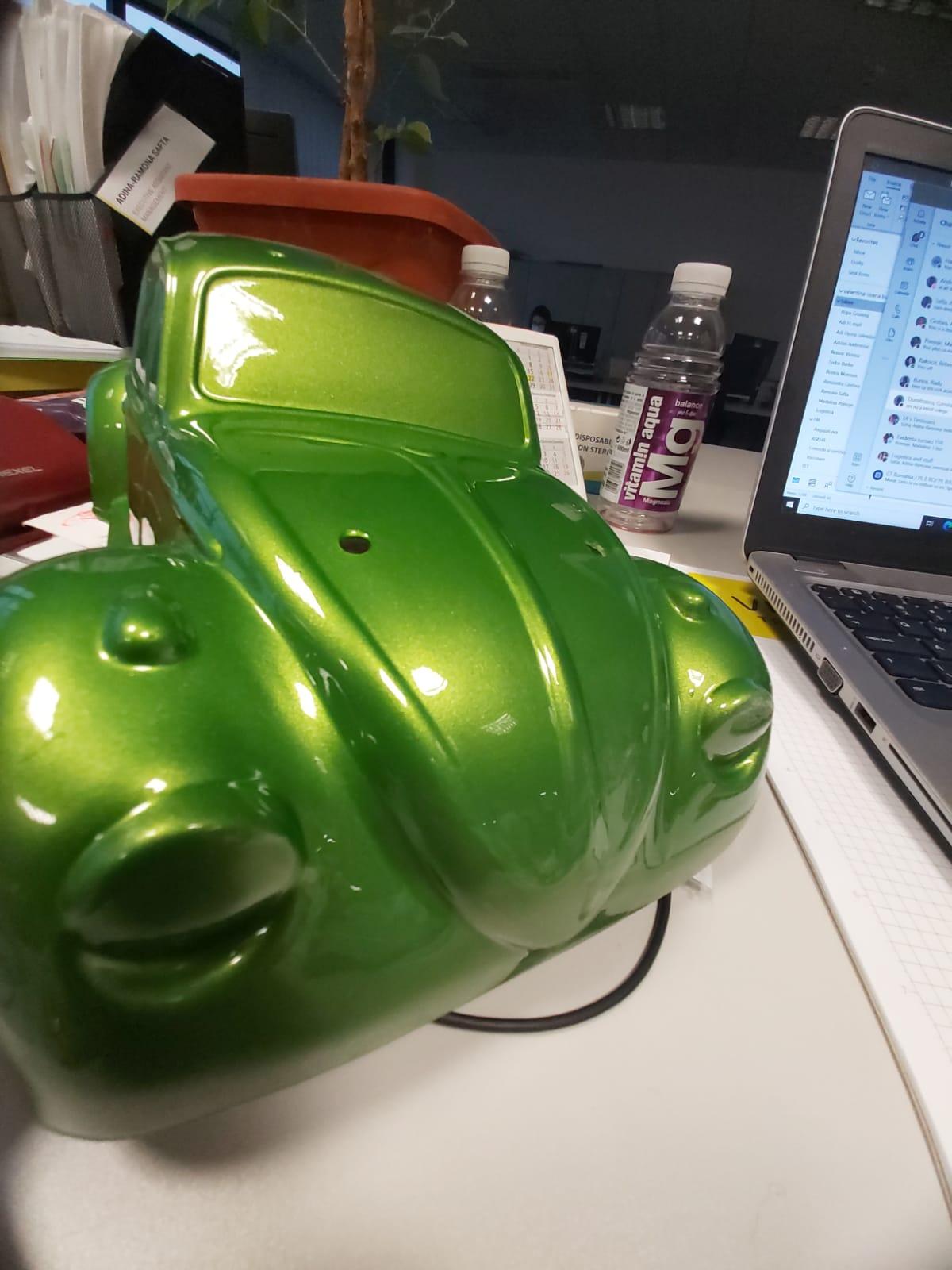

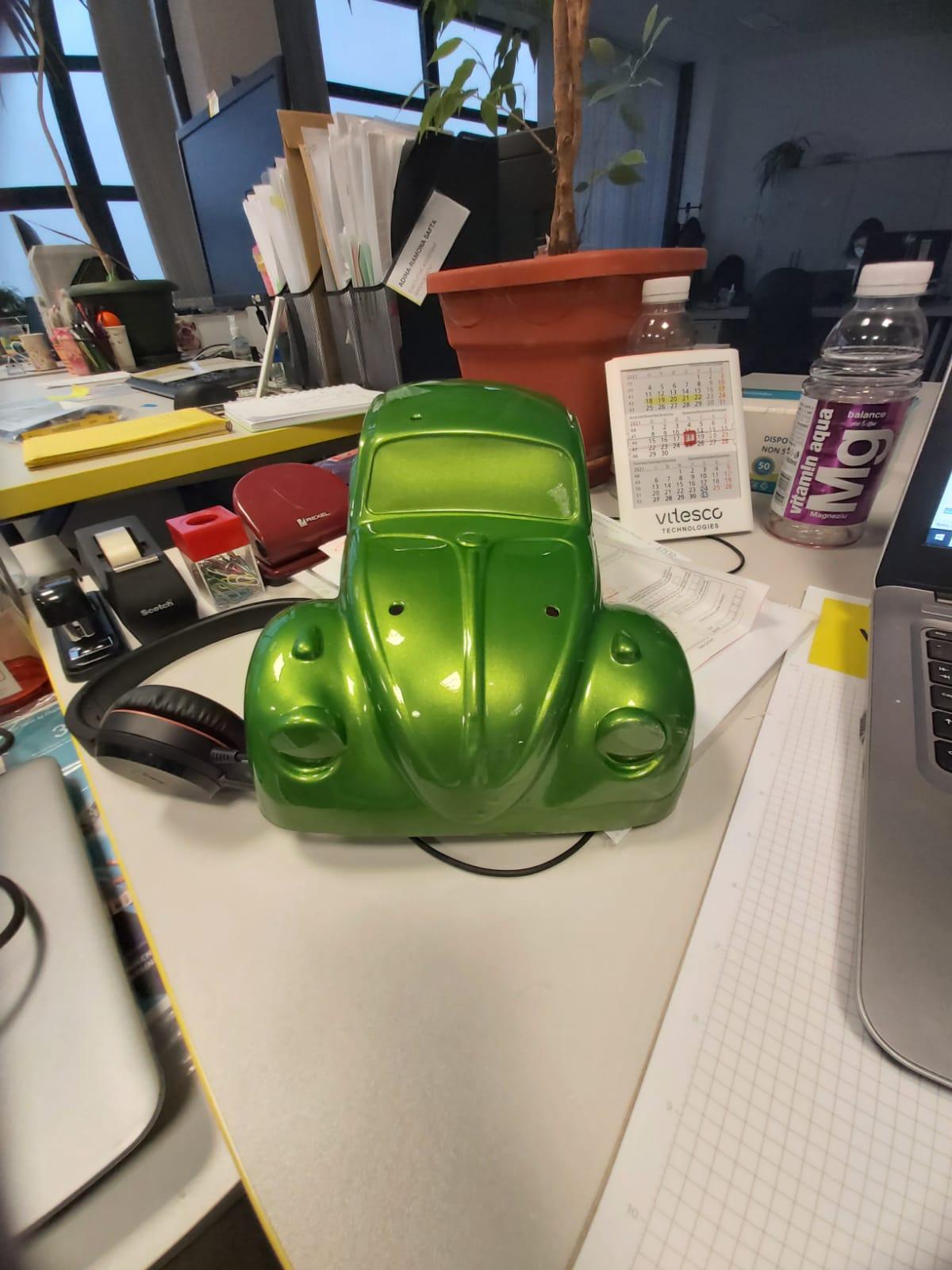

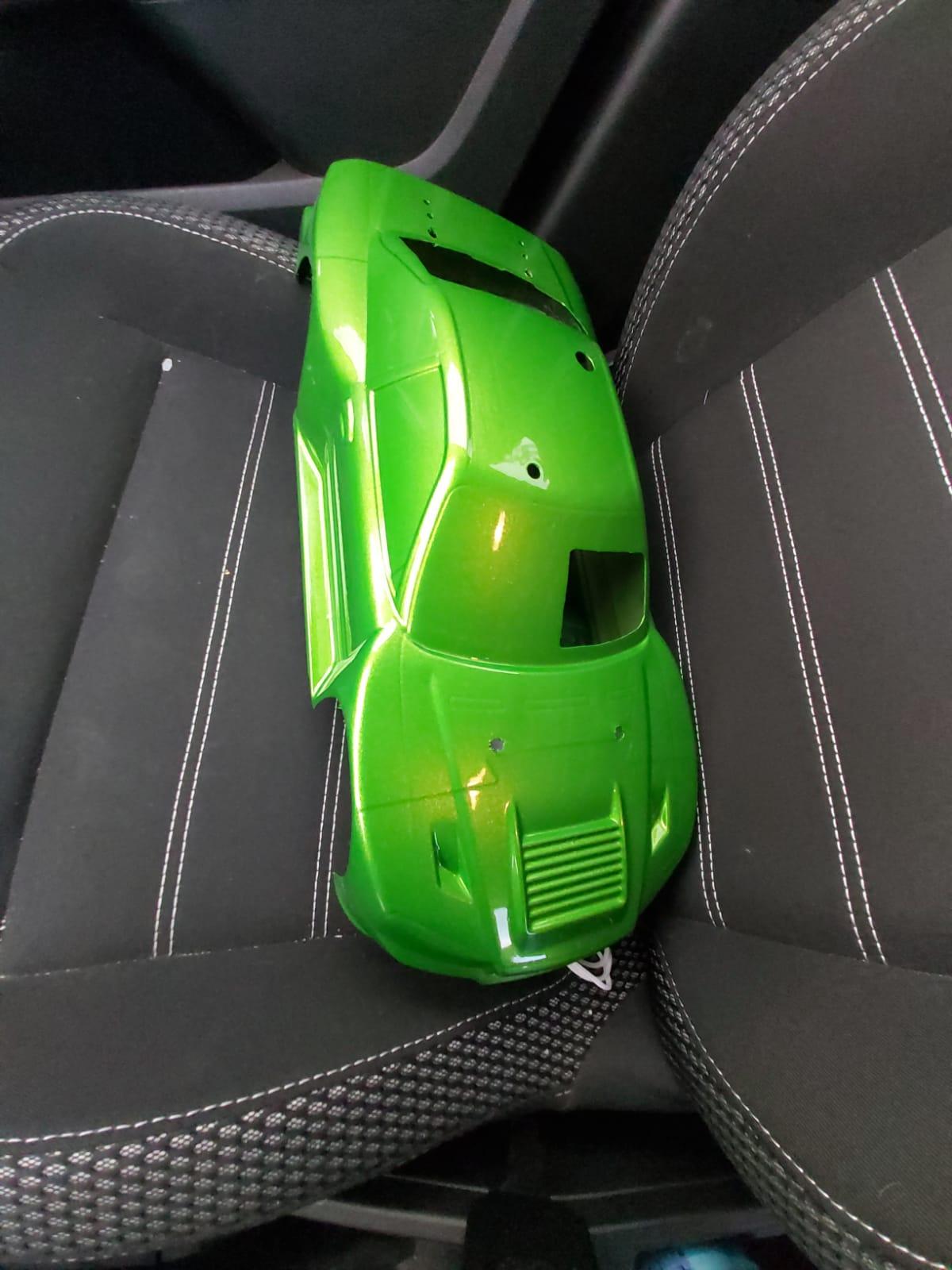

Peek preview! 1:10 scale model, combustion engine RC car.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3832
Location: Stuck in Ohio
Buggeee is online now

PostPosted: Thu Nov 18, 2021 3:22 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

I Looooove that color!
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Fri Nov 19, 2021 4:55 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

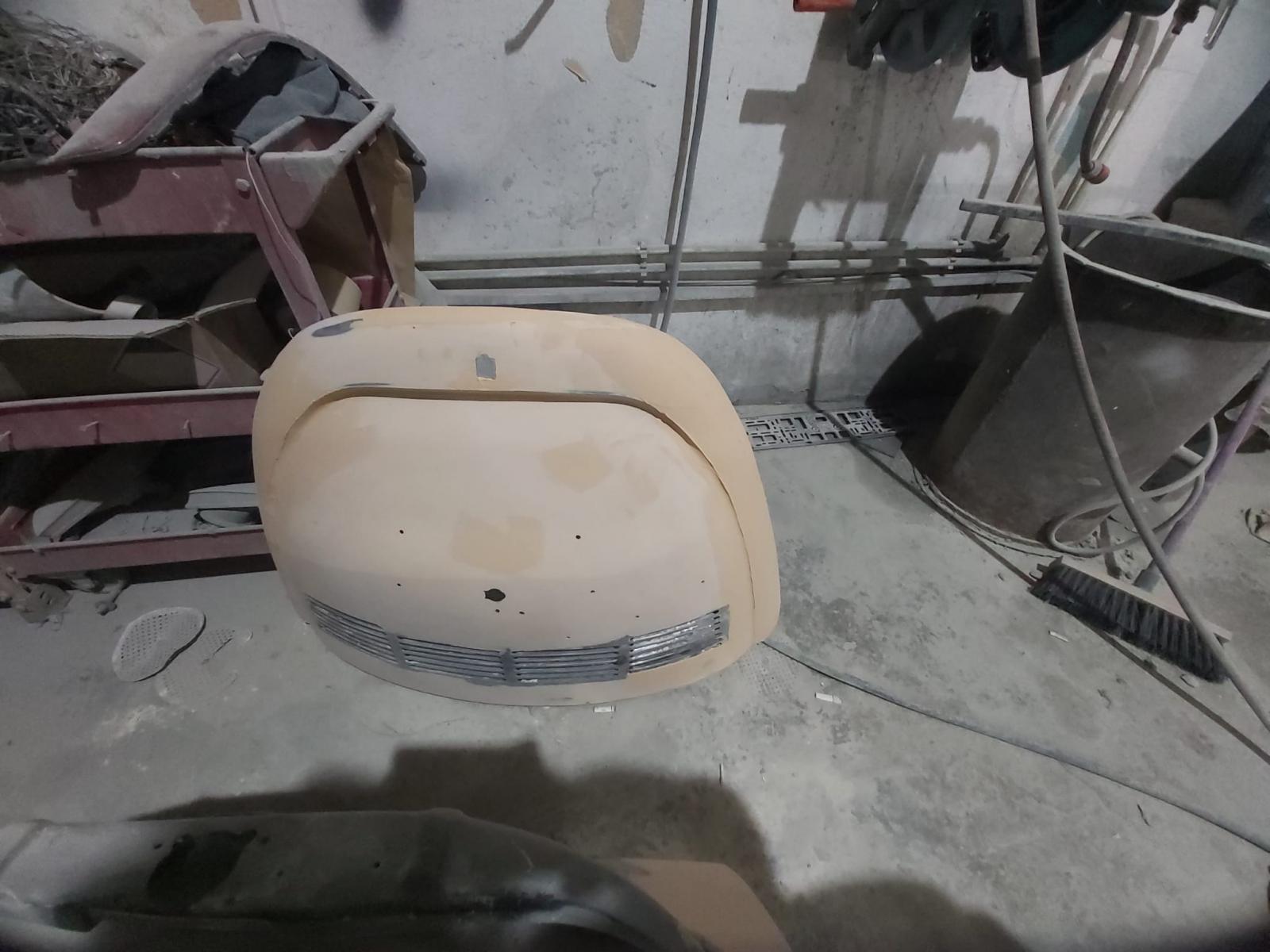

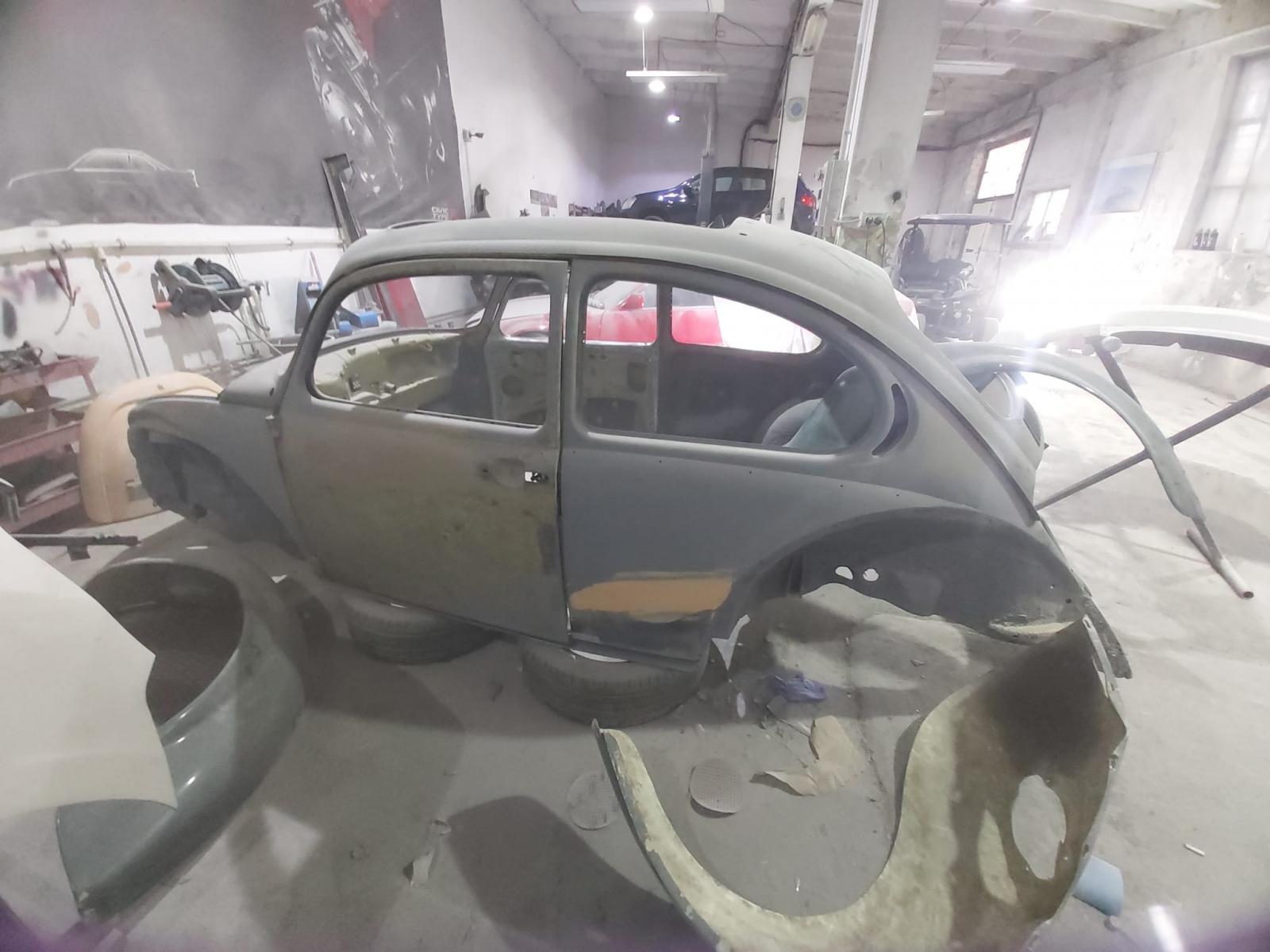

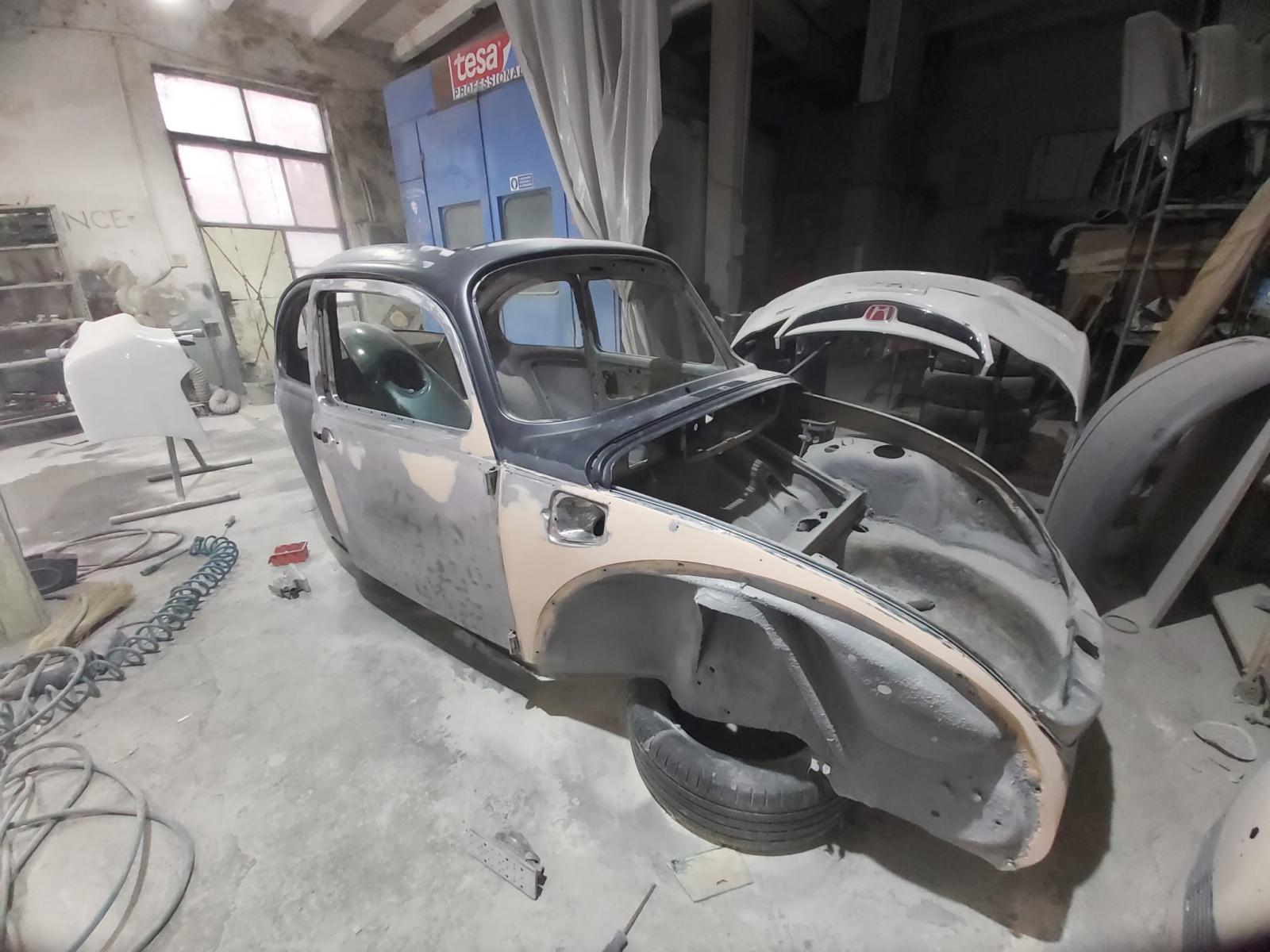

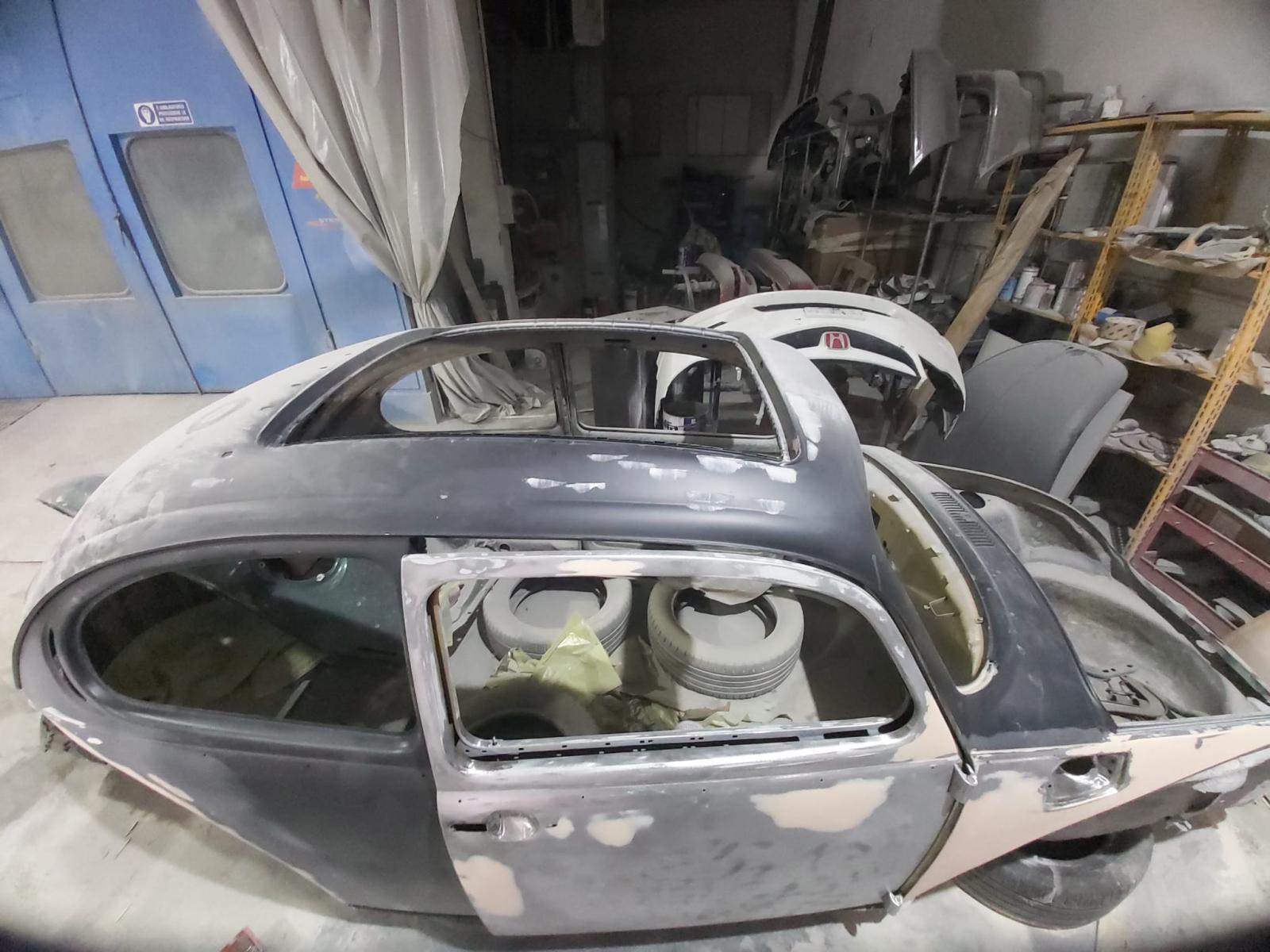

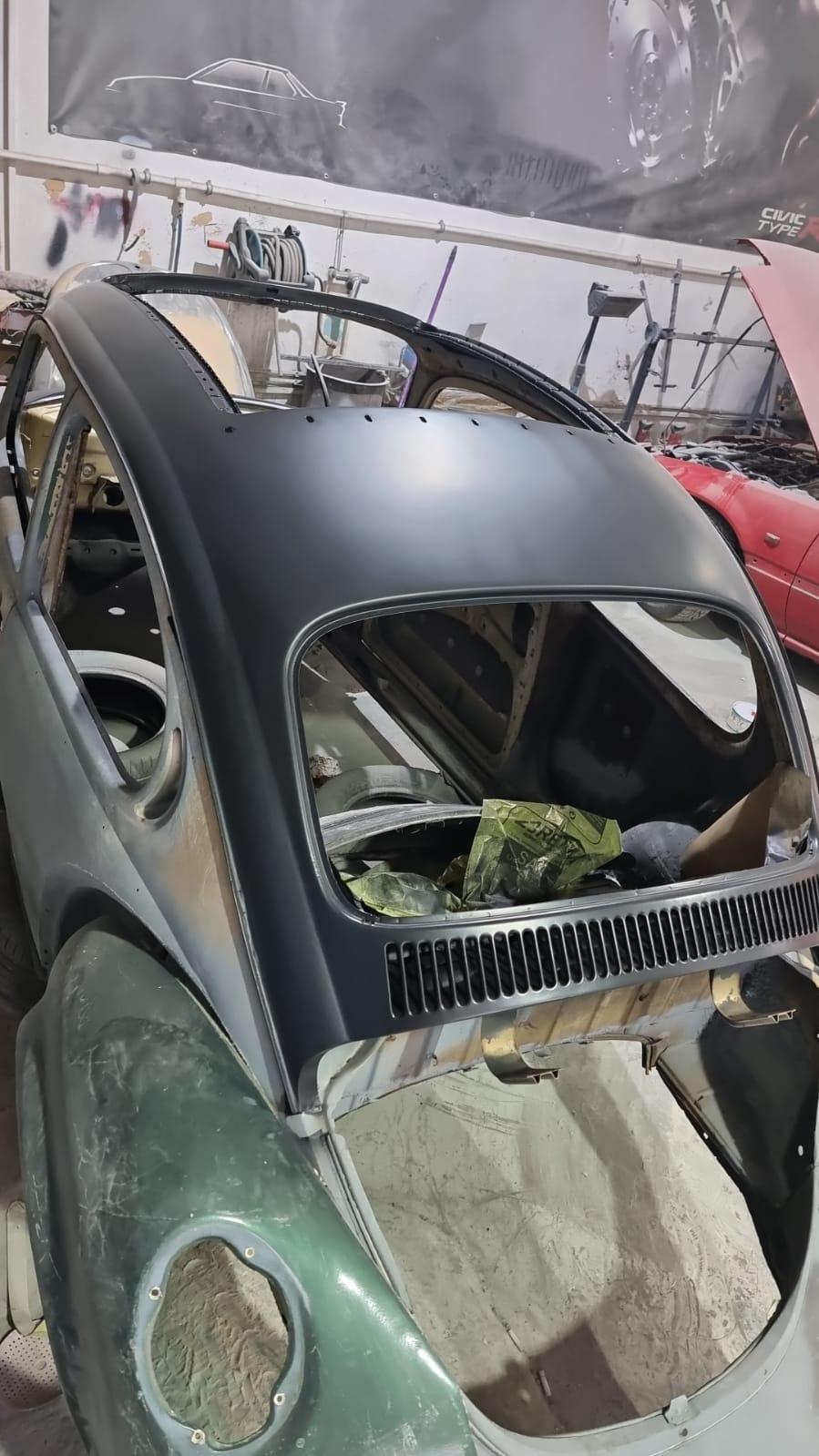

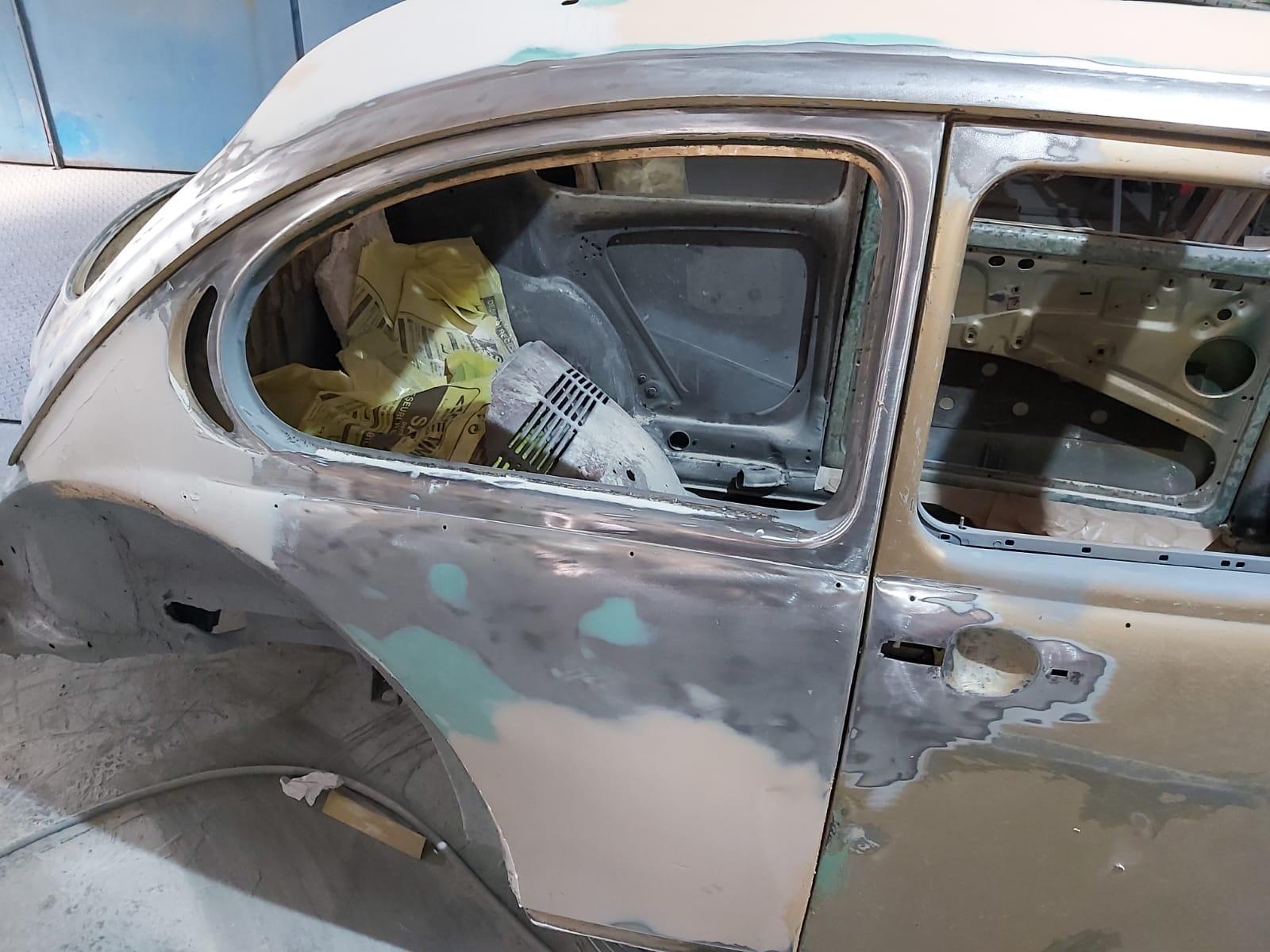

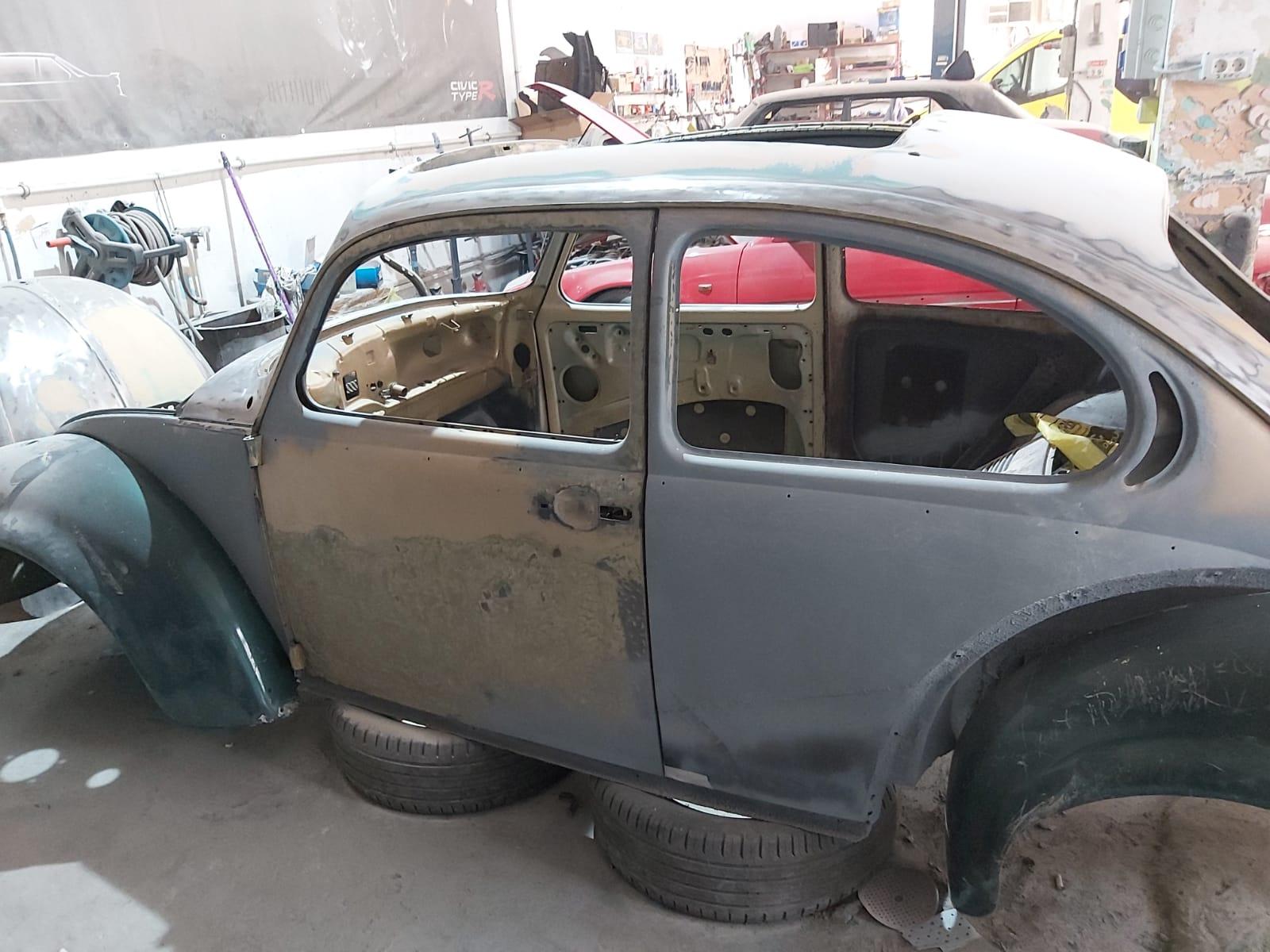

And some more work on the body: Almost all right side is done. Front hood done, rear hood almost finished.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Mon Nov 22, 2021 3:41 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Today, not so happy. I went to the workshop and the preparer put waaaaaaay too much bondo on the front and rear line where the fenders meet the body. He did not realize that there is the fender beading that takes any issue. So he somehow made the bondo go over the fenders by a few mm. I asked to take down all that bondo and follow the body line, just to fill the imperfections in the body.
Why I am so upset is that I had given them the fender beads to check, and asked them to call if anything seems not to be right.
The poor guy had the best intentions and worked a lot to make everything look right. Unfortunately he got it wrong. Now, it will be corrected...

And I am not satisfied with the color (LY6W). It looks great out in the sun, not so good in shade/low light. Therefore I gave two more plastic RC car bodies to try L98B ('75-'77 Viper green metallic) and L96N ('76-'78 Lime green metallic/Viper green metallic). This is the hardest choice I have ever had to do.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Thu Dec 02, 2021 7:49 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

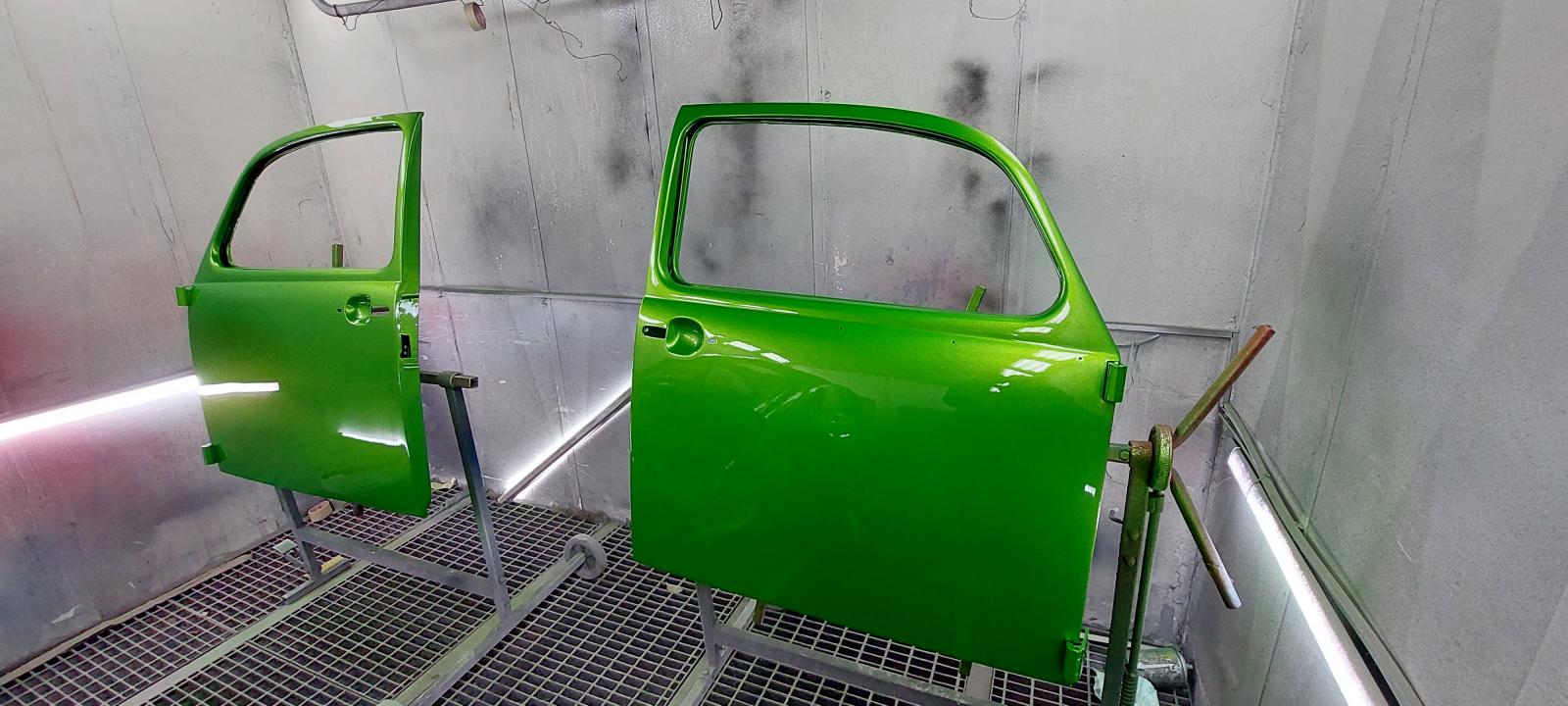

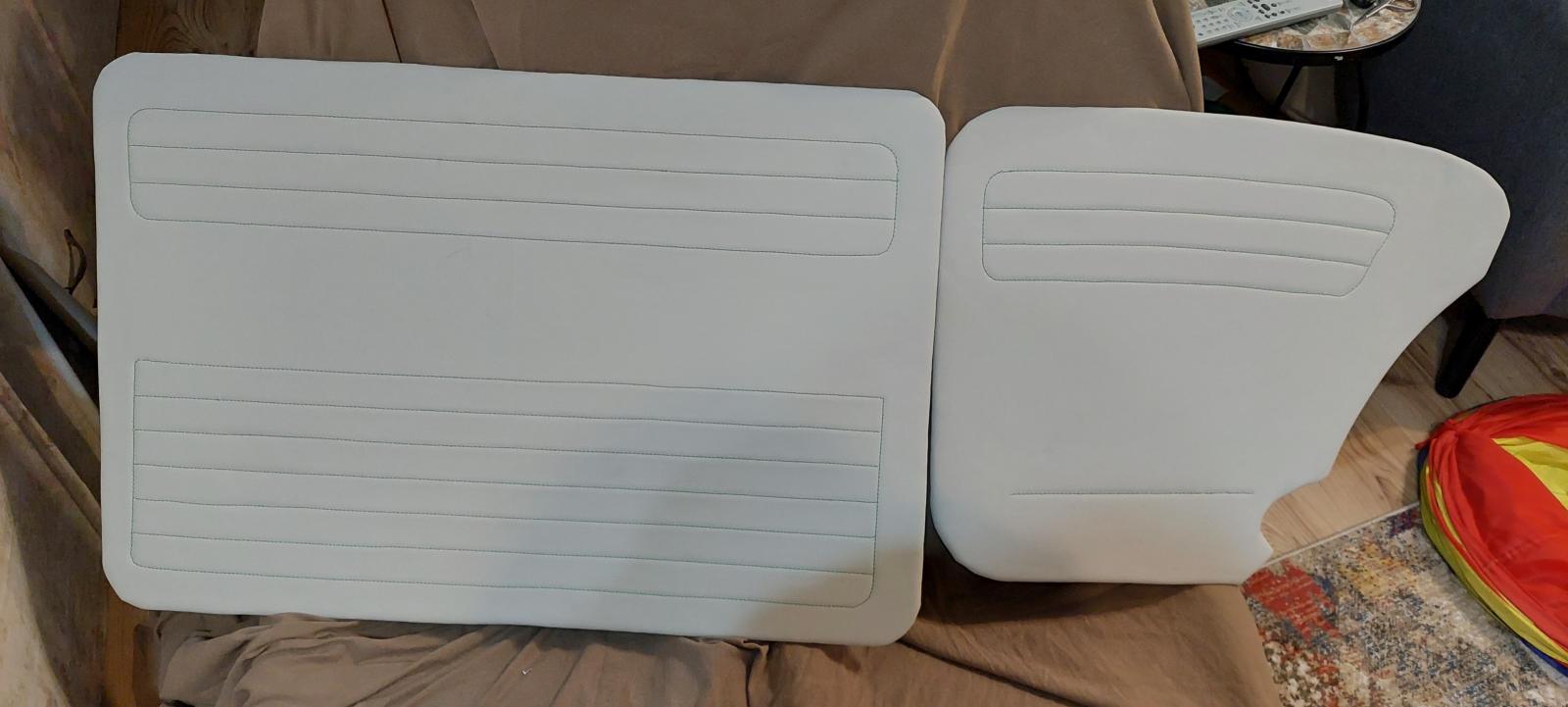

Small update, because I know you all like pictures. Door and rear panels. Sewing by my wife.
Image may have been reduced in size. Click image to view fullscreen.


Meanwhile I opened the engine to re-seal the case halves. Everything looks very well, but the complete engine was rebuild a few years ago and I only made a few thousands of kilometers. Pictures and some measurements will follow, but nothing too wild.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Lost69Convertible
Samba Member


Joined: July 29, 2020
Posts: 319
Location: Rhode Island
Lost69Convertible is offline

PostPosted: Thu Dec 02, 2021 11:18 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

tzepesh wrote:

Image may have been reduced in size. Click image to view fullscreen.

.


Beautiful work. Personal touches like this make a car special.
_________________
1956 Beetle Ragtop: My Father's car
1969 Beetle Convertible: My first car. I loved it, I lost it, and I never got over it.
1979 Super Beetle Convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3832
Location: Stuck in Ohio
Buggeee is online now

PostPosted: Thu Dec 02, 2021 5:22 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

tzepesh wrote:
Small update, because I know you all like pictures. Door and rear panels. Sewing by my wife.

This is amazing.
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Mon Dec 06, 2021 7:26 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Thank you. I'll let the artist know her work is appreciated Smile.

Engine build: no pictures, but so measurements. The engine is a quite normal 1.6 with an Engle W100.
flywheel endplay: 0.004"
combustion chamber volume: 54cc (JP group heads, for longer spark plugs)
Deck height: 1. 0.069", 2. 0.058", 3. 0.058" 4. 0.055"

So apart from #1 which has a higher deck, the others are quite close. I do not know if it is the case deck, cylinder or piston. Compression result as ~7.3:1, a bit low for W100 (recommended 7.5-8.25). But it worked until now, so I won't deal with it now. Especially that I also have the type4 on bench, just to finish painting the tins.

And of course, just to make things fun, I put on the cylinders, heads, pushrod tubes, and then looked at the box of tins and saw the ones that should have been under the cylinder. Because, why should I look in the book to check all steps when I've done this several times?
So, next step: off with the heads, tins on, heads back (maaaaybe I will cut them a bit to decrease the chamber volume to 49 or 50cc for 7.9 or 7.8 CR), all tins on and engine is ready.

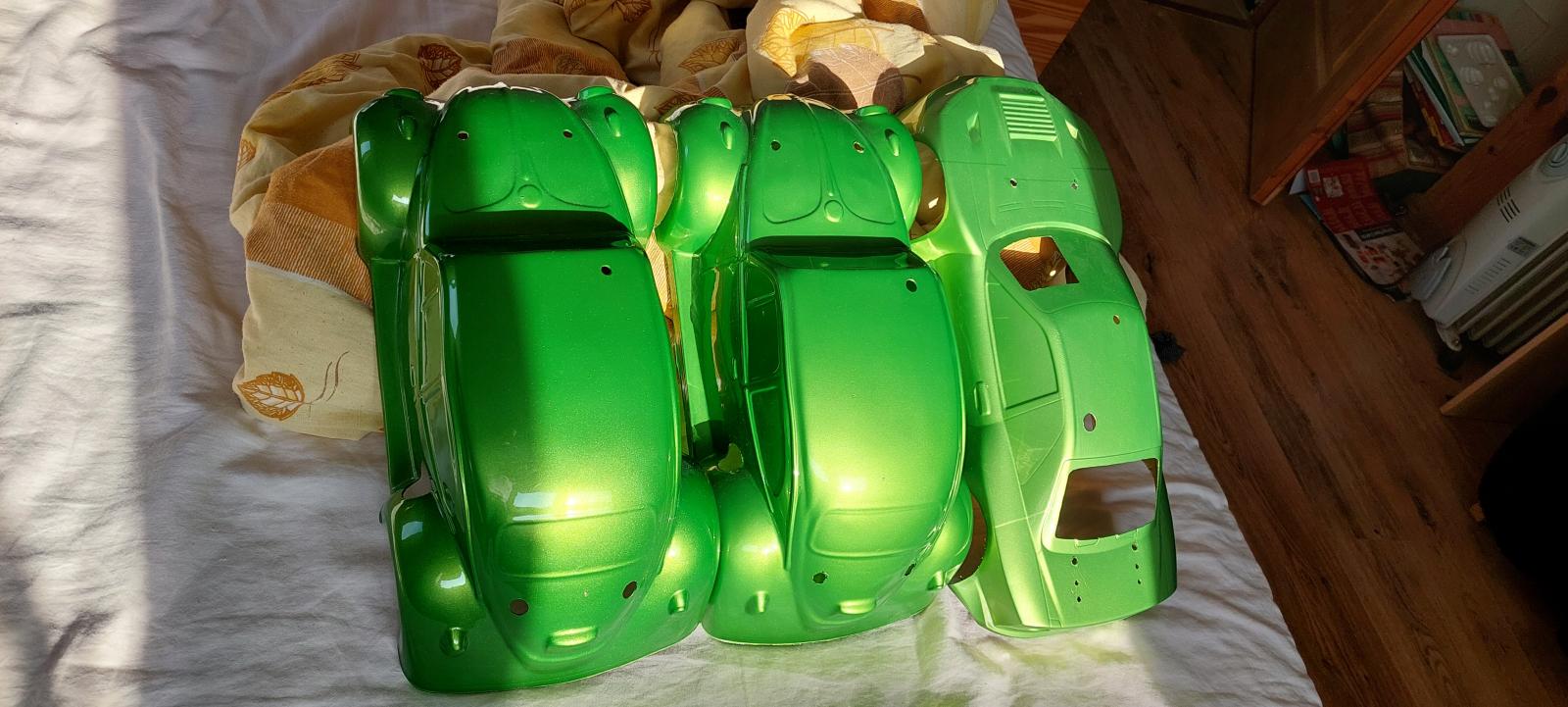

Still waiting for the other RC bodies to be painted in L98B and L96N.
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Wed Dec 15, 2021 4:49 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

I bought a new engine hood, it fits pretty well. Left side is also done, now just the fenders need a bit of corrections and the front valance where it was welded. Then PAINT!
Image may have been reduced in size. Click image to view fullscreen.

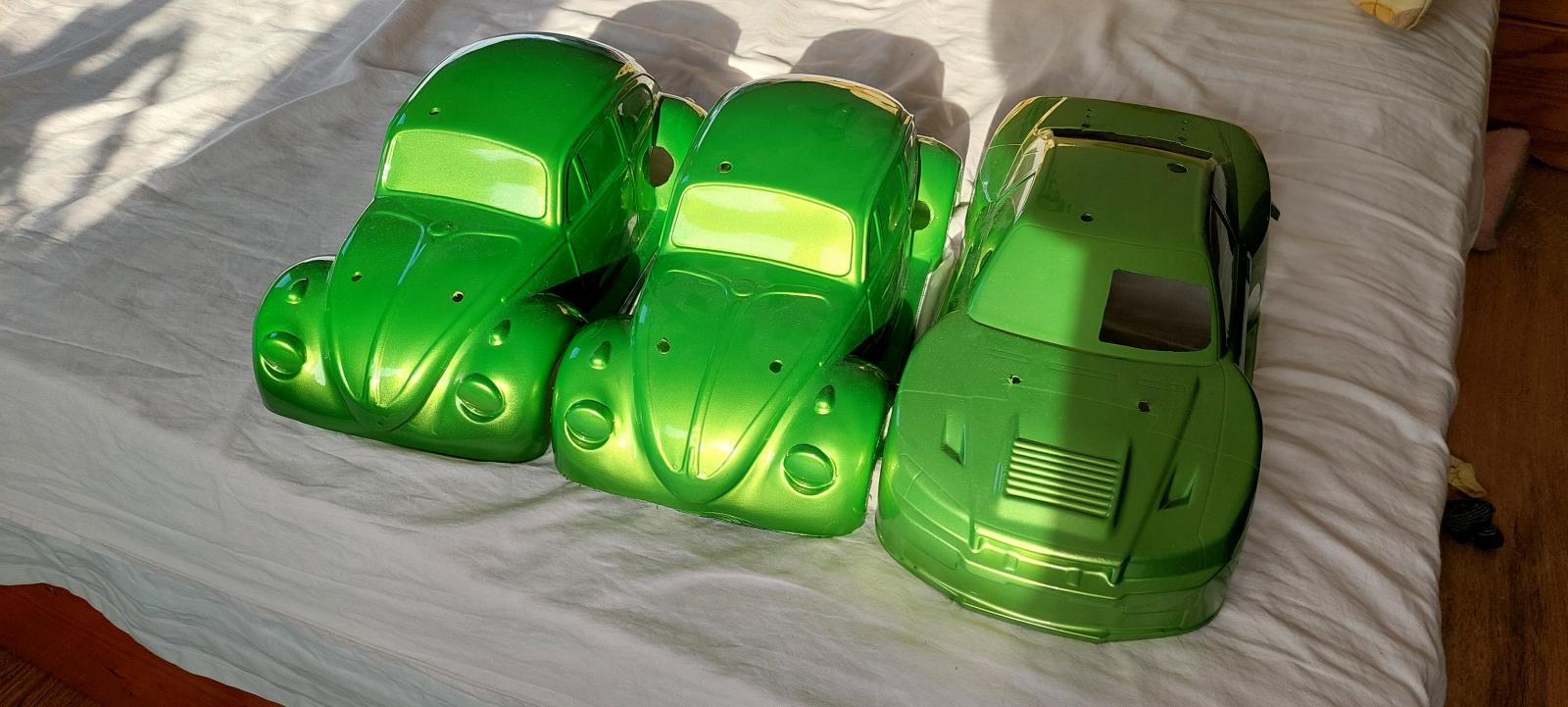

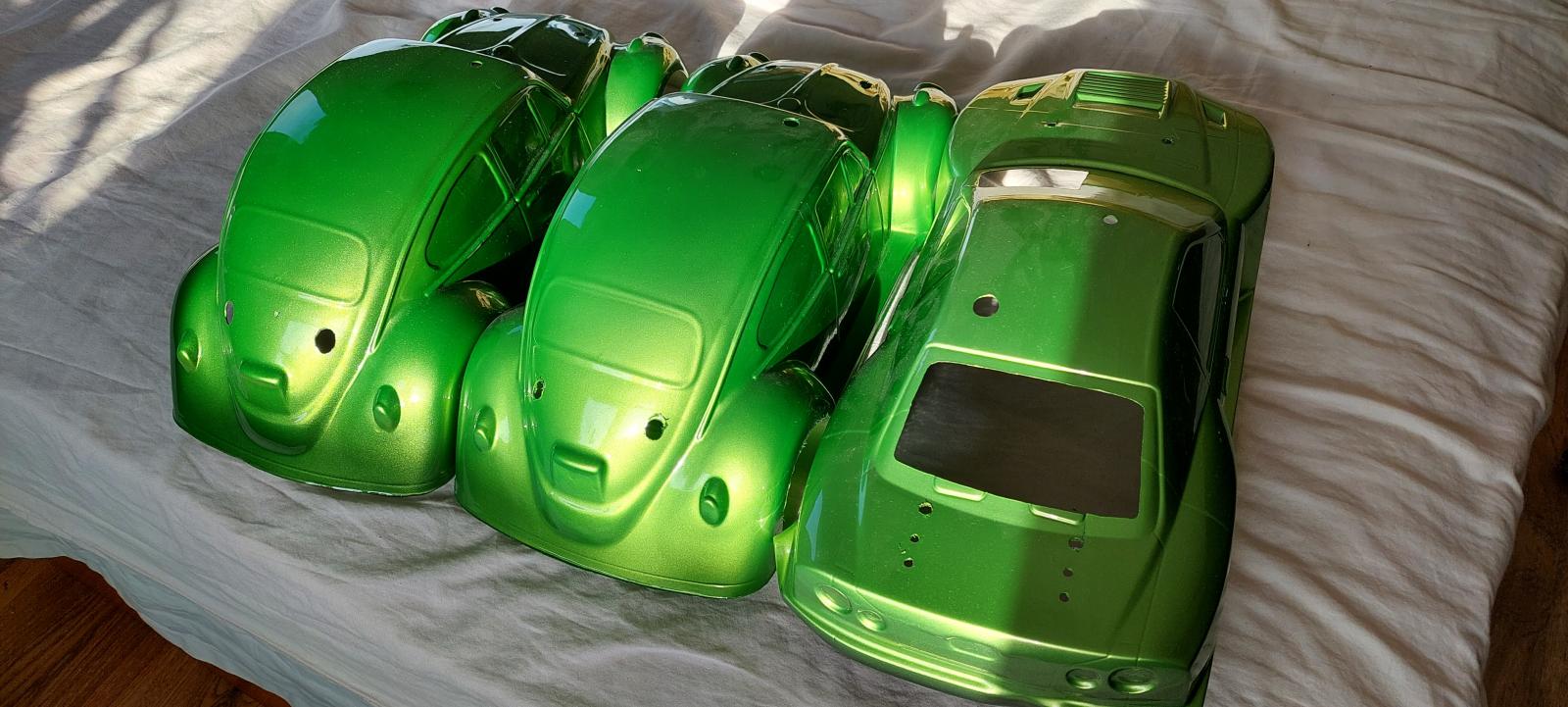

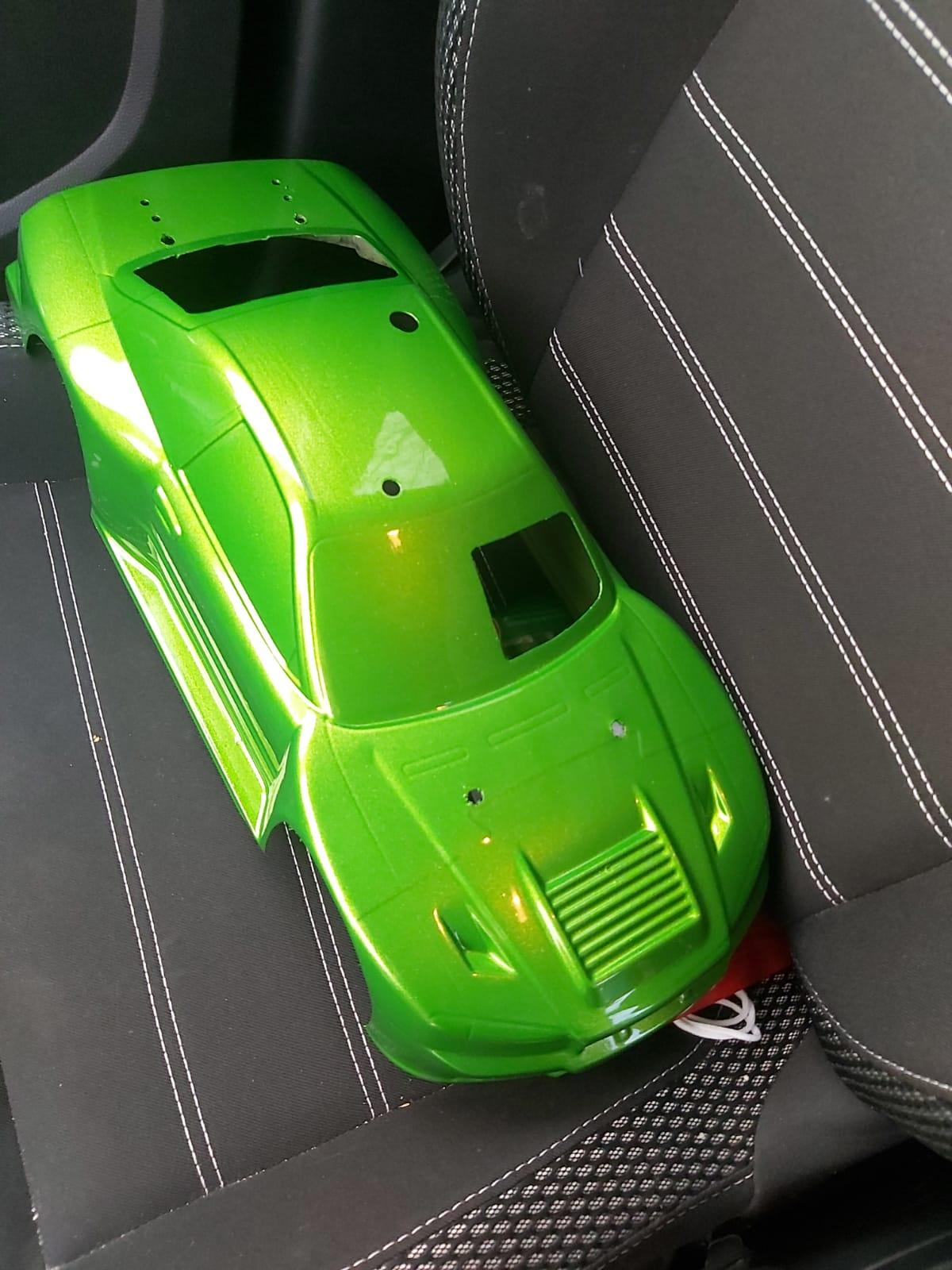

So, on paint: I liked the first option under light, but not under shade. So I requested to paint some other toys so I can compare them side by side. Beetle on the side: Audi LY6W, middle beetle: VW L98B, Nissan on the other side: VW L96N. I will go with the L98B, with some extra metal powder as in the Audi color. It looks like VW knew very well what they were doing.

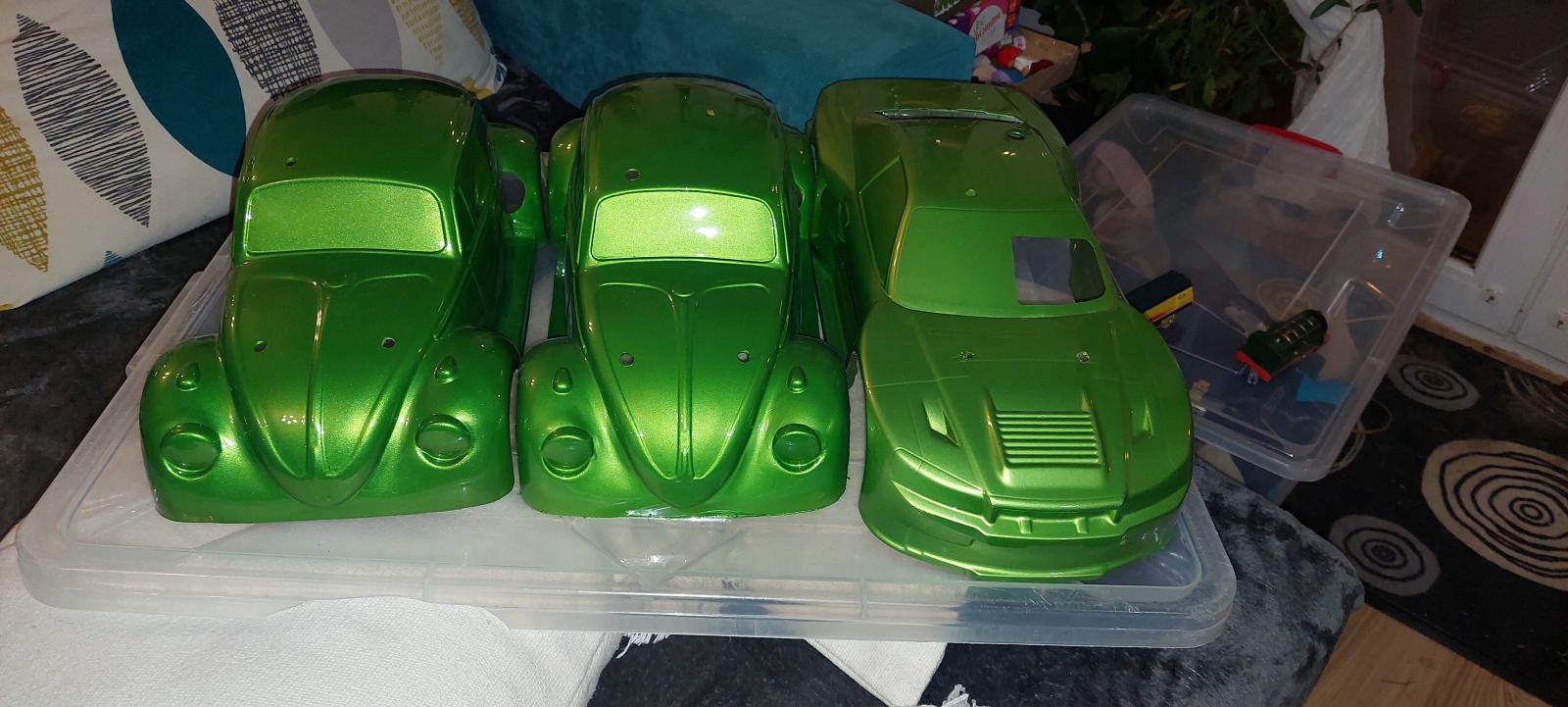

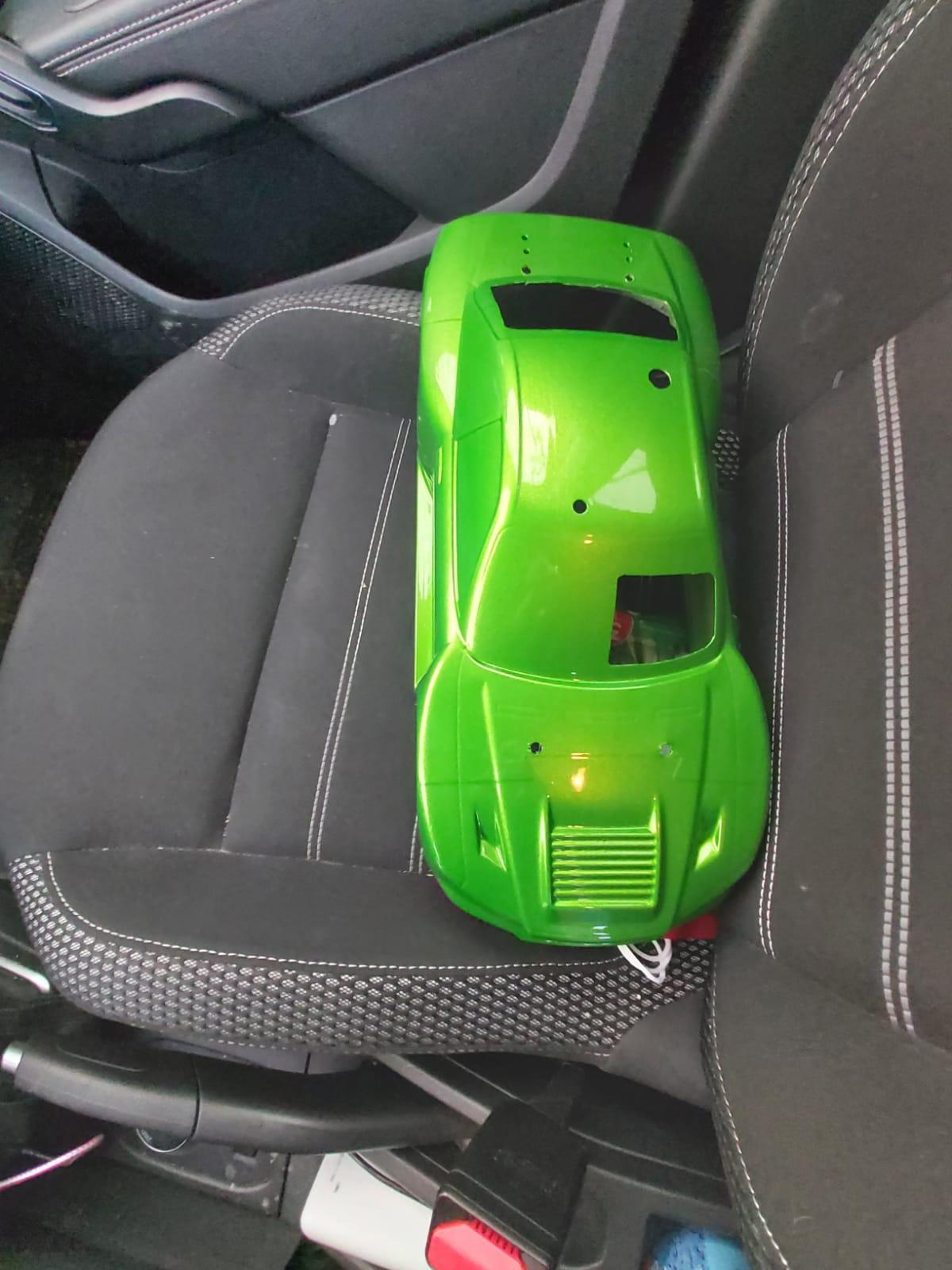

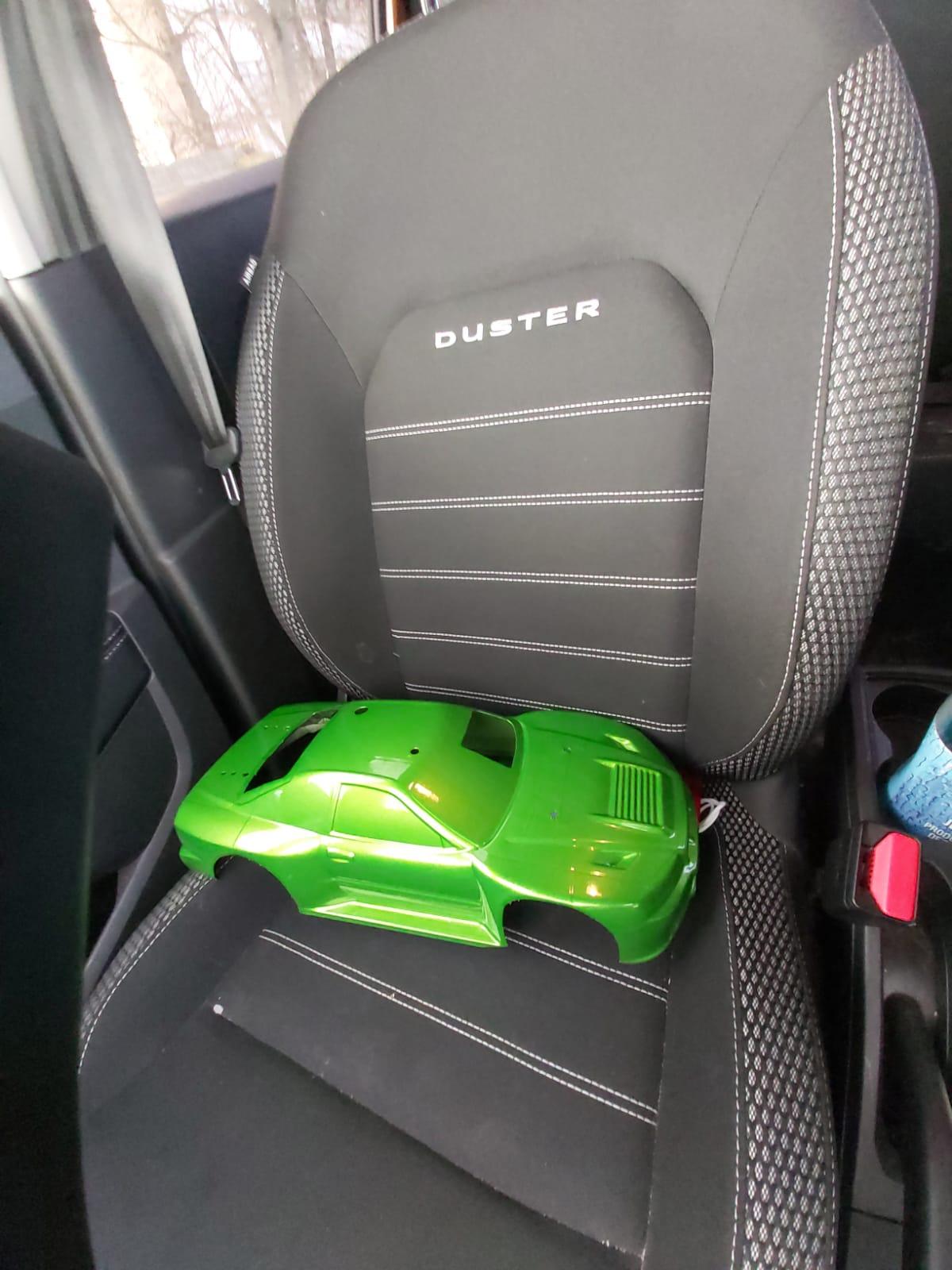

Artificial light:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

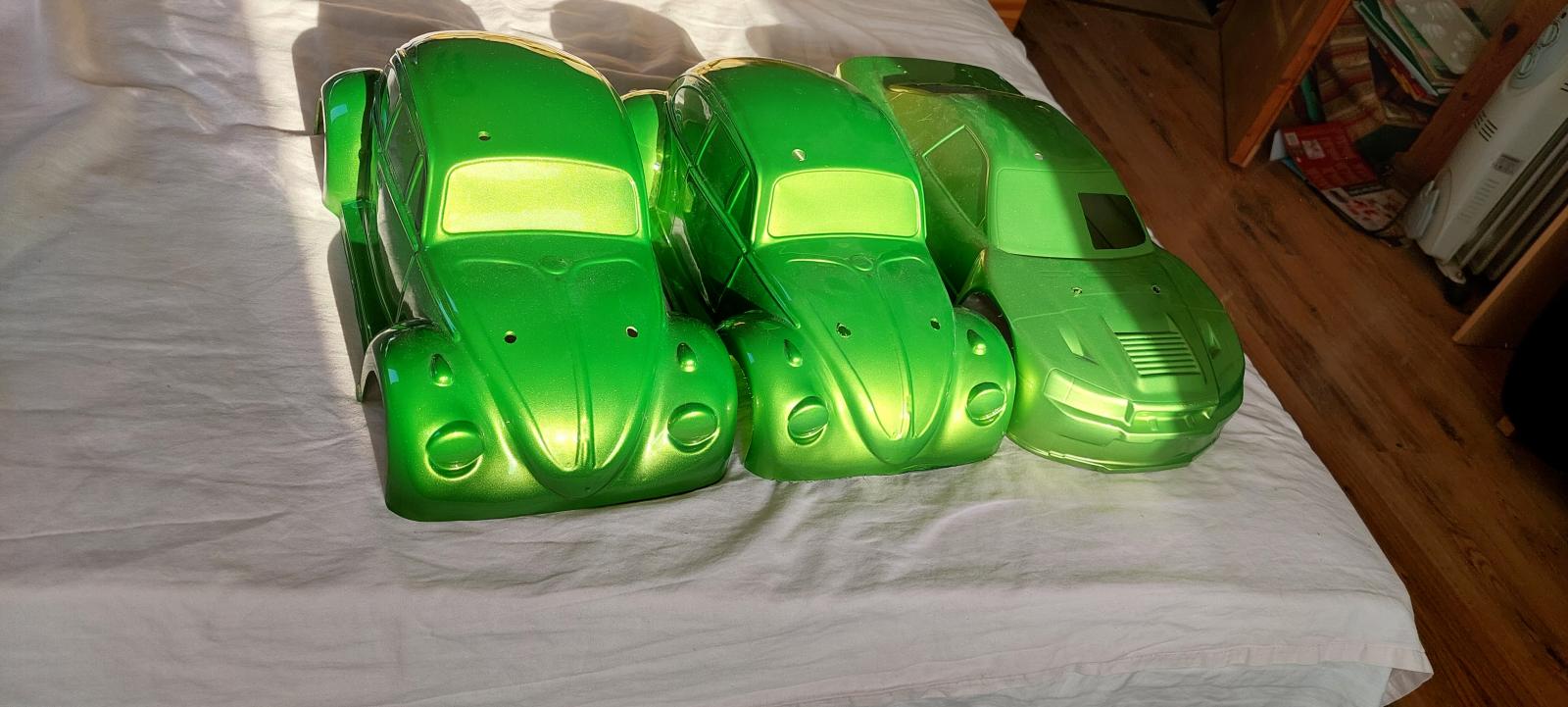

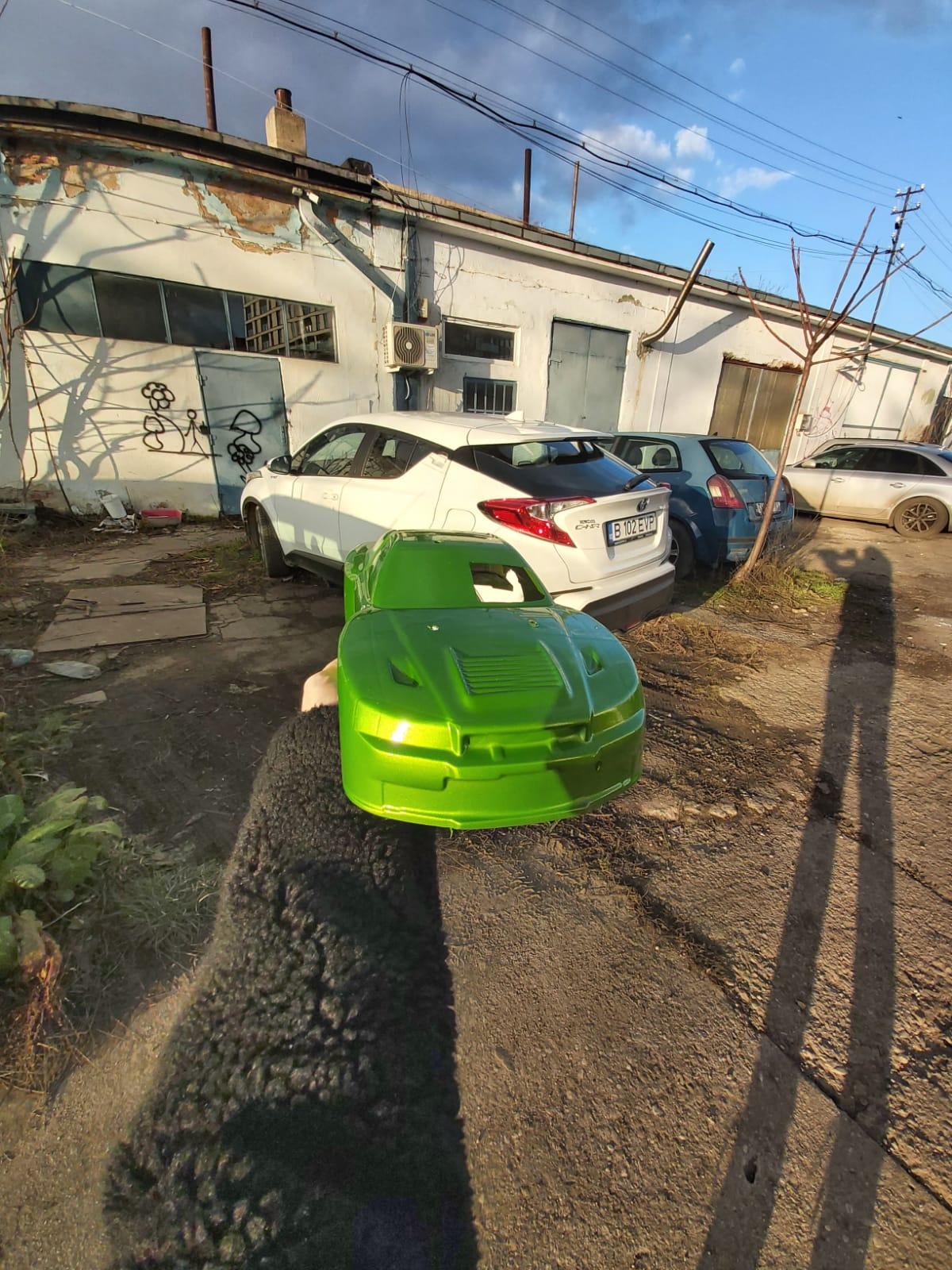

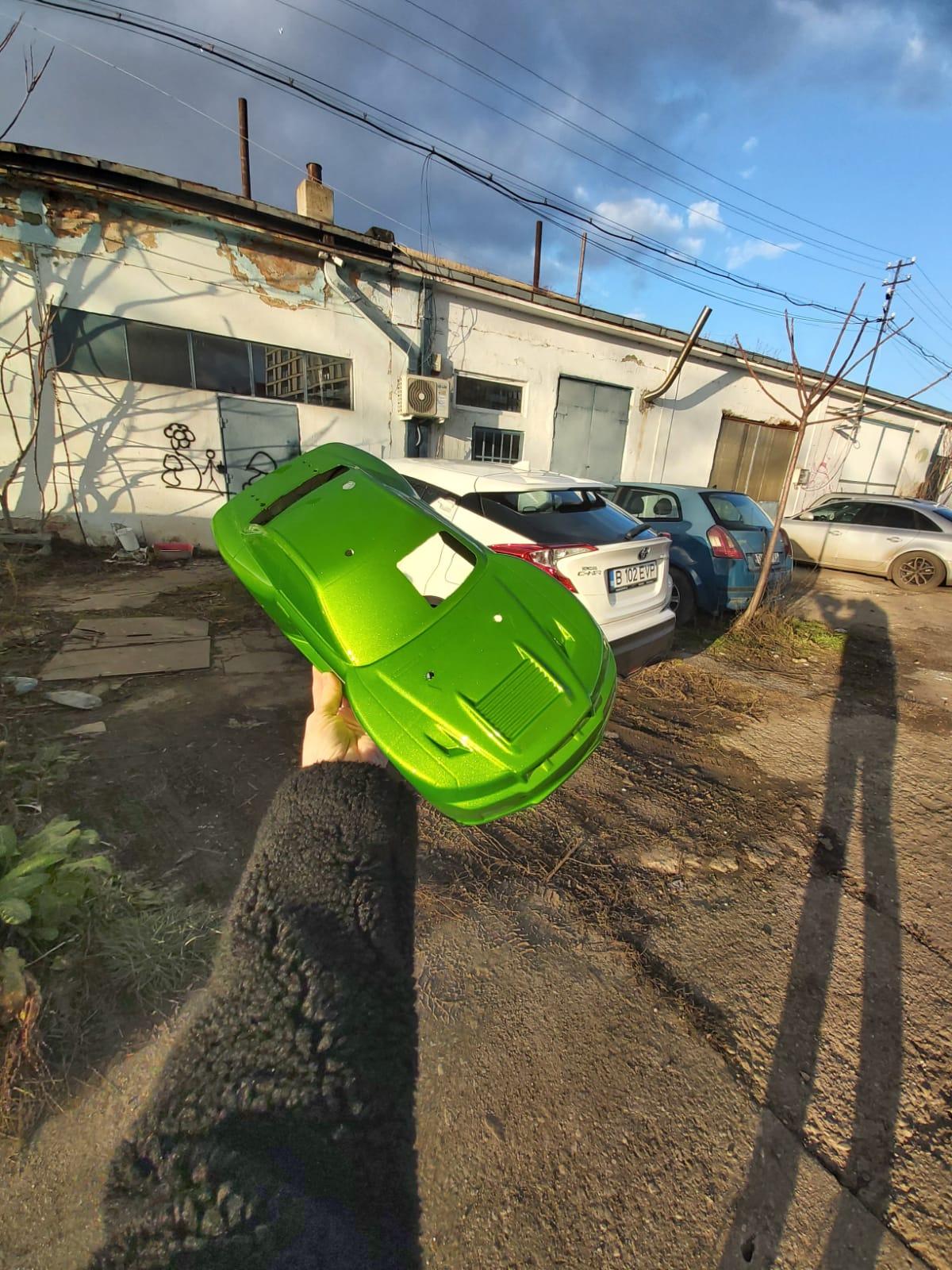

And in sunlight:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Mon Dec 20, 2021 7:23 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

Getting really close to paint: preparation almost done.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And the result of L98B with the metal pigment from LY6W. We have a winner!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Buggeee
Samba Member


Joined: December 22, 2016
Posts: 3832
Location: Stuck in Ohio
Buggeee is online now

PostPosted: Mon Dec 20, 2021 7:50 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

It looks like pearl. That is a winner.
_________________
1966 Sportsmobile Camper https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
72 Super Duper http://www.thesamba.com/vw/forum/viewtopic.php?t=672387
(adopted out) 61 Turkis Pile https://www.thesamba.com/vw/forum/viewtopic.php?t=728764
84 Puma GTS https://www.thesamba.com/vw/forum/viewtopic.php?t=760470&start=0
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Tue Dec 21, 2021 3:06 am    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

It is not pearl, it is metallic paint. It is actually the recipe of the original L98B (viperngrun) with a different type of metal powder. At the paint shop they told me that the difference is the shape of the metal flakes cutout (hexagonal vs rectangular or something else), therefore it sparkles slightly different. So it results as L98B with a bit extra glitter effect. Anyway this L98B is quite a special paint, it has different shades/tones depending on light, and it is very hard to appreciate from just pictures. I have seen lots of cars painted with it and all looked different...
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tzepesh
Samba Member


Joined: May 28, 2003
Posts: 591
Location: Romania
tzepesh is offline

PostPosted: Thu Dec 23, 2021 2:15 pm    Post subject: Re: Cipica, VW 1303S from '74 Reply with quote

IT'S GOT PAINT!!! That's a great Christmas gift.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


And the same movie on youtube and facebook (better quality on fb I guess):
https://youtu.be/b5VOekxHoqM
https://www.facebook.com/100027276460168/videos/601133774324194/
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, waiting for restoration
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 6, 7, 8 ... 10, 11, 12  Next
Jump to:
Page 7 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
