Vokaro project car

[Rome]

Your extended chassis and body create a much more "mature" vehicle appearance than the original Vokaro. Looking forward to progress as you work through the component fitment challenges.

[DeathBySnuSnu]

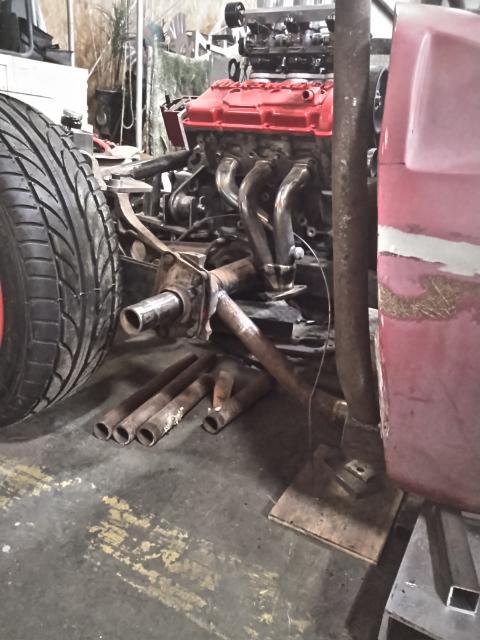

Yeah well.....it is not just little bit longer.....it is a lot lower.
Drop spindles, adjusters, pie cut, relocated Napoleon hats.......and a major body drop
Look at that down hill bar from the torsion tube to where it used to live at.

_________________

[DeathBySnuSnu]

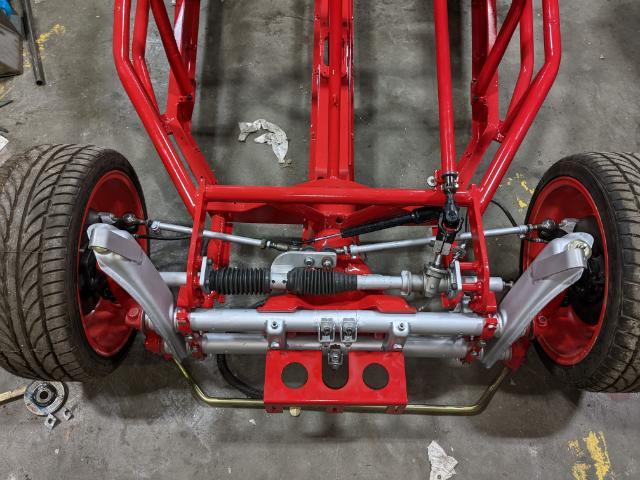

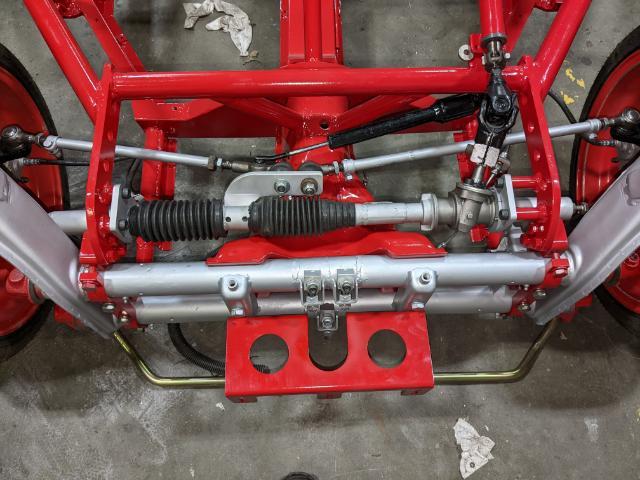

The assembled rack and pinion.

_________________

[slayer61]

Man, we need a "like" button!
_________________

[DeathBySnuSnu]

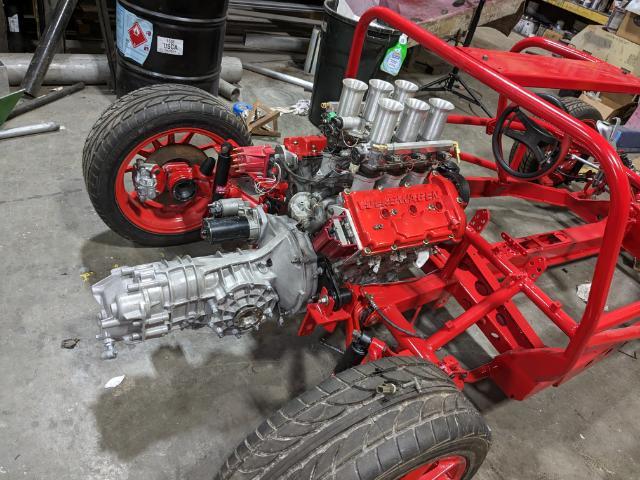

And some of the back end going together.

I did get the 28mm torsion bars set......at least for now.
It is just right..... right now.....I am guessing by the time all is together and settled in that I am going to need an upward adjustment .
_________________

[DeathBySnuSnu]

Annnnd poof there goes a whole post.
Now to do it again.

Have not had much to me lately....lotsa work and a sickly wife. So most work as been small items.

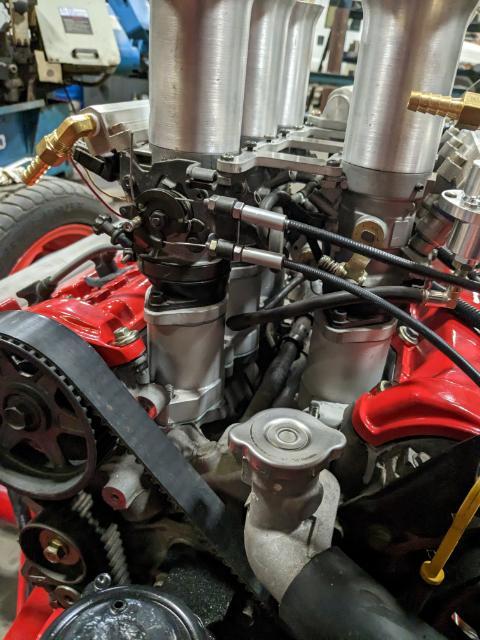

Got the dial indicator and the degree wheel and found the sync for the distributor drive. Got the drive dog pinned on....which completes my Chevy distributor in a Mazda mod.

Made the throttle linkage and cables up.

In the meantime I have been jumping on the rear trying to settle the new springs. Seems to have worked. I have re-indexed the springs and put in the brake lines and axles.

_________________

[Buggeee]

Such a beautiful build. Just Gorgeous.
_________________
Big Time 1988 Vanagon Westy
Release the Krankenwagen! 1966 Sportsmobile Camper
Dr. Kompressor 72 Super Duper
61 Turkis Pile (adopted out)

[DeathBySnuSnu]

[DeathBySnuSnu]

The rear sub frame is going together.

_________________

[DeathBySnuSnu]

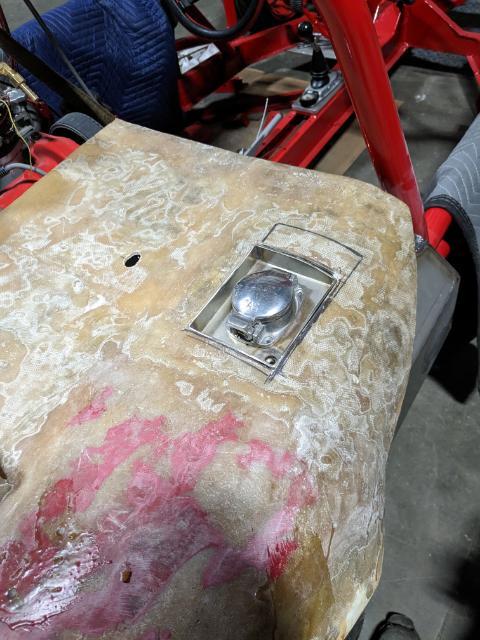

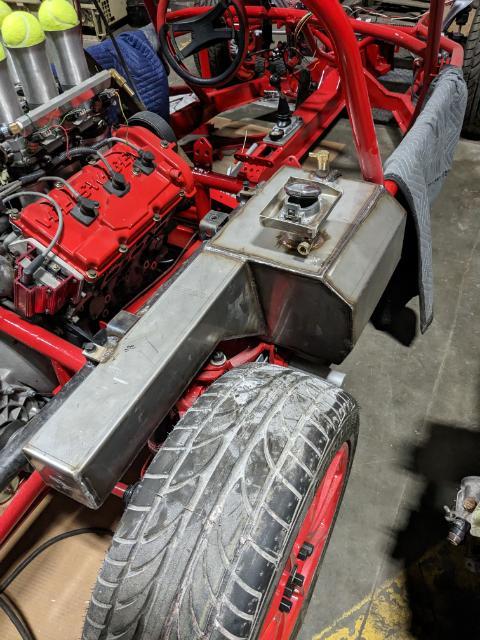

Made the gas tank ....

_________________

[DeathBySnuSnu]

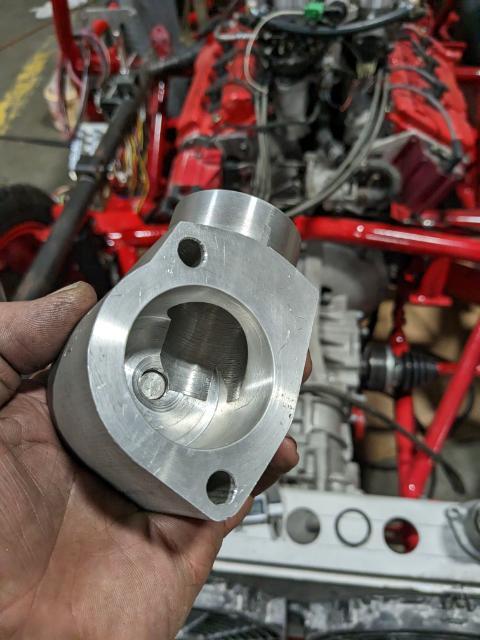

Spent a my half a day making an off thermostat neck.
One more part done....

_________________

[DeathBySnuSnu]

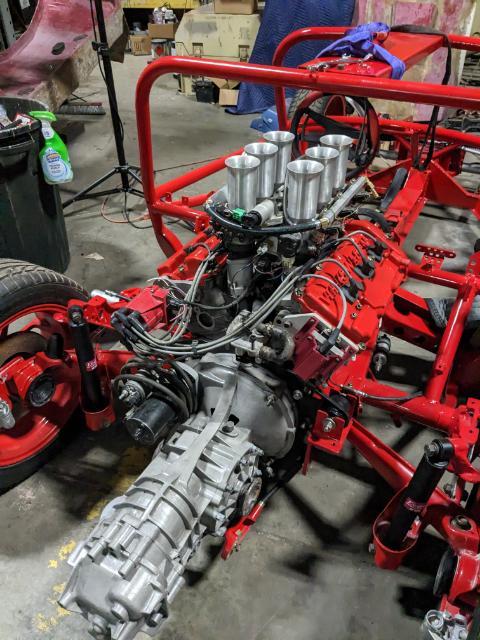

Mechanical nearly done.
Making catch cans now.

_________________

[67rustavenger]

I have been checking in on your progress every once in a while.

This is going to be a very sexy car, when it's completed.

Just looking at your fabrication on the frame, engine, body, looks like the car is in good hands.

When the time comes. Please post a vid of the engine running. We really wanna hear it running.

Keep up the great work!
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!

[DeathBySnuSnu]

Have been on the little things.....brakes are done and functional. E brake cables done. Hoses/fittings/cables.

So no exciting pictures or changes.

Catch can.....

_________________

[Rome]

Have you put some weight on the rear of the chassis to make sure that the inside of the rear right tire does not touch the right vertical face of your gas tank when the suspension is at full compression? I realize you have IRS so that there is minimal camber change but now is the time to make sure before all is assembled.

[DeathBySnuSnu]

Yes.

The gas tank was made in place to fit ..... Mocked up and tacked together.....with no springs or snubbers installed....so on hard bottom.

That is also how the fender wells (cut and flair) were done......along with the ground clearance of the frame and body (roughly 2" at full bottom)
_________________

[DeathBySnuSnu]

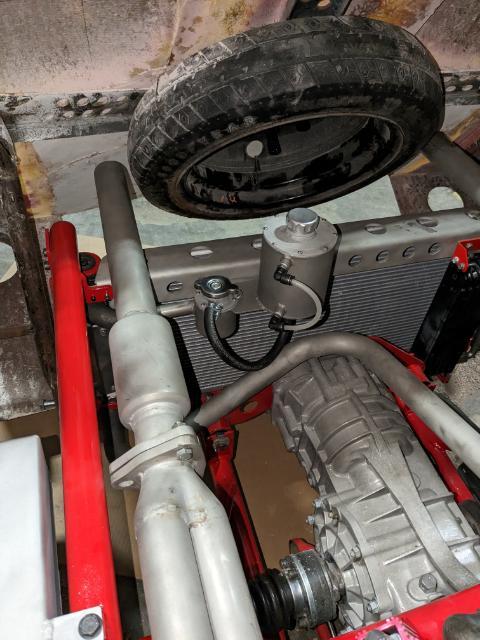

And here is the radiator fill and pressure cap.
Beside it is the puke can.

_________________

[DeathBySnuSnu]

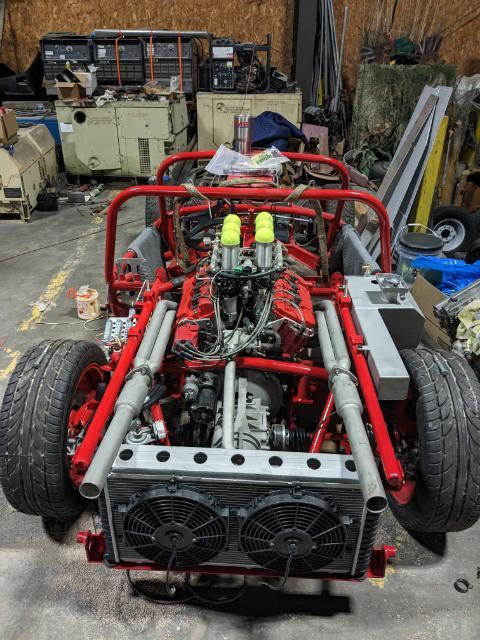

And.....the hoses are all made up and on the remote filter and oil cooler.

Filled with oil and primed up.
Engine spun over after priming and the tdi starter on a type 1 ring on a Mazda flywheel in a Porsche bell housing all worked.

Now that the cooling hoses are newly done it is time to fill with water and check all that for leakes.

I did quickly check the gas tank, but did not hyro it (pressurize and monitor with gauges). I think I will fill it with water and let it sit for a long time.
_________________

[DeathBySnuSnu]

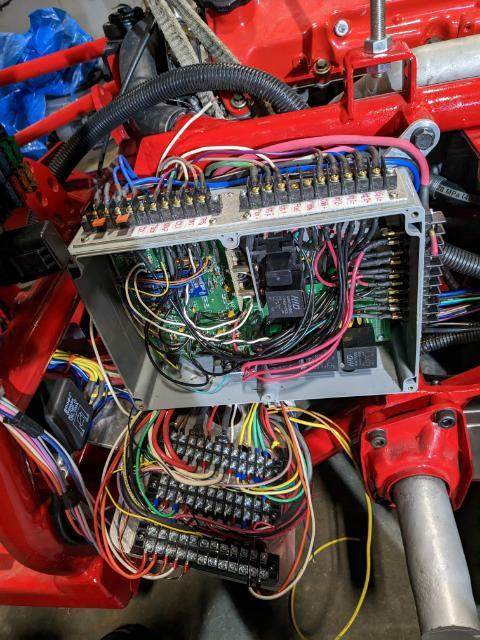

With the mechanical mostly done I have been on electrical.
The "body" wiring is mostly done. All on toggles in the overhead operating relays.
Wiring the "engine" up now with the modified kit computer (in a box with a disguise.

And the battery wedged in the front.

_________________

[DeathBySnuSnu]

Still working on the electronics.....had some problems there. I will get there though.

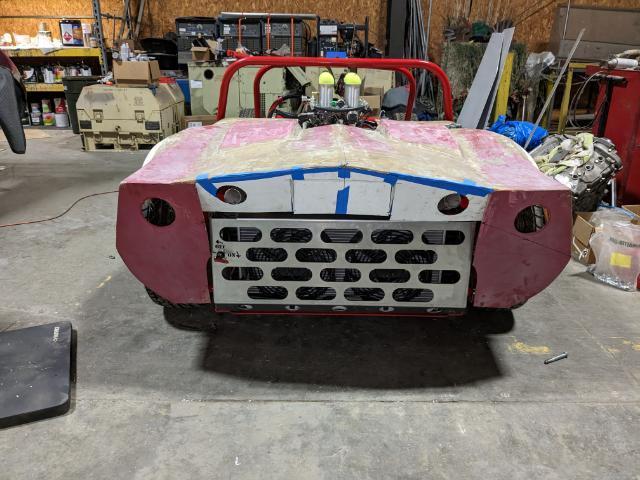

Made a grill for the back end.

Still working out some shape ideas on what to do with the fiberglass. The rest of the body is made just gotta make something work on the back end
