| Author |
Message |
DadaCheese
Samba Member
Joined: April 15, 2008
Posts: 848
Location: Richmond, CA
|
 Posted: Fri May 30, 2025 6:19 am Post subject: Re: Re : Réservoir d'eau pour un SO-42 |
 |
|
| alphi wrote: |
Hello
I'd like to order a water tank for my '67 SO42, mine is broken...
The tank reference for our bus is #10 ?
The water inlets and outlets are standard or it's necessary to specify for which vehicle model when ordering? |
Number 10 looks correct, yes.
When I ordered mine (years ago, whenever I had written this post), I don't recall having had to specify (besides saying specifically what model car it was for: 1967 Volkswagen Westfalia SO-42), and the inlets and outlets were correct.
You can certainly ask them/make sure, and get measurements from folks here on TheSamba if/as needed.
Hope yours works out great; we still use ours all the time!
I flush it out a few times about once every 4 months, and/or before a camping trip.
As we live in the Bay Area of California when the "Big One" hits (earthquake), I like knowing we have approx. seven and a half gallons of water in reserve along with other earthquake-ready supplies.
Post pictures of your project if you have the chance so we can all see how it goes!
_________________
----------------------------------------------------------
Dada as in dadaism.
Cheese as in the stuff I love to eat. |
|
| Back to top |
|
 |
alphi
Samba Member
Joined: November 29, 2004
Posts: 12
Location: France
|
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 807
Location: Inland Empire
|
| Posted: Fri Jun 26, 2020 8:12 am Post subject: Re: Water Tank for a SO-42 |
|
|
| BulliBill wrote: |
That link just above to the water pump doesn't seem to work, can anyone find it? I haven't tried to operate my original yet, but someone in England was selling a rebuild gasket kit for that pump a year or two ago. I got one just in case I need to work on my original pump. But if the pump is available new, hell, I'd buy one!
Bill |
I found the Zebra pump originally on an RV site. I called them and they said that in 2017, Zebra stopped making the pump pictured above in this thread, and that the new one they have has the black ball on the end of the handle. This is the same one they sell on Bus Depot for like $40. https://www.busdepot.com/zvw223101
The one I purchased was off of Ebay. I would recommend to search Ebay if you would like to purchase the Zebra pump that looks identical to the original non Whale. |
|
| Back to top |
|
|
trog5877
Samba Member
Joined: September 25, 2004
Posts: 5
Location: The High Desert....Oregon
|
| Posted: Thu Jun 25, 2020 5:17 pm Post subject: Re: Water Tank for a SO-42 |
|
|
Zebra RV still shows the two hole pump on their website though it is out of stock with an option to be notified when it is back in stock. Maybe if they get enough requests to be notified they will make some more.
http://orderzebrarv.com/proddetail.asp?prod=RV810
_________________
'66 SO42 |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3384
Location: SoCal
|
| Posted: Thu Jun 18, 2020 12:15 pm Post subject: Re: Water Tank for a SO-42 |
|
|
Pretty sure the pump with two screw holes like the original is no longer available. I've found other that look the same but have three screws mounting it to the top.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4770
Location: St Charles, MO
|
| Posted: Thu Jun 18, 2020 12:06 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| von_hansel wrote: |
| DadaCheese wrote: |
| srfndoc wrote: |
| The pump with two screws (like the original) is out of production now. |
...actually, perhaps it is again!
I dug up my receipt from 2015, and looked it up, and unlike mine (pictured below with yellow background), if you go to the product now, today (March 24th, 2017),
it looks like the CURRENT JC804 looks almost identical to the original SO-42 with only two screws!
LINK:
http://www.rvplus.com/r.v.-accessories-pump-rocker-chrome-jc804.html
Someone buy one and let us know.
|
I'm digging up an old thread, but since DadaCheese requested someone to purchase the two screw Zebra water pump and let the Samba community know, I figured I would post my response- It fits and matches my original perfectly.
The one on the right is my original

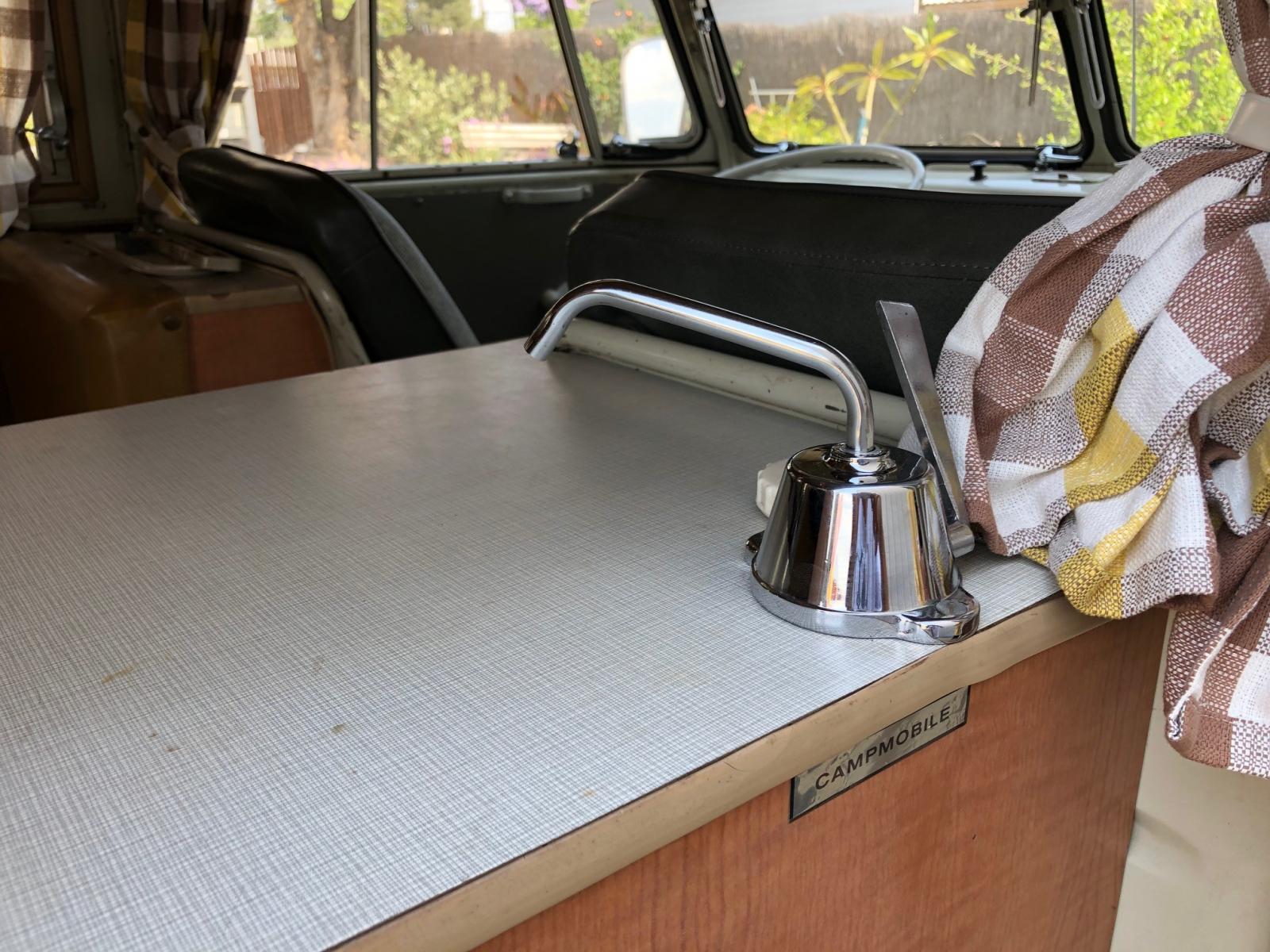

This is the Zebra water pump installed. The screw holes lined up perfectly.
Unfortunately, Zebra quit making this style with the flat handle and now only carry the one with the black ball on the end of the handle. I hope this helps. |
That link just above to the water pump doesn't seem to work, can anyone find it? I haven't tried to operate my original yet, but someone in England was selling a rebuild gasket kit for that pump a year or two ago. I got one just in case I need to work on my original pump. But if the pump is available new, hell, I'd buy one!
Bill
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
Peter T.
Samba Member
Joined: October 09, 2006
Posts: 268
Location: Long Island, New York
|
|
| Back to top |
|
|
Peter T.
Samba Member
Joined: October 09, 2006
Posts: 268
Location: Long Island, New York
|
| Posted: Wed Jun 03, 2020 7:09 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| Peter T. wrote: |
| srfndoc wrote: |
| Peter T. wrote: |
| I tried to find Inca Plastics using the link from above and it doesn't work. Is there a different link or address? |
Looks like the company changed their name:
https://www.toyhaulertanks.com/
I would call them as they probably still have the Westy tank in their design inventory. |
Thanks! |
Does anyone know what's happening with with INCA? I called and emailed them a few times in the last 2 weeks. I understand that they are on a reduced crew. |
|
| Back to top |
|
|
Peter T.
Samba Member
Joined: October 09, 2006
Posts: 268
Location: Long Island, New York
|
| Posted: Wed Jun 03, 2020 7:07 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| Peter T. wrote: |
| srfndoc wrote: |
| Peter T. wrote: |
| I tried to find Inca Plastics using the link from above and it doesn't work. Is there a different link or address? |
Looks like the company changed their name:
https://www.toyhaulertanks.com/
I would call them as they probably still have the Westy tank in their design inventory. |
Thanks! |
Does anyone know what's happening with INCA? I called and emailed them a few times in the last 2 weeks. I understand that they are on a reduced crew. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15208
Location: Casa de Oro, California
|
| Posted: Wed Jun 03, 2020 6:48 pm Post subject: Re: Water Tank for a SO-42 |
|
|
Pretty.
You probably already know this but if you leave the handle in the fully pumped position it keeps the pump primed (usually). If you push the handle backward it drains the pump so it won't freeze. |
|
| Back to top |
|
|
von_hansel
Samba Member
Joined: June 12, 2006
Posts: 807
Location: Inland Empire
|
| Posted: Wed Jun 03, 2020 5:37 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| DadaCheese wrote: |
| srfndoc wrote: |
| The pump with two screws (like the original) is out of production now. |
...actually, perhaps it is again!
I dug up my receipt from 2015, and looked it up, and unlike mine (pictured below with yellow background), if you go to the product now, today (March 24th, 2017),
it looks like the CURRENT JC804 looks almost identical to the original SO-42 with only two screws!
LINK:
http://www.rvplus.com/r.v.-accessories-pump-rocker-chrome-jc804.html
Someone buy one and let us know.
|
I'm digging up an old thread, but since DadaCheese requested someone to purchase the two screw Zebra water pump and let the Samba community know, I figured I would post my response- It fits and matches my original perfectly.
The one on the right is my original
This is the Zebra water pump installed. The screw holes lined up perfectly.
Unfortunately, Zebra quit making this style with the flat handle and now only carry the one with the black ball on the end of the handle. I hope this helps. |
|
| Back to top |
|
|
Peter T.
Samba Member
Joined: October 09, 2006
Posts: 268
Location: Long Island, New York
|
| Posted: Mon Mar 23, 2020 2:57 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| srfndoc wrote: |
| Peter T. wrote: |
| I tried to find Inca Plastics using the link from above and it doesn't work. Is there a different link or address? |
Looks like the company changed their name:
https://www.toyhaulertanks.com/
I would call them as they probably still have the Westy tank in their design inventory. |
Thanks! |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3384
Location: SoCal
|
| Posted: Mon Mar 23, 2020 9:24 am Post subject: Re: Water Tank for a SO-42 |
|
|
| Peter T. wrote: |
| I tried to find Inca Plastics using the link from above and it doesn't work. Is there a different link or address? |
Looks like the company changed their name:
https://www.toyhaulertanks.com/
I would call them as they probably still have the Westy tank in their design inventory.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
Peter T.
Samba Member
Joined: October 09, 2006
Posts: 268
Location: Long Island, New York
|
| Posted: Mon Mar 23, 2020 9:15 am Post subject: Re: Water Tank for a SO-42 |
|
|
| I tried to find Inca Plastics using the link from above and it doesn't work. Is there a different link or address? |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3384
Location: SoCal
|
| Posted: Sat May 26, 2018 12:33 pm Post subject: Re: Water Tank for a SO-42 |
|
|
I made up a replacement for the original drain piece for the water tank. It consists of 3 parts (all from HD) and ends up being about the same size/function as the original and works great with the Inca Plastics tank:
Original on right for comparison
Parts Used:
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
iamdonquixote
Samba Member
Joined: January 28, 2003
Posts: 2079
Location: M*ssholia
|
| Posted: Mon May 21, 2018 2:35 pm Post subject: Re: Water Tank for a SO-42 |
|
|
liking the music in the video,
when I saw Morphine live I had never heard of them , afterwards everyone at the show kept asking if that was for real.
also Dada, thanks for putting all the info in one place, I have an so42 that will appreciate this. |
|
| Back to top |
|
|
oldbusboy
Samba Member
Joined: June 25, 2006
Posts: 623
Location: Bowen Island, BC Canada
|
| Posted: Mon May 21, 2018 12:20 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| oldbusboy wrote: |
.. just got a response:
Hi Trevor,
That #10 water tank is available. Cost is $125.00 plus shipping. This tank would ship within one week.
If you would like to get one coming, just send me your zip code and I’ll send you an invoice with shipping that you can pay online. |
*Final cost delivered to Point Roberts WA - $140USD - paid via PP*
_________________
1958 kombi
1968 porsche |
|
| Back to top |
|
|
oldbusboy
Samba Member
Joined: June 25, 2006
Posts: 623
Location: Bowen Island, BC Canada
|
| Posted: Mon May 21, 2018 10:41 am Post subject: Re: Water Tank for a SO-42 |
|
|
.. just got a response:
Hi Trevor,
That #10 water tank is available. Cost is $125.00 plus shipping. This tank would ship within one week.
If you would like to get one coming, just send me your zip code and I’ll send you an invoice with shipping that you can pay online.
_________________
1958 kombi
1968 porsche |
|
| Back to top |
|
|
oldbusboy
Samba Member
Joined: June 25, 2006
Posts: 623
Location: Bowen Island, BC Canada
|
| Posted: Mon May 21, 2018 10:06 am Post subject: Re: Water Tank for a SO-42 |
|
|
I just emailed them at [email protected] and got a bounce back.. I called and got a message and have sent an email to another address.. will keep everybody updated.
Has anybody ordered recently?
Trevor
_________________
1958 kombi
1968 porsche |
|
| Back to top |
|
|
Thin Metal
Samba Member
Joined: June 27, 2004
Posts: 133
|
| Posted: Mon Dec 25, 2017 11:21 pm Post subject: Re: Water Tank for a SO-42 |
|
|
| Anyone wanting to order the SO42 water tank replacement from Inca plastics in Southern California.The order tank part number is the"10"model. Under $150.00 for cost. |
|
| Back to top |
|
|
|
