| Author |
Message |
kamzcab86
Samba Moderator
Joined: July 26, 2008
Posts: 8527
Location: Arizona
|
 Posted: Tue Feb 18, 2025 7:00 pm Post subject: |
 |
|
| Birdibus wrote: |
I wrote to Paintscratch to see if they had production code 9648 in their records, and to let me know what paint code it was. They say:
| Quote: |
| Sorry, but our techs don't show 9648. Code 9648 is not a valid VW code. |
Here is my proof that 9648 DOES exist. |
FWIW, the 4-digit code on the plate is Volkswagen's internal sales code for the color. Some colors even have more than one sales code because they were used on more than one model/trim (ex. Agata Brown has 4803, 4831, T1). Paintscratch.com does list these sales codes next to the paint codes, but not for all Bus colors (ex. L63H/P4 for Sage Green). As you guys probably already know, a repeating two-digit code = single color (ex. B1B1, Bali Yellow), while two different two-digit codes = two-tone Bus (ex. B9E1, Ivory & Brilliant Orange).
Click/tap here for the 1967-1979 European paint code-sales code cross-reference list (and it's not 100% complete). From 1980 onward, those pages include interior codes; unfortunately, Bay Window interior codes are MIA.
_________________
~Kamz
1986 Cabriolet: www.Cabby-Info.com
 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子 |
|
| Back to top |
|
 |
lil-jinx
Samba Member
Joined: August 14, 2013
Posts: 1711
Location: New Brunswick,Canada
|
|
| Back to top |
|
|
meester_jamie
Samba Member
Joined: June 14, 2005
Posts: 26
Location: Southern Ontario Canada
|
| Posted: Sun Feb 16, 2025 8:04 am Post subject: Re: Westfalia colors 1974 & 1975 |
|
|

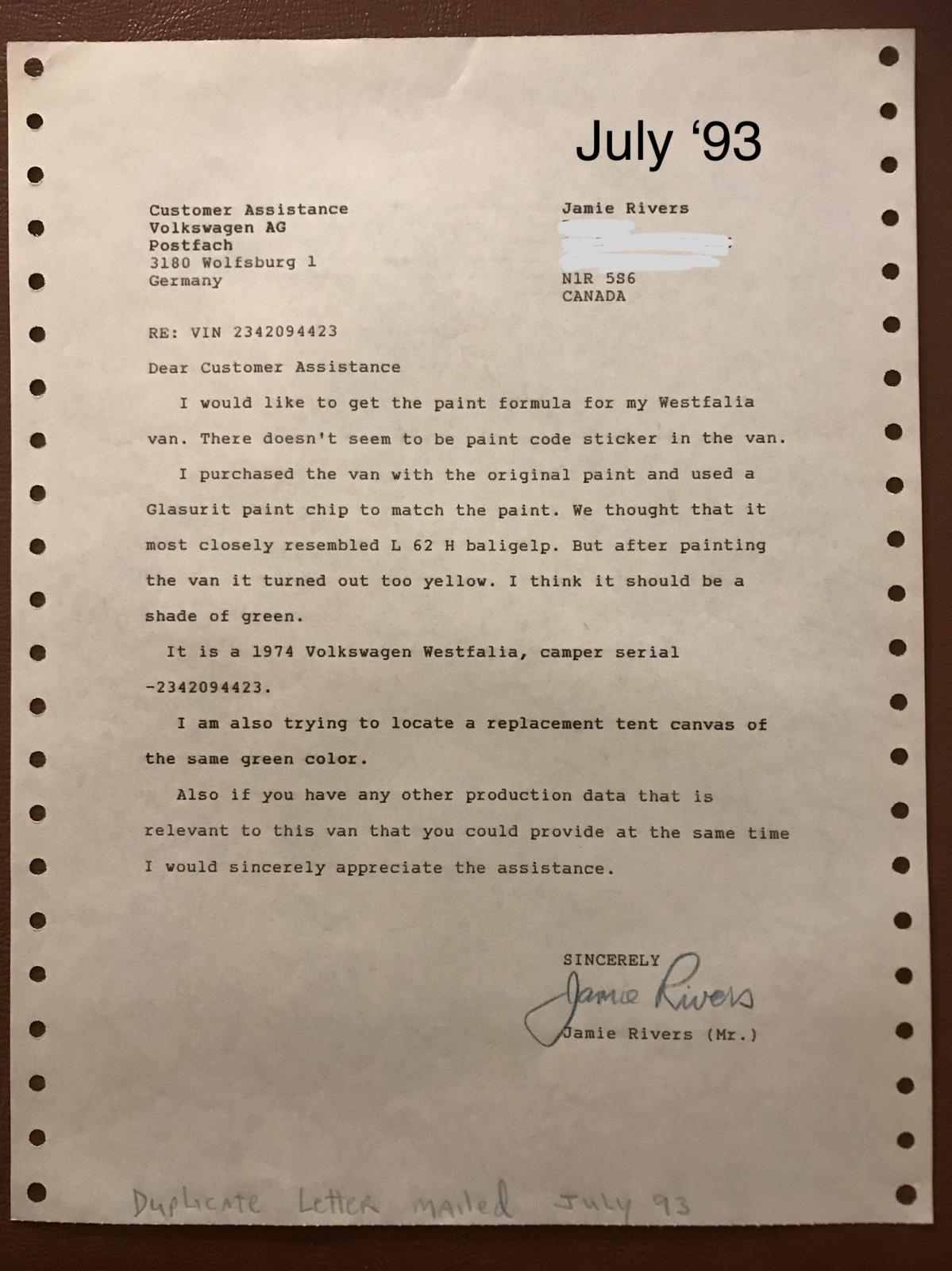

I wrote to VW Germany in 1990 ish,, same answer
At the time I had never seen a chartreuse Microbus, and internet wasn’t like today
So there is an argument about L-65K Raveena green, bus and ghia , and 82176.. that seems to be different from std numbers Yosemite yellow , baligleb,
In my experience, the formulation isn’t the same any more as the paint isn’t the same,, so using a colour match method works excellent
|
|
| Back to top |
|
|
Gumboguy
Samba Member
Joined: October 02, 2010
Posts: 66
Location: New Orleans
|
| Posted: Sun Feb 16, 2025 2:11 am Post subject: |
|
|
My proof too. Where is the definitive answer found?
| Birdibus wrote: |
I wrote to Paintscratch to see if they had production code 9648 in their records, and to let me know what paint code it was. They say:
| Quote: |
Sorry, but our techs don't show 9648. Code 9648 is not a valid VW code.
You could try custom matching. Please visit:
https://www.paintscratch.com/custom.html for complete
information on custom matching.
Or you could order a small bottle of
1974 Volkswagen Convertible
Ravenna Green L65K
and see if it's a match.
Sincerely,
BillW at Paintscratch.com |

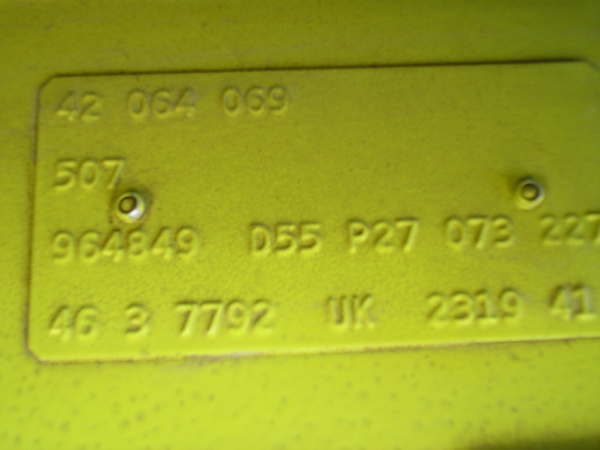

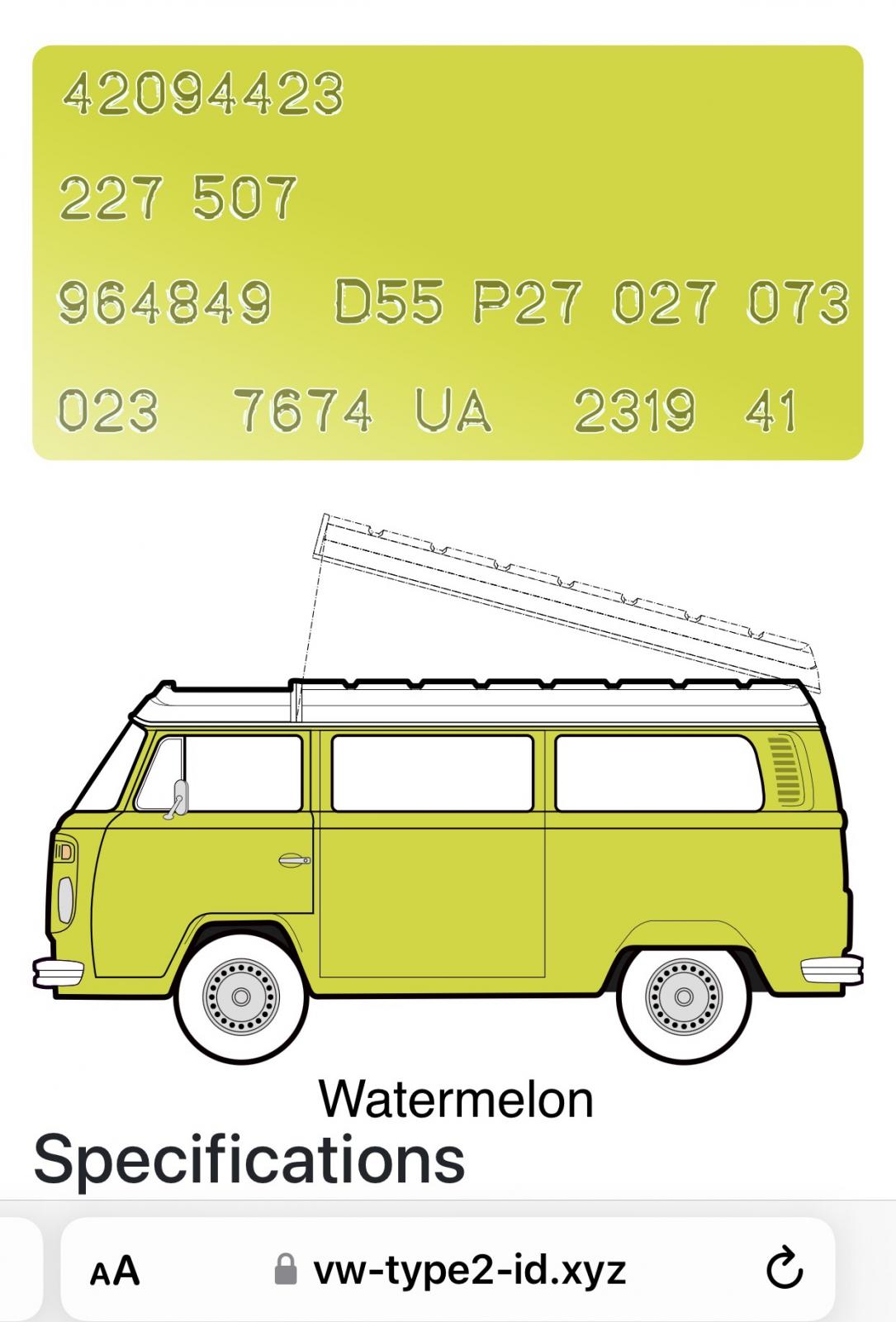

Here is my proof that 9648 DOES exist.
|
|
|
| Back to top |
|
|
Gumboguy
Samba Member
Joined: October 02, 2010
Posts: 66
Location: New Orleans
|
| Posted: Sun Feb 16, 2025 1:26 am Post subject: My m plate |
|
|
| Birdibus wrote: |
I wrote to Paintscratch to see if they had production code 9648 in their records, and to let me know what paint code it was. They say:
| Quote: |
Sorry, but our techs don't show 9648. Code 9648 is not a valid VW code.
You could try custom matching. Please visit:
https://www.paintscratch.com/custom.html for complete
information on custom matching.
Or you could order a small bottle of
1974 Volkswagen Convertible
Ravenna Green L65K
and see if it's a match.
Sincerely,
BillW at Paintscratch.com |

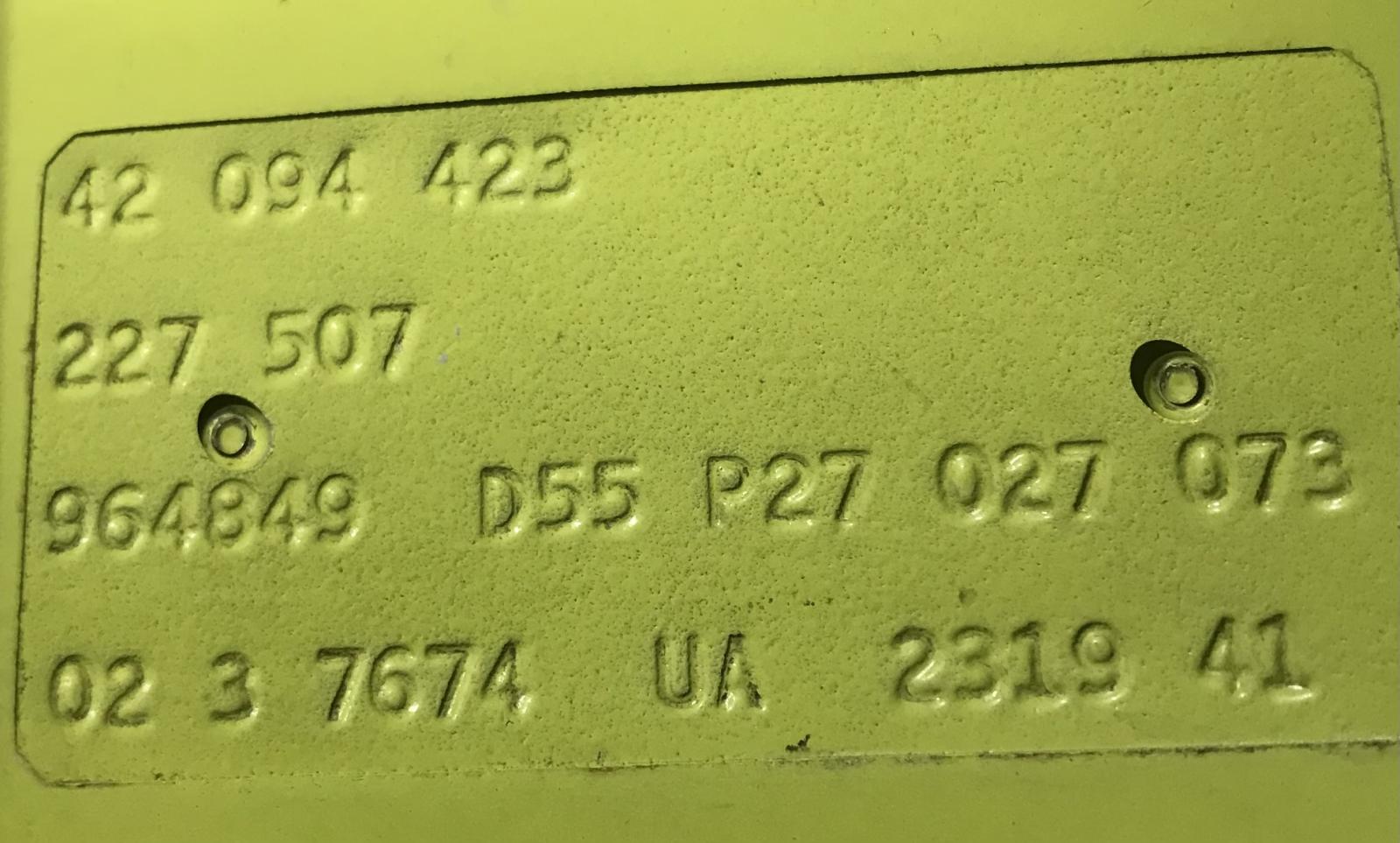

Here is my proof that 9648 DOES exist.
|
|
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22669
Location: Escondido CA
|
|
| Back to top |
|
|
btripp
Samba Member
Joined: May 27, 2014
Posts: 25
|
| Posted: Thu Aug 21, 2014 3:39 pm Post subject: Interior Colors? |
|
|
Here's the m plate.
I thought the color code referred to this color:
That's different than what's there and what I've typically seen in this color bus, which is this:
But, if Camping Red just indicates that it was whatever plaid, then that would make a lot more sense. Or maybe the plate is wrong?
Thanks!
-Ben |
|
| Back to top |
|
|
btripp
Samba Member
Joined: May 27, 2014
Posts: 25
|
| Posted: Thu Aug 21, 2014 3:29 pm Post subject: Interior Colors? |
|
|

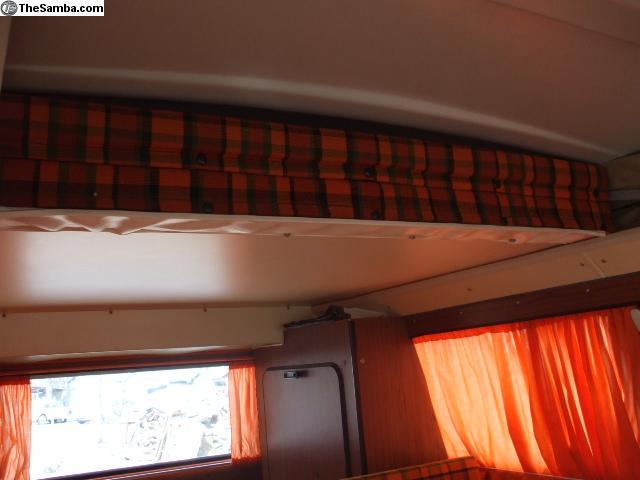

This picture shows some of the bed. Sorry it doesn't show much but you get the idea. FWIW the corners by the windows have faded from sun.

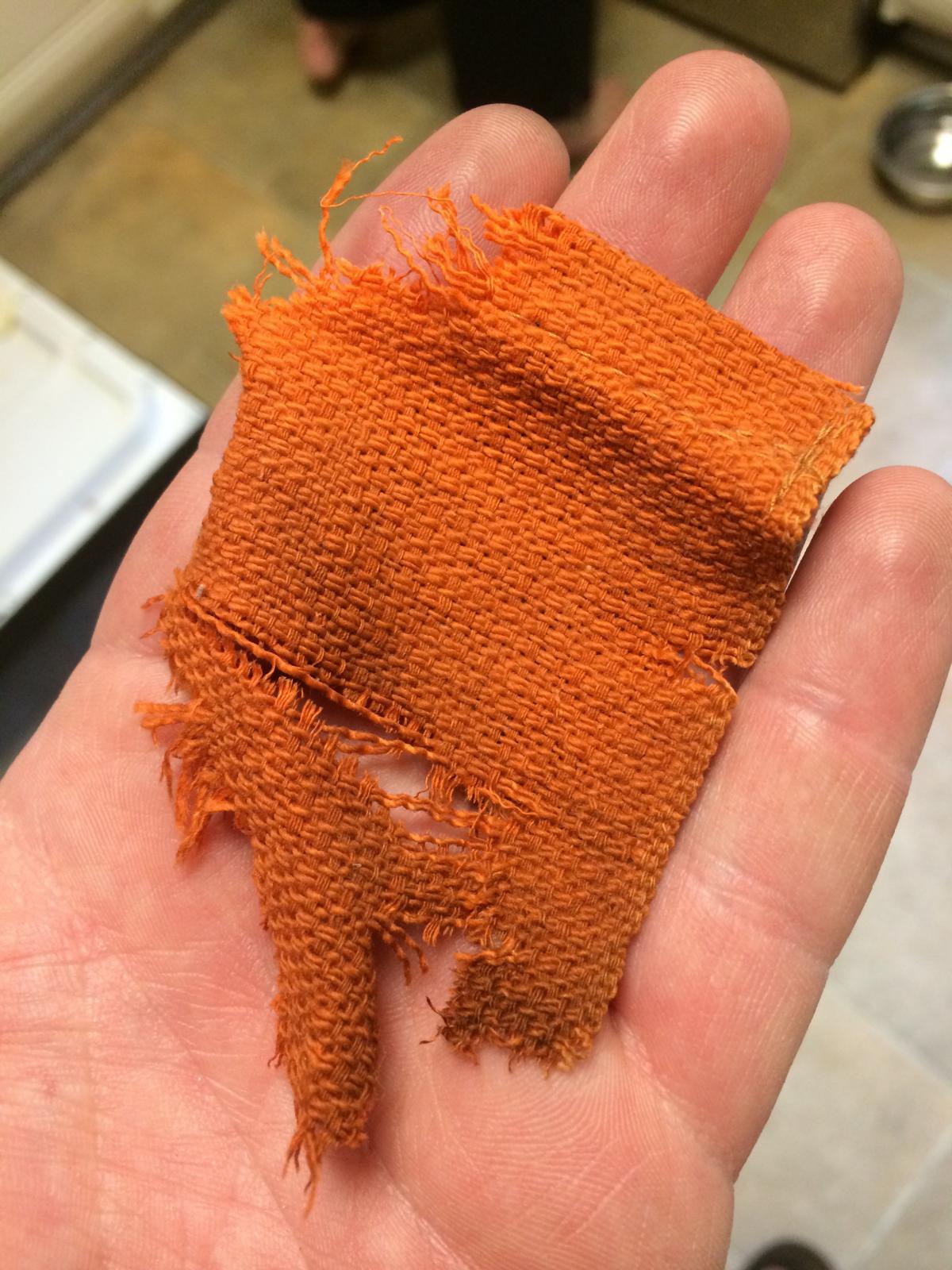

This picture shows a spread of curtain fabric which was behind the closet. Looked like the screw was put through it which holds the thing the curtain slides on.
-Ben |
|
| Back to top |
|
|
btripp
Samba Member
Joined: May 27, 2014
Posts: 25
|
| Posted: Thu Aug 21, 2014 3:25 pm Post subject: Interior Colors? |
|
|
Hey guys,
Thanks for the help, and the warm welcome.

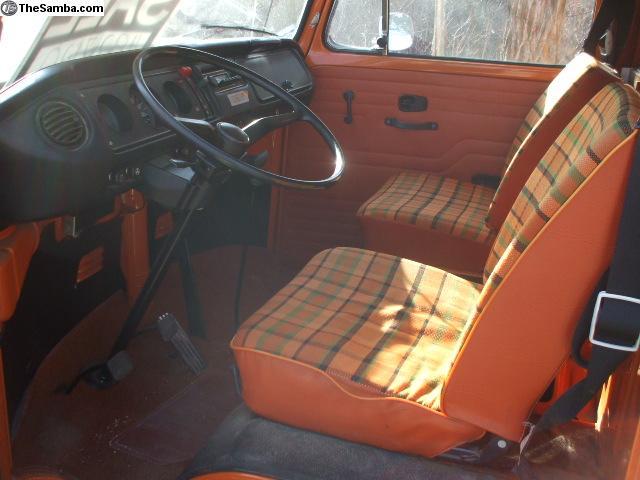

This is the front seat. Both are like this and had two other covers on top of this. The vinyl on the sides has a remnant of the correct color.
The interior layout looks pretty standard to me. Sink and ice box cabinets in their proper places, closet cabinet in the back on the driver's side.
More pics in next post.
-Ben |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22669
Location: Escondido CA
|
| Posted: Wed Aug 20, 2014 7:53 pm Post subject: |
|
|
What is the floor layout for the cabinets in the rear? One thing to keep in mind when questioning its originality is your destination code. Its not a cookie cutter US spec version but a UK bound bus. I think that leaves room for special orders and requests for things being fitted to your bus when new.
Post them pics!
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
Bala
Samba Member
Joined: December 04, 2003
Posts: 2637
Location: Austin, TX
|
| Posted: Wed Aug 20, 2014 11:11 am Post subject: Re: 1975 Interior Color? |
|
|
| btripp wrote: |
Hi Folks,
First post, and I know this is an old thread but it seemed like the right place.
I have an orange 1975 Westfalia Bay and I'm trying to figure out what the original interior upholstery colors would have been for restoration purposes. Most busses I've seen with the brilliant orange exterior also have the orange plaid interior. However, using the m plate decoder mine has the code for camping red. The beds in the bus have the orange plaid, but the front seats have been recovered, so I'm not sure if what's installed is original.
The color numbers on the m plate are 9226 and 09 (reads 922609). Export code is UK for what that's worth. I can try and post a picture later if that would help.
Just wondered what you guys thought, or for that matter what suggestions people might have about what would look good.
Thanks in advance!
-Ben |
The orange plaid would be the correct material. I believe "camping red" is just a generic term for all the plaid variations. Mine says the same thing.
Oh, and welcome to the forum! Maybe start a thread on your bus if you have the time. I'd love to see pictures!
_________________
1976 Westy
1966 Beetle |
|
| Back to top |
|
|
btripp
Samba Member
Joined: May 27, 2014
Posts: 25
|
| Posted: Wed Aug 20, 2014 10:59 am Post subject: 1975 Interior Color? |
|
|
Hi Folks,
First post, and I know this is an old thread but it seemed like the right place.
I have an orange 1975 Westfalia Bay and I'm trying to figure out what the original interior upholstery colors would have been for restoration purposes. Most busses I've seen with the brilliant orange exterior also have the orange plaid interior. However, using the m plate decoder mine has the code for camping red. The beds in the bus have the orange plaid, but the front seats have been recovered, so I'm not sure if what's installed is original.
The color numbers on the m plate are 9226 and 09 (reads 922609). Export code is UK for what that's worth. I can try and post a picture later if that would help.
Just wondered what you guys thought, or for that matter what suggestions people might have about what would look good.
Thanks in advance!
-Ben |
|
| Back to top |
|
|
pheall
Samba Member
Joined: January 11, 2009
Posts: 137
Location: Durango, CO
|
| Posted: Thu May 09, 2013 1:03 am Post subject: |
|
|
my 74 westy is ceylon beige and originally from iceland
_________________
1974 westy
2010 golf |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53049
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu May 02, 2013 6:40 pm Post subject: |
|
|
Any good body and paint shop will have (or have access to) a color matching camera, why trust a code mix from 40 years ago?, paint fades and formulas/materials change. Seems different manufacturers color chemists are colorblind in different ways as well, one brand's yellow won't look exactly like anothers.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
bugger101
Samba Member
Joined: September 04, 2010
Posts: 1558
Location: orlando
|
| Posted: Thu May 02, 2013 6:13 pm Post subject: |
|
|

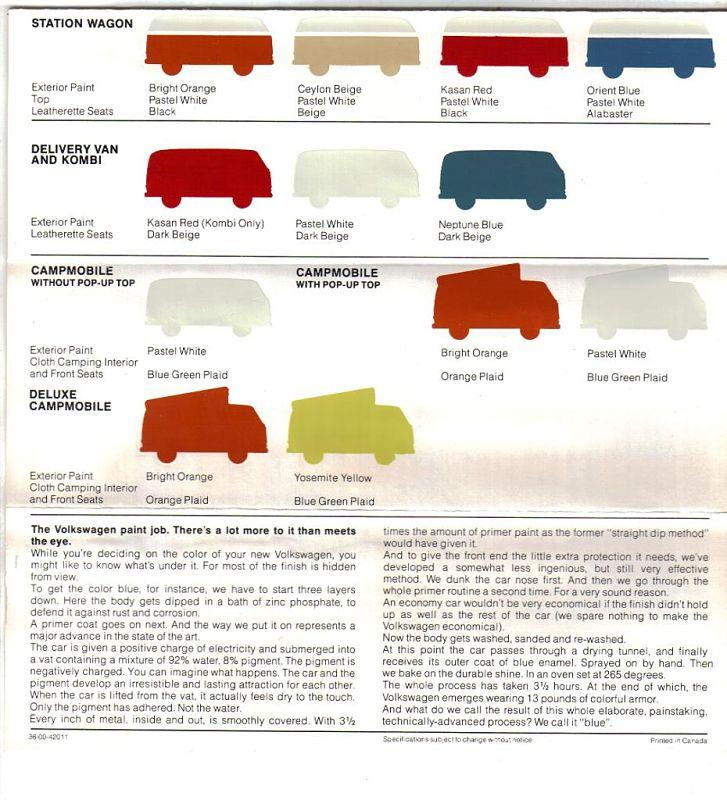

we need Pictures of the plate with the numbers on it but besides that it looks like. but I'm guessing it's Yosemite yellow. I can't enter the number's in the right spots so I cant tell you. here's a ppg color sheet that I scanned
_________________
75 west deluxe http://www.thesamba.com/vw/forum/viewtopic.php?p=5270450#5270450
2010 ford focus |
|
| Back to top |
|
|
rway36
Samba Member
Joined: July 30, 2007
Posts: 7
Location: SF Bay Area. CA
|
| Posted: Thu May 02, 2013 10:49 am Post subject: thanks |
|
|
Thanks for the help.
Curious....I will take this to an auto body paint shop, will they use a clear coat on this beside the color (Bali) I believe?
Also how do you instruct them about getting the right code for the mix? |
|
| Back to top |
|
|
Bala
Samba Member
Joined: December 04, 2003
Posts: 2637
Location: Austin, TX
|
|
| Back to top |
|
|
rway36
Samba Member
Joined: July 30, 2007
Posts: 7
Location: SF Bay Area. CA
|
| Posted: Thu May 02, 2013 10:06 am Post subject: photo |
|
|
| well I posted a photo in the gallery but can't figure out how to get it in this thread...... |
|
| Back to top |
|
|
rway36
Samba Member
Joined: July 30, 2007
Posts: 7
Location: SF Bay Area. CA
|
| Posted: Thu May 02, 2013 9:09 am Post subject: Bus Color |
|
|
I'll post a picture shortly.
I thought this number was the paint color and could be crossed referenced.
9546 |
|
