PostPosted: Thu Dec 08, 2016 1:06 pm    Post subject: 1800 dual carb project Reply with quote

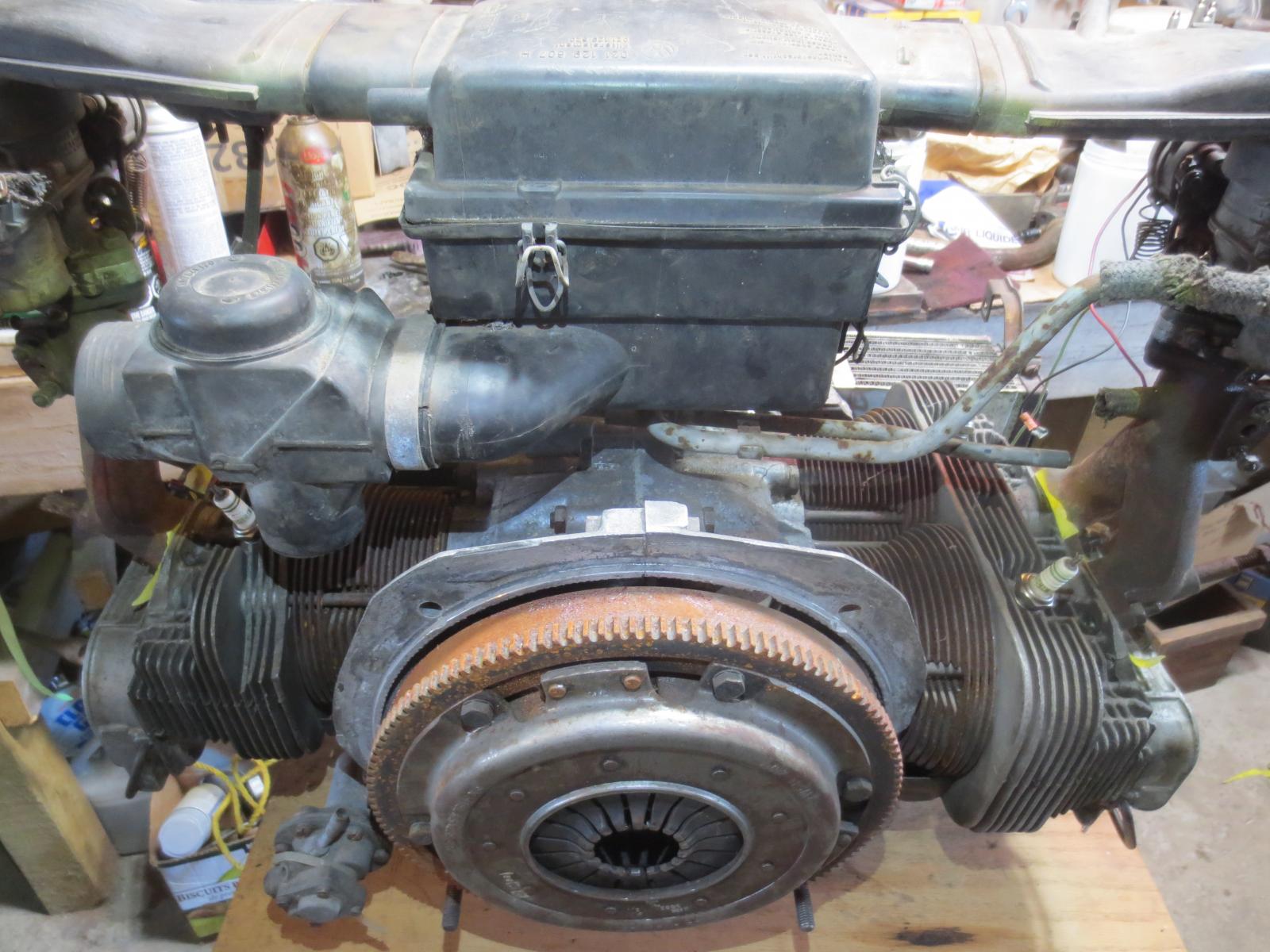

Starter looking this over,hoping to have it running and installed for next season,it came in Ethel and I never heard it running,po said he ran it for the first year that he owned it which was about 6 years ago and when I got it he had been trying to start it,said it may be a carb problem.

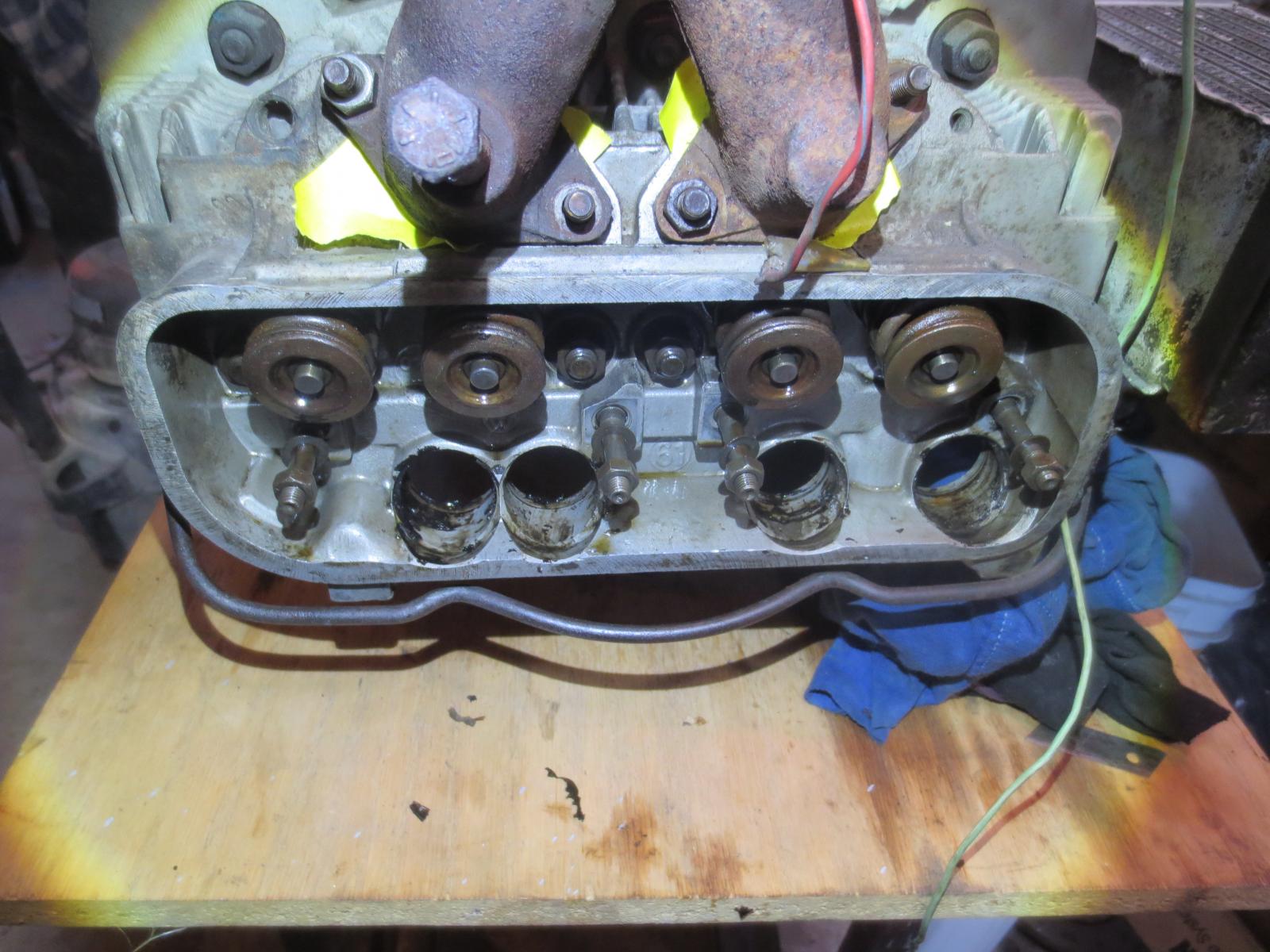

It has heads from a 79 on it and had a center mount carb.The parts bus I have came with a set solex dual carbs,manifolds,cis pipe and throttle linkage.So now I'm going to piece it all together and see what I need.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Tue Dec 20, 2016 12:20 pm    Post subject: Re: 1800 dual carb project Reply with quote

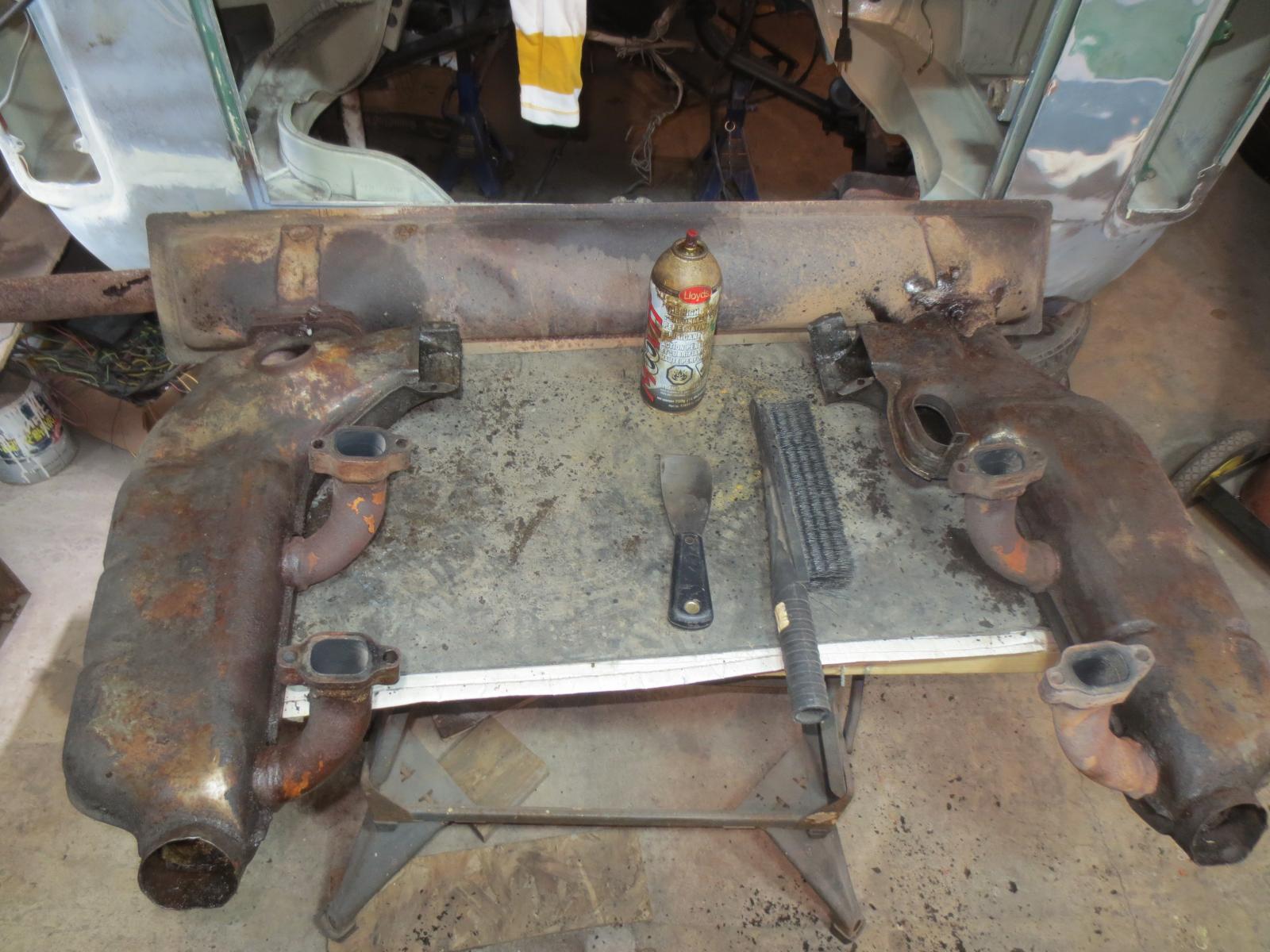

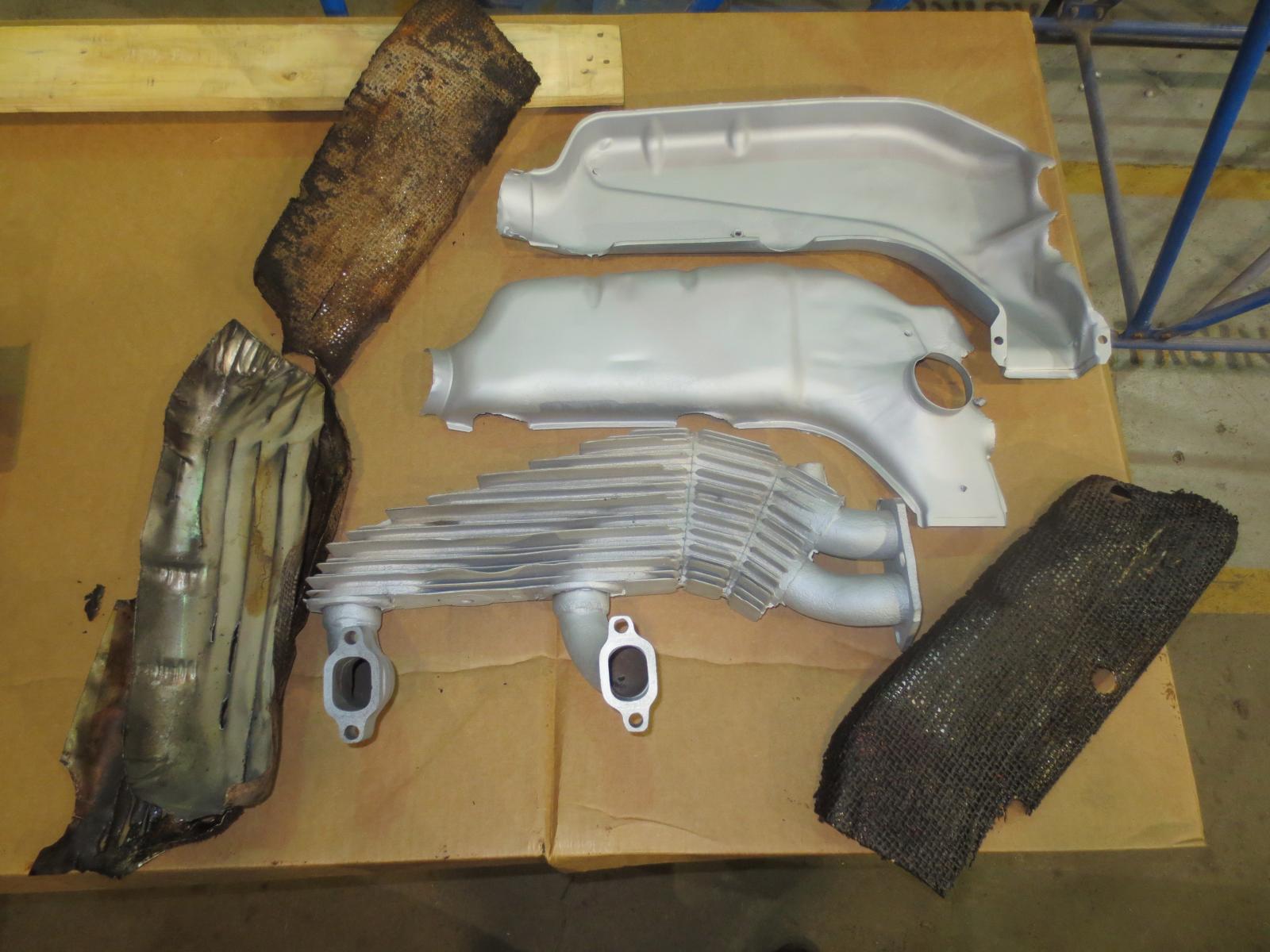

Took the heat exchanges apart,sand blasted them and gave them a coat of hi heat paint,they where a mess filled with dry crusty oil,I disposed of the insulation that was in them and will probably use some thermal zero stuff as samba member Clatter used [loved his junk build on stf,will be revisiting it often].I have some welding to do on the covers,the metal in the covers is very stiff was hard bending back the crimp to get them apart probably be hard to weld also.
Image may have been reduced in size. Click image to view fullscreen.

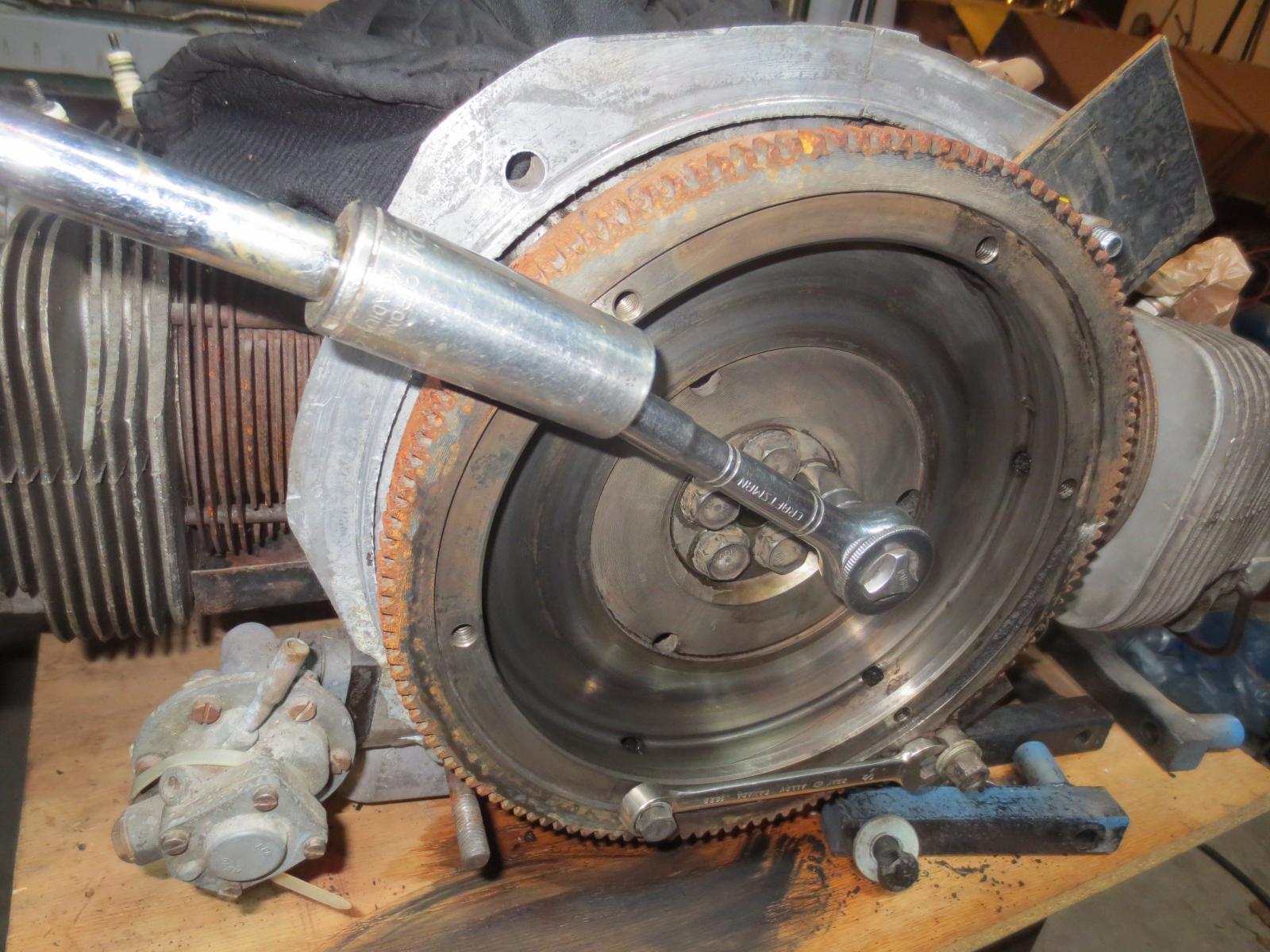

Checked crank end play, .008 thousands and removed the clutch and flywheel and seal,did not see any bearing movement,but will read up some more on checking it to be sure.hoping to just set end play with shims.don't want to open the case at this time.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

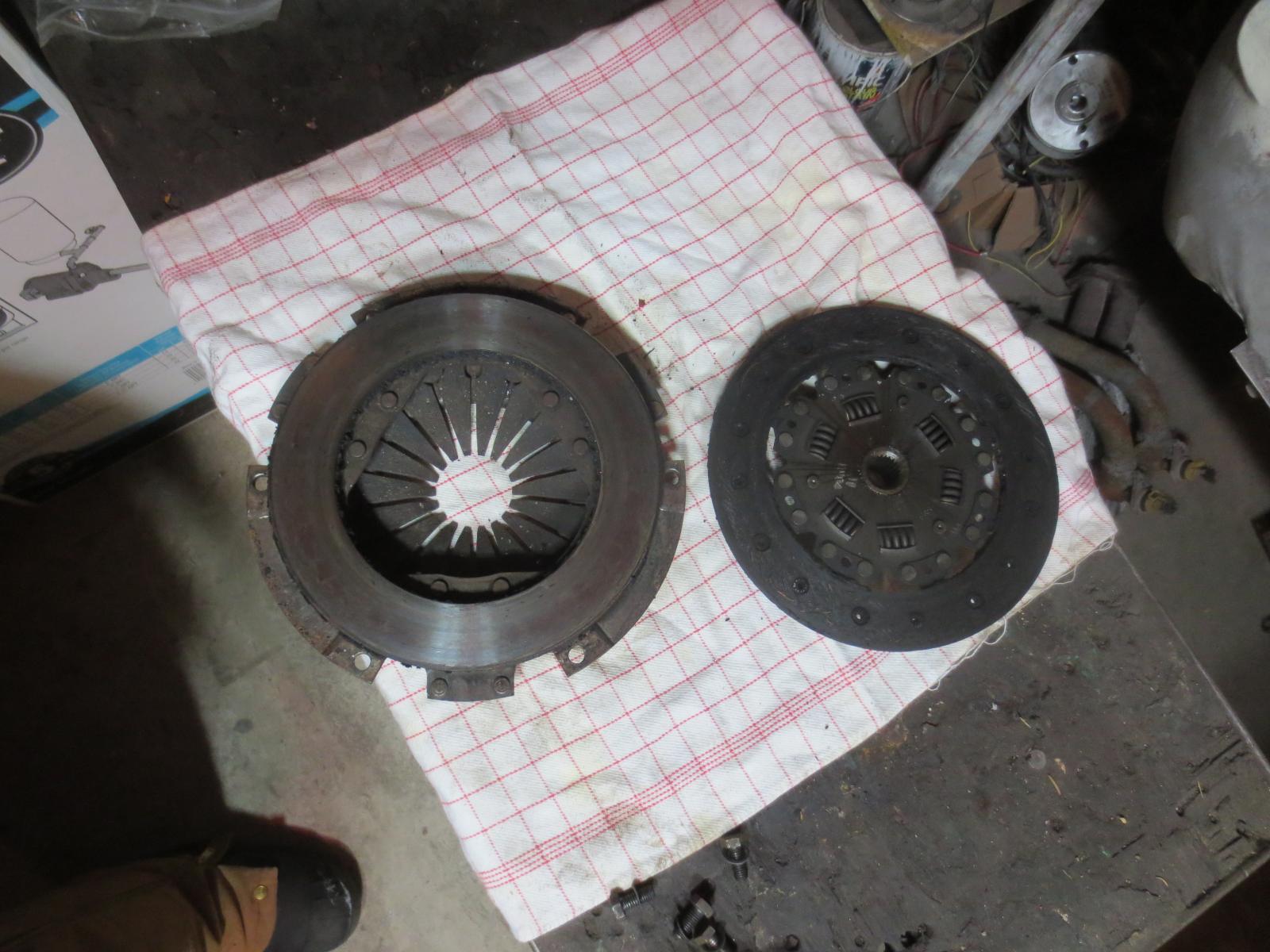

MY clutch disc is worn down,just started to wear the rivets on one side of the disc,I'll have to get another disc,priced a new clutch kit,disc,PP and throw out bearing less then $250.so that's the route I'll probably take.







Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.


Last edited by lil-jinx on Thu Dec 22, 2016 12:52 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 7334
Location: Oregon Coast
Danwvw is offline

PostPosted: Tue Dec 20, 2016 12:51 pm    Post subject: Re: 1800 dual carb project Reply with quote

Won't the high heat paint bake off and smell bad?
_________________
1971 VW Sundial Camper:
Build Sheet: Type 1 1679cc & W-100 Cam, Type1 1800cc's Webcam 118 and 1.25:1 Rockers, Type 1 1800cc with Webcam 163 my current daily driver.
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Tue Dec 20, 2016 1:43 pm    Post subject: Re: 1800 dual carb project Reply with quote

The paint is advertized to 1200F degrees,and needs 400 degrees to fully cure,I painted my buggy exhaust with it and ran it this summer with no burn off,so I don't think there will be any problem.time will tell.I have painted other things with it and put it in a 400 degree oven and it was ok,[wife was at work when i used her oven,safety first.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 7334
Location: Oregon Coast
Danwvw is offline

PostPosted: Tue Dec 20, 2016 8:34 pm    Post subject: Re: 1800 dual carb project Reply with quote

Lets hope it works out well for sure that aluminum heat exchanger can use the paint to protect it from oxidation. Looks nice.
_________________
1971 VW Sundial Camper:
Build Sheet: Type 1 1679cc & W-100 Cam, Type1 1800cc's Webcam 118 and 1.25:1 Rockers, Type 1 1800cc with Webcam 163 my current daily driver.
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Tue Dec 20, 2016 8:53 pm    Post subject: Re: 1800 dual carb project Reply with quote

Thanks,I didn't paint the aluminum,just cleaned it in the blaster,The outer jacket should not get any hotter then the air passing thru it and if that get to 400 degrees then I have worst problems then the smell of paint.

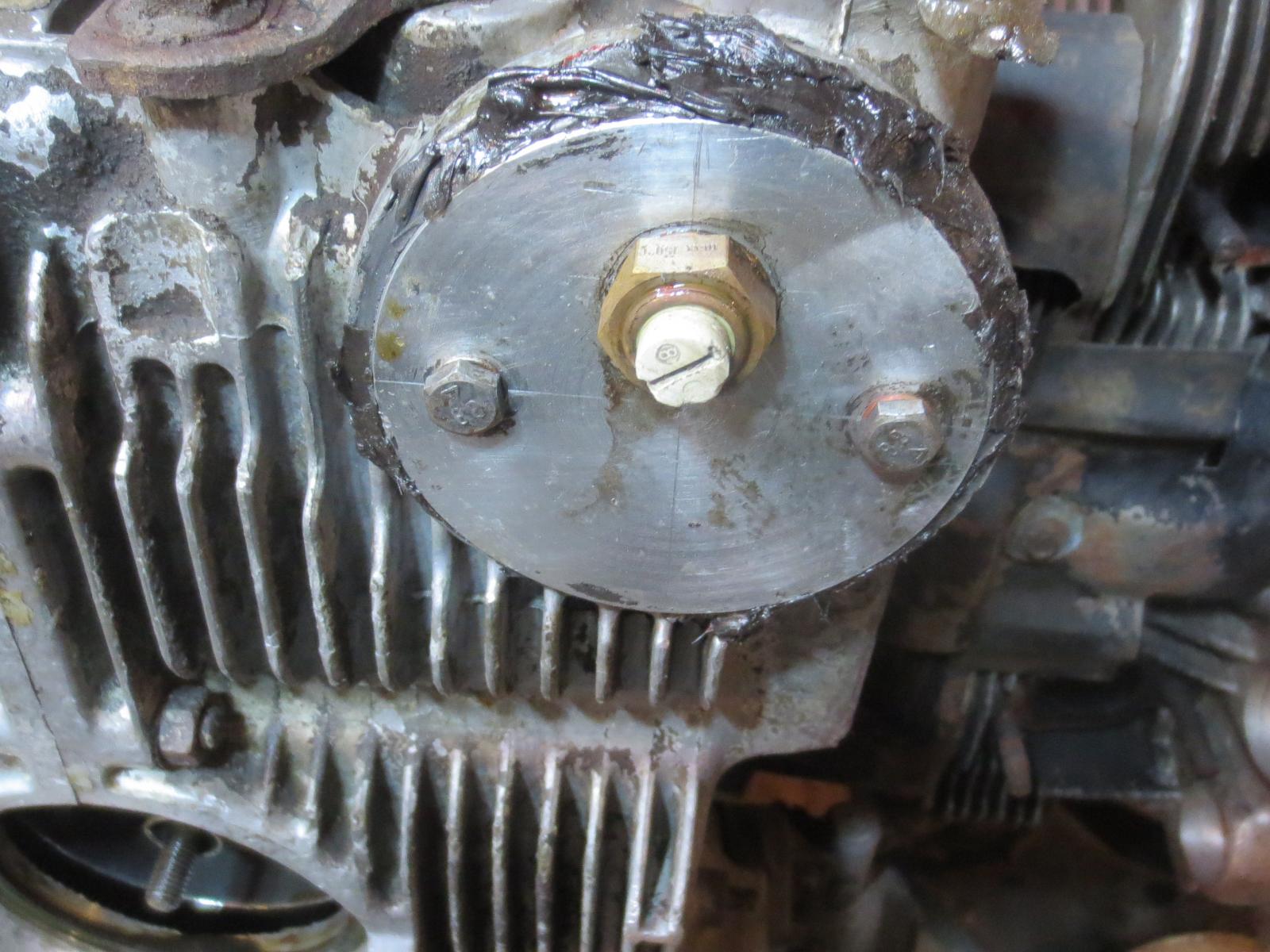

Was happy to see that the strainer bolt was tight,think that means that the case is not cracked.then the small cover looks like trouble it was leaking around the sender,which was floppy loose but i think it was sealed around the case.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.


Last edited by lil-jinx on Tue Dec 20, 2016 9:09 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Danwvw
Samba Member


Joined: July 31, 2012
Posts: 7334
Location: Oregon Coast
Danwvw is offline

PostPosted: Tue Dec 20, 2016 8:58 pm    Post subject: Re: 1800 dual carb project Reply with quote

Perfect! Yeah, Cleaned up nice.
_________________
1971 VW Sundial Camper:
Build Sheet: Type 1 1679cc & W-100 Cam, Type1 1800cc's Webcam 118 and 1.25:1 Rockers, Type 1 1800cc with Webcam 163 my current daily driver.
Back to top
View user's profile Send private message Send e-mail Facebook Twitter Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Wed Mar 01, 2017 6:50 pm    Post subject: Re: 1800 dual carb project Reply with quote

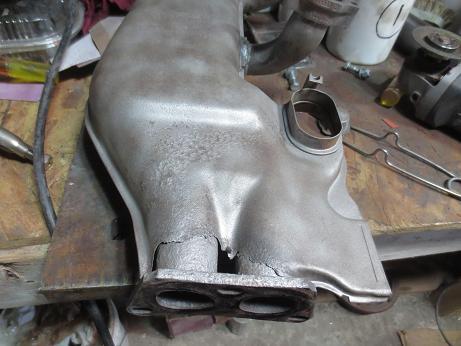

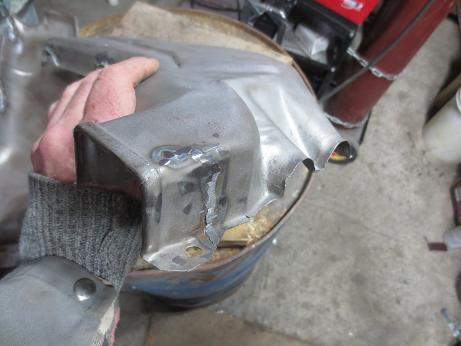

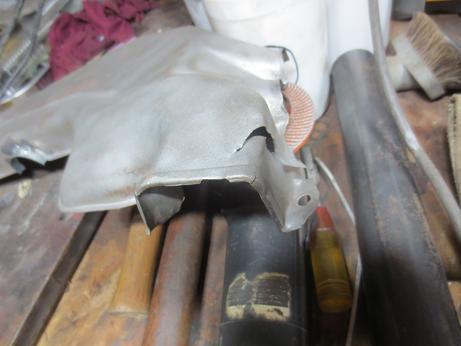

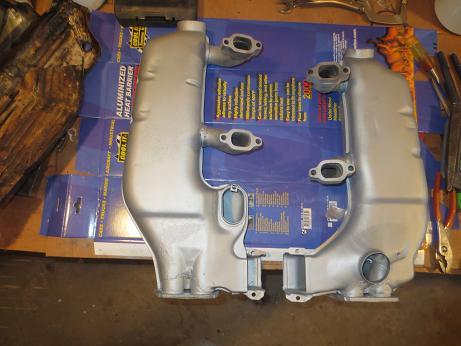

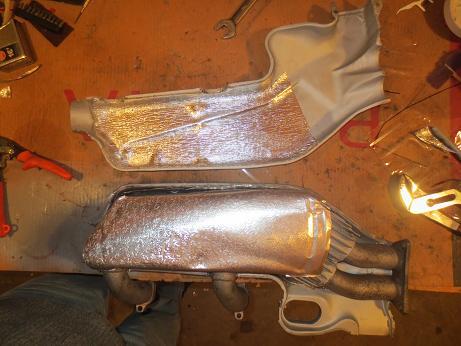

Did a bit of playing with the heat exchanger,it had a bit or rust at the usual places and needed the innards cleaned up.I got the cracks welded up and replaced the rusted areas.I used sticky heat shield and dollar store aluminum trays to replace the innards.A few tack welds and a coat of paint and I'll call this one done.Had a bit of a fight getting it to snap together,I'll leave the welding clamp on until i get a tack on it.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
pittwagen
Samba Member


Joined: November 08, 2005
Posts: 614
Location: North of the 49th parallel
pittwagen is offline

PostPosted: Wed Mar 01, 2017 9:30 pm    Post subject: Re: 1800 dual carb project Reply with quote

I wonder how close the 79 heat exchanger (piping and fins) less the outer tin is to the 80-82 Vanagon item.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Wed Mar 08, 2017 1:49 pm    Post subject: Re: 1800 dual carb project Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
60vwnewengland
Twin #2


Joined: June 25, 2003
Posts: 1454
Location: District of Columbia
60vwnewengland is offline

PostPosted: Thu Mar 09, 2017 5:31 am    Post subject: Re: 1800 dual carb project Reply with quote

Very nice! Keep going!
_________________
75 Safari High Roof - aka: Tub Bus
LLAP
Back to top
View user's profile Send private message Send e-mail Facebook Instagram Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Wed Apr 05, 2017 2:20 pm    Post subject: Re: 1800 dual carb project Reply with quote

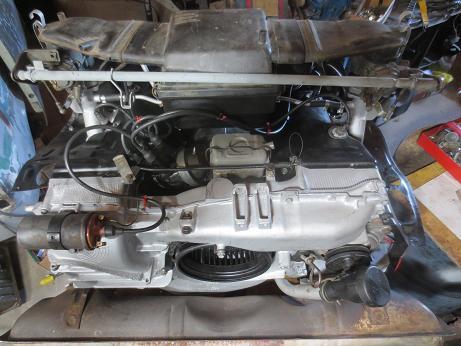

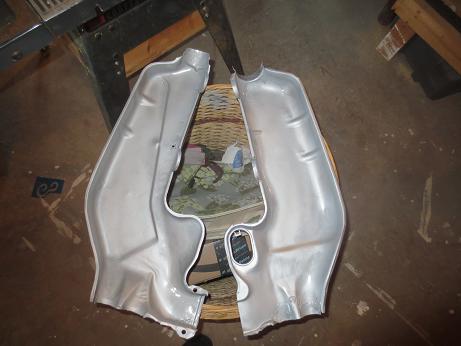

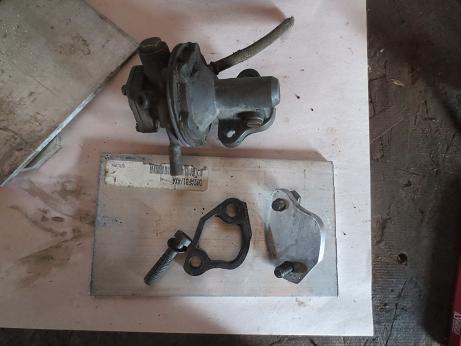

Got my tins repaired and painted,made a fuel pump block off plate and now starting to put it back together,when putting the cooling flaps on the right side don't seem to close properly,it's hitting the little nob and don't close all the way,I can't move it to the left because of the way it fits in the plastic bushings is this the way it should be or do I have to shorten the rod by bending it at the double bends that are in the rod.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Nelson
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
asiab3
Air-Schooled


Joined: April 04, 2012
Posts: 8972
Location: On Tour!
asiab3 is offline

PostPosted: Wed Apr 05, 2017 2:47 pm    Post subject: Re: 1800 dual carb project Reply with quote

lil-jinx wrote:
Got my tins repaired and painted,made a fuel pump block off plate and now starting to put it back together


Image may have been reduced in size. Click image to view fullscreen.



Make sure you find a way to leave the fuel pump push-rod in the engine, even if it means shortening it a cm or so to clear the block-off plate. There is an oil passage that is blocked by the rod that will lose precious oil pressure if you remove the rod permanently.

Good luck!
Robbie
_________________
www.airschooled.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Wed Apr 05, 2017 4:41 pm    Post subject: Re: 1800 dual carb project Reply with quote

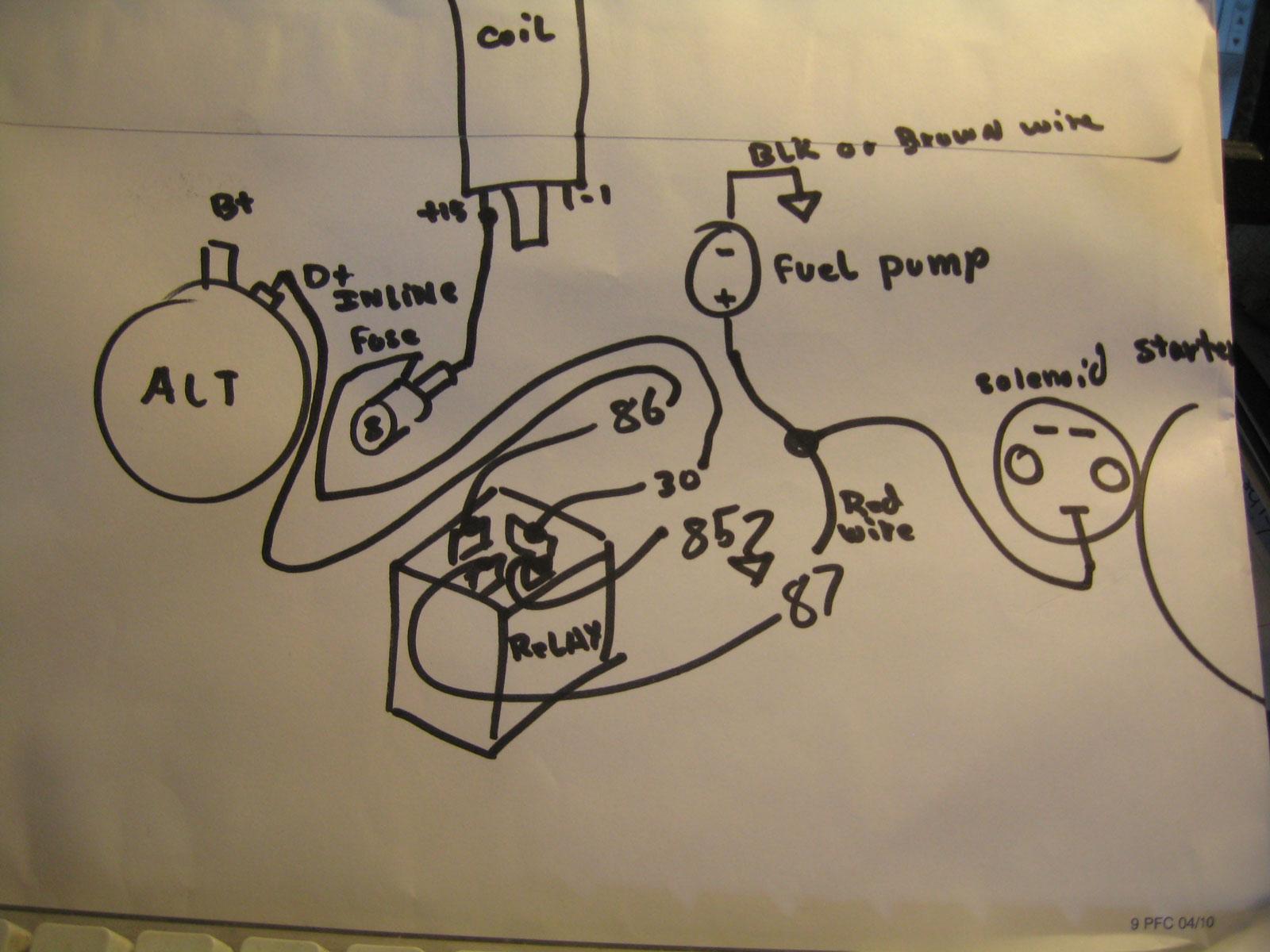

The rod was missing from this engine,had a electric pump, the mechanical pump was left in place with the rod removed,I had another case with the rod shortened so i use that,I gave it a few taps where in enters the guide to flatten it a little so it would not go in against the cam and just lightly tapped it in so it won't move around.
The plastic spacer was split on the pump,just one of many leaks that I'm hoping to fix.
Thanks:Nelson
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Thu Apr 06, 2017 8:18 am    Post subject: Re: 1800 dual carb project Reply with quote

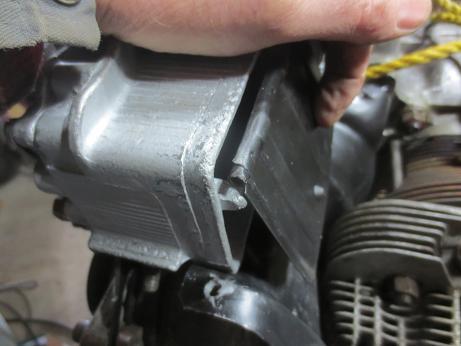

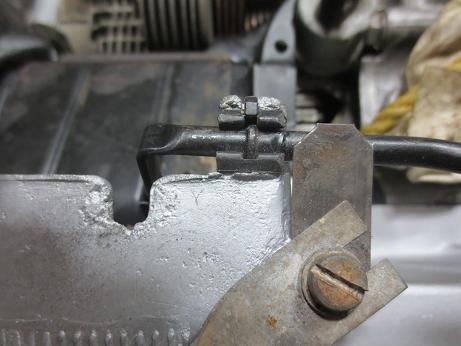

Found the answer to to right flap,it is not supposed to close completely the little nod holds it open a little.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
SamboSamba22
Samba Member


Joined: August 06, 2015
Posts: 1690
Location: Little Rock, Arkansas
SamboSamba22 is offline

PostPosted: Wed Apr 19, 2017 7:23 am    Post subject: Re: 1800 dual carb project Reply with quote

Keep playing around, this well tell me how I SHOULD have done my motor rebuild Laughing
_________________
Invention is the tool of the adventurer - Jacques Cousteau
Sinning led me to become a saint, which I then learned I wasn't qualified. -Samuel Heath Belcher

2017 Golf GTI
1974 Brilliant Orange Westfalia Deluxe
1965 Ruby Red Standard Beetle - SOLD
1959 Dove Blue Single Cab
ISO Rebuild kit APG Fuel Pump (Type 4/72-74
Bus)
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
jtauxe
Samba Member


Joined: September 30, 2004
Posts: 4885
Location: Los Alamos, New Mexico
jtauxe is offline

PostPosted: Wed Apr 19, 2017 7:29 am    Post subject: Re: 1800 dual carb project Reply with quote

When putting that flywheel back on, don't forget the special graphite-impregnated O-ring on the inner side of the flywheel, and be sure to use new flywheel bolts and new special 5-hole washer.
_________________
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof
, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner
1974 Westfalia parts bus, 1975 Mexican single cab, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Wed Apr 19, 2017 10:29 am    Post subject: Re: 1800 dual carb project Reply with quote

This is any thing but a rebuild,more like a training engine,It has .007 crank end play,of which .003 is in the thrust bearing,there are fins broken off the heads and cylinders,the PO had installed a set of 79 heads,pretty sure that nothing was measured or checked at that time,It had a single progressive carb,I am installing dual carbs that was in my parts bus.I have another good case which I may rebuild,but for now what I have will do,[if it runs]
I replaced the front and read seals,new fly wheel o-ring and pulley hub o-ring push rod tubes and cooler seals,plus gaskets.It was covered with oil when I got it.
New fly wheel o-ring and washer,I reused the old bolts,and torqued them.I am trying to get it running so I can move it around,maybe some limited use.

Image may have been reduced in size. Click image to view fullscreen.

_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Thu Apr 20, 2017 7:54 am    Post subject: Re: 1800 dual carb project Reply with quote

Fuel pump wiring
https://www.thesamba.com/vw/gallery/pix/1249586.jpg

I got this from another post,Thanks Danwvw,it is wiring for an electric fuel pump,I read it as the pump gets power from the starter when starter is cranking and power from alt D+, when engine is running and alternator is charging,closes relay circuit to provide power to the pump.When engine quits the alt stops charging and the pump stops pumping.Correct me if that's wrong.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
lil-jinx Premium Member
Samba Member


Joined: August 14, 2013
Posts: 1036
Location: New Brunswick,Canada
lil-jinx is offline

PostPosted: Thu May 11, 2017 11:08 am    Post subject: Re: 1800 dual carb project Reply with quote

Got the engine running,first time I seen it run,
https://www.youtube.com/watch?v=SQwcr5R8GAU&t=4s[url][/url]
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=620186
https://www.thesamba.com/vw/forum/viewtopic.php?t=668799
1974 Bay Westfalia. she likes to be called Ethel.
1968 Dune Buggy
1974 parts bus
A smart man learns from his mistakes,a very smart man learns from other's mistakes.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
