 Posted: Today 9:30 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
 |
|
Ah! I found a couple of photos of the VW dealership special service tool that I have that a technician would use to install a tamper evident lead & wire seal onto the closed-up cover of a Transporter "speed limiter" (governor) and then he would crush the new lead seal and impress a VW logo into the lead seal.

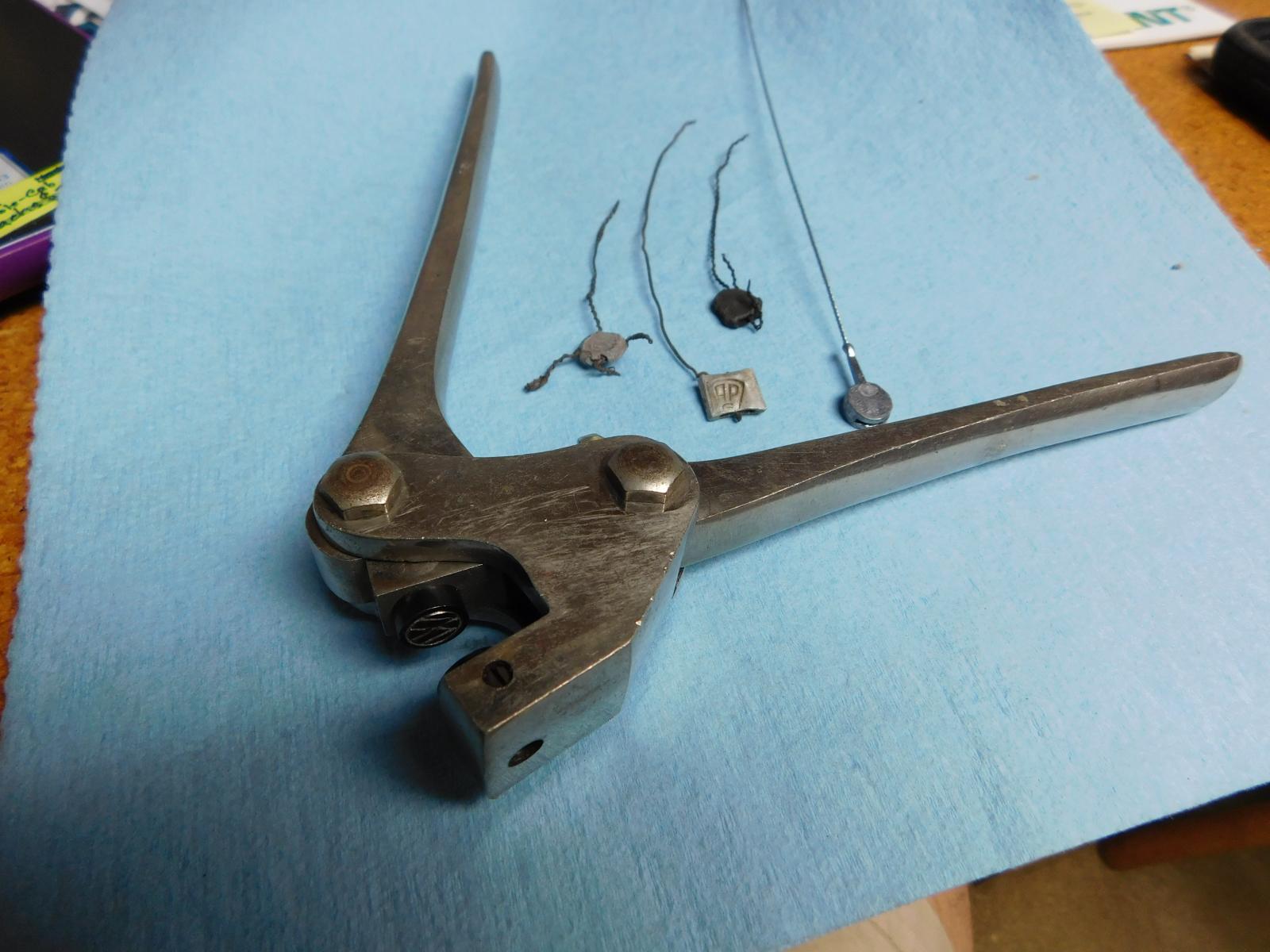

before: three old used and removed seals on the left, and a new ready-to-go lead and wire seal on the right.

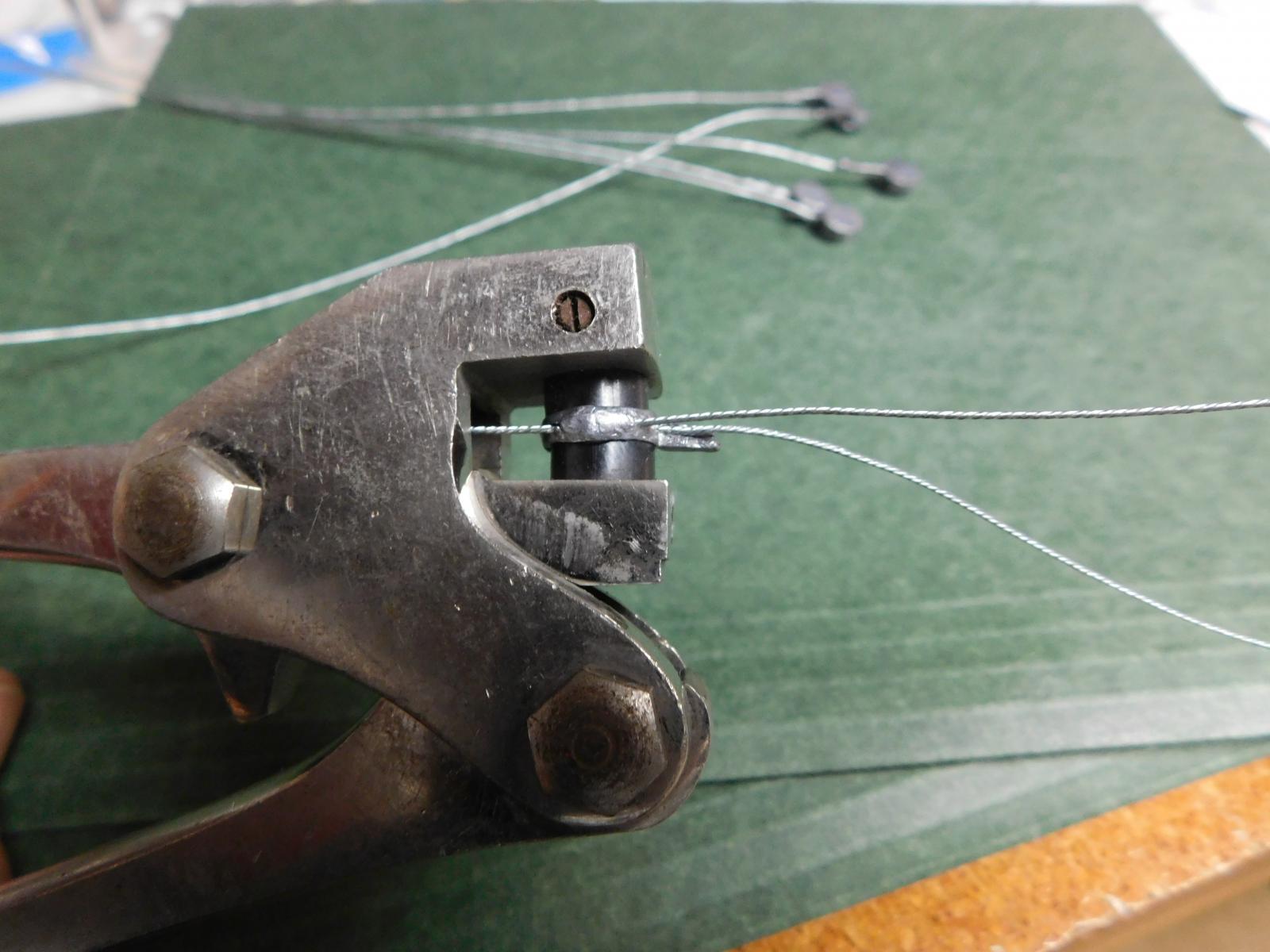

during: the special service too with VW logo dies crushing the seal.

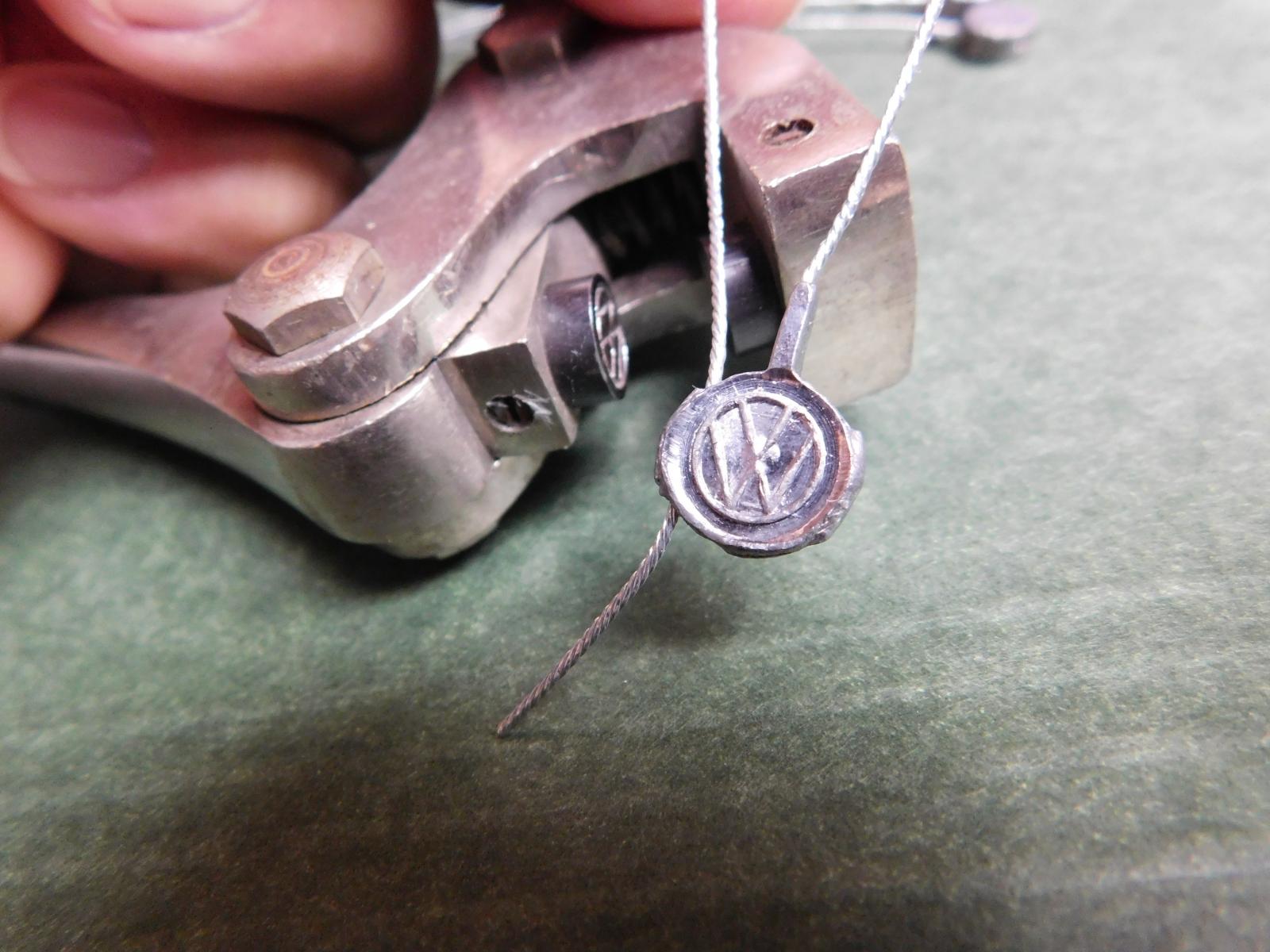

after: the the wire and seal are locked and the VW logo is impressed into the seal.
Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
 |
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6677
Location: Pentwater, Michigan
|
| Posted: Tue Jun 10, 2025 6:08 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
It all depends upon the part being discussed too. For example the ending letter suffix in the VW part number of distributors tells us what carburetor to match distributor too. It had nothing to do with molds or production date.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1230
Location: P.O.
|
| Posted: Tue Jun 10, 2025 12:56 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
That's the kind of fact about productionwork that would clear up many mysteries; as a hisory major decades ago, I dug around to see if there were interviews w/ Hanover and Wolfsburg workers, and there are... in German, of course! Also, many were about labor relations and societal issues as opposed to 'what was it like drilling holes for truckbed slats?'
Imagine what this guy could tell us?
besides '...the abyss stares back,' I mean.
Still, it would be nice if someone in Germany dug up what there was and put together a book about these things. I'd settle for a thesis paper!
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3375
Location: SoCal
|
| Posted: Tue Jun 10, 2025 12:46 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| Eric&Barb wrote: |
| srfndoc wrote: |
Anyone know what the numbers after '701G' represent? Maybe month of production? I have two bus 701G intakes and one has a 7 after the G and another has 11 after the G. |
Would guess the last number after the part number is the positive mold casting number, due to mass quantity production, so required many rather than only one mold. So when the parts got to quality control and a problem occurred with one of the molds they could instantly say that mold #X needed to be looked at and possibly to be repaired or outright replaced. |
That makes sense, thanks!
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6677
Location: Pentwater, Michigan
|
| Posted: Tue Jun 10, 2025 12:45 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
That sounds right to me. A date code would have more digits.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25800
Location: Olympia Wash Rinse & Repeat
|
| Posted: Tue Jun 10, 2025 12:31 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| srfndoc wrote: |
Anyone know what the numbers after '701G' represent? Maybe month of production? I have two bus 701G intakes and one has a 7 after the G and another has 11 after the G. |
Would guess the last number after the part number is the positive mold casting number, due to mass quantity production, so required many rather than only one mold. So when the parts got to quality control and a problem occurred with one of the molds they could instantly say that mold #X needed to be looked at and possibly to be repaired or outright replaced.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1230
Location: P.O.
|
| Posted: Tue Jun 10, 2025 9:56 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
The example Everett posted has a '10'
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3375
Location: SoCal
|
| Posted: Tue Jun 10, 2025 8:49 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
Anyone know what the numbers after '701G' represent? Maybe month of production? I have two bus 701G intakes and one has a 7 after the G and another has 11 after the G.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4745
Location: St Charles, MO
|
| Posted: Tue Jun 10, 2025 8:43 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
Hi all,
I kinda suspect that one of the main reasons for these "speed limiter" devices was to keep the engines in work Transporters alive a lot longer. Workers who didn't care to treasure or protect their employers work truck that the employee drove around might ocassionally (or even always) drive them abusively. To keep repairs and engine rebuilds down, "speed limiter" equipped engines could be set by either the employer or at the VW dealership to prevent over-reving. They could be sealed with a tamper-evident wire with lead seal.
I even have a special service dealership tool in my collection that was used by dealership mechanics to crush the lead seal on the wire while at the same time impressing a cool VW logo into the lead seal! This made it evident if anyone tampered with the speed limiter rpm settings...
I'm pretty sure I remember writing a whole article in my "Transporter Talk" Hot VWs article days all about these "speed limiters" if someone needs more info...
Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1230
Location: P.O.
|
|
| Back to top |
|
|
matthew henricks
Samba Member
Joined: January 02, 2002
Posts: 1320
Location: So. Cal
|
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6677
Location: Pentwater, Michigan
|
| Posted: Sun Jun 08, 2025 3:25 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
The carburetor brace was only a feature of 36 hp engines. 40 hp onwards did not have a brace. Wether the Bus had a governor or not isn’t relevant. The brace may have been needed due the small size of the intake manifold. While on the topic; if the 36 hp engine had a governor the brace was shorter than the usual: making it quite rare.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1230
Location: P.O.
|
| Posted: Sat Jun 07, 2025 9:30 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
Before I go install the one I have on my 1679... do the 1500 governors need a support bracket like the 36hp do?
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
MoneyMike
Samba Member
Joined: September 16, 2003
Posts: 416
Location: West Cochina!
|
| Posted: Tue May 22, 2018 8:50 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71360
Location: Phoenix 602
|
| Posted: Mon Oct 02, 2017 3:35 pm Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| BarryL wrote: |
| EverettB wrote: |
| I think it might only be a metal cylinder? |
So no gasket where it has the body rivets?
Anyway I bet it would be hard to get the icky carb-dip out if it got in the chamber. |
I don't see anything there on the ones I looked at.

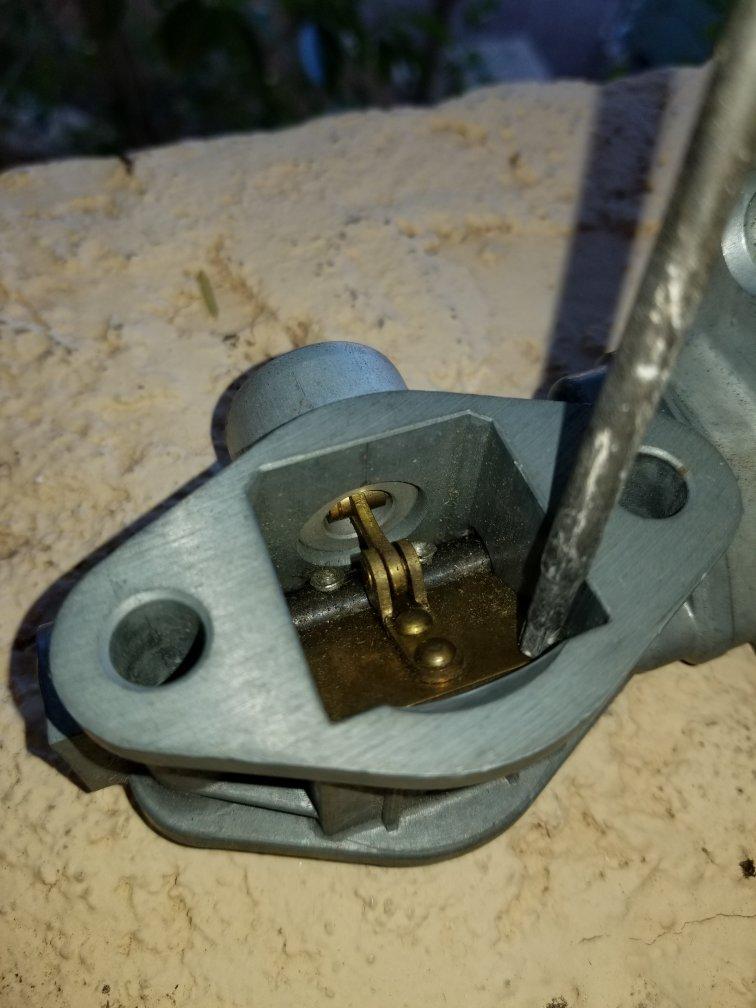

I have one that has the cap loose, here's what it looks like with the cap removed:
It's had the entire valve removed too
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Gwdghiaguy
Samba Member
Joined: December 06, 2013
Posts: 340
Location: Greenwood, SC
|
| Posted: Mon Oct 02, 2017 9:39 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| EverettB wrote: |
I was wondering if there is a seal in there too.
A seal could get damaged by carb. cleaner
I think it might only be a metal cylinder?
|
I think I'll just put the cover back on and scrub it by hand. Thanks for everyone's input. byron
_________________
1957 Oval Window
1963 Alabama Camper Bus
1971 Ghia
1971 Baywindow Bus
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15094
Location: Casa de Oro, California
|
| Posted: Mon Oct 02, 2017 9:22 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| EverettB wrote: |
| I think it might only be a metal cylinder? |
So no gasket where it has the body rivets?
Anyway I bet it would be hard to get the icky carb-dip out if it got in the chamber. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71360
Location: Phoenix 602
|
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15094
Location: Casa de Oro, California
|
| Posted: Mon Oct 02, 2017 8:55 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
| Gwdghiaguy wrote: |
| any reason |
It looks too clean to dip in the gnarly cleaner stuff. One reason not to dip it would be that there is a permanently sealed chamber with the piston in it that can get its seal eaten by the cleaner. |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6677
Location: Pentwater, Michigan
|
| Posted: Mon Oct 02, 2017 8:50 am Post subject: Re: Yee Haw, got my governor working/adjusted! *Video!* |
|
|
Go ahead, there's nothing that can be hurt by a brief dunk. Make sure you relubricate, of course. It's good practice to reseal the cover too, so that its air tight.
