 Posted: Fri Jan 15, 2016 9:19 pm Post subject: Re: Double Cab rear seat base hardware |
 |
|

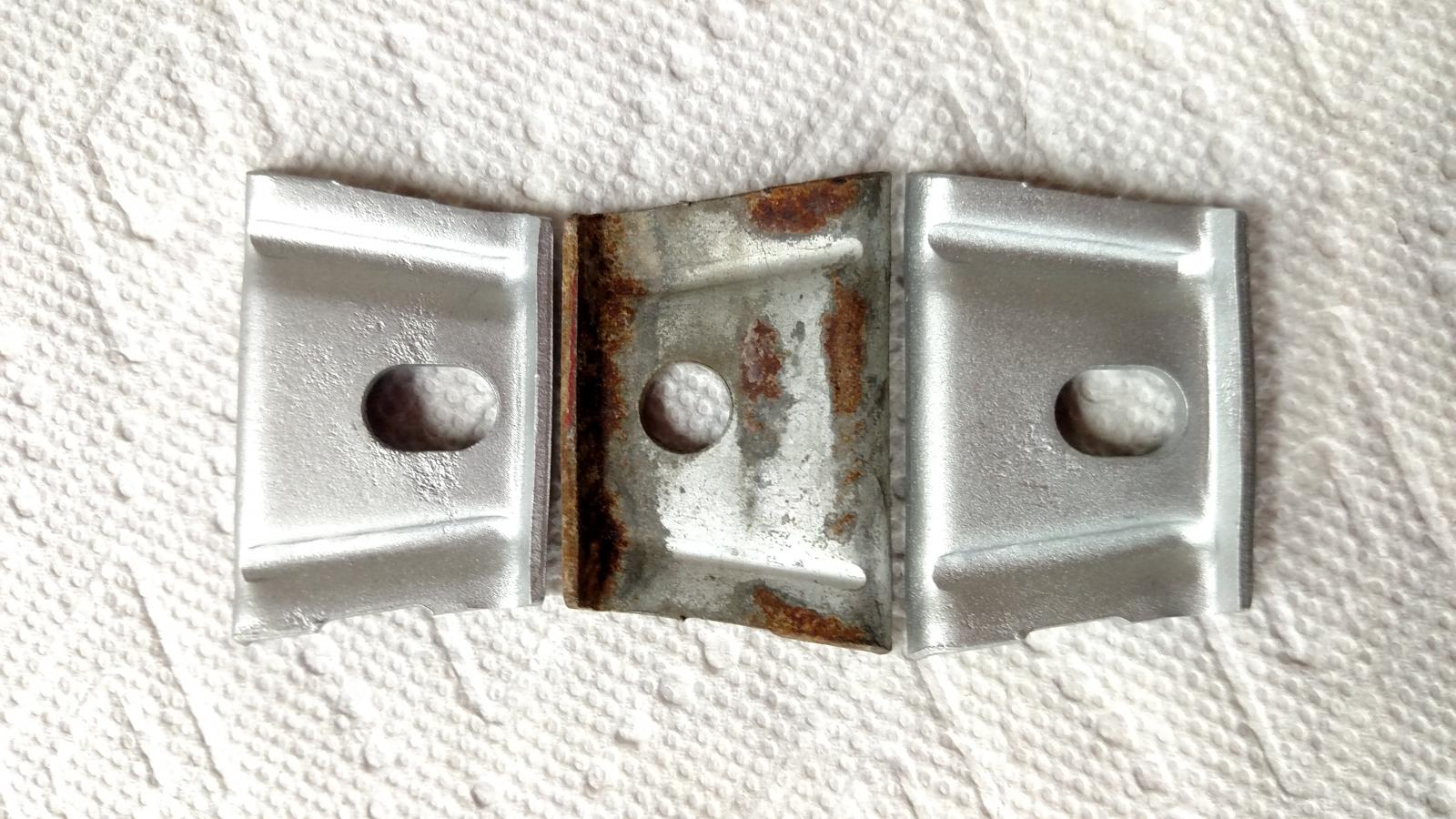

I've gathered what I think is the correct hardware for the rear seat base for my 1963 DC. The hold downs are identical to fuel tank hold downs except for the hole.

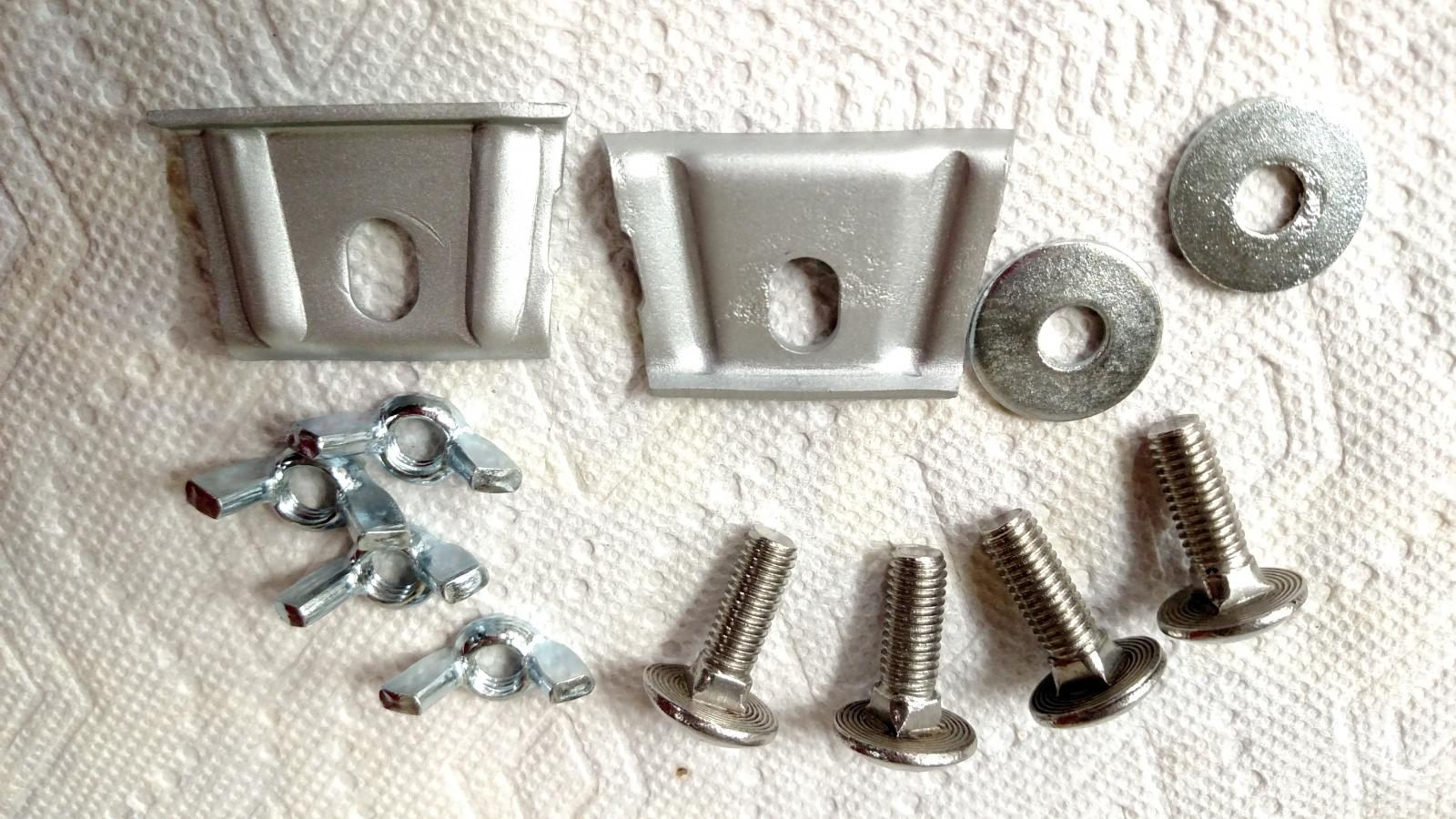

The washers that were on the bus when we got it are DIN 9021 fender washers. I wonder if there is a lock washer or spring washer too?
As was mentioned, the bolts are M8 x 25.

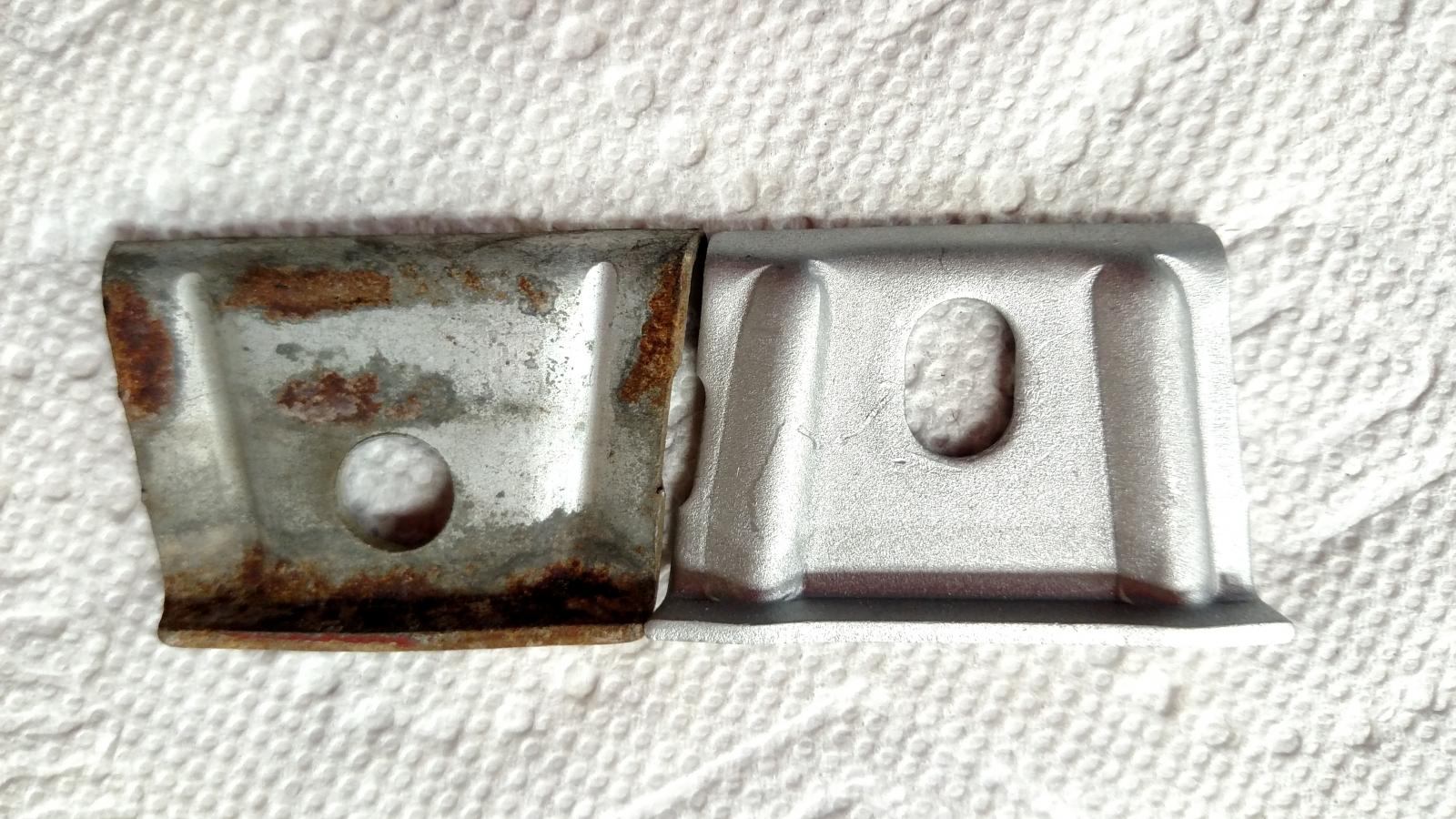

Comparison of the DC hold downs versus a fuel tank hold down
|
|
| Back to top |
|
|
Matthew Tolbert
Samba Member
Joined: March 27, 2004
Posts: 707
Location: Georgia
|
| Posted: Mon Jan 04, 2016 9:48 am Post subject: Re: Double Cab rear seat base hardware |
|
|
M8x25. Bolts are measured from the bottom of the head to the end.
_________________
Matthew Tolbert
1958 ragtop
1961 doublecab
1965 Notchback S |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71823
Location: Phoenix 602
|
|
| Back to top |
|
|
VWLady
Crazy VW Lady
Joined: March 13, 2004
Posts: 3865
Location: Twin Cities, MN
|
| Posted: Sun Jan 03, 2016 9:07 pm Post subject: Re: Double Cab rear seat base hardware |
|
|
How long are the carriage bolts for a 1963 seat base? M8 x ???

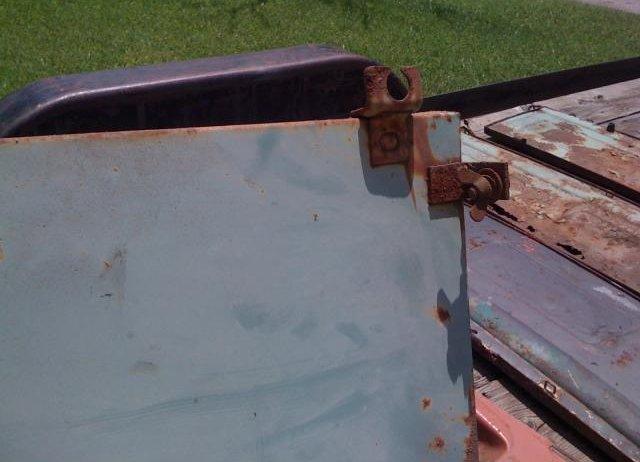

The one in this picture:
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71823
Location: Phoenix 602
|
|
| Back to top |
|
|
67ghiaTIV
Samba Member
Joined: January 18, 2004
Posts: 97
|
| Posted: Sun Sep 09, 2012 1:58 pm Post subject: |
|
|
Can someone reload these pics showing how the pedestal is mounted. I am trying to remount my rear seat pedestal like it was originally.
Jamie |
|
| Back to top |
|
|
Mikee
Samba A.D.D. Boy
Joined: March 22, 2004
Posts: 3514
Location: Puyallup WA
|
| Posted: Tue Jan 01, 2008 1:45 pm Post subject: |
|
|
most interesting, looks like it folds easy for more cargo room
_________________
| localboymark wrote: |
| One man's "patina" is another man's cancer. |
| bugnut68 wrote: |
| I would have kicked the guy right in the dick, balls, ass and face and destroyed his weed. Hippies suck. |
|
|
| Back to top |
|
|
Hebster52
Samba Member
Joined: March 14, 2003
Posts: 1922
Location: Finland, Jakobstad
|
| Posted: Tue Jan 01, 2008 1:31 pm Post subject: |
|
|
| Mikee wrote: |
| Hebster52 wrote: |
Hmm.. We dont have that fancy rear seats in the Double Cabs here in Finland...
Due to some strange tax thing the DC's imported to Finland had to have a so called " temporary bench"... Not any thing like the frames posted above... Just a hinged plywood bench with some vinyl cover...  |
I wanna see a pic |

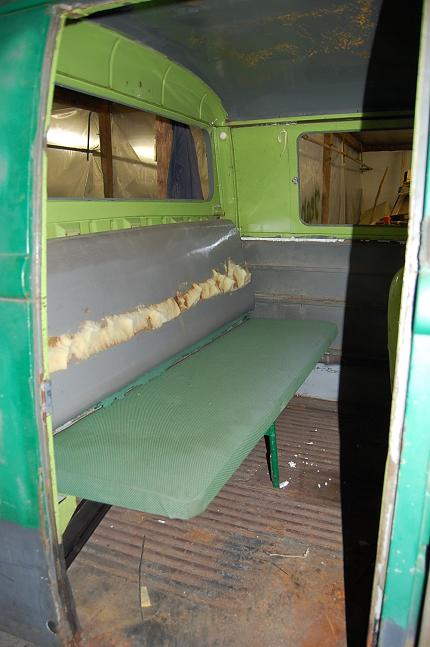

Ok. So here's a few pics:
(The yellow is just foam that the previous owner had glued to the original Vinyl when he had "reupholstered" the seats with the horrific green cloth seen on the seat... )

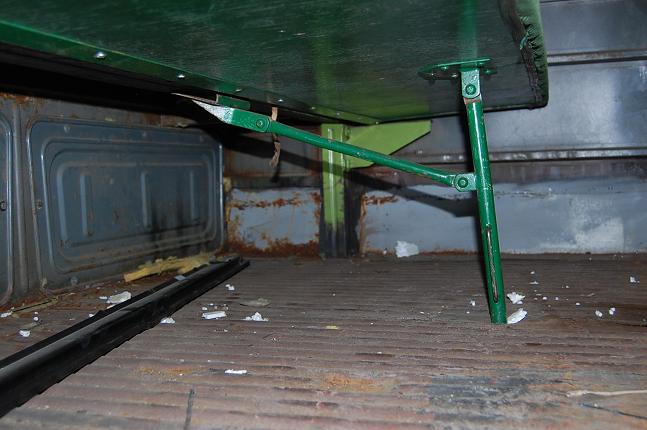

Here's how they look like under the seat:
