Double cab rear seat information
Breakdown of year changes:
58 Binz Double Cab
59 Binz Double Cab
59/early 60
late 60/63
64/67

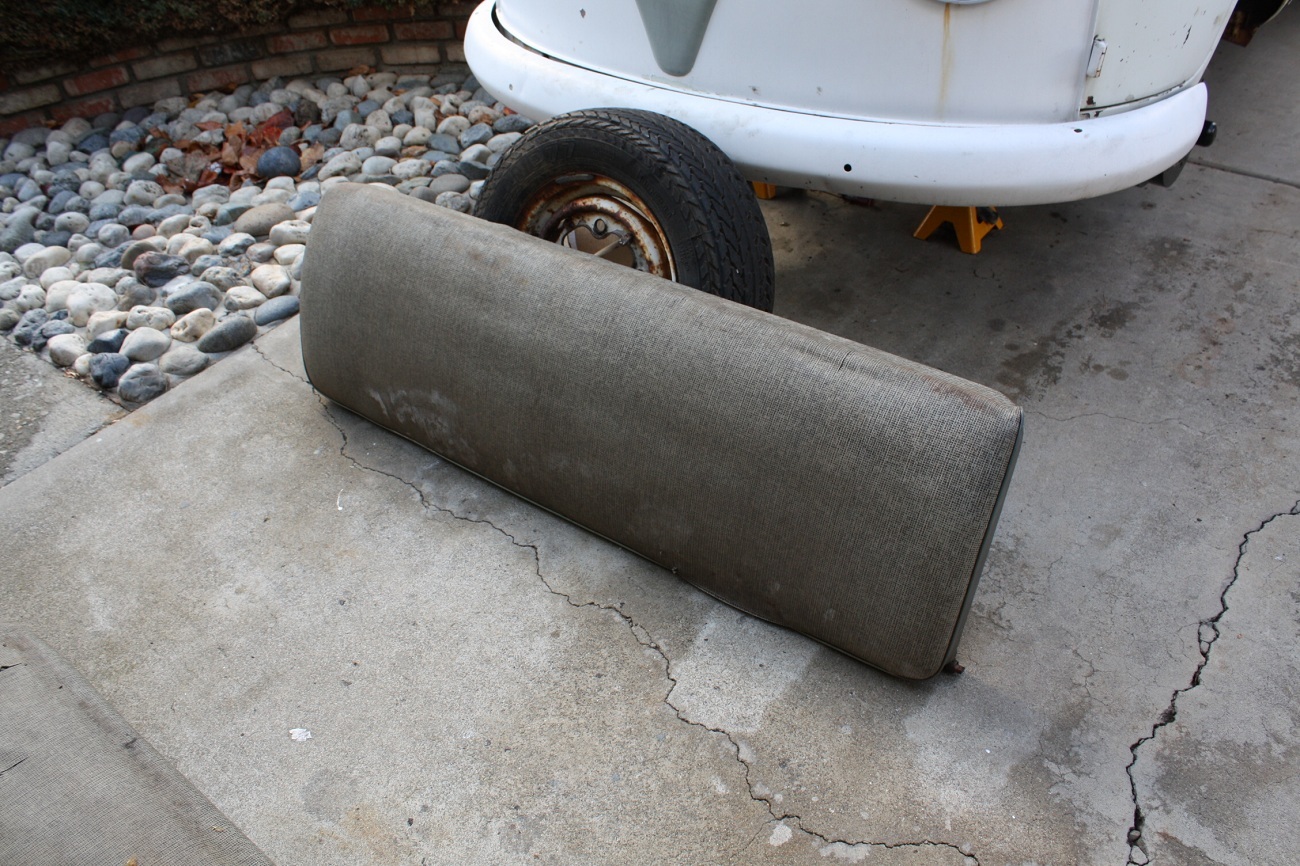

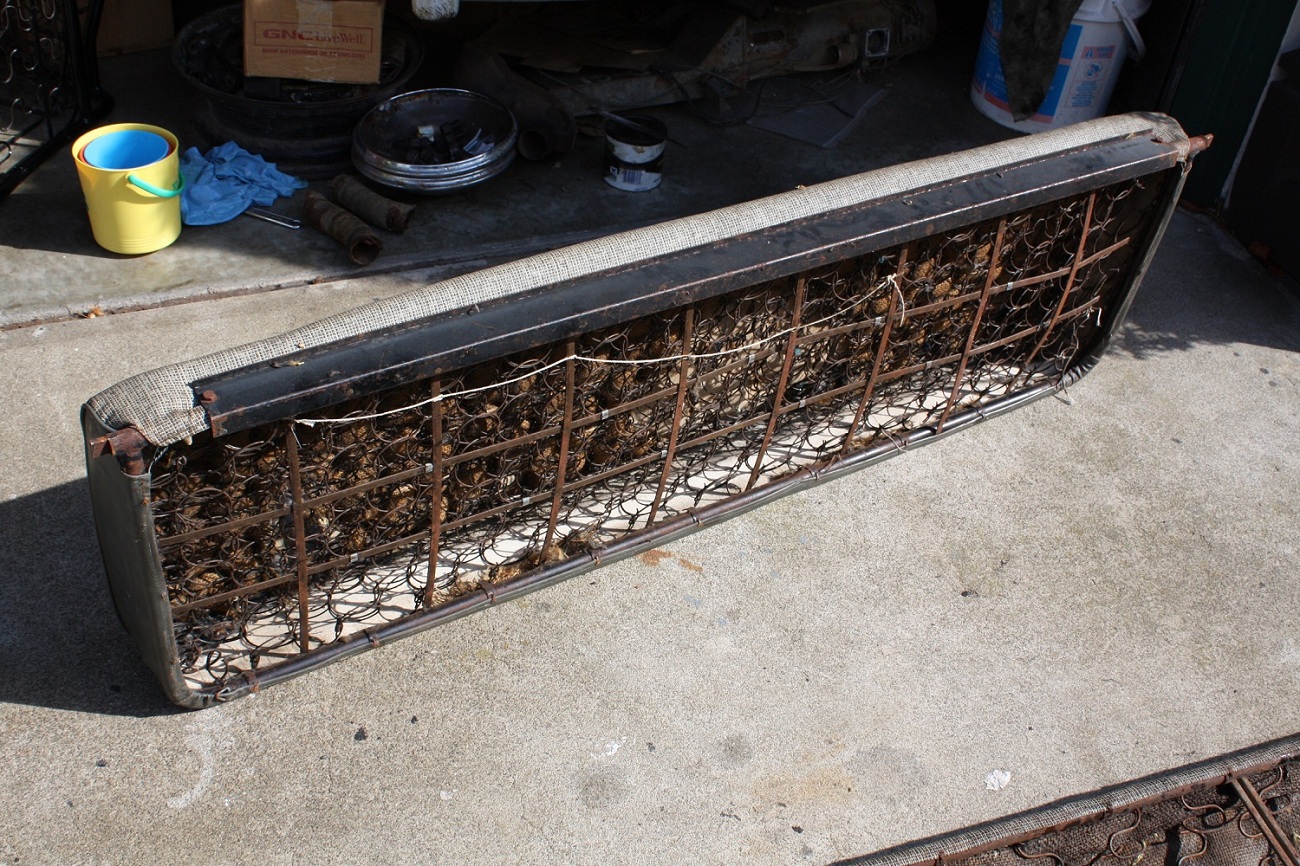

Back rest:

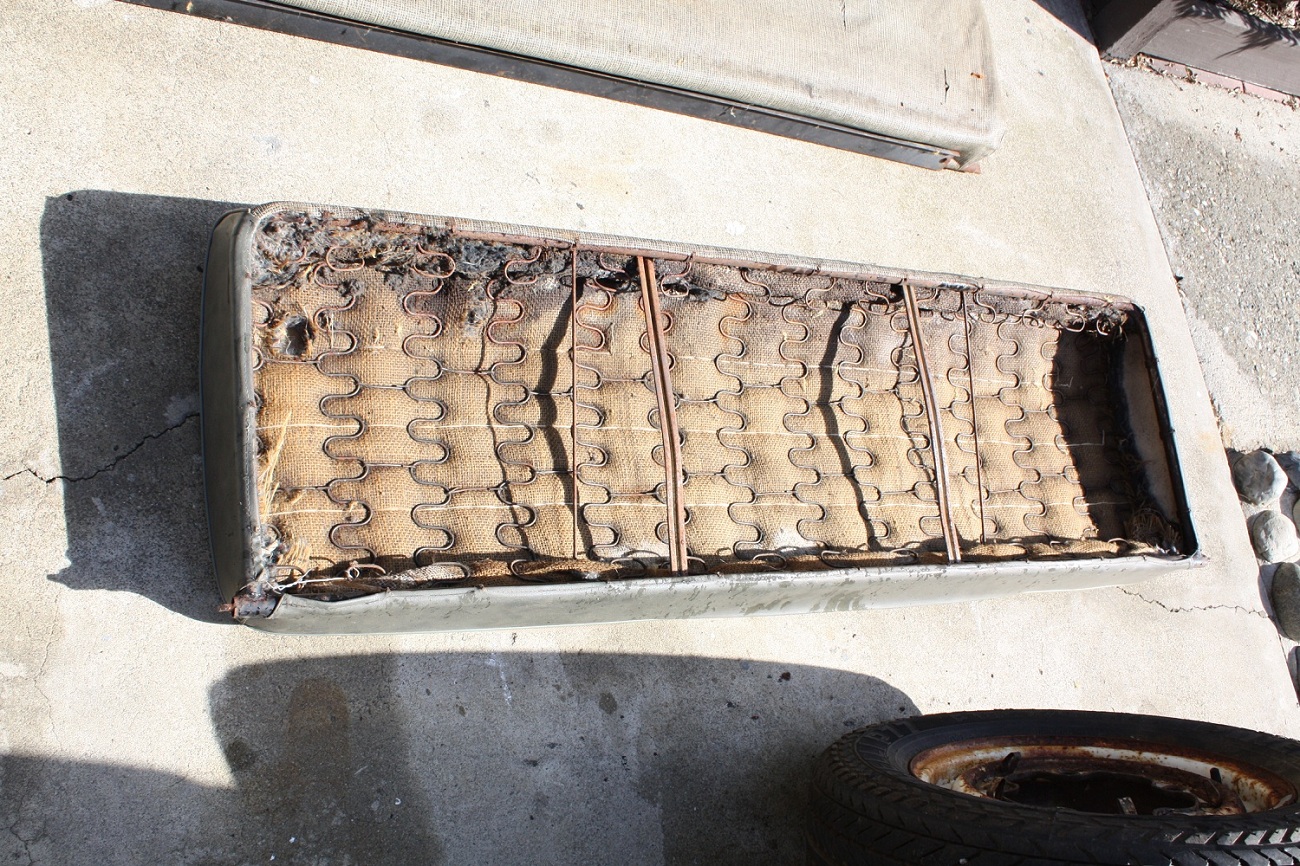

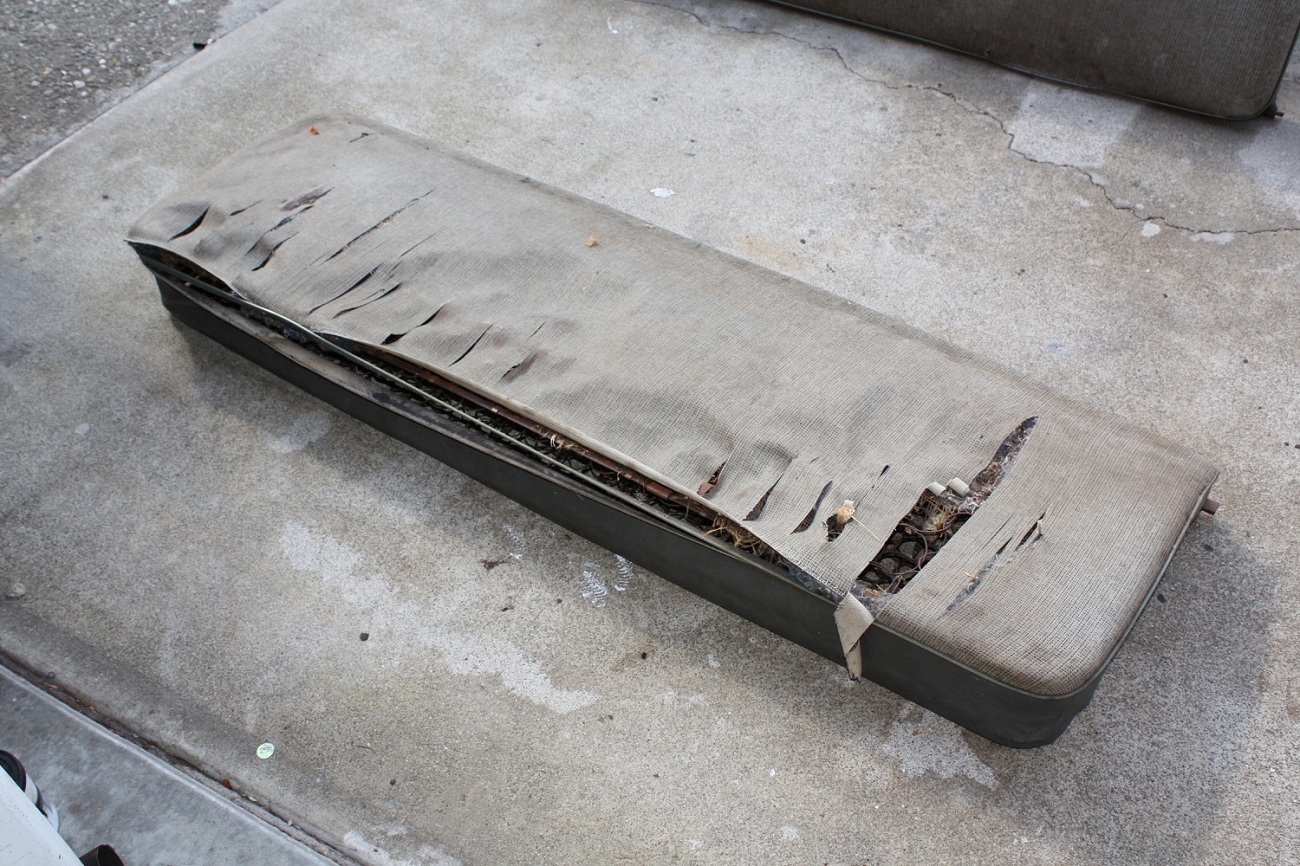

Bottom, notice frame is totally flat instead of having the dip in front like earlier rear seats or earlier full-length front seat bottoms:
68->
Seat bracket used on early seats
Information:
59/60 and 60-63 are the same as far as the pedestal and seat base EXCEPT the rear upper brackets to mount the seat base are inverted.
59/early 60 are on the inside.
Late 60-up are on the outside.
Inner
Outer
59-63 - The rear seat base is the same as a 55-late 60 Bus front bench seat
64/67 do not have the dip in the front of the seat base. The bench front seat base for this bus will not fit the DC rear seat base.
68->Similar to 64/67 but the base has a different stamping. Fits in Split Window? (Unknown)
Mounting photos:

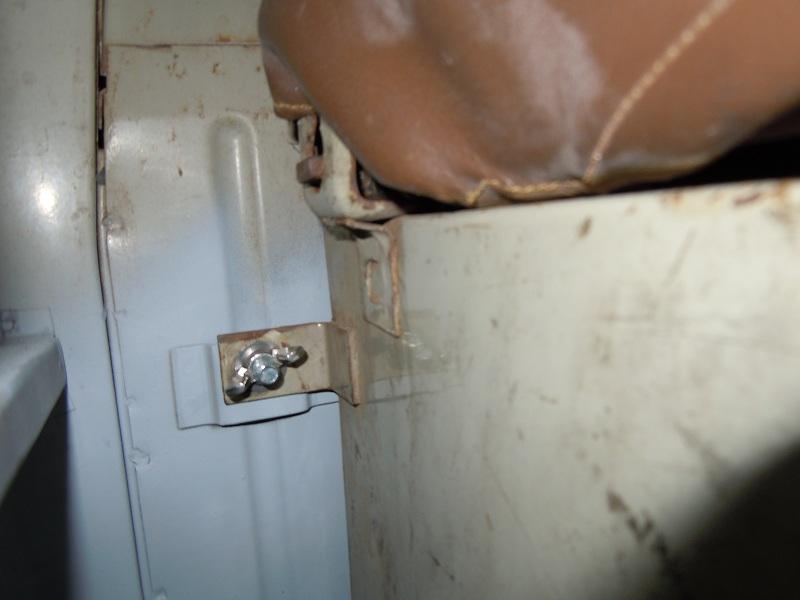

Mounting plates on floor (one on each side):

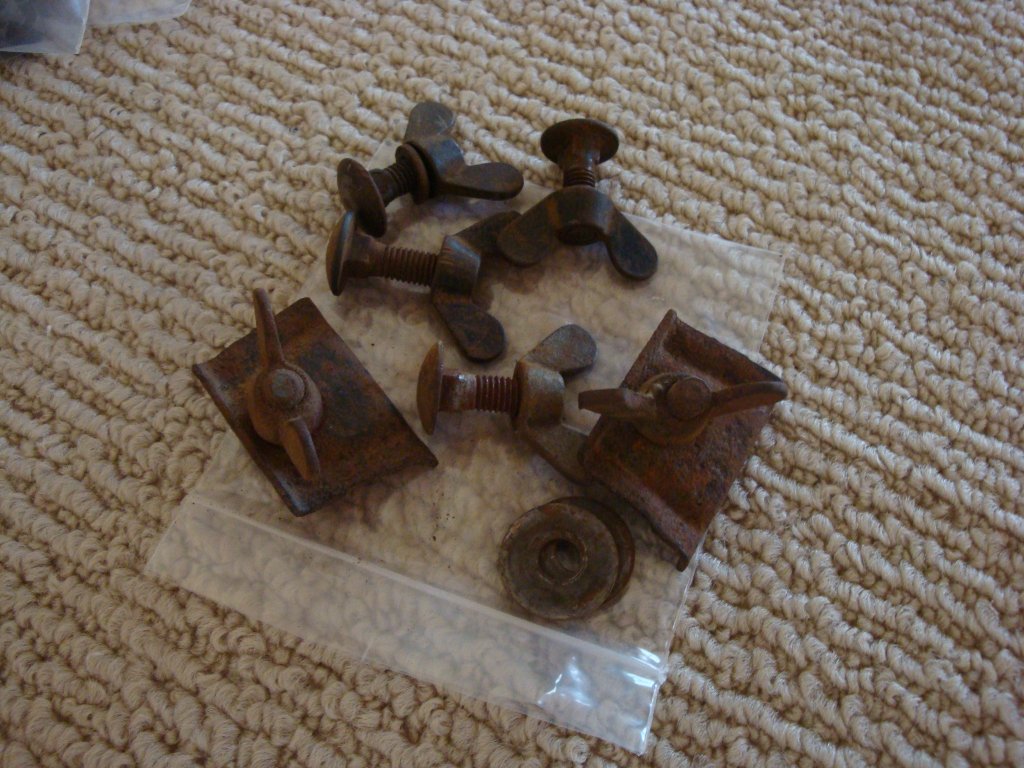

Hardware and mounting points: (Hardware bolts are M8x25)

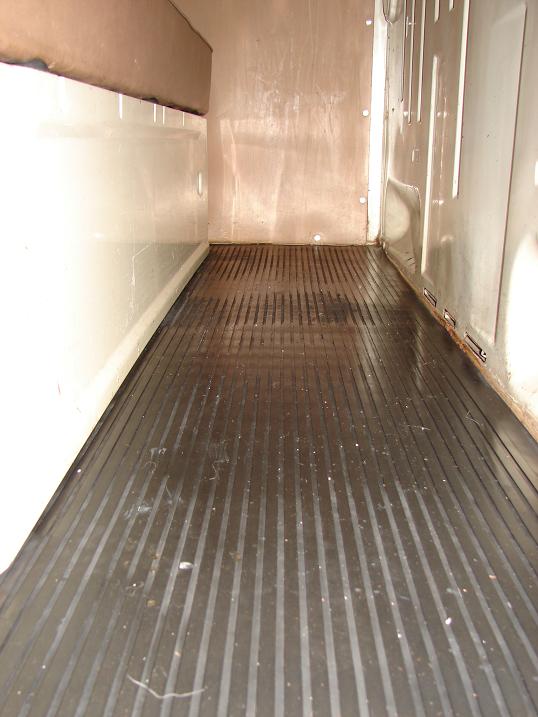

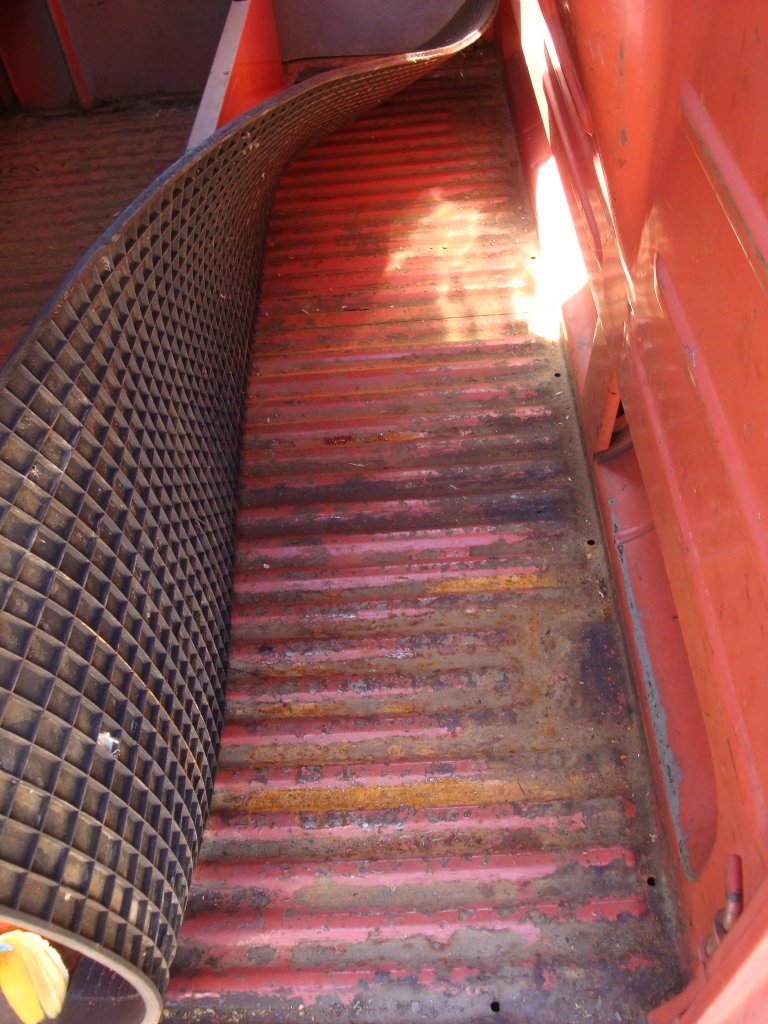

Rear floor mats:

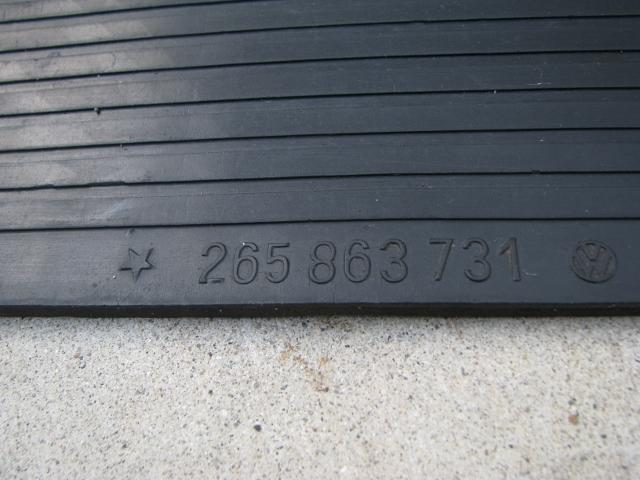

Part # 265 863 731

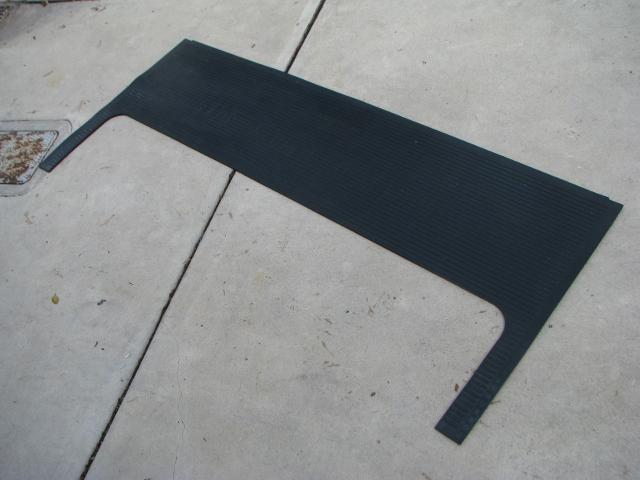

Early style - short ends - 59-61

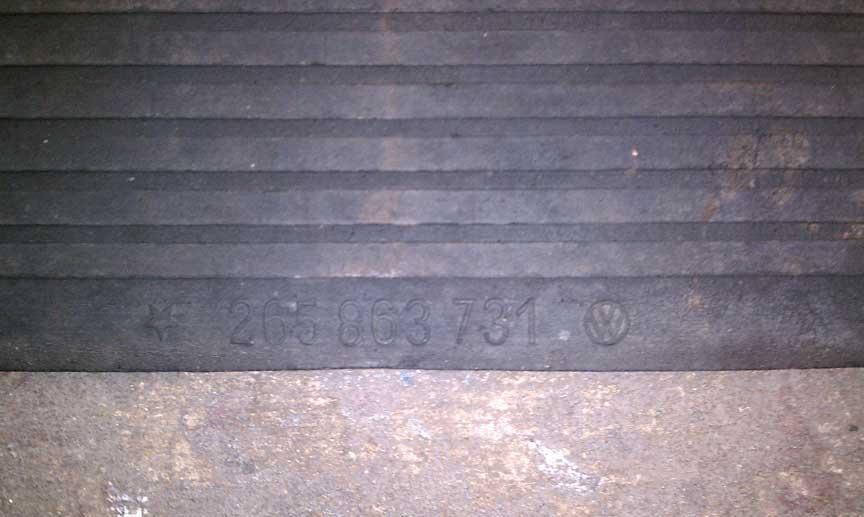

Underside:
Installed:
Late style - longer ends, 61-67
Underside photo needed!
If you have any updates or corrections, please post in this thread.
Original post below
==================================
I can't find any specific info on this question and before I spend a lot of money I am hoping to get the right information. My '60 double cab did not come with the bottom section of the rear seat nor did it come with the pedestal. I know that there is a guy fabricating new pedestals for my year, but he is not fabbing rear seat bottoms. So, my question is this: will a later '62 up bottom seat work on a earlier pedestal? In other words, is there any difference on the seat bottoms from '59-'67? There is a post-62 seat up for sale but I don't want to buy something that won't fit.
Thanks,
--Dan |
|
| Back to top |
|
 |
derv
Samba Member
Joined: October 12, 2005
Posts: 2601
Location: Oak Park (Chicago), IL
|
| Posted: Sun Apr 30, 2006 10:28 am Post subject: |
|
|
Dan,
I am in exactly the same situation as you. The PO of my 64 threw in a middle seat from a ford minivan (which actually fills the void for now) and I have never done anything about it but it is annoying.
I have seen the repop seat pedestals which actually look very nice. I have no advice to offer on the seat bottom and back and will be seeking the same.
Good luck!
_________________
Jack
| Quote: |
| Mr. Hido: To post your bare ass to virtually all hardened bus enthusiasts casts thick, a slag not easily ground smooth. |
|
|
| Back to top |
|
|
matthew henricks
Samba Member
Joined: January 02, 2002
Posts: 1395
Location: So. Cal
|
| Posted: Mon May 01, 2006 7:08 am Post subject: |
|
|
From what i have been able to put together there are 5 different DC rear seat set-up's.
Binz
59/early 60
late 60/63
64/67
68->
Binz. Totally different animal. Look in the forums or gallary for more info.
The second two are the same as far as the ped and seat base EXCEPT the rear upper brackets to mount the seat base are inverted. That is to say that one has them going in toward the middle of the bus and the other out. (I do not remember which is which but for my early 60 DC i had to find a base and ended up drilling out and reversting these brackets.) I also believe that with the exception of the 61/63 hump back seat's rear stop bars that the front seat base of the the same era bus is the same as the DC seat base.
64/67 do not have the dip in the front of the seat base. The front seat base for this bus will not fit the DC rear seat base.
68-> i believe are similar to 64/67 but the base has a different stamping. I am not sure if it is different enought to not fit in a split.
I believe all of the split years except the Binz had a removable re-inforcment bar accross the back of the seat frame to give it rigididy when mounted.
Hope this helps. |
|
| Back to top |
|
|
Braukuche
Samba Member
Joined: September 03, 2004
Posts: 11229
|
| Posted: Mon May 01, 2006 11:02 am Post subject: |
|
|
| matthew henricks wrote: |
From what i have been able to put together there are 5 different DC rear seat set-up's.
Binz
59/early 60
late 60/63
64/67
68->
Binz. Totally different animal. Look in the forums or gallary for more info.
The second two are the same as far as the ped and seat base EXCEPT the rear upper brackets to mount the seat base are inverted. That is to say that one has them going in toward the middle of the bus and the other out. (I do not remember which is which but for my early 60 DC i had to find a base and ended up drilling out and reversting these brackets.) I also believe that with the exception of the 61/63 hump back seat's rear stop bars that the front seat base of the the same era bus is the same as the DC seat base.
64/67 do not have the dip in the front of the seat base. The front seat base for this bus will not fit the DC rear seat base.
68-> i believe are similar to 64/67 but the base has a different stamping. I am not sure if it is different enought to not fit in a split.
I believe all of the split years except the Binz had a removable re-inforcment bar accross the back of the seat frame to give it rigididy when mounted.
Hope this helps. |
Thanks Matthew, that was a big help!
--Dan |
|
| Back to top |
|
|
Braukuche
Samba Member
Joined: September 03, 2004
Posts: 11229
|
| Posted: Fri Jun 23, 2006 5:42 pm Post subject: |
|
|
This keeps poping up so I thought I would update pre-63 VW double cab owners facing the same prediciment as myself.
My '60 came without a pedestal or seat bottom, though it did have two seat backs, one flat, one hump. I could not find a pedestal and am impatient so I bought one from the guy selling them here on the Samba. The pedestal is very nice, and after I painted it dove blue looks very OG. I am very happy with it and would reccomend it to others.
As for the seat bottom, I found a guy through the forums who very graciously offered me an all original upholstery rear seat at a very reasonable price (especially compared to the astronomically high of upholstery middle seat price but I digress). The seat back is seemingly the same dimensions as the seat back on the front bench and the seat bottom appears the same, too, as the front, except for a "rear strengthener bar" that is attached to the back of the seat. In a clutch one could, I feel, use a standard front bench bottom and back easily. The strengthener could be fabricated easily if one felt it was necessary.
Hope this helps someone out there and if it is inaccurate please feel free to correct me.
--Dan |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4793
Location: St Charles, MO
|
| Posted: Mon Nov 21, 2011 3:28 pm Post subject: |
|
|
I'm pretty sure that the early 1959-60ish DC's used the same bench seat bottom and backrests for the front and rear seats. The exception is that an additional bolt-on brace/bar with a side-view "J" profile was made by VW and added to the rear bottom edge of the back seat bottom seat frame to strengthen it across that large span.
This "J" bar is very rare and hard to locate, but the seats themselves should be the same, you just bolt on the "J" bar to stiffen up the rear seat bottom...
Bill
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71841
Location: Phoenix 602
|
| Posted: Mon Nov 21, 2011 4:34 pm Post subject: |
|
|
I agree with the above, although I believe it's up until the seat changed to the hump seat.
My 2/60 DC for sure had the same seat frame front and rear.
My current 8/60 DC (still pre-hump seat) is the same as far as I have noticed but I haven't removed both and set them side by side.

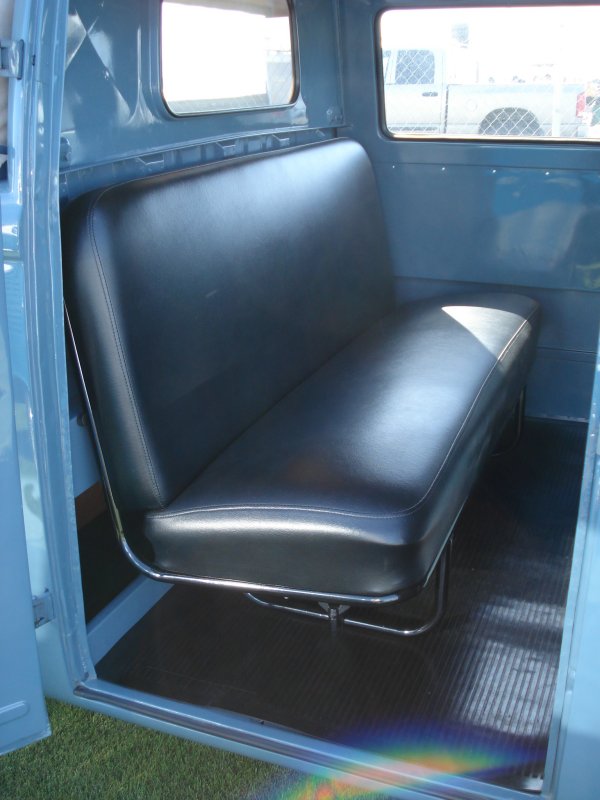

8/60 rear seat
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
ldsvwguy
Samba Member
Joined: September 16, 2003
Posts: 1025
Location: Saratoga Springs, UT
|
| Posted: Sun Apr 22, 2012 2:18 pm Post subject: |
|
|
Are there clamps that hold the pedestal down to the floor? I have the plates but not the clamps.
_________________
"When I die, I want to die like my grandfather who died peacefully in his sleep. Not screaming like all the passengers in his car." |
|
| Back to top |
|
|
EDragnDean
Samba Member
Joined: July 13, 2005
Posts: 1151
Location: Vancouver, WA
|
|
| Back to top |
|
|
ldsvwguy
Samba Member
Joined: September 16, 2003
Posts: 1025
Location: Saratoga Springs, UT
|
| Posted: Mon Apr 23, 2012 12:20 am Post subject: |
|
|
I had the same idea but want to make sure it it correct.
_________________
"When I die, I want to die like my grandfather who died peacefully in his sleep. Not screaming like all the passengers in his car." |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71841
Location: Phoenix 602
|
|
| Back to top |
|
|
ldsvwguy
Samba Member
Joined: September 16, 2003
Posts: 1025
Location: Saratoga Springs, UT
|
| Posted: Mon Apr 23, 2012 6:28 pm Post subject: |
|
|
Perfect. Thanks Everett.
_________________
"When I die, I want to die like my grandfather who died peacefully in his sleep. Not screaming like all the passengers in his car." |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71841
Location: Phoenix 602
|
|
| Back to top |
|
|
EDragnDean
Samba Member
Joined: July 13, 2005
Posts: 1151
Location: Vancouver, WA
|
|
| Back to top |
|
|
luftgekuhlt
Samba Member
Joined: August 12, 2012
Posts: 231
Location: Sweden
|
| Posted: Mon May 19, 2014 5:01 am Post subject: |
|
|
I would like to see how the upper and lower fix points (on the wall) of the BACK REST of the DC' back seat look like.
I have saved a seat from a bus that has been boxed but unfortunately I didn't see it when it was mounted.
I would also like to see pictures of how the seat is lifted when accessing the storage area below since as far as I can see the back rest blocks (to a certain point) the lifting of the seat. I am just mocking up the seat and trying to figure out the position and the distances of the fix points against the rear wall.
But I am probably mocking up with the wrong distances so thats why.
What is the distance from the rear wall to the farthest part of the pedestal (closest to the driver)? I guess if I have that distance right then the seat will be lifted without being blocked by the back rest.
Thanks!
_________________
Buy the best. Cry once.
1965* 21W Samba (MCode 430 114) - 51 BD Standard Microbus (Type 22A. M62) - 1967 Westfalia pop-top (SOLD)
* 1965 according to chassie number but regged as 1964 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71841
Location: Phoenix 602
|
| Posted: Mon May 19, 2014 9:14 am Post subject: |
|
|
| luftgekuhlt wrote: |
I would like to see how the upper and lower fix points (on the wall) of the BACK REST of the DC' back seat look like.
the seat will be lifted without being blocked by the back rest. |
For the back rest:
The top of the back rest has the same mounts as a Bus front bench seat.

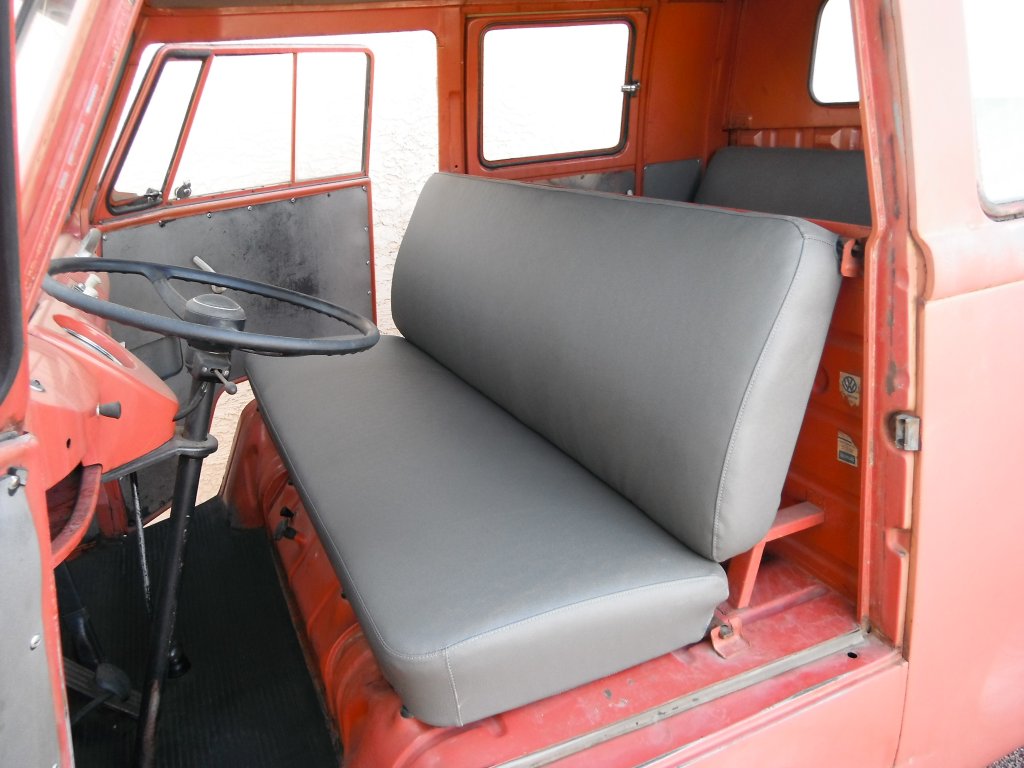

Front seat example:
See front seat mount on right side of this photo
The bottom of the back rest has no fixing point, it just "snaps" into place by pressing into the seat bottom. The same as the front seat above.

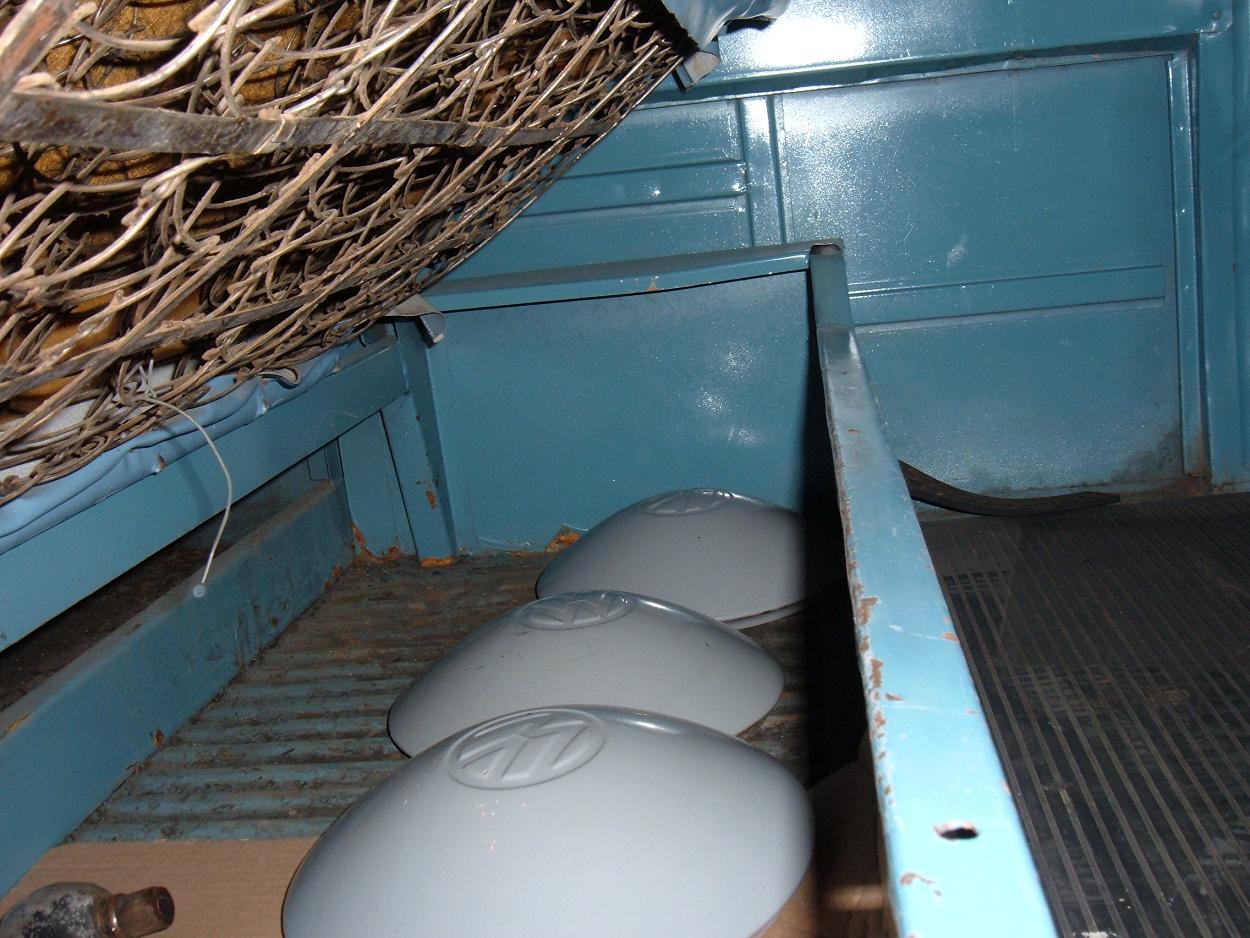

The rear seat bottom can only be fully raised if you first raise the back rest upward, like you see in this photo
I could measure the distance you asked but I don't know if the distances are the same for my '61 versus your Double Cab (year?)
The metal seat base should be pressed back as far as possible so that it fully mounts against the wall. I think this is a better judge of the spacing.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
luftgekuhlt
Samba Member
Joined: August 12, 2012
Posts: 231
Location: Sweden
|
| Posted: Wed May 28, 2014 3:07 pm Post subject: |
|
|
The upper part of the back rest is hinged as a standard front seat as you said. Having said that, the lower part of the back rest has two fix points. How are those secured?
_________________
Buy the best. Cry once.
1965* 21W Samba (MCode 430 114) - 51 BD Standard Microbus (Type 22A. M62) - 1967 Westfalia pop-top (SOLD)
* 1965 according to chassie number but regged as 1964 |
|
| Back to top |
|
|
cru62
Samba Member
Joined: December 31, 2002
Posts: 4121
Location: Margaritaville.....24/7
|
| Posted: Wed May 28, 2014 3:40 pm Post subject: |
|
|
That is a late, probably Bay Window, Rear DC seat. Those pins are not on a <'67 seat back. The springs and the frame are also very different, as is the upholstery if original.
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon
Jokes about German sausage are the wurst.
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4793
Location: St Charles, MO
|
| Posted: Wed May 28, 2014 5:47 pm Post subject: |
|
|
| luftgekuhlt wrote: |
The upper part of the back rest is hinged as a standard front seat as you said. Having said that, the lower part of the back rest has two fix points. How are those secured?
|
Yep, you've got incorrect/later seats, those pins are not on the correct seat. But at least you have some seat parts.
Bill
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53160
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed May 28, 2014 7:49 pm Post subject: |
|
|
X2, must be 74+ bay DC seats (never seen one since we didn't get them here), looks like an added safety feature you'd expect on a later VW. 68-71 don't have the bonus protrusion.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
