| Author |
Message |
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
 Posted: Fri Dec 17, 2021 5:57 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
 |
|
| I need a Bentley manual ! Any idea why that 3 mm space i.e. if I don't have the 3 mm. space will it destroy my new spendy 1 year only switch I just installed ? |
|
| Back to top |
|
 |
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52750
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Fri Dec 17, 2021 8:00 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| VeeDubb steppin wrote: |
| Does anyone recall ,is there supposed to be a small space , between bottom of steer wheel and top of turn/dimmer switch on 72 bus ? |
~3mm, confirm it with your Bentley manual.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Fri Dec 17, 2021 6:24 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| Does anyone recall ,is there supposed to be a small space , between bottom of steer wheel and top of turn/dimmer switch on 72 bus ? |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Wed Dec 15, 2021 7:51 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
Just talked to a guy that sez they are both metal ? ...I know the bottom one is the jagged one , sitting in the small recess I'm looking closer at it now , and it looks like the plastic washer is under the screw head , where it should be, as is the locker washer down below in the steering wheel ,I'll make the lil spring sandwich and call it good .
I think what threw me off was 2 little rubber? type very small washers , that turned up in my collection of current projects ,I thought maybe they were for the screws ... Thanks to All for the input ! |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52750
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed Dec 15, 2021 6:20 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| VeeDubb steppin wrote: |
| washer 15 and 16 2 washers in TCash's foto 16 I'm fairly certain is the metal serrated washer , I believe 15 is an insulator washer of sorts ? Anyone know for sure ? |
Sounds right IIRC, the plastic one on top isolates the ring from the screw. the lower one locks the shoulder of the screw when tightened up.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Wed Dec 15, 2021 6:13 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| washer 15 and 16 2 washers in TCash's foto 16 I'm fairly certain is the metal serrated washer , I believe 15 is an insulator washer of sorts ? Anyone know for sure ? |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Wed Dec 15, 2021 9:51 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| I'm thinking those 3 screws should have a rubber/fiber washer |
|
| Back to top |
|
|
Trashman
Samba Member
Joined: May 18, 2016
Posts: 281
Location: Santa Cruz, CA
|
| Posted: Wed Dec 15, 2021 9:25 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| airschooled wrote: |
If you lost ONLY the spring, run it. I intentionally removed one of mine years ago to get a pianoforte horn option. Tapping the button over the missing spring gives a subtle and quiet beep, useful in parking lots and saying goodbye to folks.
Robbie |
Robbie that's genius! I'm going to have to do that!
_________________
Bagged 1968 Neptune Blue "Deluxe" |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Wed Dec 15, 2021 9:25 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| I've ripped apart every " BIC " pen in the house ...hardware store next , I'm not so much worried about that as if there are fiber washers to isolate everything , or does the plastic gizmo isolate the unit ...also what scares me is I found 2 rubber/ fiber ? teeny tiny wurshers , and I am wondering if I mislaid Th'other ? ! ? Thanks guyZ |
|
| Back to top |
|
|
TomWesty
Samba Member
Joined: November 23, 2007
Posts: 3504
Location: Wyoming,USA
|
| Posted: Wed Dec 15, 2021 9:06 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| airschooled wrote: |
If you lost ONLY the spring, run it. I intentionally removed one of mine years ago to get a pianoforte horn option. Tapping the button over the missing spring gives a subtle and quiet beep, useful in parking lots and saying goodbye to folks.
Robbie |
Musicians........  SMH....
_________________
If you haven't bled on them, you haven't worked on them.
Visit: www.tomcoryell.com and check out my music! |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13474
Location: West Coast, USA
|
| Posted: Wed Dec 15, 2021 9:03 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
If you lost ONLY the spring, run it. I intentionally removed one of mine years ago to get a pianoforte horn option. Tapping the button over the missing spring gives a subtle and quiet beep, useful in parking lots and saying goodbye to folks.
Robbie
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
VeeDubb steppin
Samba Member
Joined: August 16, 2015
Posts: 80
Location: weast of eden
|
| Posted: Wed Dec 15, 2021 8:23 am Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| I'm working on a 72 Bus , I've misplaced 1 spring ...imagine that ! would some one line me out with the correct placement of horn parts ...I have , the 3 locker type washers in the 3 screw holes , got my screws ,plastic insulator etc. ,what I'm curious about is I found 2 yes only 2 rubber/ plastic/fiber washers the same size as the screws , ...did this setup use fiber washers on the 3 screw assembly somewhere , I looked at a diagram but didnt see the legend giving the names of the pieces ...thanks in advance ! |
|
| Back to top |
|
|
Trashman
Samba Member
Joined: May 18, 2016
Posts: 281
Location: Santa Cruz, CA
|
| Posted: Mon Nov 18, 2019 4:54 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
Thought I'd share another way to remove a bay steering wheel without damaging it. On the metal inner area of the wheel, I drill two holes on either side of the nut and tap them.
Then you can thread in the appropriate bolts and use a puller under the bolt heads. (Ideally you'd probably want to drill holes in the puller for the bolts, but this worked fine and saved a bunch of time)
_________________
Bagged 1968 Neptune Blue "Deluxe" |
|
| Back to top |
|
|
HarryFD
Samba Member
Joined: February 24, 2012
Posts: 832
Location: Portland, OR
|
| Posted: Wed Jun 06, 2018 6:12 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| larryducas wrote: |
| jtauxe wrote: |
It seems to me that an important difference between the washer system and Aeromech's fancy puller is that the washers pull on the plastic (which is OK if you don't want to salvage the wheel) and the fancy puller pulls on the metal, not stressing the plastic.
Is that the case? |
FYI, the harbor freight bearing puller does not damage the plastic, only pulls on the metal parts. I have used this several times, very successfully.

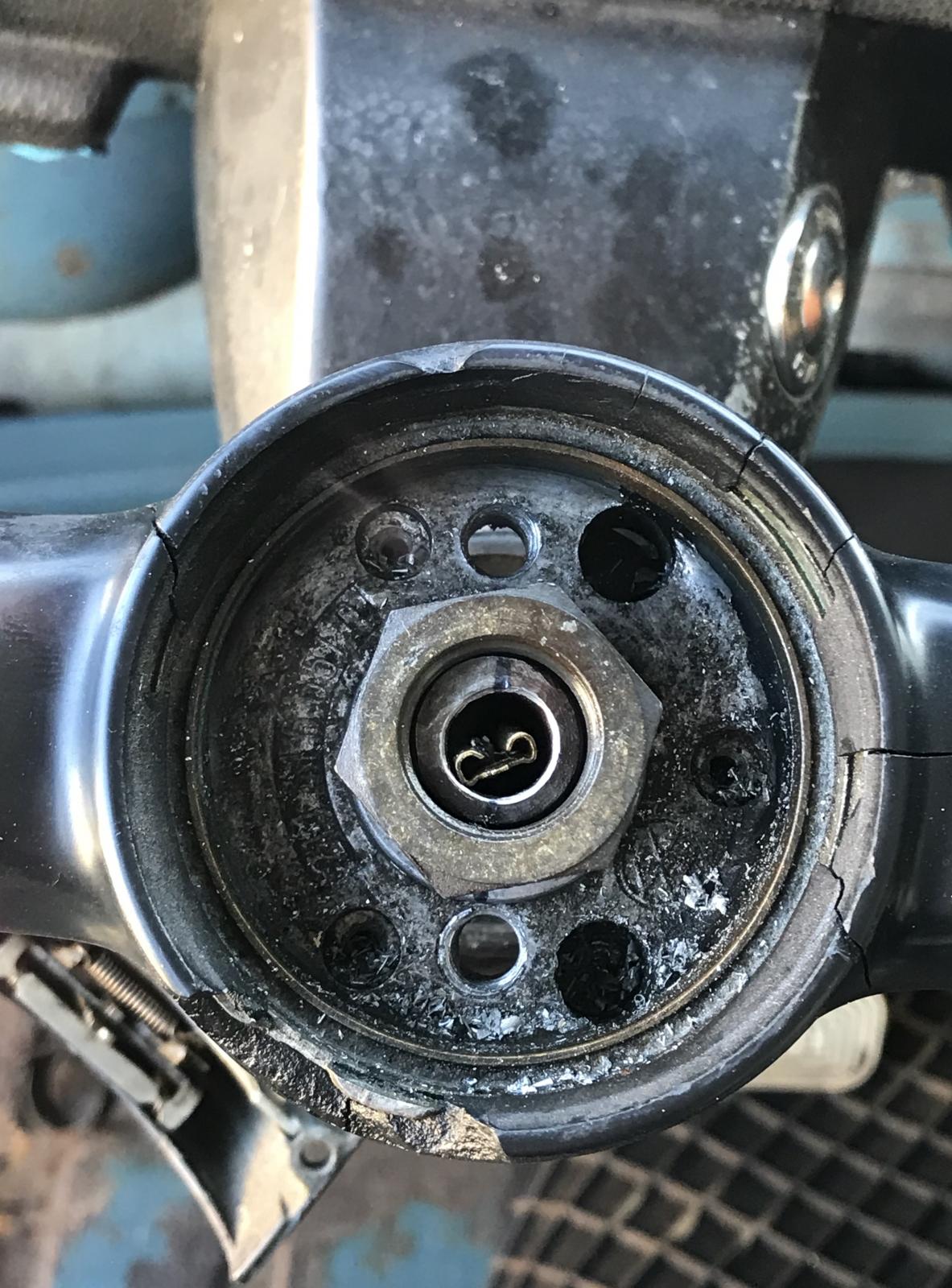

The damage in the picture was from the washer method. My washers were inferior. |
Which Harbor Freight unit do you use.
FWIW, I have used my 3 jaw puller several times without drama?
_________________
1970 Deluxe Sunroof Bay Brilliant Blue/Cloud White
1971 Jaguar XKE 2+2 V12 Coupe
1973.5 911 Targa
2009 MB C300 |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Wed Jun 06, 2018 6:08 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
No worries, just checking part numbers.
Yes buy that. The same parts r listed from 68-79 |
|
| Back to top |
|
|
turbobrian
Samba Member
Joined: January 22, 2018
Posts: 6
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
turbobrian
Samba Member
Joined: January 22, 2018
Posts: 6
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
turbobrian
Samba Member
Joined: January 22, 2018
Posts: 6
|
| Posted: Wed Jun 06, 2018 5:30 pm Post subject: Re: Steering wheel removal - tutorial (1971 bus) |
|
|
| ty I didnt even think to look for classifieds. can anyone tell me what year wheel that is? |
|
| Back to top |
|
|
|
