 Posted: Mon Apr 28, 2025 10:59 am Post subject: Re: Barndoor Assembly Line Pics |
 |
|
1953
| Brian_1952 wrote: |
It appears it is just somebody’s hat sitting on top of the bus |
_________________
-StockRocks- |
|
| Back to top |
|
 |
finster
Samba Member
Joined: May 26, 2012
Posts: 9964
Location: not far from the madding crowd
|
| Posted: Mon Mar 03, 2025 9:27 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
^ the above photo is at the belgian D'Ieteren factory.
_________________
"we're here on Earth to fart around" kurt vonnegut
nothing lasts, nothing is finished, and nothing is perfect... |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
| Posted: Mon Mar 03, 2025 9:16 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
I agree it's probably 1954 since the engine has a round regulator and a 54-up distributor and air cleaner.
Note it doesn't have a "strap" air cleaner.
I believe 1954-up Buses could have come with either style.
Also the spare tire tray is not installed... That is strange since I don't think it can be installed with the fuel tank in place?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
wagen19
Samba Member
Joined: November 16, 2007
Posts: 654
Location: germany
|
| Posted: Mon Mar 03, 2025 7:18 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| TornadoRed06 wrote: |
| finster wrote: |
photos by Willy Lehmacher, early 1953
|
As above mentioned, W. Lehmacher went on to Wolfsburg to take pictures of Varta supplies, indeed there's a Varta battery fitted into this Bus, but what is that, as it looks different from the ones on the pallet of batteries at the assembly line?
Kind of supply case or annything? |
Thinking about the date of the pic, car:
Generator looks 160 W, so engine should be 30 hp, 1192 ccm, from Dec 21, 53 onwards, so early model 54 imo.
Battery: I´m missing the cover and strap. (pic reworked a bit?) Was it affixed later? The bunch of batteries showed, not on all sides is the logo. Maybe and as far as I know, there is only one logo on batteries. (Logo in bus not visable cause to the outside?) It looks, there can be a paper with "Varta" script beside the battery, for the show only, advertising in the foto. |
|
| Back to top |
|
|
TornadoRed06
Samba Member
Joined: August 30, 2020
Posts: 216
Location: Porto - Portugal
|
| Posted: Sun Feb 16, 2025 3:22 pm Post subject: Re: Barndoor Assembly Line Pics |
|
|
| finster wrote: |
photos by Willy Lehmacher, early 1953
|
As above mentioned, W. Lehmacher went on to Wolfsburg to take pictures of Varta supplies, indeed there's a Varta battery fitted into this Bus, but what is that, as it looks different from the ones on the pallet of batteries at the assembly line?
Kind of supply case or annything? |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4214
Location: England
|
| Posted: Sun Feb 16, 2025 2:53 pm Post subject: Re: Barndoor Assembly Line Pics |
|
|
1953 Panel
_________________
-StockRocks- |
|
| Back to top |
|
|
finster
Samba Member
Joined: May 26, 2012
Posts: 9964
Location: not far from the madding crowd
|
| Posted: Thu Oct 03, 2024 9:23 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| EverettB wrote: |
| finster wrote: |
could be, but you would assume export models - especially those going to america - would get the full paint treatment. home models would be lowest quality... |
Was it typical for VW or others car to "shortchange" the home market? |
rolls royce used to do this - cars/parts had three grades - ok, better, best. all the best parts went into cars for the saudis. middle grade went to usa and the home market got the passable ones.
_________________
"we're here on Earth to fart around" kurt vonnegut
nothing lasts, nothing is finished, and nothing is perfect... |
|
| Back to top |
|
|
Who.Me?
Samba Member
Joined: July 14, 2014
Posts: 2514
Location: UK (South)
|
| Posted: Thu Oct 03, 2024 9:06 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| finster wrote: |
| EverettB wrote: |
Your theory sound good to me.
I wonder if it was also a destination thing, |
could be, but you would assume export models - especially those going to america - would get the full paint treatment. home models would be lowest quality... |
Could it reflect the climate of the destination? (To reduce potential corrosion?)
_________________
Andy
Looking for info on my truck's history. Are you from Campbell California or nearby. Do you recognise it? ... http://www.thesamba.com/vw/forum/viewtopic.php?t=636786 |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
| Posted: Thu Oct 03, 2024 7:29 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| finster wrote: |
| EverettB wrote: |
Your theory sound good to me.
I wonder if it was also a destination thing, |
could be, but you would assume export models - especially those going to america - would get the full paint treatment. home models would be lowest quality... |
Was it typical for VW or others car to "shortchange" the home market?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
finster
Samba Member
Joined: May 26, 2012
Posts: 9964
Location: not far from the madding crowd
|
| Posted: Thu Oct 03, 2024 1:07 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| EverettB wrote: |
Your theory sound good to me.
I wonder if it was also a destination thing, |
could be, but you would assume export models - especially those going to america - would get the full paint treatment. home models would be lowest quality...
_________________
"we're here on Earth to fart around" kurt vonnegut
nothing lasts, nothing is finished, and nothing is perfect... |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
| Posted: Wed Oct 02, 2024 8:26 pm Post subject: Re: Barndoor Assembly Line Pics |
|
|
Your theory sound good to me.
I wonder if it was also a destination thing, similar to how we've seen people discuss whether later (split-case too?) transmissions were painted from the factory or not. Some are black, some are just coated, even from the same year vehicles.
My '54 Truck compartment was full primer but it was delivered to Los Angeles so maybe they thought it didn't need the extra paint back there.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
djfordmanjack
Samba Member
Joined: June 15, 2009
Posts: 2365
Location: Graz, Austria, Europe
|
| Posted: Wed Oct 02, 2024 6:10 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
One possible conclusion would be that each bus was designated a certain amount of paint ( ie. litres) which got filled in the paint guns. If some painter applied less paint on the body, there might have been leftovers that got sprayed in the wheel wells or engine compartment. It is also possible that VW went back and forth in saving paint vs having complaints about surface rusted or dull primered tin.
The pics are fantastic !
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4214
Location: England
|
| Posted: Fri Sep 27, 2024 12:38 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| EverettB wrote: |
Now that I look again, that Kombi appears to have the whole engine compartment painted Dove Blue. Interesting as I think most of them were primer with some dusting and edges painted but I think that was sort of random too. |
Random
Engine Bay Paint thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=204025
_________________
-StockRocks- |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71491
Location: Phoenix 602
|
| Posted: Thu Sep 26, 2024 6:53 pm Post subject: Re: Barndoor Assembly Line Pics |
|
|
| Lind wrote: |
| EverettB wrote: |
| finster wrote: |
photos by Willy Lehmacher, early 1953
|
Cool pic, check out the clipped air cleaner instead of a strap.
These photos are from Early 1953?
I wonder if it's Early 1954 instead?
Kombis didn't get a rear bumper until 12/1953 |
When did flat taillights end?
Is the strap air cleaner both Mann and Knecht or just one of those brands?
Definitely after October 1953, as the singlcab had late gates which happened at chassis number 20-066116 |
Good question on the taillights as I couldn't quickly find the date or VIN #

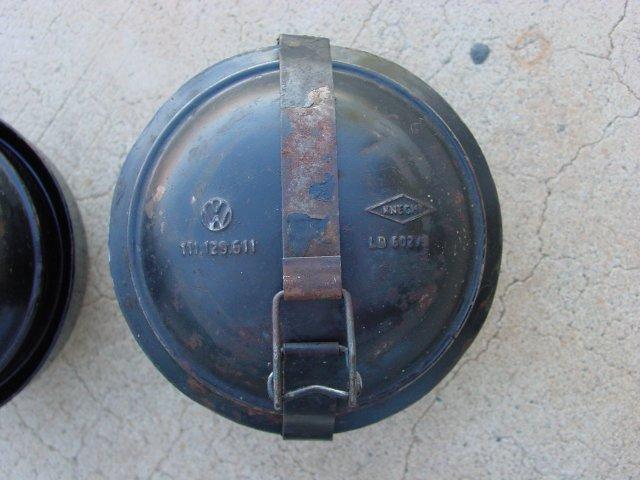

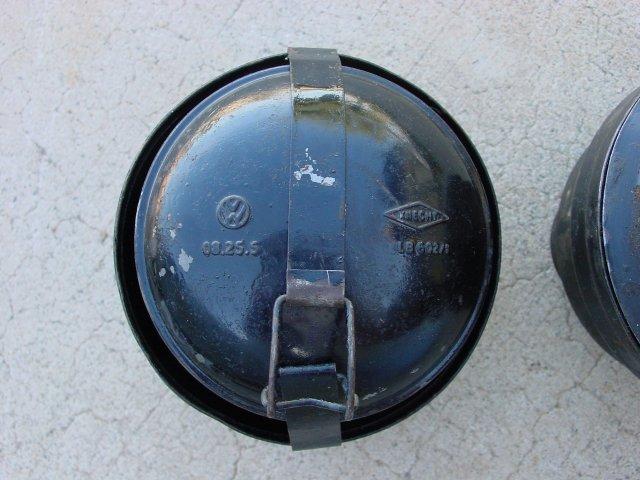

Strap air cleaners are all Knecht AFAIK
53
54
I'm pretty sure Barndoors could have either though but not sure if that was 53-up or not.
The air cleaner above looks like what is considered a 54-58 Mann Beetle air cleaner but that could have started in late 1953 too
Now that I look again, that Kombi appears to have the whole engine compartment painted Dove Blue. Interesting as I think most of them were primer with some dusting and edges painted but I think that was sort of random too.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10212
Location: idaho
|
| Posted: Wed Sep 25, 2024 10:00 am Post subject: Re: Barndoor Assembly Line Pics |
|
|
| EverettB wrote: |
| finster wrote: |
photos by Willy Lehmacher, early 1953
|
Cool pic, check out the clipped air cleaner instead of a strap.
These photos are from Early 1953?
I wonder if it's Early 1954 instead?
Kombis didn't get a rear bumper until 12/1953 |
When did flat taillights end?
Is the strap air cleaner both Mann and Knecht or just one of those brands?
Definitely after October 1953, as the singlcab had late gates which happened at chassis number 20-066116
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
RockStock
Samba Member
Joined: November 26, 2004
Posts: 4214
Location: England
|
| Posted: Wed Sep 25, 2024 12:50 am Post subject: Re: Barndoor Assembly Line Pics |
|
|

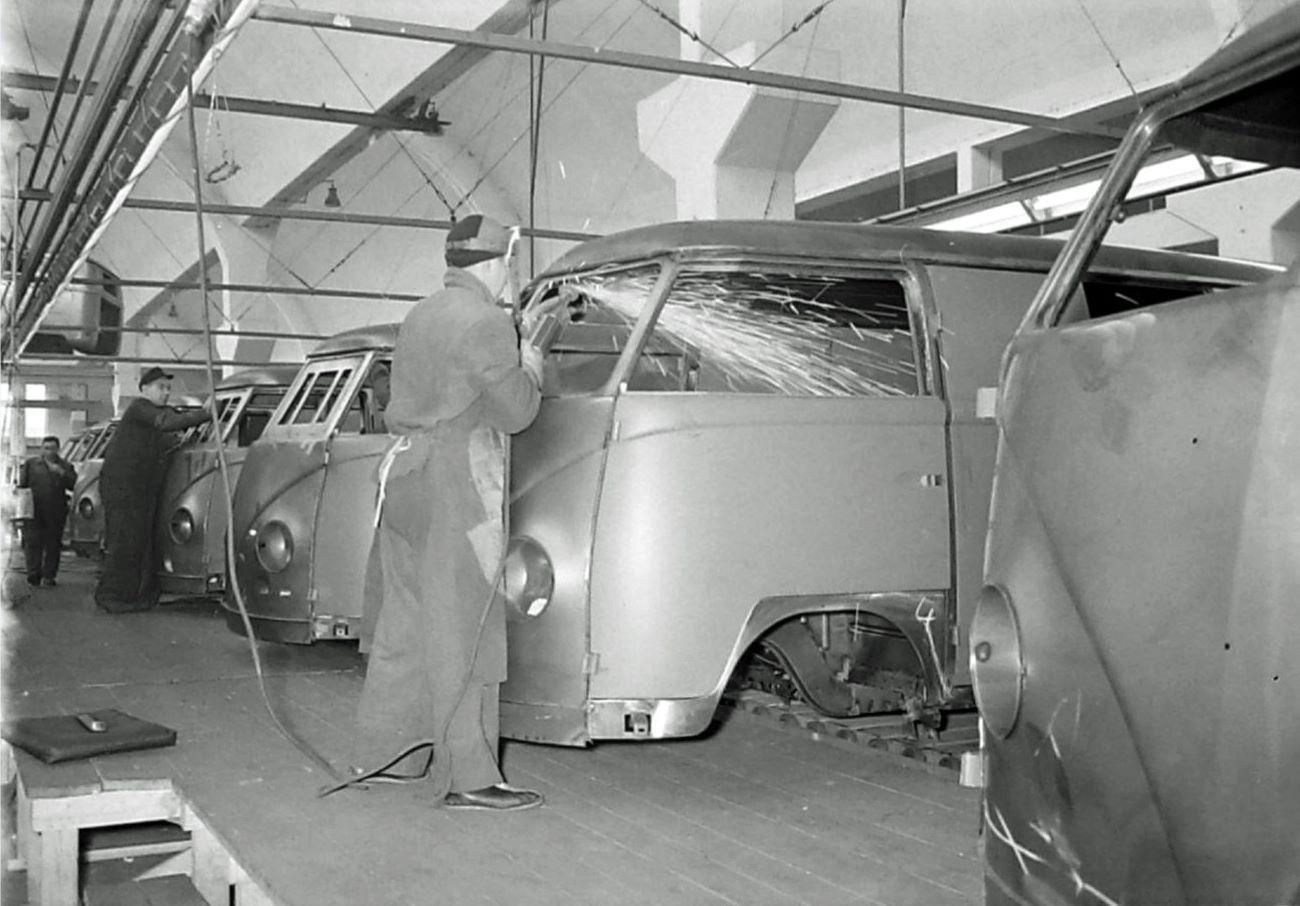

FB photo caption:
| Quote: |
Willy Lehmacher was often on the road in the 1950s. On behalf of Hagen companies such as VARTA, he visited trade fairs, production plants and shops. In the spring of 1953, Lehmacher visited the Volkswagen plant in Wolfsburg. There he made several films about the production of motor vehicles. We present a selection of the negative films. He paid particular attention to the installation of VARTA starter batteries in the vehicles.
The images now available in the Hagen City Archives provide an insight into the then booming automobile industry in the “economic miracle” of the Federal Republic of Germany. The photographs show the assembly of the first series of VW “Beetles” in the model series built from March 1953 with an oval rear window instead of the “pretzel window” that had been common until then. In front of the assembly and production plant, there are large parking lots with different versions of the “Beetle” with fabric roofs and in different paint finishes.
But another legendary VW model appears in the photographs: the T 1 transporter, nicknamed "Bulli". Here, too, Lehmacher photographed every stage of assembly and acceptance. The "Bulli" model series with flatbeds and as a bus, introduced up to 1953, can also be seen.
Text and research: Dr. Ralf Blank, September 2024; Photographs Willy Lehmacher © Hagen City Archives |
Must be loads more BD assembly line pictures to be unearthed from Willy Lehmacher…
