| Author |
Message |
peaceful warrior
Samba Member
Joined: January 22, 2005
Posts: 5275
Location: Taoswest, USA
|
 Posted: Fri Sep 19, 2014 10:29 am Post subject: |
 |
|

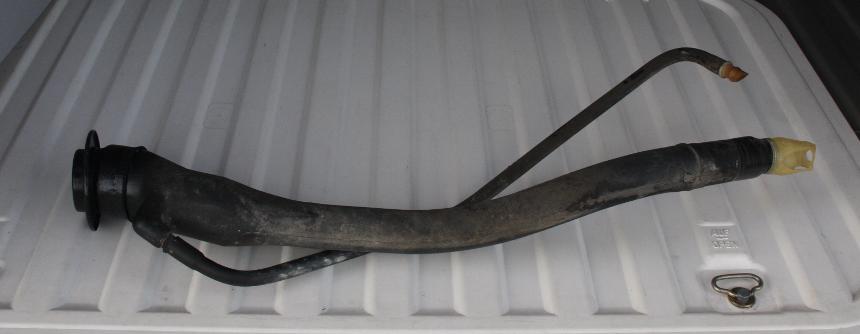

Just tossing these into the mix. As I recently repaired (yesterday) the vapor system on my 89 Vanagon Westy, I found the plastic ball inside the tank. It had been pushed out or fallen out of the cage at the end of the filler tube.
I was able to reinstall it, but while doing so I pulled one out of an 84 parts Vanagon to compare the filler tubes.
Here is what I found fyi.
Without ball in the cage.
Upper is the later model filler with cage.

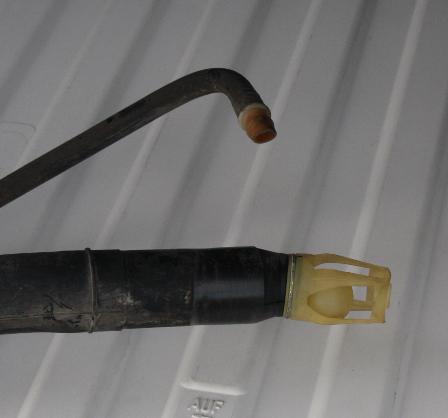

With ball reinserted into the cage. The cage had no tears and was very solid.
_________________
"Two things are infinite: The universe and human stupidity; and I'm not sure about the universe." Albert Einstein
"Notchboy" says "Man up!"
"Tram" says " My bus is bigger than your bus."
66 13W Deluxe, 68 Westfalia, 87 Syncro.
TOOB Member #15
Brian |
|
| Back to top |
|
 |
OMcComis
Samba Member
Joined: December 22, 2013
Posts: 46
Location: United States
|
| Posted: Fri Mar 14, 2014 3:40 pm Post subject: Nylon ball check valve. |
|
|
| I just bought a filler tube but as everyone else has noticed, there was no ball with it. Believe it or not, I did a quick search on Amazon and found this: http://www.amazon.com/gp/product/B005GFT4O2/ref=oh_details_o00_s00_i00?ie=UTF8&psc=1 These fit but looking at the picture posted previously maybe a little small. Sure you could find them in 1.25" though. |
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15345
Location: Syracuse, NY
|
| Posted: Thu Nov 15, 2012 7:55 am Post subject: |
|
|
I'm curious if the Orange ones are nitrocelluouse and will have to conduct my own garage experiment..
just have to make sure not to mix up the gas cup for the beer cups..
_________________
| Abscate wrote: |
| These are the reasons we have words like “wanker” |
|
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Thu Nov 15, 2012 6:49 am Post subject: |
|
|
Ball float valve NLA. On the positive side, I'm building up a nice collection of worthless fuel filler necks.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Wed Nov 14, 2012 10:47 am Post subject: |
|
|
I'm no chemist, but I'm thinking that dissolved ping pong ball might be bad for the fuel system.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
dobryan
Samba Member
Joined: March 24, 2006
Posts: 17130
Location: Brookeville, MD
|
|
| Back to top |
|
|
danfromsyr
Samba Member
Joined: March 01, 2004
Posts: 15345
Location: Syracuse, NY
|
| Posted: Wed Nov 14, 2012 7:07 am Post subject: |
|
|
looks very near a regular ping pong ball
they sell orange ones in the beer & red solo cup isle at your gas station (nothing like a manufacterer promoting beer drinking games  )
_________________
| Abscate wrote: |
| These are the reasons we have words like “wanker” |
|
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Wed Nov 14, 2012 6:47 am Post subject: |
|
|
Luckily, I had Guinness in the fridge. Tore up the can and tried it out on your advice--too small. I've got an email in to Van Cafe to see if the part is NLA or not.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
Ahwahnee
Samba Member
Joined: June 05, 2010
Posts: 10213
Location: Mt Lemmon, AZ
|
| Posted: Tue Nov 13, 2012 6:06 pm Post subject: |
|
|
| Looks like the ball inside a can of Guinness. Wonder if that one is fuel-proof? |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Tue Nov 13, 2012 6:01 pm Post subject: |
|
|
Thread resurrection...
I was out at a pull-it yard this afternoon (the one at US36 and Broadway) picking bits and pieces off of an '88 Wolfsburg. It was pretty picked over, but I was lucky enough to pull a good lower grill and a decent heater cover.
I pulled the filler neck just for kicks to see if I'd get lucky and find a ball float valve at the other end.
Well, the cage is there, but the ball is gone! D'oh!
The little cage has a part number, though, 191 201 207. I've checked a few of the usual sites and haven't had any luck yet.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Sun May 09, 2010 2:01 pm Post subject: |
|
|
Awesome. Anybody need an extra gas-vometing filler tube?
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
jmranger
Samba Member
Joined: January 14, 2010
Posts: 701
Location: Quebec
|
| Posted: Sun May 09, 2010 12:25 pm Post subject: |
|
|
| joetiger wrote: |
| I might just install and see if there's any difference. |
Don't waste your time. The float is externally mounted - very visible if present. If you don't see it, it's not there.
I have pics of both models - will edit the post when I get a chance.
Edit: ok, here are the pics:
251 201 129 (from my 87):
251 201 129A (from a 91 I believe):
| Reckless Amateur wrote: |
| Comparing the one from the 87 I had and the one I got from a 1990, I think, the newer one had a ping pong ball float at the end which I don't thing the 87 did. If that helps. |
I almost answered "D'oh" to that, but now that I've seen the actual parts, well, that description is dead on
JM |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Sun May 09, 2010 12:15 pm Post subject: |
|
|
I just got the part from a guy who was parting out a '90.
It looks identical to the one on my '85, part number 251 201 129, same as the old one. I'm thinking that if it doesn't have the "a" suffix, then it's probably doesn't have the ball float. I can't tell any difference between this one and the one I already have. Which sucks. I might just install and see if there's any difference.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
jmranger
Samba Member
Joined: January 14, 2010
Posts: 701
Location: Quebec
|
| Posted: Tue May 04, 2010 4:42 pm Post subject: |
|
|
| Perales wrote: |
A picture is worth a few more words.
This technique also lets the displaced air out of the tank so it doesn't burp up.
|
Merci Perales.
Haven't tried the technique yet - van smells gas when full, so a reseal is in order, and full fill-ups are to be avoided in the meantime. But if I find the right part at the right price, I'll change it at the same time. |
|
| Back to top |
|
|
joetiger
Samba Member
Joined: January 27, 2005
Posts: 5236
Location: denver
|
| Posted: Tue May 04, 2010 9:13 am Post subject: |
|
|
I've tried the nozzle technique but I've never been able to get it to work. Generally what I've always done is slow the gas flow down to a trickle as I'm estimating that the tank is almost full. That's the only way I've found to not have it splash out.
I found a used fill tube from a '90. I'll report back after I've installed and filled up.
_________________
Joe T.
'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"
"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron
"Still, it's good to be afield."--VWagabond
Justice for Megan: https://linktr.ee/justiceformegantrussell |
|
| Back to top |
|
|
Perales
Samba Member
Joined: May 07, 2007
Posts: 2046
Location: Nova Scotia
|
| Posted: Tue May 04, 2010 8:58 am Post subject: |
|
|
| tencentlife wrote: |
The nozzle shutoff port is on the lower end of the tip. So, as it nears full, you have to lift the nozzle handle upward. This tilts the tip downward where it will be immersed in the liquid as the level comes up the filler. This technique works to make them shut off, but you can't walk away, you have to be there to hold up the nozzle at the end.
This has been discussed plenty around here, the old hands all know it already, I'm surprised no one has "filled" you all in! |
A picture is worth a few more words.
This technique also lets the displaced air out of the tank so it doesn't burp up.
_________________
-- 1987 Westfalia automatic (Captain Vino) |
|
| Back to top |
|
|
jmranger
Samba Member
Joined: January 14, 2010
Posts: 701
Location: Quebec
|
| Posted: Tue May 04, 2010 8:47 am Post subject: |
|
|
| Reckless Amateur wrote: |
| Comparing the one from the 87 I had and the one I got from a 1990, I think, the newer one had a ping pong ball float at the end which I don't thing the 87 did. If that helps. |
Almost a mug shot
BusDepot and Frank Condelli have the 251 201 129a part named earlier in the thread. But be sure to be seated before looking at the price... |
|
| Back to top |
|
|
Reckless Amateur
Samba Member
Joined: March 16, 2009
Posts: 224
Location: Philadelphia, PA
|
| Posted: Mon May 03, 2010 8:55 am Post subject: |
|
|
Comparing the one from the 87 I had and the one I got from a 1990, I think, the newer one had a ping pong ball float at the end which I don't thing the 87 did. If that helps.
_________________
91 Bostig-powered Westy (automatic)
Philadelphia, PA |
|
| Back to top |
|
|
jmranger
Samba Member
Joined: January 14, 2010
Posts: 701
Location: Quebec
|
| Posted: Mon May 03, 2010 8:27 am Post subject: |
|
|
| Reckless Amateur wrote: |
| Hey, I just installed the later model filler neck and (at least after a couple fillups) it seems to have done the trick. No more burp. |
Any part number you can share, and/or visual cues to recognize the right part ? Pictures would be great.
Thanks, |
|
| Back to top |
|
|
Reckless Amateur
Samba Member
Joined: March 16, 2009
Posts: 224
Location: Philadelphia, PA
|
| Posted: Mon May 03, 2010 3:22 am Post subject: |
|
|
Hey, I just installed the later model filler neck and (at least after a couple fillups) it seems to have done the trick. No more burp. (The "technique" wasn't doing the trick.) I found it in the classifieds--just post a WTB and see what happens. Cheers.
_________________
91 Bostig-powered Westy (automatic)
Philadelphia, PA |
|
| Back to top |
|
|
|
