| Author |
Message |
zuggbug
Samba Member
Joined: June 17, 2008
Posts: 3502
Location: Anderson SC
|
 Posted: Mon Jul 27, 2015 10:34 am Post subject: |
 |
|
awesome pics and buses
_________________
SOUTHERN INTEGRITY AIRCOOLERS
58 15 window
56 westy |
|
| Back to top |
|
 |
BlastMasterMannyFresh
Samba Member
Joined: November 21, 2001
Posts: 6106
Location: #31peach
|
| Posted: Mon Jul 27, 2015 10:21 am Post subject: |
|
|
| BarryL wrote: |
| Classy pictures but why no tourists everywhere? |
Nick and Dan called ahead. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15242
Location: Casa de Oro, California
|
| Posted: Mon Jul 27, 2015 9:33 am Post subject: |
|
|
| Classy pictures but why no tourists everywhere? |
|
| Back to top |
|
|
Red Fau Veh
Samba Member
Joined: September 07, 2012
Posts: 3037
Location: Prescott Az.
|
| Posted: Sun Jul 26, 2015 10:07 pm Post subject: |
|
|
Yup, the swivel life is rolling strong in 2015 and beyond.
_________________
1971 Deluxe Sunroof Bay 1905 stroker, dual idf40's, 74mm Scat forged crank, engle 110 cam. CB 044 heads, AutoCraft rockers, chromoly push rods
1973 Orange transporter stock type 4 with dual 40 Dellortos and Empi single quiet pack
1969 Adventurewagen blue whale Gene Berg 1776 built by Dave Kawell dual 36 DRLA's, Vintage Speed exhaust, Bosch 019 screamer
1961 Swivel Seat camper, L345 grey
| Touch Nicks Thing wrote: |
Swivel Seat panels are for people with no friends  |
|
|
| Back to top |
|
|
CaLiBus
Samba Member
Joined: May 27, 2011
Posts: 1097
|
| Posted: Sun Jul 26, 2015 10:03 pm Post subject: |
|
|
Two rare beauties hangin out!
You two make a great couple together!
Now bring that swivel over to California someday! |
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sun Jul 26, 2015 6:10 pm Post subject: |
|
|
Cruising around with TouchNicksThing in DC
New York Ave, NW, Washington DC (Near Chinatown)
National Mall
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
2Pack
Samba Member
Joined: September 20, 2005
Posts: 813
Location: Virginia
|
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sun Jun 14, 2015 3:21 pm Post subject: |
|
|
| 2Pack wrote: |
Assuming you don't have power at the brake light switch then somewhere between that point and the battery there is a break in the circuit because there should always be power at one of the terminals as long as the ignition switch is on. You can use your new voltmeter to see if there's power at: either end of the fuse, the ignition switch, and the headlight switch.
Once you know were you do and don't have voltage you will be closer to finding the connector that I knocked loose!  |
Big thanks to Lance to helping me figure out the brake lights. We concluded that the fuse box is spotty. We tested the #7 fuse multiple times each with mixed results. 12v at the front of the fuse... 12v on the back... no 12v on the front top of the fuse...no 12v from the rear top...etc. But after some testing and disconnecting and connecting all the wires we eventually got 12v at the front and rear of the fuse. It's a brand new WW 8 fuse, push on terminal box, so I don't know what the problem is? I'll order another, and solder the bridges together, and replace?
We also found that my push rod at the MC was not adjusted correctly, and the brake lights were constantly on. made a minor adjustment, and now all is good!
Hope to drive it to Litchfield if the weather is nice!
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
2Pack
Samba Member
Joined: September 20, 2005
Posts: 813
Location: Virginia
|
| Posted: Tue Jun 09, 2015 8:27 am Post subject: |
|
|
Assuming you don't have power at the brake light switch then somewhere between that point and the battery there is a break in the circuit because there should always be power at one of the terminals as long as the ignition switch is on. You can use your new voltmeter to see if there's power at: either end of the fuse, the ignition switch, and the headlight switch.
Once you know were you do and don't have voltage you will be closer to finding the connector that I knocked loose!
_________________
Please buy my Treasure |
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Mon Jun 08, 2015 4:22 pm Post subject: |
|
|
Thanks for the volt tester suggestions guys. But what should I do to fix my problem? I'm going to spray electrical cleaner on the turn signal switch and check the solders. Then double check MC switch and push rod adjustment. What if none of this fixes the problem?
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
Red Fau Veh
Samba Member
Joined: September 07, 2012
Posts: 3037
Location: Prescott Az.
|
| Posted: Mon Jun 08, 2015 9:08 am Post subject: |
|
|
For period correct testing try out a Simpson
_________________
1971 Deluxe Sunroof Bay 1905 stroker, dual idf40's, 74mm Scat forged crank, engle 110 cam. CB 044 heads, AutoCraft rockers, chromoly push rods
1973 Orange transporter stock type 4 with dual 40 Dellortos and Empi single quiet pack
1969 Adventurewagen blue whale Gene Berg 1776 built by Dave Kawell dual 36 DRLA's, Vintage Speed exhaust, Bosch 019 screamer
1961 Swivel Seat camper, L345 grey
| Touch Nicks Thing wrote: |
| Swivel Seat panels are for people with no friends |
|
|
| Back to top |
|
|
j.pickens
Samba Member
Joined: December 03, 2002
Posts: 9831
Location: Exit 7, New Jersey
|
| Posted: Sun Jun 07, 2015 10:11 pm Post subject: |
|
|
Go to a better store, you want a Fluke or Klein Tools digital auto ranging multimeter. The extra few bucks will be worth it. Here's a radio shack branded fluke for $25 on eBay:
http://r.ebay.com/bEBVIy
_________________
Founder and Chairman Emeritus, ECMSAS
BBX BBXII and BBXXI Long Distance Award Winner
| BeaterBarndoor wrote: |
i wish more people would actually drive their vws rather than just talking about what they have in the garage. |
| Red Fau Veh wrote: |
| If you've seen one sunroof swivel seat kombi, you've seen them all! |
|
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sun Jun 07, 2015 4:31 pm Post subject: |
|
|
| Pacmanfever wrote: |
Be sure to test your Harbor Freight volt meter, I got one of their small red free ones and it's too squirrely to be of any use at all.
I'd hate to see someone blindly hunting wiring woes with that faulty meter. |
Thanks for the heads up. I've been driving air cooled vws for over 12 years, time to finally break down and buy a volt meter...
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
Pacmanfever
Samba Member
Joined: January 29, 2013
Posts: 201
Location: Kansas
|
| Posted: Sun Jun 07, 2015 4:20 pm Post subject: |
|
|
Be sure to test your Harbor Freight volt meter, I got one of their small red free ones and it's too squirrely to be of any use at all.
I'd hate to see someone blindly hunting wiring woes with that faulty meter. |
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sun Jun 07, 2015 4:01 pm Post subject: |
|
|
So CTS was great! Drove over 1,000 miles. However, at farmington, The ignition wire got pinched and fried the main wiring harness. drove back 450miles with some help from the guys.
Ran a new wire from the coil to the fuse box and through the cab. Supervisor Manny, stepped up and offered his assistance. I then assisted Robert, and we got the bus running. In addition, the wire, melted in a weird spot in the main harness, and my brake lights were on constantly. Russ was a good friend and drove home behind me so that no one crushed my butt.
This weekend, I replaced the main wiring harness. CIP1 sells a wiring works main harness for $165. They had a code on the banner and I got 15% off, so I got the main harness for $150, and free shipping. What a deal!!
So, main harness went in, wired it all up, easily done with help from Russ and Lance. Thanks guys!! Bus runs great, turn signals work, running lights work. However, the brake lights do not work. Both tail lights are wired correctly, and have grounds running to the negative battery cable on the body. So the problem is not in the rear.
I touched the two wires at the brake switch that connect to the MC. no brake lights. I made an idiot light with a piece of wire and light bulb. Touched the bulb to a ground, and the wire to each wire that connects to the MC. No light. The fuse and connections all look good and tight.
I do not have a voltage meter. I'm going to HF next weekend and will pick one up.
Also, my bus has an 8 fuse, fuse box, and the bus is wired like a '62. No emergency lights or anything.
What's the next step. Is it the turn signal switch? How do I test that part? Switch at MC? How do I trace from the fuse box? General suggestions. One theory, is my push rod @ MC is not long enough?
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
vw7266
Samba Member
Joined: April 28, 2004
Posts: 3053
Location: the point, ohio
|
| Posted: Sun May 10, 2015 8:03 pm Post subject: |
|
|
| that bed doesnt need to work...youre not going to sleep in it when you got air b&b |
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sun May 10, 2015 6:50 pm Post subject: |
|
|
A little WD40, body weight, and a literal "touchnicksthing" made it level! All is good!
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
BlastMasterMannyFresh
Samba Member
Joined: November 21, 2001
Posts: 6106
Location: #31peach
|
| Posted: Sun May 10, 2015 4:42 pm Post subject: |
|
|
| CTS Ready |
|
| Back to top |
|
|
mandraks
Samba Member
Joined: November 28, 2004
Posts: 7117
Location: Lawrenceville, Ga
|
| Posted: Sat May 09, 2015 4:46 pm Post subject: |
|
|

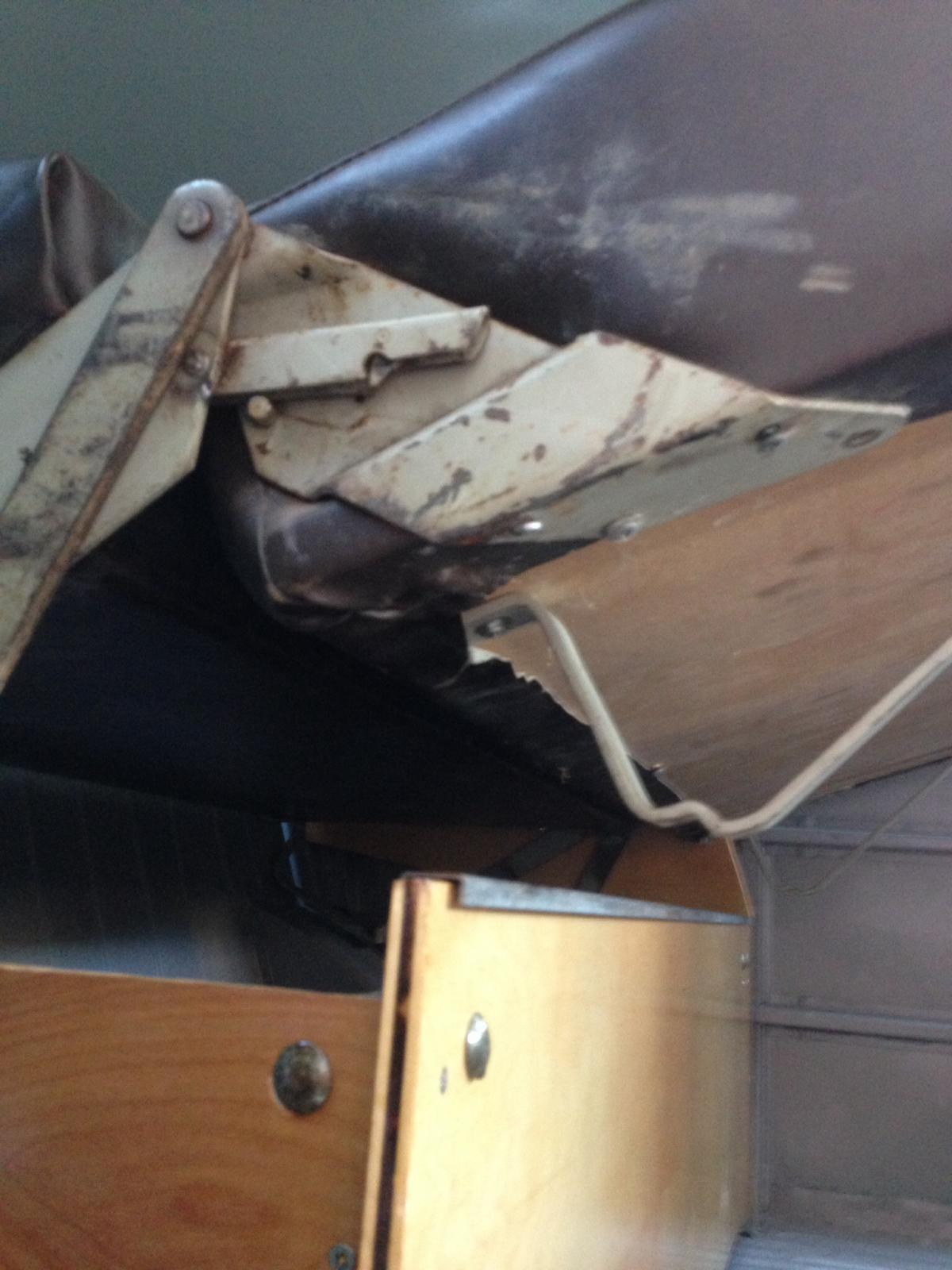

when you look at it you can see that the triangular-ish plate needs to rotate clockwise for this work correctly. It looks like it is binding? Wiggle it side to side?
_________________
regards
Uli
----------------------------------------
'53 3-Fold Oval, L35 Metallic Blue, looking for a narrow hatch panel |
|
| Back to top |
|
|
60vwnewengland
Twin #2
Joined: June 25, 2003
Posts: 1809
Location: Cape Cod & District of Columbia
|
| Posted: Sat May 09, 2015 2:54 pm Post subject: |
|
|

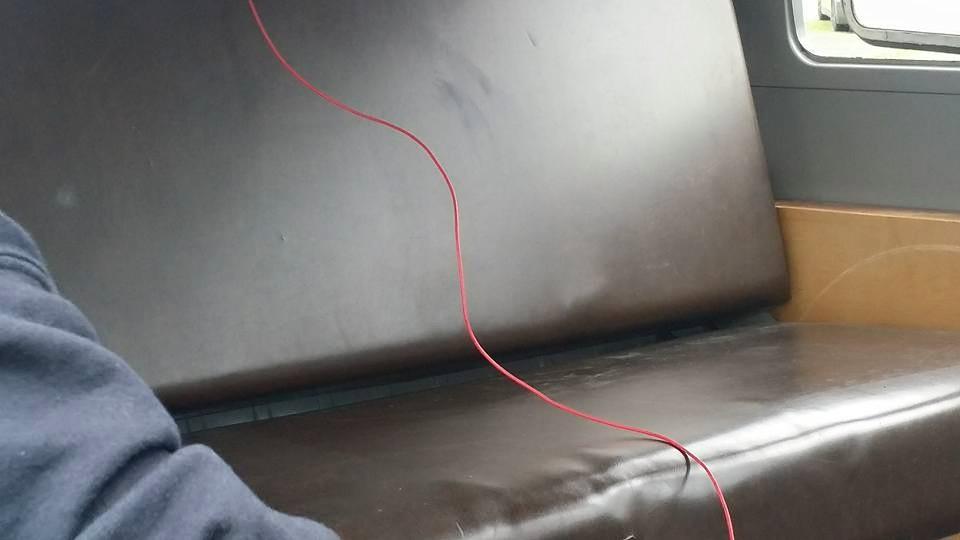

finally secured the z-bed. However, when the seat is in bed mode, it's not flat?
Has this happen to anyone else?
More photos:
How do I fix this?
_________________
77 Westy - Cape Cod Sage
70 Beetle
71 Super Beetle
RIP TheWalrus (Big Jack) 1988-2024 |
|
| Back to top |
|
|
|
