| Author |
Message |
vamram
Samba Member
Joined: March 08, 2012
Posts: 8006
Location: NOVA
|
 Posted: Wed Jul 30, 2025 7:38 pm Post subject: Re: The Stupid Question Thread |
 |
|
Yes you have to remove the door pull, door card and main window glass and then remove the complete vent window. There's a screw at the top rear edge of the vent Window's frame hidden under the felt channel that gets removed, and a bolt at the base of the vent window frame that holds the lower frame to the metal door panel. Remove these then you sort of tilt the vent window frame back and pull it out. It can be fidgety, careful not to damage the scraper. Then you need to remove the vent glass from the frame to remove the old seal and install the new one.
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!
'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!! |
|
| Back to top |
|
 |
whodunititmate
Samba Member
Joined: November 23, 2022
Posts: 19
Location: Sydney
|
| Posted: Wed Jul 30, 2025 7:17 pm Post subject: Re: The Stupid Question Thread |
|
|
| Cusser wrote: |
| whodunititmate wrote: |
| To change the rubber seals for the vent window/quarterlights in the doors do I need to pull the door apart completley or can I get away with removing the rivet that forms the hinge (for lack of a better word) and lifting the assembly out? |
That's not a stupid question at all.
However, not detailing what year and whether sedan or convertible keeps that in this category...
And explain "quarterlights" for those in USA please. |
I can see how that bit of info missing would keep it in this category, or the one of smart question/stupid owner. The car is a 72 super sedan. Quarter lights being the push out bits of glass in the doors. |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33075
Location: Hot Arizona
|
| Posted: Wed Jul 30, 2025 1:23 pm Post subject: Re: The Stupid Question Thread |
|
|
| whodunititmate wrote: |
| To change the rubber seals for the vent window/quarterlights in the doors do I need to pull the door apart completley or can I get away with removing the rivet that forms the hinge (for lack of a better word) and lifting the assembly out? |
That's not a stupid question at all.
However, not detailing what year and whether sedan or convertible keeps that in this category...
And explain "quarterlights" for those in USA please.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
whodunititmate
Samba Member
Joined: November 23, 2022
Posts: 19
Location: Sydney
|
| Posted: Wed Jul 30, 2025 2:35 am Post subject: Re: The Stupid Question Thread |
|
|
| To change the rubber seals for the vent window/quarterlights in the doors do I need to pull the door apart completley or can I get away with removing the rivet that forms the hinge (for lack of a better word) and lifting the assembly out? |
|
| Back to top |
|
|
BCE56
Samba Member
Joined: July 16, 2013
Posts: 389
Location: So Cal
|
| Posted: Sun Jul 20, 2025 5:04 pm Post subject: Re: The Stupid Question Thread |
|
|
| OldSchoolVW's wrote: |
My opinion ... black to pick up on the trim and wheels would look sharp. |
Local survey results: Black wins 6:1.
Proceeding accordingly.
_________________
=BCE56=
'86 Syncro Tintop EJ22, OBD II SmallCar adapter plate conversion
'96 Volvo 850 Turbo
'69 Frankenbug now driven daily. |
|
| Back to top |
|
|
OldSchoolVW's
Samba Member
Joined: July 03, 2020
Posts: 1411
Location: San Diego
|
| Posted: Sun Jul 20, 2025 12:35 pm Post subject: Re: The Stupid Question Thread |
|
|
| BCE56 wrote: |
A little help?
What color should I paint the bumpers?
SEM Trim Black (to match body moldings)
or
Seymour Stainless Blast (semi-gloss gray metallic)? |
My opinion ... black to pick up on the trim and wheels would look sharp.
Maybe post a a survey in this forum?
https://www.thesamba.com/vw/forum/viewforum.php?f=1&sid=646ca8ae012d090c5c54bcfd7123f7f8
_________________
Tom
"Following distance is proportional to IQ."
"It's okay to think."
"If you don't do it this year, you'll be one year older when you do." Warren Miller
'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback |
|
| Back to top |
|
|
BCE56
Samba Member
Joined: July 16, 2013
Posts: 389
Location: So Cal
|
| Posted: Sun Jul 20, 2025 12:27 pm Post subject: Re: The Stupid Question Thread |
|
|
A little help?
What color should I paint the bumpers?
SEM Trim Black (to match body moldings)
or
Seymour Stainless Blast (semi-gloss gray metallic)?
_________________
=BCE56=
'86 Syncro Tintop EJ22, OBD II SmallCar adapter plate conversion
'96 Volvo 850 Turbo
'69 Frankenbug now driven daily. |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33075
Location: Hot Arizona
|
| Posted: Wed Jul 16, 2025 6:39 am Post subject: Re: The Stupid Question Thread |
|
|
Consider a slip-in 87mm cylinder and piston set; this will have slightly thicker cylinder walls - which some like - and will fit right in.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
Tahlequah
Samba Member
Joined: July 14, 2007
Posts: 381
|
|
| Back to top |
|
|
EVfun
Samba Member
Joined: April 01, 2012
Posts: 6152
Location: Seattle
|
| Posted: Mon Jun 30, 2025 10:51 am Post subject: Re: The Stupid Question Thread |
|
|
This may not be the best place to ask but...
What is the center to center length of the trailing arms on the king and link pin front end?
Thanks!
_________________
| Wildthings wrote: |
| As a general rule, cheap parts are the most expensive parts you can buy. |
|
|
| Back to top |
|
|
BIGMIKEY
Samba Member
Joined: September 24, 2007
Posts: 1137
Location: North East Pennsylvania
|
| Posted: Sun Jun 29, 2025 11:27 am Post subject: Re: The Stupid Question Thread |
|
|
| BCE56 wrote: |
What would cause front disc brakes (Empi conversion) failure to retract/remain in contact with rotor?
During a short drive yesterday, I noticed reduced pedal free play, brakes were dragging. Discs were very hot.
No previous issues since professional installation 6K miles ago.
Rear drum brakes apparently not affected. Parking brake functions normally. |
As pads wear more of the caliper piston is out of the bore. Corrosion can form and keep the piston from retracting. On my Girrling calpers the rubber boot disintegrated allowing moisture to corrode and jam the pads against the rotor. Might want to look into that too.
_________________
BIGMIKEY
Deserter Series 1 project.
https://www.thesamba.com/vw/forum/viewtopic.php?t=787047&highlight=
1973 Beetle Driver, Marina Blue. |
|
| Back to top |
|
|
NachoCar
Samba Member
Joined: June 17, 2013
Posts: 367
Location: Ms
|
| Posted: Thu Jun 26, 2025 7:53 am Post subject: Re: The Stupid Question Thread |
|
|
| Thanks Gents!! |
|
| Back to top |
|
|
OldSchoolVW's
Samba Member
Joined: July 03, 2020
Posts: 1411
Location: San Diego
|
| Posted: Thu Jun 26, 2025 7:44 am Post subject: Re: The Stupid Question Thread |
|
|

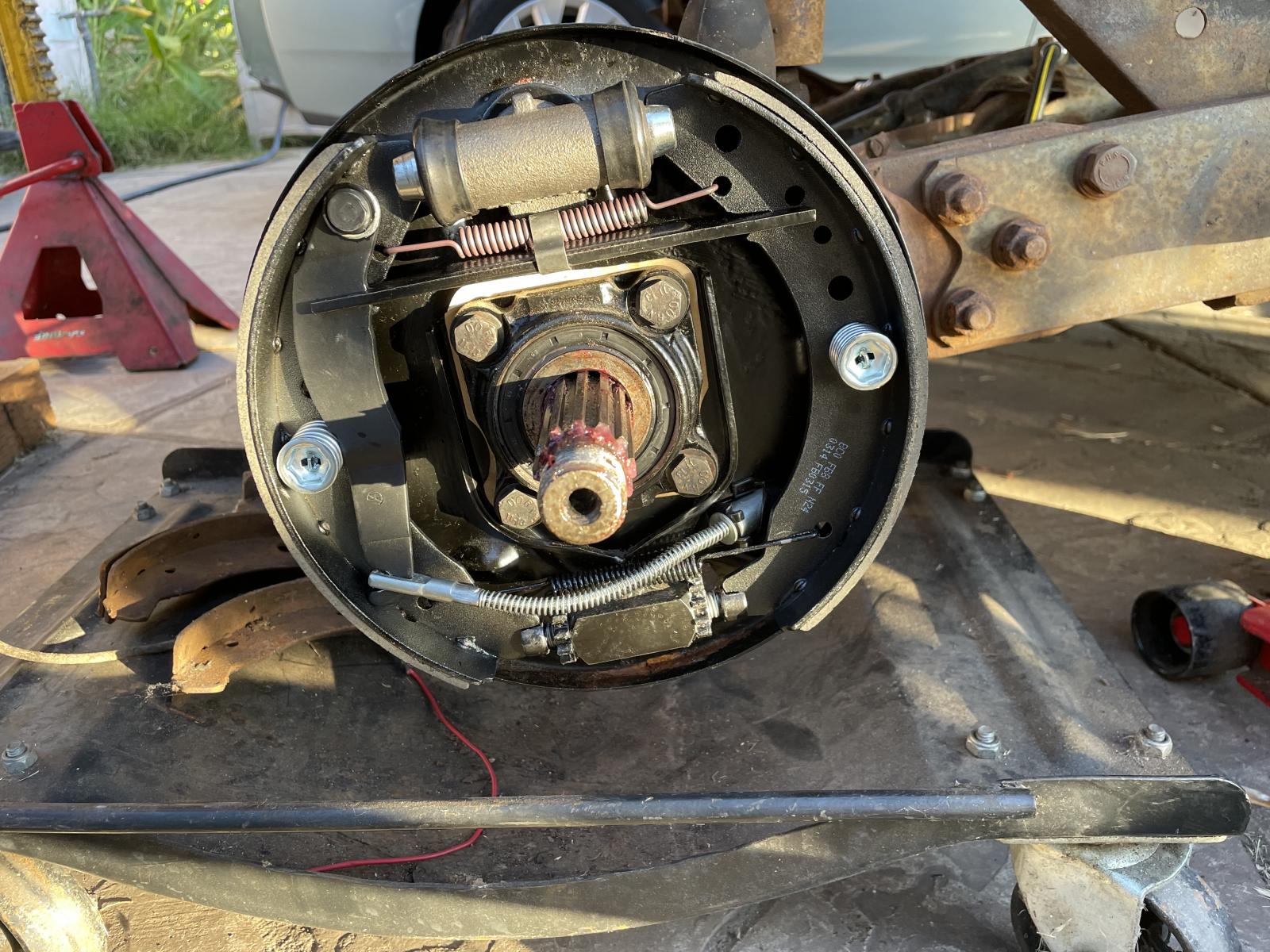

From hazetguy in the gallery:
_________________
Tom
"Following distance is proportional to IQ."
"It's okay to think."
"If you don't do it this year, you'll be one year older when you do." Warren Miller
'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33075
Location: Hot Arizona
|
| Posted: Thu Jun 26, 2025 7:36 am Post subject: Re: The Stupid Question Thread |
|
|
| EVfun wrote: |
| Look at the ebrake lever attached to the left brake shoe. See the pin at the top? Your part goes on the back side of that pin to keep it from falling out of the brake shoe. It is pinched together at the ears slightly to hold it into a groove on the pin. |

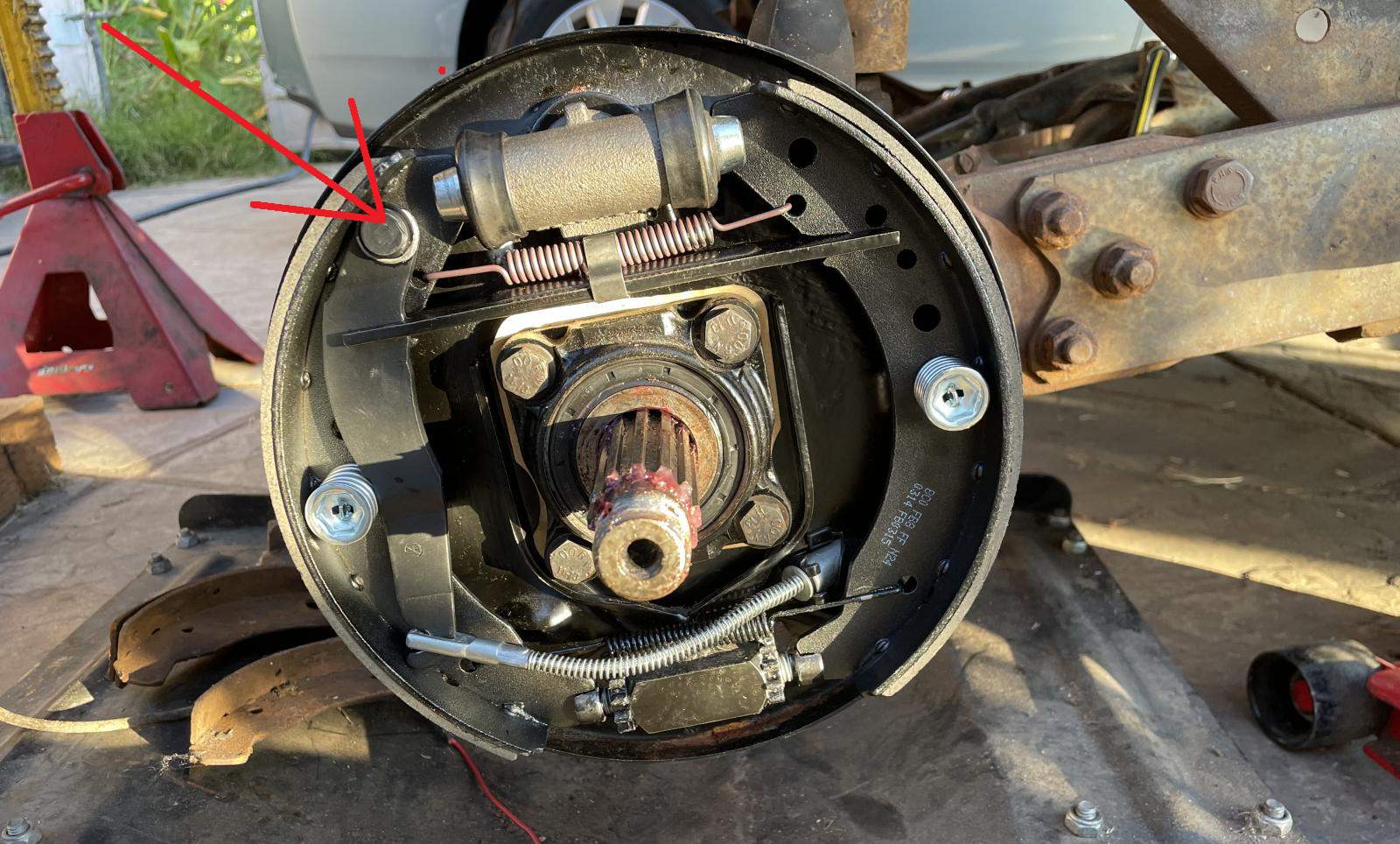

That "horseshoe clip" goes on the hidden side of the pivot pin highlighted with red arrow in this photo.
These clips typically get re-used every time one installs new rear brake shoes. The clips and giant cotter pin do not come with a set of rear brake shoes, unfortunately.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
EVfun
Samba Member
Joined: April 01, 2012
Posts: 6152
Location: Seattle
|
| Posted: Thu Jun 26, 2025 7:03 am Post subject: Re: The Stupid Question Thread |
|
|
| NachoCar wrote: |
what/where in rear stcok brakes does this sucker go? Fell out as I was using BFH to switch drums out.
Thanks
|
Look at the ebrake lever attached to the left brake shoe. See the pin at the top? Your part goes on the back side of that pin to keep it from falling out of the brake shoe. It is pinched together at the ears slightly to hold it into a groove on the pin. (picture from 70'DerpyDerby)
_________________
| Wildthings wrote: |
| As a general rule, cheap parts are the most expensive parts you can buy. |
|
|
| Back to top |
|
|
NachoCar
Samba Member
Joined: June 17, 2013
Posts: 367
Location: Ms
|
| Posted: Thu Jun 26, 2025 6:47 am Post subject: Re: The Stupid Question Thread |
|
|
what/where in rear stcok brakes does this sucker go? Fell out as I was using BFH to switch drums out.
Thanks
|
|
| Back to top |
|
|
baldessariclan
Samba Member
Joined: October 14, 2016
Posts: 2037
Location: Wichita, KS
|
| Posted: Wed May 28, 2025 5:47 am Post subject: Re: The Stupid Question Thread |
|
|
| PNW PAUL wrote: |
| This was a California car and thus has a catalytic converter. The exhaust is rusted out, and I'd like to install a non-catalytic muffler. Is there any adaptation needed to do this, or will the removal of the existing system allow the new muffler to be bolted on? |
You might want to check what sort of intake manifold you currently have on your car. IIRC, some of the CA bugs w/ catalytic converters had heat risers on the intakes w/ two holes on each end, rather than the usual one hole at each end. You’ll need the muffler and intake manifold to be compatible at this connection point (i.e. the heat riser to muffler connection).
Note that you can always consider switching out your intake manifold & heat riser assembly if necessary, to match the more commonly available “standard” mufflers.
_________________
1971 Standard Beetle — fairly stock / driver
baldessariclan -- often in error, never in doubt... |
|
| Back to top |
|
|
OldSchoolVW's
Samba Member
Joined: July 03, 2020
Posts: 1411
Location: San Diego
|
| Posted: Tue May 27, 2025 12:08 pm Post subject: Re: The Stupid Question Thread |
|
|
| PNW PAUL wrote: |
Hi All. Just acquired a 1977 sunroof beetle with relatively low miles.
This was a California car and thus has a catalytic converter. The exhaust is rusted out, and I'd like to install a non-catalytic muffler. Is there any adaptation needed to do this, or will the removal of the existing system allow the new muffler to be bolted on? |
Just something to consider ... though Washington no longer has emissions tests, it is illegal to drive a vehicle with modified emissions equipment. ( https://ecology.wa.gov/air-climate/air-quality/vehicle-emissions/emissions-check-ends ) I doubt switching the exhaust would create any DMV issues while you own the car, but it might become an issue when you sell the car. Just something to be aware of.
_________________
Tom
"Following distance is proportional to IQ."
"It's okay to think."
"If you don't do it this year, you'll be one year older when you do." Warren Miller
'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback |
|
| Back to top |
|
|
PNW PAUL
Samba Member
Joined: April 17, 2024
Posts: 1
Location: Seattle
|
| Posted: Tue May 27, 2025 11:43 am Post subject: Re: The Stupid Question Thread |
|
|
Hi All. Just acquired a 1977 sunroof beetle with relatively low miles. It has amazing potential to be restored back to its former Bahama Blue glory. This is my first of likely to be many questions to the knowledge base of all things Beetle!
This was a California car and thus has a catalytic converter. The exhaust is rusted out, and I'd like to install a non-catalytic muffler. Is there any adaptation needed to do this, or will the removal of the existing system allow the new muffler to be bolted on?
Many thanks in advance! |
|
| Back to top |
|
|
Multivanagon
Samba Member
Joined: December 11, 2018
Posts: 16
Location: St. Paul MN
|
| Posted: Tue May 20, 2025 7:11 pm Post subject: Re: The Stupid Question Thread |
|
|
Thanks vamram. Valid point, why change things that worked when parked in 1993.
I'm sure the check valve is ok-ish since it was parked with ethanol free fuel. Thanks past self.
Of course question #2 has already been answered on thesamba and it serves a purpose.
Introduction to throttle positioner and altitude adjuster!
Progress this year on the 71 super includes:
Fuel
Carburetor rebuild
Fuel tank cleanout
New fuel lines
Brakes
Master cylinder
New soft lines
Pads
Wheel cylinders
Upholstery
TMI basketweave
Next up is to finish bleeding and adjusting the brakes, clean the points, throw in a battery, some fuel, and see if it will run. It still needs a lot of work. Probably needs a different motor since this one has excessive endplay, clutch chatter (bowden tube?), front suspension rebuild and tires. This is a California car that moved to the midwest sometime in the late 70's or 80's. I purchased it from the original owner with 85K OG miles.
_________________
Current VWs:
1990 Vanagon Multivan
2019 Golf Alltrack
1971 Super Beetle project
1996 Special Edition Trek Jetta mountain bike
Past VWs:
2008 Passat Wagon
1999.5 Golf
1991 Golf |
|
