Spare tire storage container DIY

[4Gears4Tires]

[campism]

[Sycolyst]

Has anyone modified the clam shell (or storage container) to hold a marine tank with diesel for a diesel heater (CDH)? It seems that this could be a decent place to put the tank ie, easier to fill, no inside fumes, etc.

I'm not there yet, but as I build my van this may prove to be a solution.

[dobryan]

[shagginwagon83]

I am slightly concerned about weight of how much is inside the container. I had a full axle in there but decided to remove it and just carry a spare joint and boots (along with other parts).

Also, if I recall, the original screw was stripped and I drilled and went a size up with a Helicoil. So I am concerned about that holding up too.
_________________
"Jo Ann" - '83.5 Westfalia EJ22e w/Peloquin
Instagram: @joannthevan

[Howesight]

The spare tire storage bin is one of those things I wanted to install, but it always seemed less important than other mods, jobs and maintenance on the Westy. At the same time, I really wanted one of the "V-band" top barrels which I knew existed but seldom saw. Well Craigslist today rewarded my patience (AKA sloth) and listed a barrel that had this closing feature.

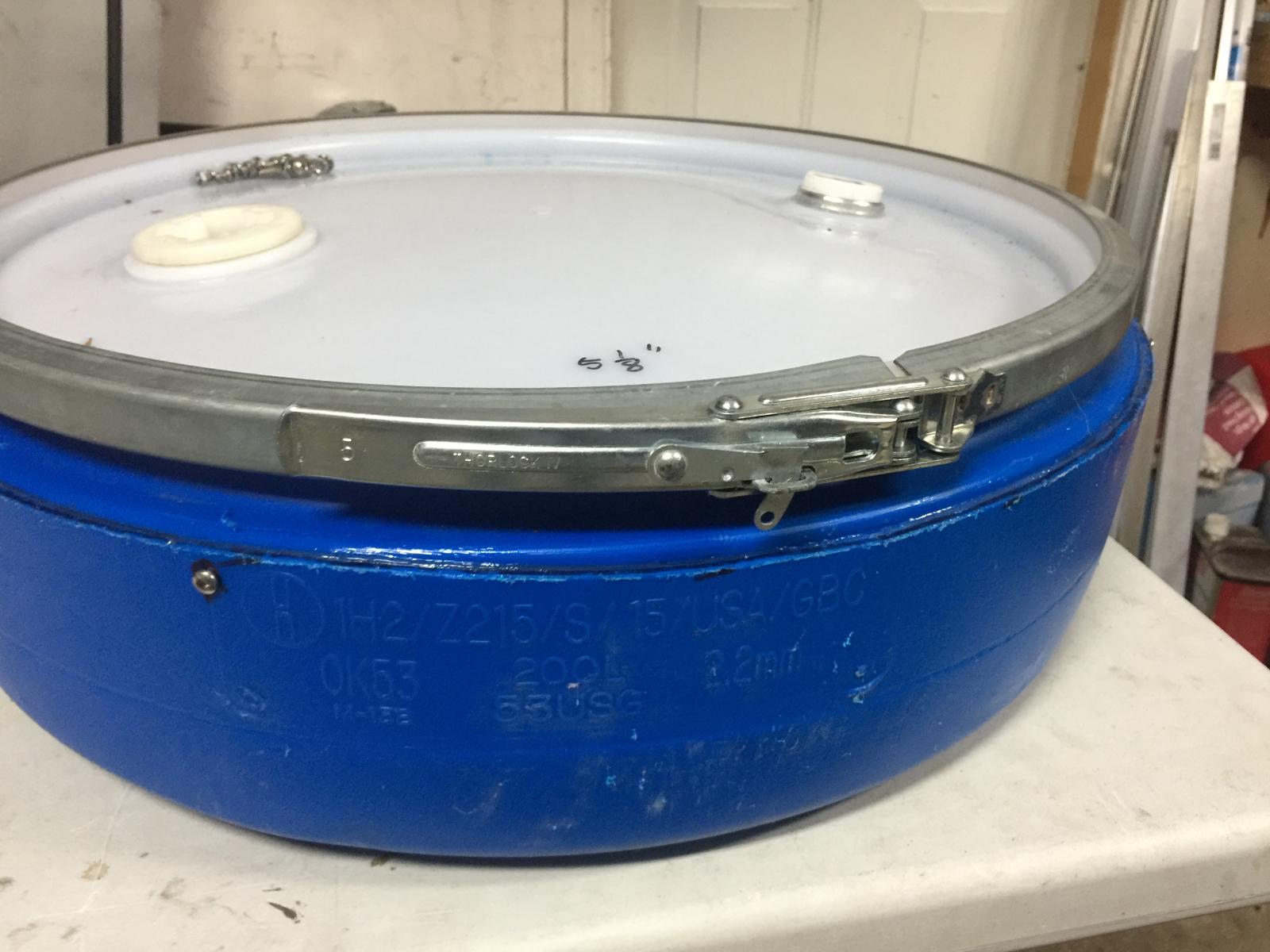

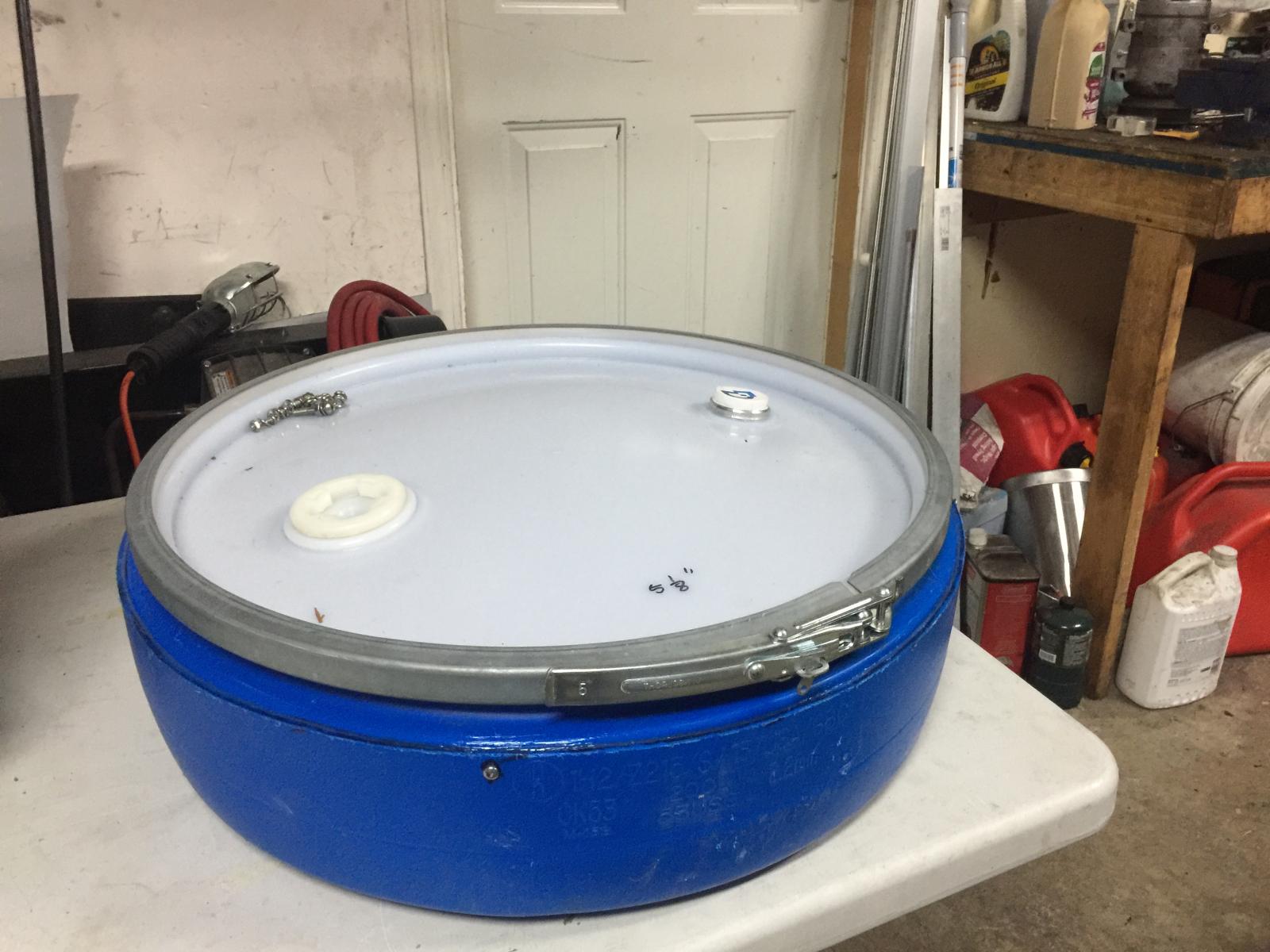

Here it is, (total height 7.125") after being cut down, silicone sealed and screwed:

I have had a mostly complete spare set of "Westy-only" tools sitting in the wings for some time now, awaiting a time I would get this storage bin done and in the meantime, always brought my huge tool chest along on long trips or trips into the no-CAA boondocks. This will be a welcome change that will also house a lot of spare parts previously stored in various nooks throughout the Westy. Thanks for those posting their efforts and pics!
_________________
'86 Syncro Westy SVX

[erste]

I got a blue 55 gallon drum from a guy who sold car wash products. $25
Cut on the line at 6-3/4” up from the base with a jig saw.
Cut the top about 2” down, then ended up cutting it shorter so it would fit the stock jack, just where the jig saw would ride on the top lip. It gets thick and the blade will slice through the area with the threaded caps, so I avoided that.
Cut the seal to length.
Primed and then painted the exterior with black rubberized undercoating.
Glued the seal in place.
Riveted the latches on.
Filled 2 holes that were drilled in the lid with epoxy (didn’t notice them until I pressed on the lid and it wasn’t air tight)
Added speaker gasket to the lid to take up some slop in the latches.

Main tips are to cut the base first, as has been said, and to position the latches about 3/16” below where they easily rest. Attach the top of the latch to the lid
then mark the flippy part of the latch a little lower than you think. That way it’ll pull and seal tight.

Parts used:
(4) Stainless steel latches
Edge Trim
1/8” or 3/16” rivets - you want them 1/4” long for the body and 3/8” long worked alright for the lid, or shallower but I drilled all the way through the lip.
adhesive for seal
Speaker Gasket 1/8” x 3/8” - This isn’t needed but I had it

I don’t see any reason not to cut the lid as shallow as possible. The overall height is pretty much exactly right. I pushed it all the way toward the driver’s side to give the coolant hoses more room. It’s tight and doesn’t move around at all, and just enough clearance at the steering shaft.

Thanks to everyone who added to this thread and made it dead easy!

[Schnippzle]

Does anyone know if these storage containers, correct size for spare wheel space, can be bought? If so, where from please?

[andy52]

[erste]

[uberaudi]

Small update to my DIY spare tire storage.

I've had a little leakage in my storage container and decided a new seal was in order. I initially used a rubber hose split down the side and glued on but it never really worked that great. Dust and water always found a way in.

So I ordered this:
https://www.google.com/url?sa=t&source=web&...NYkSDPVRZA

And used some Permatex silicone adhesive to glue it on. The lid fits noticably tighter and with the four clasps around the perimeter I'm hopeing this takes care of the water ingress.

[Surferboy120]

[ALIKA T3]

[uberaudi]

With my spare on the rear mounted RMW carrier I used this space for spare parts for my old 1.9L. Alternator, fuel pump, coolant hoses and plastics, electrical components. Basically I put stuff in there that I didn't need to access quickly, but wanted to carry with me. How far do you travel out of service? These items can certainly become essential to get you back home.

[Surferboy120]

I am about to try this mod and was wondering. When cutting the lid cant you cut it to say 6" so that it fits almost to the 6'3/4 length of the bottom and then fitting it upside down would be super water proof since water cannot travel up and then "Maybe" a seal is not so important?

[mtnride1]

I removed my clam shell and installed the GW box. I have my levelers, wheel chocks and a scissors jack in there. Still have room. I asked someone the same question and they said "that's where you hide your weed" that is from a SNL skit a long time ago.
_________________
87 westy 2wd (NED)

[Paulbeard]

[SCM]

[46orBust]

What would you list as essential to put in here ?
I have an 85 westy 2whl drive

[danfromsyr]

guys there's ALOT of crash worthiness conversation over in this thread.
originated by the above crashed van driver.
www.thesamba.com/vw/forum/viewtopic.php?t=175672
