| Author |
Message |
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
 Posted: Fri Dec 09, 2016 8:06 am Post subject: Re: Levon the 66 Westy |
 |
|
| BarryL wrote: |
Great work and lots of it!
Question I have is when you put the axles and fulcrum plates and thrust washer with internal snap ring on, did you keep the axles pushed inward the whole time since you weren't working with the center section on its side and the axle straight up in the air? |
thanks! yes, I was VERY careful not to let the fulcrum plates slide out of place... maybe even too paranoid! I installed everything on one side with snap ring and all, then pulled on the axle to see how much movement it took for the fulcrums to slip out.. then disassembled, reassembled and made sure I was careful not to get remotely close to that point. the process made it a bit more tedious but made me feel much more comfortable.
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay |
|
| Back to top |
|
 |
Longboardluv
Samba Member
Joined: September 23, 2014
Posts: 934
Location: Austin TX
|
| Posted: Fri Dec 09, 2016 7:08 am Post subject: Re: Levon the 66 Westy |
|
|
nice gearbox and brakes! got your foundation in  |
|
| Back to top |
|
|
Major Woody
Samba Enigma
Joined: December 04, 2002
Posts: 9016
Location: Portland, OR
|
| Posted: Thu Dec 08, 2016 7:23 pm Post subject: Re: Levon the 66 Westy |
|
|
| Looking good. You have obviously learned a lot through this process. The pix you took will help others in the future. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15491
Location: Casa de Oro, California
|
| Posted: Thu Dec 08, 2016 7:22 pm Post subject: Re: Levon the 66 Westy |
|
|
Great work and lots of it!
Question I have is when you put the axles and fulcrum plates and thrust washer with internal snap ring on, did you keep the axles pushed inward the whole time since you weren't working with the center section on its side and the axle straight up in the air? |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
| Posted: Thu Dec 08, 2016 4:34 pm Post subject: Re: Levon the 66 Westy |
|
|

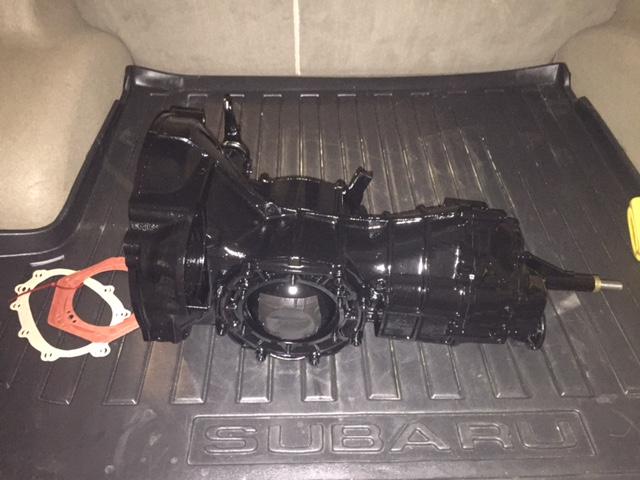

picked up the rebuilt trans (in new case)
some time went by.. and I managed to get back to work! prepped and painted the spring plates
after lots of cursing I managed to remove the freeze plugs and retaining nut
some more time went by.. and made it back to Levon! made a little copper punch to remove the axle stub from the lower inner bearing
removed upper inner bearing
and let these dirty guys soak in some mineral spirits
made it back out and started piecing everything together:
retainer nut on and torqued to spec
freeze plug in and sealed
installed inner bearings
pressed upper gear and upper outer
snap ring in
managed to get the right side done and set axle play... 4 gaskets on this side. thinking the other will be good with 3
almost ready!
cleaned up and painted the trans mount
installed backing plates w/ new gaskets/seals
painted rgbs/backing plates
installed new brake parts after drying a few days

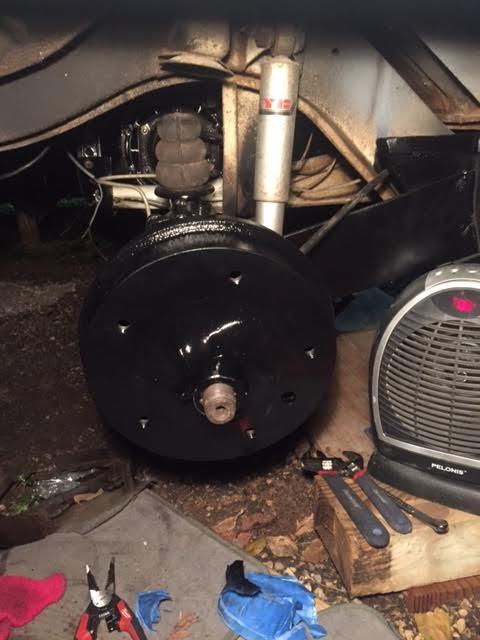

painted drums (also had them turned in austin)
me, excited to finally get Levon back on the ground!
if all goes well should have body work starting shortly
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
|
| Back to top |
|
|
Longboardluv
Samba Member
Joined: September 23, 2014
Posts: 934
Location: Austin TX
|
| Posted: Thu Dec 08, 2016 2:20 pm Post subject: Re: Levon the 66 Westy |
|
|
|
|
| Back to top |
|
|
silkvw
Samba Member
Joined: July 06, 2008
Posts: 467
Location: Elgin, TX
|
| Posted: Thu Aug 11, 2016 8:18 pm Post subject: Re: Levon the 66 Westy |
|
|
Udo is the man for trans/redux box rebuilds. But, he won't be around forever. I hope you will try to learn more and perhaps be doing repairs for others in the future.
I'm glad to see the progress on your bus! Matt is moving right along too. I stoped by to see him and Conrad today.
Keep up the great work!
Greg
_________________
'64 single cab Big Bend Bus Bash 2015 '16
'59 camper BBBB 2017 '18 '19 '20 '22 New Mexico
'70 Ghia........Bonneville,........TX Mile,........142 mph......(sold)
https://www.thesamba.com/vw/forum/viewtopic.php?t=641871&highlight= |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
| Posted: Thu Aug 11, 2016 11:38 am Post subject: Re: Levon the 66 Westy |
|
|
I then boxed up everything and dropped off for rebuild. He plans to throw it all in a new case (that isn't cracked!) with 4.12R&P and 0.82 4th. Excited to get it back next week.. Thanks again for the recommendation Greg!
Should have it back to me in a week or so.. Udo did a quick inspection of my RGBs and thought they were in decent enough shape for me to check and replace bearings on my own. He did recommend changing the lower/outer bearings as mentioned above.
My axles are in decent shape luckily but two of the fulcrum plates were worn with a chip on each so will be replacing those. I'm just nervous about opening the back plate of the RGBs and fully tearing into them... I have read a bunch of threads on how to do it but am wondering if I should wait and let him handle those as well. I want to learn as much as possible in this process but also want to do it right... Any suggestions?
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay
Last edited by Col_Forbin on Thu Aug 18, 2016 3:04 pm; edited 2 times in total |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
| Posted: Thu Aug 11, 2016 11:24 am Post subject: Re: Levon the 66 Westy |
|
|

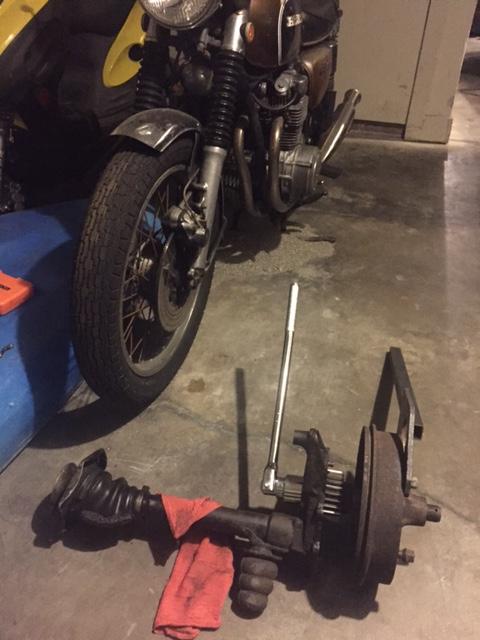

In the morning I moved on to opening up the RGBs and removing the axle tubes.
the harbor freight bearing separator/puller set worked well for this job.. I probably could have found a way around it but wanted to play it safe
I was told I definitely need to replace the lower outer bearing as the bearing shield/cover slips on and off very easy:
Once everything was apart I pressure washed the bus, case, and covers to help start the clean up process
awaiting my arrival this Friday:
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
| Posted: Thu Aug 11, 2016 11:03 am Post subject: Re: Levon the 66 Westy |
|
|
so had a good bit of progress last weekend... managed to drop the trans with the help of some beer and a few buddies!
first concern was the axle nut which went smoothly
I was a little nervous since I don't have a VW style drum puller.. but they came off pretty easy once I loosened up the brakes. helped build some momentum!
it took me while as it was my first time doing this but was a fun learning process... from researching around the samba, hitting some hurdles, coming back to samba, referring to muir/bentley manuals, and overcoming... victory!
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay |
|
| Back to top |
|
|
Longboardluv
Samba Member
Joined: September 23, 2014
Posts: 934
Location: Austin TX
|
| Posted: Sun Jun 26, 2016 5:49 pm Post subject: Re: Levon the 66 Westy |
|
|
| well be here watching! Hey and if you need help with those let me know! |
|
| Back to top |
|
|
Col_Forbin
Samba Member
Joined: November 25, 2011
Posts: 86
Location: Austin, Texas
|
| Posted: Sun Jun 26, 2016 4:46 pm Post subject: Re: Levon the 66 Westy |
|
|
| Pinetops wrote: |
| It looks like you have a solid bus there, congratulations! It's cool to have the icebox but honestly they get in the way, I keep mine inside my house most of the time. |
Thanks! Enjoyed your thread for your westy. I agree about the icebox.. I'm not actively seeking one but if i came across one for the right price i'd probably snag it.
Thanks for all the help and info everyone! Been collecting some parts here and there but haven't done much to the bus lately. Things are finally starting to settle down so should get moving with some progress here shortly. Bout to order my jalousie seal kits and start restoring those...
_________________
Goin' where the climate suits my clothes
Levon the 66 Westy:
http://www.thesamba.com/vw/forum/viewtopic.php?t=655780
71 Deluxe Bay |
|
| Back to top |
|
|
zozo
Samba Member
Joined: October 15, 2005
Posts: 5216
Location: South of Ol' San Antonio
|
| Posted: Wed Jun 15, 2016 6:12 am Post subject: Re: Levon the 66 Westy |
|
|
| Longboardluv wrote: |
| zozo wrote: |
| The other 4 are splits as well? |
Yes there are us four that are on here with 4 or 5 others that I know of here in Austin with Splits they are working on. Some are a little more actively working on them than others. But we should have at least 4-5 on the road by the end of the year! |
Glad to hear it, and look forward to seeing them.
I don't keep a lot of stuff laying around, but if I can help with odds and ends, let me know. Sometimes it's the most absurd little part that derails progress. |
|
| Back to top |
|
|
Pinetops
Samba Member
Joined: March 24, 2007
Posts: 2987
|
| Posted: Wed Jun 15, 2016 5:45 am Post subject: Re: Levon the 66 Westy |
|
|
| silkvw wrote: |
| I know Conrad has been working on his since I met him in 2001. |
15 years, wow
_________________
"A rolling bus gathers no rust." |
|
| Back to top |
|
|
Longboardluv
Samba Member
Joined: September 23, 2014
Posts: 934
Location: Austin TX
|
| Posted: Wed Jun 15, 2016 5:31 am Post subject: Re: Levon the 66 Westy |
|
|
| zozo wrote: |
| The other 4 are splits as well? |
Yes there are us four that are on here with 4 or 5 others that I know of here in Austin with Splits they are working on. Some are a little more actively working on them than others. But we should have at least 4-5 on the road by the end of the year! |
|
| Back to top |
|
|
zozo
Samba Member
Joined: October 15, 2005
Posts: 5216
Location: South of Ol' San Antonio
|
| Posted: Tue Jun 14, 2016 8:26 pm Post subject: Re: Levon the 66 Westy |
|
|
| The other 4 are splits as well? |
|
| Back to top |
|
|
silkvw
Samba Member
Joined: July 06, 2008
Posts: 467
Location: Elgin, TX
|
| Posted: Tue Jun 14, 2016 7:55 pm Post subject: Re: Levon the 66 Westy |
|
|
| zozo wrote: |
| This is the 4th to show up on here recently, who's doing the other 4, and what are they? |
Matt (longboardluv) knows them all. I know Conrad has been working on his since I met him in 2001.
_________________
'64 single cab Big Bend Bus Bash 2015 '16
'59 camper BBBB 2017 '18 '19 '20 '22 New Mexico
'70 Ghia........Bonneville,........TX Mile,........142 mph......(sold)
https://www.thesamba.com/vw/forum/viewtopic.php?t=641871&highlight= |
|
| Back to top |
|
|
zozo
Samba Member
Joined: October 15, 2005
Posts: 5216
Location: South of Ol' San Antonio
|
| Posted: Tue Jun 14, 2016 6:34 pm Post subject: Re: Levon the 66 Westy |
|
|
| This is the 4th to show up on here recently, who's doing the other 4, and what are they? |
|
| Back to top |
|
|
silkvw
Samba Member
Joined: July 06, 2008
Posts: 467
Location: Elgin, TX
|
| Posted: Tue Jun 14, 2016 10:56 am Post subject: Re: Levon the 66 Westy |
|
|
| Longboardluv wrote: |
| silkvw wrote: |
Looks like we have four split bus builds going on here, all in the Austin area.
Greg |
There are 8 splits being built in Austin that I know of. |
Eight!
Guess I'm out of touch.
Do they all know about the Dec. Big Bend Trip?
_________________
'64 single cab Big Bend Bus Bash 2015 '16
'59 camper BBBB 2017 '18 '19 '20 '22 New Mexico
'70 Ghia........Bonneville,........TX Mile,........142 mph......(sold)
https://www.thesamba.com/vw/forum/viewtopic.php?t=641871&highlight= |
|
| Back to top |
|
|
|
) to make sure it all went back together correctly.
