| Author |
Message |
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
 Posted: Mon May 27, 2024 10:36 pm Post subject: Re: Gravel driveway engine install |
 |
|

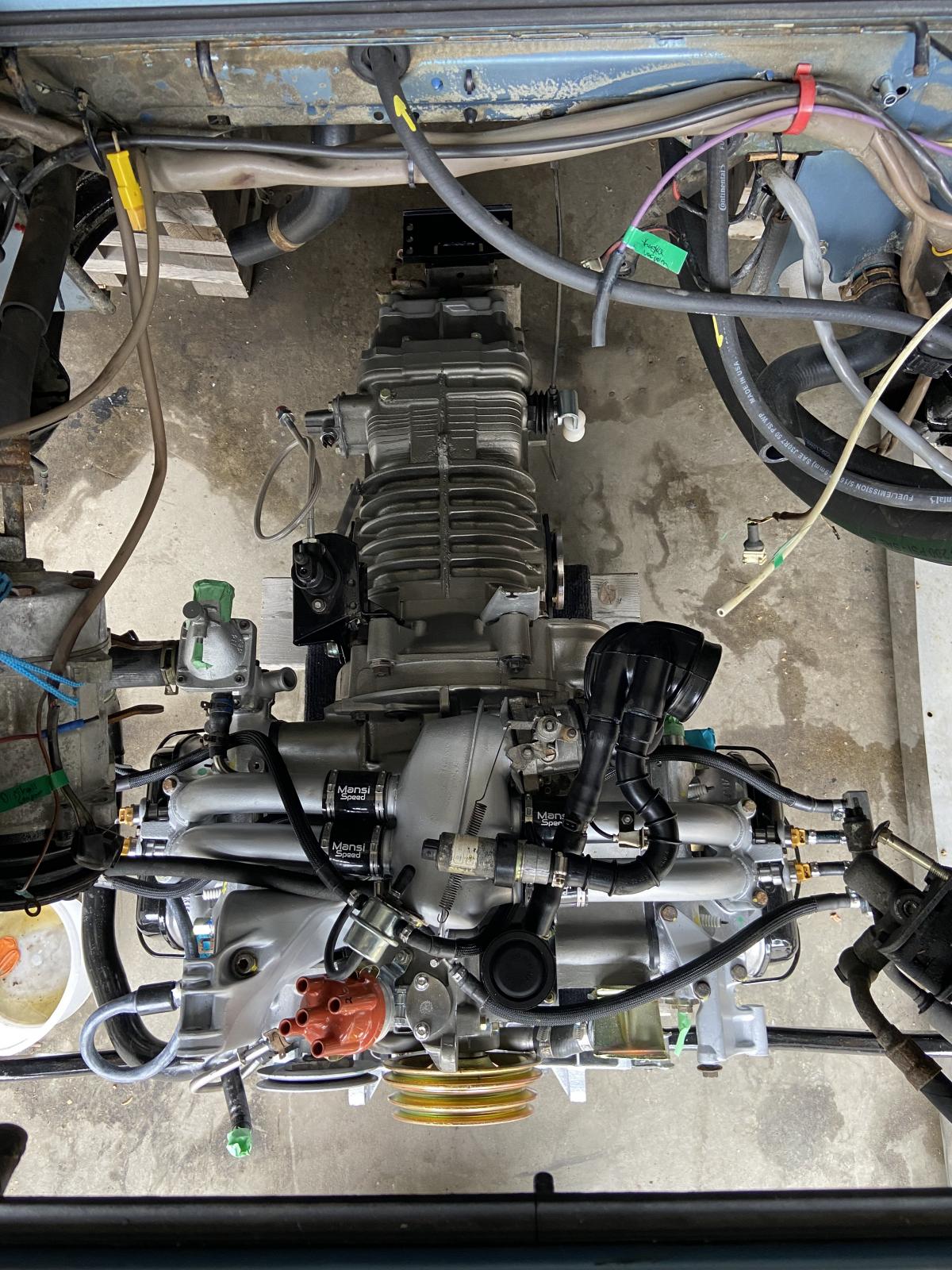

Mine was fairly well balanced with that chain bolted to the engine lift eyes.
In your case, I would still use the engine lift points, but you will need some type of jack to support the trans.
Just go slow and keep an eye on things as you go up.
Engine looks great BTW |
|
| Back to top |
|
 |
billpatterson
Samba Member
Joined: December 20, 2022
Posts: 26
Location: Edmonton, Alberta
|
| Posted: Mon May 27, 2024 7:13 pm Post subject: Re: Gravel driveway engine install |
|
|
| DanHoug wrote: |
| Bill- buy a $60 "Load Leveler" from Harbor F and your woes will be reduced. can angle the engine/trans combo to 'fit it up' nicely. |
Great idea, Dan. I will borrow a friends...
Bill
_________________
Bill Patterson
Edmonton, Alberta, Canada
โ87 Westfalia (Named Allons-y French for letโs go!) |
|
| Back to top |
|
|
DanHoug
Samba Member
Joined: December 05, 2016
Posts: 5711
Location: Bemidji, MN
|
| Posted: Mon May 27, 2024 6:11 pm Post subject: Re: Gravel driveway engine install |
|
|
Bill- buy a $60 "Load Leveler" from Harbor F and your woes will be reduced. can angle the engine/trans combo to 'fit it up' nicely.
_________________
-dan
60% of what you find on the internet is wrong, including this post.
'87 Westy & '89 Westy both 2.1 4spd
Past projects can be found at--
www.thefixitworkshop.com |
|
| Back to top |
|
|
billpatterson
Samba Member
Joined: December 20, 2022
Posts: 26
Location: Edmonton, Alberta
|
| Posted: Mon May 27, 2024 5:52 pm Post subject: Re: Gravel driveway engine install |
|
|
| tjet wrote: |
Just thought I post a few photos of what I did today. I finally installed this used 2.2 wxb I bought from Surfy Murfy about a year ago (who is a very cool dude). I used a cherry picker I got from AZ a coupe of years ago. One 4x8 sheet of plywood under the engine/trans, & two 2x4 sheets under the AZ ramps. I also had a couple of 2by2's that I used to set the engine on the legs of the crane. I rolled it under & re-grabbed the chain. A little wiggling & I got it in. The 2x2's also come in handy to leverage the engine in when mating it to the trans.
My biggest problem was the heat. In the 90's & the humidity around 80%
I'm done with bolting it up. Tomorrow I'll hook it all up & hopefully off to cape cod for a week tomorrow night.
|
HI!
How balanced is the engine; I am wondeing if you used both lifting kugs or how the weight was distributed? I ask because I will use the same method but my engine has the transmission attached which adds weight toward the front of the package.
Appreciated
Bill
_________________
Bill Patterson
Edmonton, Alberta, Canada
โ87 Westfalia (Named Allons-y French for letโs go!) |
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 23891
Location: NYC/Upstate/ROW
|
| Posted: Fri Aug 19, 2016 3:43 pm Post subject: Re: Gravel driveway engine install |
|
|
You'll find my EV faithfully waiting for at Westport while I sail the Cape all August
_________________
๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐ ๐ ๐ |
|
| Back to top |
|
|
VWinVT
Samba Member
Joined: April 21, 2013
Posts: 1541
Location: North East Kingdom
|
| Posted: Fri Aug 19, 2016 3:22 pm Post subject: Re: Gravel driveway engine install |
|
|
Good work!!! I just got back from Cape Cod 2 weeks ago, folks down there really love Vanagons...lots of smiles and waves. Enjoy!
_________________
1981 Westfalia with a 2001 Cabrio ABA
Small wheel turns by the firing rod,
Big wheel turns by the grace of God.
Every time that wheel turns 'round,
You're bound to cover just a little more ground. |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Fri Aug 19, 2016 10:04 am Post subject: Re: Gravel driveway engine install |
|
|
Just wanted to say I got the engine fully installed yesterday evening, after which I departed on a 5 hr road trip to Cape Cod. It ran great. I upgraded all the ground straps & also install a Jay Brown 4 gau alt wiring upgrade. Next week I will install a Van Cafe oil pressure gauge kit.
Anyway, we are off to rent some kayaks
|
|
| Back to top |
|
|
Vanagon Nut
Samba Member
Joined: February 08, 2008
Posts: 10497
Location: Sunshine Coast B.C.
|
| Posted: Thu Aug 18, 2016 10:15 am Post subject: Re: Gravel driveway engine install |
|
|
Did some reading on the net about this.
large old piece of carpet might be of some use if working with limited budget. Good for wheeling around floor jack?
one person suggested welding a steel plate to jack stands
or angle iron pieces to spread out the weight.
As has been said I'm sure, I always work with jack stands and jack lightly
"tensioned" or jack stands and wood block. two 4x4 chunks with plywood top
work well to build block.
I like the idea of wood planks. Double them up, drive on them for
appropriate jobs?
In spite of dirt/gravel floor and mosquitoes, I feel lucky I have a shaded work space.
at OP: stay cool, take your time.
_________________
1981 Westy DIY 15ยบ ABA
(VW Gas I4)
1988 Westy DIY 50ยบ ABA
VE7TBN |
|
| Back to top |
|
|
Sodo
Samba Member
Joined: July 06, 2007
Posts: 10639
Location: Western WA
|
| Posted: Thu Aug 18, 2016 9:56 am Post subject: Re: Gravel driveway engine install |
|
|
I'm working on plywood too. Level ramp for the van slightly raised has been a big help. A pair of 4x10 - 10ft would do well. Cost ~ $40 each new (?) possibly can be scrounged by some folks. Or 2X10s doubled.
This has been a great addition to my work area and was pretty easy. My boards are 2.25" x 10" doug fir (11 ft long). I've since added stops at the rears so it can't roll off the board. Someone might conclude that I'me geared up for spending too much time under the van....
_________________
'90 Westy EJ25, NEW oil rings (!) 2Peloquins, 3knobs, SyncroShop pressure-oiled pinion-bearing & GT mainshaft, filtered, cooled gearbox.
'87 Tintop w 47k 53k, '12 SmallCar EJ25, cooled filtered original gearbox
....KTMs, GasGas, SPOT mtb
Last edited by Sodo on Thu Aug 18, 2016 11:17 am; edited 4 times in total |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Thu Aug 18, 2016 6:43 am Post subject: Re: Gravel driveway engine install |
|
|
I didn't get it done last night. I lost that little barrel nut that secures the throttle cable in the TB  . Thank god I had an extra TB with that special cable nut & the pinch bolt still on it. I should be on the road in a few hrs for Cape Cod if all goes well. My wife & kid got there a few days ago - we rented a beach cottage.
.
One more thing, I noticed this new engine has the high oil pressure switch port capped off. Can I just hook up the low press switch & ground out the wire that goes to the high switch? |
|
| Back to top |
|
|
Zeitgeist 13
Samba Member
Joined: March 05, 2009
Posts: 12168
Location: Port Manteau
|
| Posted: Wed Aug 17, 2016 12:41 pm Post subject: Re: Gravel driveway engine install |
|
|
Fancy...ha ha! Actually, those 2x4 engine lift examples are what got me to thinking I could use this thing in a similar manner, with some minor mods. All I did was cut out about 2' of the uprights and then weld the top back to the tube base. I'm thinking about using the part of the rolling base with casters that I cut off the tube structure as a cradle to roll the engine up under the van. Re-purposing is fun for the whole family
_________________
Casey--
'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik? |
|
| Back to top |
|
|
Vanagon Nut
Samba Member
Joined: February 08, 2008
Posts: 10497
Location: Sunshine Coast B.C.
|
| Posted: Wed Aug 17, 2016 12:18 pm Post subject: Re: Gravel driveway engine install |
|
|
| Zeitgeist 13 wrote: |
| I pulled my WBX with a shop crane, but need the gantry in order to be able to crawl around under the engine while mocking up/welding the crossbar |
don't know what happened to my post last night ( I was kidding by referring to
Caseys gantry as "fancy". Its obviously quite nice),
but some lengths of wood and a hand winch works well too.
Neil.
_________________
1981 Westy DIY 15ยบ ABA
(VW Gas I4)
1988 Westy DIY 50ยบ ABA
VE7TBN |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Wed Aug 17, 2016 12:08 pm Post subject: Re: Gravel driveway engine install |
|
|
| djkeev wrote: |
Looks like a mechanical fuel pump! (We all have the cover plate there)
Interesting........ It's clearly fuel injected.
Dave |
Can I leave the fuel pump block (pushrod guide) in place & just put the wbx cover on it? It's sealed on pretty good |
|
| Back to top |
|
|
KristianS
Samba Member
Joined: June 14, 2016
Posts: 53
Location: SF - Bay Area
|
| Posted: Wed Aug 17, 2016 10:45 am Post subject: Re: Gravel driveway engine install |
|
|
Wow that video was recorded with a potato.
OP, looks great! |
|
| Back to top |
|
|
Jeffrey Lee
Samba Member
Joined: February 04, 2014
Posts: 1520
Location: Wisconsin
|
| Posted: Wed Aug 17, 2016 10:20 am Post subject: Re: Gravel driveway engine install |
|
|
| Abscate wrote: |
| ... if you need a video to figure out why a plastic ramp doesn't work on stone, should you be working on cars? |
No.
Put the wrench down and step away before someone hurts himself ...
_________________
Camp Westfalia
Camping Tips โข Newsletter โข Cool Campervan Apparel
www.CampWestfalia.com |
|
| Back to top |
|
|
Bman
Samba Member
Joined: April 28, 2005
Posts: 895
Location: South Coast, Oregon
|
|
| Back to top |
|
|
Zeitgeist 13
Samba Member
Joined: March 05, 2009
Posts: 12168
Location: Port Manteau
|
| Posted: Wed Aug 17, 2016 6:49 am Post subject: Re: Gravel driveway engine install |
|
|
I pulled my WBX with a shop crane, but need the gantry in order to be able to crawl around under the engine while mocking up/welding the crossbar
_________________
Casey--
'89 Bluestar ALH w/12mm Waldo pump, PP764 and GT2052
'01 Weekender --> full camper
y u rune klassik? |
|
| Back to top |
|
|
tjet
Samba Member
Joined: June 10, 2014
Posts: 3725
Location: Az
|
| Posted: Wed Aug 17, 2016 5:34 am Post subject: Re: Gravel driveway engine install |
|
|
| Zeitgeist 13 wrote: |
I just made this little gantry stanchion today, from an old DVD rack I got for free from the local Habitat for Humanity store. I'm getting ready to install my ALH in the driveway (sloped concrete).
|
That's what I originally wanted to build, but went with an engine crane instead as I'm pressed for time right now. My DW is also slopped too. Enough that a pair of jackstands will tilt over.
^^^^^^^
Doug/Dave, good catch. It was a dual carb engine. Here's a photo of the actual engine when it had a pair of Weber's on the aircooled.net site. I can't find the build thread though from Surfy.
http://vwparts.aircooled.net/Waterboxer-Dual-40-IDF-Carburetor-Kit-p/waterboxer-dual-idf.htm
| Abscate wrote: |
Am I getting crusTKy in my old age - but if you need a video to figure out why a plastic ramp doesn't work on stone, should you be working on cars? |
I just wanted to warn some folks out there. I should also mention that the plywood I got for my ramps is too thin. They are conforming to the ground & not flat on the top. Because of this, one of my ramps is swelling on the side. Not bad, but enough for me to notice it.
If you need to do this, get 3/4" plywood min.
Time to finish my coffee & get this project done...
Last edited by tjet on Wed Aug 17, 2016 6:53 am; edited 1 time in total |
|
| Back to top |
|
|
Abscate
Samba Member
Joined: October 05, 2014
Posts: 23891
Location: NYC/Upstate/ROW
|
| Posted: Wed Aug 17, 2016 4:34 am Post subject: Re: Gravel driveway engine install |
|
|
| tjet wrote: |
Here's the video. I also bought the Rhino Max version.
Link
|
Am I getting crusTKy in my old age - but if you need a video to figure out why a plastic ramp doesn't work on stone, should you be working on cars?
_________________
๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐บ๐ธ ๐ ๐ ๐ |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32989
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
|
