| Author |
Message |
bugguy1967
Samba Member
Joined: January 16, 2008
Posts: 4368
Location: Los Angeles, CA 90016
|
 Posted: Fri Jan 15, 2021 1:39 pm Post subject: Re: new main bearing with copper color |
 |
|
| bugguy1967 wrote: |
| They're not worn. Glycos had exposed copper. Doesn't mean it's bad. Probably some of the best ever. Put em in your case, torque it, and measure. Like everybody is supposed to do... |
_________________
"A petrol engine can start readily, run smoothly and give every appearance of being in good order, without necessarily being in good tune." - Colin Campbell, "The Sportscar Engine" |
|
| Back to top |
|
 |
bugguy1967
Samba Member
Joined: January 16, 2008
Posts: 4368
Location: Los Angeles, CA 90016
|
| Posted: Fri Jan 15, 2021 1:38 pm Post subject: Re: new main bearing with copper color |
|
|
They're not worn. Put em in your case, torque it, and measure. Like everybody is supposed to do...
_________________
"A petrol engine can start readily, run smoothly and give every appearance of being in good order, without necessarily being in good tune." - Colin Campbell, "The Sportscar Engine" |
|
| Back to top |
|
|
pharos
Samba Member
Joined: March 05, 2009
Posts: 323
Location: USA
|
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27750
Location: Colorado Springs
|
|
| Back to top |
|
|
pharos
Samba Member
Joined: March 05, 2009
Posts: 323
Location: USA
|
| Posted: Fri Jan 15, 2021 5:07 am Post subject: Re: new main bearing with copper color |
|
|
| modok wrote: |
Clevite made in china WHAAAT?
The latest clevite catalog does list oversize OD main bearings for the first time ever. There are numerous mistakes in the specifications.... which really made me wonder..... what they were UP to. Now I know. Looks ok from here.
THANKS for the pics. |
Can you please share the link of clevite catalog
_________________
http://www.facebook.com/groups/vwbug/ |
|
| Back to top |
|
|
motomwo
Samba Member
Joined: February 10, 2017
Posts: 276
Location: Oregon
|
| Posted: Mon Apr 16, 2018 8:44 pm Post subject: Re: new main bearing with copper color |
|
|
Please do keep us posted as to how the new clevites measure/fit.
Marty
_________________
1961 Bug, 2276 cb wedge ports 44x37 11.1 comp fk10 1.5 rockers 48idf's 1 3/4" header Rancho pro street trans SAW axles Airkewld 4# narrowed beam, Koni shocks, Airkewld dis brake all around. 5.5/4.5 BRMs
1966 Bug, 2127, panchito heads, fk8, 1.3 rockers, dual 44idfs, 1 5/8 merge header, Rancho pro strt flyer, empi axles, Airkewld's 4" beam and discs all around and adjustable shocks. 4.5 & 5.5 BRMs |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27750
Location: Colorado Springs
|
| Posted: Mon Apr 16, 2018 8:14 pm Post subject: Re: new main bearing with copper color |
|
|
Clevite made in china WHAAAT?
The latest clevite catalog does list oversize OD main bearings for the first time ever. There are numerous mistakes in the specifications.... which really made me wonder..... what they were UP to. Now I know. Looks ok from here.
THANKS for the pics. |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8733
Location: PNW
|
| Posted: Mon Apr 16, 2018 8:08 pm Post subject: Re: new main bearing with copper color |
|
|

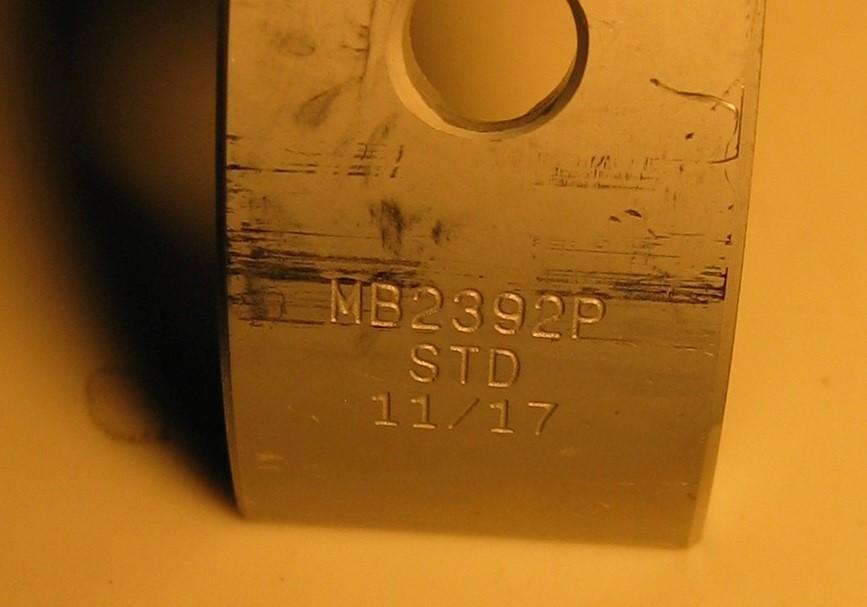

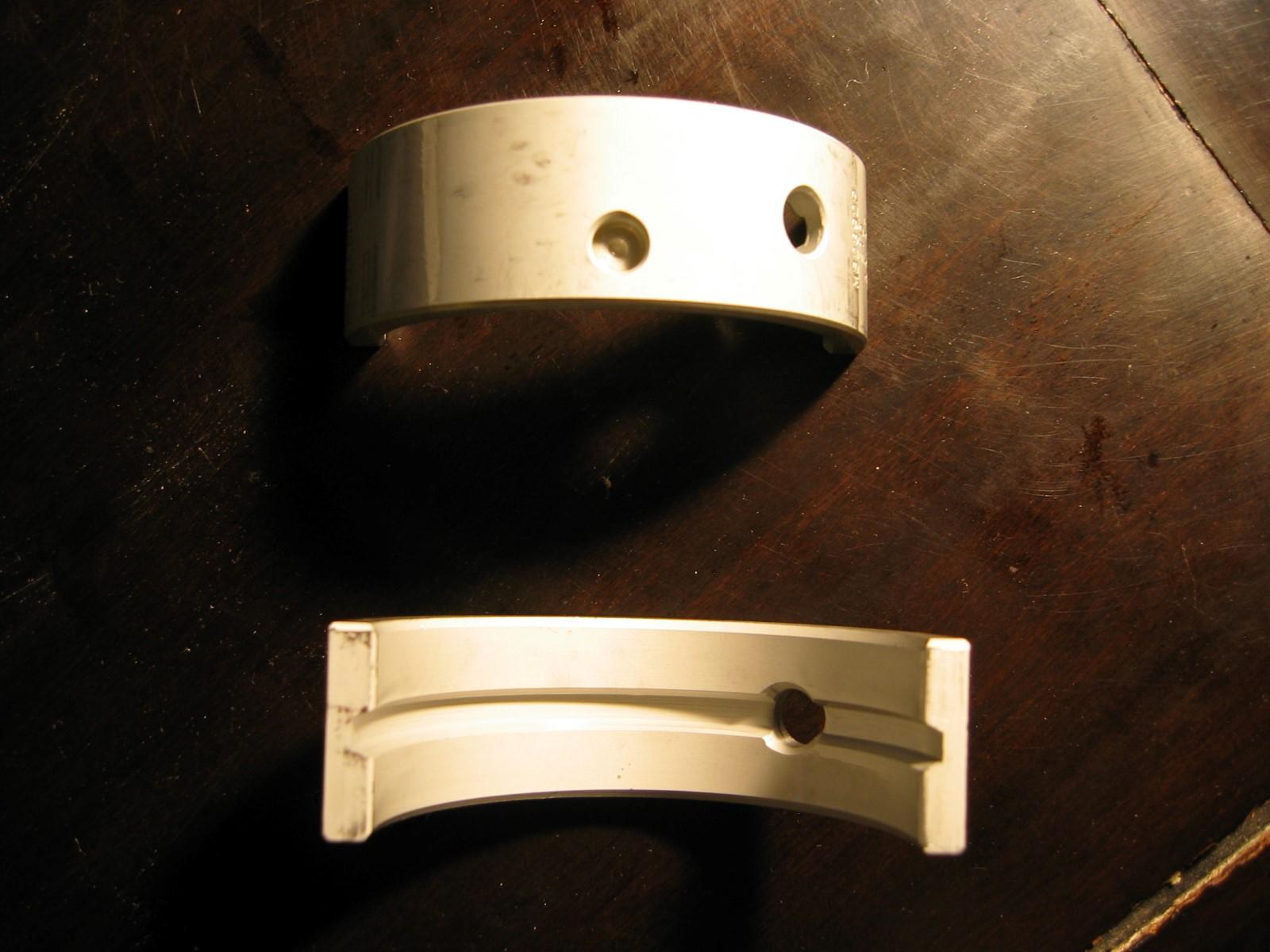

Got the bearings today, havent measured them yet but thought Id post pics for you all. Pretty disappointed that they are made in china vs. mexico but maybe it means the rod bearings could come back? In the hand edges feel rough compared to regular mahle or KS, weird copper sheen under certain lighting but overall standard aluminum color. #2 bearing is still steel backed fortunately.
_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8733
Location: PNW
|
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23439
Location: Oklahoma City
|
| Posted: Sat Jan 27, 2018 9:34 am Post subject: Re: new main bearing with copper color |
|
|
| motomwo wrote: |
| raygreenwood wrote: |
The question that,did not get answered....which is why I was hoping your contact with the mfg would yield more than just new set of bearings foe you.....is.....were those bearings SUPPOSED to be copper on the outer surface....or were they missing a layer.....bscause.....as I posted pages back...factually....there have been and still are bearings made with an outer copper layer.
Would be nice to know if it were a,mistake.....or for a different application. Ray |
Ray,
One of the tech guys I spoke to at Mahle told me I could run that bearing. The pictures I posted at the beginning don't show it very well but there is a grayish tint in the copper. What he (the tech guy) said was the copper showing is due to some kind of oxidation or a patina showing through due to it was an old unused bearing that was exposed to high humidity. I decided not to try it in my all new 2127 motor I am building. Sorry I didn't share that info earlier and glad you brought it back up.
Marty |
Mmmmm.....not a very accurate answer you got from that "tech"....but thank you for going back to it! The outer coatings they typically put on bearings.....tin or lead/tin.....would not simply oxidize away without leaving considerable white residue. And....if there were oxidizing going on....the copper would not have been anywhere near that color. It would have been at best.....dark penny colored or going green.
But I do agree that if they were still the right size there was probably no reason you could not have used them. There are bearings made with outer copper layers.
I am betting as you noted that there was some visible gray coating....that they were simply not coated completely and they got missed by QC. Ray |
|
| Back to top |
|
|
motomwo
Samba Member
Joined: February 10, 2017
Posts: 276
Location: Oregon
|
| Posted: Sat Jan 27, 2018 8:30 am Post subject: Re: new main bearing with copper color |
|
|
| raygreenwood wrote: |
The question that,did not get answered....which is why I was hoping your contact with the mfg would yield more than just new set of bearings foe you.....is.....were those bearings SUPPOSED to be copper on the outer surface....or were they missing a layer.....bscause.....as I posted pages back...factually....there have been and still are bearings made with an outer copper layer.
Would be nice to know if it were a,mistake.....or for a different application. Ray |
Ray,
One of the tech guys I spoke to at Mahle told me I could run that bearing. The pictures I posted at the beginning don't show it very well but there is a grayish tint in the copper. What he (the tech guy) said was the copper showing is due to some kind of oxidation or a patina showing through due to it was an old unused bearing that was exposed to high humidity. I decided not to try it in my all new 2127 motor I am building. Sorry I didn't share that info earlier and glad you brought it back up.
Marty
_________________
1961 Bug, 2276 cb wedge ports 44x37 11.1 comp fk10 1.5 rockers 48idf's 1 3/4" header Rancho pro street trans SAW axles Airkewld 4# narrowed beam, Koni shocks, Airkewld dis brake all around. 5.5/4.5 BRMs
1966 Bug, 2127, panchito heads, fk8, 1.3 rockers, dual 44idfs, 1 5/8 merge header, Rancho pro strt flyer, empi axles, Airkewld's 4" beam and discs all around and adjustable shocks. 4.5 & 5.5 BRMs |
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23439
Location: Oklahoma City
|
| Posted: Fri Jan 26, 2018 7:43 pm Post subject: Re: new main bearing with copper color |
|
|
The question that,did not get answered....which is why I was hoping your contact with the mfg would yield more than just new set of bearings foe you.....is.....were those bearings SUPPOSED to be copper on the outer surface....or were they missing a layer.....bscause.....as I posted pages back...factually....there have been and still are bearings made with an outer copper layer.
Would be nice to know if it were a,mistake.....or for a different application. Ray |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27750
Location: Colorado Springs
|
| Posted: Fri Jan 26, 2018 7:12 pm Post subject: Re: new main bearing with copper color |
|
|
They quit making the good rod bearings for 780p VW 1600 and 610p 2" buick, and stock is depleted.
What good would main bearings do if we don't have rod bearings??
Those rod bearings fit 50 million engines, but I guess there is no demand???? |
|
| Back to top |
|
|
mark tucker
Samba Member
Joined: April 08, 2009
Posts: 23945
Location: SHALIMAR ,FLORIDA
|
| Posted: Fri Jan 26, 2018 6:44 pm Post subject: Re: new main bearing with copper color |
|
|
might want to tell them to make them with only internal groves on all bearings....  3/4 groove would be even better... |
|
| Back to top |
|
|
motomwo
Samba Member
Joined: February 10, 2017
Posts: 276
Location: Oregon
|
| Posted: Fri Jan 26, 2018 12:49 pm Post subject: Re: new main bearing with copper color |
|
|
That's what I was also told by the Mahle tech guys. When they do get them in I am going to stock up on a couple of extra sets.
Marty
_________________
1961 Bug, 2276 cb wedge ports 44x37 11.1 comp fk10 1.5 rockers 48idf's 1 3/4" header Rancho pro street trans SAW axles Airkewld 4# narrowed beam, Koni shocks, Airkewld dis brake all around. 5.5/4.5 BRMs
1966 Bug, 2127, panchito heads, fk8, 1.3 rockers, dual 44idfs, 1 5/8 merge header, Rancho pro strt flyer, empi axles, Airkewld's 4" beam and discs all around and adjustable shocks. 4.5 & 5.5 BRMs |
|
| Back to top |
|
|
AlteWagen
Troll
Joined: February 23, 2007
Posts: 8733
Location: PNW
|
|
| Back to top |
|
|
motomwo
Samba Member
Joined: February 10, 2017
Posts: 276
Location: Oregon
|
| Posted: Fri Jan 26, 2018 12:34 pm Post subject: Re: new main bearing with copper color |
|
|
Bugsy, Thank you for the tip, your right that would be a quick way to measure the clearance.
I already installed that copper bearing in the case (torqued)and measured with a dial bore gage and the crank with micrometer and it has a clearance of .002.
I decided to buy a new set of main bearings as pictured above and move on with the build and those bearings all measure .002-.0025" clearance, perfect for me.
Marty
_________________
1961 Bug, 2276 cb wedge ports 44x37 11.1 comp fk10 1.5 rockers 48idf's 1 3/4" header Rancho pro street trans SAW axles Airkewld 4# narrowed beam, Koni shocks, Airkewld dis brake all around. 5.5/4.5 BRMs
1966 Bug, 2127, panchito heads, fk8, 1.3 rockers, dual 44idfs, 1 5/8 merge header, Rancho pro strt flyer, empi axles, Airkewld's 4" beam and discs all around and adjustable shocks. 4.5 & 5.5 BRMs |
|
| Back to top |
|
|
Bugsy61
Samba Member
Joined: March 20, 2011
Posts: 266
Location: Peoria, Illinois
|
| Posted: Fri Jan 26, 2018 11:11 am Post subject: Re: new main bearing with copper color |
|
|
| Why don't you just slide the outer bearings on the crank, install the center main in the case and bolt together with plasti-gauge across the center split bearing. You'll know right away if the shell missed the last coating process, or if this a used bearing shell. Just did mine last night, took 15 minutes, and is almost fool proof. |
|
| Back to top |
|
|
motomwo
Samba Member
Joined: February 10, 2017
Posts: 276
Location: Oregon
|
| Posted: Fri Jan 26, 2018 7:41 am Post subject: Re: new main bearing with copper color |
|
|
| Ebel wrote: |
| Does the box say they are rod bearings? |

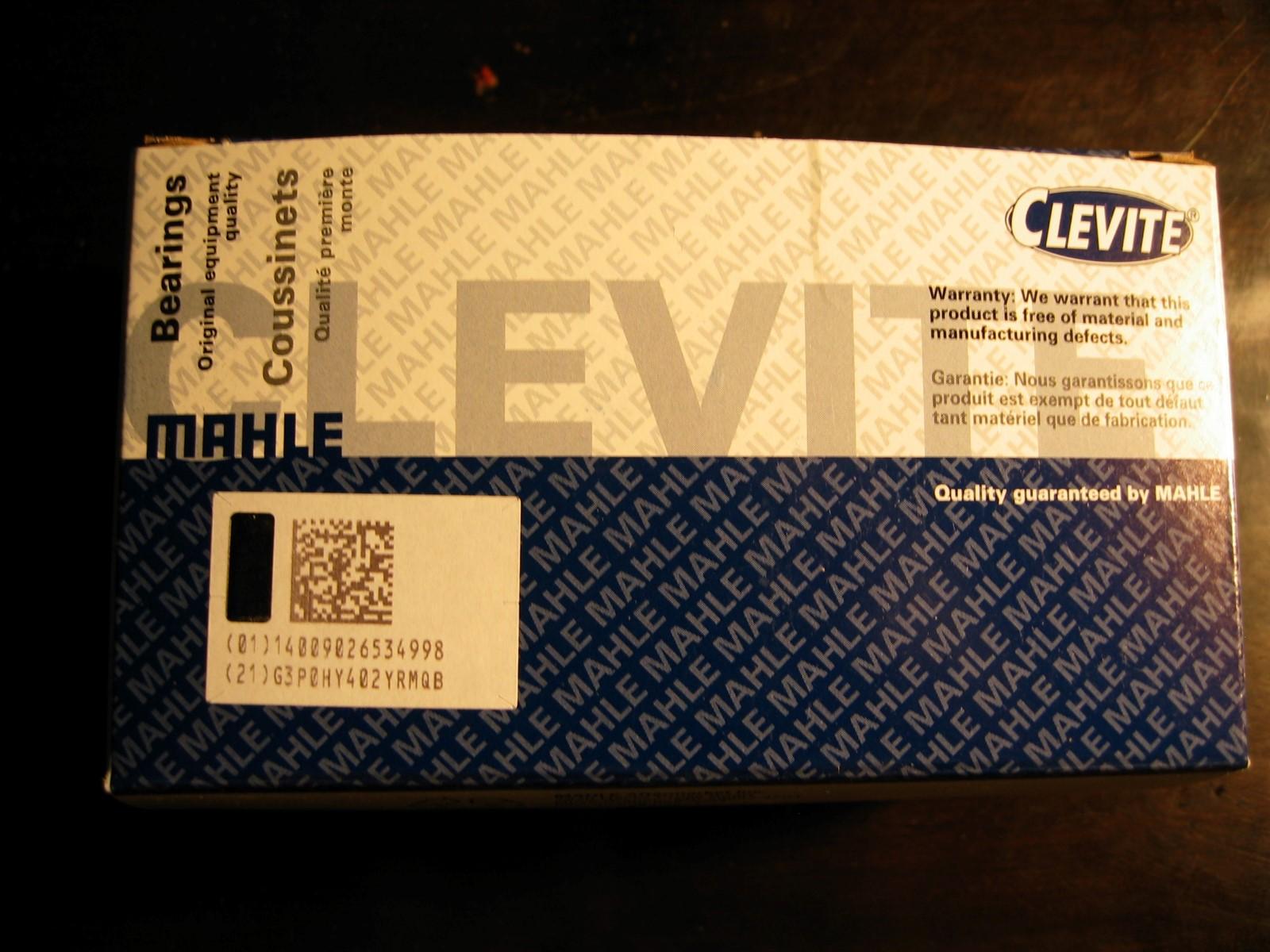

Yes the box says connecting rod bearings but they are not and this is the exact box the MAIN bearings come in straight from Clevite/Mahle. The part number is correct for the mains.
_________________
1961 Bug, 2276 cb wedge ports 44x37 11.1 comp fk10 1.5 rockers 48idf's 1 3/4" header Rancho pro street trans SAW axles Airkewld 4# narrowed beam, Koni shocks, Airkewld dis brake all around. 5.5/4.5 BRMs
1966 Bug, 2127, panchito heads, fk8, 1.3 rockers, dual 44idfs, 1 5/8 merge header, Rancho pro strt flyer, empi axles, Airkewld's 4" beam and discs all around and adjustable shocks. 4.5 & 5.5 BRMs |
|
| Back to top |
|
|
Ebel
Samba Member
Joined: June 07, 2015
Posts: 563
Location: New york
|
| Posted: Fri Jan 26, 2018 5:32 am Post subject: Re: new main bearing with copper color |
|
|
| Does the box say they are rod bearings? |
|
