Scrivyscriv's 1967 java green sunroof sedan (stock)

[Bobs67vwagen]

I would be happy with those welds because they will work. To quote an old mechanic friend of my dad's who is now deceased, " a blind man would be glad to see it". Good work!

[scrivyscriv]

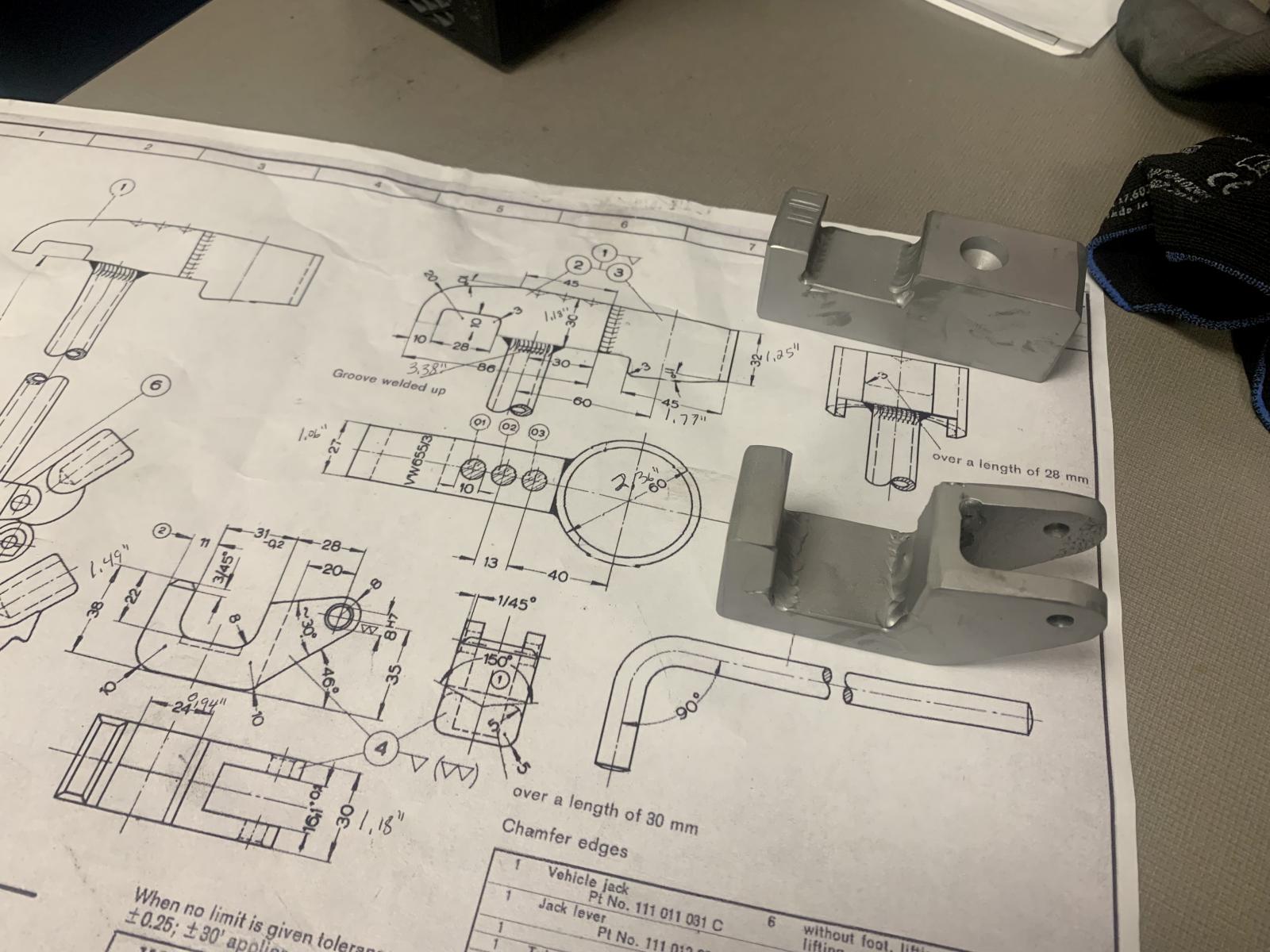

With an extra jack and a tool blueprint.. I maed dis

I skipped a couple design features on it, all I really want it for is the spring plates in the back. On the bonus side I got to brush up on TIG, which is way easier than I was expecting but my welds still look janky. “A little grinder and a little paint, make me look like the welder I ain’t!”
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[scrivyscriv]

[aquifer]

I had WW send me samples of their reproduction square weave carpet. My interior was Gazelle originally as I think yours probably was, but I wasn’t sure if I should go with tan or brown for the best match. The luggage compartment carpet is sun faded, so it made color matching harder. Ultimately I went with brown and I’m happy with the color. I think the tan would have been too light, although the brown might be a touch darker than the original Gazelle. Hard to say.

The luggage compartment carpet is definitely screwed at the top of the seat back, and I would guess it’s screwed on the bottom too. I didn’t replace that carpet, so I don’t really know how it is attached or tucked. I will learn more when I remove the board and fix it properly. I’m not going to replace the luggage carpet, but I can see myself removing it for a good cleaning.

Are you going to get a floor mat too? If you ask them, WW will sew the front piece of floor mat (that sits vertically behind the pedals) to the front firewall carpet so it doesn’t fall down. I had them do this and I’m really glad I did. I went with their gray mat because they don’t offer brown, but if I had to do it over I might have chosen black. The gray mat is a little lighter than I thought it would be. I’m not going to change it, but if I ever find a brown mat or a way to reliably dye mine brown, I’ll do it. Just some thoughts.
_________________
Parts needed:
Front & rear NOS or used OEM door panels for a '67 in the original Gazelle color (dark tan/light brown).
Also looking for used white headliner pieces, both perforated and non-perforated.

[scrivyscriv]

Thanks, it looks just like mine. All hard rubbery feeling right?
Does the back seat carpet get screwed into the back seat rest on the top and the bottom? I took mine off, and I can’t remember how it went. I think the bottom bar under the “fold” was screwed into the seat frame, and I assume the bar at the end of the carpet gets tucked into the luggage tray lip?

I just realized last night from the Wolfsburg west color charts that I ordered the wrong carpet color too. I thought it should be tan, but after seeing their chart I believe dark brown is what was originally in there. Assuming it matches the seat back?
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[aquifer]

The carpet you’re holding looks exactly like mine, if that helps. Same color, same place for the strap hook. I’m 99.9% sure that my luggage compartment carpet is original, so the answer is very likely yes, that carpet was original for your car.

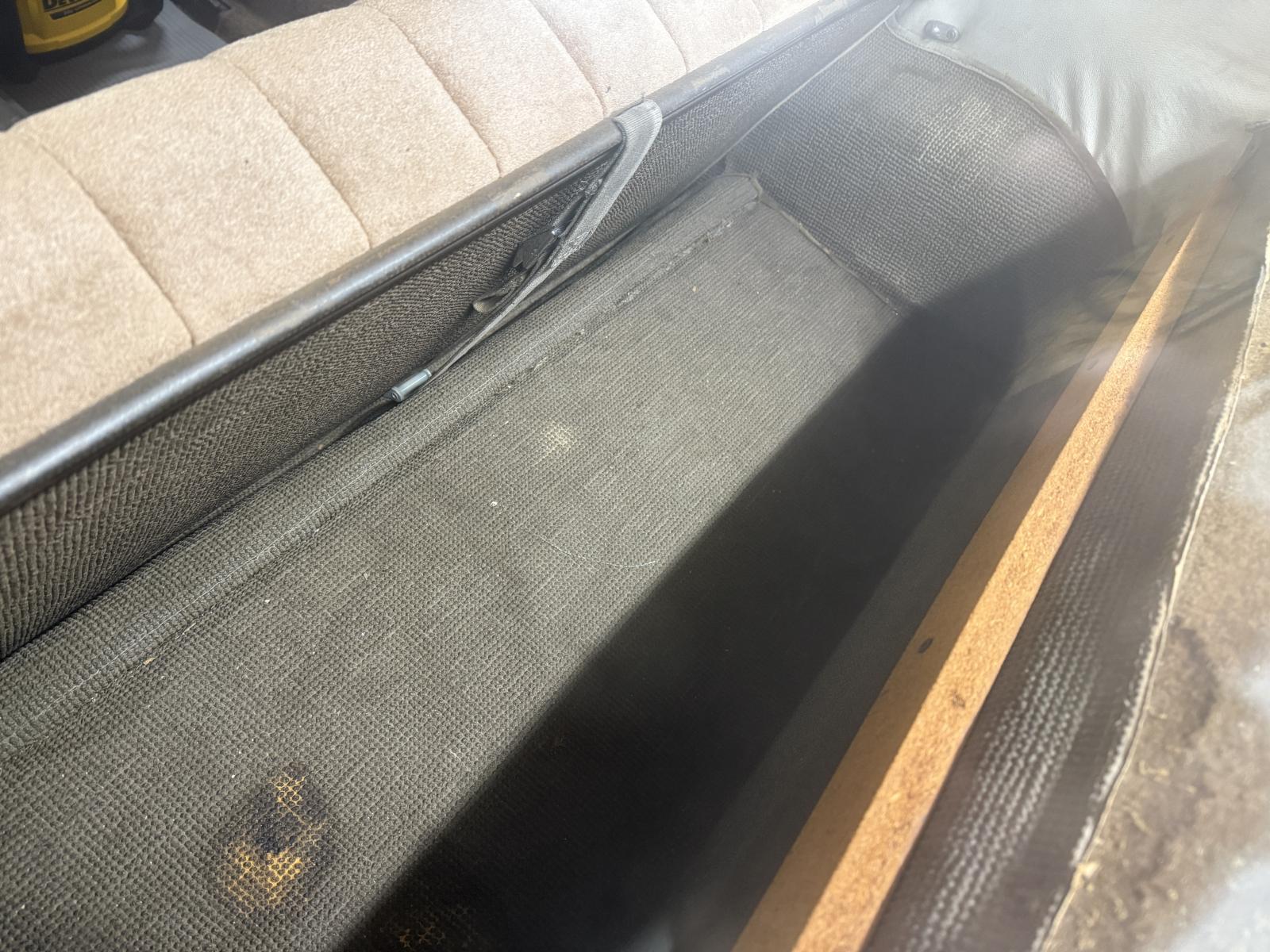

Here are a few pictures of mine. Someone screwed a board to the back firewall to keep the carpet in place. Pretty sure that’s not original. Haha. Someday I’ll fix it.

_________________
Parts needed:
Front & rear NOS or used OEM door panels for a '67 in the original Gazelle color (dark tan/light brown).
Also looking for used white headliner pieces, both perforated and non-perforated.

[scrivyscriv]

I have a question that I hope someone can shed some light on. Having just ordered carpet from Wolfsburg West today, I pulled out my original rear seat panel for inspection and noticed it still has an intact square weave carpet or matting attached. It looks stock, just like this photo from Mike’s ragtop restoration:

It’s identical to his.

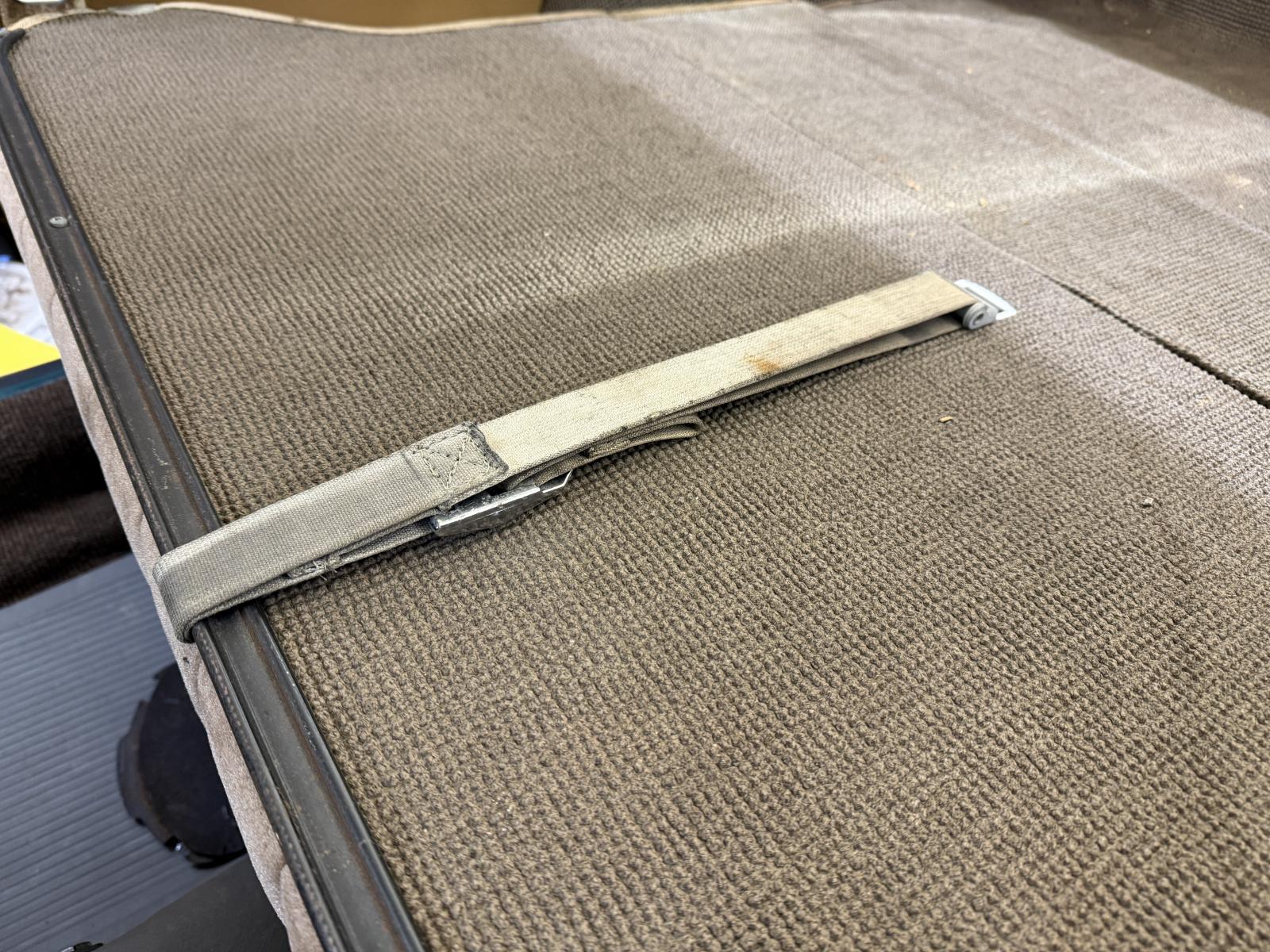

Here’s what I have:

Is that a stock covering for the back seat and luggage tray/firewall? I assumed there was carpet back there to match the front, like all the suppliers sell.
Any info would be quite helpful.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[scrivyscriv]

Paint bleed! The transition groove is notorious for being challenging to mask off for a crisp color change. Masking tape loves to wick paint up.
As they say, the proof is in the pudding - whatever method works is ok with me, I just want a clean finished product.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[aquifer]

Please excuse my dense-ness, but what would the plastic and/or index cards be used for that tape couldn't accomplish?

I'm asking genuinely from a learning perspective, not trying to be contrary!
_________________
Parts needed:
Front & rear NOS or used OEM door panels for a '67 in the original Gazelle color (dark tan/light brown).
Also looking for used white headliner pieces, both perforated and non-perforated.

[scrivyscriv]

Thanks for the idea vwuberalles!

This wheel is still in rough shape with a lot of pitting so hopefully nobody is expecting a pristine NOS-looking wheel in the photos!

It took a little bit of work to level some of the rust pits out and this is as far as I wanted to go with it. Date stamp is still visible!

Capping it off with a cheapo Bezos special called “Thunderer” not sure what that means but it’s black and round. Of course I had QC perform the inspection on it when it arrived

With a good cleanup, painting, and reassembly with lube.. the stock (but not stock for ‘67) jack is quite smooth!

Don’t know if anyone has priced a caswell electroplate kit lately but man I couldn’t justify spending $300 on refinishing this jack in stock plated color. I’m telling myself this lie “When I find the year correct jack for a good deal, THEN I’ll spend some money to electroplate it for stock look”
Anyway that’s where things are now. I’m painting the white portion later after the black sets up and has a good cure. We get a work discount at a paint supply down the road, I think they have Nason paint. Looking at my lotus white from them.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[vwuberalles]

[scrivyscriv]

[Bobs67vwagen]

Robert that wheel refurbish is looking great. If that is the same wheel you showed with the big bend in it you must be a magician! Are you planning on the black and white 2 tone as they originally were? The reason I ask is that when I have done those I always tape off each color section and paint each color. I have tried to come up with a less tedious way of doing it but came up empty. Very nice work-bob

[scrivyscriv]

Hey thanks! The seatbelts all came from seatbeltplanet.com, and I color matched the webbing to my stock 1967 lobster claw belts. They have free samples!
They sell lap belt, three point retractable, and three point non-retractable.
I need to adjust my popout latch tension since both windows don't like to stay open. But really since the car is a sunroof, I don't "need" popouts like a regular sedan does! I do like them a lot though.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[tzepesh]

Where did you buy the rear belts from, in that color? I only found 3 point retractable for front, as you have, and used the newer mounting style with the 90 degree brackets. But I would like 3 point fixed belts in the rear, not two point... Now I have some black ones.
And I am sooo jealous on your pop-outs! I need a set, too, and I could not find another set yet...
_________________
'74 1303S, L98B Viperngrun (extra glitter), German Look
'64 1200, Sea Blue, under restoration

[scrivyscriv]

Two coats of Summit Racing epoxy, followed by a three-day cure, then two medium/dry coats of their high build urethane primer. I couldn’t get my setup right for the high build and didn’t want the dry coats. I think it was a combination of not reduced enough and too small of a tip!

For the Bilstein jack, I used gun bluing on the moving pieces. It’s visually not a stock appearing surface coating, of course, but is a good corrosion resistant layer for the moving parts. The main casting is in epoxy right now, fixing to get either rattle can black or some of the single stage gloss black I have on the shelf. Urethane stinks so I kind of hate shooting it haha.

Lastly, today I finished excavating the frunk seal channel, revealing very little to no rust, and lubed up a new Brazil seal. I’ve read several topics of how bad the Brazil seals are - after I already bought the seal - and had none of the problems so commonly parroted. The corner nibs took some pressure with a 1/4” nut driver and I used thin long nose pliers for most of them, and they all slipped in securely without ado.

Trim to fit, and presto! The frunk now closes with a satisfying “thck-clnk!”

_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[VW_Jimbo]

[scrivyscriv]

Putting things all back together for driving again.

I don’t want to tear the car back apart for rust right now, so I’ll plan my rust repairs for later this year or next. That will give me time to collect all the panels I need.. like the package tray, which I started to clean up with a wire wheel and had to stop when some holes began to grow!

The rust areas get scotchbrite rolocs and a wire wheel on the die grinder, then a phosphoric acid wash. Surface prep wash, then epoxy brushed on, then 3M 2k seam sealer. Not my favorite way of doing things but I’m really limited in what I can do without tearing the car down or masking literally everything else off

And the seat belt floor brackets.

If I’d thought far enough ahead, I could have spot welded a nice seat belt anchor plate onto the pan halves before powdercoat.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[scrivyscriv]

Finally broke out the warning sheet that came with my seatbelt planet order. AFTER bolting in all of the seatbelts.
I specifically asked them via email before ordering: can I bolt the end of the lap belt on the same bolt as the retractor bracket.
“Yes that’s no problem” he says in the email.

The paperwork disagrees

So now I have to drill a hole in my freshly powdercoated pan to put a bolt and fender washers in for the lap belt.
Would have ordered non-retracting 3-point belts if I had known that. That’s why I asked before I ordered.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help.

[aquifer]

Great work! I’ll send you my jack to restore too while you’re at it. Love the date stamp detail on the rim - very cool.
