 Posted: Mon Jun 09, 2025 5:43 pm Post subject: Re: Engine won’t start - no obvious reason |
 |
|
| aquifer wrote: |
1. You mentioned 'raising it a tad so it can be rotated'. Does that mean it is possible to lift up the drive gear just enough to rotate it and set it back down, without running the risk of the spacer shims getting knocked down into the engine? |
You must raise it the distance of the slanted gears, turn it, then set it back down.
| aquifer wrote: |
Or is the risk pretty high that I will raise it too high and knock them into the engine while trying to turn it? |
I don't know, I've only done that once, on my friend's VW (he bought the tool and left it with me).
I posted this somewhere before, but when I took my factory 1971 engine apart after it had sat a decade or so, I could not remove the distributor drive gear with that tool; I had to hammer it out with a block of wood after I split the case. I had the case machined and re-used that distributor drive gear.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
 |
bsairhead
Samba Member
Joined: October 08, 2008
Posts: 4503
Location: viroqua wi.
|
| Posted: Mon Jun 09, 2025 5:01 pm Post subject: Re: Engine won’t start - no obvious reason |
|
|
| ashman40 wrote: |
| heimlich wrote: |
| Orientation does not matter with a SVDA. |

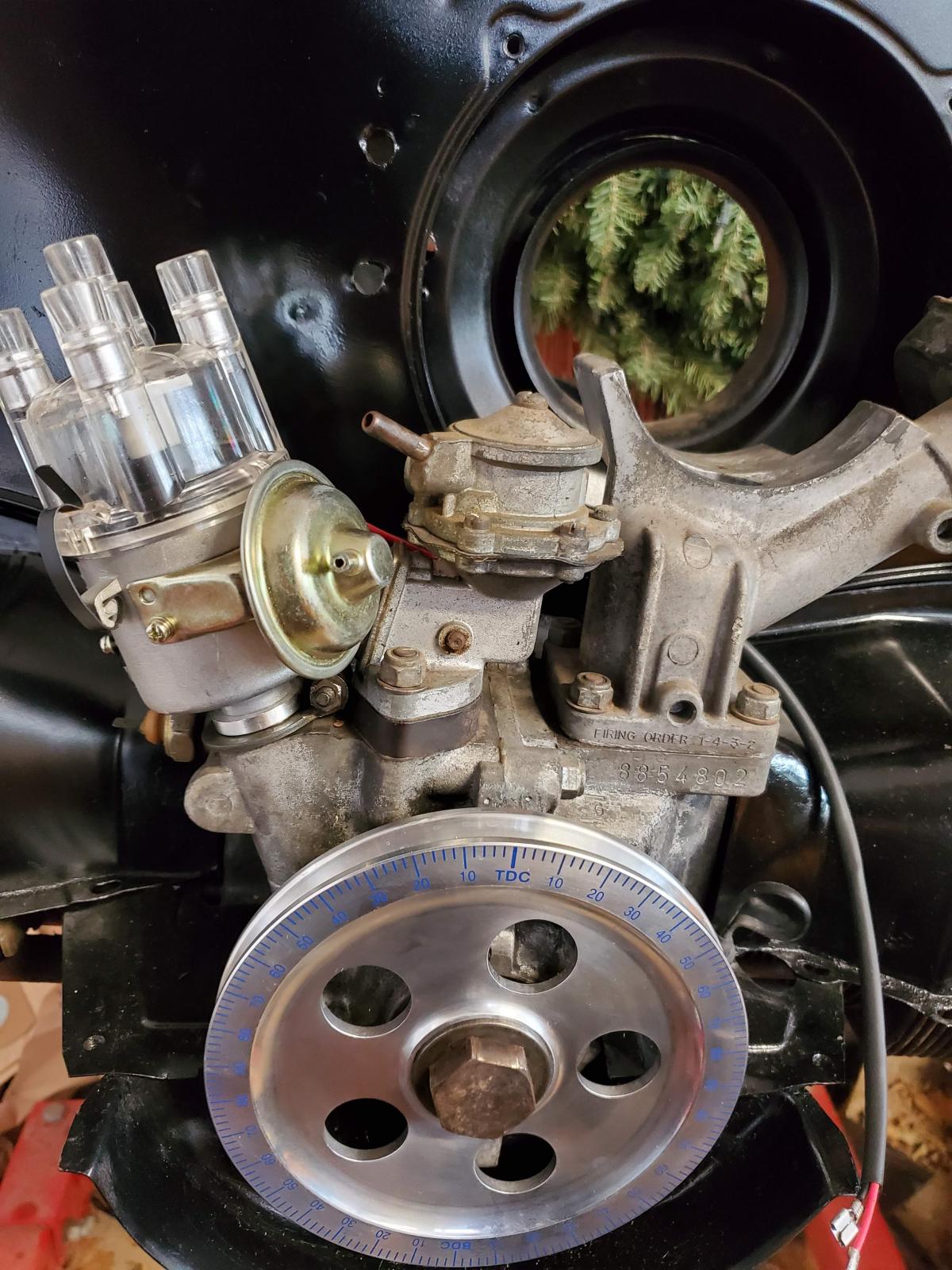

This is technically true but here are two pics that show what happens when the drive gear down in the case is not installed correctly and you are trying to compensate by rotating the distributor body. The vacuum canister gets rotated into awkward positions.
In the first pic, imagine you wanted to rotate the distributor CCW to adjust timing but can't because the vacuum canister is hitting the fuel pump?
In the later pic, you want to rotate the distributor CW and the canister is hitting the intake.
Without changing the drive gear down in the case you can rotate the distributor body in 90-deg increments and reinstall the plug wires into the cap to maintain the correct firing order. Orient the rotor to the #1 plug wire position BEFORE making the change so you know where #1 plug wire must be installed over the rotor tip. You will need to re-adjust the timing when all is done.
Also, the notch on the rim of the distributor body which represents the position of the #1 plug wire will no longer be correct. You may need to add a new mark on the body or just number the cap or the plug wires. |
The first picture proves my point. You need a couple more degrees CCW? 88 degrees CW accomplishes this. |
|
| Back to top |
|
|
aquifer
Samba Member
Joined: August 30, 2021
Posts: 360
Location: Nebraska
|
| Posted: Mon Jun 09, 2025 4:56 pm Post subject: Re: Engine won’t start - no obvious reason |
|
|
All good info, thanks everyone! I’m going to leave it alone.
