Where's reverse HELP

Skutlass · Posted: Sun Oct 13, 2013 5:51 pm Post subject: Where's reverse HELP

I have no clue where to look for reverse. My engine and tranny are reversed?
The shift linkage goes past the engine to the back of the tranny. So instead when your behind the car you see the tranny first instead of the engine if that makes sense. So I do not know where reverse would be. Any help would be greatly appreciated

EverettB · Posted: Sun Oct 13, 2013 10:46 pm Post subject:

I understand what you mean but you should post some photos to show the linkage.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

Letterman7 · Posted: Mon Oct 14, 2013 4:44 am Post subject:

Or better, what car, which will help determine what engine and transmission combination. If it's a 5 speed Porsche 914, reverse is up and left (901 box). Later 5 speeds reverse was right and down (915 box).

Skutlass · Posted: Mon Oct 14, 2013 9:14 am Post subject: Vw no reverse

I'm sorry but I tried for hours to put up some Picts and it's a homemade car

EverettB · Posted: Mon Oct 14, 2013 9:55 am Post subject:

Email me the photos if you are having trouble.
My email is below.
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

bowtiebug · Posted: Mon Oct 14, 2013 10:03 am Post subject:

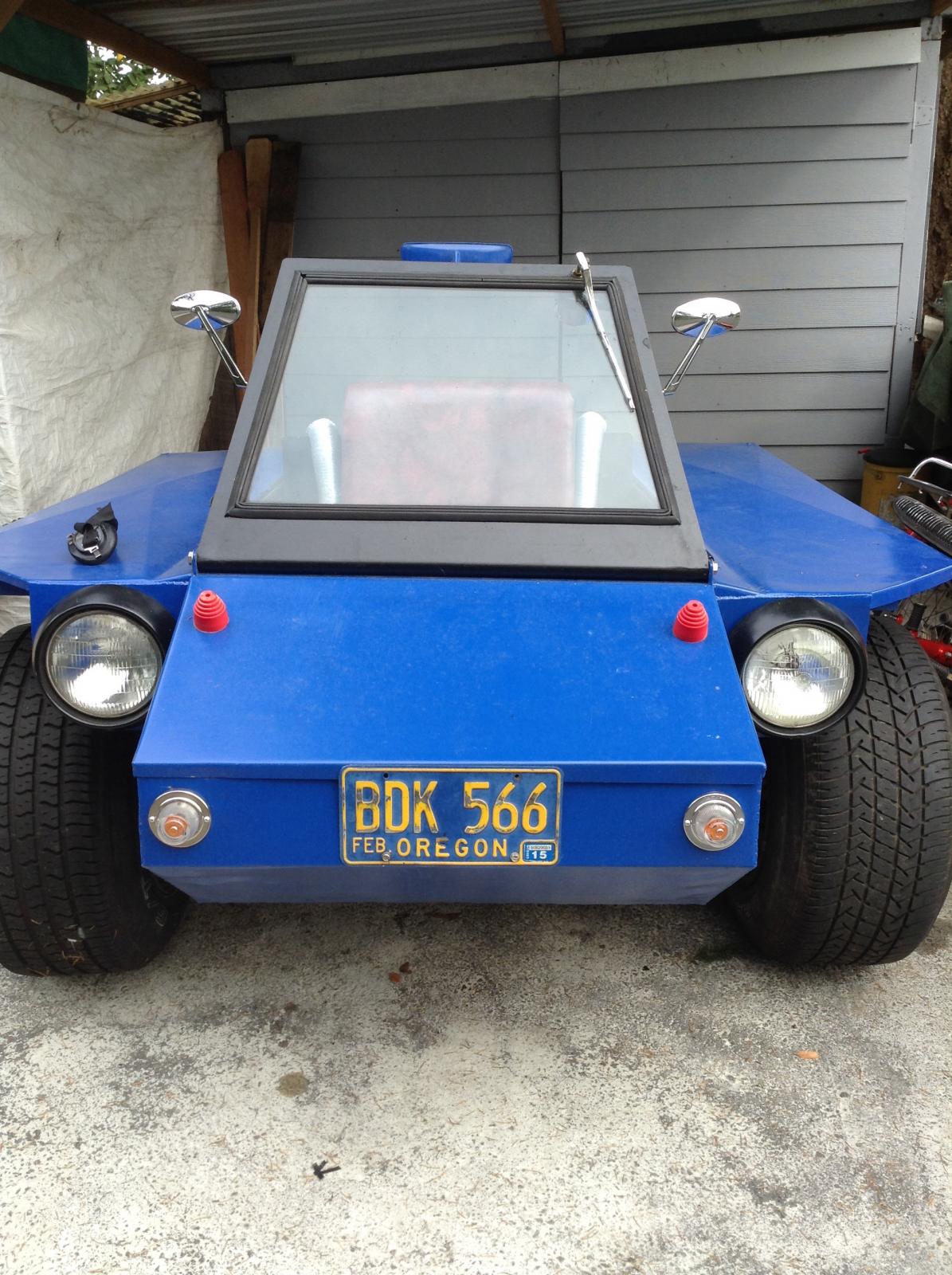

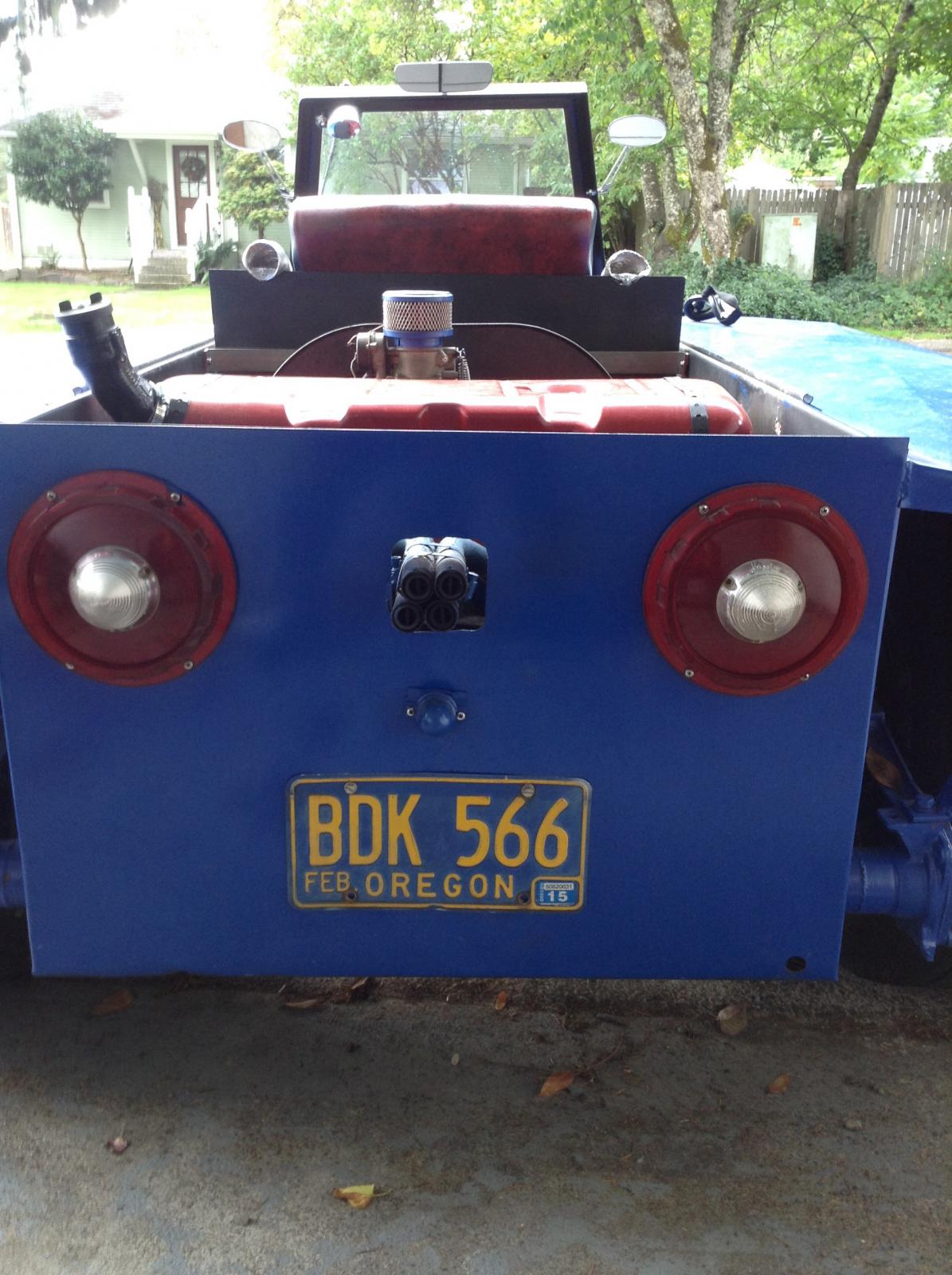

Image may have been reduced in size. Click image to view fullscreen.

looks like a type 1 swing axle , so reverse at trans would be down and out so on shifter being reversed I would say to your right and forward

Just a guess not knowing more details ..
_________________
http://www.etsy.com/shop/AlphaKnots

Skutlass · Posted: Mon Oct 14, 2013 1:47 pm Post subject: Can't find reverse

Thank you I will start trying that. Maybe the linkage needs to be adjusted?

BL3Manx · Posted: Mon Oct 14, 2013 1:58 pm Post subject:

That is an awesome thing.

I'd say facing the nose cone, the coupling should be pulled outward and rotated as far as it will go counter-clockwise.

FWIW, I don't think that shifter will ever work well. I'd get a better engineered mid-engine shifter

Skutlass · Posted: Mon Oct 14, 2013 2:01 pm Post subject: Can't find reverse

Thank you I have tried that but maybe if I adjust the linkage to rotate farther it may work

BL3Manx · Posted: Mon Oct 14, 2013 2:04 pm Post subject:

See above

Skutlass · Posted: Mon Oct 14, 2013 2:07 pm Post subject: Can't find reverse

Wow, I knew if I went to the experts I figure out something, again thank you thank you
