 Posted: Mon Jan 06, 2014 2:46 pm Post subject: forged or cast lightened flywheel |
 |
|
Hi all I need a lightened 8 dowelled flywheel but should I get a cast or forged one and why?
I'm not going to be racing my bug on a track at all and it will not be reved above 6000 RPM. |
|
| Back to top |
|
 |
Brian_e
Samba Member
Joined: July 28, 2009
Posts: 3945
Location: Rapid City, South Dakota
|
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79411
Location: Sneaking up behind you
|
| Posted: Mon Jan 06, 2014 3:15 pm Post subject: |
|
|
| Danwvw wrote: |
| Is there such a thing as a forged VW Flywheel? |
Stock flywheels are forged.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Danwvw
Samba Member
Joined: July 31, 2012
Posts: 8895
Location: Oregon Coast
|
| Posted: Mon Jan 06, 2014 4:24 pm Post subject: |
|
|

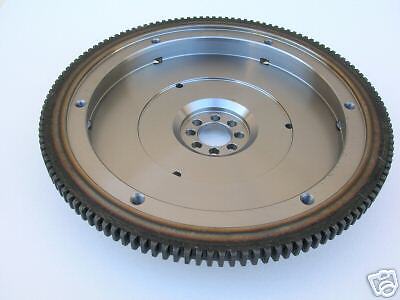

Saw this one on e-bay for $120, says it's supposed to be a lightened VW Flywheel. When I built my 1800cc Type 1 engine for my bus, I had an old stock VW flywheel surfaced and drilled for 8 dowels and balanced to the crank with the clutch but not lightened.
"VW Forged Lightened Chromoly Flywheel 8-Dowel Type-1"
_________________
1960 Beetle And 1679cc DP W-100 & Dual Zeniths! |
|
| Back to top |
|
|
gt1953
Samba Member
Joined: May 08, 2002
Posts: 13947
Location: White Mountains Arizona
|
| Posted: Mon Jan 06, 2014 5:49 pm Post subject: |
|
|
A lightened flywheel revs quicker, in a bus you are better off with the heavy flywheel. It keeps the inertia better.
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.
72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold}) |
|
| Back to top |
|
|
vwracerdave
Samba Member
Joined: November 11, 2004
Posts: 15599
Location: Deep in the 405
|
| Posted: Mon Jan 06, 2014 6:07 pm Post subject: |
|
|
The $79 cast flywheel are fine for a street engine if you're never going to drag race or see over 6000 RPM.
If your racing (street or track) or turning more RPM's then you should get a $120 forged chromoly flywheel or use a genuine VW flywheel.
_________________
2017 Street Comp Champion - Thunder Valley Raceway Park - Noble, OK
2010 Sportsman ET Champion - Mid-America Dragway - Arkansas City, KS
1997 Sportsman ET Champion - Thunder Valley Raceway Park - Noble ,OK |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8340
Location: Oceanside
|
| Posted: Mon Jan 06, 2014 11:34 pm Post subject: |
|
|
| vwracerdave wrote: |
The $79 cast flywheel are fine for a street engine if you're never going to drag race or see over 6000 RPM.
If your racing (street or track) or turning more RPM's then you should get a $120 forged chromoly flywheel or use a genuine VW flywheel. |
I'm a strong believer in this, but while on the subject, what about a heavier pulley? I remember reading a post in a debate with Gene Berg about a heavy pulley and how they found the best combination for increased bearing life was a heavy pulley and lightened fly-wheel. It's all about inertia and the engine's resonance.
These suckers are 5.5 pounds
_________________
Wash your hands
'69 Bug
'68 Baja Truck
'71 Bug
'68 Camper
Only losers litter |
|
| Back to top |
|
|
Mr.Duncan
Samba Member
Joined: May 12, 2012
Posts: 3543
Location: Houston, TX
|
| Posted: Tue Jan 07, 2014 7:29 am Post subject: |
|
|
| lustig69 wrote: |
| vwracerdave wrote: |
The $79 cast flywheel are fine for a street engine if you're never going to drag race or see over 6000 RPM.
If your racing (street or track) or turning more RPM's then you should get a $120 forged chromoly flywheel or use a genuine VW flywheel. |
I'm a strong believer in this, but while on the subject, what about a heavier pulley? |
That does make sense.
But, I assume the idea is the heavy flywheel wants to pull UP on the end with the pulley right?
So install a heavy pulley on that end to kinda "even the balance out"
But, wouldn't the Generator/alt belt tension pull up on that end of the crank so there is no real gain?
Just wondering.
_________________
(Owner) www.vintagecarleds.com
Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9322
Location: Canada
|
| Posted: Tue Jan 07, 2014 9:38 am Post subject: |
|
|
IF you are racing you CANNOT use a cast flywheel, they are banned on NHRA tracks. There was a picture last year going around of a bug with the rear end blown off of it and the engine hanging on the accelerator cable after a cast flywheel exploded at the line injuring some people.
brad |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27645
Location: Colorado Springs
|
| Posted: Tue Jan 07, 2014 6:42 pm Post subject: |
|
|
| The cast iron flywheels are from mexican bugs. They are not very good, and not cheaper either. Get a modified OE flywheel from DPR, made of German STEEL |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27645
Location: Colorado Springs
|
| Posted: Tue Jan 07, 2014 6:44 pm Post subject: |
|
|
| slalombuggy wrote: |
There was a picture last year going around of a bug with the rear end blown off of it and the engine hanging on the accelerator cable after a cast flywheel exploded at the line injuring some people.
brad |
ah jeez, that should never have happened but I guess it would be an easy mistake to make with these darn iron "lightened" flywheels being sold. |
|
| Back to top |
|
|
hooker
Samba Member
Joined: October 07, 2004
Posts: 261
Location: Bend, Oregon
|
| Posted: Wed Jan 08, 2014 8:27 am Post subject: flywheels |
|
|
In NHRA drag racing the porsche and volkswagen flywheels were the only "STOCK" flywheels that were allowed to run on a turbo charged VW or Porsche engine. All other vehicles (chebys,fords etc) had to use an after market flywheel.
That should tell you something.
_________________
2007 NHRA Division 6 Finals Champion air cooled Rabbit P/U rear engine compact/import class, 13.32 sec 1/4 Woodburn, Oregon
Pauter Big Block VW 2610 cc turbo mid engine roadster 9.69 sec @ 147 mph 1/4 PIR Oregon
I spent most my money on women and VW race cars. The rest I wasted. |
|
