Duncan's 1971 Squareback thread
Page: 1, 2, 3 ... 18, 19, 20  Next
Jump to:
Forum Index -> Type 3 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Fri Aug 16, 2019 5:48 pm    Post subject: Duncan's 1971 Squareback thread Reply with quote

Hey guys, Just picked up this little guy today.

This would be my very first type 3, after owning 4 Type 1 Beetles over the past 6 years.

--------------------------------------------------------------

Lets have a little history of the car.

Sat in a storage unit since 2008, It was found as a single owner car at an auction (for the storage unit) A local transmission shop purchased it, and rebuilt the transmission.

They could not get the Fuel Injection system to work so they cleaned the gas tank and put on some Empi dual 34 EPC carbs.

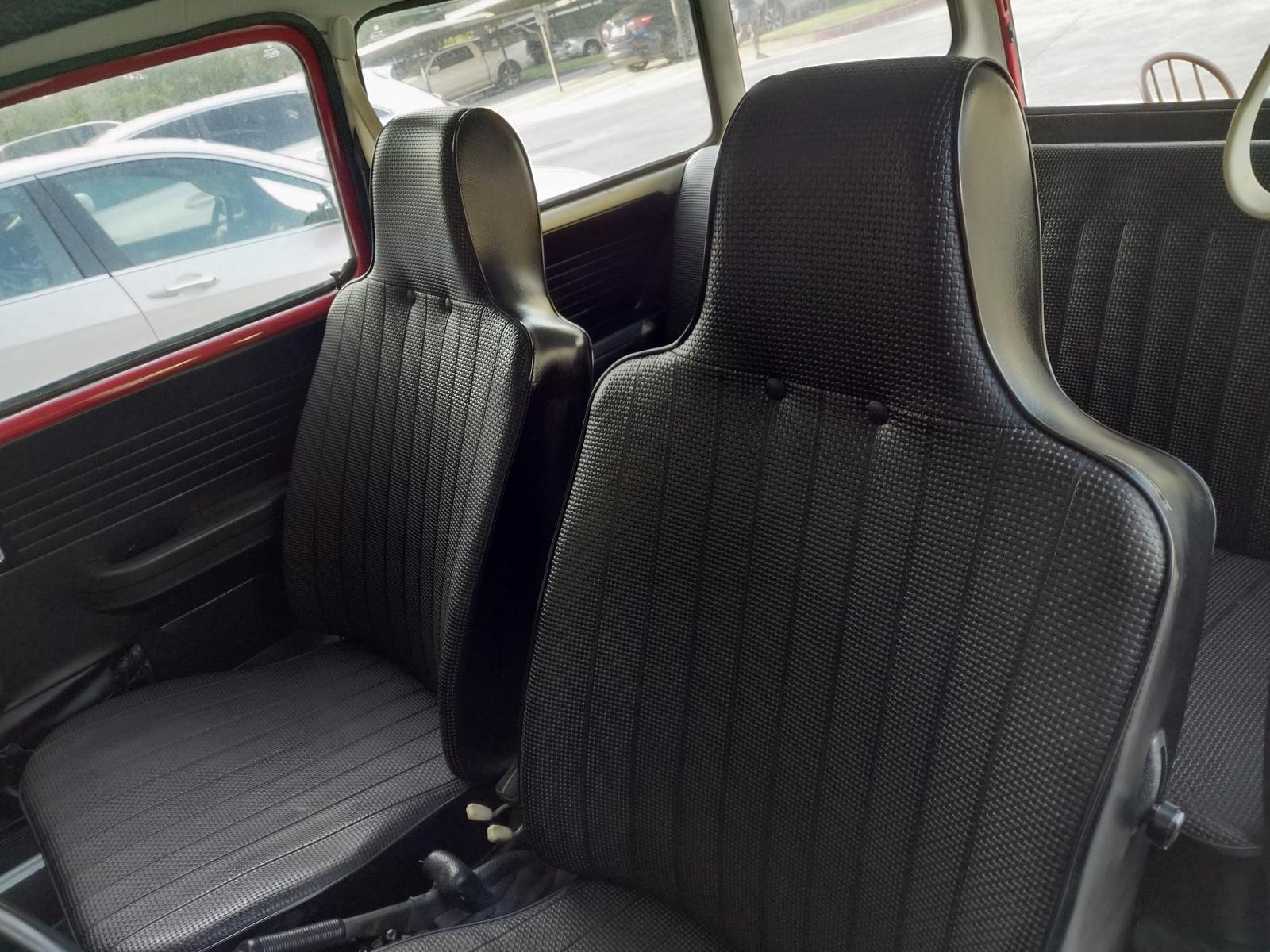

Seems like the seats, carpet, upholstery are all OG.

---------------------------------------------------------------------------

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


-------------------------------------------------------------------------------


Right now, it runs like absolute crap however still manages to drive and shift fine. Due to the carbs saying "not usable for vacuum advance distributors" I assume I should swap out the factory FI distributor for a 009?

I got the carbs to sync up however it tends to idle at 1,200-1,300 rpms, then drops down to a "really rough feeling" 850-900 RPMs when in Drive or reverse (at idle)

Any thoughts, comments, and things to look out for would be really appreciated.
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 22728
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Fri Aug 16, 2019 6:20 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Mr.Duncan wrote:
Hey guys, Just picked up this little guy today.

This would be my very first type 3, after owning 4 Type 1 Beetles over the past 6 years.

--------------------------------------------------------------

Lets have a little history of the car.

Sat in a storage unit since 2008, It was found as a single owner car at an auction (for the storage unit) A local transmission shop purchased it, and rebuilt the transmission.

They could not get the Fuel Injection system to work so they cleaned the gas tank and put on some Empi dual 34 EPC carbs.

Seems like the seats, carpet, upholstery are all OG.

---------------------------------------------------------------------------

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


-------------------------------------------------------------------------------


Right now, it runs like absolute crap however still manages to drive and shift fine. Due to the carbs saying "not usable for vacuum advance distributors" I assume I should swap out the factory FI distributor for a 009?

I got the carbs to sync up however it tends to idle at 1,200-1,300 rpms, then drops down to a "really rough feeling" 850-900 RPMs when in Drive or reverse (at idle)

Any thoughts, comments, and things to look out for would be really appreciated.


No 009.

Let's get the fuel injection and a correct exhaust on that puppy. I can help you with parts.

You'll be glad you did.
_________________
Немає виправдання для війни! Я з Україною.

Bryan67 wrote:
Just my hands. And a little lube. No tools.


To best contact me, please use the EMAIL function in my profile
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Fri Aug 16, 2019 6:29 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Tram wrote:


No 009.

Let's get the fuel injection and a correct exhaust on that puppy. I can help you with parts.

You'll be glad you did.


PM sent, I'd be down. I love a stock system and do hate that muffler.
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 22426
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Sat Aug 17, 2019 6:00 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Mr.Duncan wrote:
Tram wrote:


No 009.

Let's get the fuel injection and a correct exhaust on that puppy. I can help you with parts.

You'll be glad you did.


PM sent, I'd be down. I love a stock system and do hate that muffler.


I have to agree 100% with Tram. The AT cars seem to run/work better with FI than carbs. I'm not saying they can't work with carbs, but the seem to perform better with injection.
Also, that is the absolute worst muffler you can put on a type 3, especially a Squareback. They reduce HP, and let fumes into the car thru the rear hatch seals. Just a heads up.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 6617
Location: Houston, Texas
heimlich is online now

PostPosted: Sat Aug 17, 2019 9:26 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Very nice. I'm surprised you found something in such great condition around here.

The previous owner removed the automatic and the fuel injection? I would ask them if they saved the parts so you can put that car back the way it was intended.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Sat Aug 17, 2019 9:47 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Bobnotch wrote:


I have to agree 100% with Tram. The AT cars seem to run/work better with FI than carbs. I'm not saying they can't work with carbs, but the seem to perform better with injection.
Also, that is the absolute worst muffler you can put on a type 3, especially a Squareback. They reduce HP, and let fumes into the car thru the rear hatch seals. Just a heads up.


Oh, I plan on bringing this back to fully stock including a stock muffler. I'm not a fan of the EMPI muffler.
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Sat Aug 17, 2019 9:48 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

heimlich wrote:
Very nice. I'm surprised you found something in such great condition around here.

The previous owner removed the automatic and the fuel injection? I would ask them if they saved the parts so you can put that car back the way it was intended.


The previous owner only removed the fuel injection system, shoved most of it in a box.

The wire harness on the FI computer is pretty brittle/broken and the PO decided to add crimp connectors.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
posidude
Samba Member


Joined: June 04, 2019
Posts: 27
Location: Phoenix
posidude is offline

PostPosted: Sat Aug 17, 2019 9:52 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Good looking sb for sure!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
heimlich Premium Member
VWNOS.com


Joined: November 20, 2016
Posts: 6617
Location: Houston, Texas
heimlich is online now

PostPosted: Sat Aug 17, 2019 9:53 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Mr.Duncan wrote:

The previous owner only removed the fuel injection system, shoved most of it in a box.

The wire harness on the FI computer is pretty brittle/broken and the PO decided to add crimp connectors.


You are quite lucky he didn't throw it all away. I've heard so many good things about the fuel injected systems and how they run so well compared to carburation.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 34018
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Sat Aug 17, 2019 10:33 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Another thing is the kickdown switch on the stock FI throttle body (IAD). If yours is missing broken you will want to start hunting down a replacement of some kind. I'm pretty sure your carb setup lacked one, so It should not downshift when you mashed the throttle, making it seem even more sluggish. Lack of vacuum timing is no good, either! With most of the parts there you are in good shape to set it back to stock FI. The wiring may be an issue. New harnesses are pricey ($4-500 from a Porsche guy), but it is possible to make one up yourself, or at least repair the original with stock factory crimp style connectors. It will be worth the effort or expense to address this, because so many "FI failures" come down to wires, connectors, hoses... simple stuff you can fix, and NOT the FI components themselves. I sense the prior owner didn't heed this advice and finally gave up on it, going to carbs.

Last edited by KTPhil on Mon Aug 19, 2019 4:42 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Sat Aug 17, 2019 1:52 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

KTPhil wrote:
Another thing is the lockdown switch on the stock FI throttle body (IAD). If yours is missing broken you will want to start hunting down a replacement of some kind. I'm pretty sure your carb setup lacked one, so It should not downshift when you mashed the throttle, making it seem even more sluggish. Lack of vacuum timing is no good, either! With most of the parts there you are in good shape to set it back to stock FI. The wiring may be an issue. New harnesses are pricey ($4-500 from a Porsche guy), but it is possible to make one up yourself, or at least repair the original with stock factory crimp style connectors. It will be worth the effort or expense to address this, because so many "FI failures" come down to wires, connectors, hoses... simple stuff you can fix, and NOT the FI components themselves. I sense the prior owner didn't heed this advice and finally gave up on it, going to carbs.


The kickdown switch is still present, however the bracket is custom made for the carbs. (probably not in the correct position) You can barely see it in the below photo (silver metal bracket with holes drilled into it next to the oil cooler.

I think I am going to make a peg board and re-wire the entire stock FI harness I have. The wires in the engine bay side are brittle, but as it gets closer to the FI computer everything starts to look clean.

I do own proper crimp tools and prefer stock correct terminals.

I am curious, coming from Type 1s, we always had issues with the throttle shaft wear causing a vacuum leak. Is this an issue with the throttle shaft/plate on the intake for Type 3 stock manifolds? If so does anyone re-bush them?




Image may have been reduced in size. Click image to view fullscreen.

_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 34018
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Sun Aug 18, 2019 11:37 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Not likely to be much of a problem on the T3. For one thing, there is little wear because the throttle spring and cable pull 180 degrees apart, and with a short lever arm from that pivot to the throttle plate pivot, limiting side forces. Also, an air leak there is just an addition to the "calibrated air leak" that is your idle adjustment screw. A drop of oil every oil change is more than enough to prevent wear.

Last edited by KTPhil on Sun Aug 18, 2019 11:48 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 22426
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Sun Aug 18, 2019 11:44 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Mr.Duncan wrote:
KTPhil wrote:
Another thing is the lockdown switch on the stock FI throttle body (IAD). If yours is missing broken you will want to start hunting down a replacement of some kind. I'm pretty sure your carb setup lacked one, so It should not downshift when you mashed the throttle, making it seem even more sluggish. Lack of vacuum timing is no good, either! With most of the parts there you are in good shape to set it back to stock FI. The wiring may be an issue. New harnesses are pricey ($4-500 from a Porsche guy), but it is possible to make one up yourself, or at least repair the original with stock factory crimp style connectors. It will be worth the effort or expense to address this, because so many "FI failures" come down to wires, connectors, hoses... simple stuff you can fix, and NOT the FI components themselves. I sense the prior owner didn't heed this advice and finally gave up on it, going to carbs.


The kickdown switch is still present, however the bracket is custom made for the carbs. (probably not in the correct position) You can barely see it in the below photo (silver metal bracket with holes drilled into it next to the oil cooler.

I think I am going to make a peg board and re-wire the entire stock FI harness I have. The wires in the engine bay side are brittle, but as it gets closer to the FI computer everything starts to look clean.

I do own proper crimp tools and prefer stock correct terminals.

I am curious, coming from Type 1s, we always had issues with the throttle shaft wear causing a vacuum leak. Is this an issue with the throttle shaft/plate on the intake for Type 3 stock manifolds? If so does anyone re-bush them?




Image may have been reduced in size. Click image to view fullscreen.

As far as I know, I haven't heard of anyone wearing out a throttle body on a type 3 FI set up. Even Keith Park has never mentioned it in all of the 250K miles he put on his type 3 engine over the last 20+ years. He's just switched over to a 2056 T-4 engine in his 71 Squareback, and he's keeping it D-jet FI.
You might want to contact Keith on here (probably find him in the D-jet PhD sticky up top) , and see about getting the correct FI wire ends, as he's got a small supply from AMP (the original mfg er) of them. At the time he got them, the smallest order you could get from them was 1,000 pieces. These are solid brass, rather than tin plated.

If you're lucky, the PO reused the original kick down switch, so you can just re-install it onto the plenum via it's bracket.

You can ask Ray Greenwood about what you'd need to build your own wiring harness, as he's advised several here on doing it. He walked Joe thru doing them, even which wire was best to use, size (diameter) to use, and how to salvage the ECU ends. Joe even started a harness building business a few years ago, but has gotten busy with actual work (he went to college for engineering) that he's kind of stopped building them (not a lot of demand 5 or 6 years ago). It doesn't help that he's moved a couple of times either.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Mon Aug 19, 2019 4:33 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Bobnotch wrote:

As far as I know, I haven't heard of anyone wearing out a throttle body on a type 3 FI set up. Even Keith Park has never mentioned it in all of the 250K miles he put on his type 3 engine over the last 20+ years. He's just switched over to a 2056 T-4 engine in his 71 Squareback, and he's keeping it D-jet FI.
You might want to contact Keith on here (probably find him in the D-jet PhD sticky up top) , and see about getting the correct FI wire ends, as he's got a small supply from AMP (the original mfg er) of them. At the time he got them, the smallest order you could get from them was 1,000 pieces. These are solid brass, rather than tin plated.

If you're lucky, the PO reused the original kick down switch, so you can just re-install it onto the plenum via it's bracket.

You can ask Ray Greenwood about what you'd need to build your own wiring harness, as he's advised several here on doing it. He walked Joe thru doing them, even which wire was best to use, size (diameter) to use, and how to salvage the ECU ends. Joe even started a harness building business a few years ago, but has gotten busy with actual work (he went to college for engineering) that he's kind of stopped building them (not a lot of demand 5 or 6 years ago). It doesn't help that he's moved a couple of times either.



Thank you Bob, I will be getting a good used Fi harness from Tram.

The OG kick down switch is still on the engine, so I will get to reuse that.

I may in the future rebuild my OG harness as a fun project.
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Mon Aug 19, 2019 4:40 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Started cleaning up the old parts, removing all the PO's fuel hose and worm gear clamps (wrong style)

My favorite thing would be "Not for fuel injection hose" being used.


Image may have been reduced in size. Click image to view fullscreen.


OG fuel injectors all ready to be sent off to be cleaned and rebuilt.

All injectors measured 2.6 Ohms

Image may have been reduced in size. Click image to view fullscreen.


Looks like the steering wheel hasn't been removed since it left the factory shown by the paint marks.

Image may have been reduced in size. Click image to view fullscreen.


I will need a new ground strap.

Image may have been reduced in size. Click image to view fullscreen.


Sadly, the ONLY rust on this car is inside the trunk, I assume this is the fresh airbox area and rain-water tray from the upper vents? I Will need to cut this out and weld in new metal. Any tips here would be great.


Image may have been reduced in size. Click image to view fullscreen.



I have ordered the following parts:

Airtex E2000 Fuel pump
New injector seals
New Intake manifold boots (4x)
New fuel pressure regulator
New Air intake seal for the main engine fan (small 2" tear in the OG one)
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle


Last edited by Mr.Duncan on Mon Aug 19, 2019 5:28 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
KTPhil Premium Member
Samba Member


Joined: April 06, 2006
Posts: 34018
Location: Conejo Valley, CA
KTPhil is offline

PostPosted: Mon Aug 19, 2019 4:48 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

There is a thread on that specific rust repair somewhere.

Also, when rebuilding injectors, you can cut off the crimp carefully, and clamp on new stubs. Don't make them too long or they can catch on the protrusion of the side parts of the engine bay. Cit it first along the crimp, then as below, being careful to not nick the pipe inside.
Image may have been reduced in size. Click image to view fullscreen.


Use proper FI clamps, not worm clamps:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 22426
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Tue Aug 20, 2019 11:00 am    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Yeah, that rust is common on 71 thru 73's, and is right at the tray for the fresh air box (bolts to that tray). The cause is leaves and dirt filling that area, and not getting cleaned out. Just add water and rust forms from inside and over time you have what you see. Ideally what you want to do is create a removable top for that area, so it can get cleaned every now and then (my friend Dave Hall from England did this to his 71 too). In the short term, you use magnetic heating vent covers to keep the trash out, or something else. I use aluminum duct tape for mine, as I've got a lot of trees around here.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:
"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TX-73
Samba Member


Joined: January 04, 2013
Posts: 1133
Location: Texas
TX-73 is offline

PostPosted: Tue Aug 20, 2019 5:03 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

That's a great find, very cool car! Let me know if you need some help 👍
_________________
My 1973 Standard Beetle Build SOLD
Click to view image
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Wed Aug 21, 2019 3:35 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

Installed a new fan air intake boot from WCM as the old one was torn in various spots.

Also installed fan shroud block off plugs as the heaterboxes are not connected.

Old boot:

Image may have been reduced in size. Click image to view fullscreen.


New boot:

Image may have been reduced in size. Click image to view fullscreen.


Block off plugs:

Image may have been reduced in size. Click image to view fullscreen.

_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Mr.Duncan
Samba Member


Joined: May 12, 2012
Posts: 3542
Location: Houston, TX
Mr.Duncan is offline

PostPosted: Wed Aug 21, 2019 6:18 pm    Post subject: Re: Duncan's 1971 Squareback thread Reply with quote

heimlich wrote:


You are quite lucky he didn't throw it all away. I've heard so many good things about the fuel injected systems and how they run so well compared to carburation.


I've heard good things too, I once drove a 1979 FI beetle and it was bliss.

I might have to swing by sometime and verify my distributor is in okay shape timing wise on that nice Sun machine you've got. Wink
_________________
(Owner) www.vintagecarleds.com

Red 1971 Squareback Thread
Red 1966 Beetle Thread
---------------------------------------------------
1971 Green Super Beetle (sold)
1966 Ghia (sold)
1971 Blue Super Beetle (sold)
1966 Java Green Std Beetle (sold)
1971 Red Squareback (sold)
1966 Red Beetle
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 18, 19, 20  Next
Jump to:
Page 1 of 20


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
