 Posted: Wed Sep 20, 2017 6:56 pm Post subject: Engine Code-Replacement Case? |
 |
|
Hello all. I'm trying to find out some info on my engine case. I think I figured out that it is a replacement case.
It has the "AS" with 41 stamped next to it.
The number is 043 101 101 A. It has "1M" next to the VW symbol.
Does anyone know where the country of origin was for the replacement cases? Thanks! |
|
| Back to top |
|
 |
FeelthySanchez
Samba Member
Joined: February 03, 2011
Posts: 1349
Location: Now is that a real poncho, or a Sears poncho?
|
| Posted: Wed Sep 20, 2017 8:32 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
¡Bienvenido a la Samba!
Sounds like normal markings. No idea re any significance to the "1M" next to VW logo.
Ans is: Germany, Mejico & Brasil.
I have Germy & Mex'skin universal AS41s, but only the Mexy case is so marked in large letters.
The Brazzy should read:
2BR VW BRAZIL
043 101 101A
AS41

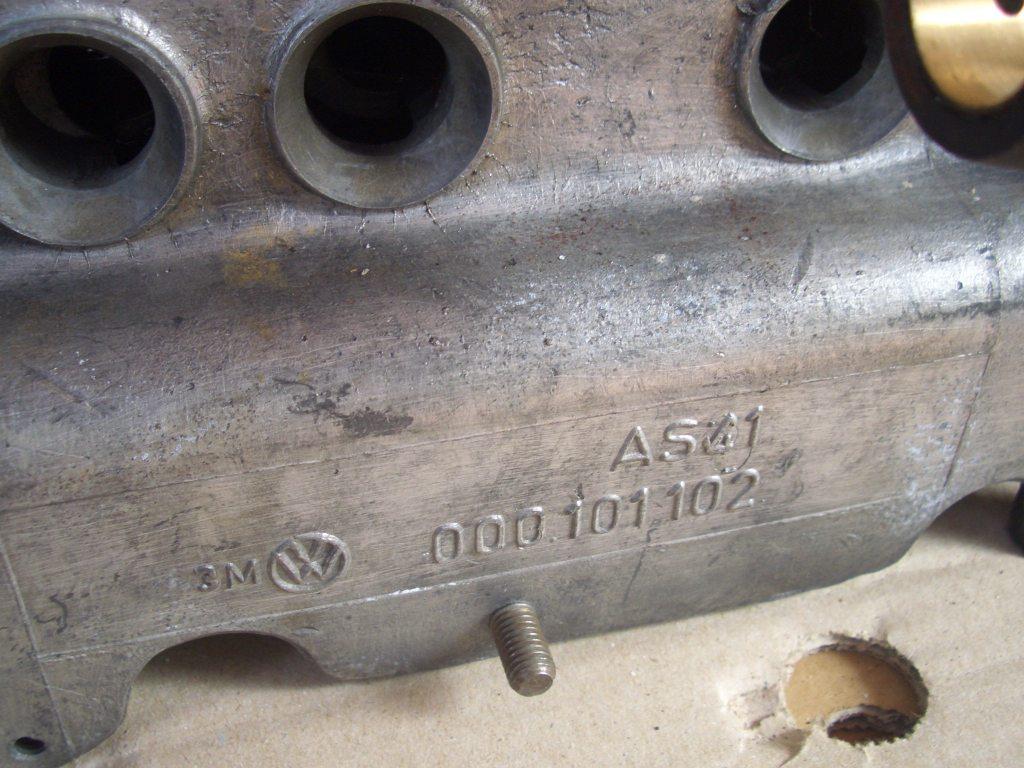

Mexy is very similar, iirc. This shamelessly raided pic is of pretty typical markings:
https://www.thesamba.com/vw/gallery/pix/860615.jpg
_________________
| modok wrote: |
| I would like if you had enough clue to communicate what you are doing. |
| Ryan Tucker wrote: |
| Enough clue..Whats that mean? |
| OldIronSpine wrote: |
What is a boost retard?
Where do you put the inter cooler for it at? And does it use its own coolent?
The real problem with NA engines is you don't hear the nice whine of the turbo as it spools up.
Before I commit, I'm going to do more research because I don't really know what piston rings are. |
Last edited by FeelthySanchez on Thu Sep 21, 2017 5:40 am; edited 1 time in total |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26523
Location: Douglas, WY
|
|
| Back to top |
|
|
gt1953
Samba Member
Joined: May 08, 2002
Posts: 13947
Location: White Mountains Arizona
|
| Posted: Thu Sep 21, 2017 7:19 am Post subject: Re: Engine Code-Replacement Case? |
|
|
What other numbers are stamped on the engine case?
_________________
Volkswagen: We tune what we drive.
Numbers Matching VW's are getting harder to find. Source out the most Stock vehicle and keep that way. You will be glad you did.
72 type 1
72 Squareback
({59 Euro bug, 62, 63, 67, 68, 69, 73 type ones 68 & 69 type two, 68 Ghia all sold}) |
|
| Back to top |
|
|
kstamm
Samba Member
Joined: July 22, 2017
Posts: 4
Location: CA
|
| Posted: Thu Sep 21, 2017 9:21 am Post subject: Re: Engine Code-Replacement Case? |
|
|
The only other stamping I see is above the 43 it has a backwards "C" followed by 43 and a forward "C".
The driver side has 1M by the VW stamping and the drivers side has 2M.
There isn't any country stamp like glutamodo posted, nor an Audi four ring symbol. |
|
| Back to top |
|
|
FeelthySanchez
Samba Member
Joined: February 03, 2011
Posts: 1349
Location: Now is that a real poncho, or a Sears poncho?
|
| Posted: Thu Sep 21, 2017 2:54 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
Sounds German.
| kstamm wrote: |
| There isn't any country stamp like glutamodo posted, nor an Audi four ring symbol. |
_________________
| modok wrote: |
| I would like if you had enough clue to communicate what you are doing. |
| Ryan Tucker wrote: |
| Enough clue..Whats that mean? |
| OldIronSpine wrote: |
What is a boost retard?
Where do you put the inter cooler for it at? And does it use its own coolent?
The real problem with NA engines is you don't hear the nice whine of the turbo as it spools up.
Before I commit, I'm going to do more research because I don't really know what piston rings are. |
|
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26523
Location: Douglas, WY
|
| Posted: Fri Sep 22, 2017 6:44 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
You don't see very many German AS41 cases (the ones with no country marked under the pushrod tubes) that are blank for a serial number under the generator stand. They do exist, but not very common.
Put some photos up of what you have, if you can!
_________________
Andy T.
"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!" |
|
| Back to top |
|
|
kstamm
Samba Member
Joined: July 22, 2017
Posts: 4
Location: CA
|
| Posted: Sat Sep 23, 2017 12:59 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
| glutamodo wrote: |
You don't see very many German AS41 cases (the ones with no country marked under the pushrod tubes) that are blank for a serial number under the generator stand. They do exist, but not very common.
Put some photos up of what you have, if you can! |
|
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Sat Sep 23, 2017 1:30 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
Any possibility it's a Type 3 case? Is there a serial number stamped along the top side of the case, roughly under where the carb manifold center is?
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
kstamm
Samba Member
Joined: July 22, 2017
Posts: 4
Location: CA
|
| Posted: Sat Sep 23, 2017 2:40 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
| mukluk wrote: |
| Any possibility it's a Type 3 case? Is there a serial number stamped along the top side of the case, roughly under where the carb manifold center is? |
It could be. I really don't know. It's a '65 that one of the previous owners had Car Craft build a new motor for (1915cc).
I can't see any numbers from the top side. But it's pretty hard to see anything really. |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26523
Location: Douglas, WY
|
| Posted: Sat Sep 23, 2017 6:44 pm Post subject: Re: Engine Code-Replacement Case? |
|
|
Well, the 043 series of part numbers I don't know if ever got applied to anything on the type 3, which was winding down production about the same time as 043 started showing up.
But I did wonder after I saw the oil filler blockoff plate on there.
Anyway, the late type 3s had their serial numbers like this:
