Flexible solar panels over the long term, any good?

[mugford]

I'm seeing some folks on Youtube saying that, over time, the flexible solar panels tend to overheat and aren't generally a good proposition. Any of you out there with experience on the subject?

If they don't hold up I'm thinking that maybe they could be mounted up top on an as-needed basis to help preserve them...

[tim_ha]

I would not recommend them. I have gone through two pairs and will not buy them again. I have mine permanently mounted and both times, a decent hail storm cut their output to about 10% of what they should be. Over time, the nice clear plastic coating turns dull and starts to peel. The only reason that I went for the second set is because I have them mounted on a curved surface and thought maybe the first hail storm was just unlucky.

Perhaps if you only pull them out when at camp they would be fine. Overheating not an issue for me as I installed with an air gap behind them.
_________________
1986 Syncro Sunroof EJ22
www.subagonsouth.com

[Howesight]

The solar manufacturers had a heyday with these "flexible" panels at the consumer's expense. How would you react if the marketing copy read the truth about these products:

"Buy these new flexible panels that will fit in so many places! We can't guarantee them, but we promise that we used NO aluminum, NO glass, and because we saved so much money on those components, we are now ready to sell them to you at a higher price than those pesky "olde style" panels that last forever and use so much aluminum and glass. Order yours today!!"

Instead, the marketing cleverly side-stepped the longevity "feature" of the flexi-panel and displayed these panels cleverly cladding curved areas like the decks of sailboats.
_________________
'86 Syncro Westy SVX

[kourt]

I've had my two 120 watt flexible King Solar panels on my roof since summer 2016.

They've endured about 60,000 miles of travel and some bad hail storms.

I have them mounted on aluminum bar stock that is tensioned to keep the panels slightly bowed away from the roof surface. This also maintains a low profile, keeping the panels less conspicuous.

The aluminum bar stock frame has rubber bumpers mounted underneath it (they are actually sink drain stoppers) that keep the frame from flexing too much.

The laminate film on the surface of these panels peeled away long ago.

The efficacy of these panels has definitely declined since they are new. If I press on them, they sound a bit crispy/crunchy now, and because of that I have been giving thought to replacing them.

Ideally these are mounted directly on a fixed surface, where they will not flex and last longer. That has not happened with these panels. I still do not regret it.

As a side note, my home has 17 280 watt conventional glass/aluminum solar panels on the roof, for 15 years now. Good solar panels should last at least 25 years.

Despite their age, they still deliver sufficient energy to my Redarc DC/DC charger to keep my 200AH of LiFePO4 batteries charged up nicely. In fact, I used the van to run my house during the recent winter freeze, and an even more recent (last weekend) 26-hour power outage due to storms. In both cases, the panels were instrumental in recharging the house battery system that had been run down to 12.6 volts as it kept my home refrigerator running in the face of no grid power overnight.

They are definitely lighter and quieter than my original solid 100 watt panel.

I will most likely try flexible panels again, but I am looking at all options. I agree with Howesight above--the newness of the product allowed marketers and manufacturers to really sell something that wasn't totally developed.

I've been slowly looking for a good brand to buy. I have one spare 280 watt panel from my house installation and it's very tempting to put it on the van, as bulky as it would be.

The first photo below is mostly about kayaks, but you can barely see the panels on the top of the van.

The second photo was meant to show some antenna mounts, but you can also see how the panels are mounted in the background.

kourt

[dobryan]

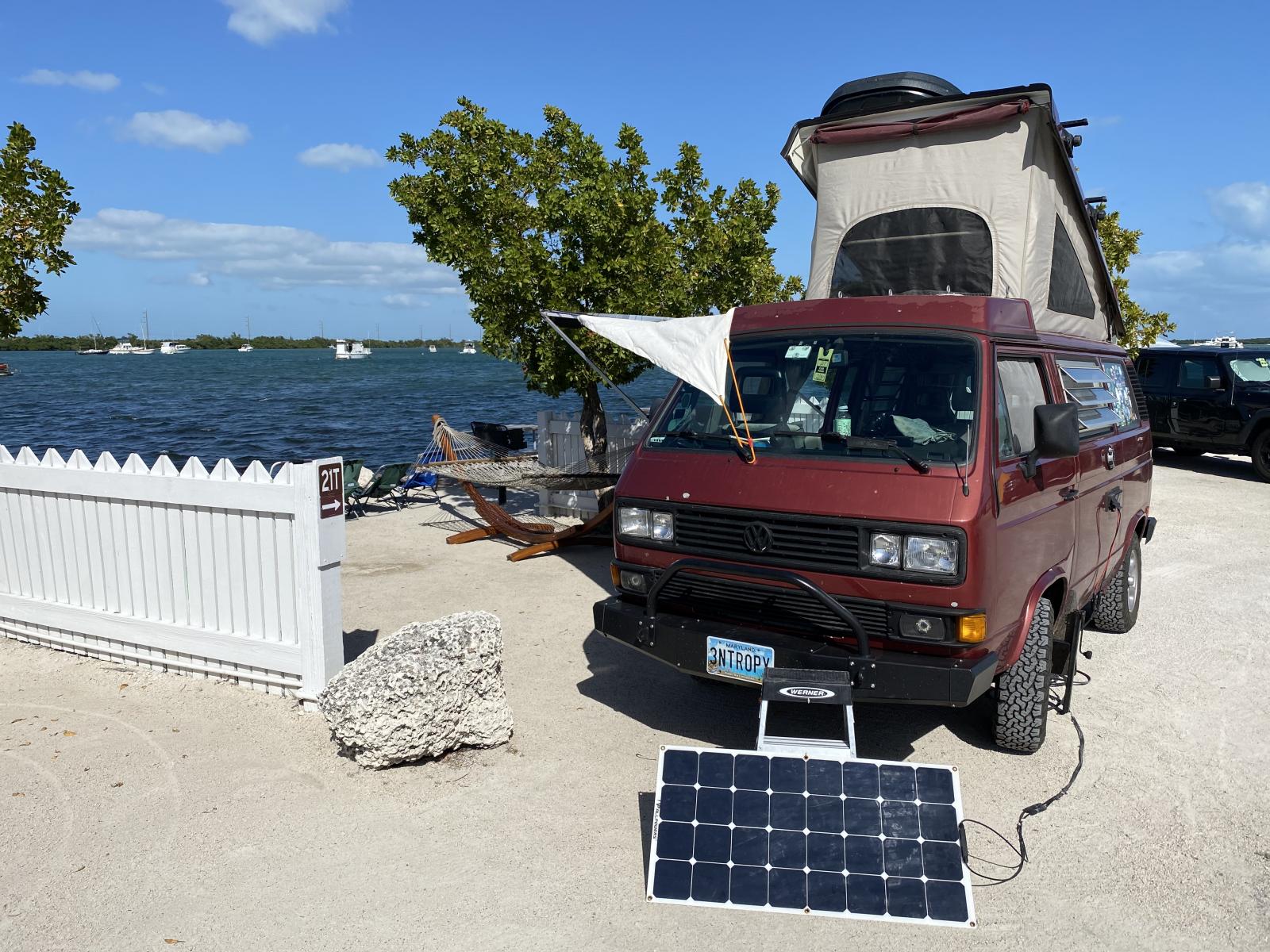

I have a panel I deploy remotely and after 10 years it is just fine.

_________________
Dave O
'87 Westy w/ 2010 Subaru EJ25 (Vanaru) and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794

[candyman]

[drj434343]

I had a bad experience with flex panels. Had 4 100W panels on my roof from 2016-2021. All 4 were peeling after 2 years. I measured a significant decrease in charging current, so removed all 4 and tested. 1 was completely dead, 1 had 80% reduction in performance, and the other 2 had 50% reduction in performance.

[DuncanS]

Never mind the panels, Dave O. Where is that fabulous site 21 T? Need to go there.

[jimf909]

I've discarded two HQST 50 watt flexible panels that lasted less than five years and am about to discard a six year old HQST 100 watt flexi panel. Each was producing about 25% or less of their rated capacity. I've replaced them with rigid panels.

GIGANTIC CAVEAT: 6-7 years ago I was buying off Amazon based on price alone. Cheap HQST brand solar panels = soon-to-be landfill. Likewise with a $25 solar controller.

There are plenty of flexible panels powering RTW sailboats, vans, etc. but my guess is few were $1 per watt Amazon cheapos, i.e. flexible isn't the key criterion, quality is. That said, stationary home installations use rigid panels for the reasons Kourt mentions.
_________________
- Jim

[nocreditnodebt]

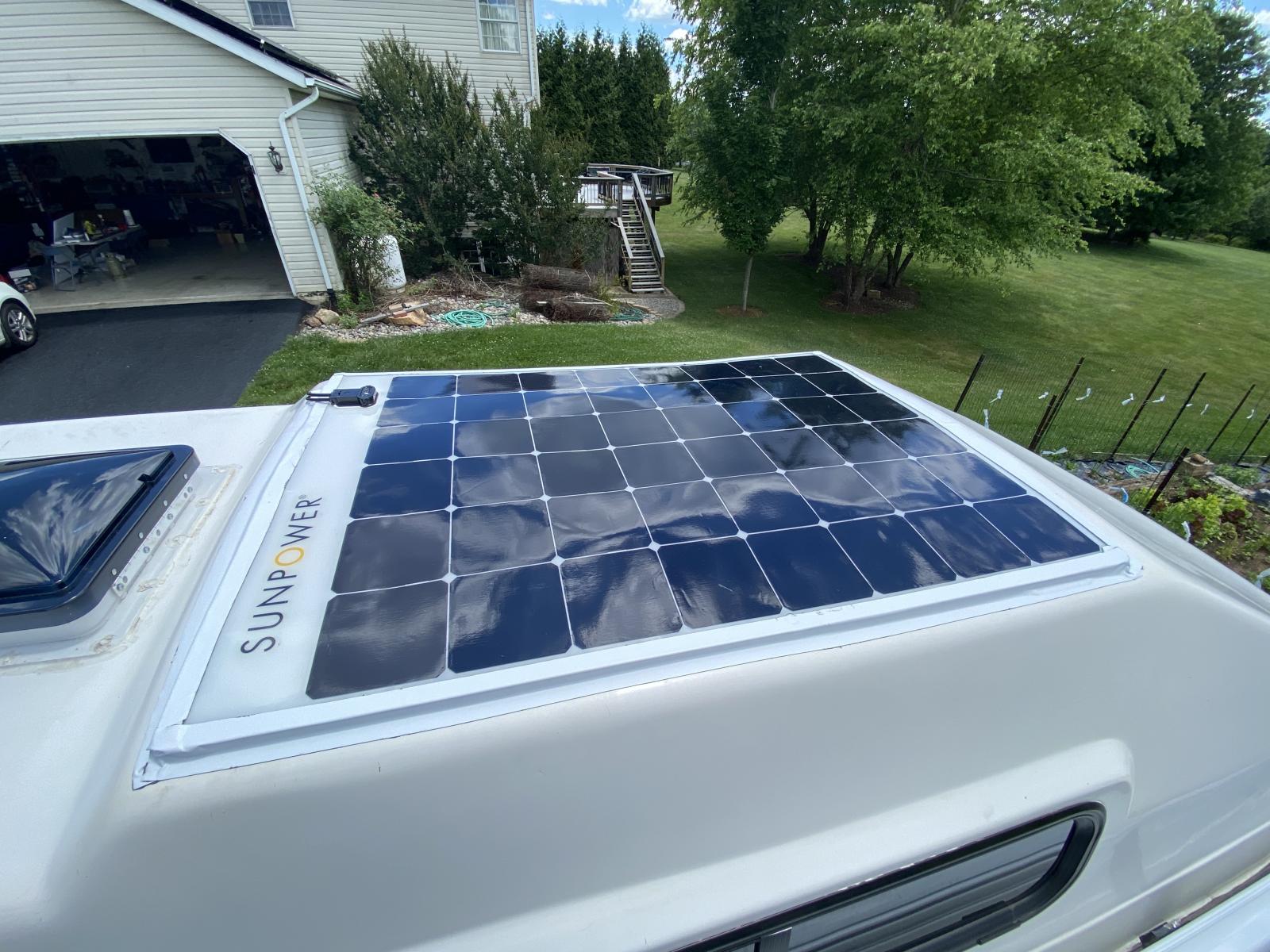

I have a 100 watt sunpower flex panel.

This one claims to be made better with materials which will not degrade so quickly.

Not that I trust that claim, but it is significantly more expensive per watt than what is/was available.

Mine's used as a portable, and not deployed often.

Such panels are slightly bendable, a limited number of times.

'Flexible' might imply it can flap in the breeze like a flag without issue, which they most certainly cannot.

To keep mine from bending excessively deploying it, I made a lightweight 1/2 inch thick vertical grain doug fir frame and extra attachment points around the perimeter, and if laid flat keep it slightly elevated for some ventilation underneath.

Still delivers expected wattage when aimed at the sun, but I do not deploy it often.

I'm Saving it for when/If I really need it, as I have 200 watts of hard mounted panels already, the extra hundred just helps make for happier batteries.

[kourt]

[dobryan]

[dobryan]

[joetiger]

Fiberglass-backed ETFE panels (whatever that means.)

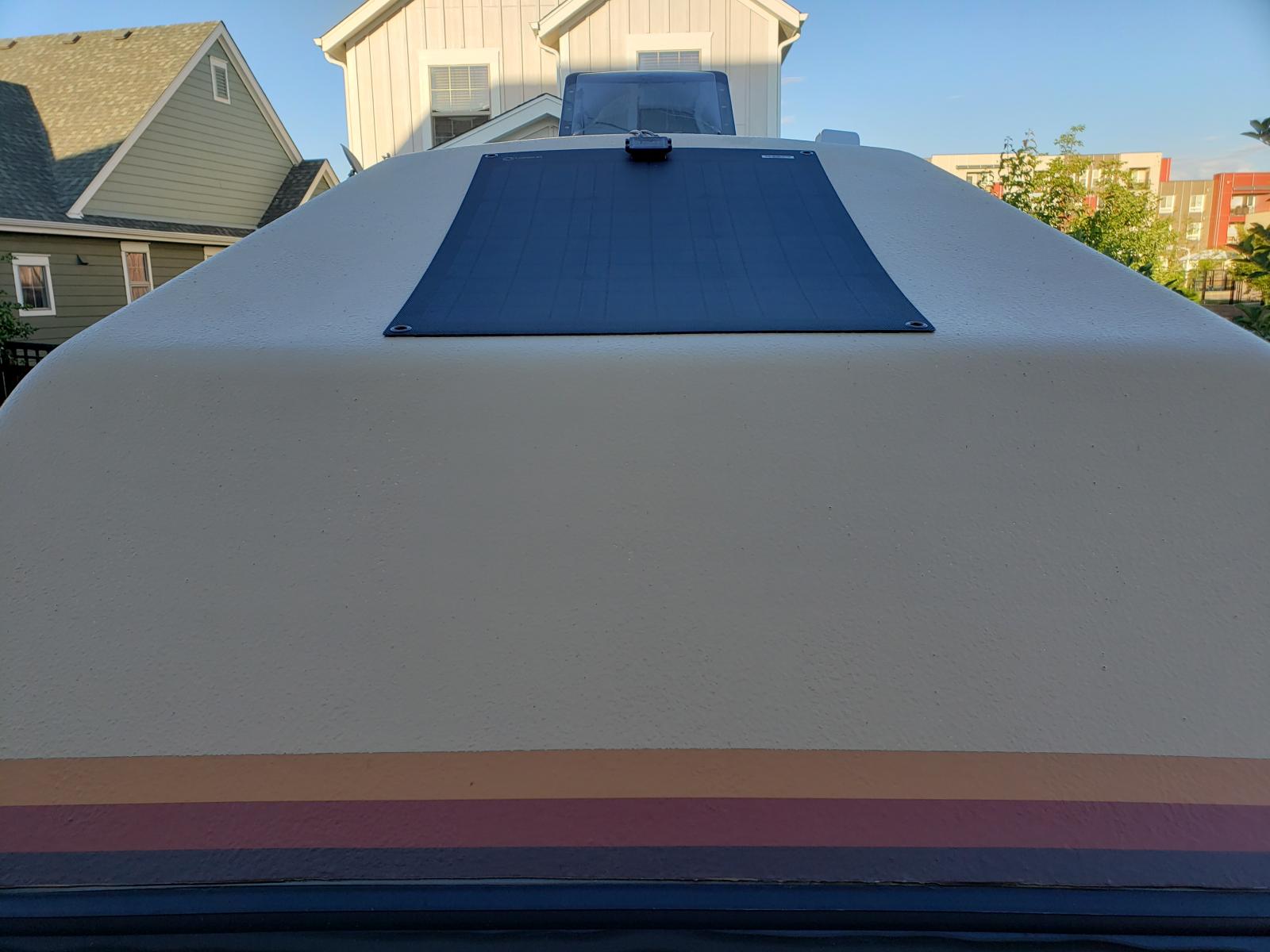

They've been on the van with 3M UHB tape for a couple of years and have been through blizzards, hailstorms, high wind, heat, whatever, and still work perfectly.

https://www.lensunsolar.com/Lensun-80W-12V-Fibergl...an,rv,boat

55 on the front, 65 on the back (not pictured.)

They're stiffer and heavier than the standard flexible panels.
_________________
Joe T.

'86 NAHT Vanagon GL Syncro/ supercharged ABA 2.0 "Pigpen"
'91 Wolfsburg Carat "Barchetta"
'02 Baja-ish Beetle "Bubbles"

"get metaphysical with it. if it's simply a means to get to and from places, it will let you down. if it becomes your zen, it can't fail you." -dabaron

"Still, it's good to be afield."--VWagabond

Check out my book: Vanagon to Louisiana--A Two-Lane Reckoning Through Past and Present

www.josephtrussell.com
www.pigpensyncro.com

[jlrftype7]

We recently bought the Jackery 100w panel. I guess it's more of a flexible panel than a rigid, traditional panel, yes? no?
It's the 3rd gen version.
Time will tell how it performs and holds up, but since it won't be mounted to our Vanagon permanently, it should see longer service life, I'm guessing.

https://www.jackery.com/products/solarsaga-100w-solar-panel

Paired it with the Jackery 500 solar gen unit, and a longer cable to chase the Sun if needed.

Was on the fence about mounting 2nd battery in the Vanagon along with the charging system set-up for that, then decided to go with the portable Solar system since we could always use the unit indoors if we lost power[ luckily, rare for us here in Chicago, but it does happen]
_________________
'68 Westy- my first VW and vehicle/Bus- long gone.- sold it to a traveling Swiss couple....
'67 Type 3 Fastback, my 2nd car- gone
'69 Semi-Auto Stick Shift Beetle-gone
2017 MINI Coopers, our current DDs
‘84 Tin Top - Hilga....Auto

[Crooked Designer]

[dobryan]

[Jan Steinman]

I bought a couple flex panels years ago. They were a great price.

I used to take them out and lean them against the vehicle to adjust their angle. One day, I forgot they were there, and ran over them. They still produced about 80% after being run over!

But they did decline steadily over some ten years or so. I gave them to a local student to use in a high school science fair project.

So, there were pros and cons. A non-flex panel would have been useless after running it over! But I don't think I'd buy flex again, unless I had a very specific use case that demanded it.

[puchfinnland]

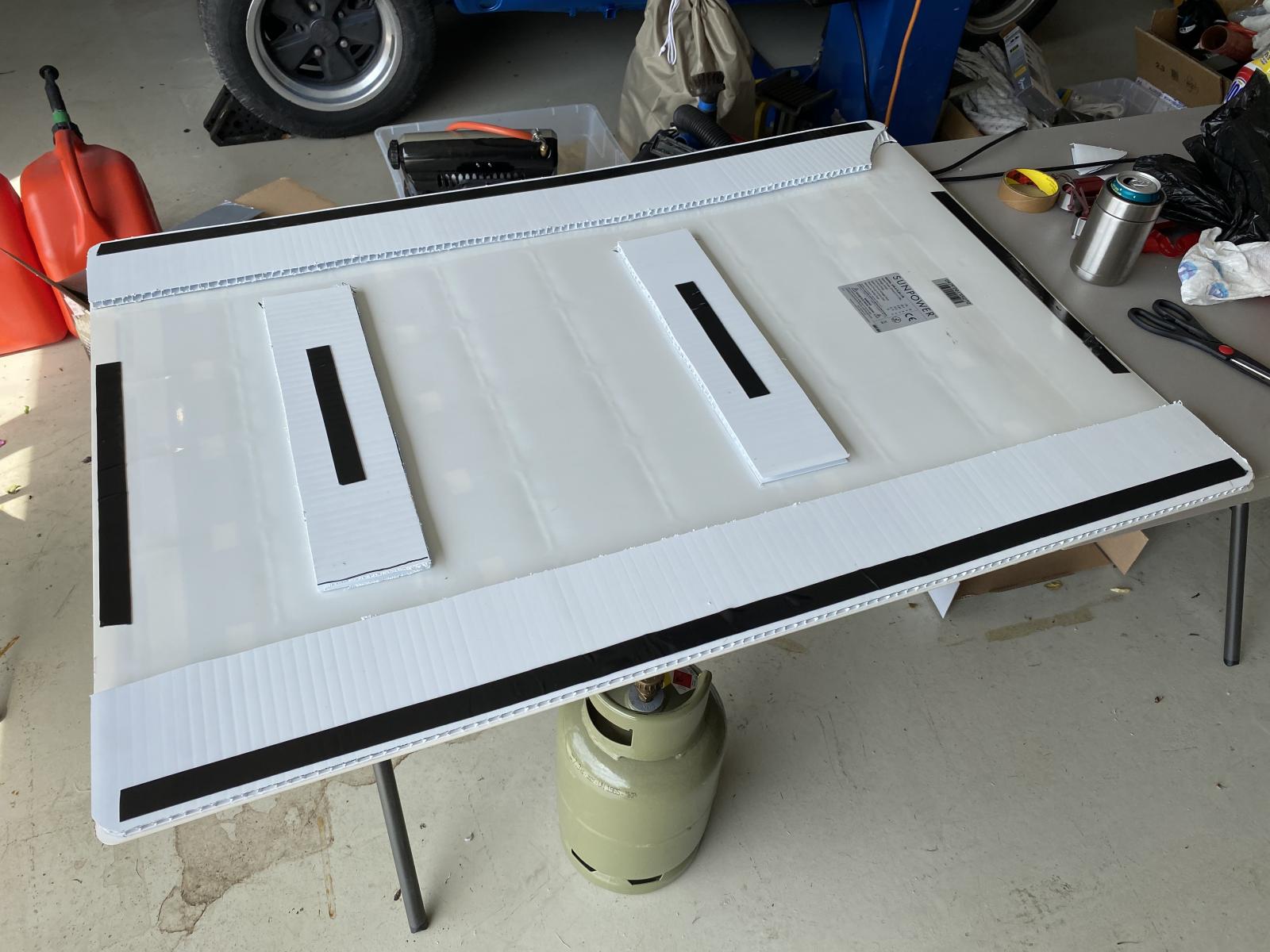

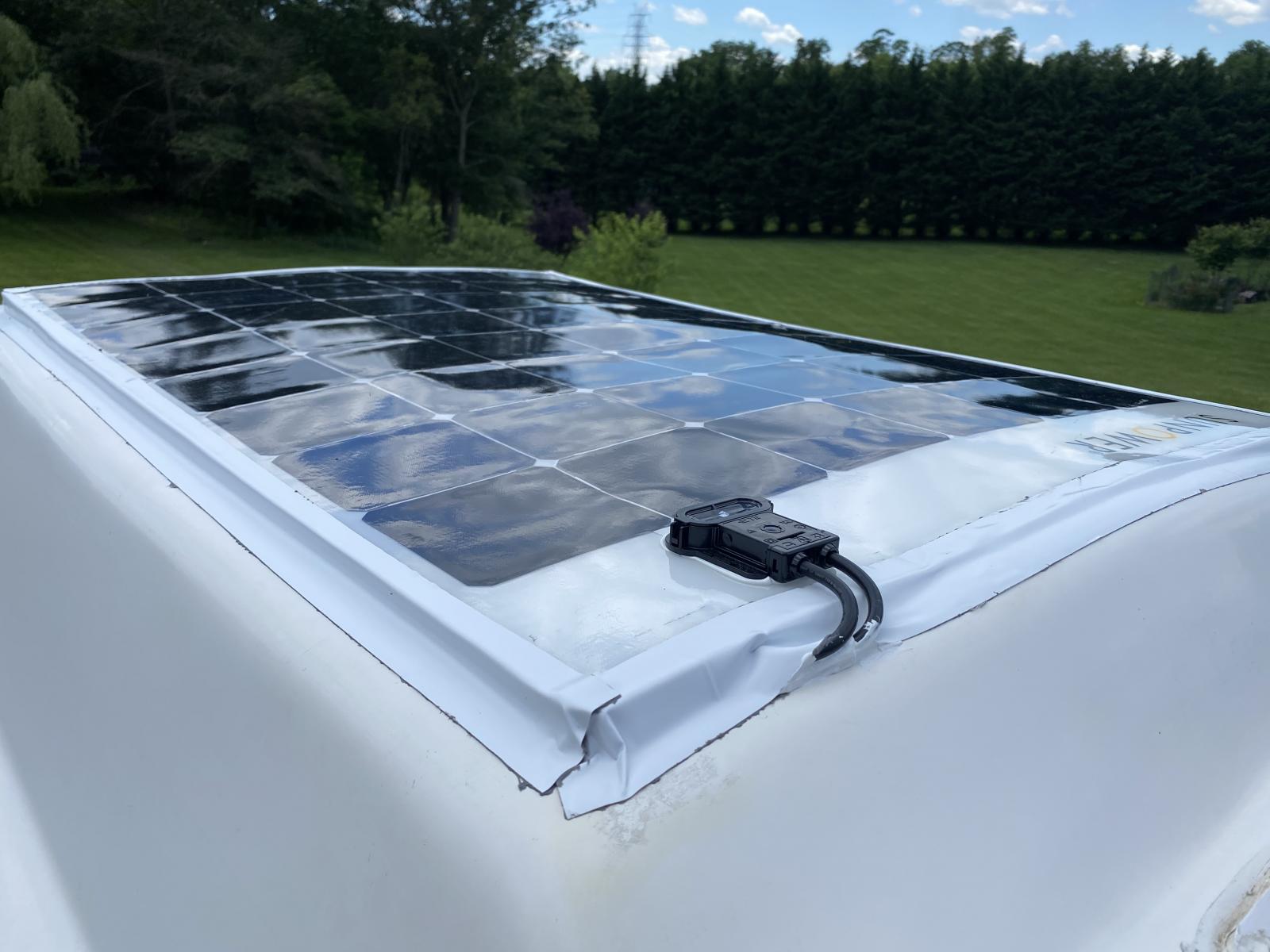

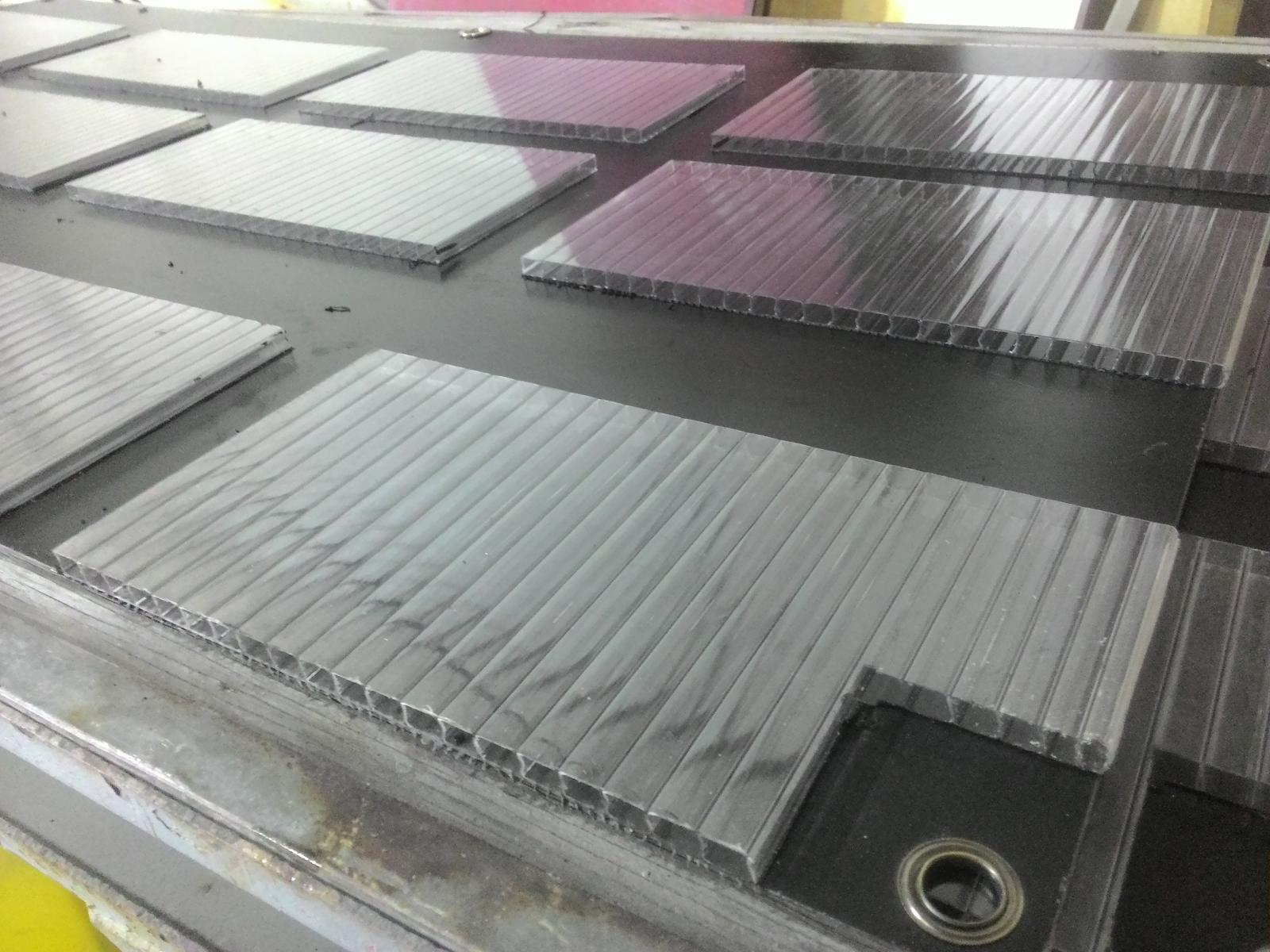

I installed LENSUN panels on a few vans now, and on many boats, I bond them on poly carbonate sheets so they can vent, this is the first gen of my concept, currently ready to launch the second gen version with even more ventilation- panels need to breath to dissipate

heat or they will have a short life!

full story here-

https://www.thesamba.com/vw/forum/viewtopic.php?t=731545
_________________
ABYC marine master technician , EX European auto technician, new business- EASTCOASTWEST , custom work on campers, only systems, no mechanical
