 Posted: Thu Oct 03, 2024 10:47 am Post subject: Square back resurrection |
 |
|
I just bought a 1966 square back VIN 366020*** and I'm trying to decode its birthday but the numbering system on the VIN page does not make sense to me.
Also it looks like the model page has some serious errors in the year column Mine is a LHD 1966 Variant which does not match anything I see there.
Help?
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
 |
Tram
Samba Socialist
Joined: May 02, 2003
Posts: 23034
Location: Northwest of Normal
|
| Posted: Thu Oct 03, 2024 10:55 am Post subject: Re: Square back resurection |
|
|
| sunroof wrote: |
I just bought a 1966 square back VIN 366020*** and I'm trying to decode its birthday but the numbering system on the VIN page does not make sense to me.
Also it looks like the model page has some serious errors in the year column Mine is a LHD 1966 Variant which does not match anything I see there.
Help?
Don |
Yours is a very early 66 built in August 1965 according to the chart. Your model is a 36 (Variant) instead of Model 31 (Sedan/ Fastback) as listed in the VIN chart, the second 6 is model year 1966, and the chart shows that the LAST VIN produced in that month is 027119.
Hope this helps
_________________
Немає виправдання для війни! Я з Україною.
| Bryan67 wrote: |
| Just my hands. And a little lube. No tools. |
Those who can- do.
Those who can't? Subaru. |
|
| Back to top |
|
|
ALLWAGONS
Samba Member
Joined: June 03, 2000
Posts: 4572
Location: Pasadena CA/DTLA soon China
|
| Posted: Thu Oct 03, 2024 11:23 am Post subject: Re: Square back resurection |
|
|
is it a sunroof?
_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.
I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.
Thanks to my Tesla driving neighbors, I feel more relaxed driving my SUBURBAN and old VW's.
Everything sounds good on paper! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Thu Oct 03, 2024 2:44 pm Post subject: Re: Square back resurection |
|
|
Sadly no.
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Sat Oct 05, 2024 9:25 am Post subject: Re: Square back resurection |
|
|
Does anyone have the assembly instructions for a 1966 type 3 squareback? I have never assembled one of these kits before and the instructions are MIA
Is this the right number of torsion bars? Inquiring minds want to know!
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Sat Oct 05, 2024 12:37 pm Post subject: Re: Square back resurection |
|
|
| sunroof wrote: |
Does anyone have the assembly instructions for a 1966 type 3 squareback? I have never assembled one of these kits before and the instructions are MIA
Is this the right number of torsion bars? Inquiring minds want to know!
Don |
As for instructions on reassembling one, look thru the links in my signature, or my gallery. I don't have any Squareback pics, but the Notch and the T-34 should give you enough info to help you out. Any other questions you can post up and the forum can help too. I never took any pics of my 70 Square when I had it apart, and my 69 Square never got taken apart other than putting the engine back in it (the PO pulled it to rebuild it).
As for the torsion bars, look to see if the 2 larger bars have a letter stamped in them or if they are marked in any way. Yes the bars with splines on each end are for the lower trailing arms, while the other bar is a sway bar that connects the 2 upper trailing arms together. The one with a threaded end is for the right side and is the one that is used to adjust the slack in the arms. Do you have the Brown Bentley manual? If not get one, as it'll help immensely, and we can direct you to the page with the info you need. It also has the torque specs you need for the various parts you bolt together. It's almost a must have for these cars, as they're NOT the same as a bug or bus.
I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18041
Location: Eugene, OR
|
| Posted: Sun Oct 06, 2024 11:29 am Post subject: Re: Square back resurection |
|
|
Start with the suspension & get the chassis rolling.
I hope you got the nuts & bolts in marked plastic bags?
Even if they are All in a bucket, you can still sort them out!
The rear hatch door springs are kind of tricky.
http://home.clara.net/hallvw/technical/tailgate.htm
Instructions for a tool/lever to install the springs.
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold
Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Tue Oct 08, 2024 7:13 am Post subject: Re: Square back resurection |
|
|
Hey thanks guys. I will be relying on all of you for help on this one. I have assembled many beetles
https://www.thesamba.com/vw/forum/viewtopic.php?t=726892&highlight=
And can probably do it with my eyes closed but this is my first T3 project. I had a '71 notch 30,000 years ago but it didn't really need any work other than cosmetic. In the early '90s I could go to an auto wrecker and there would be a row of T3s to take bits off of. I found the turn signal lens, emblems and the hooks for the seat belts and all the other bits that had wandered off in one trip to the junk yard. Those days are OVER!

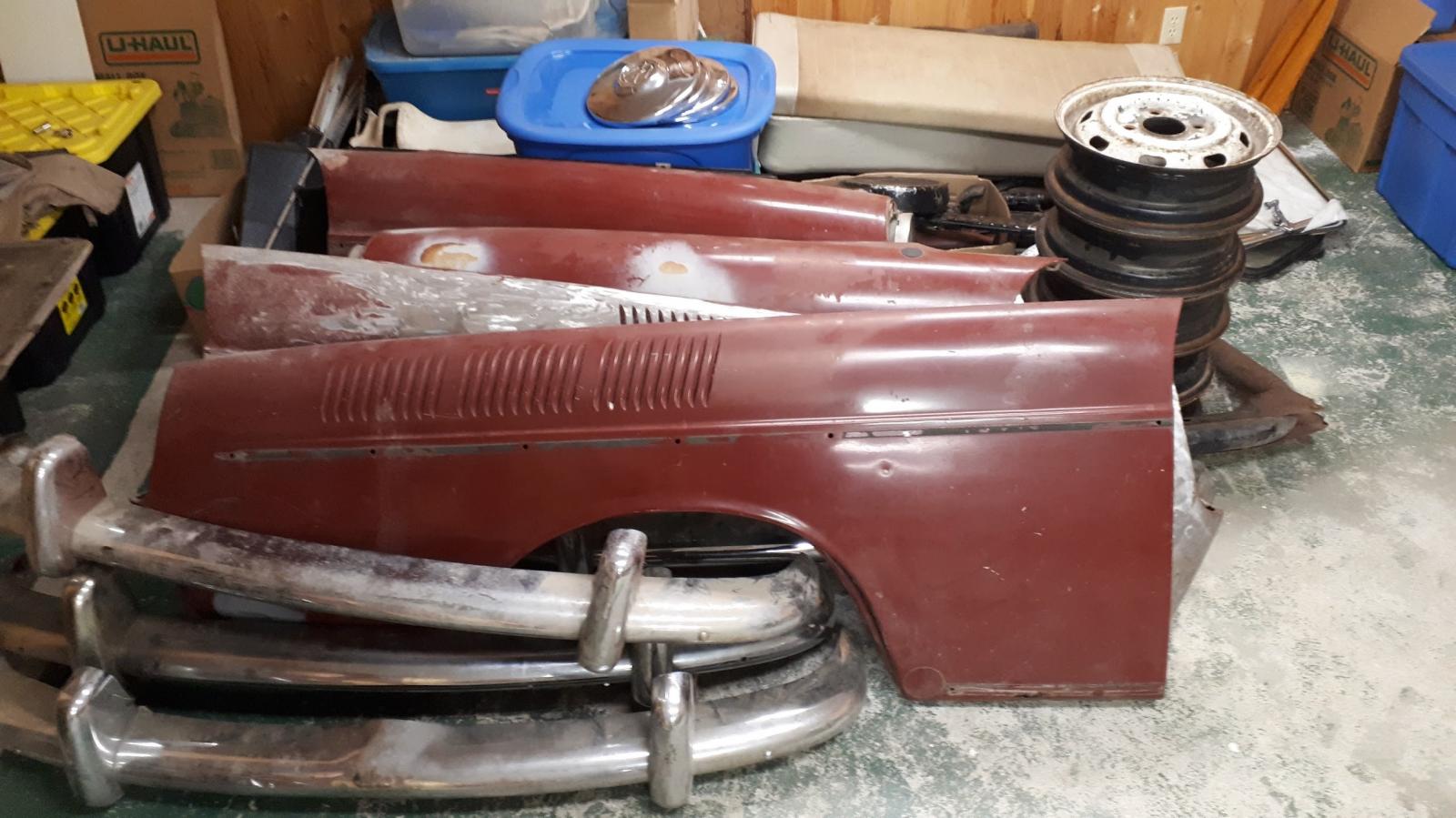

The fellow who dismantled the car had no idea what he was doing and just threw everything in boxes. Anyways I'm really looking forward to this.
BTW
I'm hoping I can reuse this plate. I'm also hoping I can scrub off all the primer he shot all over the car.
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Tue Oct 08, 2024 8:43 am Post subject: Re: Square back resurection |
|
|
Also also what colour are my wheels supposed to be?
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Sat Oct 19, 2024 11:35 am Post subject: Re: Square back resurection |
|
|

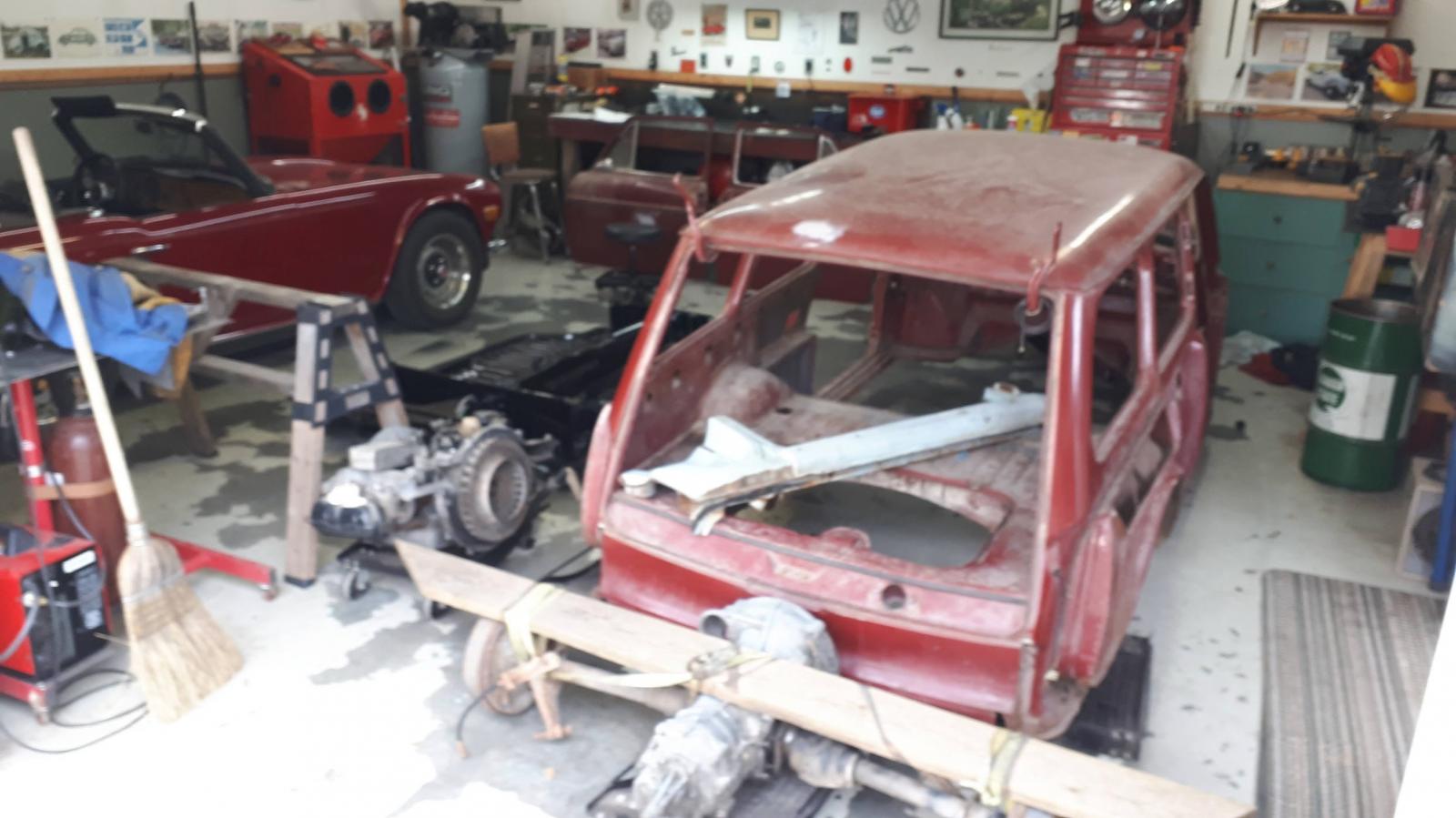

So today we loaded up the truck (trailer actually) and moved the body to my place.

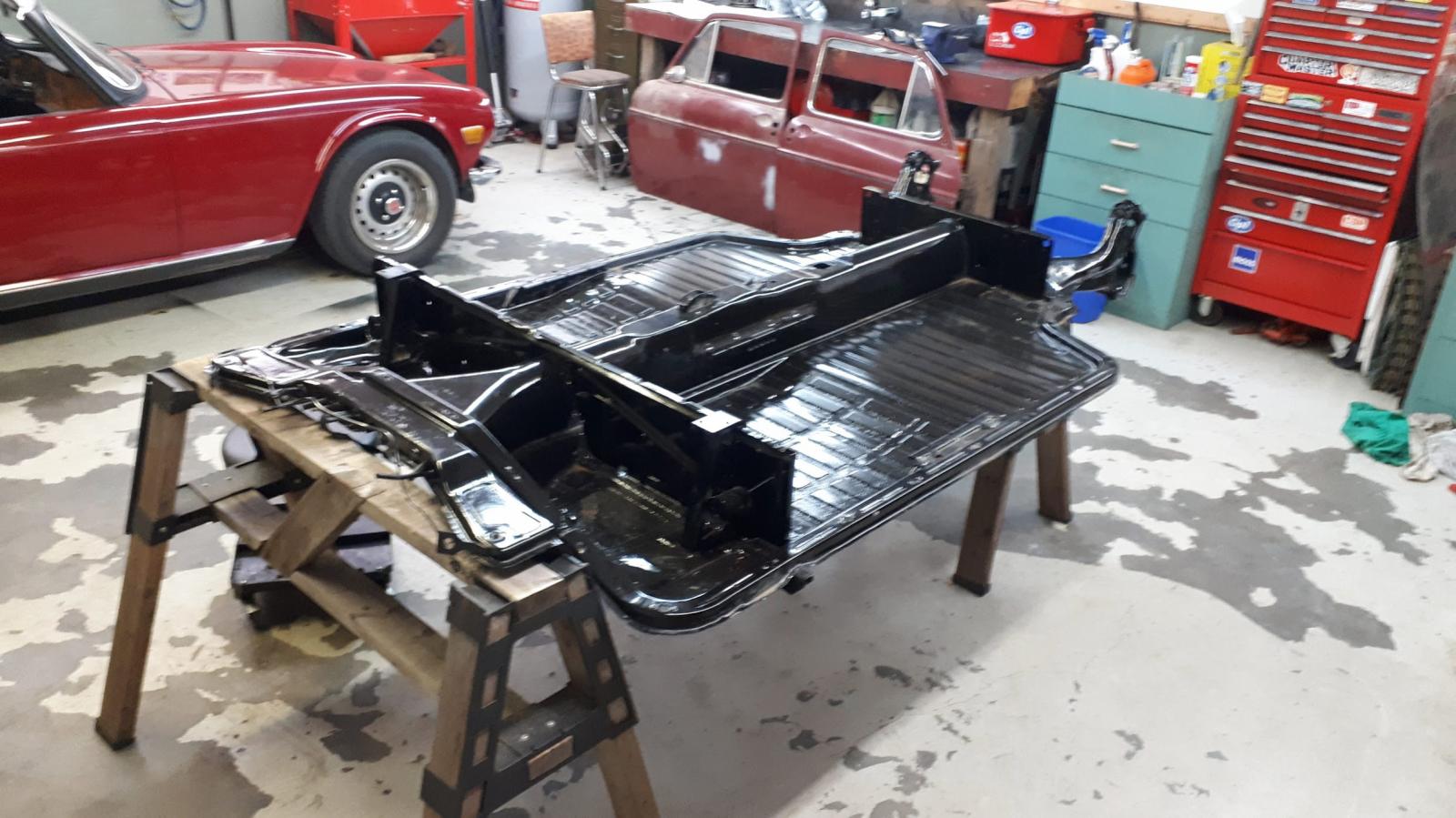

Where the chassis was already waiting
Things are a bit of a mess right now but I will sort things out and start planning my attack
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
eyetzr
Samba Member
Joined: October 09, 2013
Posts: 1468
Location: Toronto, Ontario. Canada
|
| Posted: Sat Oct 19, 2024 3:39 pm Post subject: Re: Square back resurection |
|
|
Great looking project. I will second the get it rolling part. Pedals, wiring, gas, brake lines shifter bushing are so much easier before the body gets bolted down.
_________________
I think he meant "rare", as in "not well-done" |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Sun Oct 20, 2024 6:14 am Post subject: Re: Square back resurection |
|
|
| Quote: |
I will second the get it rolling part. Pedals, wiring, gas, brake lines shifter bushing are so much easier before the body gets bolted down.
|
I get where you guys are coming from but there is a lot of rust repair to do and the body is going to have to come off and on the pan many times before it is done and it is going to be much easier to lift the body off the pan and move the pan aside to get access for welding if the pan is as light as possible.
However! I certainly did it the way you suggest when I did the '54 beetle so the decision will be made soon. The issue I have with assembling the pan is that the rear transmission mount and suspension has only one mounting point on the pan making it very difficult to deal with unless it is bolted to the body.
As I say... I really appreciate any and all advice and am counting on you guys to help me out on what I'm hoping is going to be a real fun project.
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Thu Oct 24, 2024 12:59 pm Post subject: Re: Square back resurection |
|
|

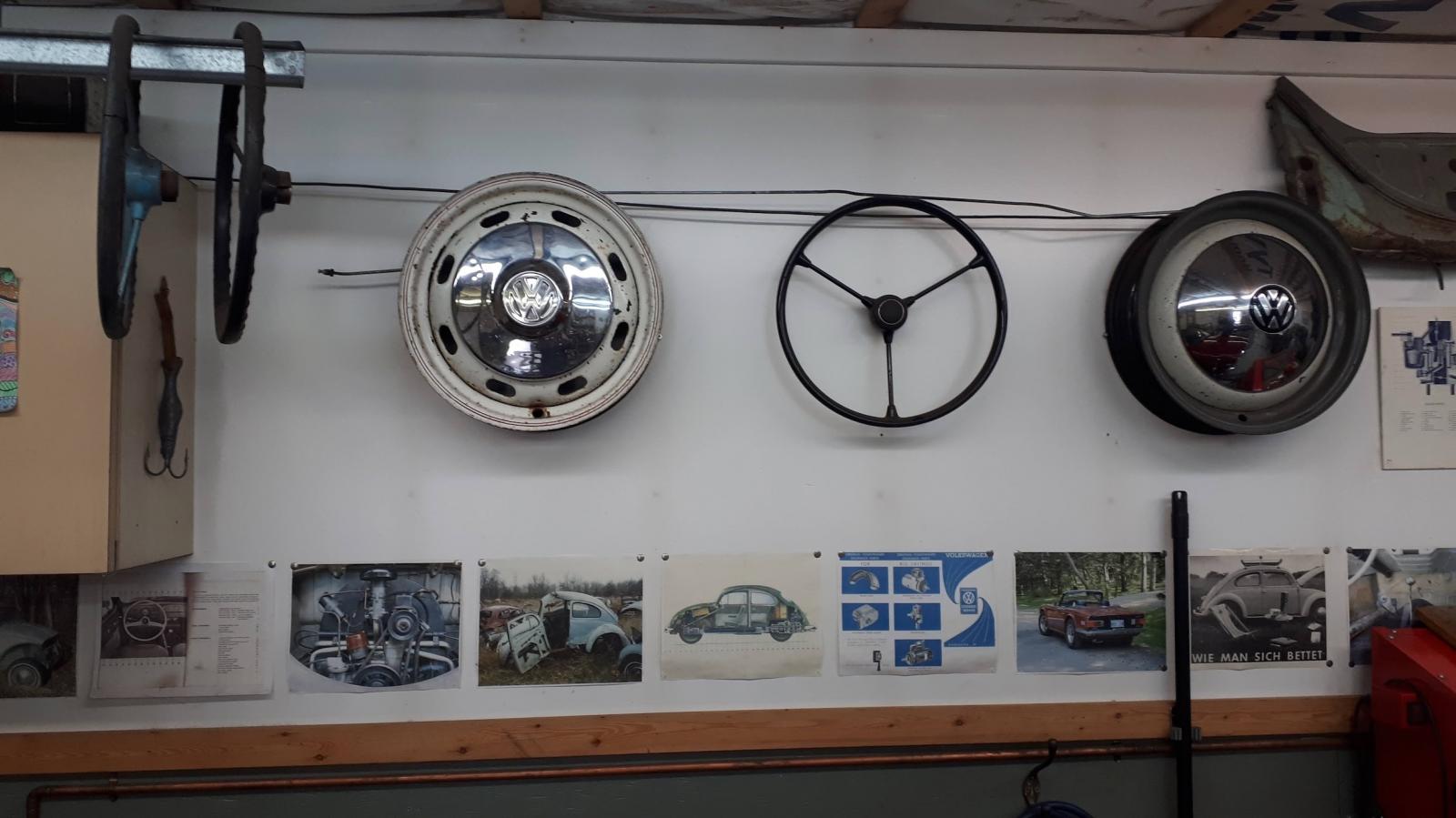

Garage straightened up somewhat. TR6 covered and stuffed in a corner.
Engine:
Transmission

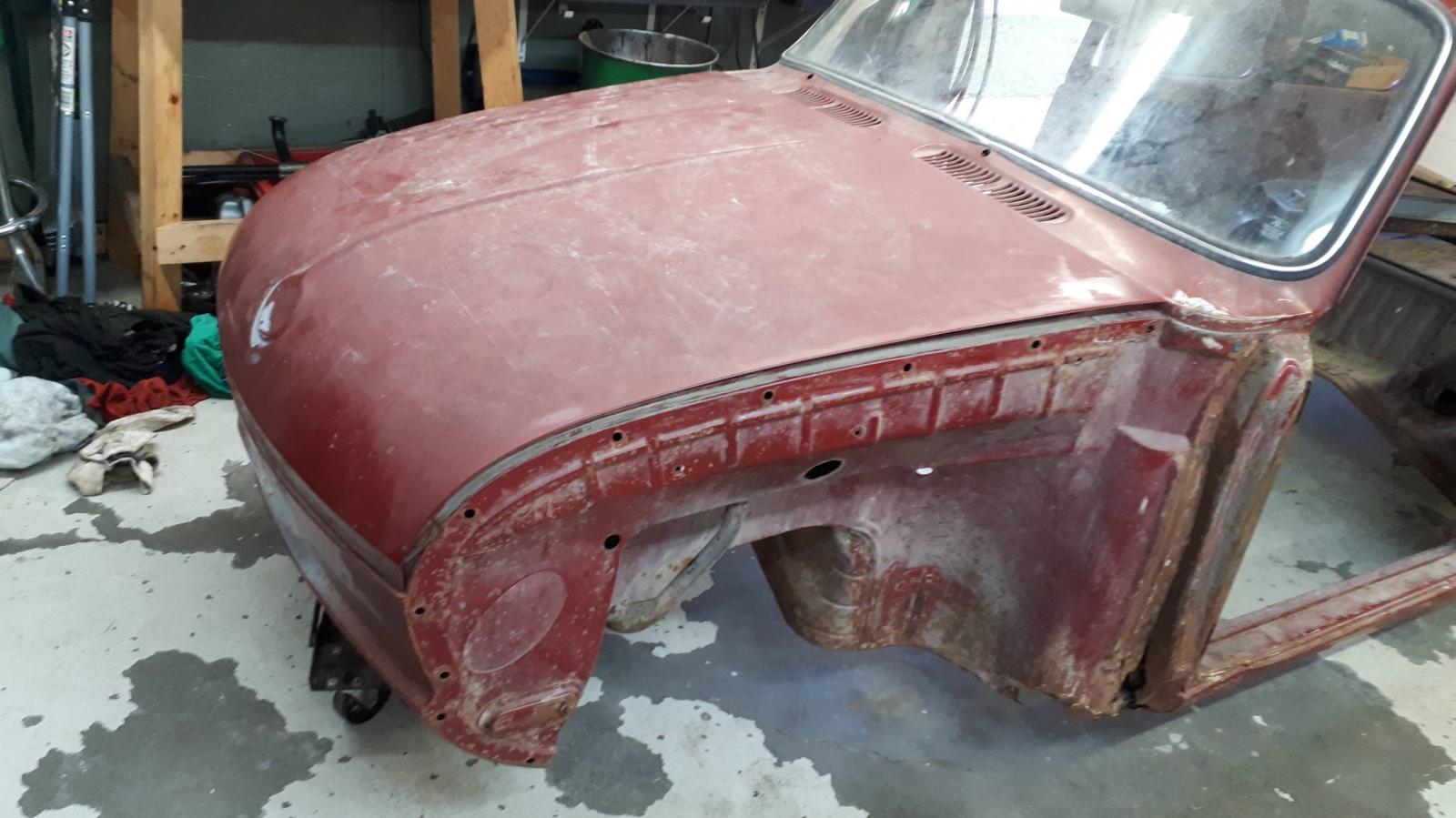

Beautifully straight, rust free nose:

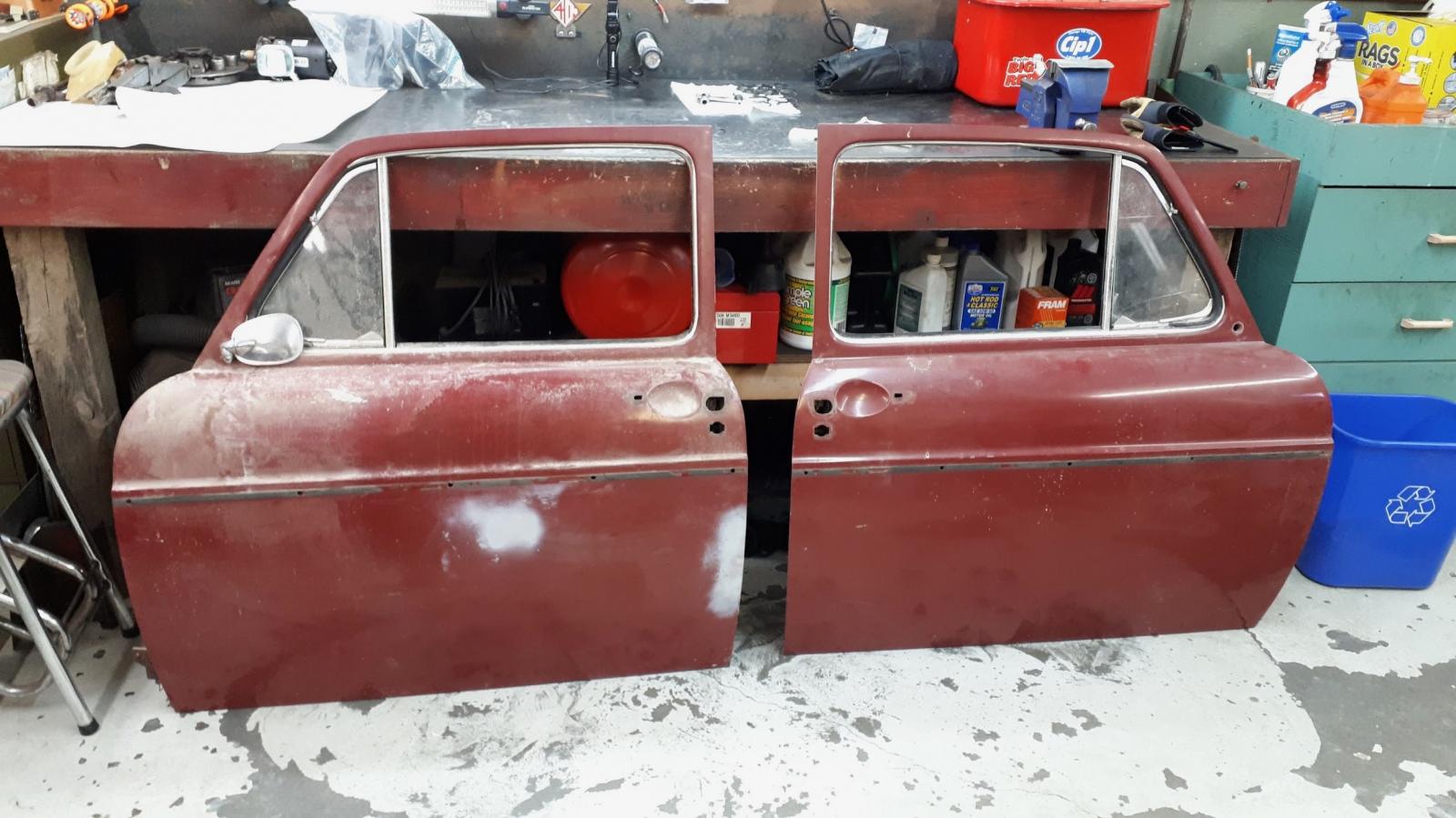

Beautifully straight, rust free doors

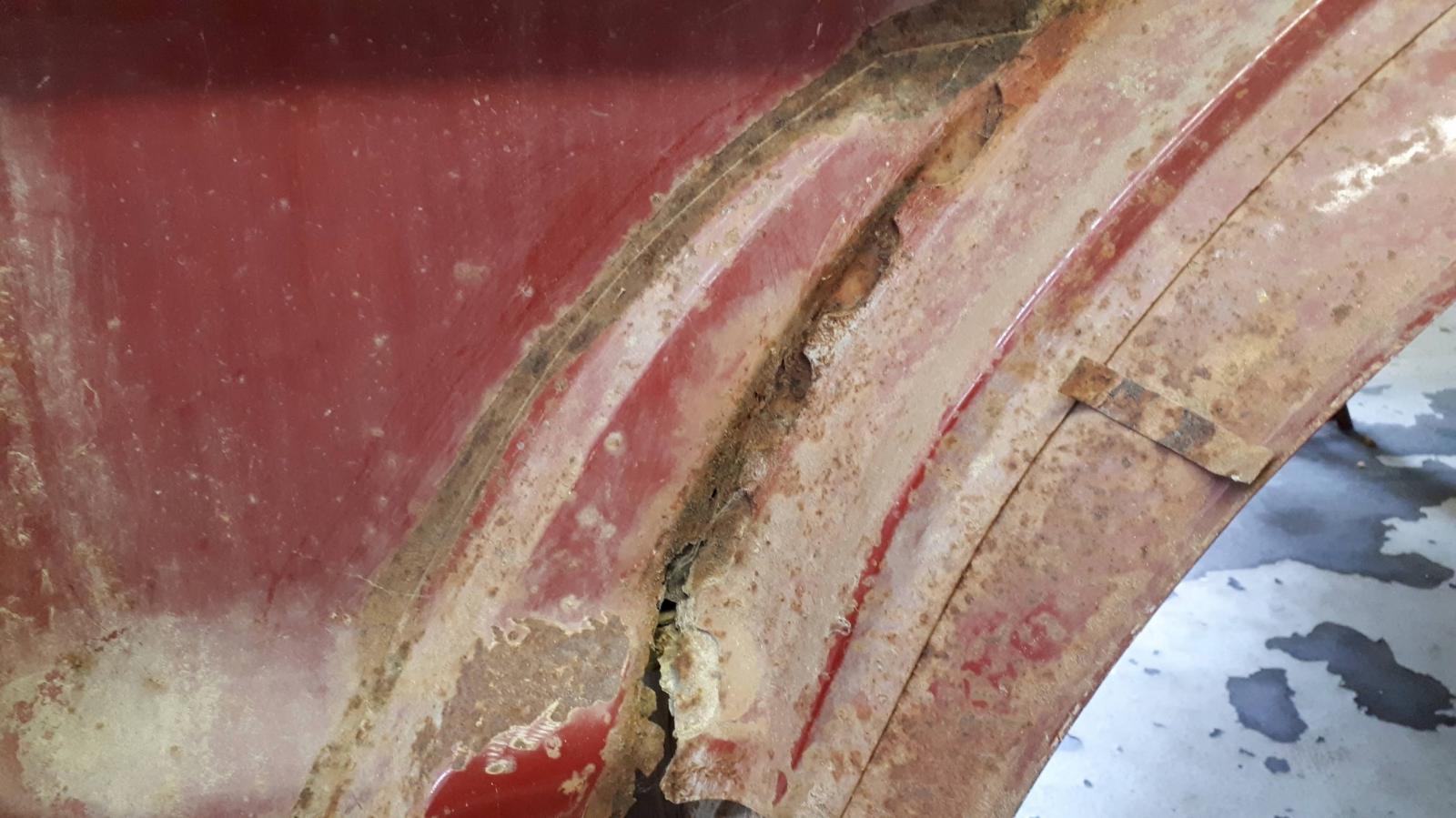

A bit of ugliness here on both sides

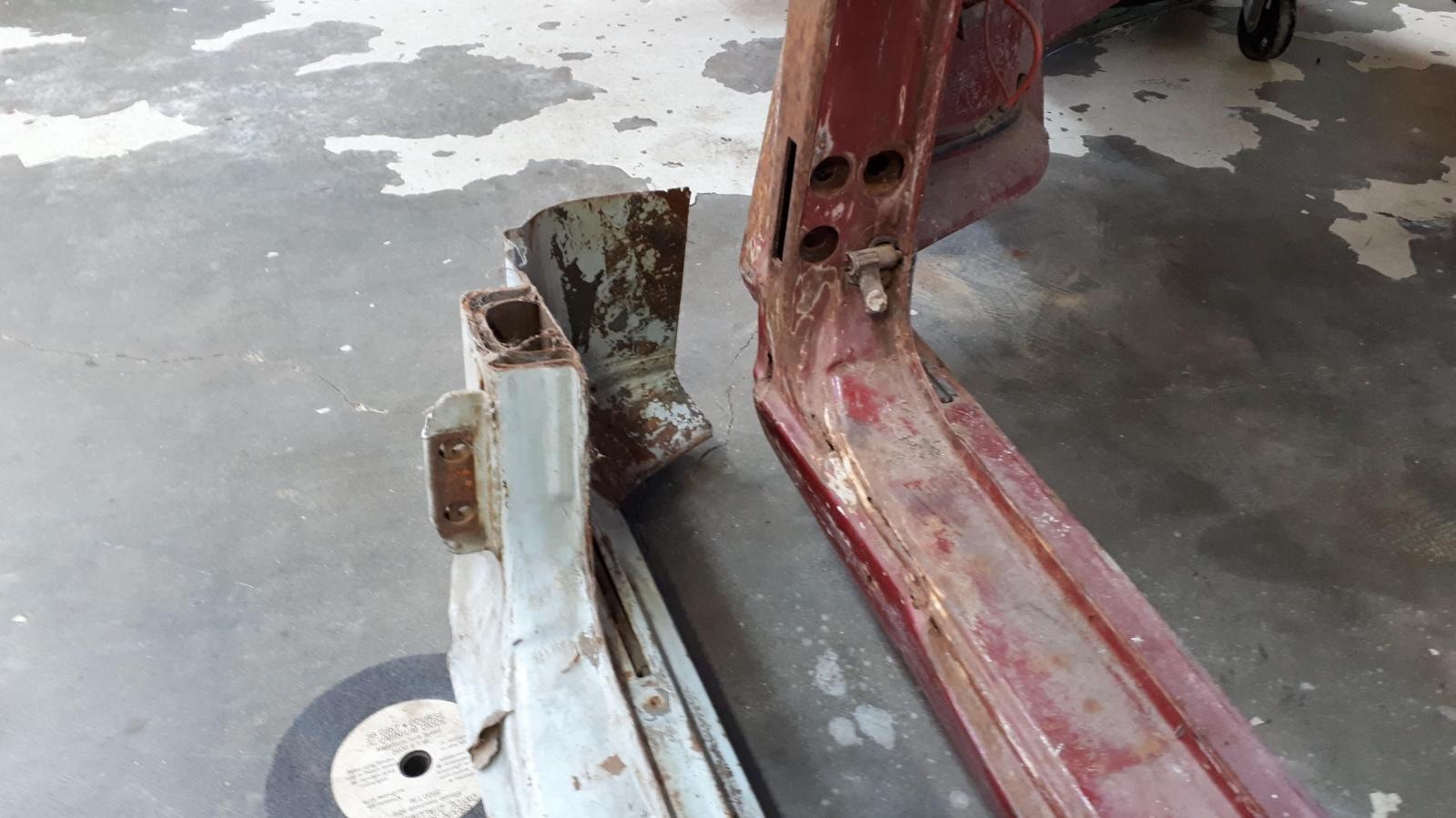

The car came with a set of solid heater channels
I suspect they are for an earlier car tho, the lower door hinge mounts are slightly different
Tomorrow I will bolt the pan to the body and decide where to start.

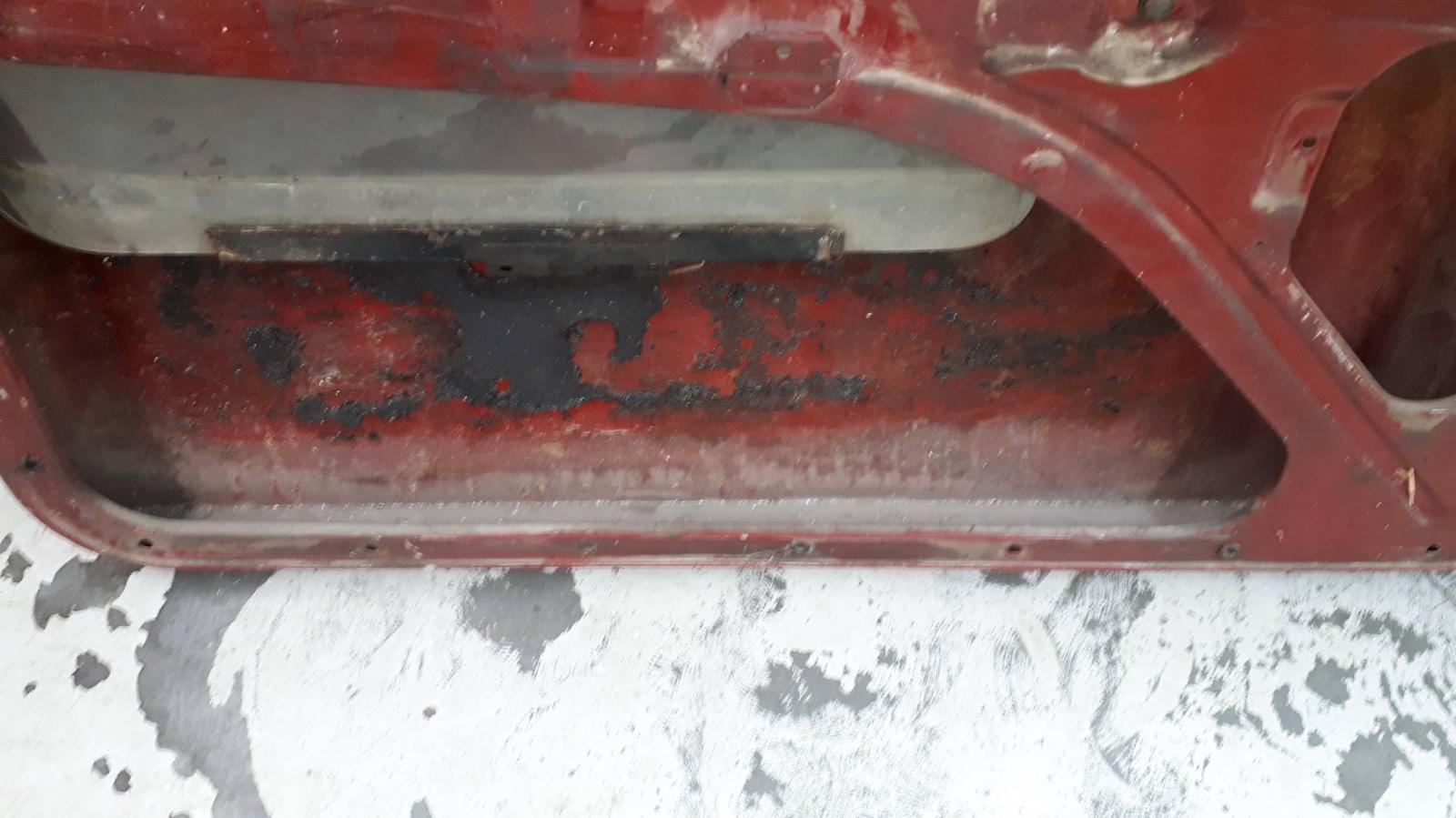

Probably with this bit of nastiness
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Sat Oct 26, 2024 1:39 am Post subject: Re: Square back resurection |
|
|

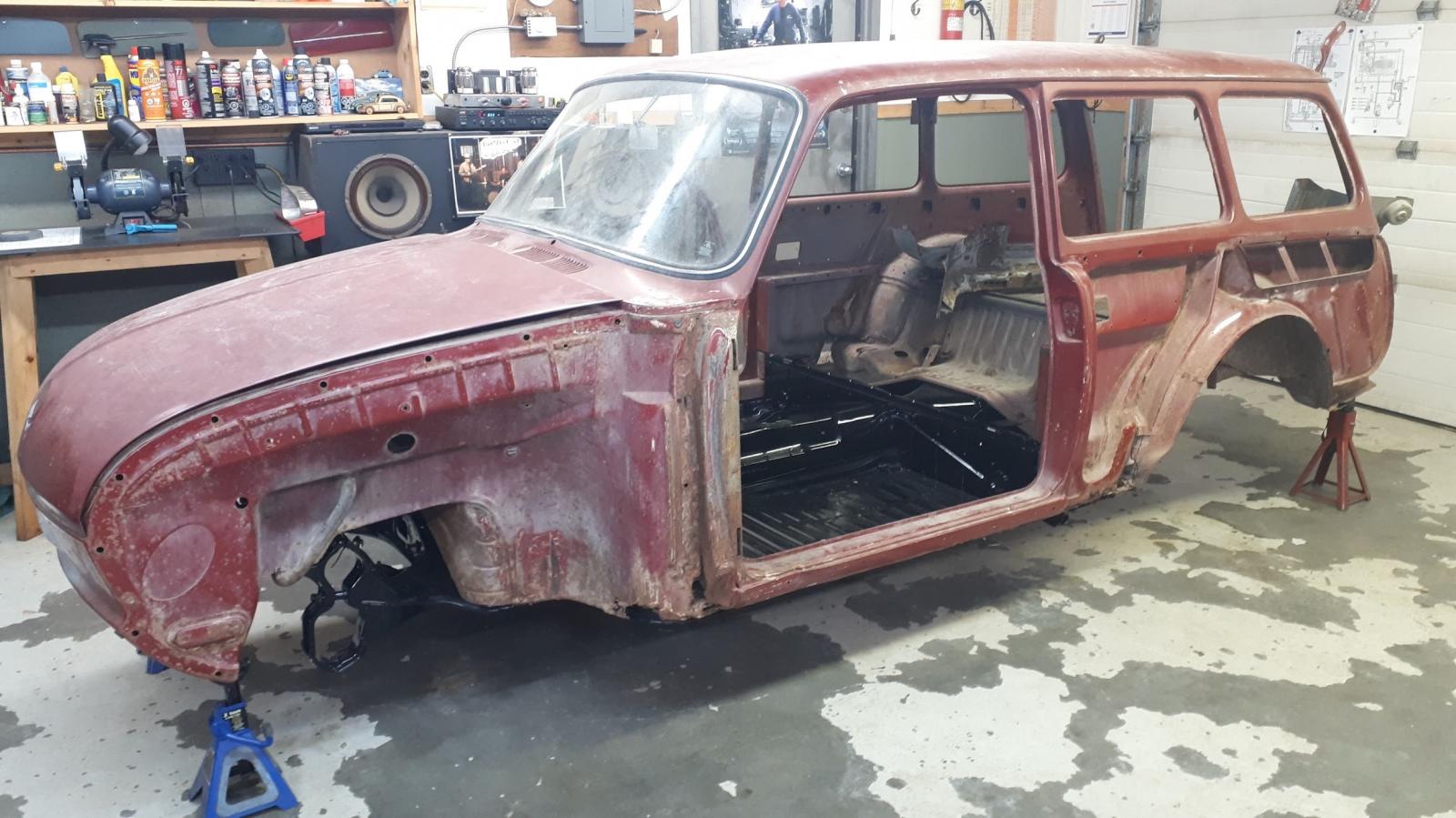

Bolted the pan to the body today so I can start rust repair
Now what the hell is this?
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Sat Oct 26, 2024 11:25 am Post subject: Re: Square back resurection |
|
|
| sunroof wrote: |
Now what the hell is this?
Don |
It allows the front seat on that side to fold forward when the door is open (cable operated).
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22656
Location: Escondido CA
|
| Posted: Sat Oct 26, 2024 11:30 am Post subject: Re: Square back resurection |
|
|
Oh wow, you got a special 66. Nerd fun fact - the 3 bolt doors are a carry over from the year prior. Due Im sure to where you live and the fact that its in the first 1000 made for 66.
Very cool.
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 1989
Location: Winnipeg
|
| Posted: Sat Oct 26, 2024 11:34 am Post subject: Re: Square back resurection |
|
|
| Quote: |
It allows the front seat on that side to fold forward when the door is open (cable operated).
|
Oh ho... Not a feature I was aware of. Of course they are both seized solid so that is going to take some effort to make work. Very cool.
| Quote: |
| Oh wow, you got a special 66. Nerd fun fact - the 3 bolt doors are a carry over from the year prior. Due Im sure to where you live and the fact that its in the first 1000 made for 66. |
Again great information. I knew I could count on you.
Don
_________________
Better and better mistakes! |
|
| Back to top |
|
|
notchboy
Samba Member
Joined: April 27, 2002
Posts: 22656
Location: Escondido CA
|
| Posted: Sat Oct 26, 2024 11:50 am Post subject: Re: Square back resurection |
|
|

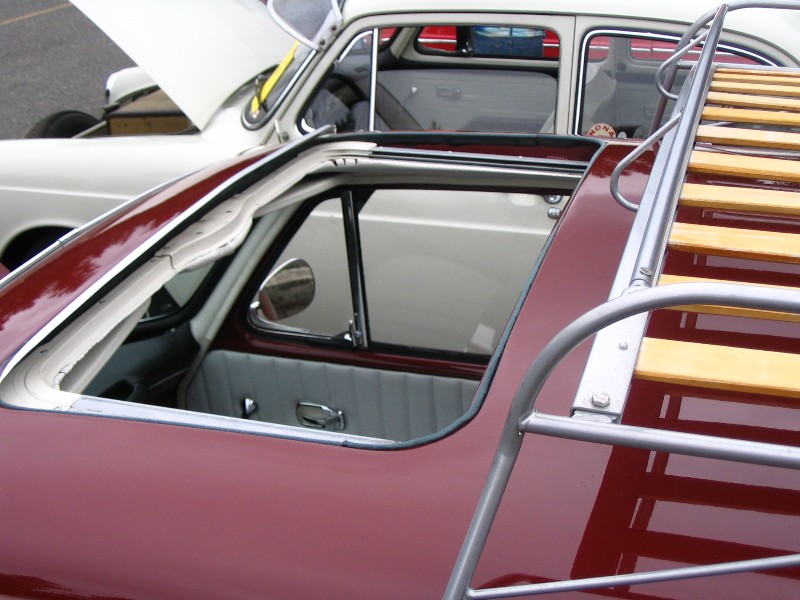

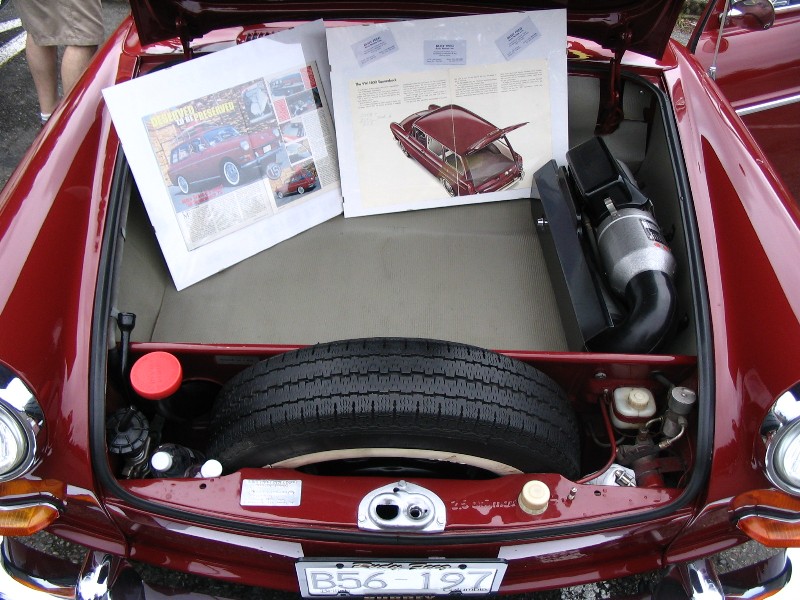

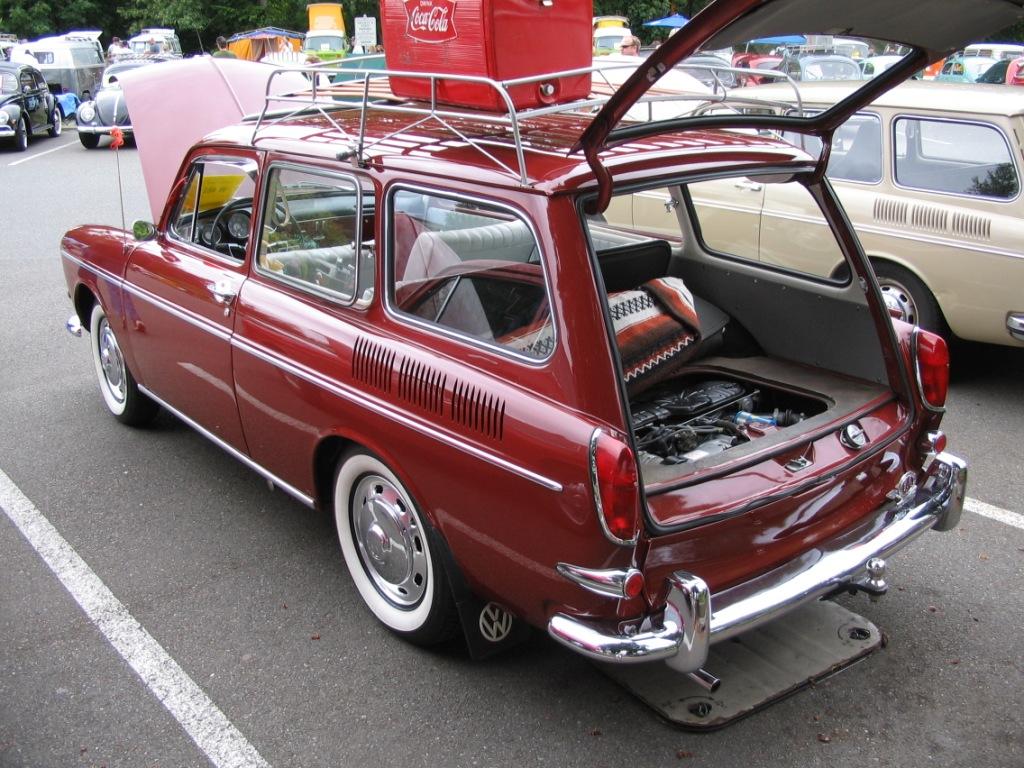

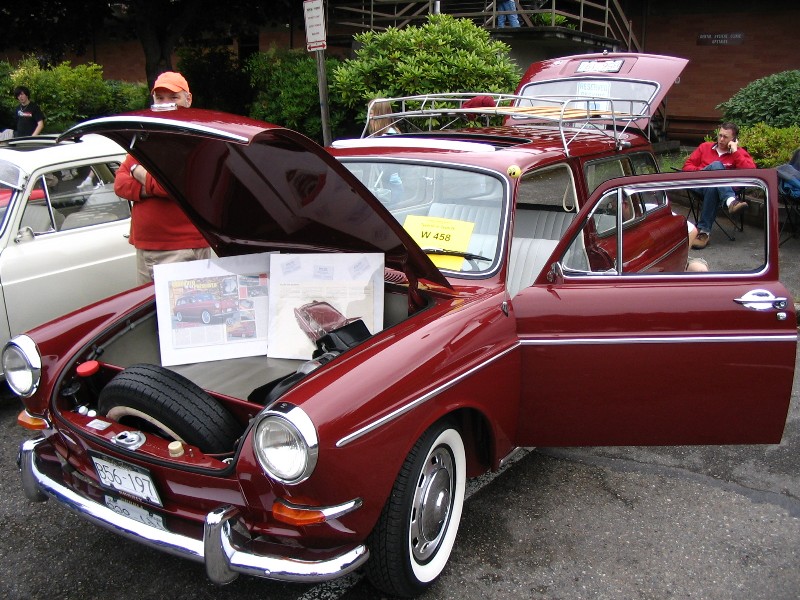

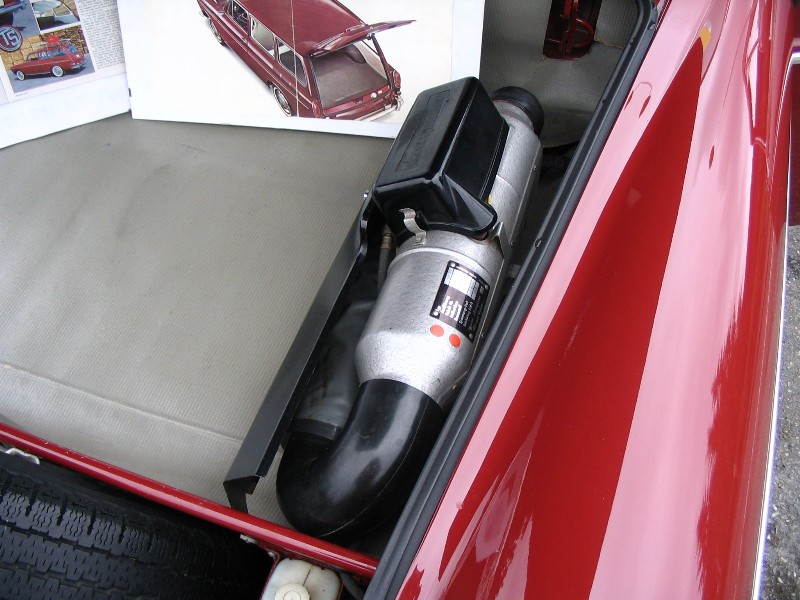

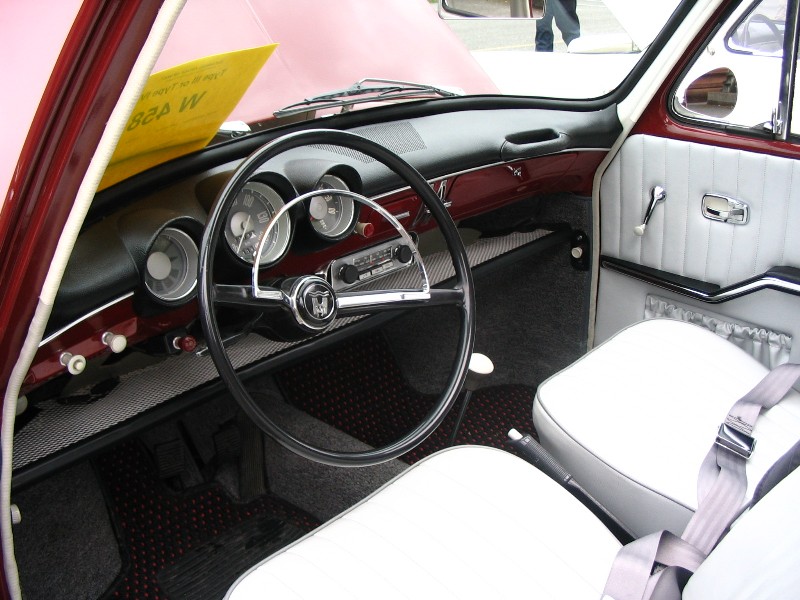

Here is the only other 66 I've seen in the wild with 3 bolt doors. It too was Canadian. Pics seen here at the Vintage Show at Shoreline Community College in the Seattle area.
_________________
| t3kg wrote: |
OK, this thread is over. You win. |
Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10431
Location: Pearl River, NY
|
| Posted: Fri Nov 01, 2024 7:31 pm Post subject: Re: Square back resurection |
|
|
| sunroof wrote: |
| Also also what colour are my wheels supposed to be? |
Semi-gloss BLACK. Reason is so that you did not see any wheel color through the brake cooling slots in the factory-included beauty rings. Those rings were utilized on the 4-bolt rims thru the '69 model year. From '70 they were discontinued and the rims factory-painted silver.
Here's a photo of one of the rims from a '66 S'back owner's manual-
And a press photo of a '66:
|
|
| Back to top |
|
|
Trevor P
Samba Member
Joined: January 21, 2004
Posts: 888
Location: Saskatoon, SK, Canada
|
| Posted: Fri Nov 01, 2024 7:43 pm Post subject: Re: Square back resurrection |
|
|
Don, if you need anything I'm currently parting out a 64 notch and have parted out several type 3's over the years including a 64 and 68 squareback. Im looking to clean up my type 3 parts hoard so if you want bring a truck and trailer to Saskatoon.
