 Posted: Fri Oct 11, 2024 4:29 pm Post subject: 69 Fastback |
 |
|
Does anyone know how many cables are on the 1969 fresh air controller?And, is the 69 fresh air systems different than other years?My 69 boxes only have on lever to open and close the vent on each box.The PO removed the controler and the cables so I'm starting from scratch with trying to get fresh air back in the car and it's my first Type 3.Thanks
_________________
69 Fastback |
|
| Back to top |
|
 |
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23576
Location: Kimball, Mi
|
| Posted: Sat Oct 12, 2024 1:56 pm Post subject: Re: 69 Fastback |
|
|
If I remember correctly there should 4 cables to the vent boxes and control unit. Two to each box, as one will control the upper outlet that feeds air to the base of the windshield, and the other cable goes to the lower flap to allow air to dump out near the bottom of the box (putting air to your crotch). I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
dc1962cars
Samba Member
Joined: April 16, 2010
Posts: 92
Location: Cincinnati Ohio
|
| Posted: Sat Oct 12, 2024 3:56 pm Post subject: Re: 68 Controller |
|
|
T

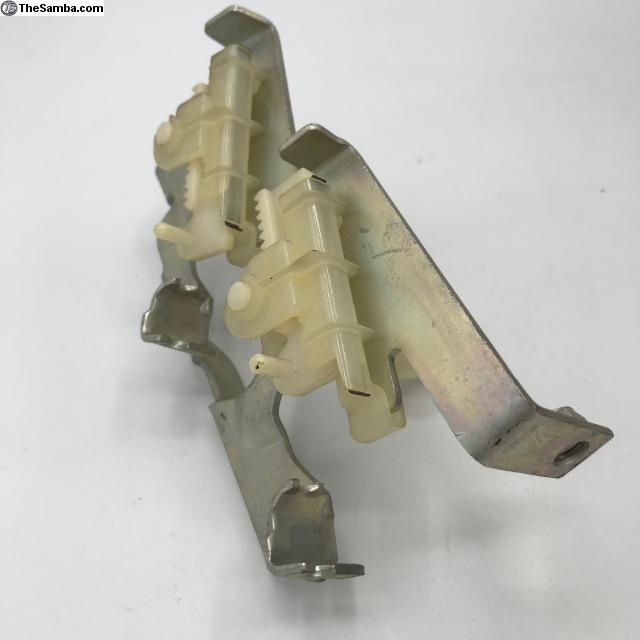

hat does help.On my 69 there is only one vent on the box or place to connect a single cable on each box.The're are controlers out there with only two cable for the two boxes,one cable to each box.I saw a controller for a 68 that only had a two cable hook up .Thanks for the help.
_________________
69 Fastback |
|
| Back to top |
|
|
Mike Fisher
Samba Member
Joined: January 30, 2006
Posts: 18052
Location: Eugene, OR
|
| Posted: Sun Oct 13, 2024 12:09 pm Post subject: Re: 69 Fastback |
|
|
You will get more fresh/cold air than you want at the windshield!
Worry about getting them to seal closed in the cold winter!
My 69 heater boxes overcome the leaky window vents thankfully.
_________________
69 FI/AT square Daily Driver
