 Posted: Thu Feb 10, 2022 3:21 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
 |
|
| Great work and great documenting Joe - really great photos 😊 |
|
| Back to top |
|
|
bally
Samba Member
Joined: April 29, 2006
Posts: 1196
Location: Melbourne, Australia
|
| Posted: Thu Feb 10, 2022 3:27 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Mr. Okrasa wrote: |
I'm "just about" done with Dave's '51 ORIGINAL Okrasa 1500cc engine build. Just waiting on Sebring exhaust and she's good to go! Enjoy photos!
|
Which distributor have you used there? Any modifications to it?
Cheers. Dave (not the lucky Dave who owns this engine though….) |
|
| Back to top |
|
|
Chickensoup
Samba Member
Joined: January 06, 2018
Posts: 5395
Location: Good Hope, GA
|
| Posted: Thu Feb 10, 2022 7:19 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
in that first picture, are those 356/912 heads? btw, your engines are gorgeous! very clean to the eye.
_________________
-'85 c10 5.3 LS, cam, heads, long tubes, x pipe, 3 inch spin tech's
-'01 e46 325ci *tree modded
-'05 B5.5 TDI Wagon 17in sport rims ;EGR + BSM + ASV Delete, Stage-2 Tune, straight pipe
'65 Tourist Delivery Build
'66 RIP |
|
| Back to top |
|
|
[email protected]
Samba Member
Joined: June 24, 2015
Posts: 874
Location: Rialto. CA
|
| Posted: Thu Feb 10, 2022 8:24 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Chickensoup wrote: |
| in that first picture, are those 356/912 heads? btw, your engines are gorgeous! very clean to the eye. |
Those are porsche 356 preA heads " 1948-1955 356 preA heads " those heads have the same vw 36hp head stud pattern ..so they will bolt right up to the 36hp case ...the later 1955-65 porsche 356/912 heads have a wider head studs pattern and because of that those later 1955-1965 heads won't fit only preA 356 heads will work with the 36hp case . the only way to make the later 356 heads fit with the 36hp case is if you relocate the 36hp head stud pattern on the case .. to the later 356/912 head stud pattern ...it wouldn't be that hard to do if you can make a magnesium plug to plug up the 36hp head stud holes and than weld the outside of the plug and inside the case basically sandwiching the threaded plug than redrill the case to the later 356/912 head pattern and bore the case for the bigger stock 82.5/83mm cylinders can go even up to 90.5 mm pistons with the later 356/912 pattern/heads ....I've heard a guy used jb weld to plug up his 36hp case and drilled the 356/ 912 pattern much faster to do it that way ...than a plug and welding the magnesium case ..but I think the welding/plug way is much better / stronger than jb weld but to all reach its own ... |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Thu Feb 10, 2022 9:08 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Chickensoup wrote: |
| in that first picture, are those 356/912 heads? btw, your engines are gorgeous! very clean to the eye. |
In the photo with 2 engines, the engine in the foreground is a Pre A Porsche 1500cc 2pc. engine. Thanks for the compliments....
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Thu Feb 10, 2022 9:14 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| bally wrote: |
| Which distributor have you used there? Any modifications to it? Cheers. Dave (not the lucky Dave who owns this engine though….) |
Distributor is the standard BOSCH 383 mech. advance. No modifications done. Muchas Garcias!
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
| Back to top |
|
|
bally
Samba Member
Joined: April 29, 2006
Posts: 1196
Location: Melbourne, Australia
|
| Posted: Thu Feb 10, 2022 9:31 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Mr. Okrasa wrote: |
| bally wrote: |
| Which distributor have you used there? Any modifications to it? Cheers. Dave (not the lucky Dave who owns this engine though….) |
Distributor is the standard BOSCH 383 mech. advance. No modifications done. Muchas Garcias! |
Thanks Joe. That’s good to know 😊😊😊 |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Wed Jan 18, 2023 11:57 pm Post subject: Re: 1500cc / OG Okrasa 36hp Eng. Build / You Tube Video |
|
|
Posting You Tube video for all to see my finished product. Owner is happy to say the least. Enjoy
Click on [ ] on bottom corner to see video at full size.
Link
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com
Last edited by Mr. Okrasa on Wed Feb 15, 2023 9:59 pm; edited 1 time in total |
|
| Back to top |
|
|
bally
Samba Member
Joined: April 29, 2006
Posts: 1196
Location: Melbourne, Australia
|
| Posted: Thu Jan 19, 2023 2:37 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Very nice indeed - love it! |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Wed Feb 01, 2023 11:11 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Chickensoup wrote: |
| in that first picture, are those 356/912 heads? btw, your engines are gorgeous! very clean to the eye. |
In the very first photo, the engine in the foreground is a Pre-A 356 engine and it does have 356 heads.
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
| Back to top |
|
|
stepsidebowtie
Samba Member
Joined: February 18, 2014
Posts: 28
Location: Oahu, Hawaii
|
| Posted: Sun May 26, 2024 5:29 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Before putting on the heads do you replace the copper seal gasket like they have on a stock head or is it just cylinder to head, no copper gasket seal? |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Sun May 26, 2024 5:55 pm Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| stepsidebowtie wrote: |
| Before putting on the heads do you replace the copper seal gasket like they have on a stock head or is it just cylinder to head, no copper gasket seal? |
No. I don't put any type of copper seal gasket on my engines. Either stock or built.
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
| Back to top |
|
|
1958ghia
Samba Member
Joined: August 21, 2001
Posts: 258
|
| Posted: Tue May 28, 2024 7:46 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
Joe - these engines look amazing, like normal!  Quick question - what do you usually use to block off the heat riser openings in the rear tin? I see some pics after the engine is all done with openings there, and would've thought they'd be welded closed prior to painting/powdercoating. Just curious what you've done in the past in this area, thanks again for posting these works of art! |
|
| Back to top |
|
|
Robert Chambers
Samba Member
Joined: August 11, 2005
Posts: 225
|
| Posted: Thu May 30, 2024 8:16 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
This is absolutely a work of art! The attention to detail and precise assembly is so obvious. Joe definitely sets the high standard for me to hopefully achieve on my Zwitter!
_________________
'63 OG 117 Herbie Replica
'56 Euro Oval Deluxe
'52 Standard Zwitter
'63 OG 117 |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Thu May 30, 2024 9:31 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| 1958ghia wrote: |
| Joe - these engines look amazing, like normal! Quick question - what do you usually use to block off the heat riser openings in the rear tin? I see some pics after the engine is all done with openings there, and would've thought they'd be welded closed prior to painting/powder coating. Thanks again for posting these works of art! |
I think you have me confused with another engine builder. I've never left this area open or even worse, welded it up shut. If this area is left open, heat from hot exhaust would come through and possibly overheat the engine. If this area is patch welded shut, it would not let hot air / heat come up BUT......now it does NOT look original! I'm about building these early engines AS ORIGINAL as possible. In all my 45+ years of building the 25hp/36hp engines, I've never patch welded these areas shut but rather fabricated brackets that would hold the heat riser block off plates in place to duplicate the "look" when there were no provisions for mounting them on aftermarket exhaust systems.

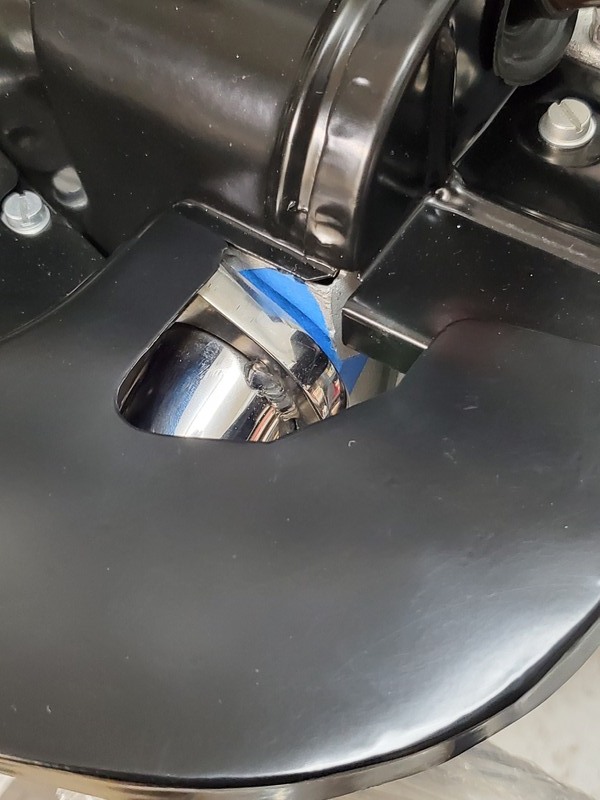

In this photo below, you can see this aftermarket exhaust system has NO provisions for mounting any type
of heat riser block off plates. Leaving this area open allows hot exhaust heat rise into the engine compartment...

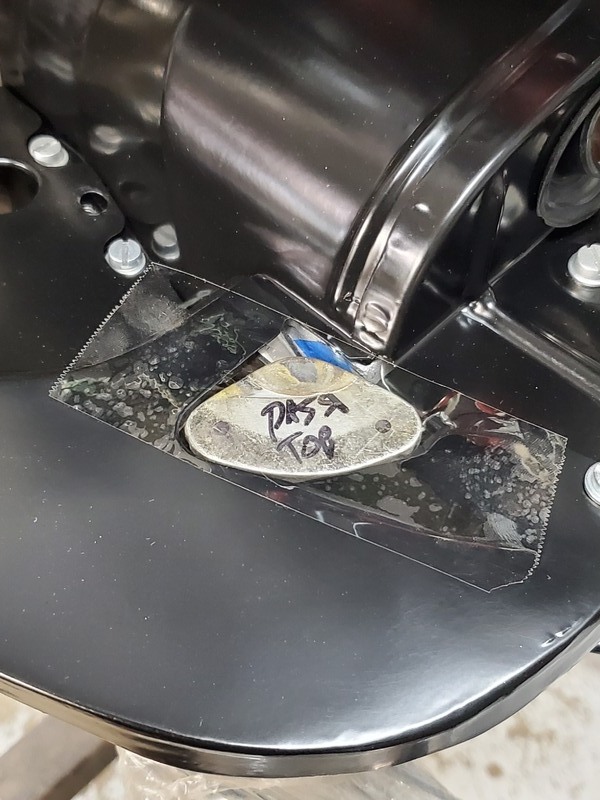

BELOW: I make a "foot print" out of 1/4" steel and position it exactly where I want the heat riser block off plate to be installed noting
NOT to make contact on any sides of the rear breast plate and possibly burning the powder coated tin. I weld it to the bracket
and attach it to the top exhaust stud.

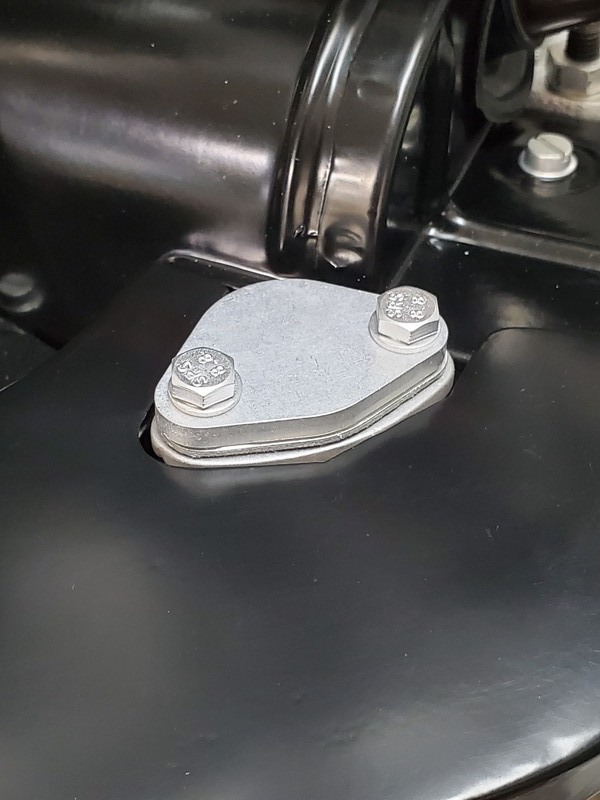

BELOW: Here you see the beat riser block off plate as installed with gasket. This makes for a clean installation and
still keeping the "original" look of an engine as if it were to be built back in the day........Cheers!
_________________
See my Instagram: https://www.instagram.com/okrasa/
1959 VW Karmann Ghia Coupe / Bamboo-Green / Denzel 1300cc / OG. owner, paint
Denzel engine running. See this link: https://youtu.be/DgUlsQDTXTE
VW www.Okrasa.com |
|
| Back to top |
|
|
1958ghia
Samba Member
Joined: August 21, 2001
Posts: 258
|
| Posted: Thu Jun 06, 2024 7:35 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
Thanks Joe! I didn't see that in the latest pics with the exhaust on, and that looks really nice! I noticed the exhaust system didn't have the risers so I was curious how you were going to fill those holes, and I know for CERTAIN that you weren't going to let that detail get overlooked.
I noticed the nicely-coated tinwork and still the holes, and the major no-no of leaving holes open and letting hot exhaust into the engine compartment, so that little addition looks like the ticket, thanks! |
|
| Back to top |
|
|
Pydesign
Samba Member
Joined: August 24, 2018
Posts: 28
|
| Posted: Sun Jul 21, 2024 2:20 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
Hi Mr.Okrasa,
What is the purpose of the sheet metal fixed between the two air evacuation sheets under the pulley? To limit the heating of the engine block by the exhaust?
Is it homemade or can be find somewhere? Thanks |
|
| Back to top |
|
|
Mr. Okrasa
Original Old Speed
Joined: May 20, 2000
Posts: 745
Location: Eastside, Costa Mesa. So. Califas...Loco's ;-)
|
| Posted: Sun Jul 21, 2024 8:36 am Post subject: Re: 1500cc / Original Okrasa 36hp Eng. Build for '51 Split Beetle |
|
|
| Pydesign wrote: |
Hi Mr.Okrasa,
What is the purpose of the sheet metal fixed between the two air evacuation sheets under the pulley? To limit the heating of the engine block by the exhaust?
Is it homemade or can be find somewhere? Thanks |
This is a "heat shield" that the VW factory used to keep heat from the muffler away from the oil pump. They are used ONLY on early 25hp
engines that have the "tabs" on the heater boxes where they attach. They are available from a vendor here on this site: VIRTANEN.
Cheers.
