1959 Double Door Panel - Budget Refresh
Page: 1, 2  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 178
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Fri Dec 04, 2020 7:52 am    Post subject: 1959 Double Door Panel - Budget Refresh Reply with quote

I purchased this early 1959 Double Door Panel from my brother in So. California in Jun 2020.

"Hans" Bus

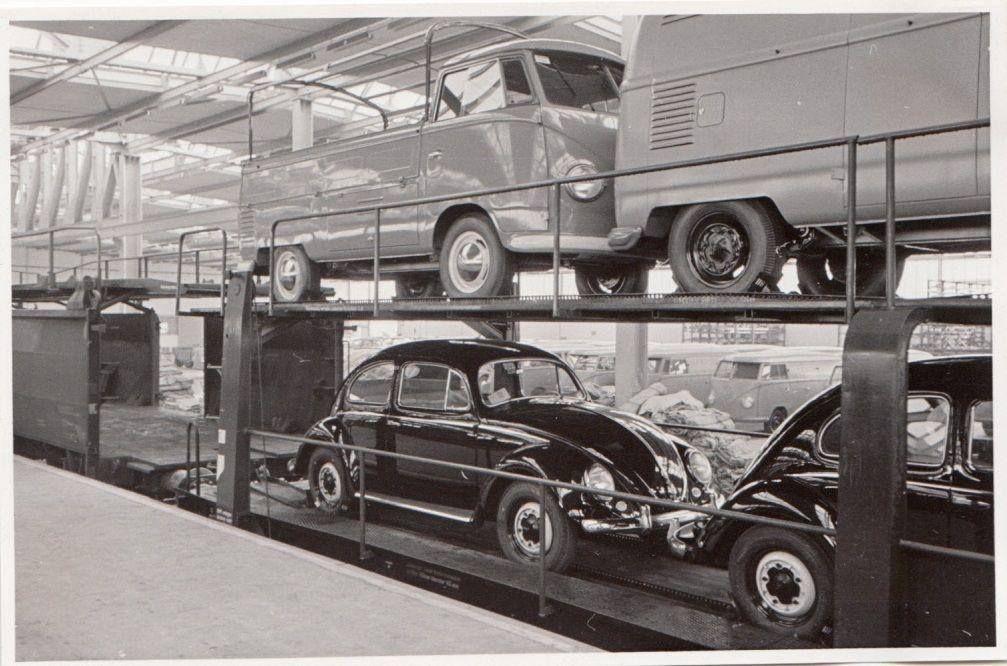

History: Bus was built on 11-28-58 and delivered to Los Angles on 12-3-58. Factory paint was Dove Blue with US spec bumpers & double door option. It's remaining history is unknown. I found an old mechanics shop sticker in the engine bay from Covina, CA. 1600cc Engine case had a '86 stamp in it from a place in Ohio. It spent some time in Florida as a shop truck for a VW repair guy. My brother bought it from him and shipped it to California, where it sat for a few months. After convincing him he had too many buses, and I had some parts he needed Laughing , we trucked it out to my place in Charlotte, North Carolina.

Condition when purchased.....

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Originally I had hoped there was original Dove Blue under the faded grey paint. It was showing through in a few places. Unfortunately after removing some of the paint it was apparent a lot of it had been sanded down. Since this was meant to be a refresh on a budget, I had to make the best of it and roll with the grey. Some basic polishing and surface rust removal will make it look better. The body has some rust in the usual areas....Lower front nose, front floor areas next to door jambs, cargo door thresholds, but that's about it. The rest is really solid. I'm thinking it spent most of it's life in California. I found a bunch of sand in the front lower aprons (desert or beach, who knows?).

The bus starts right up and idles great. I drove it around the block, but it was tough. Clutch and brakes felt horribly stiff. I would later find out why, surprised I made it around the block, lol. No brake fluid and clutch cable was installed incorrectly.

Goal: Budget refresh, not a full blown restoration, but still done right. Clean it up, make it mechanically sound (engine, trans, brakes, electrical), add new seals, hardware, etc. so it would function as it was intended. Get it back on the road and use it. Bring it back to a stock setup with close to correct parts. Some creative license is allowed for mechanical improvements. Body rust repair will take place over time, no rush. KlassicFab metal has already been sourced. A paint job is a long way out and I'm not worried about it. The grey is growing on me. I won't lie, the grey paint is crappy and poorly done, but it shows character.

I'm already 6 months in on this bus and I've done some work. Here is what I’ve accomplished so far....

Interior: It was bad. Seat cover was history, only one door panel remained and the wiring was pretty bad. No door or side window seals. Fresh air vent was missing all the internal parts. All interior metal was painted in black and grey spray paint, with some areas of the dash covered in glitter (?!?! Rolling Eyes ). I was able to strip all of this paint of with Goof Off Graffiti Remover. The stuff works fast and did not damage the original Dove Blue paint that remained. Steering wheel was history too. New steering wheel by Flat-4 was purchased along with a new seat cover from Deutsch Polster. New knobs, switches and wiring was purchased. All pedals, hand brake, shifter and misc parts were powder coated or painted. New correct hardware replaced broken, incorrect or rusty pieces. Internal door lock hardware was either replaced if broken or cleaned up. Door glass was dissassembled, cleaned up, new seals purchased, powder coated and reassembled with new latches, hardware & rivets. Previous owner had purchased a new set of panels from Clara and never installed them. They survived, still wrapped up in her packaging. I have not completed installing them, waiting to do doors and kick panels last, after electrical is sorted. Here is a few pictures of the before and after....


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

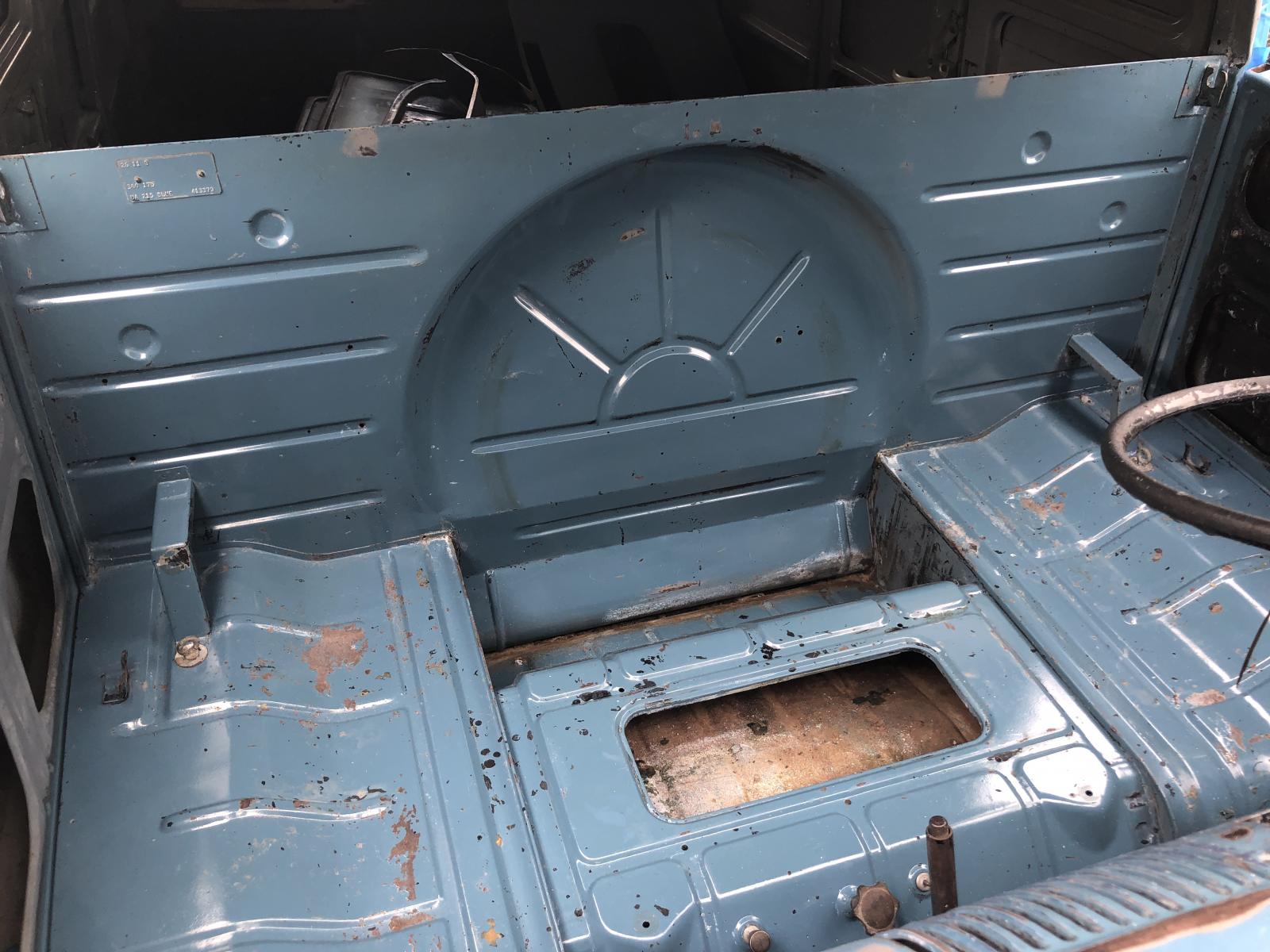

Stripping paint....
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

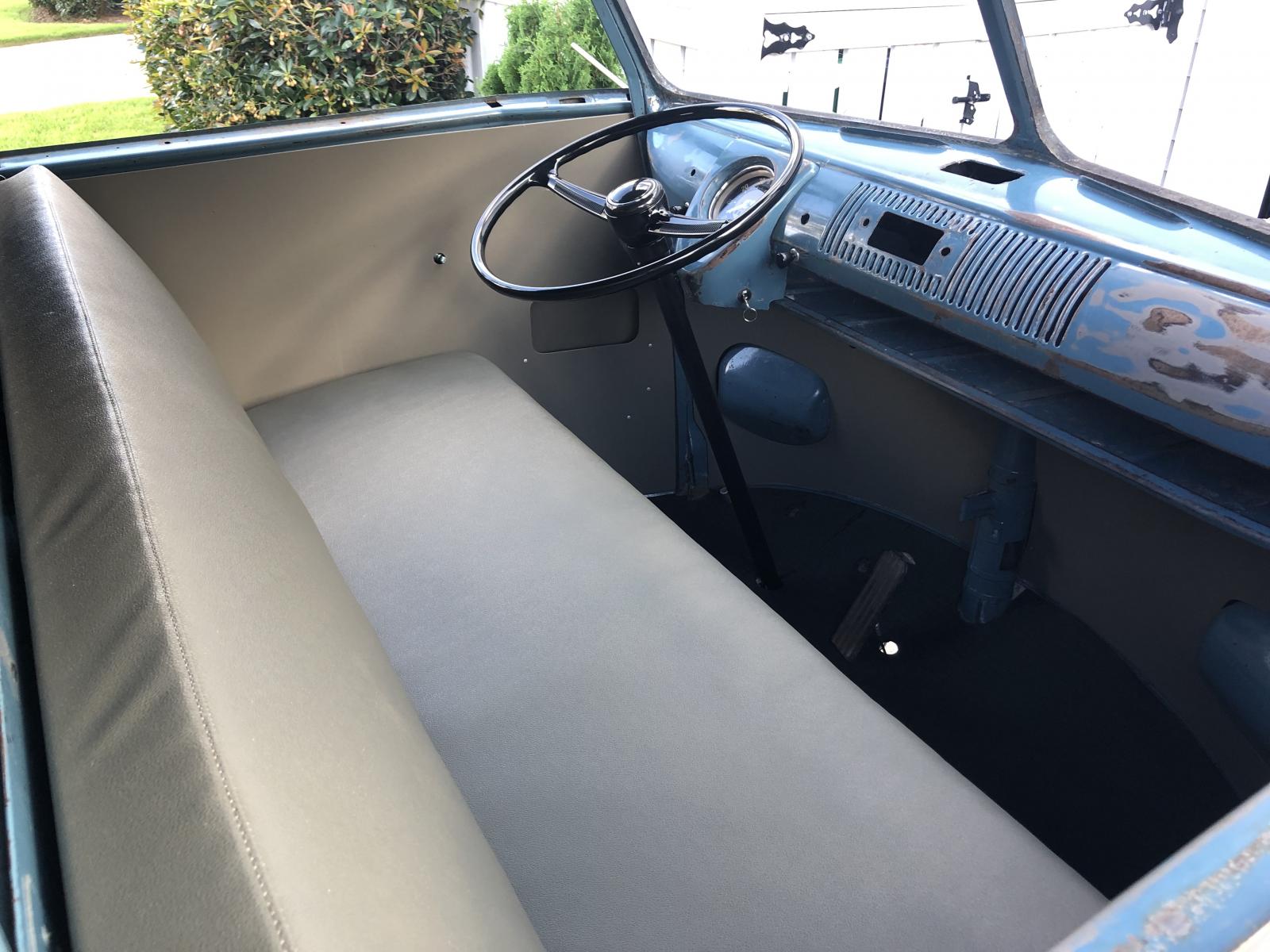

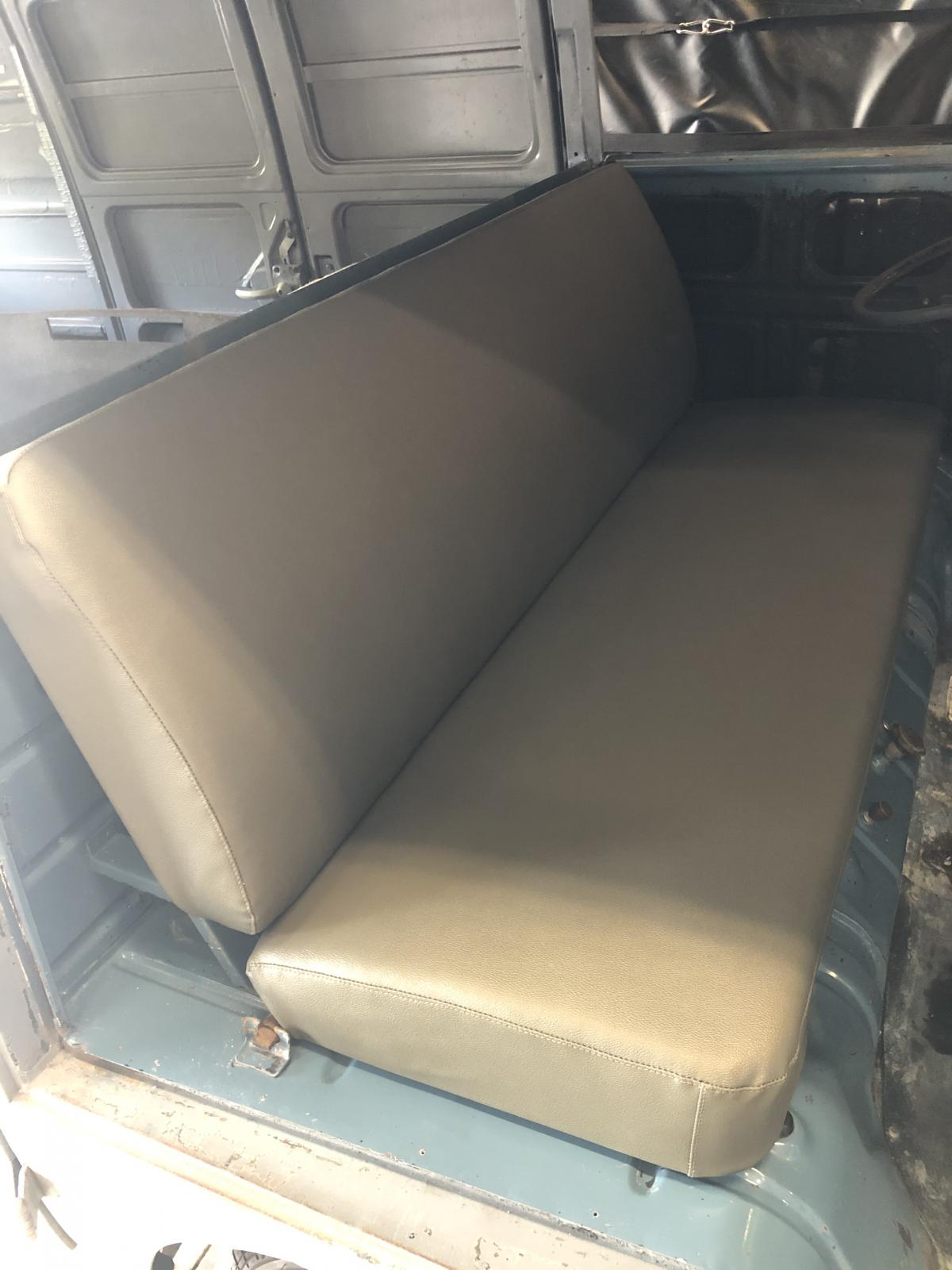

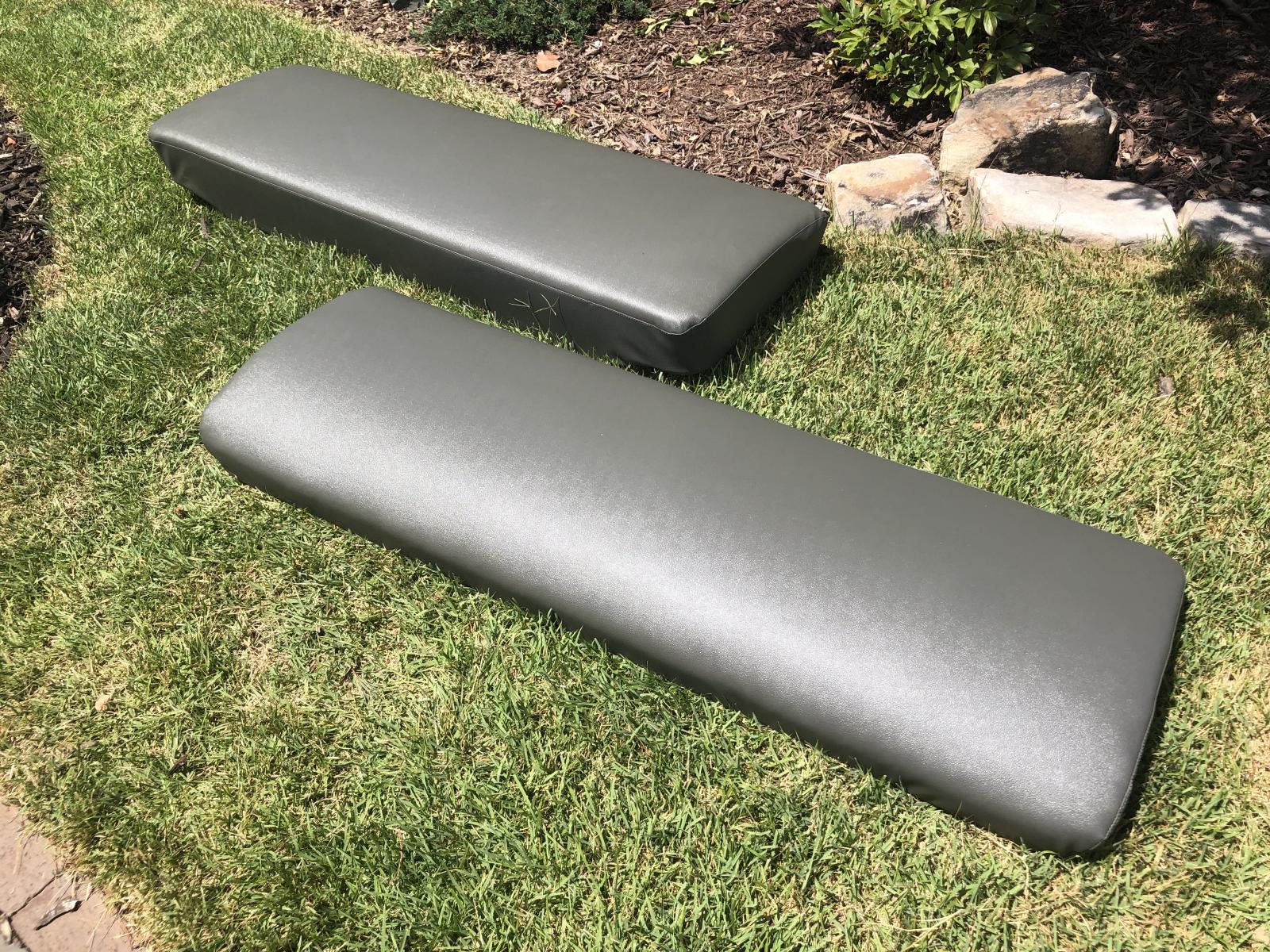

New seat covers.....
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Rebuilt speedo with matched mileage...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Test fitting Clara's panels....
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I was able to find all the necessary pieces for the fresh air vent to work properly. Cleaned them up and installed with new seals and hardware, works great.

Wiring is mostly completed with new harness from WW. Headlights, turn signals and taillights were either replaced, cleaned up or repaired. They all work properly now and look the part. New seals installed as well.

Wheels: Bus had incorrect 14" wheels. I was able to source some '58 stamped 15" "crows foot" wheels. I had them sandblasted and powder coated black. New 6.70 x 15 Power King Super Highway II's were mounted. Chrome hubcaps with black painted logos came off my '58 Beetle and look sharp with the black wheel. New tires look good on the bus, imo.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Engine: Runs good, but looks like crap and has some fuel leaks. I decided to give it a makeover and replace misc parts with close to factory pieces. Not a correct '58 engine, so I decided to make it a correct looking bus engine for it's displacement. Should look the part and be a reliable runner.

Proper air filter with brackets were sourced, along with a doghouse fan shroud. Rebuilt Solex carb is from Tim at Volkzbitz, Rebuilt Bosch Distributor & fuel pump are from William Fowler at Sparkwerks and rebuilt coil is from Eric at Lane Russell. Powder coat and plating was done by MonkeyNut VW. Big transformation from what it was. Still waiting on cleaned up heater boxes and resurfaced flywheel. New WW fuel tank was installed. Some before and after shots....

Before....
Image may have been reduced in size. Click image to view fullscreen.

After....
Image may have been reduced in size. Click image to view fullscreen.


Transmission: Removed and undergoing a rebuild. Later Big Nut trans with 3.88 gearing. Clutch will be new German parts. RGB's are apart and being inspected. They will be rebuilt as necessary. One RGB case has stripped spring plate threads. Trying to find a replacement.

Chassis/Suspension: Rear spring plates were removed. cleaned and powder coated with covers. New bushings and hardware installed. New trans mounts front & rear ready to go. All new cables (clutch, accelerator, heater) installed. All shift linkage (front to rear) replaced because of previous hack job. New seals, bushings and couplers too. All front pedals removed and assembles rebuilt, repaired or cleaned up. Hand brake was missing all hardware below floor. Was able to find all the parts necessary to get it back in working order. New shocks front and rear with stock WW units. New tie rods & drag link installed up front. Later factory sway bar installed for improved handling. A restored Empi camber compensator is ready to be mounting in the rear.

Brakes: Upgraded to a dual master cylinder. New hard & soft lines and wheel cylinders will be installed once trans goes back in. Backing plates and misc hardware will be replaced or powder coated. Hoping to resurface existing drums for re-use, we will see.

Body: Fixed glass is installed with new seals. All doors have new seals. New WW bumpers were powder coated black to match wheels. A complete door hardware package (matched key) was installed with new seals. I've started some polishing but haven't hit this hard yet.

This is where we sit now....

Image may have been reduced in size. Click image to view fullscreen.


There are some small things I can do, but until the transmission comes back, I'm in a holding pattern.

Future to do list: Safari windows are a must have. Waiting until a new design is finished and available for sale. Full-length roof rack, and a few other things I have in mind to make "Hans" unique.

More updates to come as I proceed. VW Logo
_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927


Last edited by Big_E_Deluxe on Thu Jan 14, 2021 11:30 am; edited 13 times in total
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
pyrOman
Fire Master


Joined: July 21, 2003
Posts: 12056
Location: Over 2002 posts deleted!
pyrOman is offline

PostPosted: Fri Dec 04, 2020 7:54 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Clean and straight looking bus! Cool
_________________
Some people are so busy being clever they don't have time enough to be wise.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AC
Samba Member


Joined: August 14, 2005
Posts: 61

AC is offline

PostPosted: Fri Dec 04, 2020 8:03 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Very nice , love the Double Doors. Albert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Okie Adam
Samba Member


Joined: November 07, 2003
Posts: 1178
Location: OOOOOOOOOOOOOOOOOklahoma
Okie Adam is offline

PostPosted: Fri Dec 04, 2020 8:22 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Great bus! I love seeing a proper cab divider in place too.
_________________
Oil Capital Air Cooled
55 Wolfsburg Kombi
60 Walkthrough Kombi
62 Single Cab
66 21window
67 so42
76 Westy
64 Karmann Ghia
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
DanM
Samba Member


Joined: June 07, 2002
Posts: 1251
Location: Washington, DC
DanM is offline

PostPosted: Fri Dec 04, 2020 8:25 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Great transformation! I've never been much of a fan of back-dating cars, but that thing is begging for black ribbed bumpers and front and rear Hursts.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 178
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Fri Dec 04, 2020 8:33 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

DanM wrote:
Great transformation! I've never been much of a fan of back-dating cars, but that thing is begging for black ribbed bumpers and front and rear Hursts.


I thought about it, but decided to stay with what it had. I think you're right though, would look cool! This bus definitely has some good before and after shots.
_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
vwuberalles
Samba Member


Joined: October 18, 2003
Posts: 1005
Location: Richmond, VA
vwuberalles is offline

PostPosted: Fri Dec 04, 2020 10:19 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Looks great, nice work so far! I dig the gray, it works on this bus.
_________________
1973 Superbeetle: 1st car, owned since age 12.
1967 Kombi: Owned since age 17, Dad's retirement project.
1966 Beetle: My new project. Build thread--> https://www.thesamba.com/vw/forum/viewtopic.php?t=678040
Back to top
View user's profile Send private message Gallery Classifieds Feedback
doveblue3
Samba Member


Joined: March 28, 2003
Posts: 1802
Location: Florida
doveblue3 is offline

PostPosted: Fri Dec 04, 2020 10:30 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Big_E_Deluxe wrote:
Removed and undergoing a rebuild. Later Big Nut trans with 3.88 gearing.


Not being an internet dick - you may want to double check that gearing relative to engine and tire size. It seems really tall. Would hate for you to finish and not have it be able to maintain speed in 4th gear.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 22703
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Fri Dec 04, 2020 10:34 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Get the longer Time-Sert threaded solid inserts for for the RGB stripped swing plate threads. Drill both RGBs deeper and use longer bolts than stock. Any replacement used RGB you find will almost certainly have all the same rust and wear of those threads so that they will fail all too soon anyway.

https://www.thesamba.com/vw/forum/viewtopic.php?t=392194&highlight=timesert+rgb
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 178
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Fri Dec 04, 2020 10:34 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

doveblue3 wrote:
Big_E_Deluxe wrote:
Removed and undergoing a rebuild. Later Big Nut trans with 3.88 gearing.


Not being an internet dick - you may want to double check that gearing relative to engine and tire size. It seems really tall. Would hate for you to finish and not have it be able to maintain speed in 4th gear.


Fair point. I did not make the decision to run this, others that know far more than I do made the call. They feel it's the best choice. If it's not right, we'll make a change.
_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 178
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Fri Dec 04, 2020 10:36 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Eric&Barb wrote:
Get the longer Time-Sert threaded solid inserts for for the RGB stripped swing plate threads. Drill both RGBs deeper and use longer bolts than stock. Any replacement used RGB you find will almost certainly have all the same rust and wear of those threads so that they will fail all too soon anyway.

https://www.thesamba.com/vw/forum/viewtopic.php?t=392194&highlight=timesert+rgb


Thank you, I've read this thread. This certainly is an option we have discussed. Not ruling it out.
_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
von_hansel
Samba Member


Joined: June 12, 2006
Posts: 260
Location: Inland Empire
von_hansel is offline

PostPosted: Fri Dec 04, 2020 11:26 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Big_E_Deluxe wrote:
I I found an old mechanics shop sticker in the engine bay from San Bernardino, CA.


Loving the look and the stripping of the paint of the dash to OG dove blue.

Curious- what does the San Bernardino mechanic sticker look like? I live next door to Berdoo
_________________
IG: coleman_lifestyle
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
Big_E_Deluxe
Samba Member


Joined: September 23, 2013
Posts: 178
Location: Charlotte, NC
Big_E_Deluxe is offline

PostPosted: Fri Dec 04, 2020 11:58 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

von_hansel wrote:
Big_E_Deluxe wrote:
I I found an old mechanics shop sticker in the engine bay from San Bernardino, CA.


Loving the look and the stripping of the paint of the dash to OG dove blue.

Curious- what does the San Bernardino mechanic sticker look like? I live next door to Berdoo

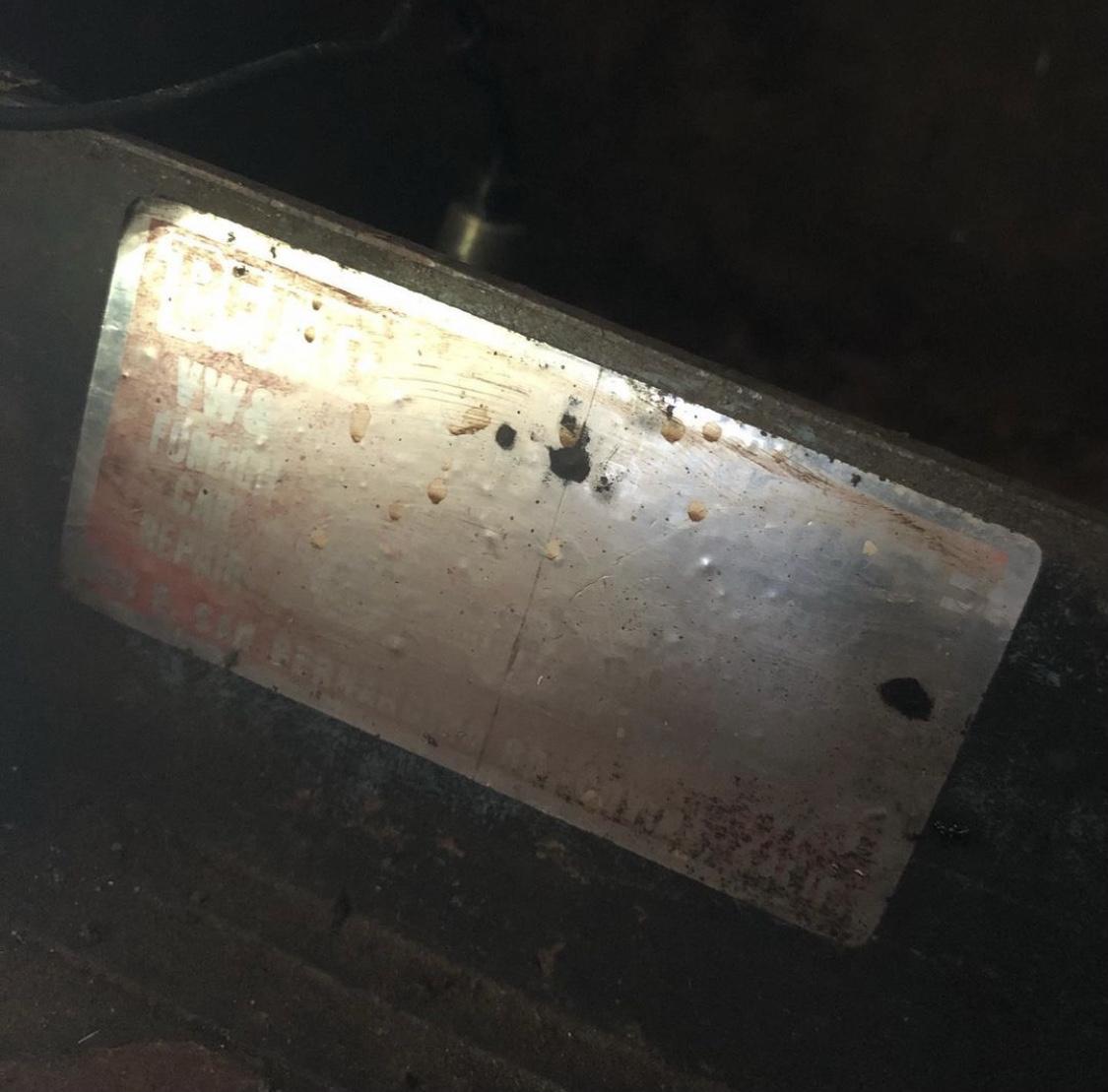

Thank you! Sticker had a chrome background with red graphics. It was mostly gone. Sorry had it wrong...Covina, CA

Only thing I could make out....

Beetle Clubhouse
348 E. San Bernardino Rd.
Covina, CA
Image may have been reduced in size. Click image to view fullscreen.

_________________
Erik

1958 VW Beetle - "Max": https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight=
1959 VW Bus - "Hans" - Double Door Panel: https://www.thesamba.com/vw/forum/viewtopic.php?t=746927
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
German Krew
Samba Member


Joined: March 03, 2005
Posts: 508
Location: Texas
German Krew is offline

PostPosted: Fri Dec 04, 2020 2:37 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Big_E_Deluxe wrote:


Image may have been reduced in size. Click image to view fullscreen.


The bus looks sick! Congrats.
_________________
1951 Split Standard Hoffman Build

1960 Dove Blue Double Cab Patina Build

german krew
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Big Bill
Samba Member


Joined: June 21, 2005
Posts: 1411
Location: Santa Rosa, Ca
Big Bill is offline

PostPosted: Sat Dec 05, 2020 4:52 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Great looking bus, and the engine looks 100 times better.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Blue Baron
Samba Member


Joined: June 16, 2006
Posts: 14295
Location: Southeast USA
Blue Baron is offline

PostPosted: Sun Dec 06, 2020 7:59 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

It reminds me of the buses that came through from the factory in primer only. (See upper right of photo and row in background.)

Image may have been reduced in size. Click image to view fullscreen.

_________________
nshaddox wrote:
Pictures to follow because no one reads words anyways.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
1970PAKombi
Samba Member


Joined: July 10, 2019
Posts: 100
Location: PA
1970PAKombi is offline

PostPosted: Mon Dec 07, 2020 2:13 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

You have a great brother and what a nice job doing it. It looks very beautiful!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcfvw69 Premium Member
Samba Purist


Joined: June 10, 2004
Posts: 13022
Location: Arizona
wcfvw69 is offline

PostPosted: Mon Dec 07, 2020 4:08 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


Holy smokes! Shocked Your engine looks so original and beautiful! Nice job!!
_________________
[email protected]
Decades of VW and VW parts restoration experience.
The Samba member since 2004.


**Restored German Bosch distributors for sale or I can restore yours**

**Restored German Pierburg fuel pumps for sale or I can restore yours**



1970 Westfalia Bus
1969 Convertible Bug
1967 Standard Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Eric&Barb
Samba Member


Joined: September 19, 2004
Posts: 22703
Location: Olympia Wash Rinse & Repeat
Eric&Barb is offline

PostPosted: Mon Dec 07, 2020 5:18 pm    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Might as well install a Maxi 2 oil filter pump to keep crud in the oil from chewing up the bearings and crankshaft bearing surfaces. Has made a huge difference for us.
_________________
In Stereo, Where Available!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
LaneRussellVW
Samba Member


Joined: March 30, 2007
Posts: 799
Location: Atlanta, GA
LaneRussellVW is offline

PostPosted: Tue Dec 08, 2020 7:49 am    Post subject: Re: 1959 Double Door Panel - Budget Refresh Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


It looks really amazing!

Laughing Laughing
_________________
Eric Shoemaker  |  Owner
Lane Russell LLC • Restoration of German Vintage VW Engine Components

[email protected]  |  www.lanerussell.com

Follow our restoration work on Instagram
www.instagram.com/lanerussellvw

Our vintage VW story — featured by Volkswagen of America, Inc
http://newsroom.vw.com/vehicles/tbt-volkswagens-tie-grandkids-to-their-family-legacies
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
