Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
 Posted: Sun Jan 26, 2025 9:28 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
 |
|

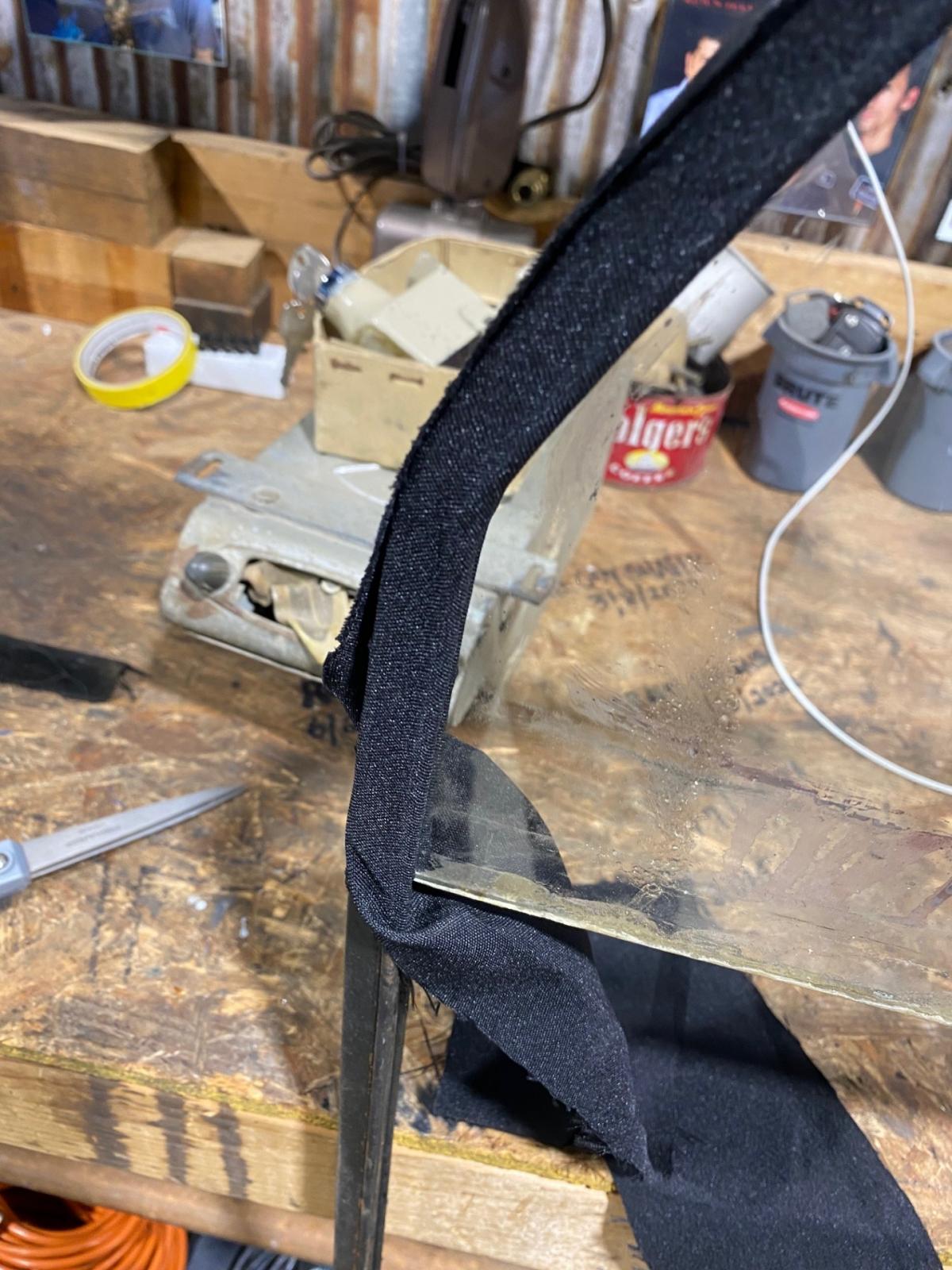

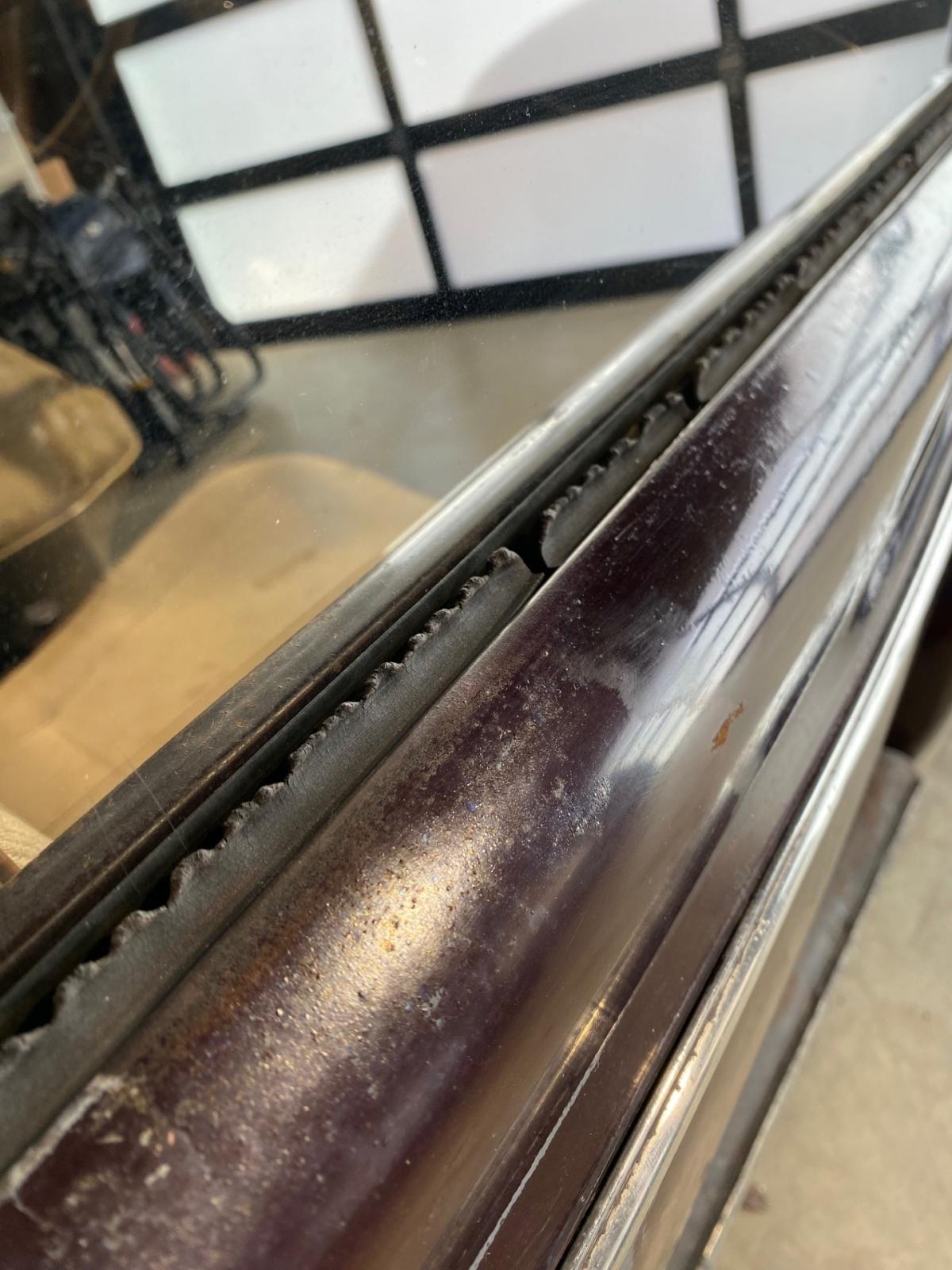

Parts have started to arrive, and I've been ready to get going on this, so here are a couple of things that were bothering me. Both window scrapers with all their patina and charm had to go, and the passenger side door u-rails had an amazing patina material, but it was too far gone, so we used fiber duck cloth, which works very well, especially against the different weather. I feel like using the OG glass as a template to help the fabric shape to the u-rail while glue drys is best. John's harness just arrived so I will be knocking that out asap.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
 |
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Mon Jan 27, 2025 6:41 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
Nice job on those channels. I like even patina too, but shit's gotta WORK right also.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
|
| Back to top |
|
|
johnshenry
Samba Member
Joined: September 21, 2001
Posts: 9407
Location: Northwood, NH USA
|
| Posted: Mon Jan 27, 2025 7:43 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
I think I can see a 12 on the speedo pod ground fork. 12.49? Would match the speedo. VERY cool.

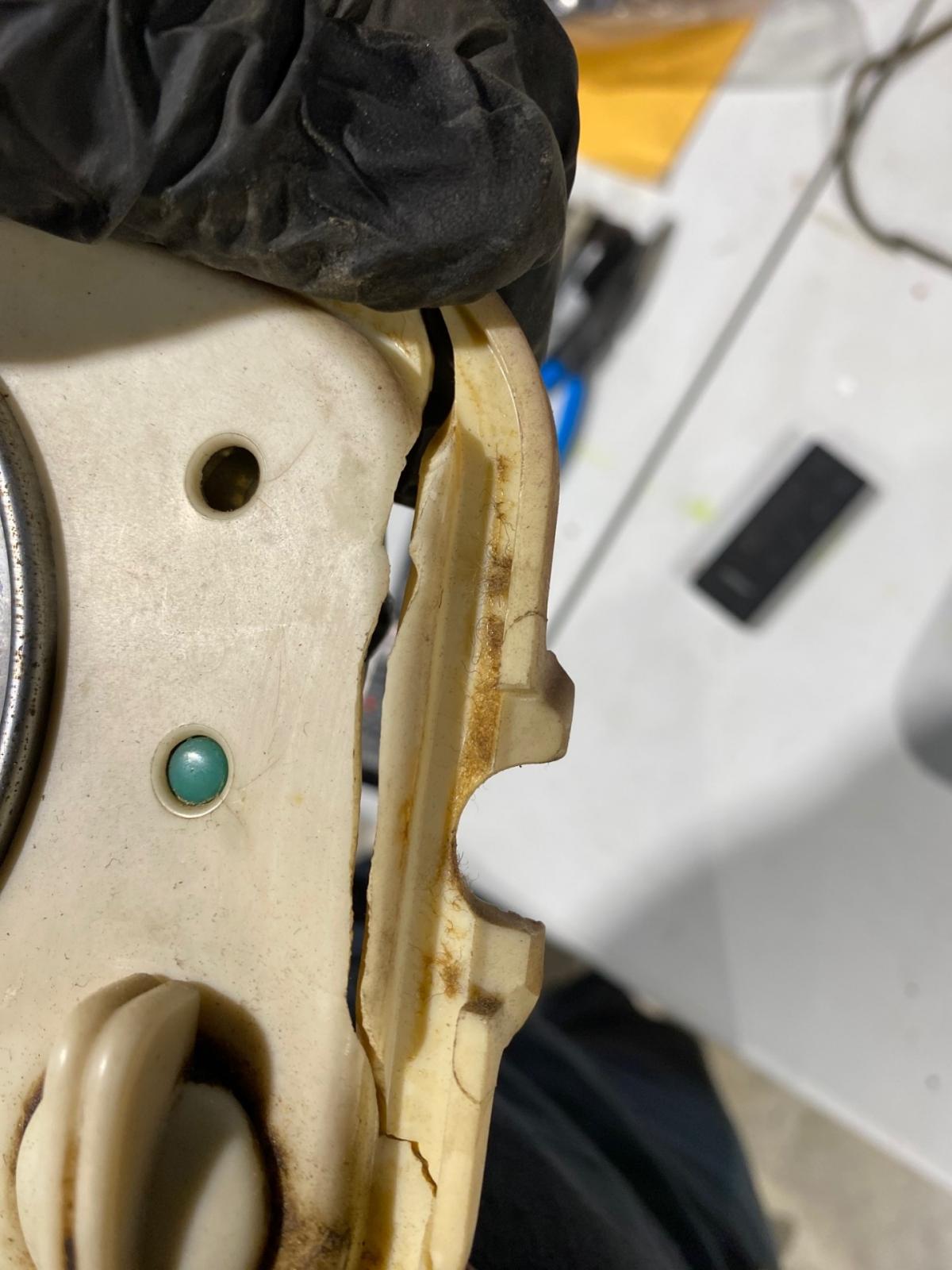

That crack in the pod is typical Unfortunately. It can be addressed by Dremeling the crack deeper on the backside and JB welding. Do not try and use a powder solvent (white) product like Plasti-Pair. I used it once on an ivory bakelite pod like yours. It worked for a while but after a few months it literally just fell apart on its own.
And regardless, those pod "mounting ear" breaks will always be at risk of re-cracking, it is a stress area.
_________________
John Henry
'57 Deluxe
'56 Single Cab |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Wed Jan 29, 2025 10:03 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| johnshenry wrote: |
I think I can see a 12 on the speedo pod ground fork. 12.49? Would match the speedo. VERY cool.
That crack in the pod is typical Unfortunately. It can be addressed by Dremeling the crack deeper on the backside and JB welding. Do not try and use a powder solvent (white) product like Plasti-Pair. I used it once on an ivory bakelite pod like yours. It worked for a while but after a few months it literally just fell apart on its own.
And regardless, those pod "mounting ear" breaks will always be at risk of re-cracking, it is a stress area. |
Yes John for sure I thought the same. Started clearing the canvas and getting parts ready for electrical.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
SplitPersonality
Samba Member
Joined: September 26, 2004
Posts: 631
Location: Norway
|
| Posted: Thu Jan 30, 2025 3:11 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
Very nice job on the details of this build!

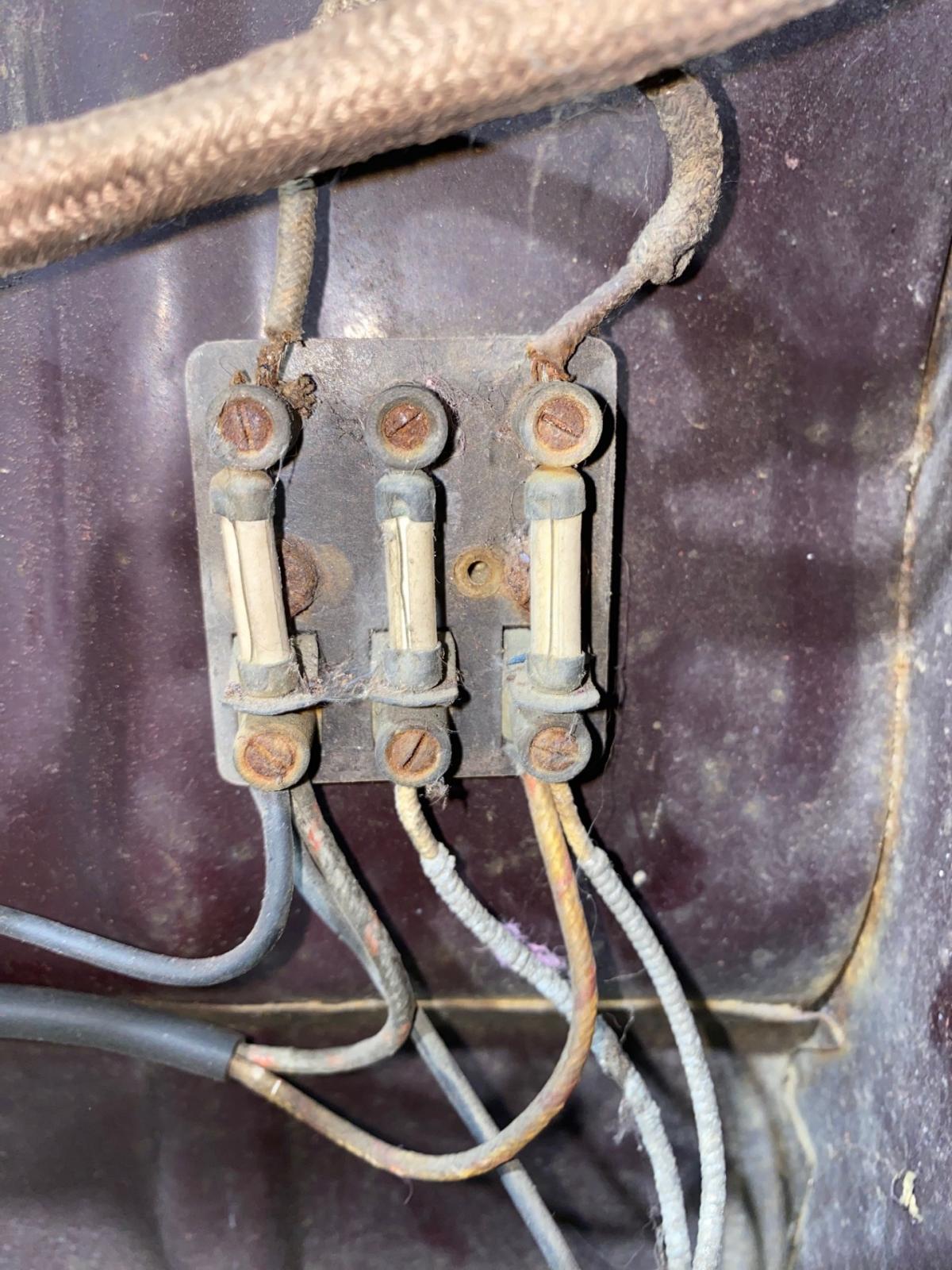

How did you clean the fuse box in the above post? Glass or ice or....? |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Thu Jan 30, 2025 6:38 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| SplitPersonality wrote: |
Very nice job on the details of this build!
How did you clean the fuse box in the above post? Glass or ice or....? |

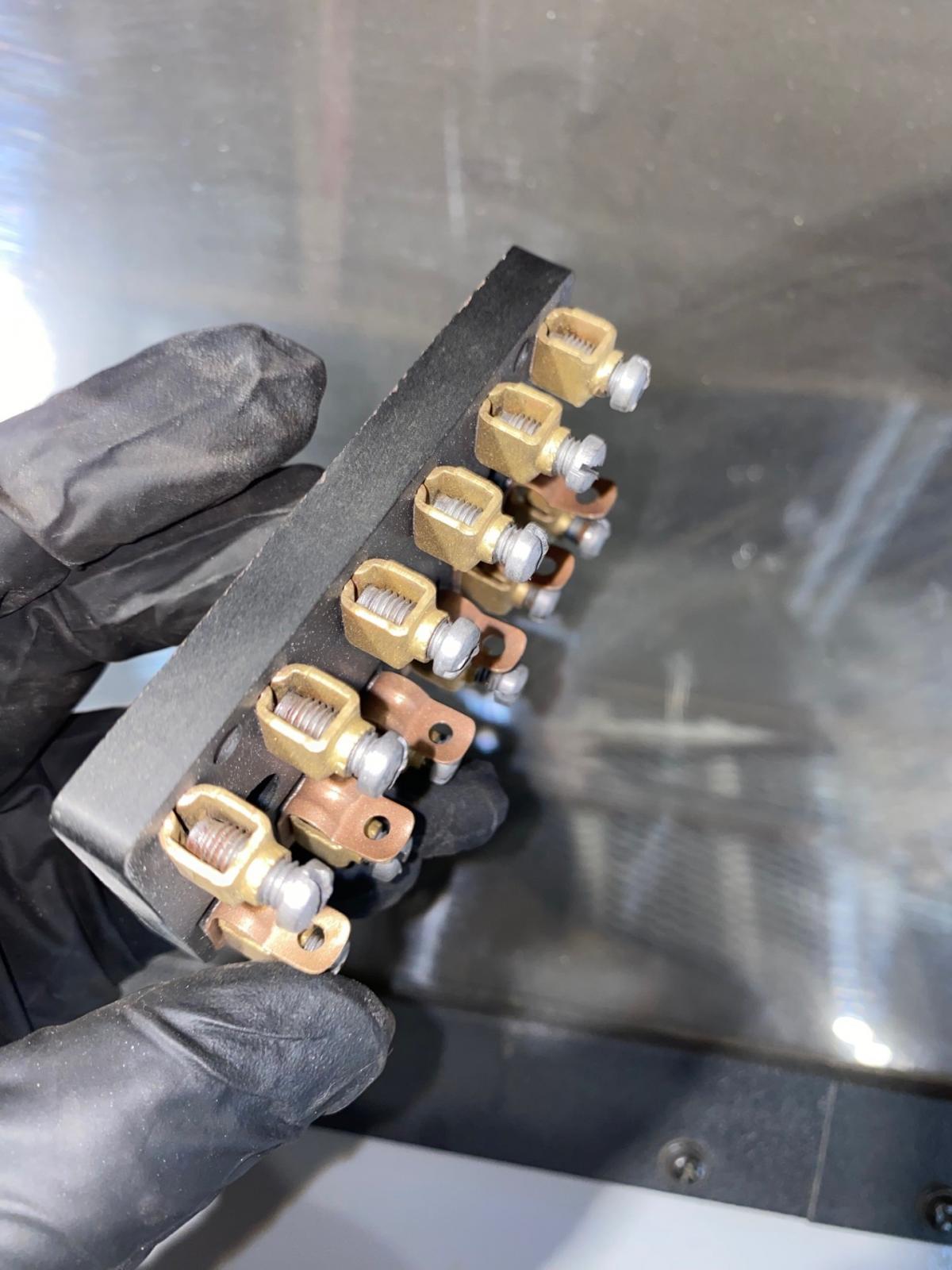

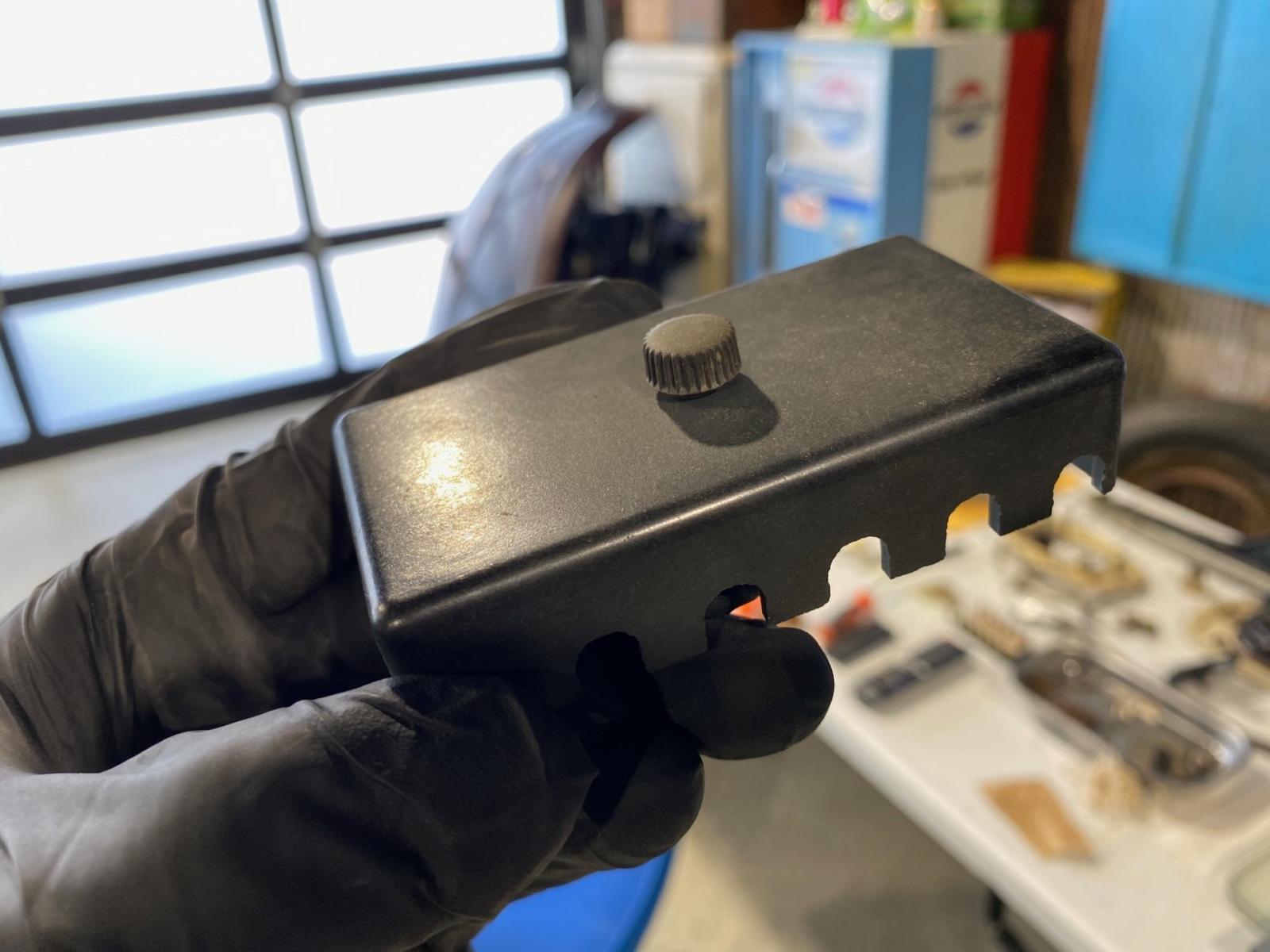

Thanks! I like to use glass just need to be more aware on what parts you use them on because it can get in everything. Here is the rear block which cleaned up nicely but cracked when trying to break rusted screws loose and og button I cleaned up nicely.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
Rich's 50
Samba Member
Joined: February 18, 2004
Posts: 10794
Location: San Diego, CA
|
| Posted: Sun Feb 02, 2025 2:56 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| Nice detail work! Always great following your journey buddy |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Sun Feb 02, 2025 8:58 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| Rich's 50 wrote: |
| Nice detail work! Always great following your journey buddy |
Thanks, Rich! I have to get this one ready for one of those Cali shows this year.

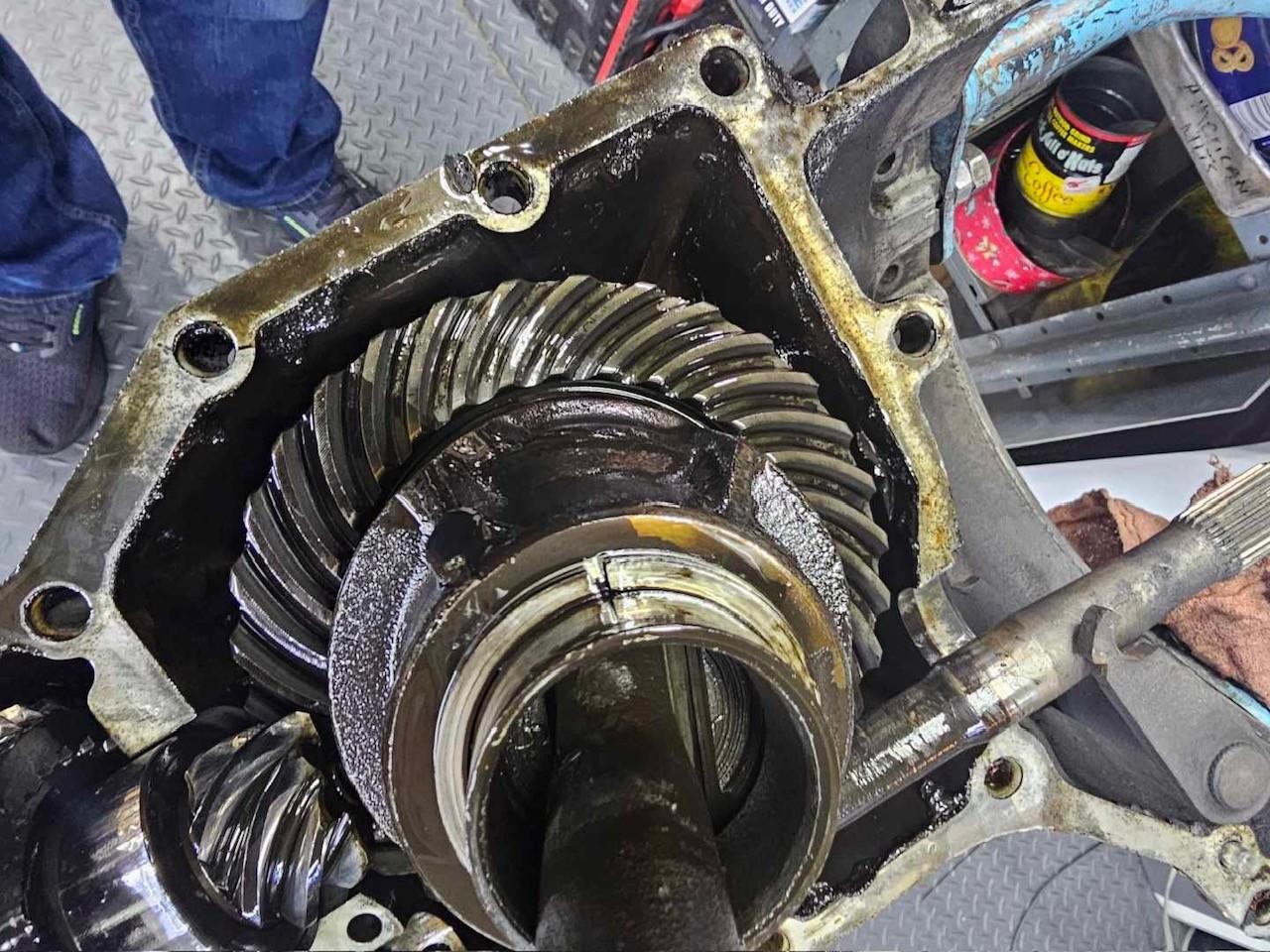

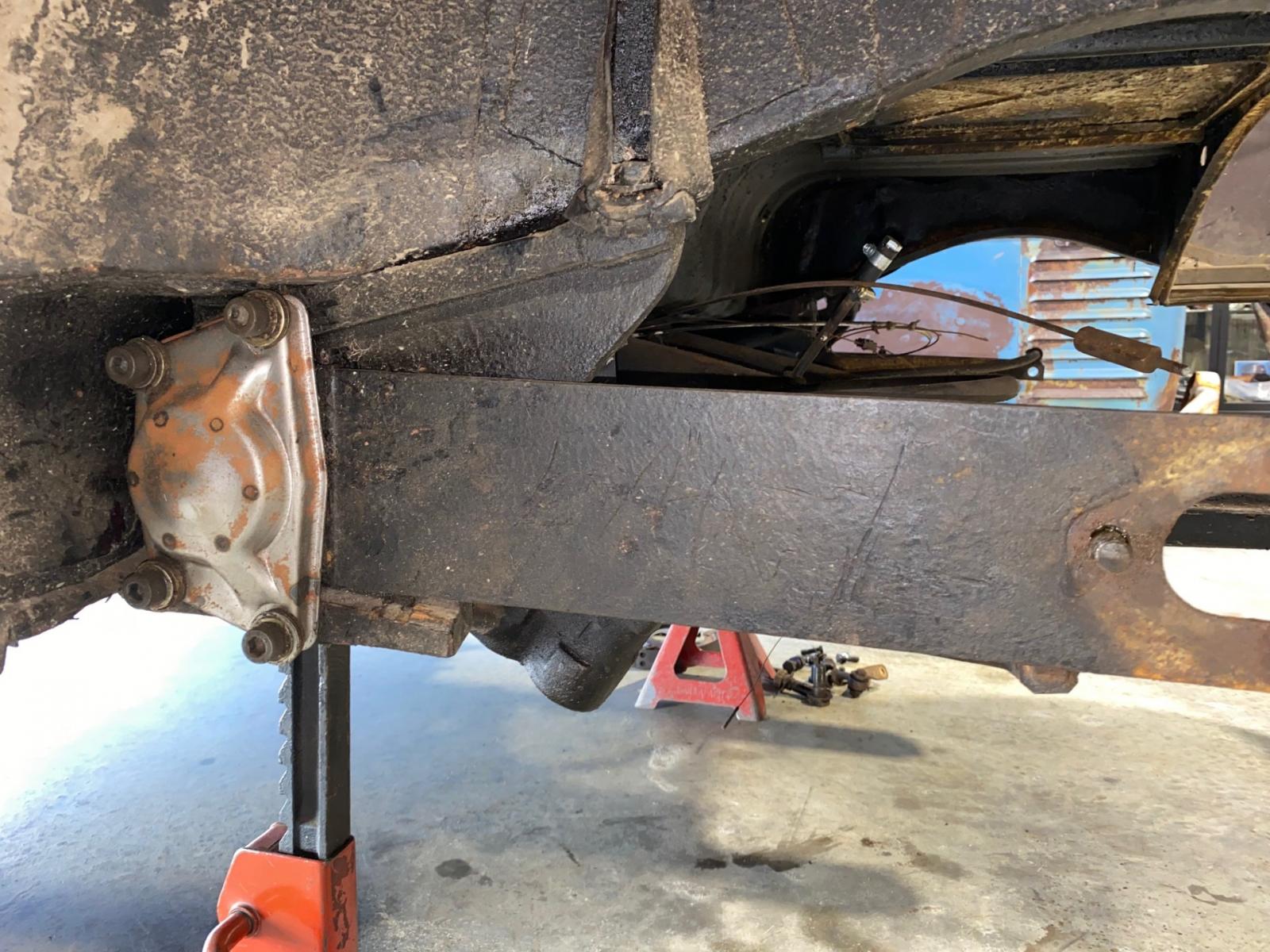

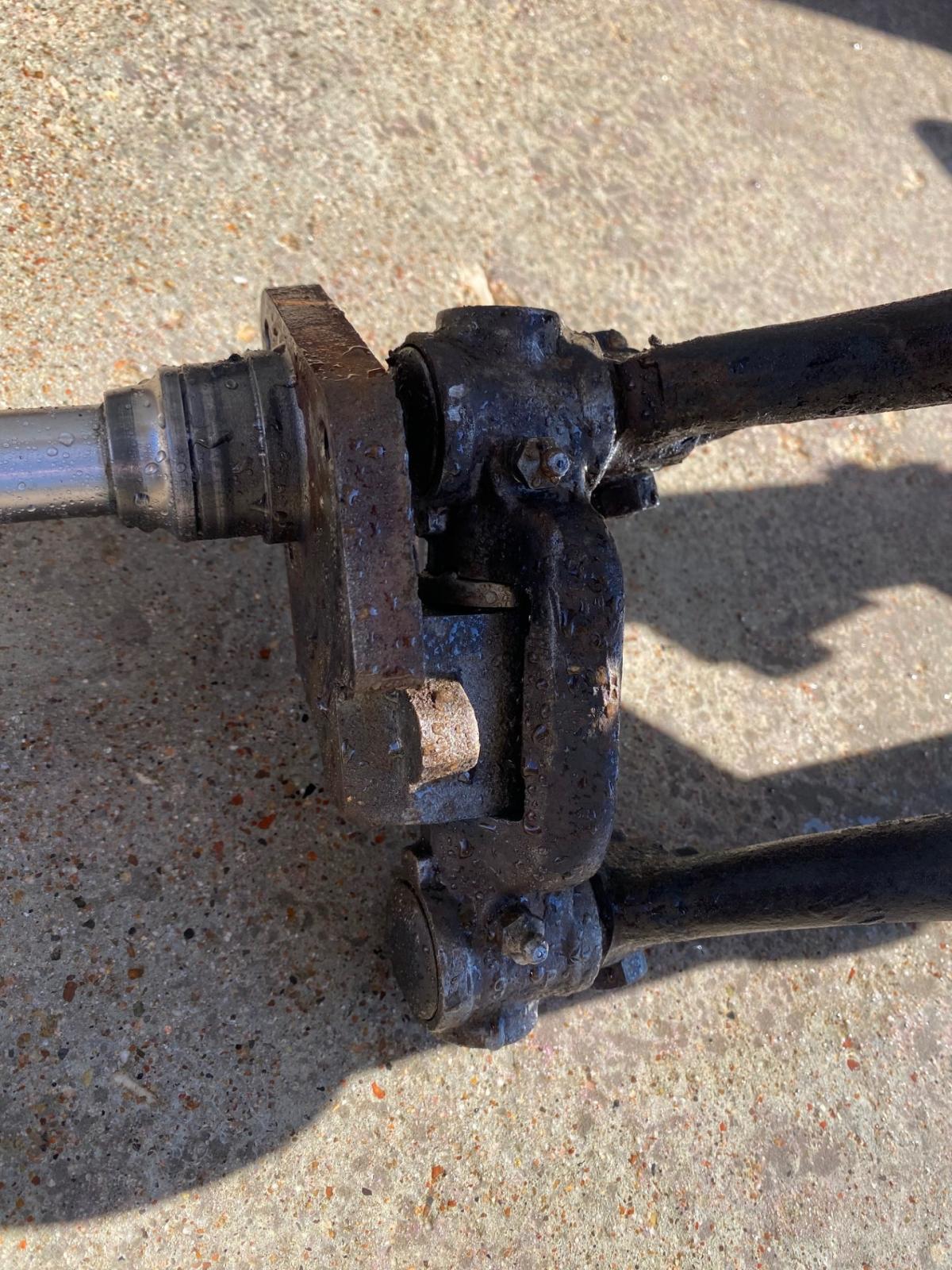

I got the wheels off and drums, so I dropped the oval transmission and then did a quick clean because it was loaded with gunk, then off to Damon for a rebuild because I don't have the time and I hate leaks if I can help it.

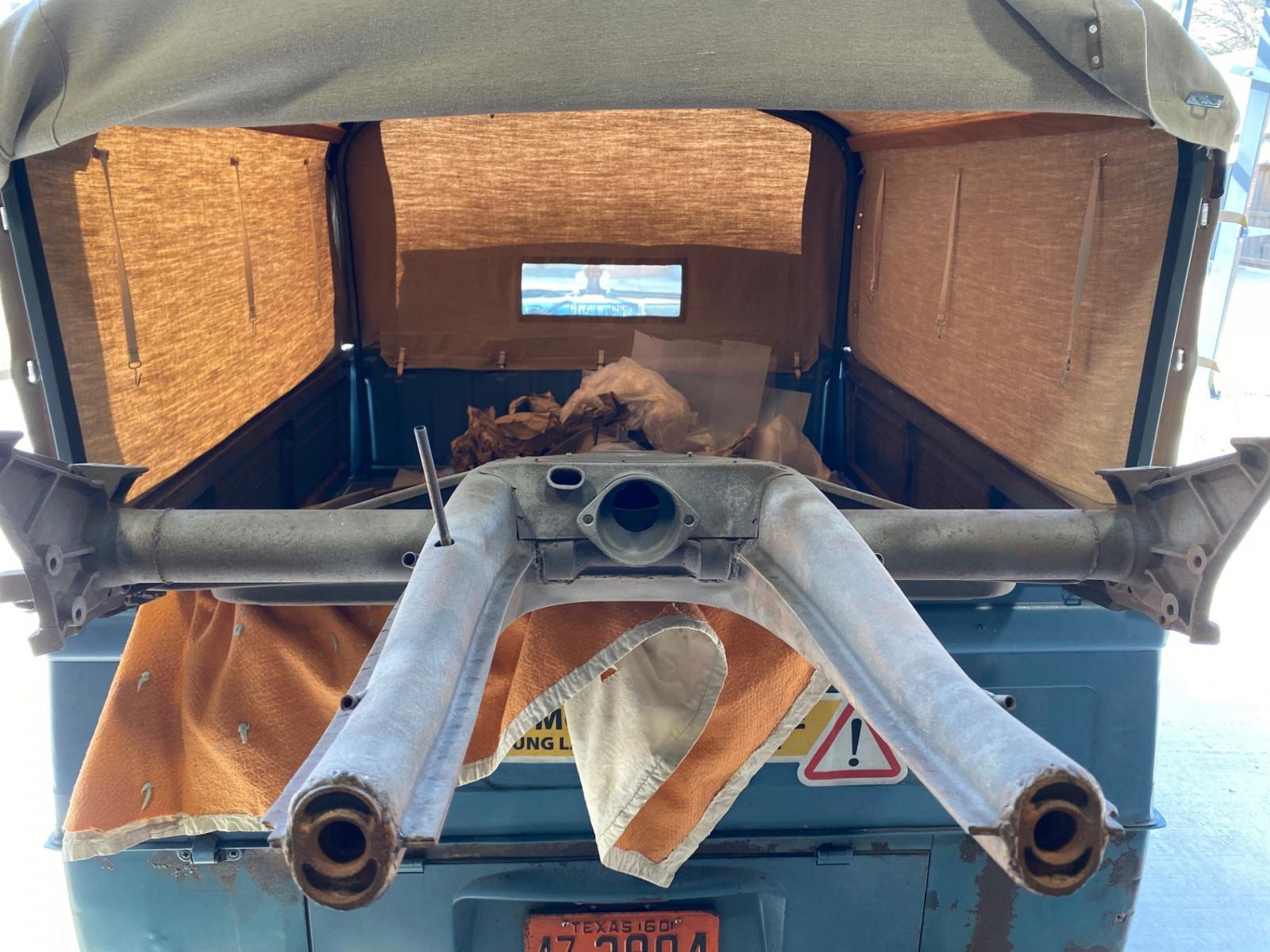

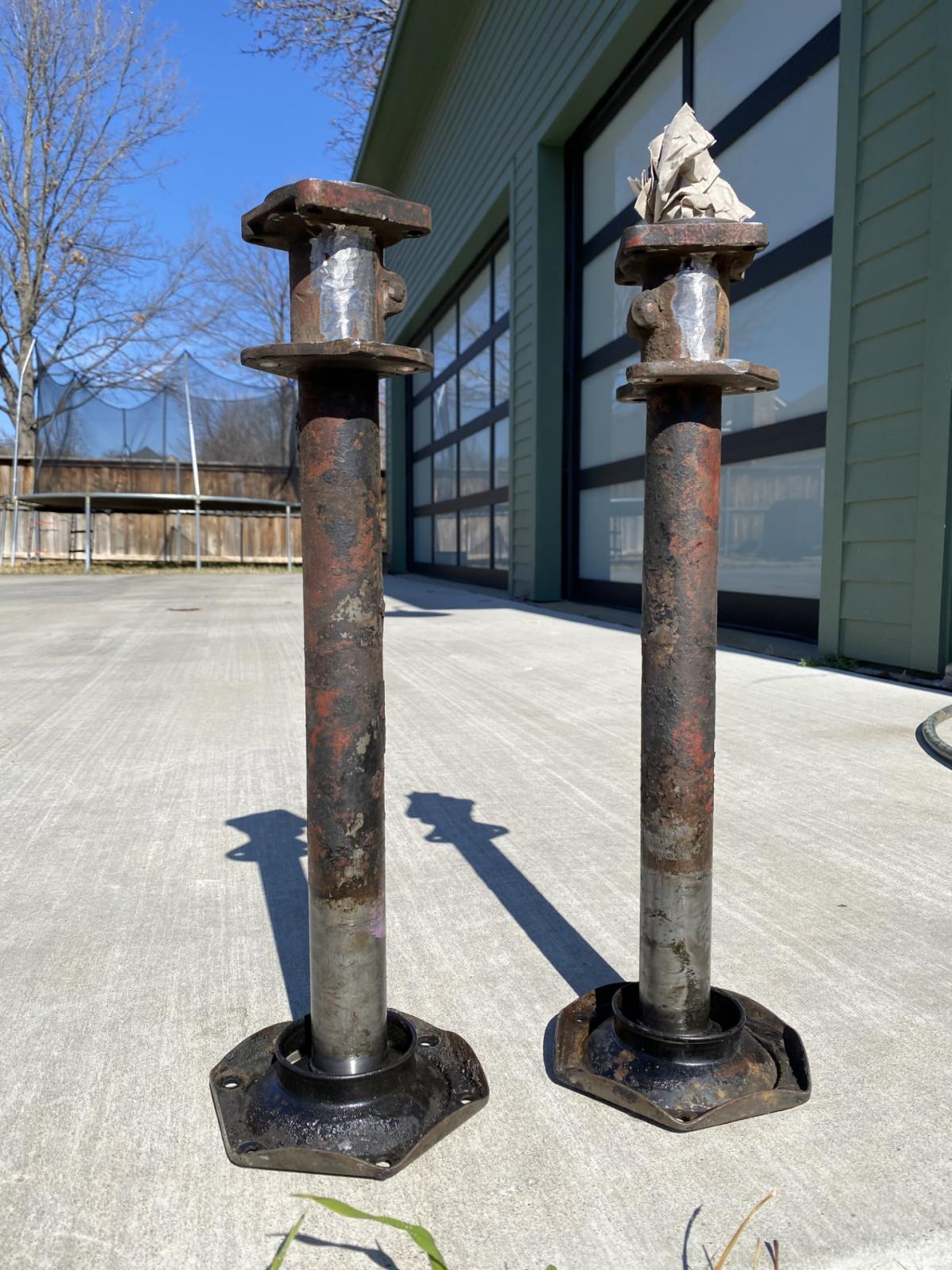

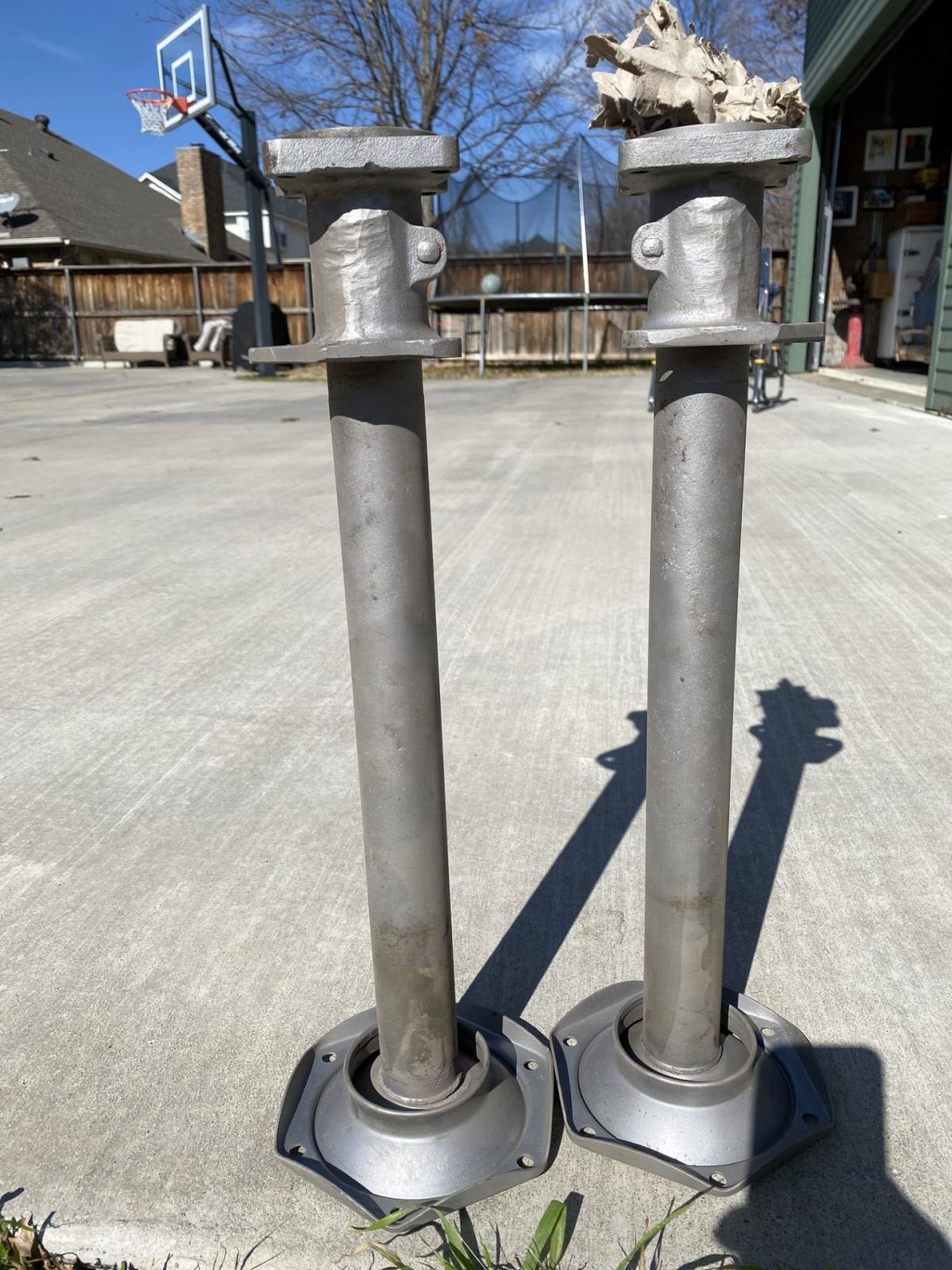

Then the oval axle tubes that someone slick rick cut, so I trimmed it down so it has a better split appearance and in the media cabinet in prep for the powder coat pile.
Got the tranny back in no time at all and really didnt have much things wrong with it but I always like to have it checked and resealed before running them.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
sinclair
Samba Member
Joined: July 01, 2004
Posts: 442
Location: New Forest UK
|
| Posted: Tue Feb 04, 2025 5:32 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
Amazing progress. I know a lot of people around the world have had an eye on this car over the last few years. Most of them hoping it would get exactly this treatment.  |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Tue Feb 04, 2025 8:53 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| sinclair wrote: |
| Amazing progress. I know a lot of people around the world have had an eye on this car over the last few years. Most of them hoping it would get exactly this treatment. |
Thanks Sinclair! Tell them they owe me a pint of the black stuff!

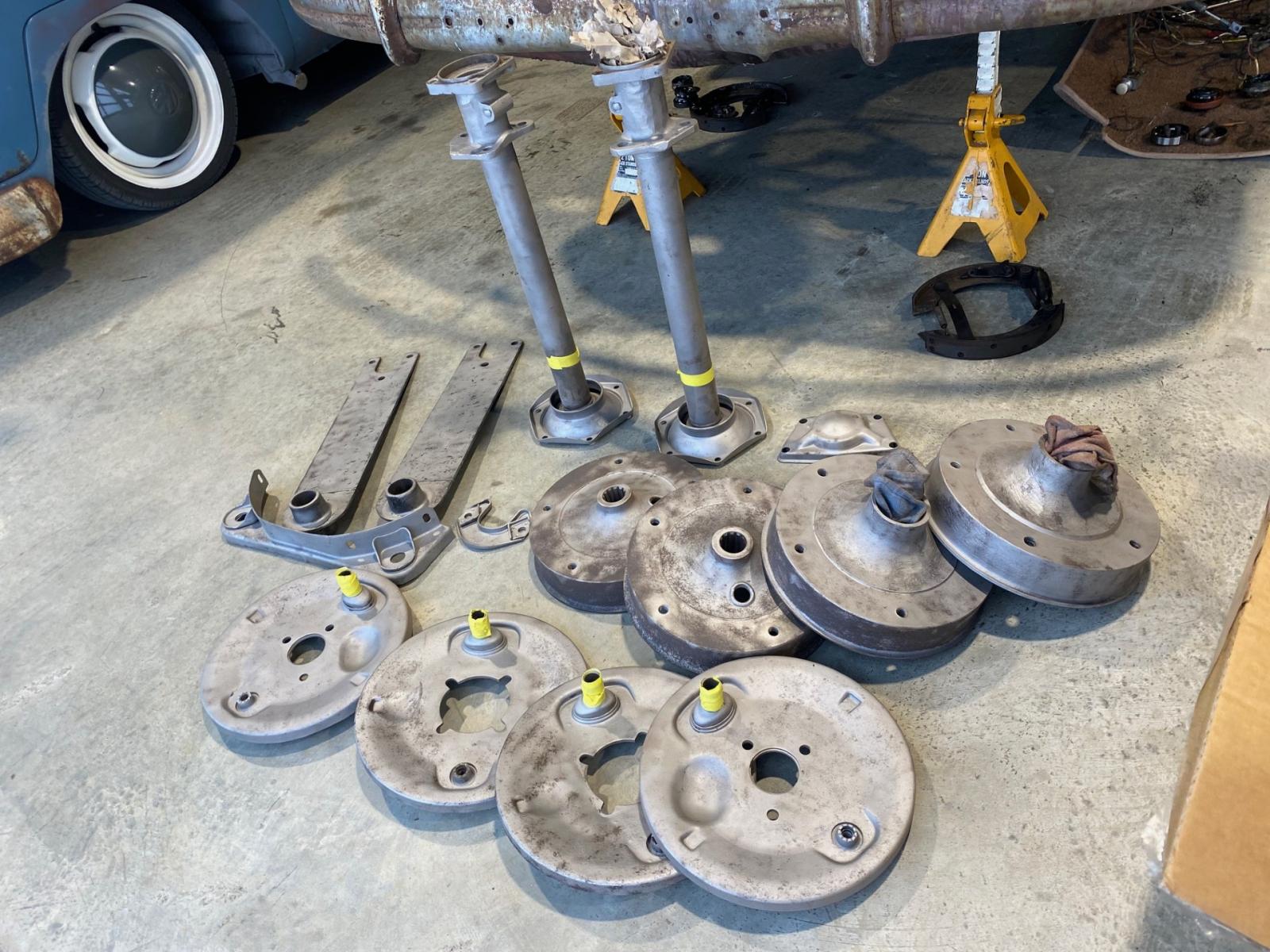

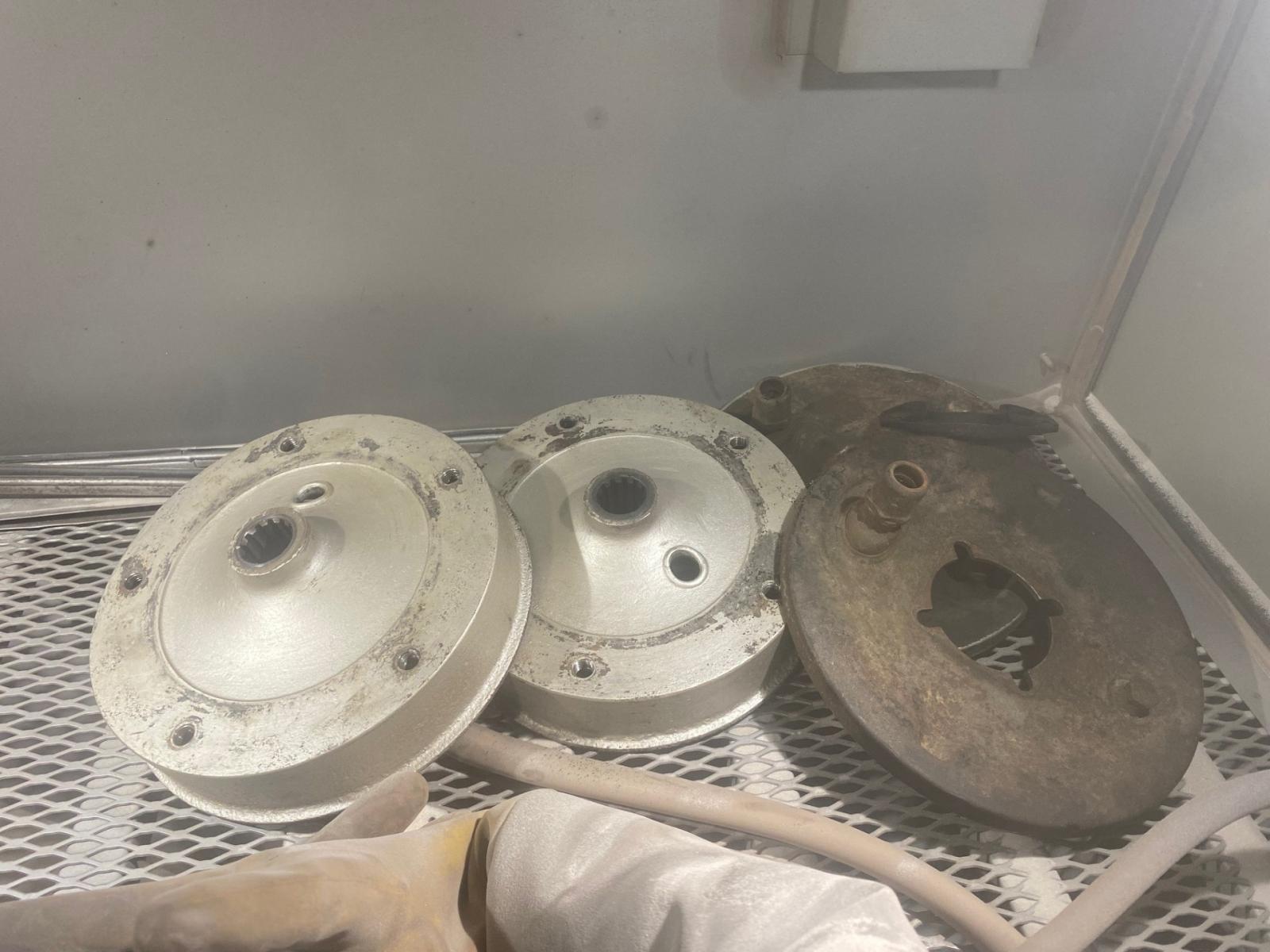

But I've gotten more done just now getting more progress posted here is all the backing plates and drums getting in my media cabinet.

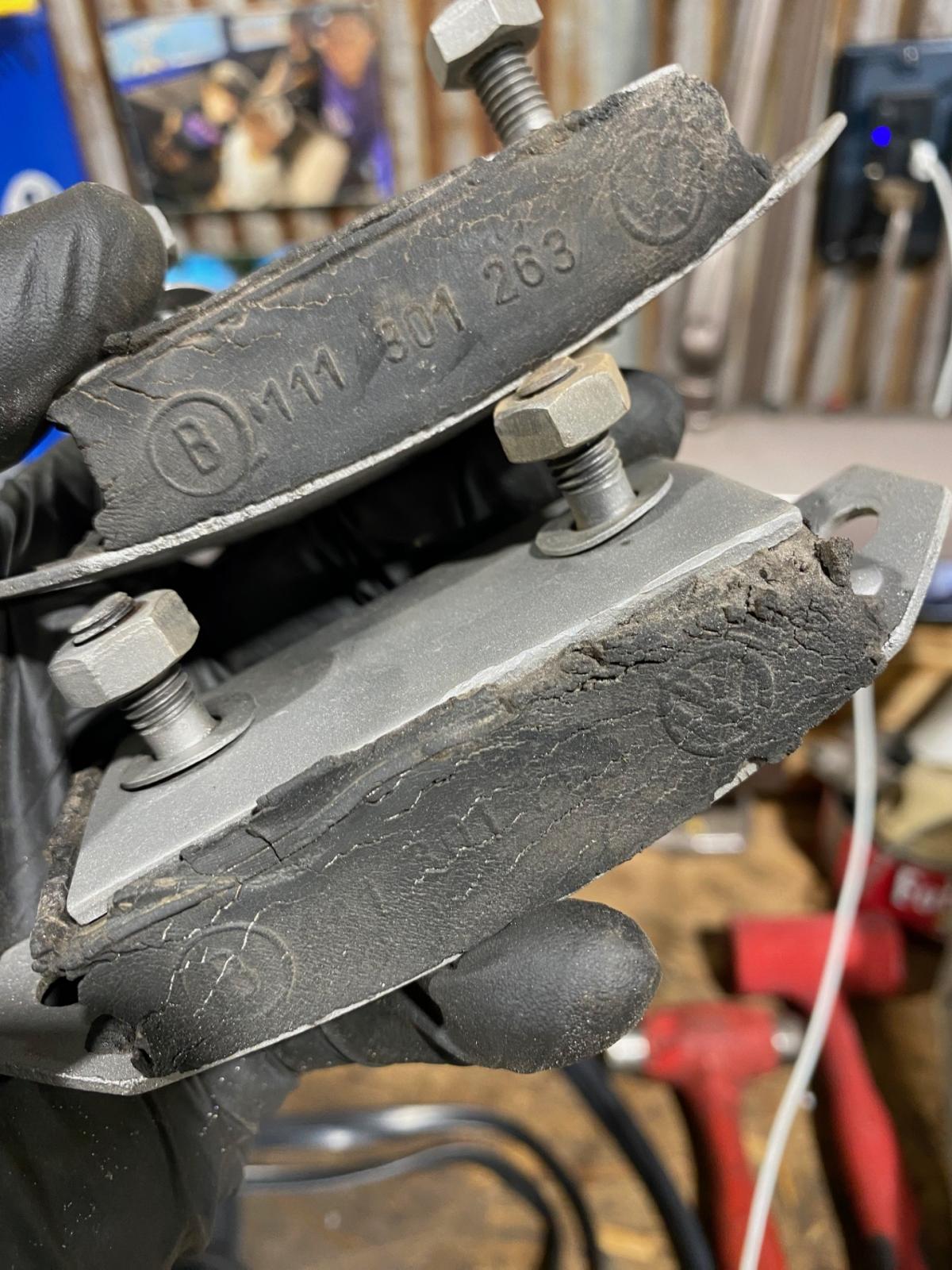

And even cleaned up these og tranny mounts and the rubber was still soft so Im gonna run them.
Now all of this is off to powder coat to give it the forever life it deserves.

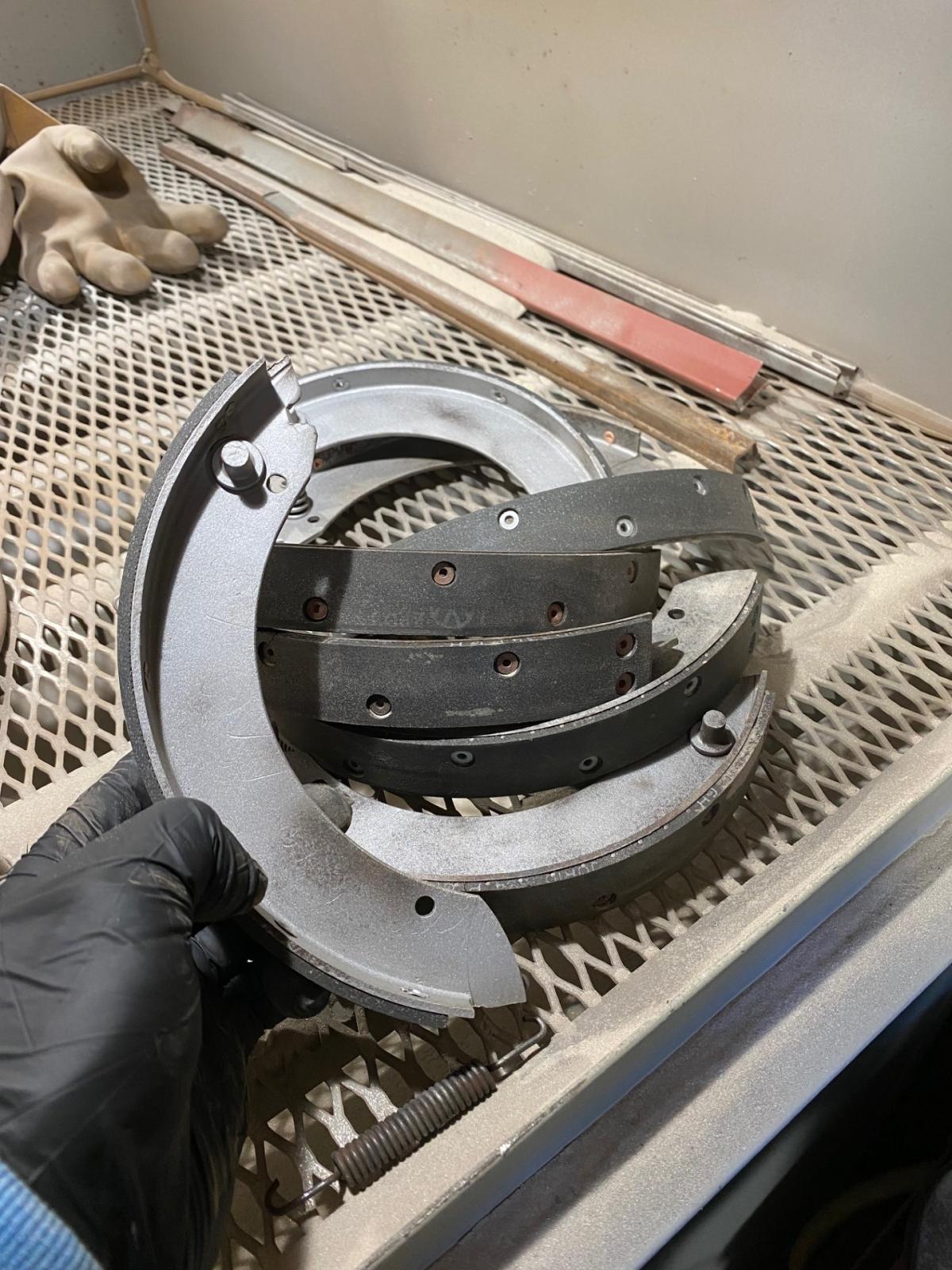

While I have the time I will clean these amazing riveted pads. I even found a couple of them that had the NOS stamping like the same style set I put on my Hoffman.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
sinclair
Samba Member
Joined: July 01, 2004
Posts: 442
Location: New Forest UK
|
| Posted: Wed Feb 05, 2025 12:35 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|

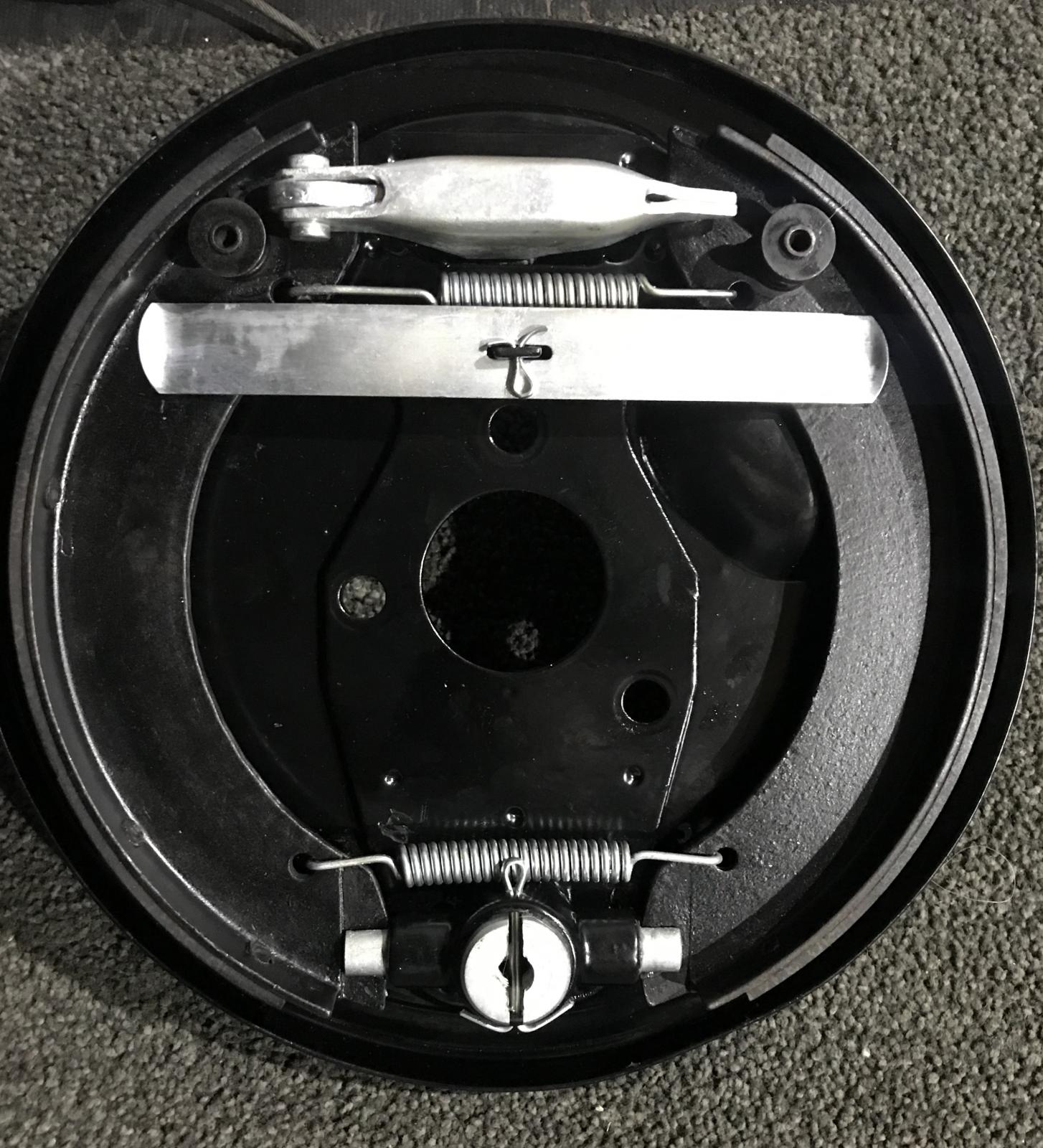

I absolutely love the mechanical brake system. I had some good results with a home zinc plating kit when I did the 11e.
Have you found a 50 correct beam?
As much as I’m interested in following the build, I just like looking at the workshop
|
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Wed Feb 05, 2025 10:14 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| sinclair wrote: |
I absolutely love the mechanical brake system. I had some good results with a home zinc plating kit when I did the 11e.
Have you found a 50 correct beam?
As much as I’m interested in following the build, I just like looking at the workshop
|
Yeah, I've zinc'd and coated some of my other stuff; it's a great look that most never get to see. On the beam I haven't found one yet, Sinclair, but I do plan on having one. Thanks so much; it's been years in the making, and it has a lot of locally VW history and all over the world from my travels and just being a VW nerd.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Mon Feb 17, 2025 8:31 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|

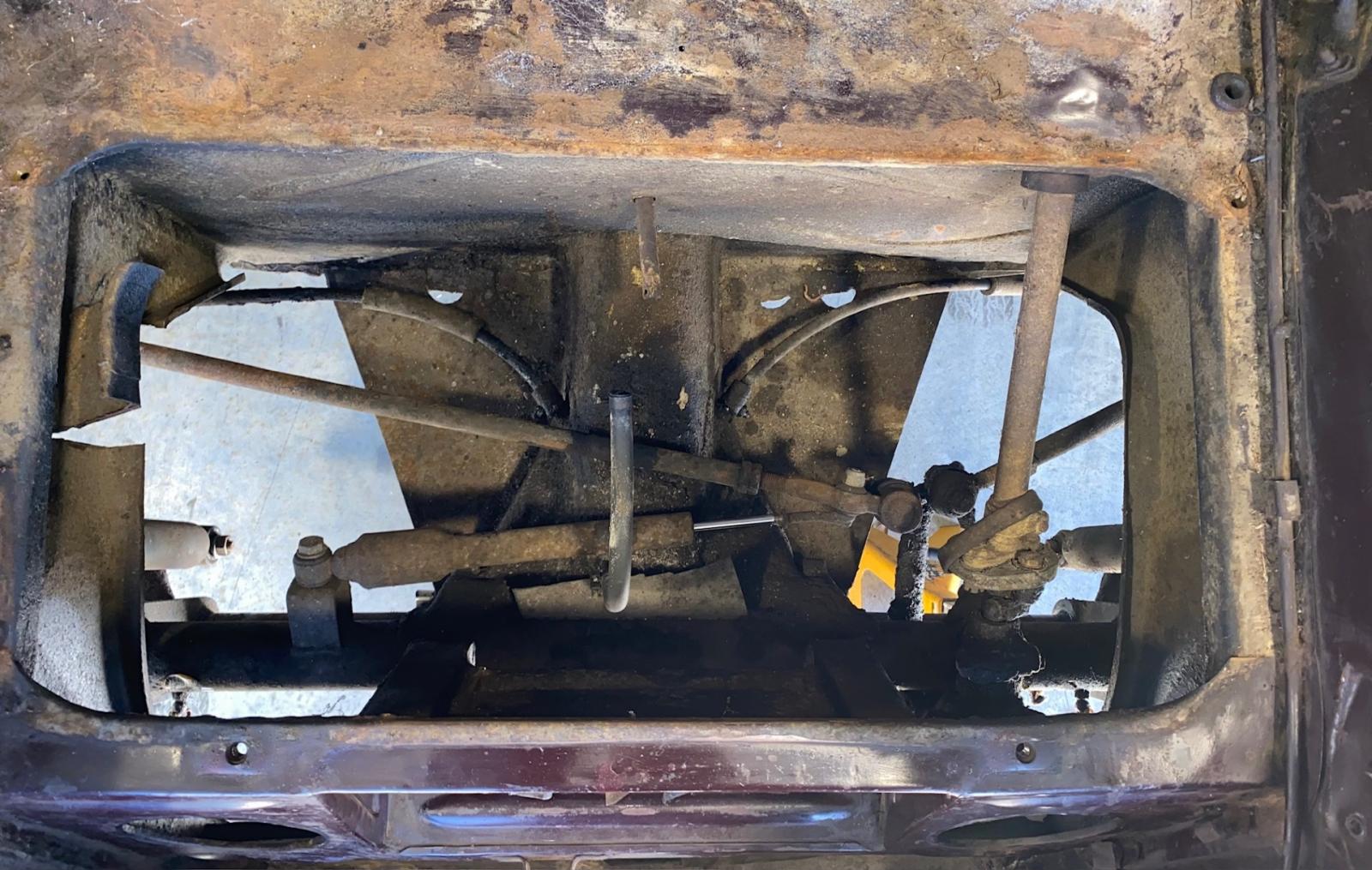

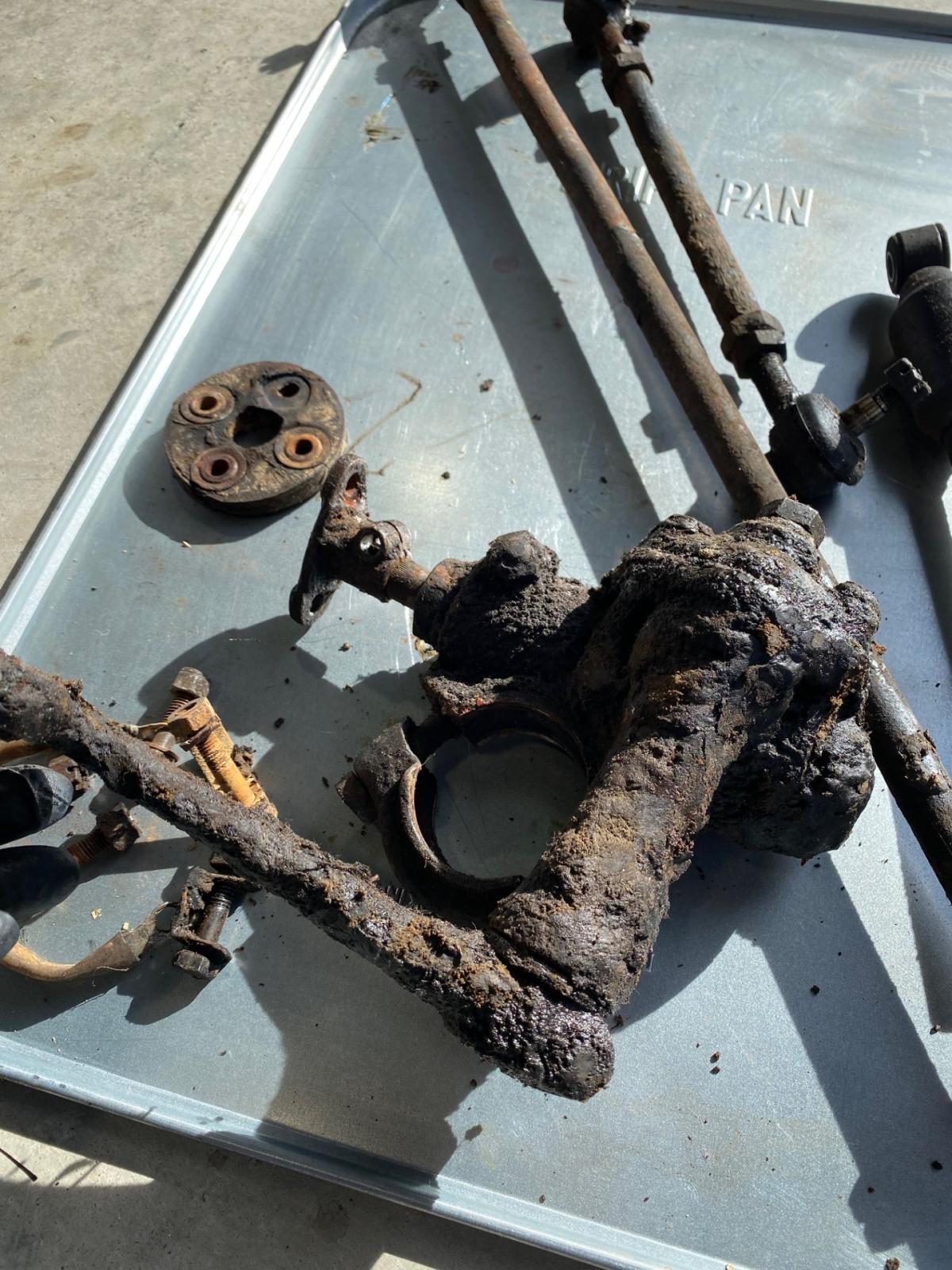

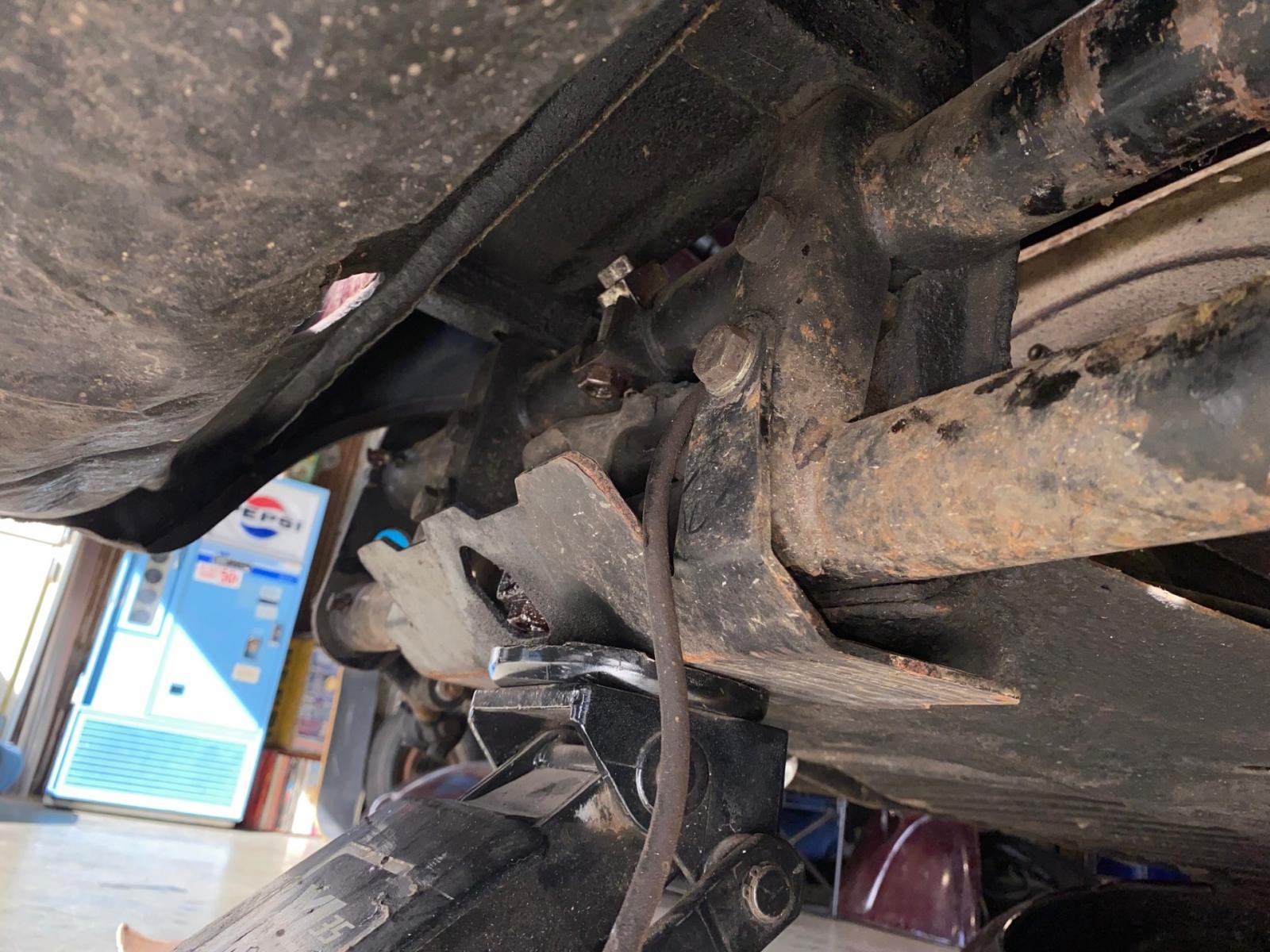

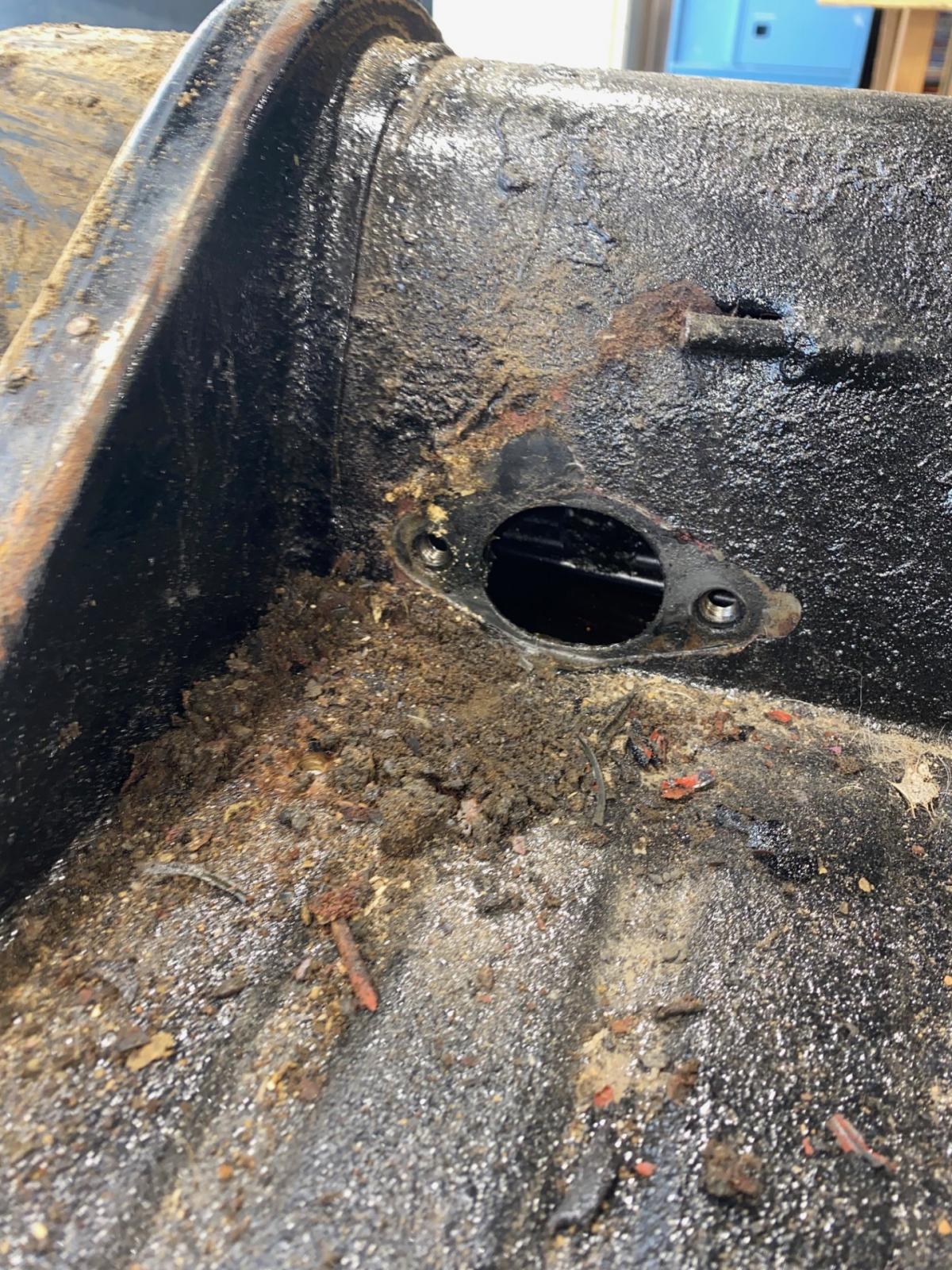

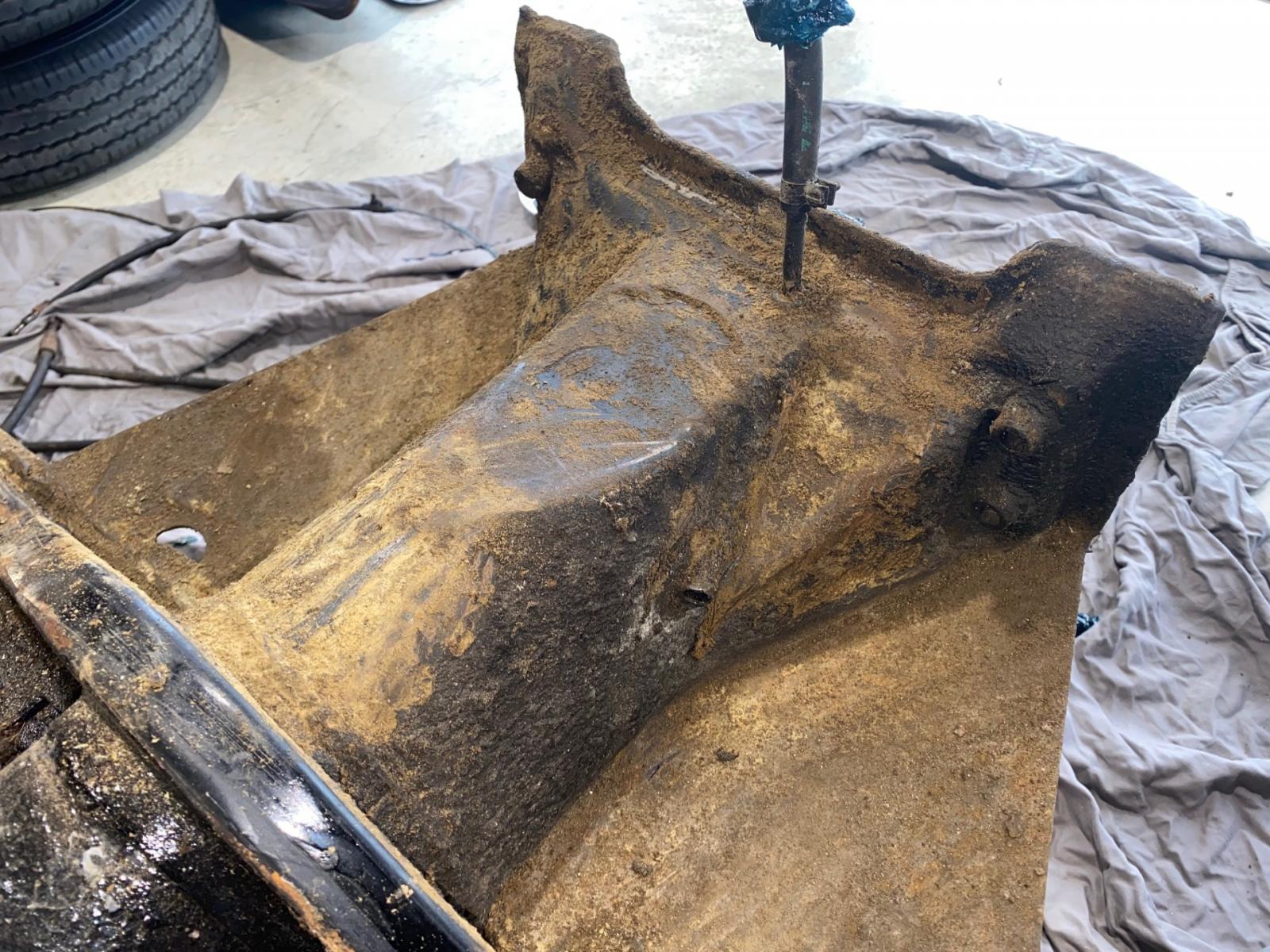

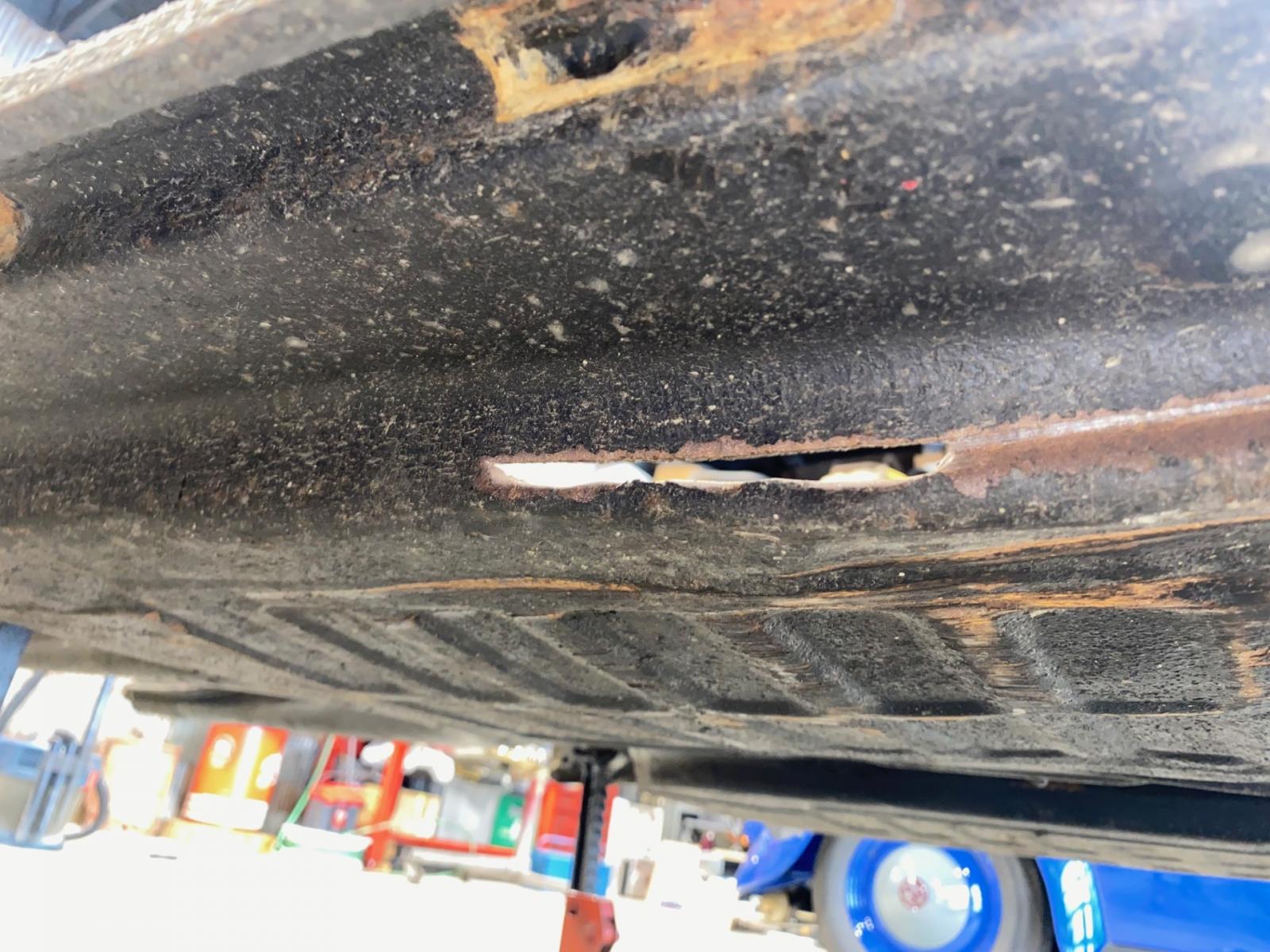

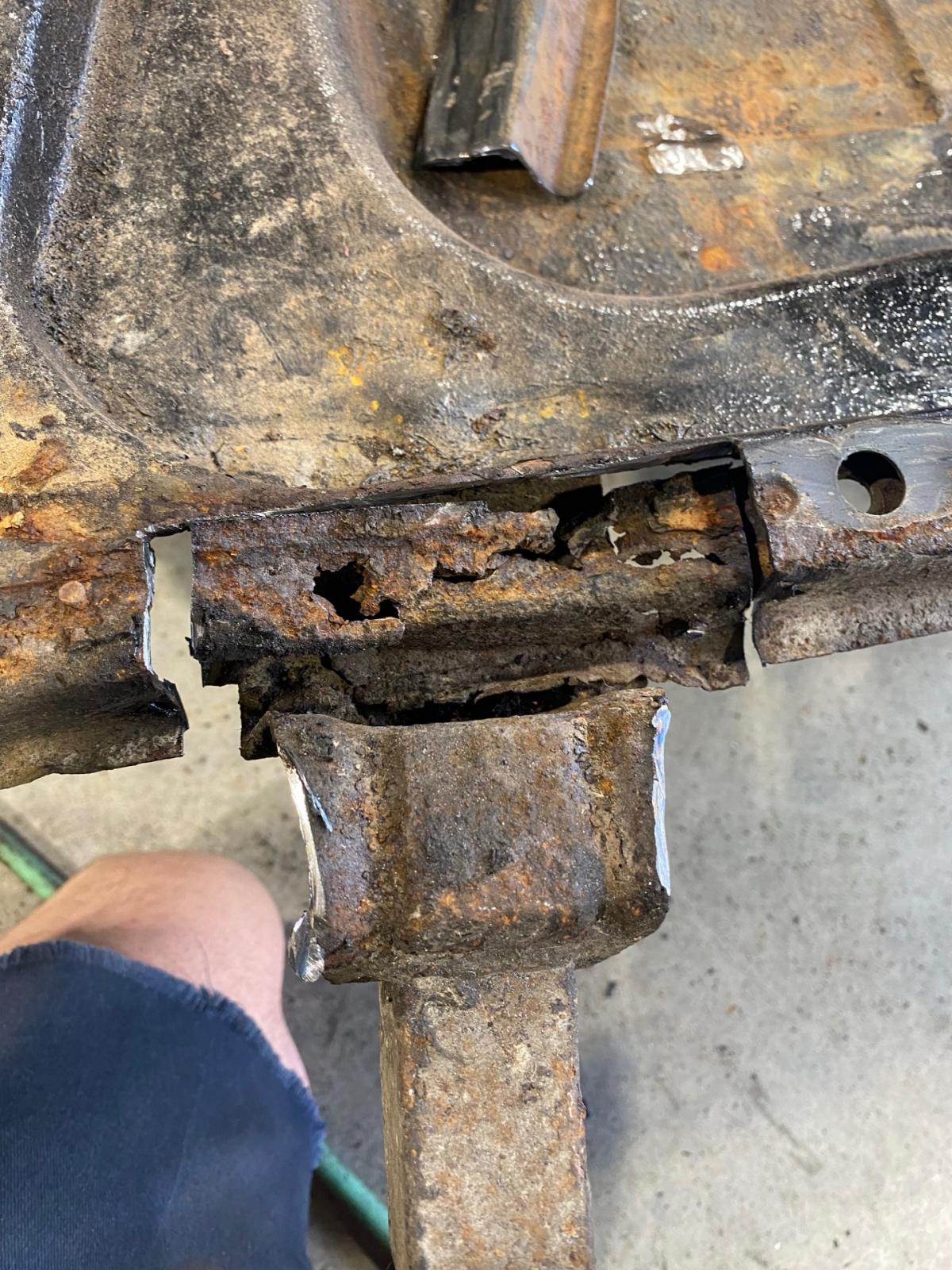

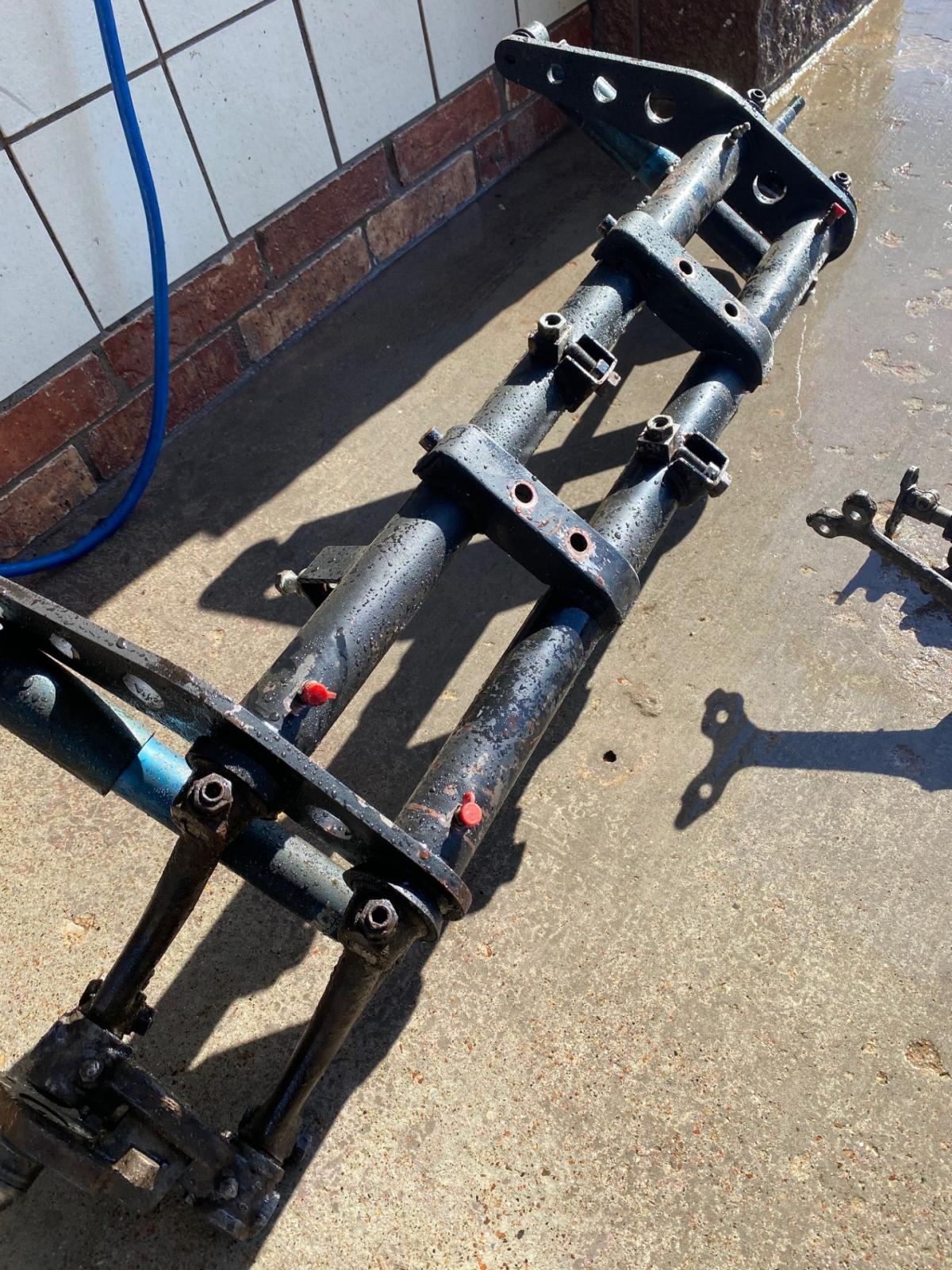

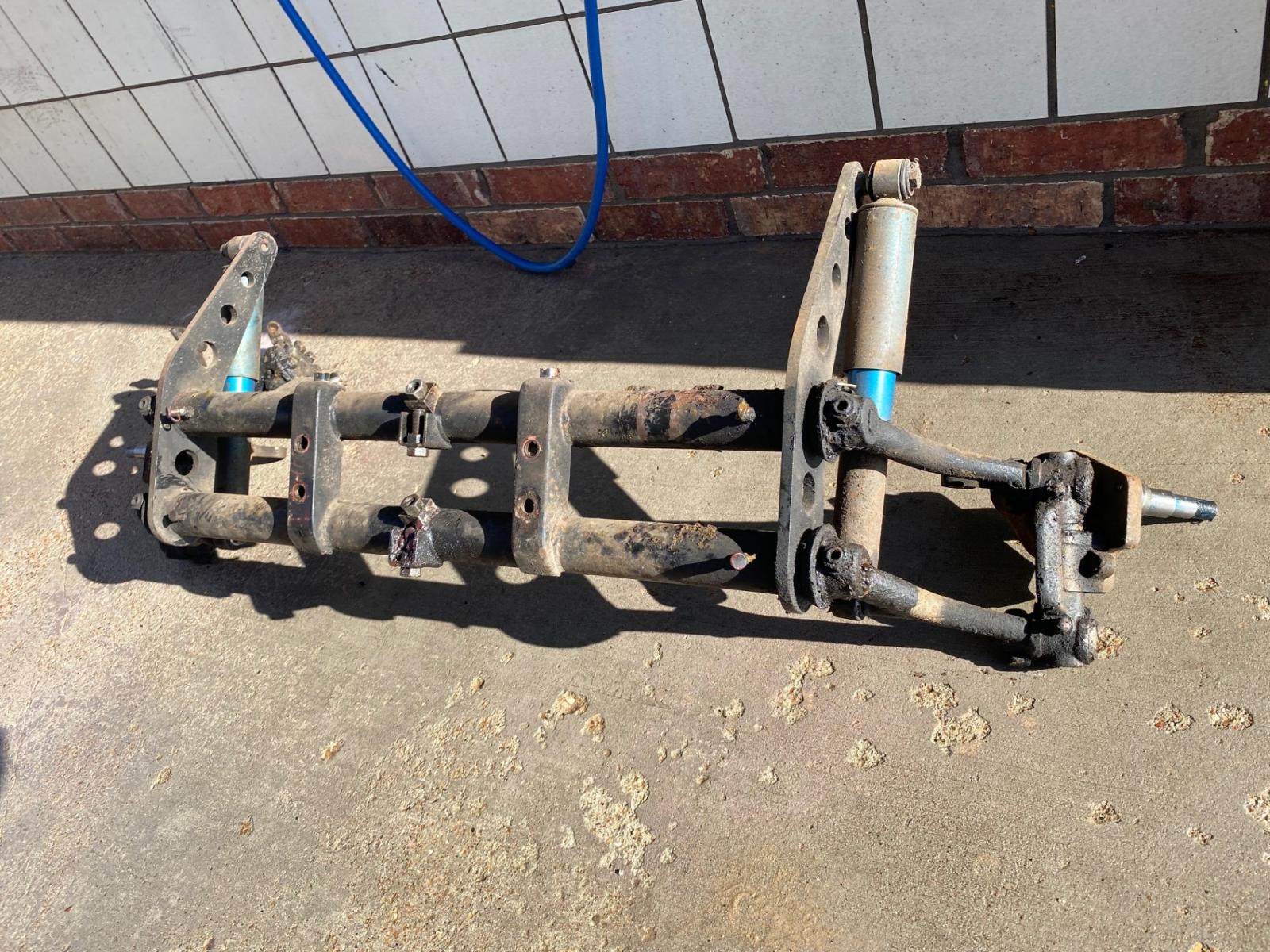

Finally getting this chassis to her originally glory show casing all the bad areas that need to be repaired.

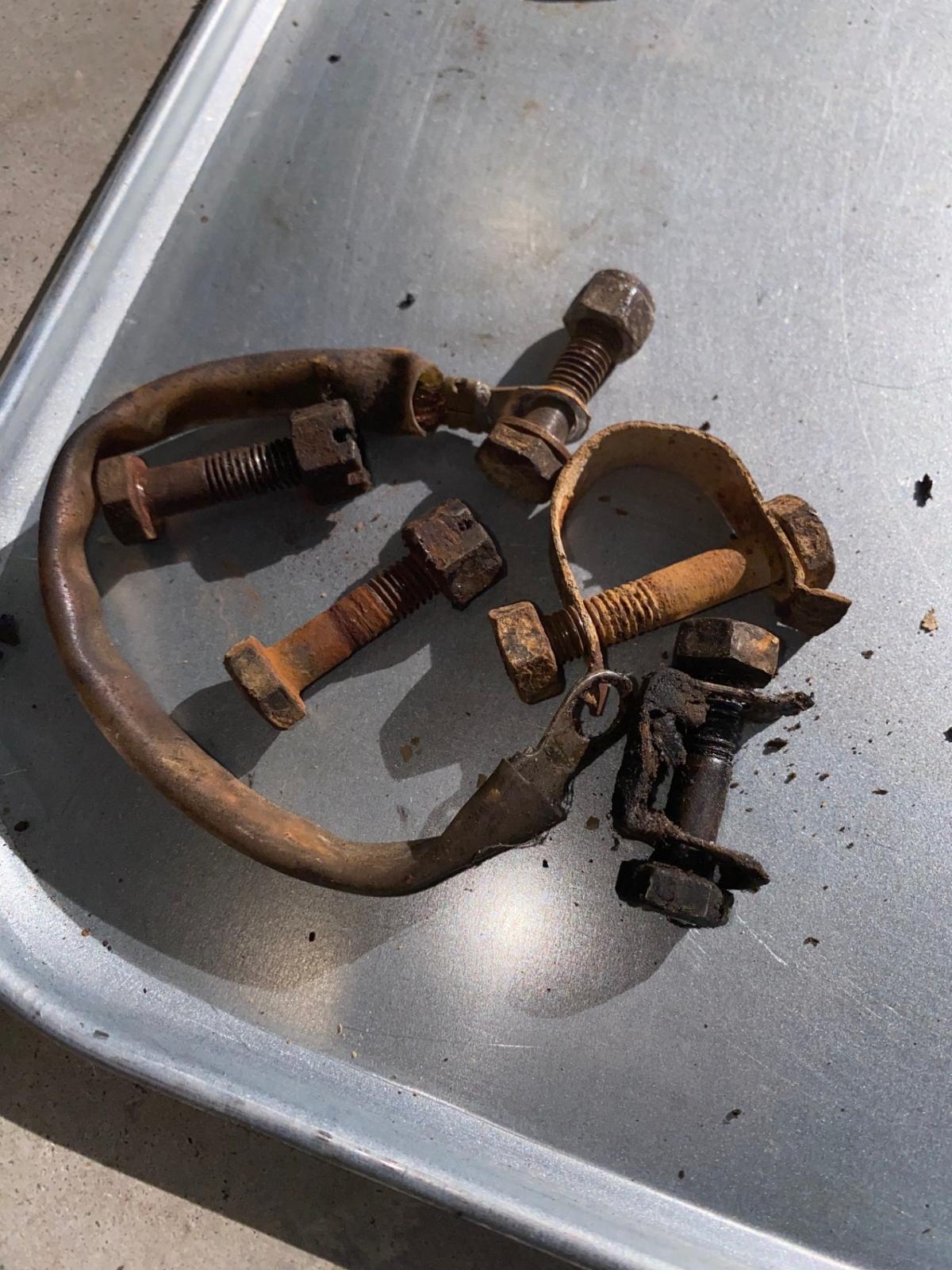

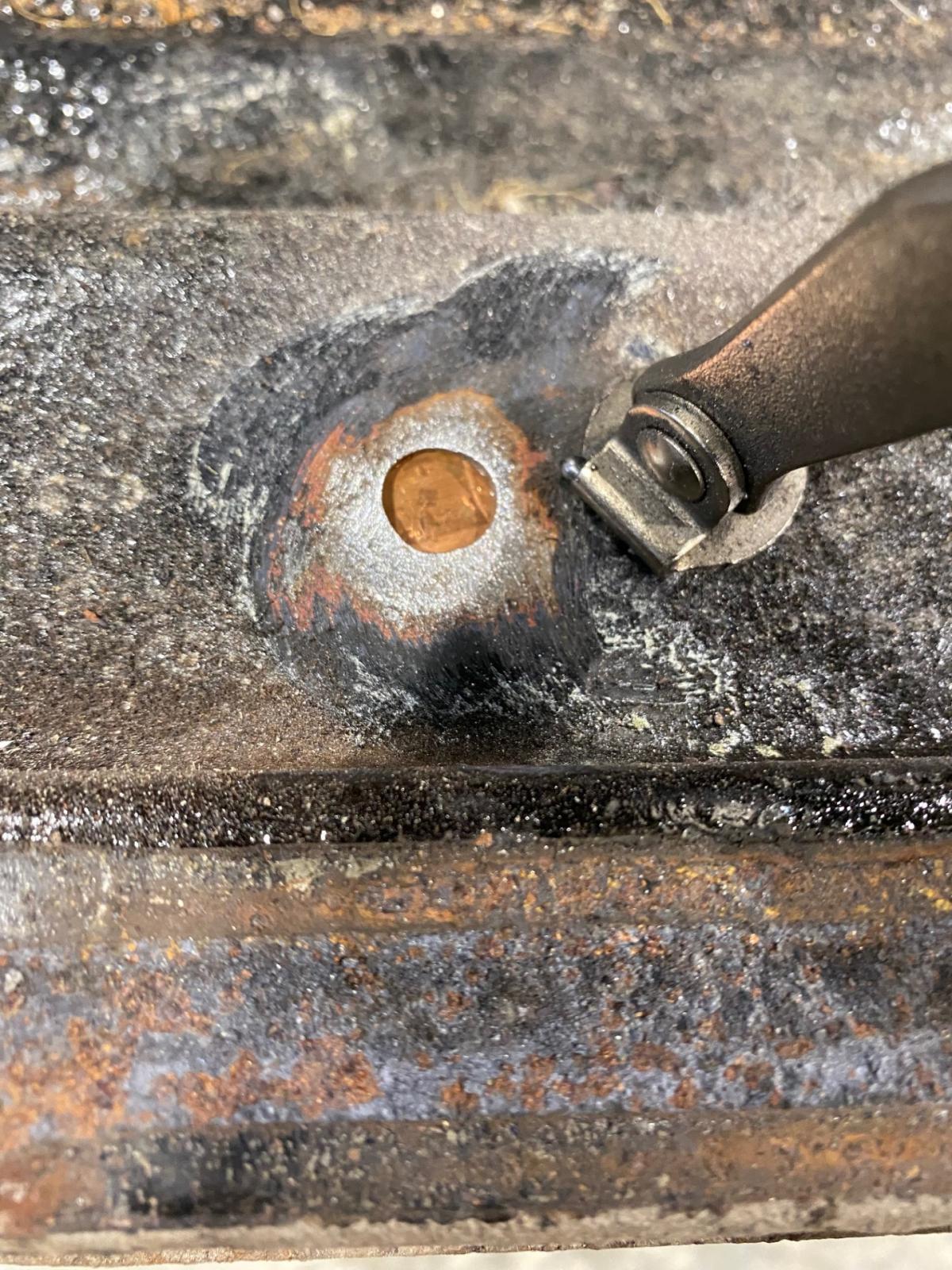

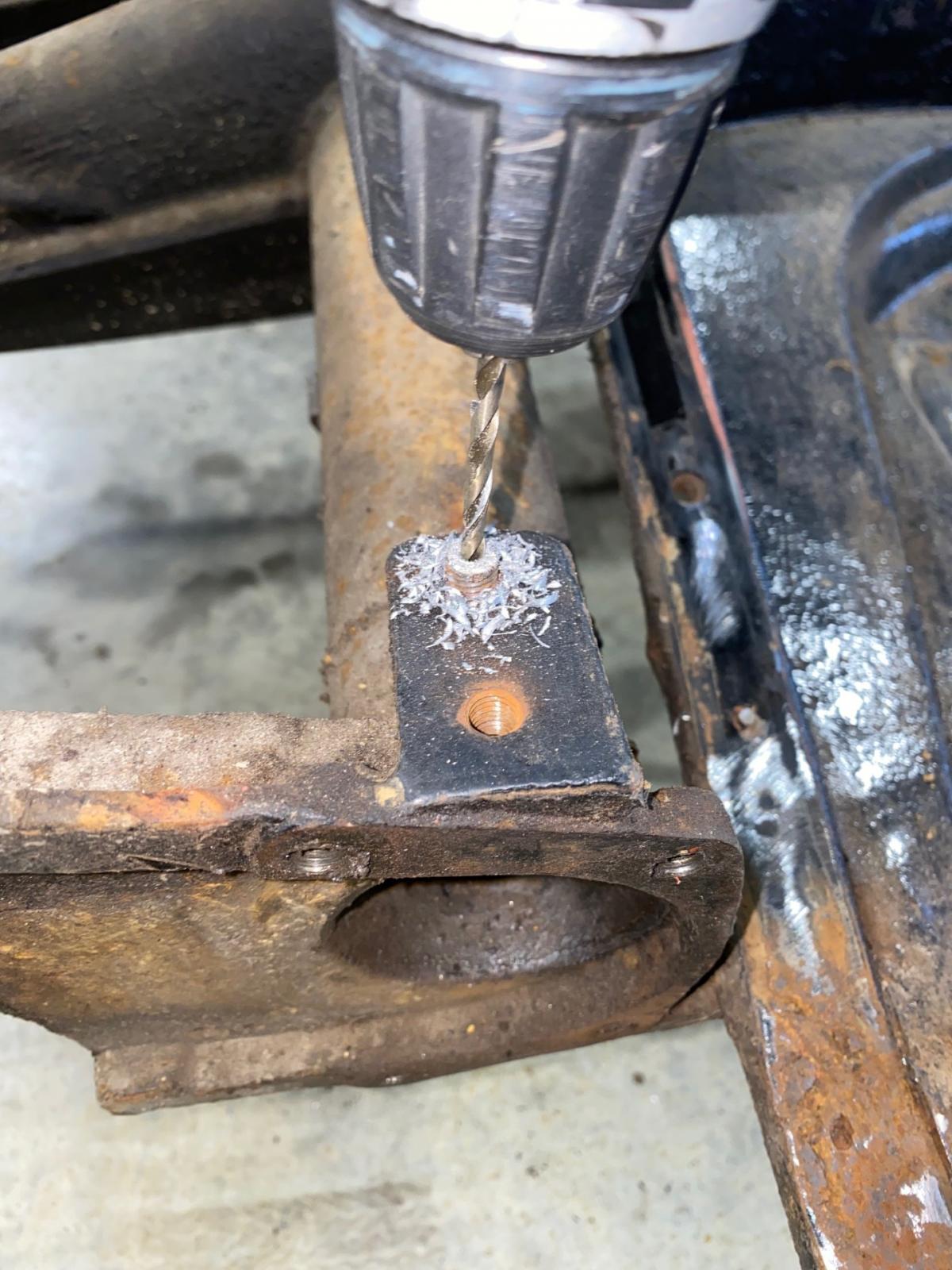

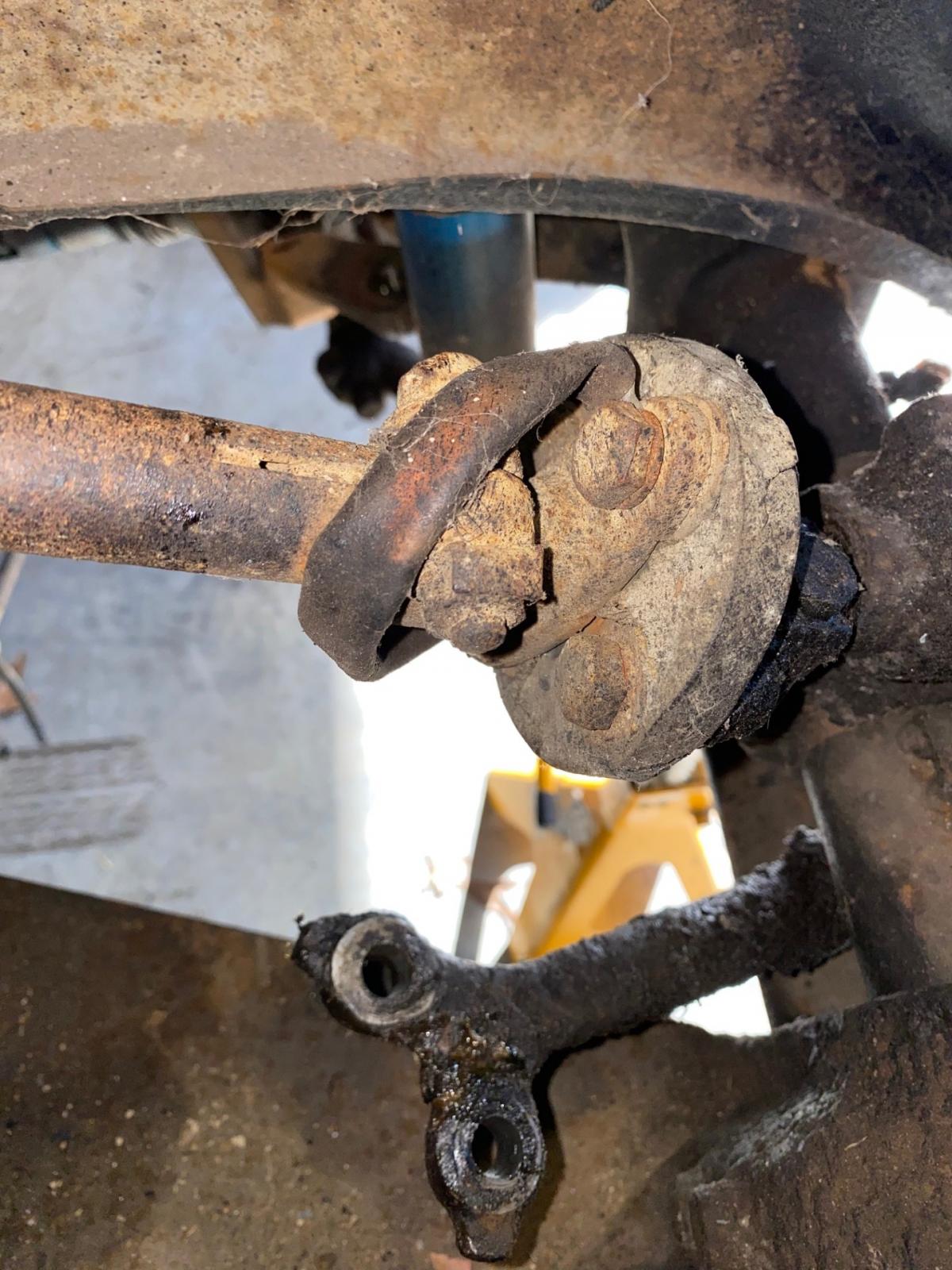

One down 900 to go and all broken studs which I'm sure this car will have a lot of.
ignore the bs broken stud tool next to the pb blaster that doesn't work but fixed and fixed.
Got everything ready for media.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
VW_Jimbo
Samba Member
Joined: May 22, 2016
Posts: 11142
Location: Huntington Beach, CA
|
| Posted: Mon Feb 17, 2025 11:36 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
Nice job! Love those VW embossed logos on parts!
_________________
Jimbo
There is never enough time to do it right the first time, but all the time necessary the second time!
| TDCTDI wrote: |
| Basically, a whole bunch of fuckery to achieve a look. |
| 67rustavenger wrote: |
GFY's Xevin and VW_Jimbo!  |
|
|
| Back to top |
|
|
sinclair
Samba Member
Joined: July 01, 2004
Posts: 442
Location: New Forest UK
|
| Posted: Tue Feb 18, 2025 2:46 am Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| I am in awe at the speed you work at. I’ve been looking at my type 60 pan for a couple of years debating which blast media is best. |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Tue Feb 18, 2025 9:07 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
| VW_Jimbo wrote: |
| Nice job! Love those VW embossed logos on parts! |
Thanks, Yes me too I am always excited to see the VW logo they made sure to put it everywhere.
| sinclair wrote: |
| I am in awe at the speed you work at. I’ve been looking at my type 60 pan for a couple of years debating which blast media is best. |
Thanks Sinclair, I got to kick it in high gear because this will be my daily and I want to take it to some shows in California in the next couple of months.
_________________
1950 Deluxe Sedan Build
1951 Split Standard Hoffman Build
1960 Dove Blue Double Cab Patina Build
Two Glove Boxes IG |
|
| Back to top |
|
|
Two Glove Boxes
Samba Member
Joined: March 03, 2005
Posts: 976
Location: Texas
|
| Posted: Sat Feb 22, 2025 10:03 pm Post subject: Re: 1950 January Original Paint L-51 Deluxe (Preservation build) |
|
|
Finally got the call from powder coater that everything is ready for pick up.

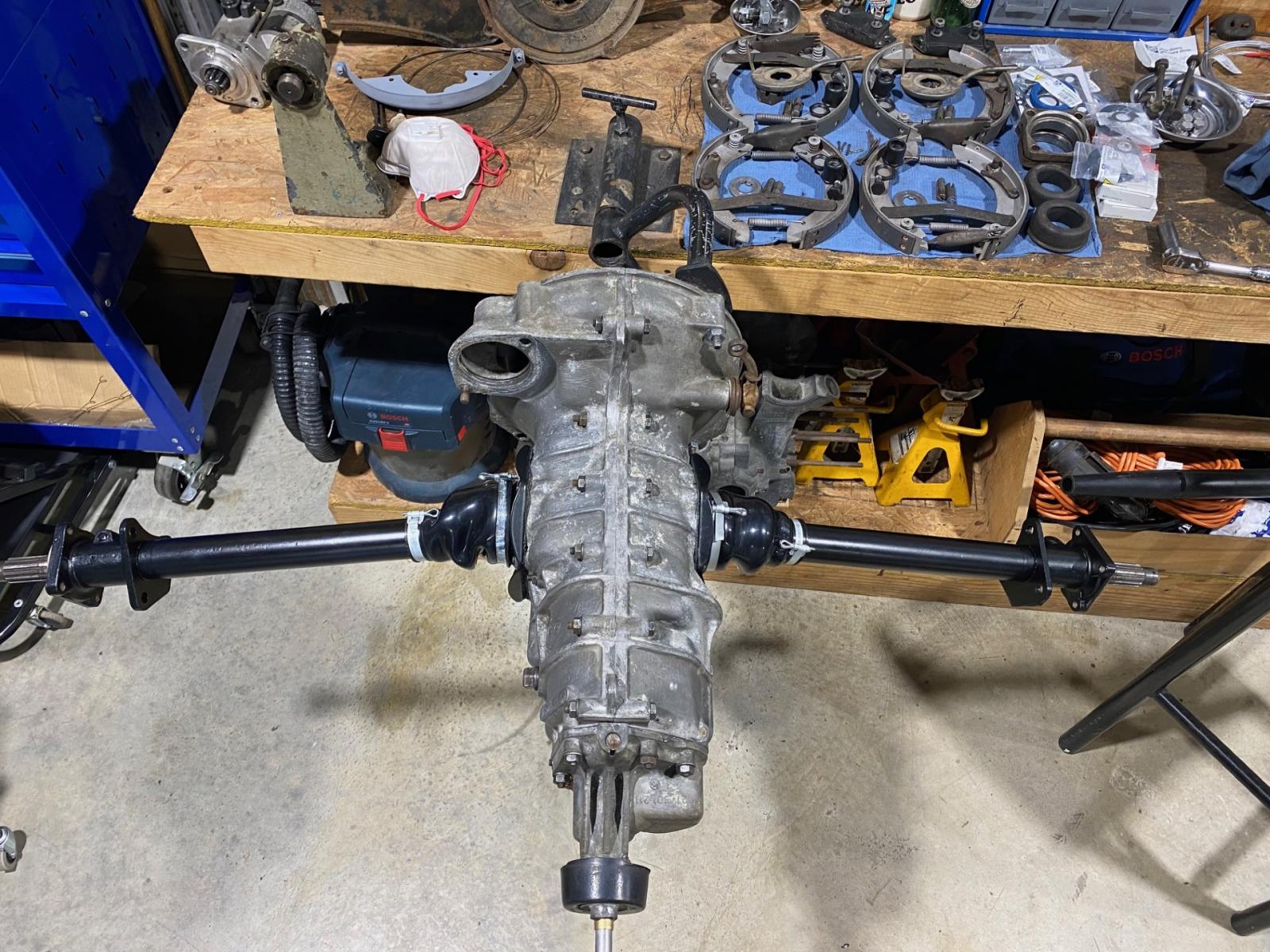

They did great detail work as always on all my pieces so jumped back on the tranny getting it outfitted the axle tubes and boots.

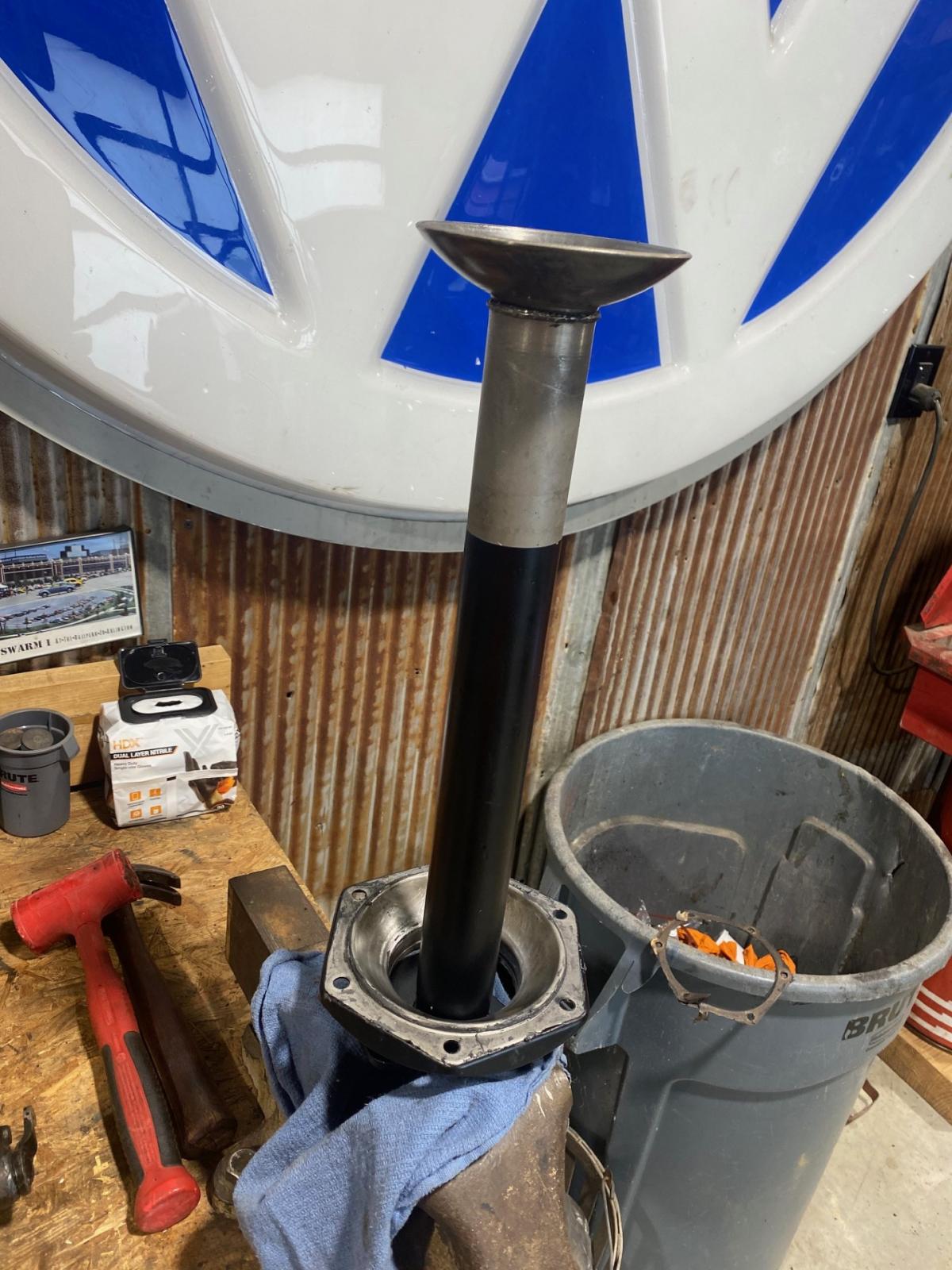

You know the drill heat rubber condoms.

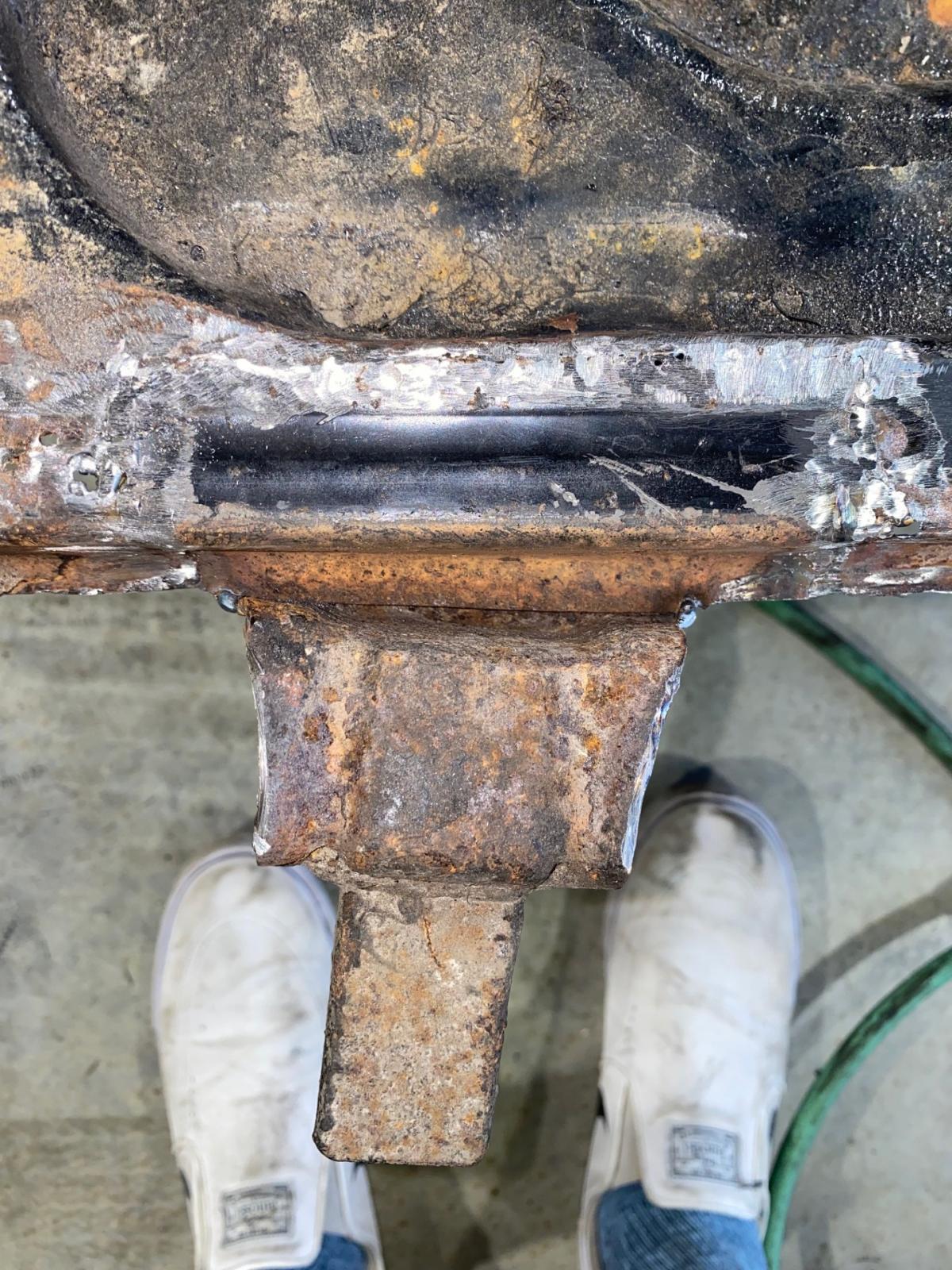

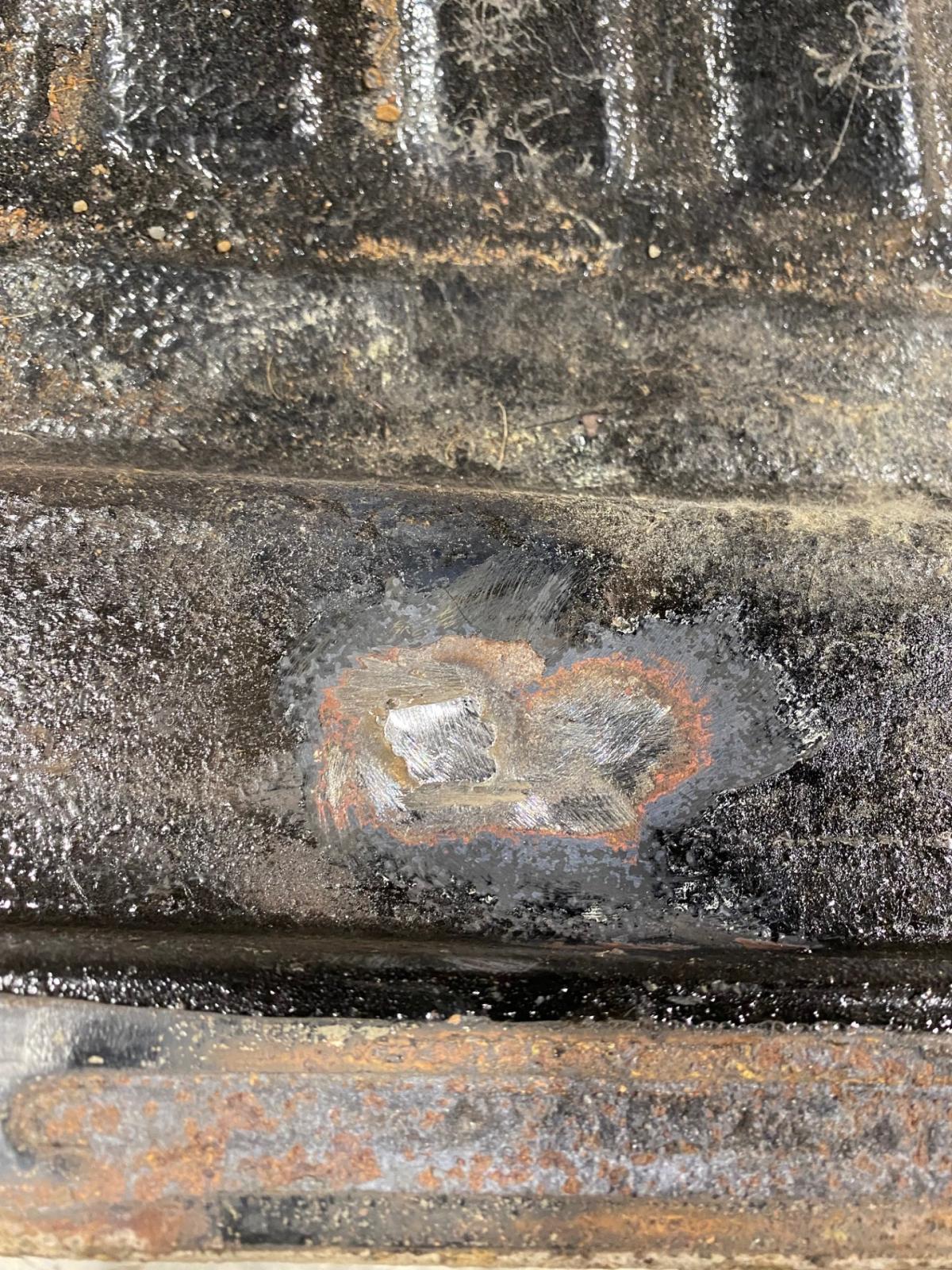

During this post I got that the call the chassis was ready from media so I went a picked up and did a couple of additional miner repairs.

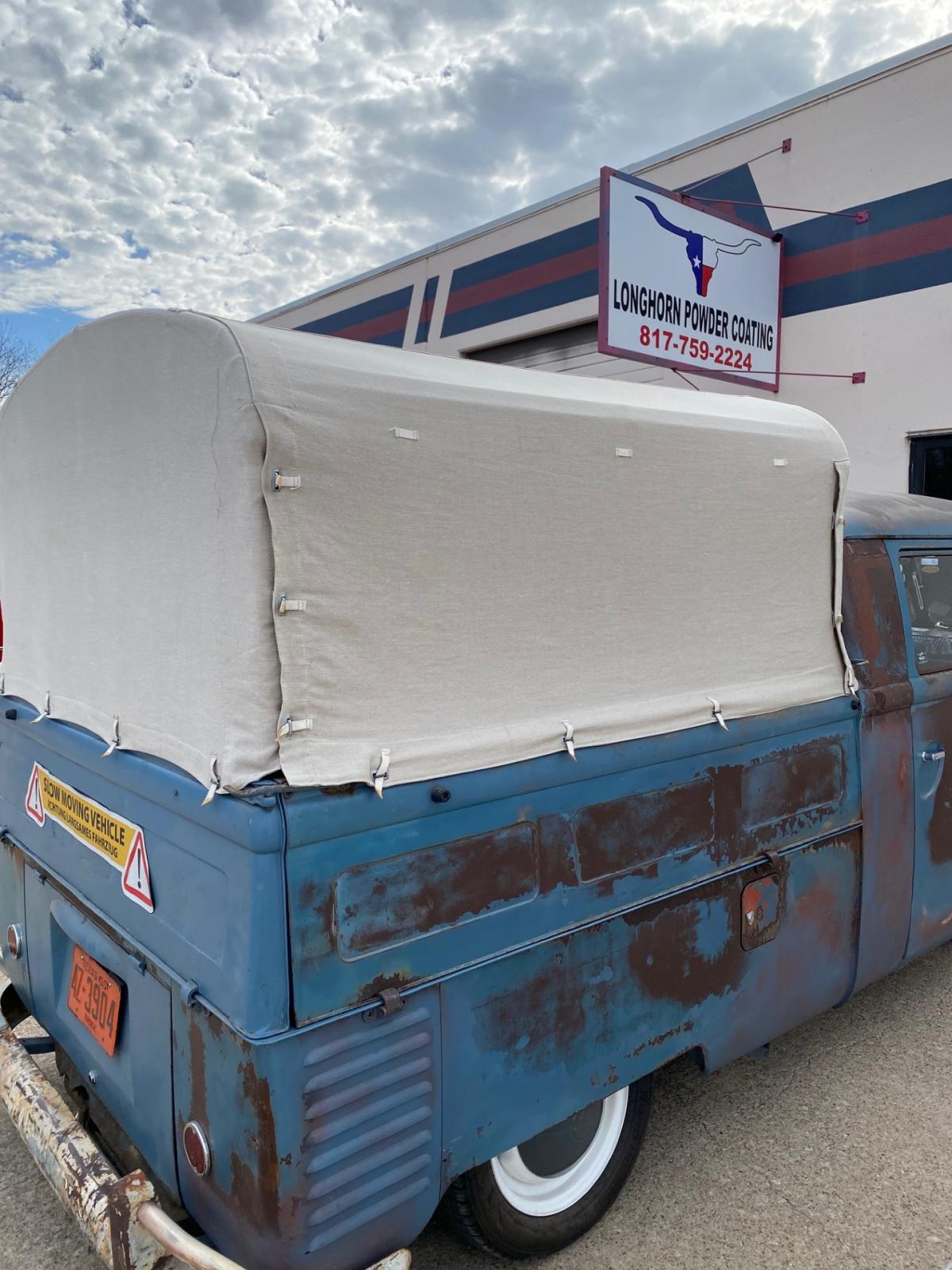

Then loaded the chassis up in style back to the powder coater.

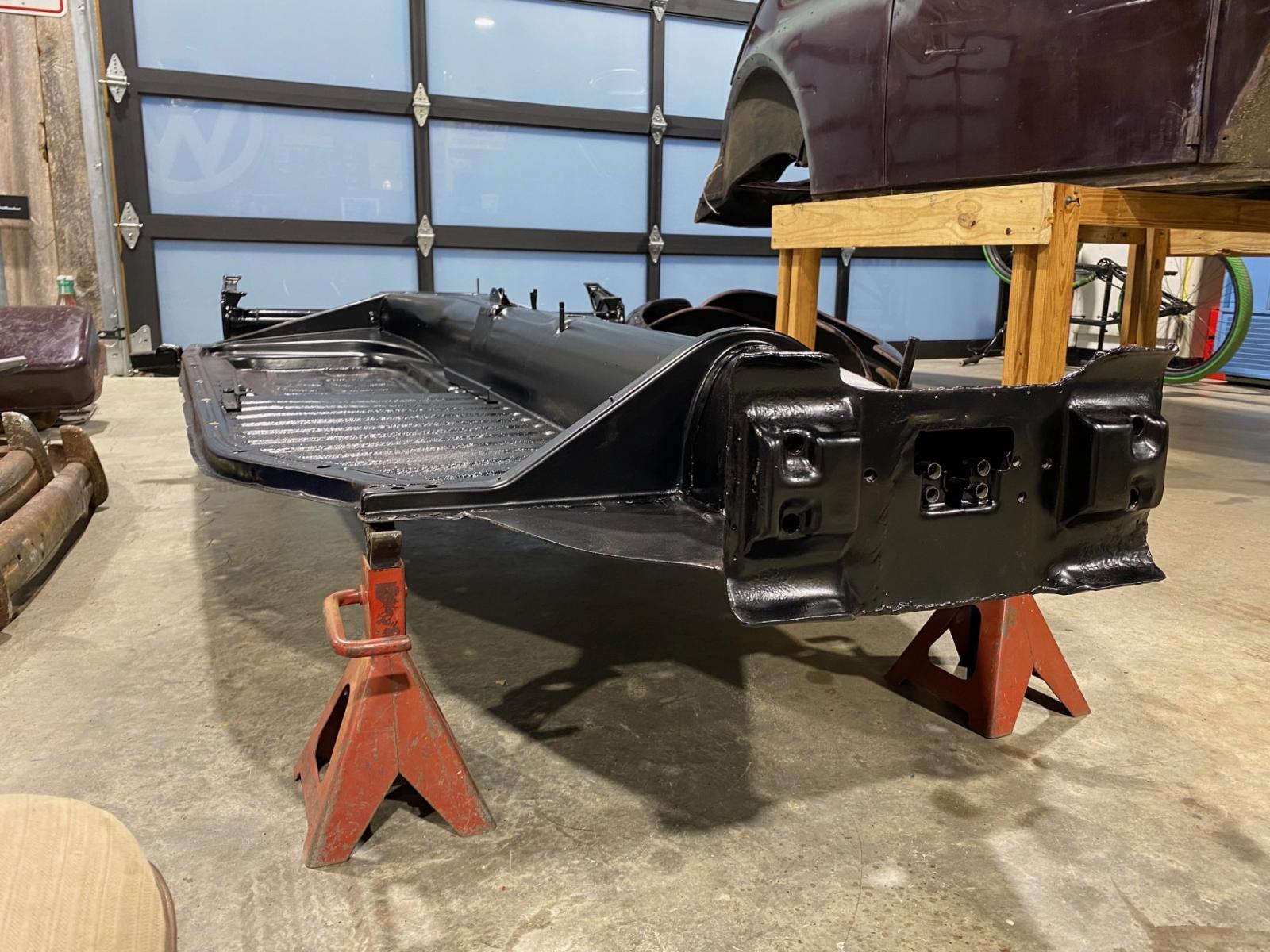

Then after a bowl of cereal I got the call the chassis was ready from powder coater. Well it's internet speed.
And I think it looks tits and should last another 70+ years!
