| Author |
Message |
ccpalmer
Samba Member
Joined: September 17, 2006
Posts: 3851
Location: Ann Arbor, Michigan
|
 Posted: Tue Mar 02, 2010 8:45 pm Post subject: |
 |
|

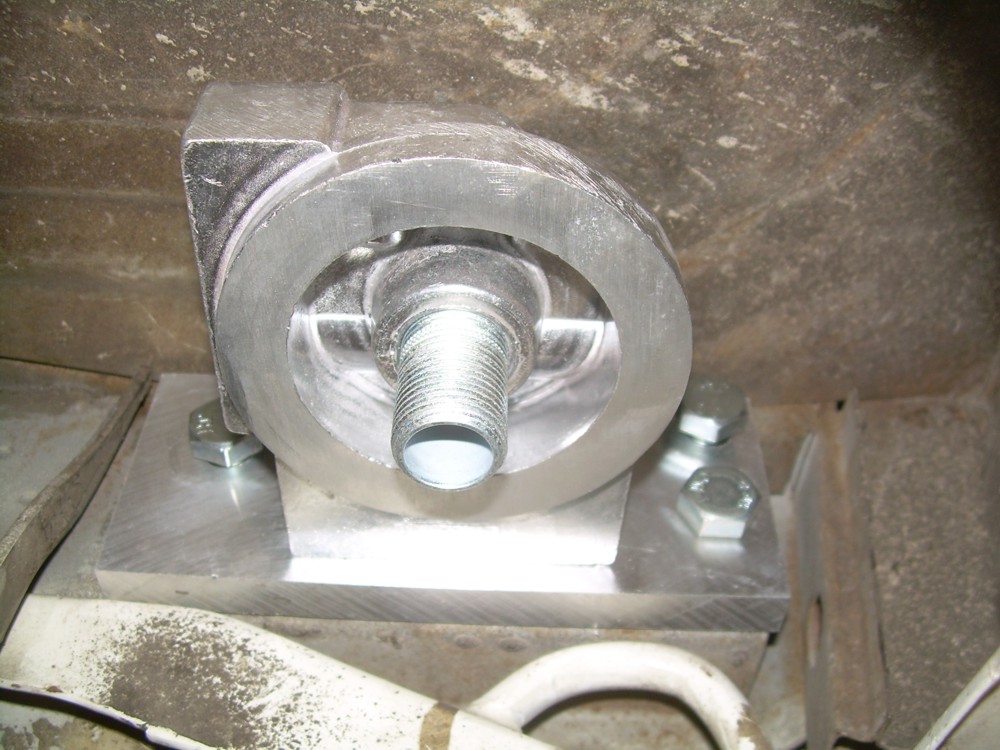

Ah; so that's what those convenient holes were meant to be used for! I found them handy for an oil filter..
_________________
'71 Westy |
|
| Back to top |
|
 |
mattcuddy
Samba Member
Joined: October 22, 2003
Posts: 2036
Location: Philly, PA
|
| Posted: Thu Mar 04, 2010 10:52 am Post subject: |
|
|
| vw76westy wrote: |
this came off a 70 westfalia that also had ambulance fans
& many other bells & wistles
|
Cool find. Any idea what model Westy it was from? Totally ancetdotal, but it seems the rarer options sometimes came on the rarer models. Maybe a euro spec bus? |
|
| Back to top |
|
|
EspenX
Samba Member
Joined: May 29, 2007
Posts: 133
|
| Posted: Thu Mar 04, 2010 10:59 am Post subject: |
|
|
| I am just curious, do all Bays have tow hooks? I mean - not the type pictured, but a tow hook under the car near the front? |
|
| Back to top |
|
|
germansupplyscott
Samba Member
Joined: May 22, 2004
Posts: 7279
Location: toronto
|
| Posted: Thu Mar 04, 2010 11:00 am Post subject: |
|
|
| EspenX wrote: |
| I am just curious, do all Bays have tow hooks? I mean - not the type pictured, but a tow hook under the car near the front? |
yes, they are welded to the frame.
_________________
SL |
|
| Back to top |
|
|
vw76westy
Samba Member
Joined: May 06, 2007
Posts: 1584
Location: so cal
|
| Posted: Thu Mar 04, 2010 11:10 am Post subject: |
|
|
it looked like a standard 1970 poptop westy to me
the only other really odd (rare) thing i saw was
a 6th seat floting in the cab
yes 6th -2 front 2 rear,jump seat is #5 & this seat was #6
& yes it is original -it has the original lam & yellow viynal with correct wood on inside

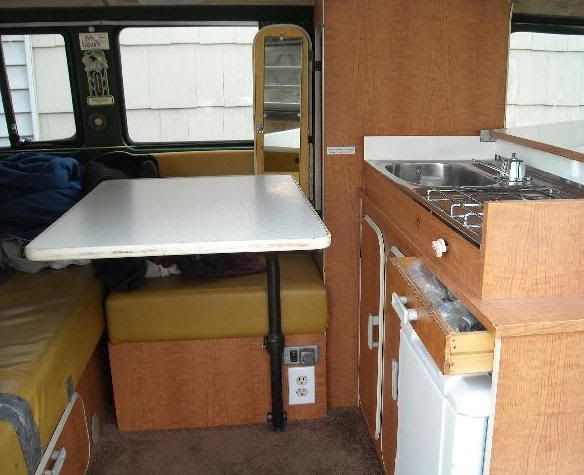

& a 110outlet at the bottom of one side next to black brackets
to mount a table leg
i have never noticed it before in other early westy"s
& if anybody has a pic of seat in the bus i would like to see it
| Quote: |
Cool find. Any idea what model Westy it was from? Totally ancetdotal, but it seems the rarer options sometimes came on the rarer models. Maybe a euro spec bus?
|
these things did not come to mind untill it was to late
thats why im hoping that i get a chance to revisit this bus before the crusher so i can get the m-plate
_________________
order your BAY WINDOW T-SHIRT here http://www.thesamba.com/vw/classifieds/detail.php?id=1526918
quote from bay window bus buyers guide........
The Type 4 engine is considered by many to be VW's finest air-cooled motor, |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53159
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Mar 04, 2010 12:19 pm Post subject: |
|
|
| germansupplyscott wrote: |
| EspenX wrote: |
| I am just curious, do all Bays have tow hooks? I mean - not the type pictured, but a tow hook under the car near the front? |
yes, they are welded to the frame. |
Or part of the bumper brackets on a 68-72 (72 is a separate bolted piece).
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Thu Mar 04, 2010 12:41 pm Post subject: |
|
|
| vw76westy wrote: |
it looked like a standard 1970 poptop westy to me
the only other really odd (rare) thing i saw was
a 6th seat floting in the cab
yes 6th -2 front 2 rear,jump seat is #5 & this seat was #6
& yes it is original -it has the original lam & yellow viynal with correct wood on inside
& a 110outlet at the bottom of one side next to black brackets
to mount a table leg
i have never noticed it before in other early westy"s
& if anybody has a pic of seat in the bus i would like to see it
| Quote: |
Cool find. Any idea what model Westy it was from? Totally ancetdotal, but it seems the rarer options sometimes came on the rarer models. Maybe a euro spec bus?
|
these things did not come to mind untill it was to late
thats why im hoping that i get a chance to revisit this bus before the crusher so i can get the m-plate |

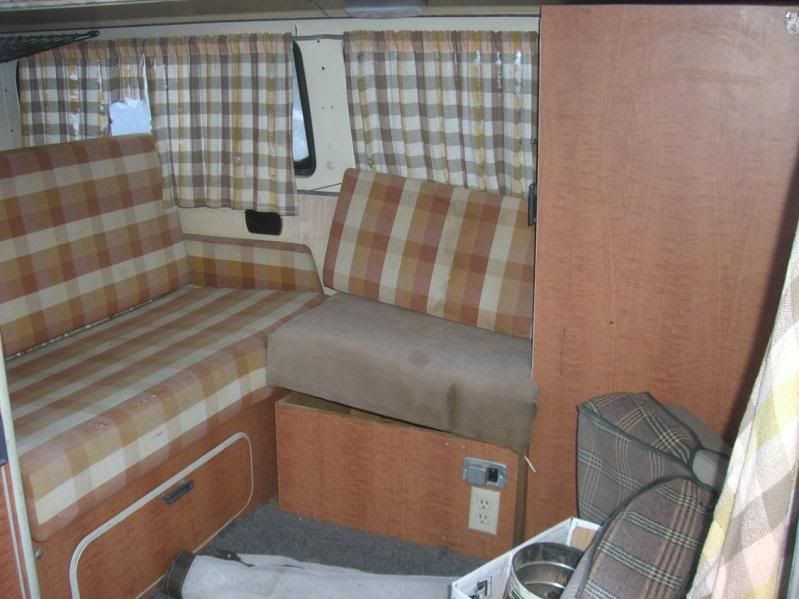

You mean kind of like this? thay are rare in the us but not so much in europe. This one had cloth upholstery and it is factory just not yellow vinyl. you can just see the holes where the table mount go's.
I have 2 of them.
_________________
where its cold and snowy |
|
| Back to top |
|
|
HelmutofBuffalo
Samba Member
Joined: August 22, 2005
Posts: 554
Location: West Coast of New York
|
| Posted: Thu Mar 04, 2010 4:22 pm Post subject: |
|
|
| Quote: |
| Any pictures of it installed? |
I use mine as a third brake light
_________________
1979 Type I Convertible |
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
thewalrus
Big Jack
Joined: March 27, 2006
Posts: 3014
Location: Belchertown, MA
|
| Posted: Fri Mar 12, 2010 1:58 pm Post subject: |
|
|
This is the second time I've seen that "Wedge Pillow." Never seen them before though. Any info on them?
I stumbled across this in the classifies:
http://www.thesamba.com/vw/classifieds/detail.php?id=807432
DANG!!
_________________
'73 Transporter 1.7L Dual Carb
| notchboy wrote: |
| You ran over some #Vanlife'ers hopes and dreams? |
| 60vwnewengland wrote: |
| Looking forward to next weekend, weed, krunk juice, hookers, blow, hanging with bums, philly, ...the awards! |
|
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Mar 12, 2010 2:05 pm Post subject: |
|
|

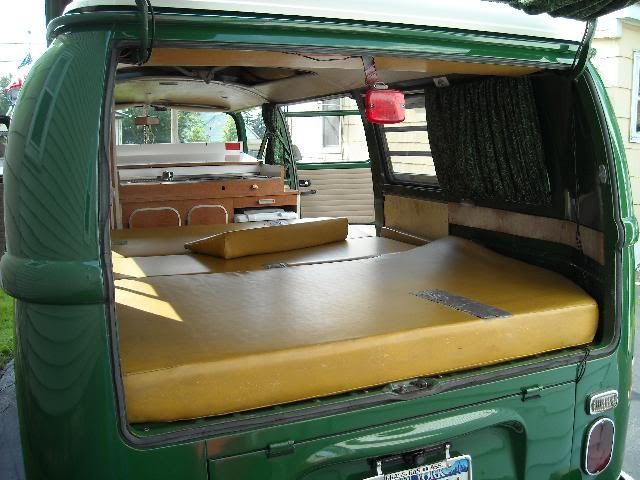

You will see that pillow in place on my photo a few post back. It is the back rest for the side seat. In my photo it's the seat with the odd color bottom pad. It was only in this style of westy. Thay can be very hard to find.
_________________
where its cold and snowy |
|
| Back to top |
|
|
VWMIKE76
Samba Member
Joined: February 21, 2006
Posts: 669
Location: lynnwood, washington
|
| Posted: Fri Mar 12, 2010 4:39 pm Post subject: |
|
|
I also have quite a few of them, orange and blue ones! would like to trade one of them for a yellow one if someone has one!
| bigbore wrote: |
| You will see that pillow in place on my photo a few post back. It is the back rest for the side seat. In my photo it's the seat with the odd color bottom pad. It was only in this style of westy. Thay can be very hard to find. |
_________________
Mike
77 westy Mac n cheese aka "Mac"
71 crew cab "Damien" sold and missed lots!
78 westy "Doc". in very good hands of a fellow samba member!
79 hardtop landmark "Shaggy II" |
|
| Back to top |
|
|
HelmutofBuffalo
Samba Member
Joined: August 22, 2005
Posts: 554
Location: West Coast of New York
|
| Posted: Fri Mar 12, 2010 5:47 pm Post subject: |
|
|
Until now I did not realize I had such a rare pillow

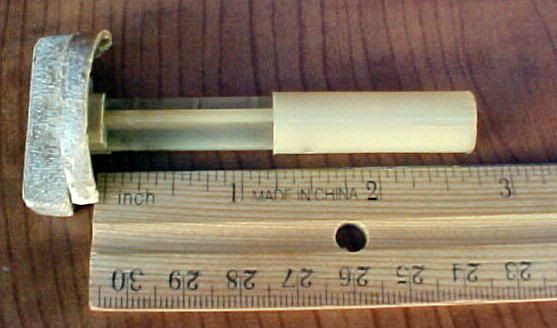

Even harder to find are the stove knobs, I've had a
"wanted" ad for over a year, then gave up and
made a couple. If anyone has one I would rather
have the proper ones. Somebody once wanted

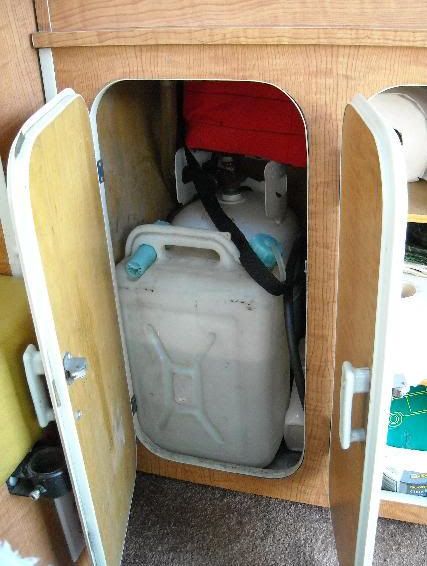

the water bottle real bad
_________________
1979 Type I Convertible |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Mar 12, 2010 7:03 pm Post subject: |
|
|
Iam putting my SO69 inside's into my 69 westy. I have most the setup that is in my photo that I posted earlyer and the other I have has the full width bed and a head banger cabinet. It will be nice to have one of my westy's with the wide bed. I woulder what this one I have is called. it is a nonwalk through and has the closet buy the bed and behind the driver. The other one I parted out is like the one's in the earlyer posted photo's but it was a walk through with the wide bed.
_________________
where its cold and snowy |
|
| Back to top |
|
|
patayres
Samba Member
Joined: March 20, 2009
Posts: 991
Location: Bend, Orygun
|
| Posted: Fri Mar 12, 2010 10:03 pm Post subject: |
|
|
| Quote: |
I woulder what this one I have is called. it is a nonwalk through and has the closet buy the bed and behind the driver. The other one I parted out is like the one's in the earlyer posted photo's but it was a walk through with the wide bed.
|
The first one you mention is the Stockholm, the second is the Zurich
From the VW Camper book by David Eccles (not verbatim):
Westfalia SO69 1969-1971
SO69/1 - Oslo - Nonwalkthrough (NWT) with wardrobe behind driver and kitchen unit extending across the rest of the bulkhead; full-width rear bench; single seat base under driver side middle window w/ swiveling table.
SO69/2 - Zurich - Walkthrough version of Oslo model
SO69/3 - Stockholm - NWT same as Oslo except for additional wardrobe next to sliding door (non full-width rear bench)
SO69/4 - Brussels - Zurich model with same additional wardrobe as Stockholm model
SO69/5 - Paris - Walkthrough; no cooker; wardrobe behind driver; sink/icebox behind passenger; full-width rear bench; roof cabinet
SO69/6 - Rome - Same as Paris except for additional wardrobe/non full-width rear bench (like Stockholm and Brussels models).
SO69/7 - Amsterdam - Walkthrough; single seat behind driver; nothing behind passenger; flip-up table attached to wall under driver side middle window
_________________
1975 Westfalia Helsinki - 1800 EFI w/ Pertronix
1965 Singlecab - 1600dp
yuthi'so'coro |
|
| Back to top |
|
|
bigbore
Samba Member
Joined: December 19, 2003
Posts: 3297
Location: Wasilla Alaska
|
| Posted: Fri Mar 12, 2010 10:53 pm Post subject: |
|
|
Cool thanks. My 69 did have the Amsterdam. I have pull it all out to fix the bus. the inside was in bad shape. I have parts of a Paris (out of a 71) and a Stoclholm (still in a 70). So when I get done it will be a Paris. I will have to get that book I have some other vw camper books but not that one.
_________________
where its cold and snowy |
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
|
| Back to top |
|
|
calebmelvin
Samba Member
Joined: July 19, 2006
Posts: 3140
Location: Seattle, WA
|
| Posted: Wed Mar 24, 2010 1:38 pm Post subject: |
|
|
I was poking around a garage sale the other day and came across a couple boxes of VW parts. Most of it was junk and misc stuff from all models but in the bottom of one I found this. Needless to say I bought all of it hoping there was more cool stuff but this was the only part of mention.

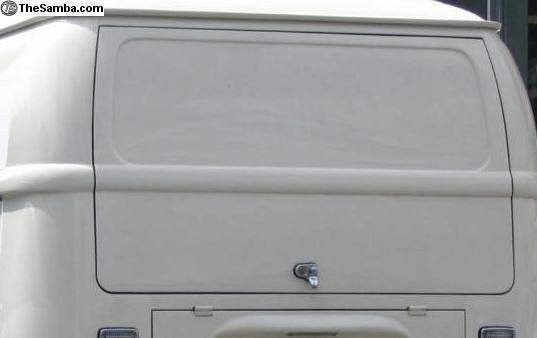

As seen on page 1:

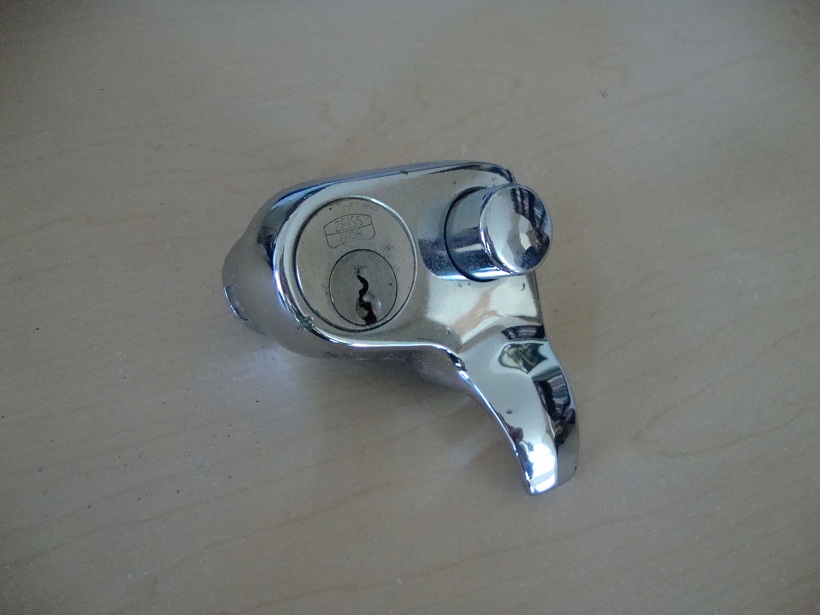

This is a locking decklid latch for Baywindows Part # 211 829 231 K
