11 window 1966 full resto

[Roger Lockhart]

Locking Good.

Almost the same work that I am doing to my 1964 bus.

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

[Yannvanh]

[Yannvanh]

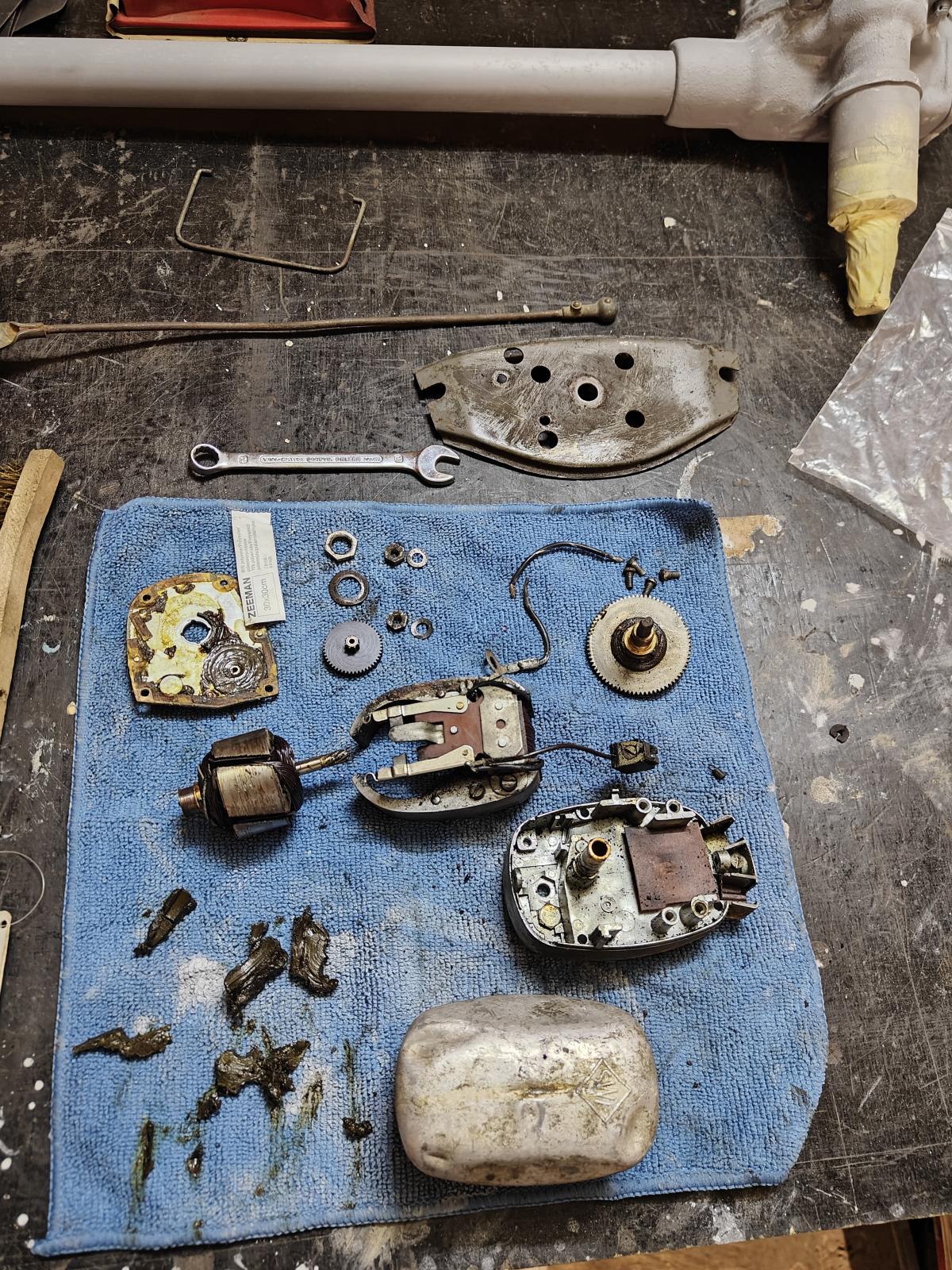

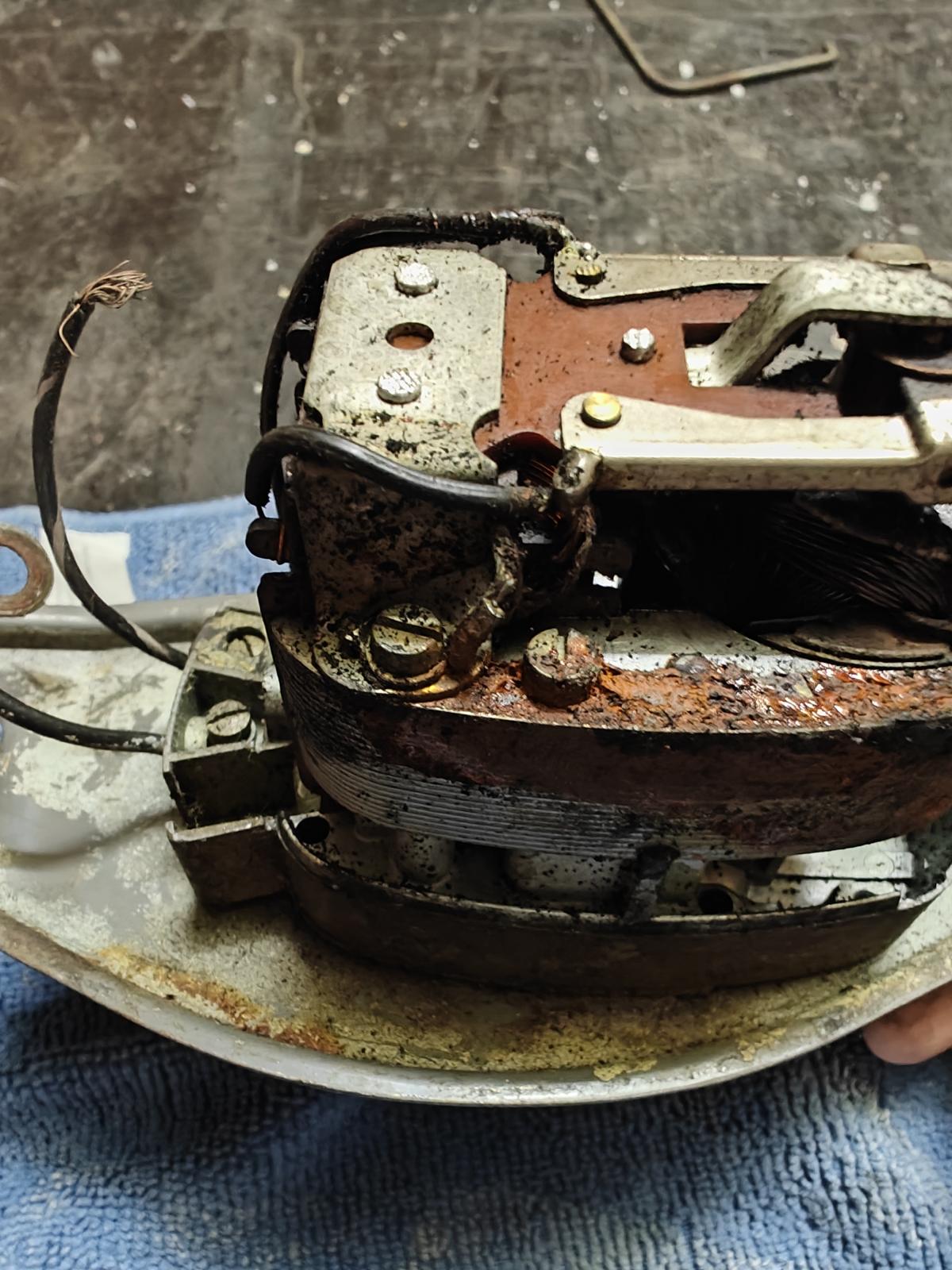

Time for the wiper motor,
I am doing a 12v conversion so gotta get the junk out of it,
Give it a good clean and install the new 12v rotor.

_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

Another common repair on the bus:

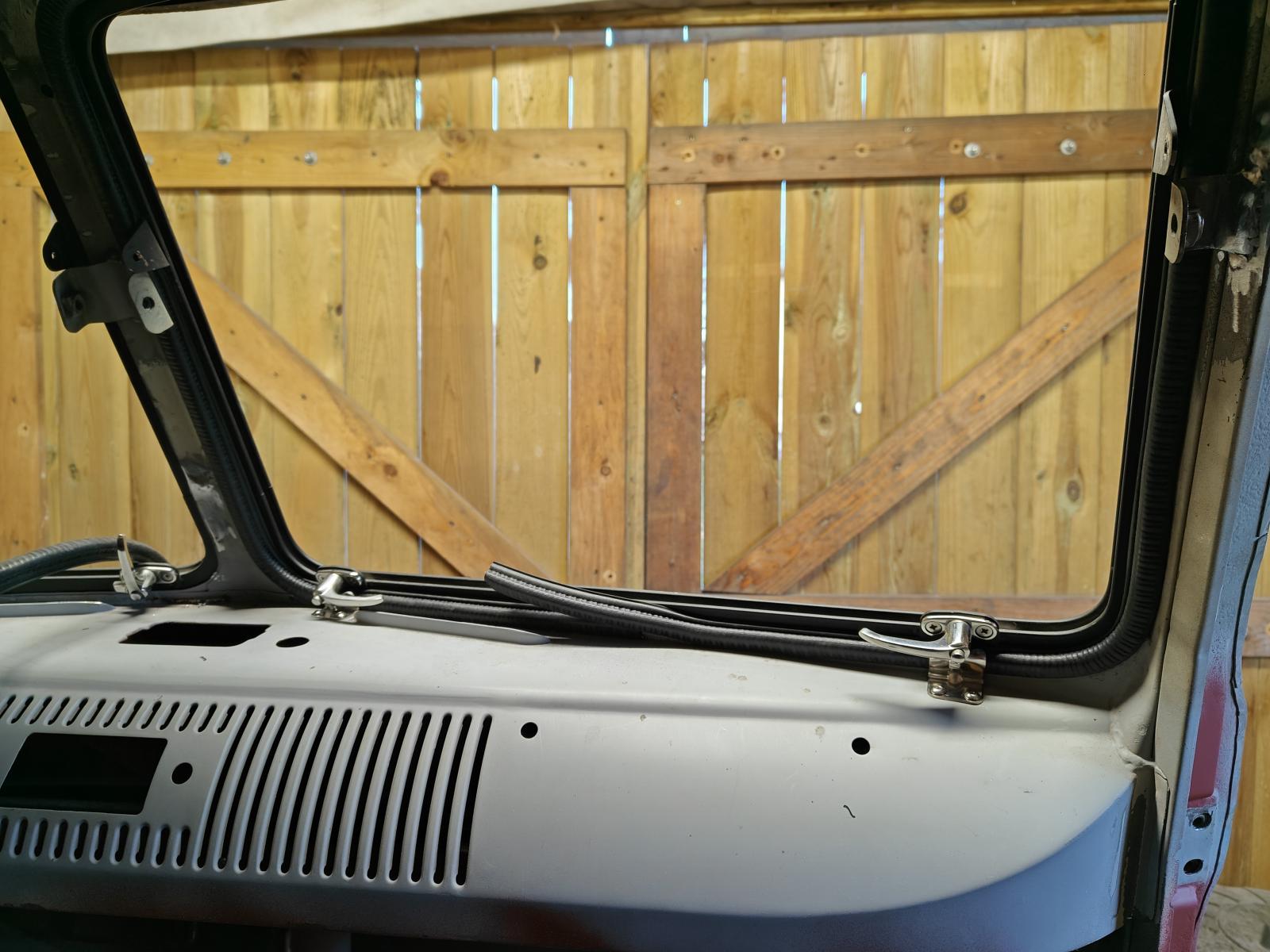

Also drilled holes in the dash and positioned my safari window latches.
doing it before paint offcourse

Almost ready for the exiting sanding part!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

Long time since my last update!

I have decided to sell my straight axle setup an go the IRS way.

there are several pro and con's but in my opinion IRS is way to go for me..

The bolt on brackets for beetle IRS are not an option.. the MOT doesn't allow this here in Belgium so the only that was left is the Creative Engineering Bay window bus kit. These require to cut the OG frame horns and weld in their ones. but CE doesn't make these anymore so i started to gather some parts.

i did managed to find the frame horns seperately aswell as the shock mount brackets. (it think i bought the very last brackets available)

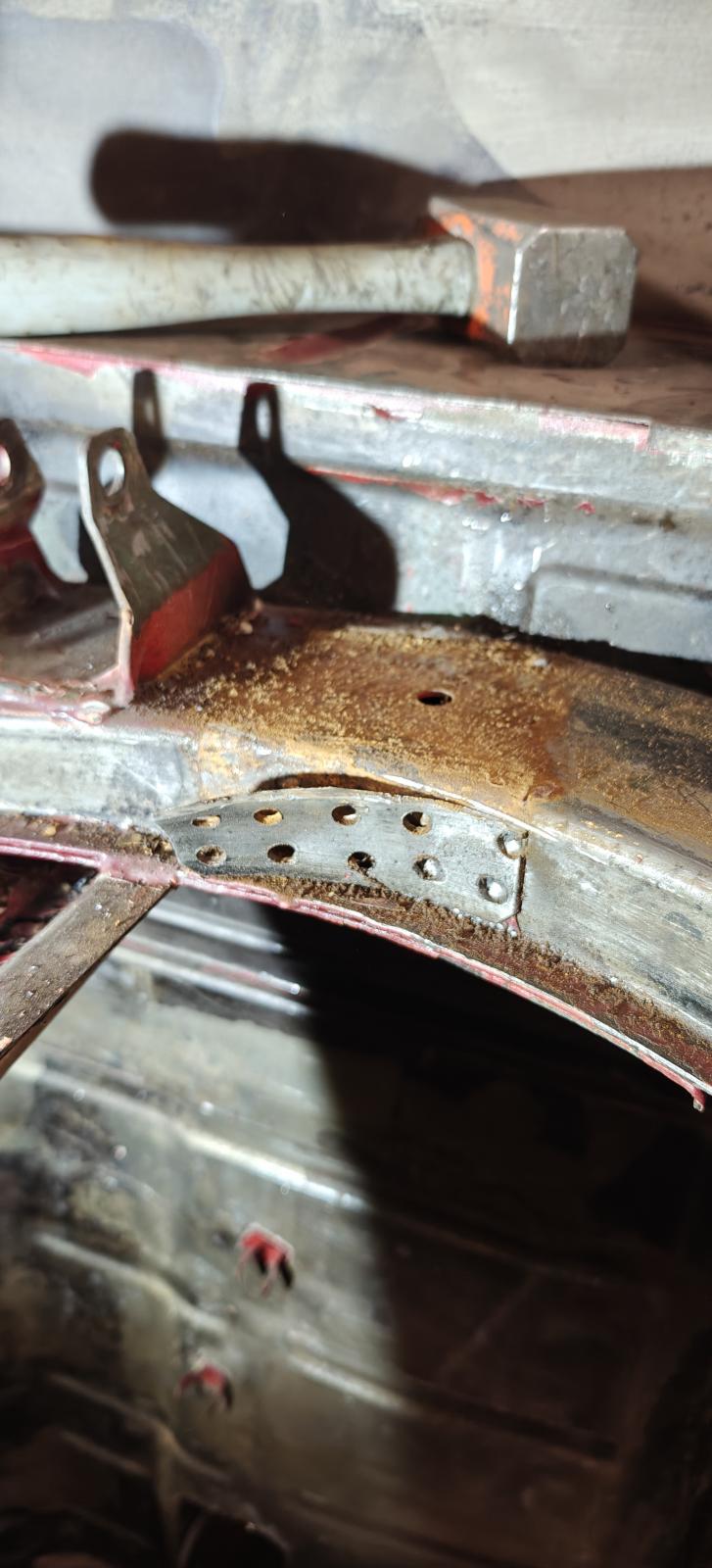

started to remove the old stock shock mounts:

Bolted the new ones in:

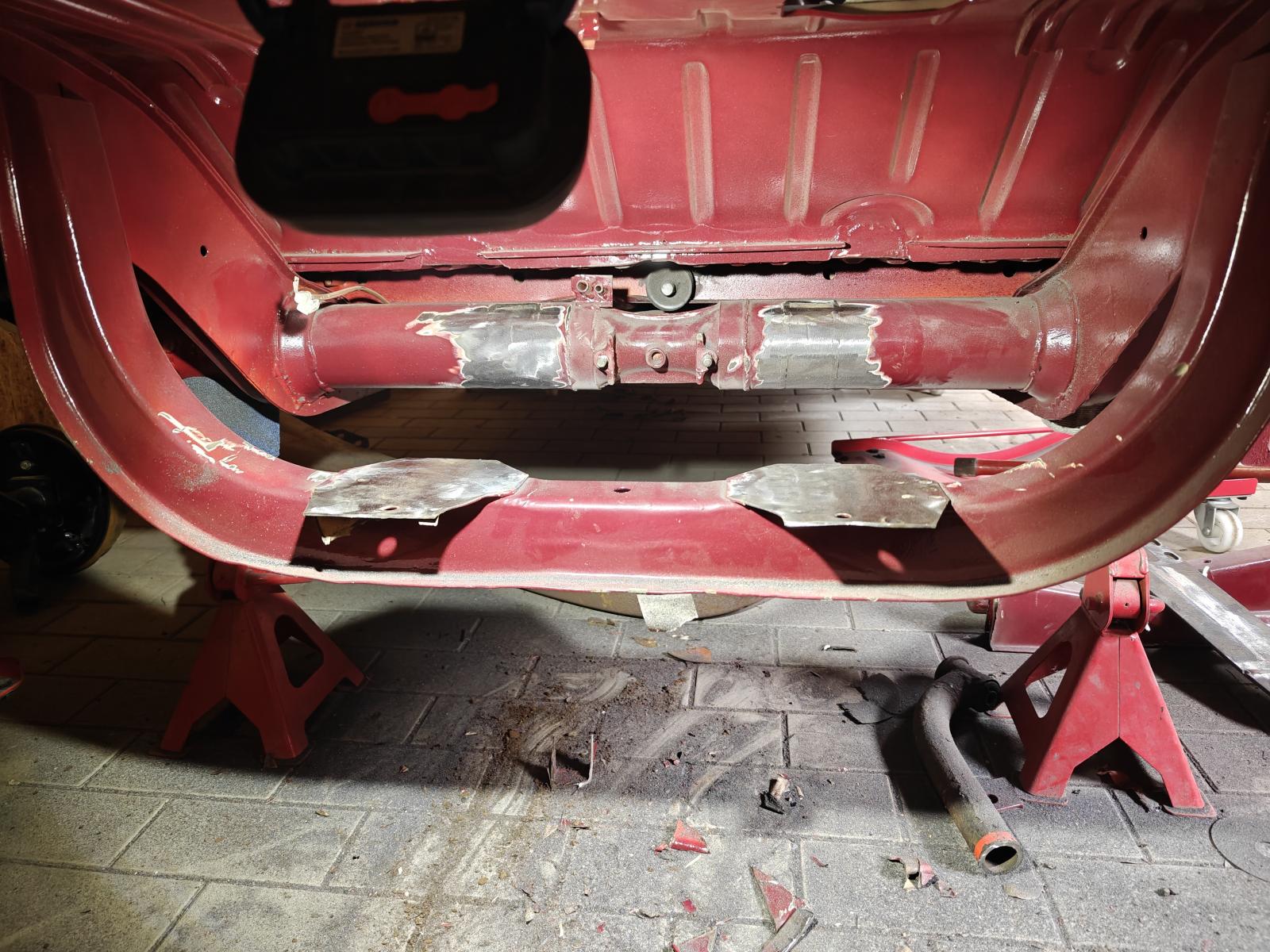

next up, cut the OG framehorns:

Triple meausered where the CE horns need to come,
U can find the manual for this conversion online, it's really obvious and easy!

Since i actually need everything from an early bay window and parts for that are so hard to find, i am gonna take the control arms from an early bay (which i had layin around) an use the rest from a late bay bus and fabricate some things myself.

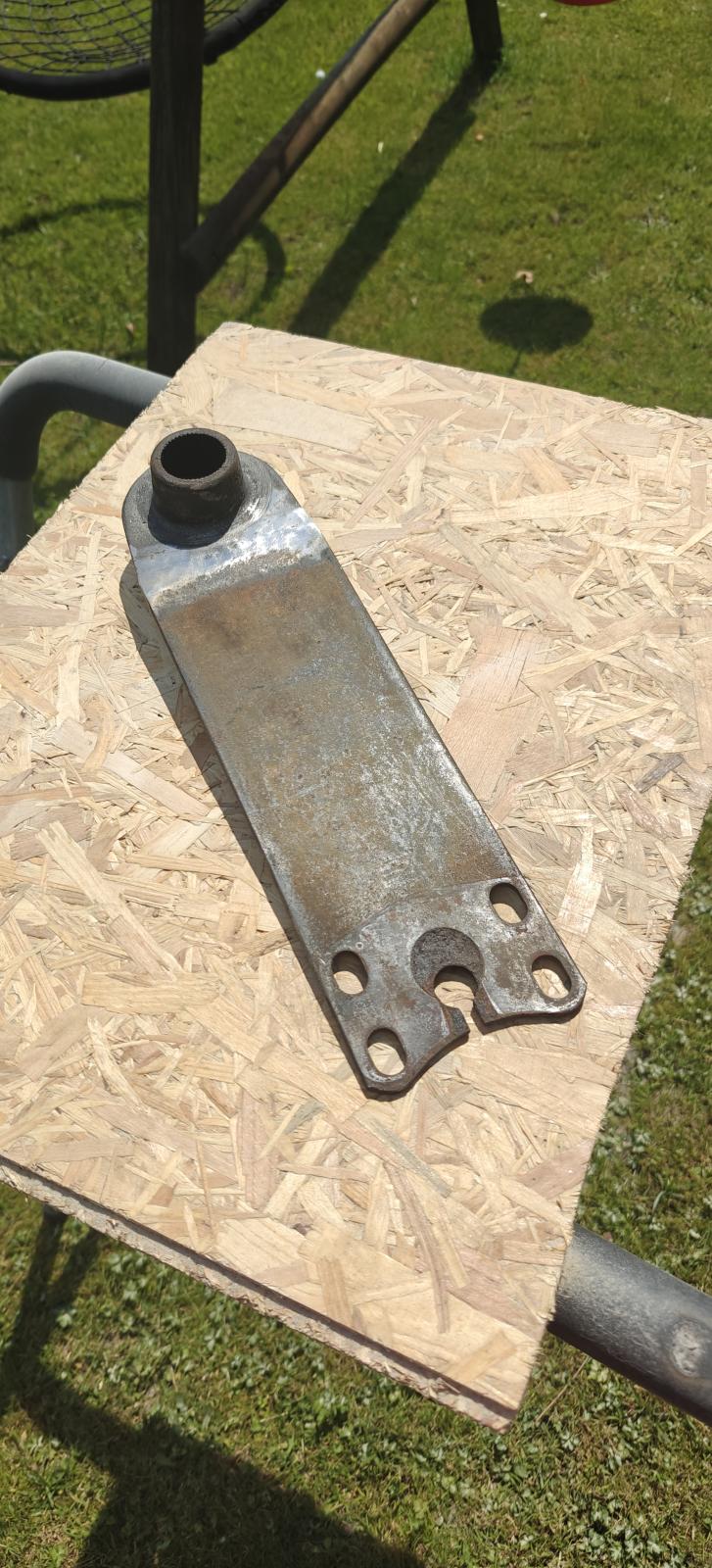

needed to make my own spring plates using stock split bus front piece and late bay rear piece:

meausured and tack weld it:

fits perfect!

Fully welded the CE framehorns:

really happy with the way things going!

More to come!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[stevecul8er]

Nice. I’ve been doing some research on this combination rear setup. Concerning the springplate- is there not any reason to not use the stock 68-70 springplate ?

[Yannvanh]

Nope.. but they are so hard to find here in Belgium/Europe

The only thing what my manual says is that the all of the spring plates (CE, early bay and late bay) have 48 splines..

I don't know how many splines a stock splittie has but my late bay spring plates were too big for my torsion bars..

I had a few split bus and late bay spring plates laying around so i weld them together with a 370mm length

Also there's a mistake in the manual i think.. it should be 68-69 and not 68-89
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Ring-Free]

Oh dear, the MOT in Belgium. I hope they don't complain.
You make things safer and better and they say "NO"
_________________
my current challenge

https://www.thesamba.com/vw/forum/viewtopic.php?t=779910

Instagram: ringfree_marc_roder

[Yannvanh]

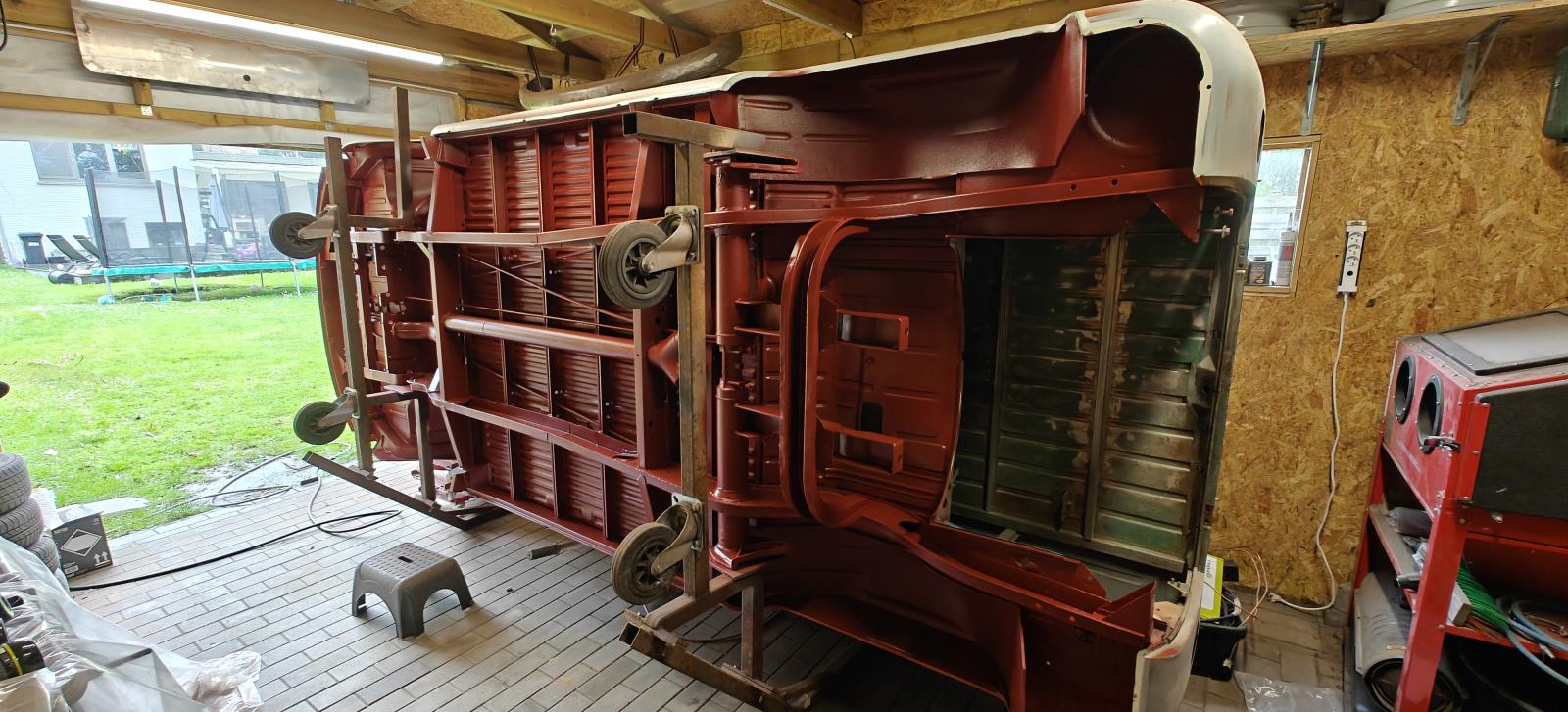

After i made a mistake with the undercoating it began to peel of..

What a headache to get few steps back, but there was no other choice then take everything back off and start all over..

My fault whas that i used 1k brunox rust convertor and epoxy and then put a 2k epoxy over that.. there was no good bond between the two

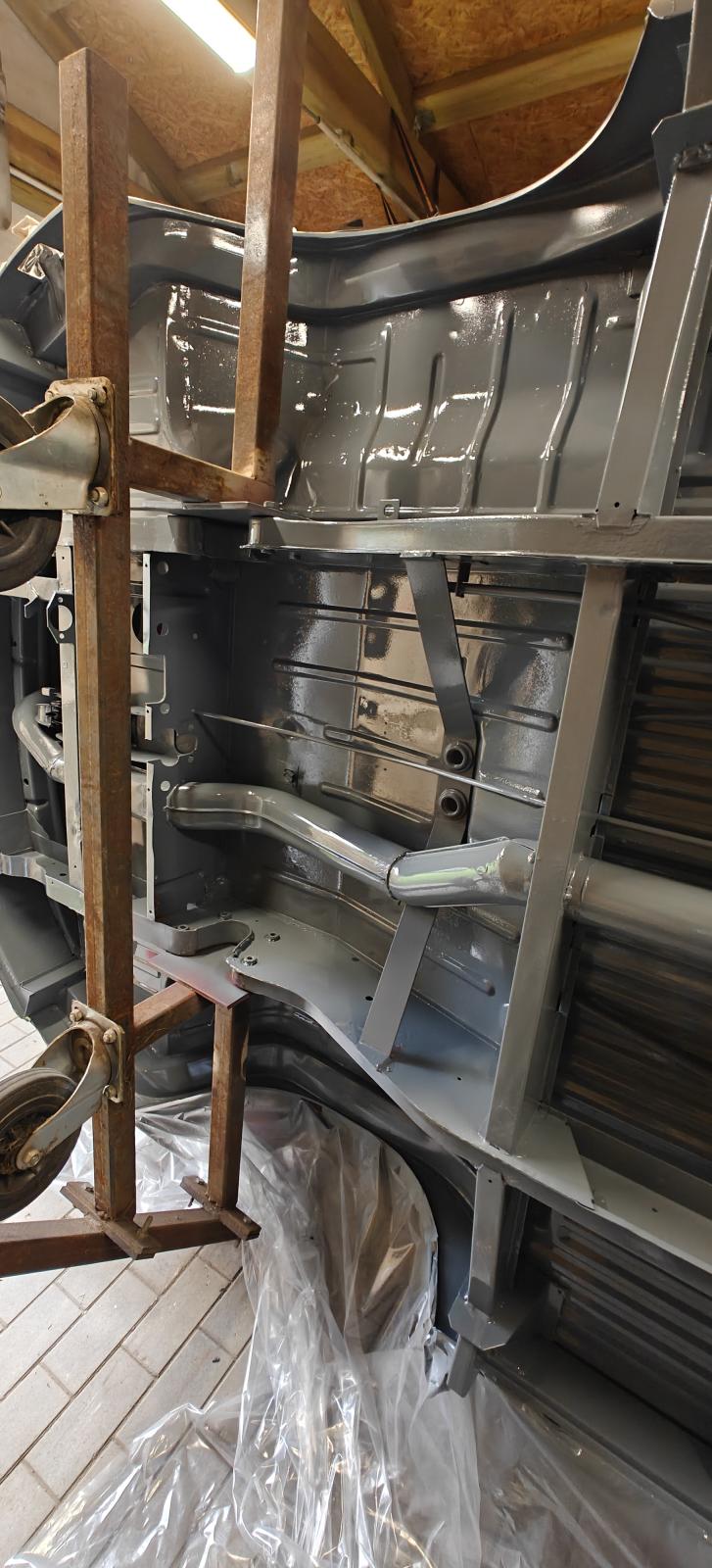

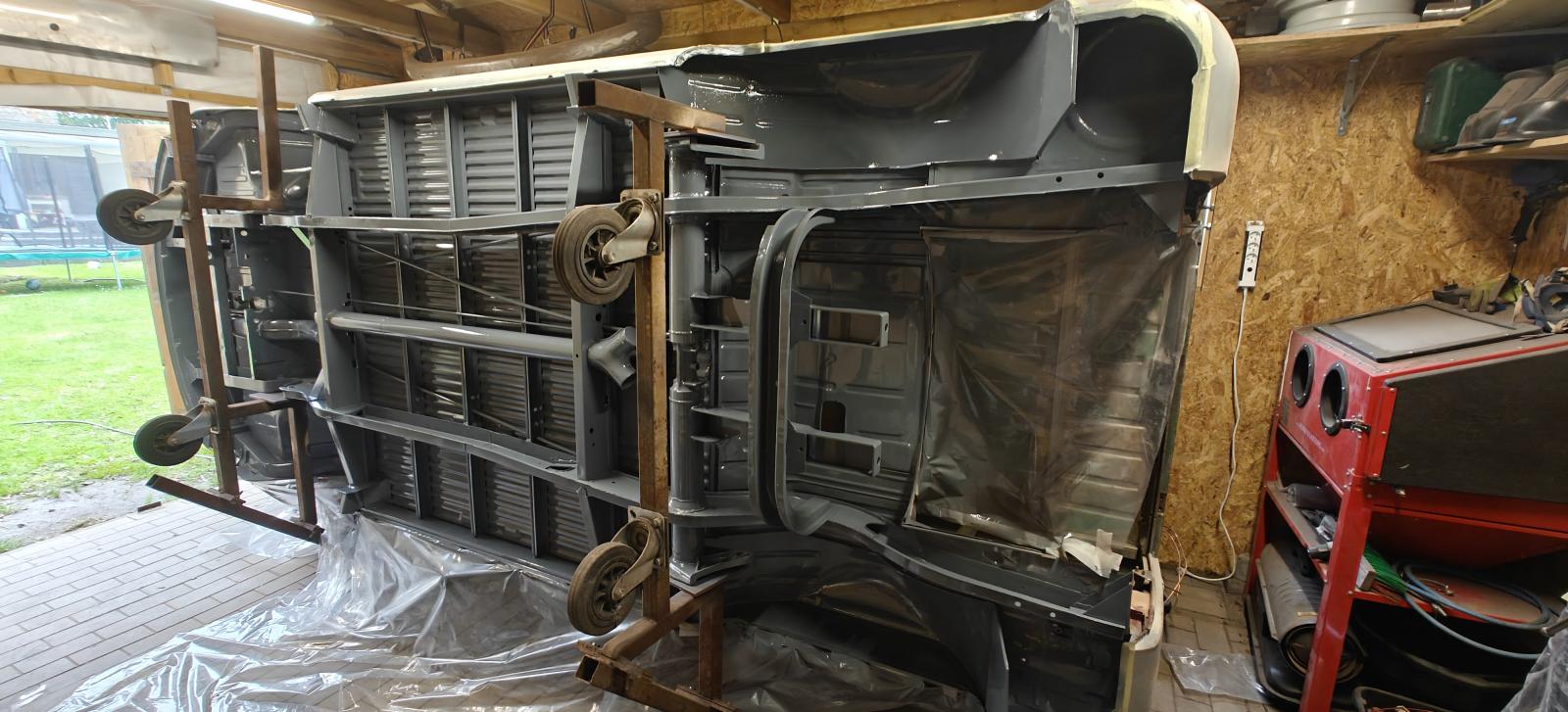

So everyrhing had to go back to bare metal and i decided to go for a raptor liner epoxy and undercoating:

10 times better then the previous in my opinion.. wish i had it done the first time Still learning everyday!

Now just let it cure for a couple off days and start to rebuild again!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

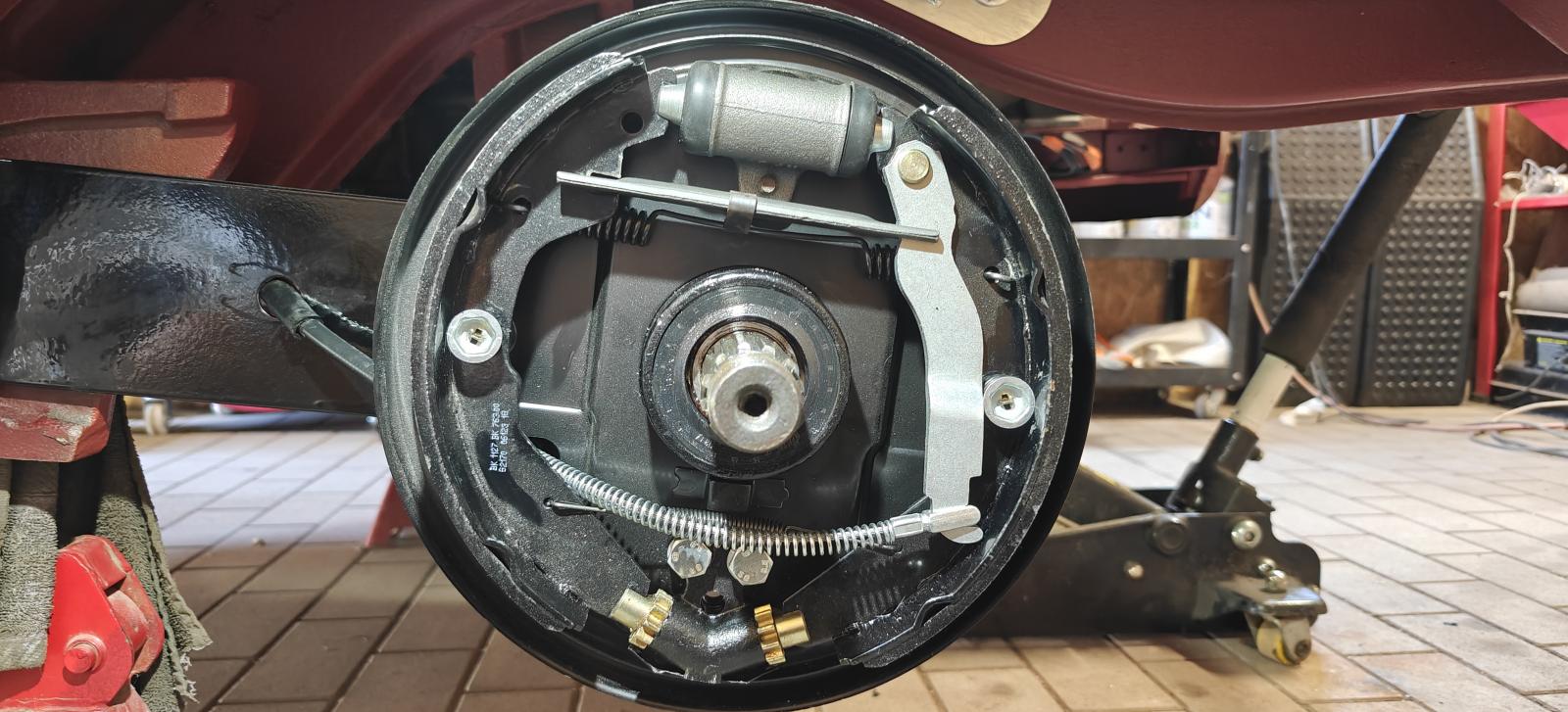

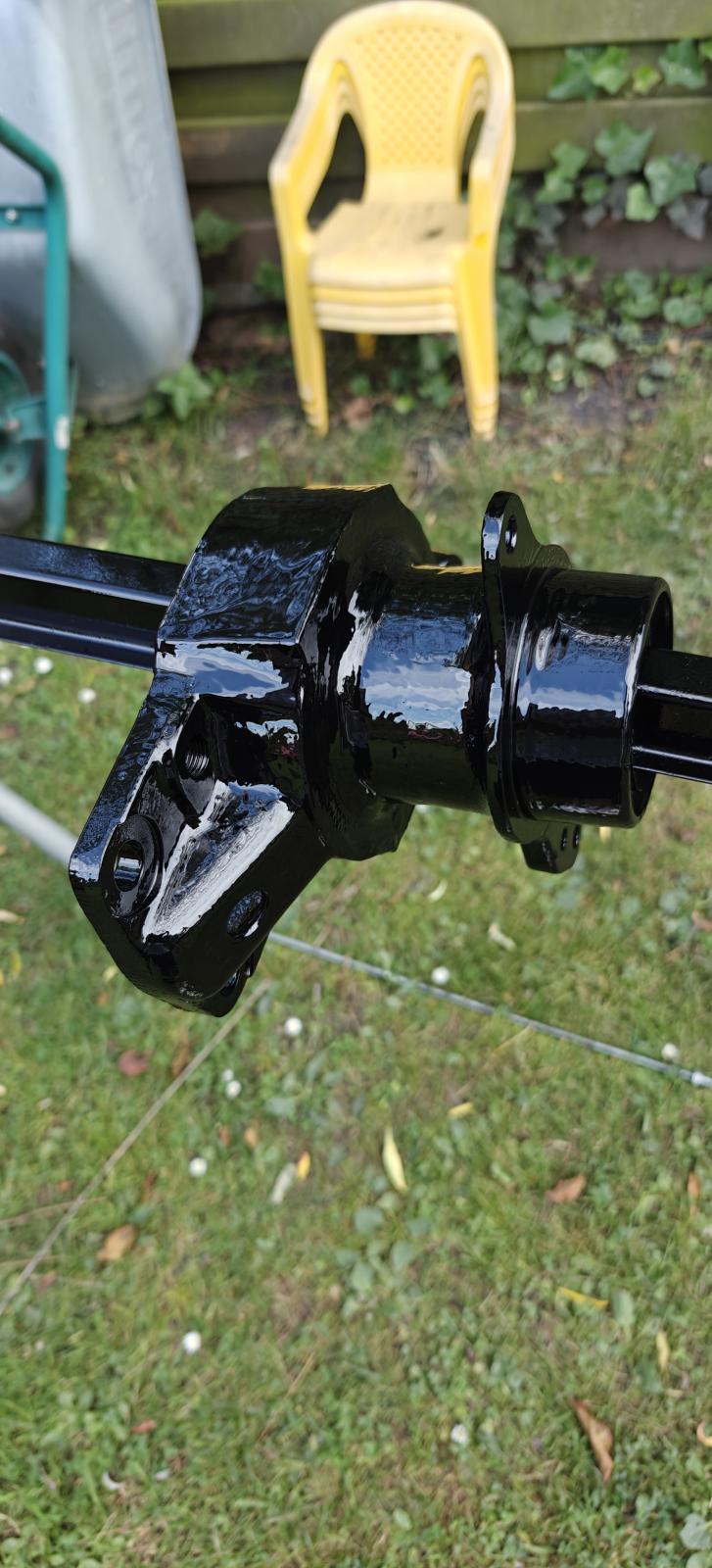

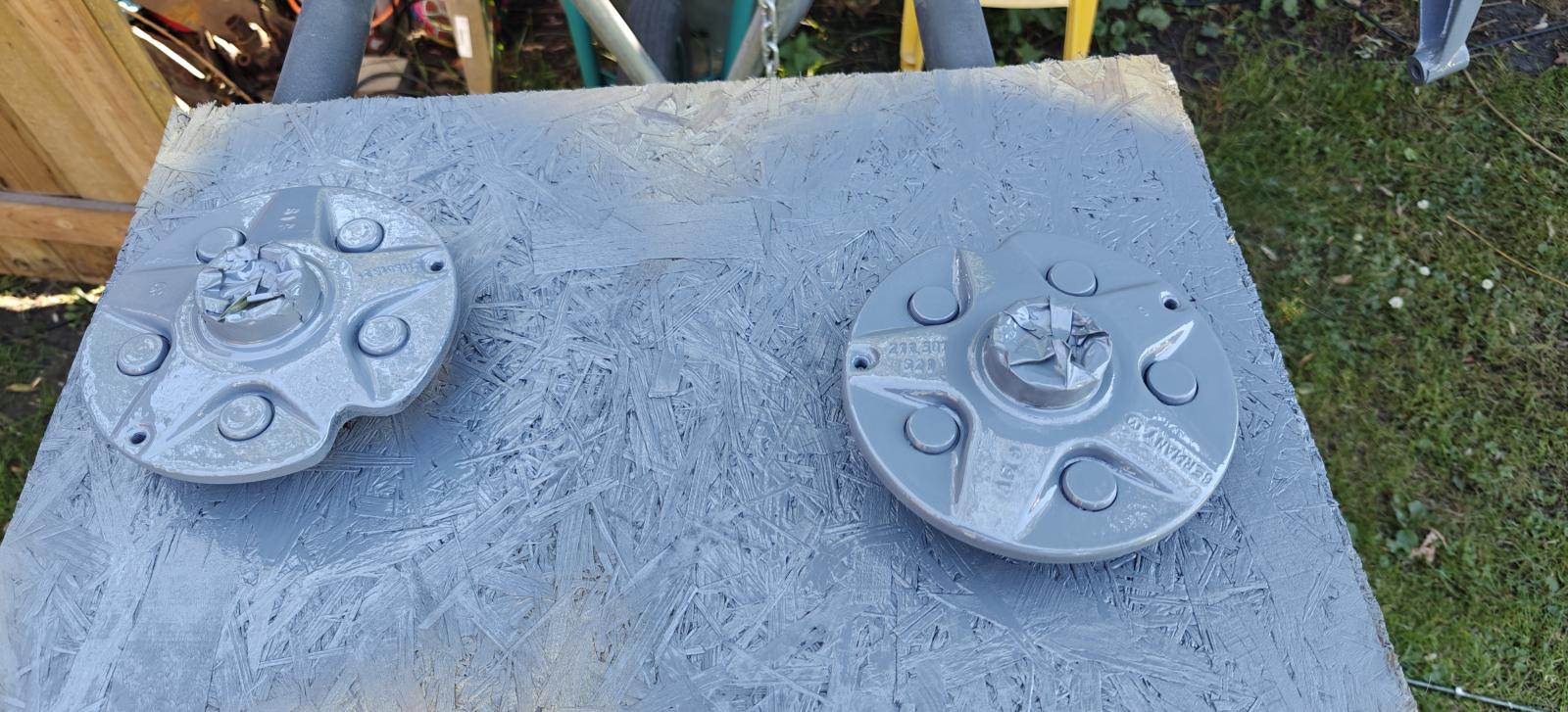

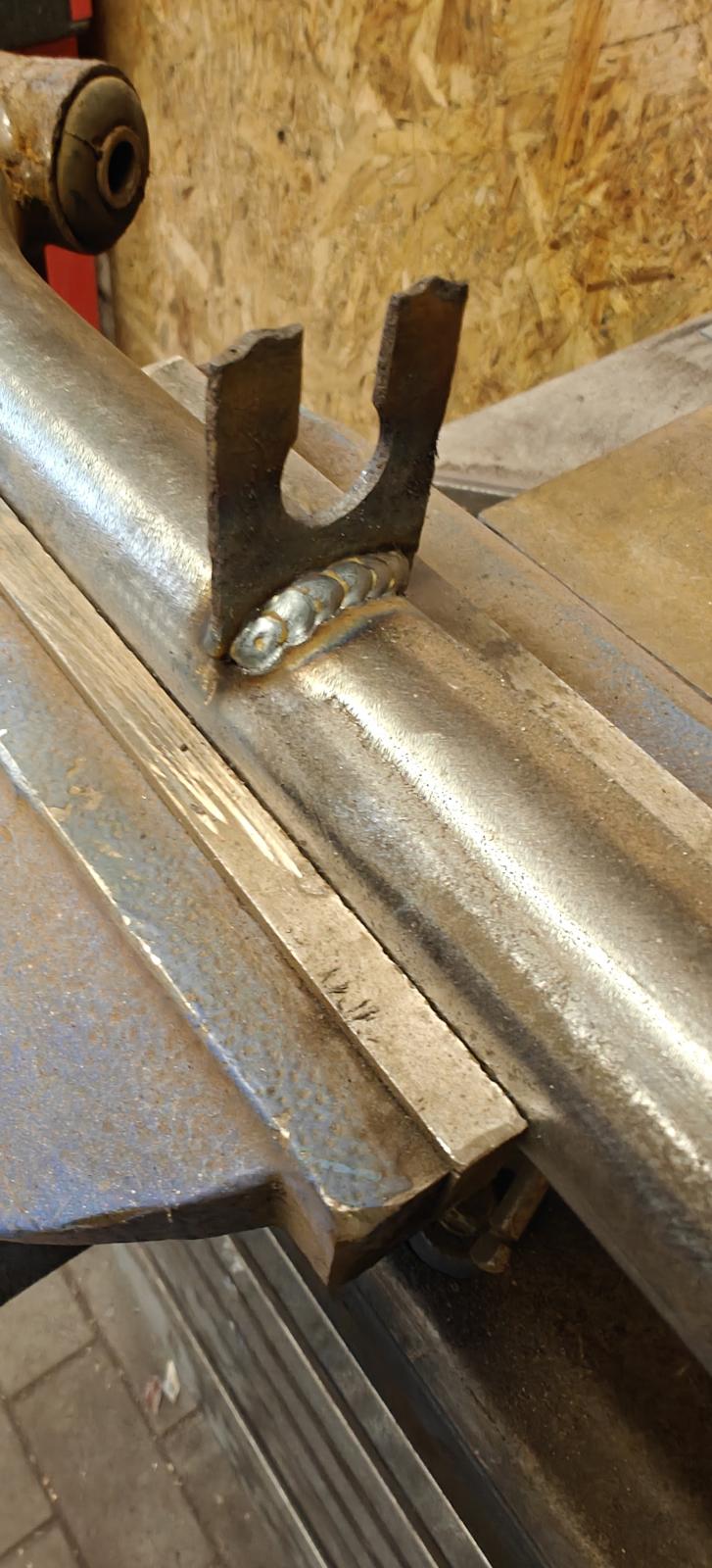

Sanblasted all of the IRS parts and relocated the brake line bracket on the control arm so it doesn't get in the way of the frame horn..

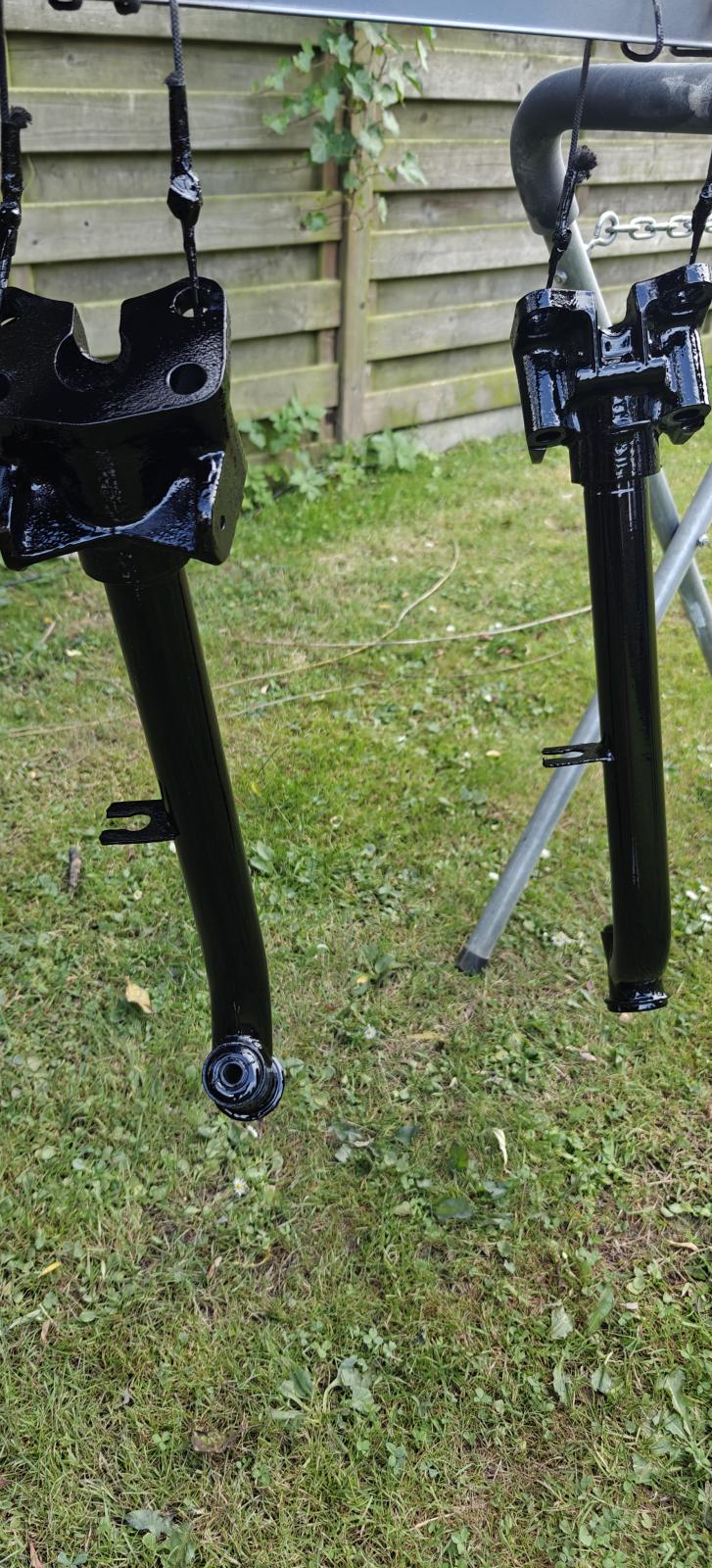

Primed everything in epoxy and painted it black!

Also made custom brake lines for the new setup.

Next up is pull the bus out of the rotisserie and start building things up!

Keep u updated!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

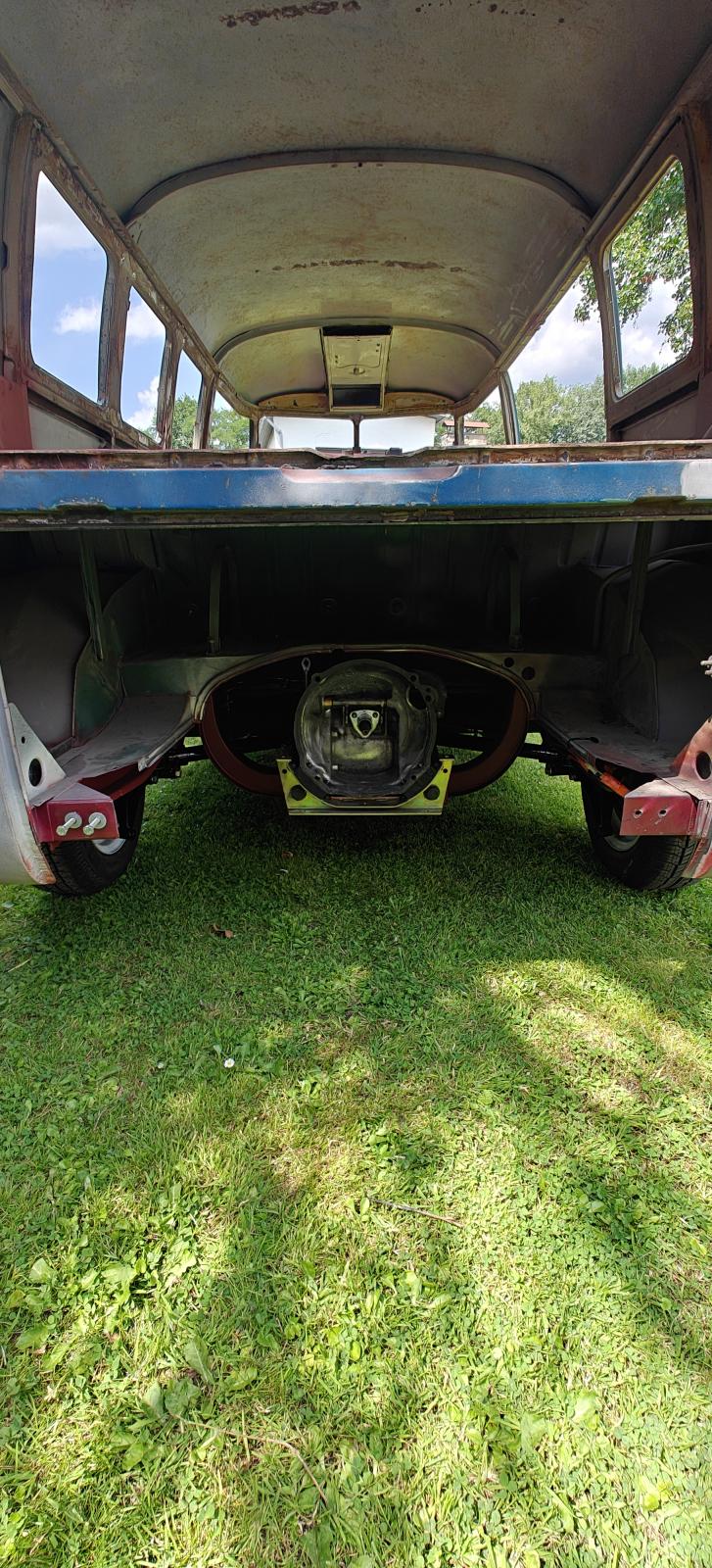

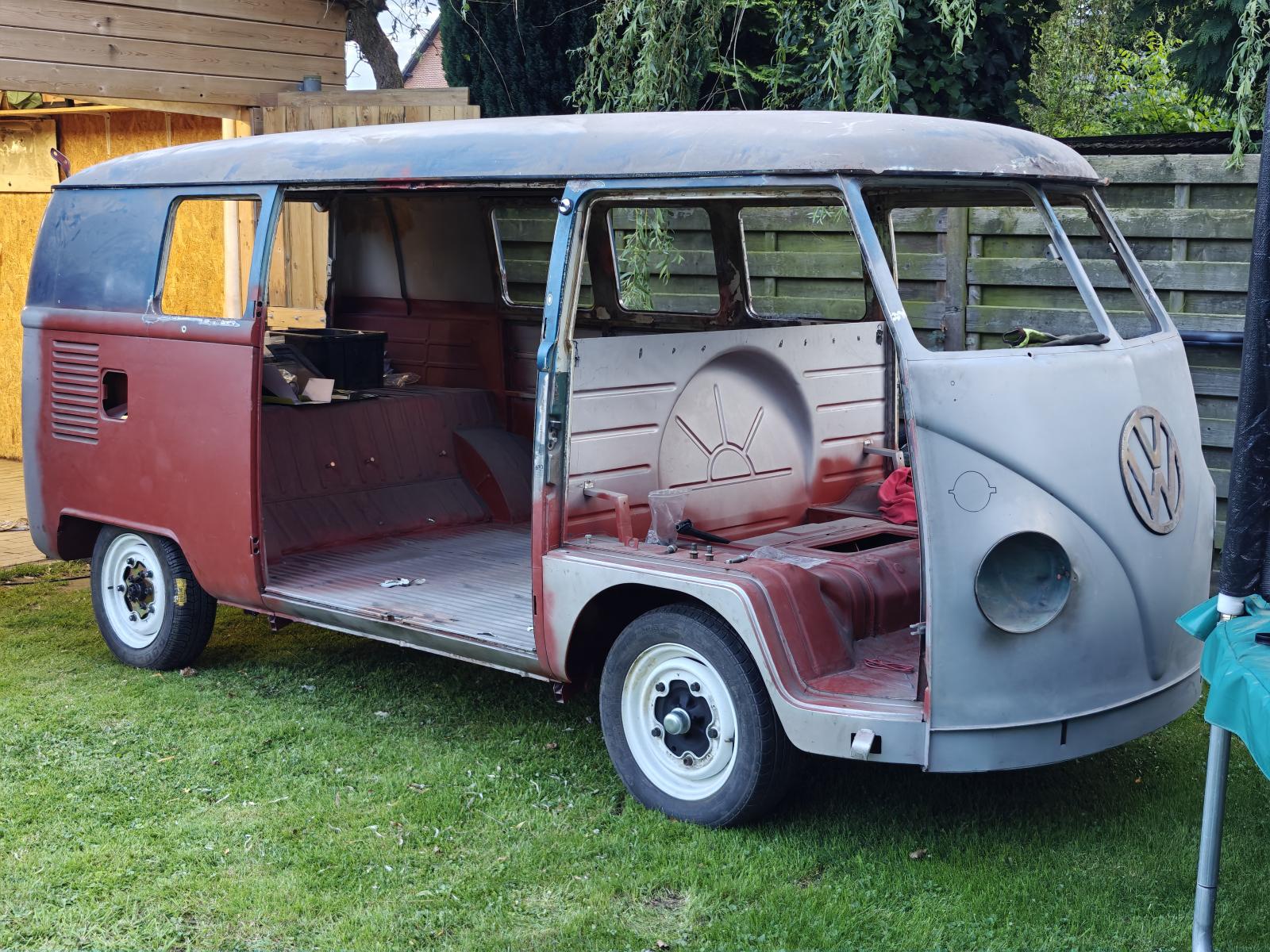

Installed everything and put the bus back on it's wheels.
Sun was shining so pushed it out for some pics!

Its been a while since the bus saw some sunlight!

_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Clatter]

Beast of a project!

Way to get after it, brother...
_________________
Bus Motor Build

I have excellent news for the world...
There is no such thing as patina.
It does not exist!

[Yannvanh]

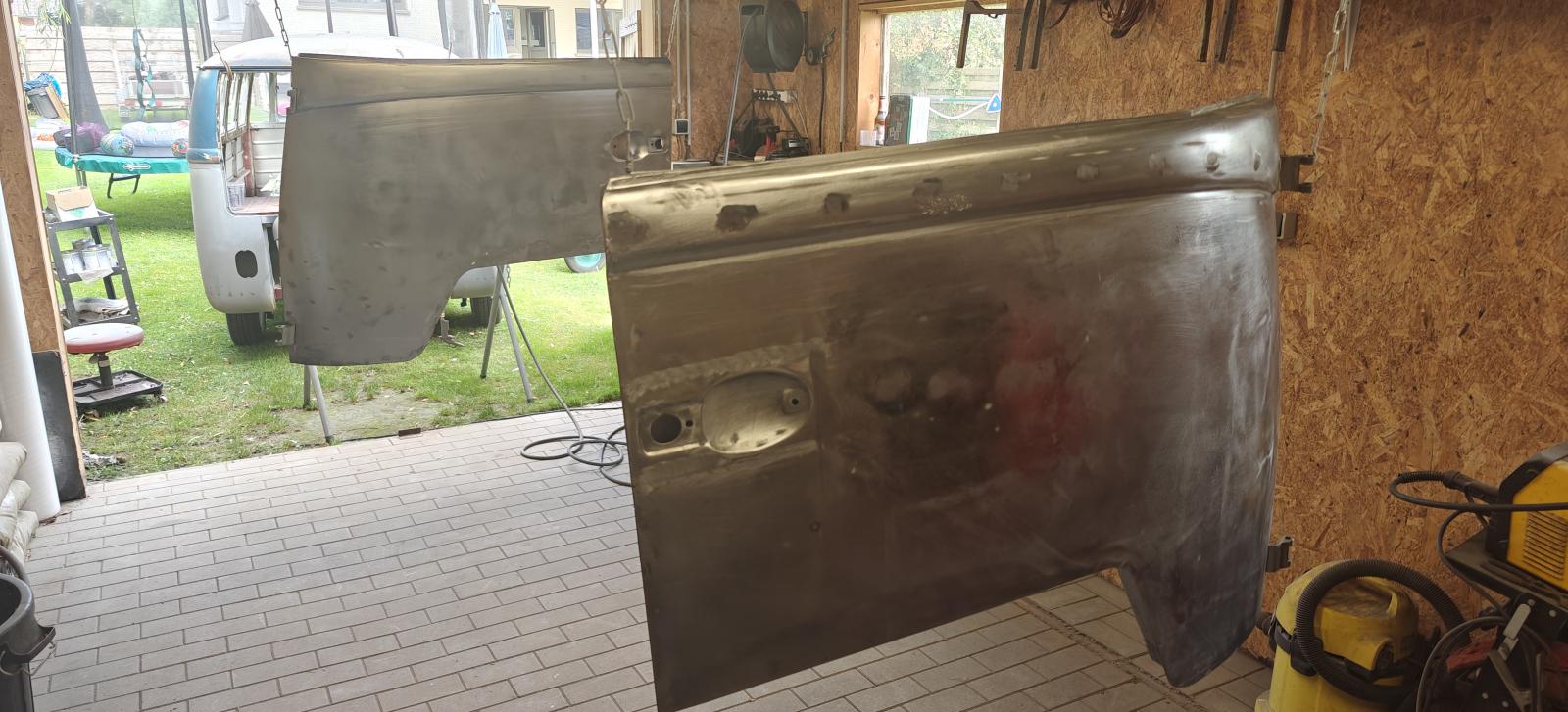

Time for epoxy!

Haven't got a lot of time last months due to kids school vacation and me and my girlfrien working different shifts.

But found some time tonput a couple of doors in epoxy!

_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

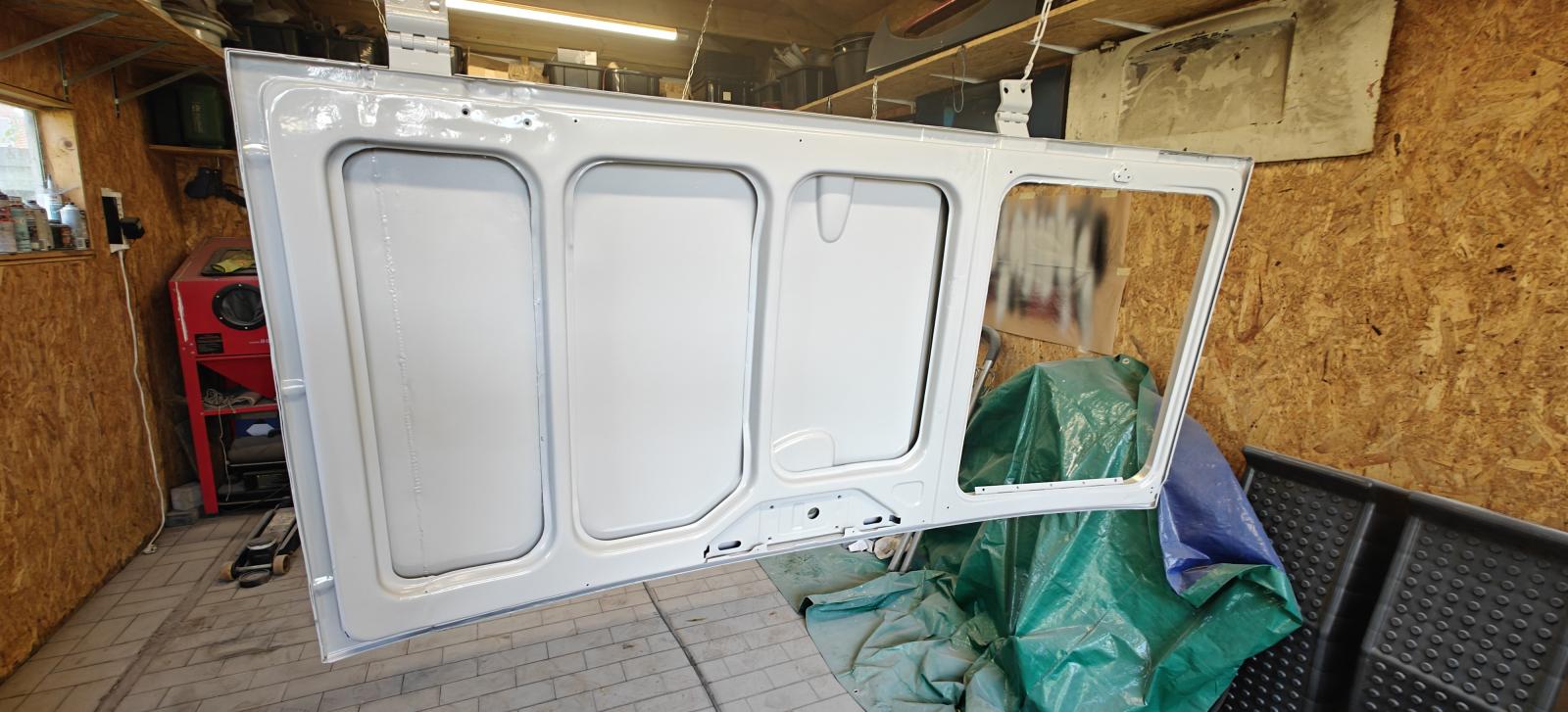

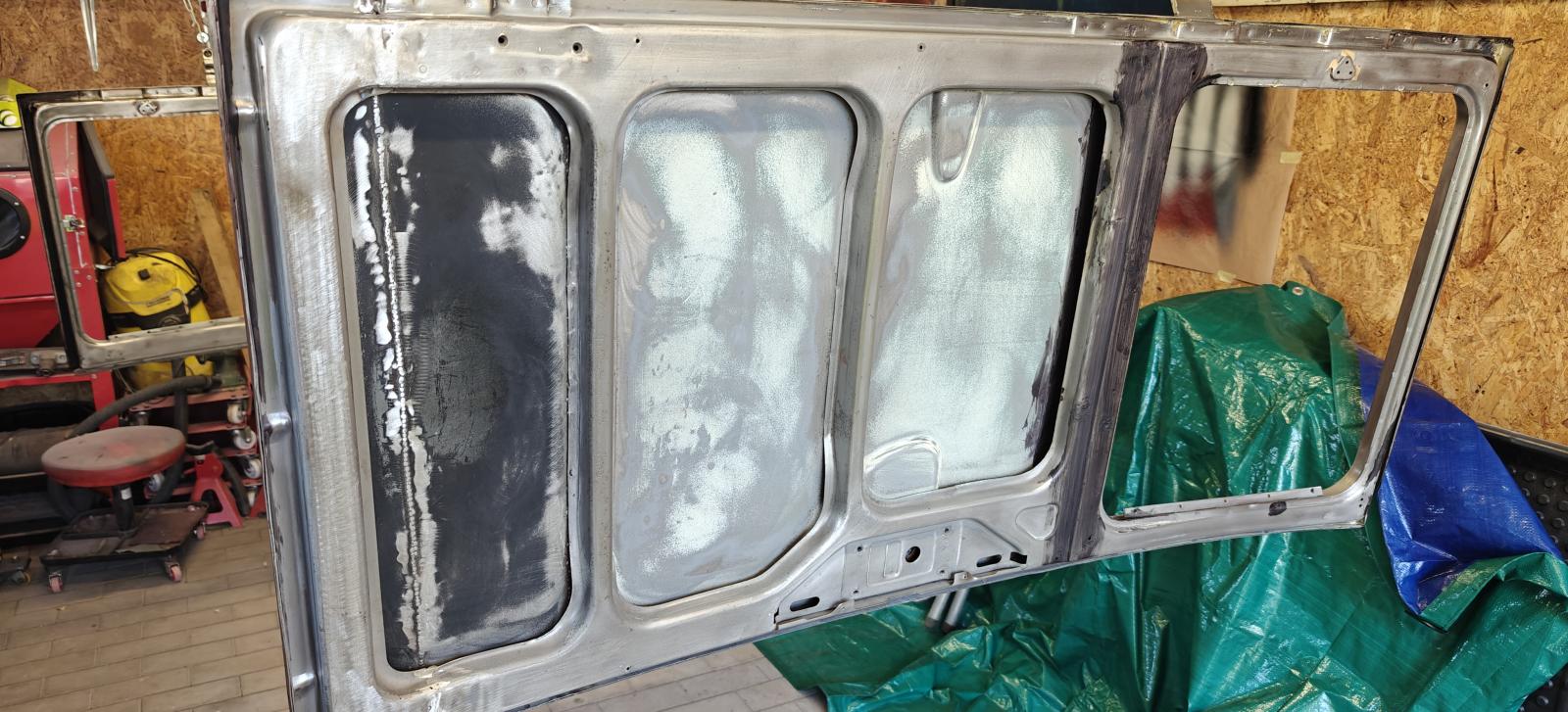

Some more doors and stuff in epoxy!

i am working my way around the bus because i need to spray the epoxy asap after sanding to bare metal.

We will get there in the end!

_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[oldbusboy]

Looking great!

Look forward to seeing the paint

Trevor
_________________
1958 kombi
1968 porsche

[Yannvanh]

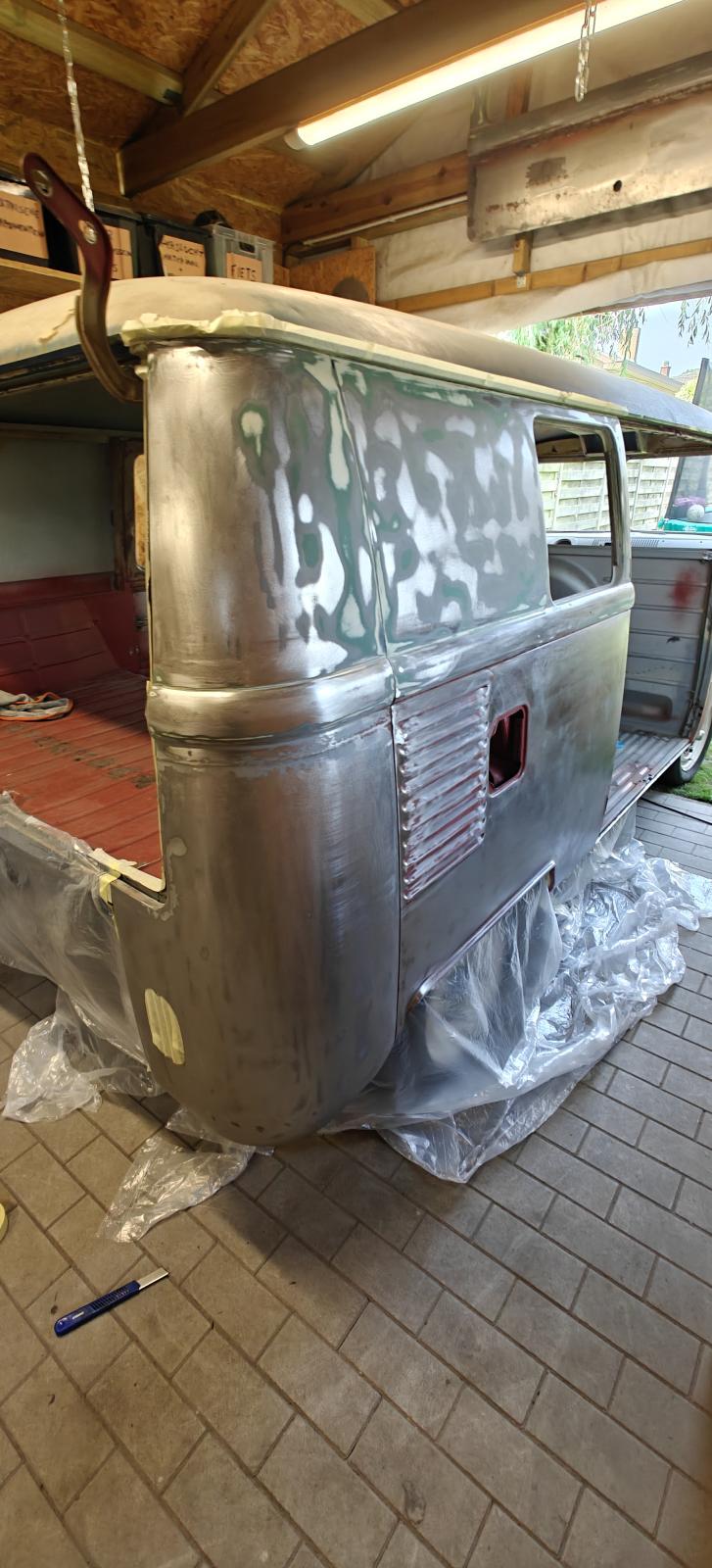

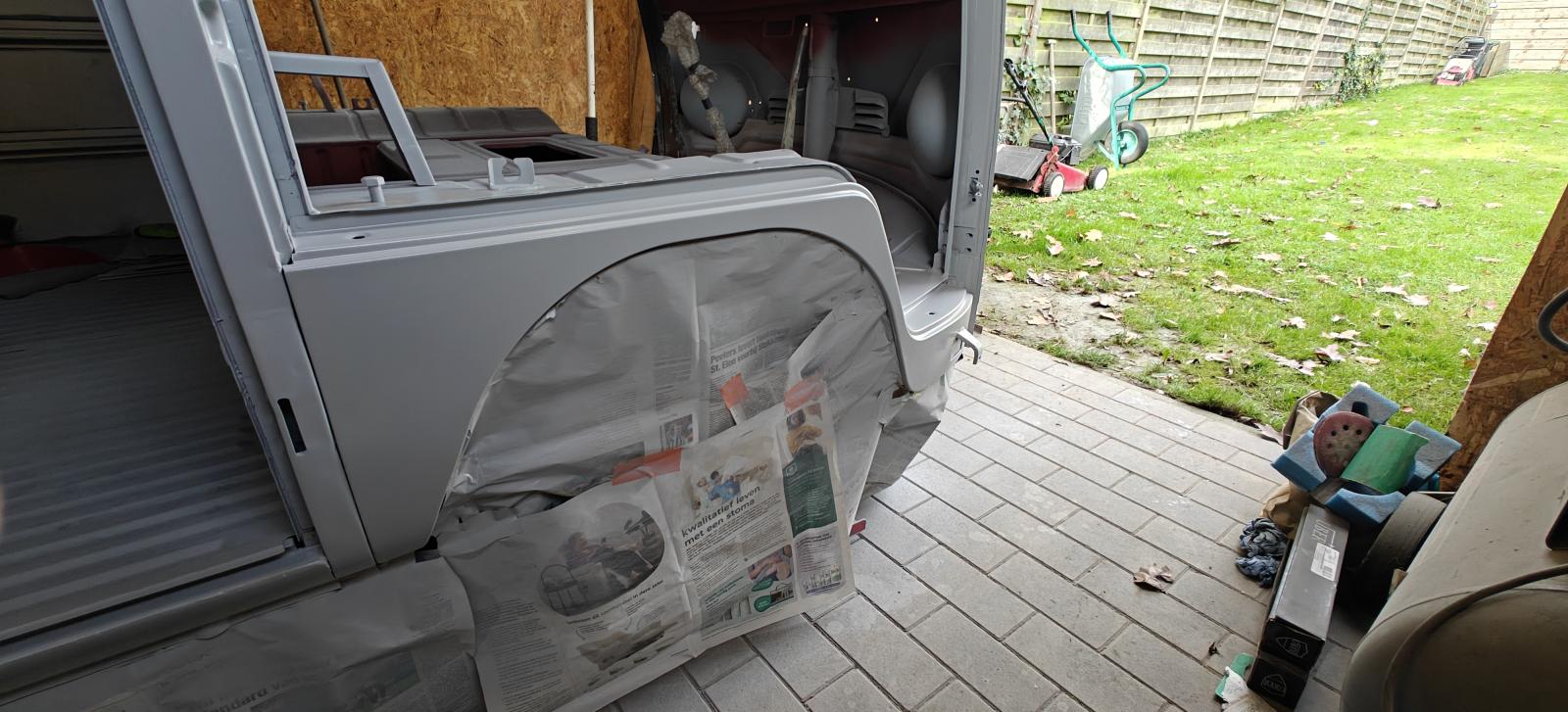

Long panel and corner also in epoxy,
Hope to do the front and inside before winter!

Also bought a complete 67 SO42 interior in great shape that i will be picking up by the end of next week!
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[BarryL]

You sure got that thing straight in bare metal.

Can't wait for Westy Interior parts photos.

[Yannvanh]

Yeah that's the advantage of needing a lot of new panels..

And that is why i decided to panel bond some panels, so it just needs a skim coat of filler to make it straight
_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

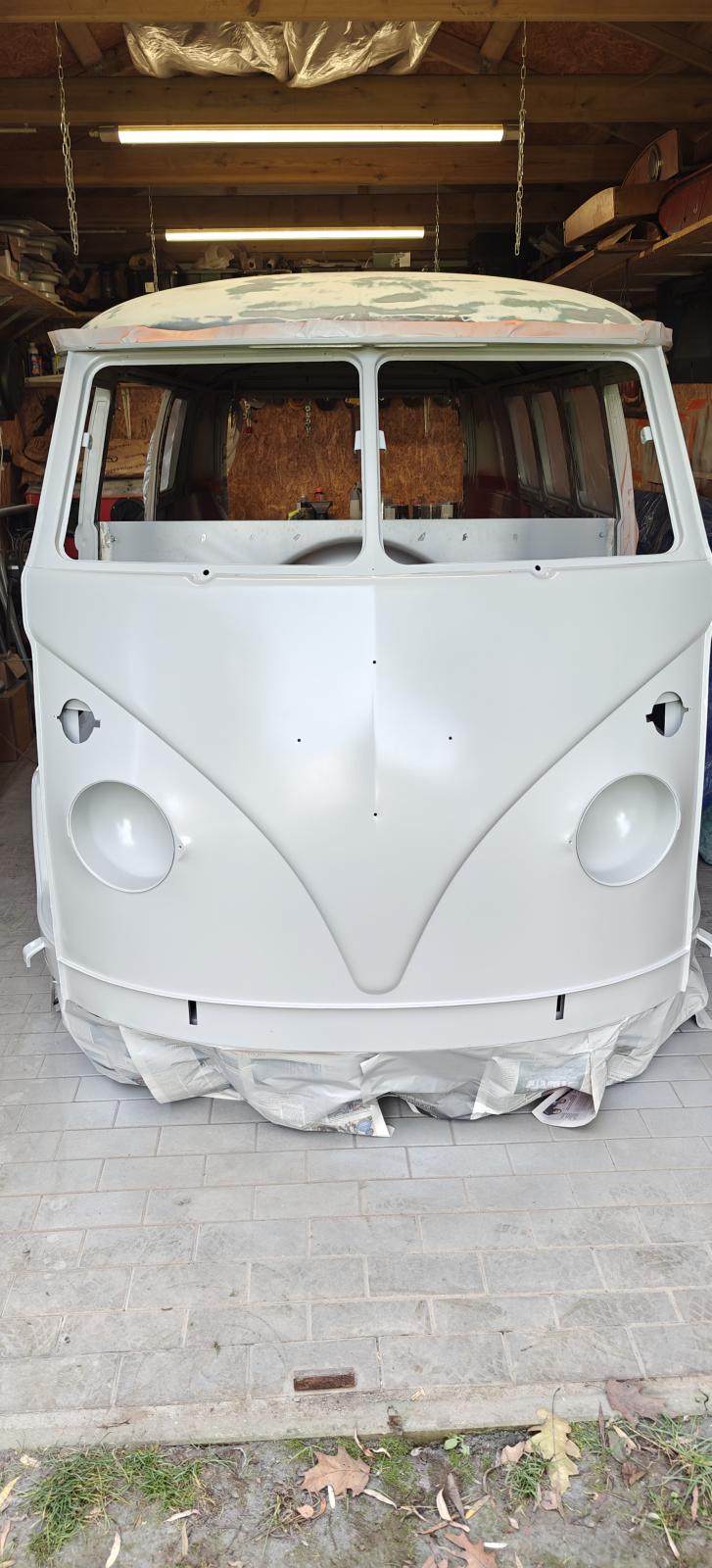

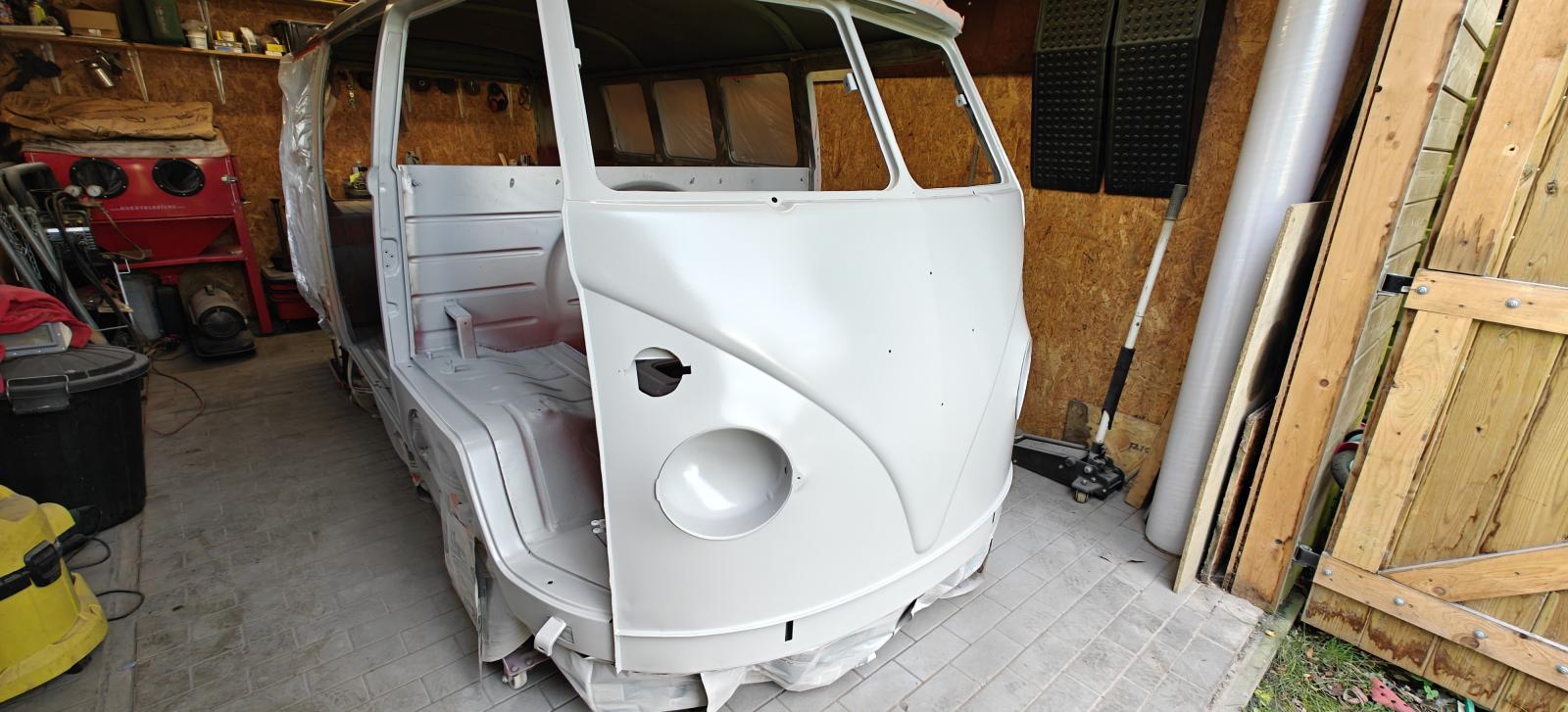

Front end also in epoxy and started to put all doors back on!

Crazy to see the bus in 1 color.. but it looks pretty nice!

_________________
'66 vw splitbus project:

https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

Instagram page:

yannicks_splitbus_project

Always there to help!

[Yannvanh]

i always liked the deluxe trim on a bus so now it is the perfect time to fit!

when finished i am gonna sand an paint the inside myself, i am not a pro but the cargo area gets fully covered by the so42 westfalia interior and the dash/visible metal gets a good buff and polish so its gonna look nice!

more updates to come!
