"Toasty" Goes Under The Knife.

57Drag · Posted: Sat Mar 01, 2008 5:17 pm Post subject:

Makes me want to go out and use that roof section I have had for over a year to fix my oval.Keep up the progress.
_________________
http://smg.photobucket.com/home/57Drag/index

Stuggi · Posted: Sat Mar 01, 2008 5:56 pm Post subject:

MercurialThing · Posted: Thu Mar 13, 2008 8:51 am Post subject: Heaters

In regard to cold garages, this past fall I got an oil filled radiant heater like this one: (http://www.amazon.com/DeLonghi-TRH0715-Filled-Radiator-Heater/dp/B000FT1XZW/ref=pd_sbs_k_title_5) Mine's a Kenwood but you get the idea. It was on sale at Home Depot or Lowe's or something for $25.

It's not going to heat the garage to 70-80 degrees, but it's good enough to take the chill off and make it 50-55 degrees. Plus, it's a radiant heater so there are no open electric elements to spark any flammable gases/dust.

Works very nicely and it was cheap. I prefer it a little cooler when I work anyway, so it works perfectly for me.

Just a thought.

Merc

mutineer · Samba Member Joined: June 26, 2007 Posts: 32

any warmer in the garage yet? Very Happy

Bobnotch · Posted: Sun Apr 13, 2008 8:15 pm Post subject:

Man that reminds me too much of what I went thru with my 71 Notch. Shocked

I think you're going about it all wrong though, as you should just get out a metabo (with plenty of blades) and cut that sucker up. I think you're trying to delay the inevitable, and seperate that thing into 3 pieces (pan, front clip, rear clip). You're most likely replacing both rocker sections in their entirety(sp?), so why not get busy and do it, it'll save you some work in the long run. You could use an engine lifter to help move the clip sections.
I know when I redid my dad's Thing for him, it wasn't near as rusty, (only the floors and the rear parcel tray sections were toast), but the fenders were rebuildable. It also had some smaller spots of rust in the areas where yours were covered by diamond plate. We (my son and I) only worked on it for 3.5 months, before it was done. Needless to say we didn't mess around, and just got busy getting after it.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120

Stuggi · Posted: Wed Oct 08, 2008 2:16 pm Post subject:

NEED UPDATE BEFORE THE WINTER COMES BACK AGAIN!!! ^^
_________________
Orange Bug

1970 Beetle
Green Bay Bus

1969 Panelvan

Orange VW Fest!
Pulled out of a Lake Fest!

WD-40 · Posted: Wed Oct 08, 2008 11:50 pm Post subject:

As soon as it got warm, he got flooded out of his house. Sad

Wouldn't it be ironic if he got a heater and made more progress this winter than in the summer? Very Happy

_________________
"The new Volkswagen 1303. We've made so many improvements, they're beginning to show."

Towel Rail · Posted: Sat May 16, 2009 1:52 am Post subject:

Ha, that would be! Yeah, after last year's late spring, then early-summer flooding, I never did get into "VW mood". On the plus side, the damage to my basement wasn't as bad as it could have been, and I've been driving the '67 a lot lately, so perhaps I'll get to work on the Thing soon.

Thanks for all the well-wishes! Cool

- Scott

P.S. Bob, I'm getting caught up on your Notch threads -- you made a lot of progress on it while I've been gone! Shocked

_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

caseydenise · Posted: Sat Jun 06, 2009 6:26 am Post subject:

How's "Toasty" doing?
_________________
Central Jersey Volkswagen Society - President

Towel Rail · Posted: Sun Jun 07, 2009 12:21 am Post subject:

So glad you asked! Laughing

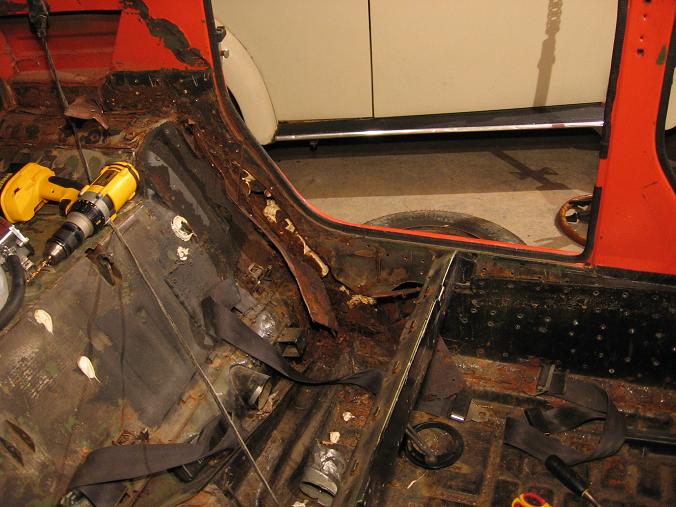

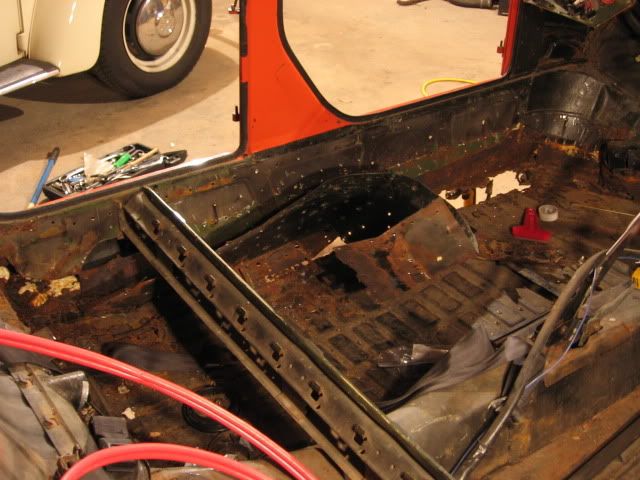

I got out my drill, some bits, and a little liquid courage and drilled out/chiseled off more of those pop rivets. Removed the steering column so it wouldn't be in my way.

Image may have been reduced in size. Click image to view fullscreen.

I still haven't gotten the largest pieces of the patch metal out of the way yet, but you can see how I can fold them out more:

It's wasted enough to drive a man to drink!

- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

Towel Rail · Posted: Sun Jun 07, 2009 12:40 am Post subject:

Oh. I also did some grinding to find out where the original rocker ends, and the patch piece begins.

Looks like the new piece is stitched right under the upper rib. When I bought the car, it was kind of neat because it reminded me of the original prototype 181's that only had one rib, but since this turned out to be so rotten, I'm just going to get new outer rocker skins.

- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

caseydenise · Posted: Sun Jun 07, 2009 7:13 pm Post subject:

Keep up the good work. Keep us posted. Very Happy

_________________
Central Jersey Volkswagen Society - President

WD-40 · Posted: Mon Jun 08, 2009 6:18 pm Post subject:

Towel Rail · Posted: Tue Jun 09, 2009 4:03 pm Post subject:

Towel Rail · Posted: Wed Jun 10, 2009 12:17 am Post subject:

MOAR GORE!!

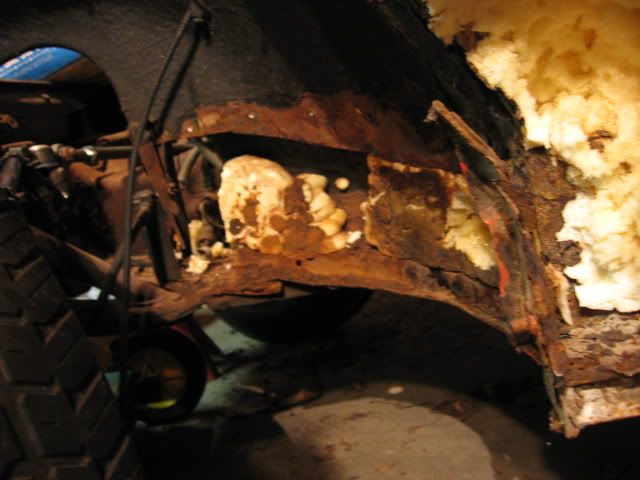

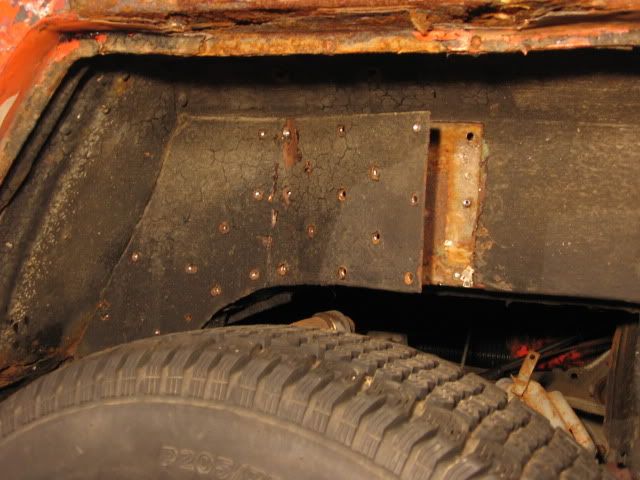

Imagine my surprise when I found that there were patches in the rear fender wells. I guess the undercoating was thick enough to fool me:

This patch piece truly was holding the rocker to the floor. I should start welding on the braces before I remove any more.

Removed the front left inner fender patch:

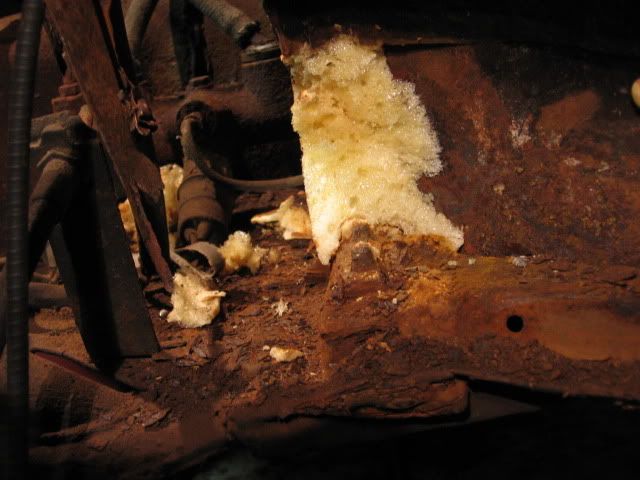

Guess I don't need to worry about undoing these chassis-to-body bolts:

BTW, I tried to remove one of the rear shock-mount-to-body bolts, and have nearly rounded the head over. Looks like I'll need to weld on some "help" to get it out.

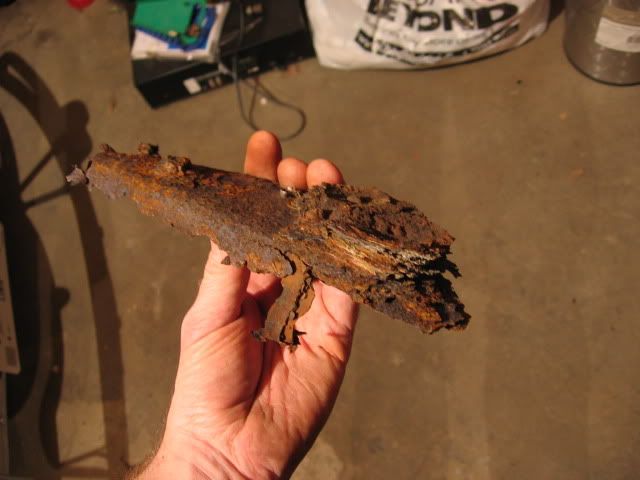

Finding chunks like this makes me feel like the guy who discovered the Titanic, only to find that it'll take more than some Wetsteel(tm) to bring it back to the surface...

- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

yellow73kubel · Posted: Wed Jun 10, 2009 6:59 am Post subject:

Now that is a project.. Shocked

Looks like the disassembly is progressing well, make sure to keep working on this one. One more Thing off of the junkyard list..

Towel Rail · Posted: Wed Jun 10, 2009 11:02 pm Post subject:

No pictures tonight, but I've made some baby-steps toward getting the body off. I removed nearly all of the patch that was holding the front end of the body to the pan. I bought some cut-off wheels for my Dremel, and I think that'll make the right-side rocker go a little smoother. (Buying all those drill bits was starting to add up!)

Bled out more of the brake fluid, drained off the reservoir, and capped off the hoses, so they don't connect to the master cylinder anymore...

Also, got both of the rear chassis-to-shock-mount bolts! My job was made much nicer when I noticed that the nuts weren't captive in the body, but were accessible from the inward side. Laughing

One of them came all the way out, the head of the other bolt broke off. Still a happy ending, and when I lifted on the rear end of the body, I got some more "give" along with some new creaking sounds. I'm getting really close to having the body off! Cool

Over and out,
- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

Towel Rail · Posted: Fri Jun 12, 2009 12:28 am Post subject:

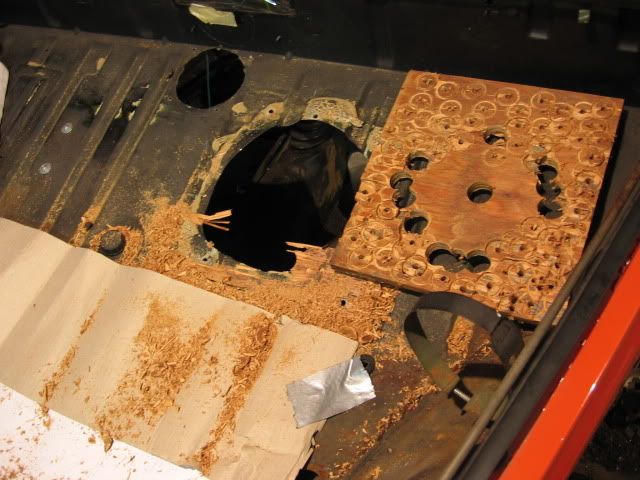

Got a couple things done today. Finally got rid of that audio crossover board in the trunk:

And removed the inner and outer patches on the front passenger side:

The picture doesn't show it well, but I've sliced through about half of the right inner rocker with the Dremel. My line is just under the lowest row of rivets.

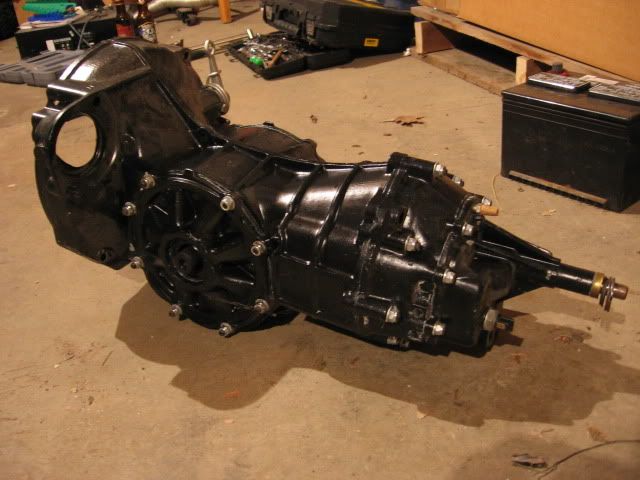

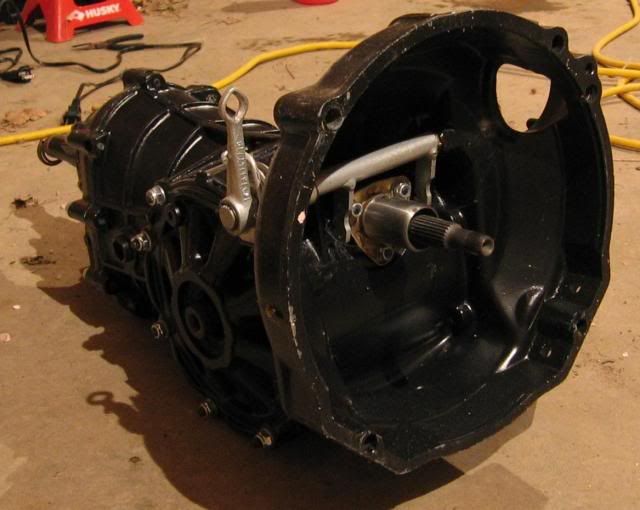

BTW, here's the new transmission:

It's a rebuilt unit from Transworks. You can't see it from the outside, but it's got a 0.94 fourth gear and a 4.37 R&P. According to my math, it should play nicely with the new tires.

On the right is one of the 205/75R14's that came with my car. On the left is a Nanco 7.0x15, which is roughly 3" taller. Cool

- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

Towel Rail · Posted: Fri Jun 12, 2009 3:55 pm Post subject:

Hooray, more new metal arrived today from EIS!

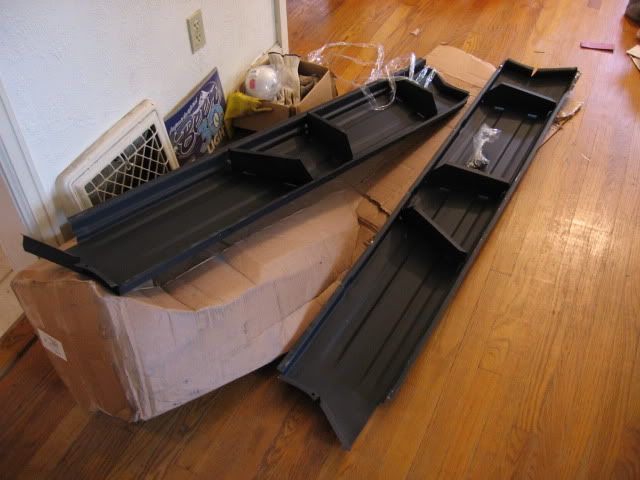

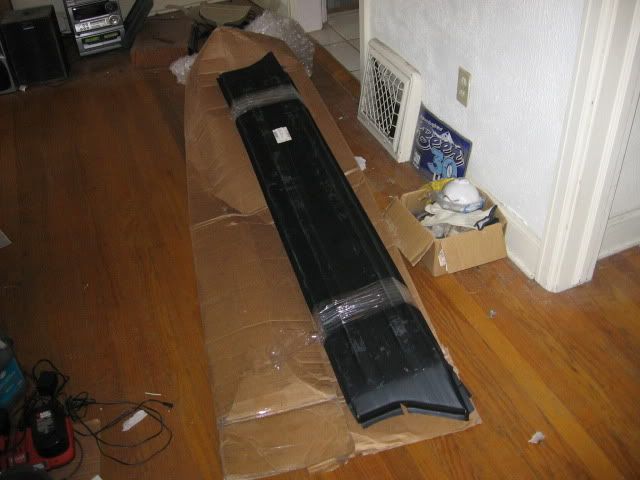

New Danish outer rocker skins. Very Happy

- Scott
_________________
1974 Thing -- under the knife
1967 Beetle -- spring/summer/fall driver
1996 Subaru OBW (EJ22, 5-speed, AWD) -- winter car, 3-seasons "don't feel like biking today" car

049 > 070 > 053 > 009

WD-40 · Posted: Fri Jun 12, 2009 11:50 pm Post subject:
